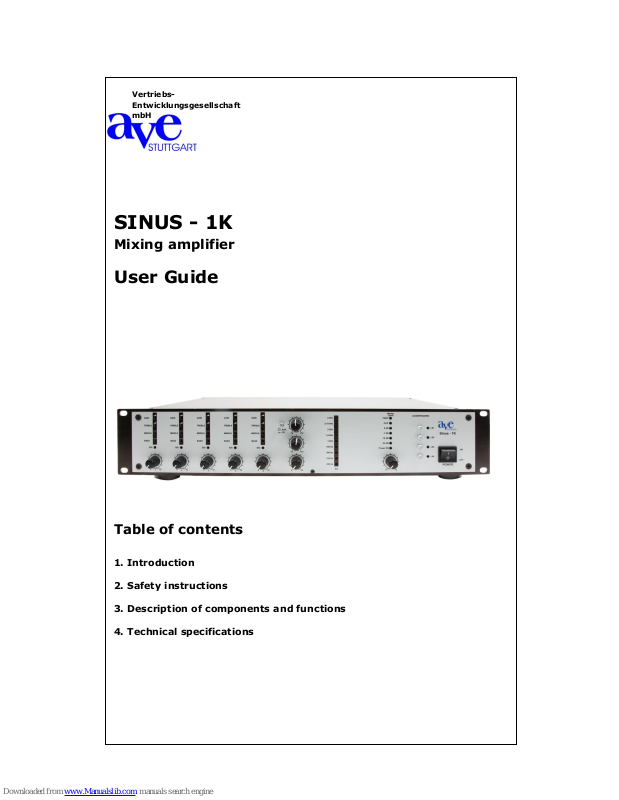

AVE SINUS - 1K, SINUS - 2K User Manual

Vertriebs­ Entwicklungsgesellschaft
mbH

SINUS - 1K

Mixing amplifier

User Guide

Table of contents

1. Introduction

2. Safety instructions

3. Description of components and functions

4. Technical specifications

1. Introduction

Thank you for choosing the A.V.E. mixing amplifier SINUS - 1K with five
microphone/line inputs and a switchable CD/Aux.-Input. It was designed particularly for
superior audio quality in churches as well as other utilizations with acoustically difficult
room proportions. It’s possible to achieve an optimized acoustic pattern every time.
Each microphone/line input is equipped with a Gain-controller, a 3-band equalizer,
indicators for volume and operating status. Additionally it’s equipped with a switchable
input (CD/Aux) with a separate treble- and bass control. A graphic 9-band equalizer
acts only on the inputs 1–5.

All signal sources can be controlled by master volume control. SINUS - 1K has a VU
meter and a clipping und protection indication.

Therefore SINUS – 1K is qualified to sound each kind of critical spaces.

2. Safety instructions

Please read the information provided in this manual before starting up the unit.

WITHIN THIS UNIT THERE IS DANGEROUS VOLTAGE PRESENT CONSTITUTING A RISK OF ELECTRIC SHOCK.
DO NOT OPEN THE COVER. INTERNAL MODIFICATIONS ARE TO BE COMPLETED BY AUTHORIZED

PERSONNEL ONLY.

The SINUS - 1K is equipped with an approved power cable. At one end there is a three­pole mains connection
socket (rubber connector) and at the other end a CE-standardized Schuko-socket to
connect to a 230 V/ 50 Hz voltage source. Please take care, not to damage these power
cords. Do not use any defective or damaged power cords!

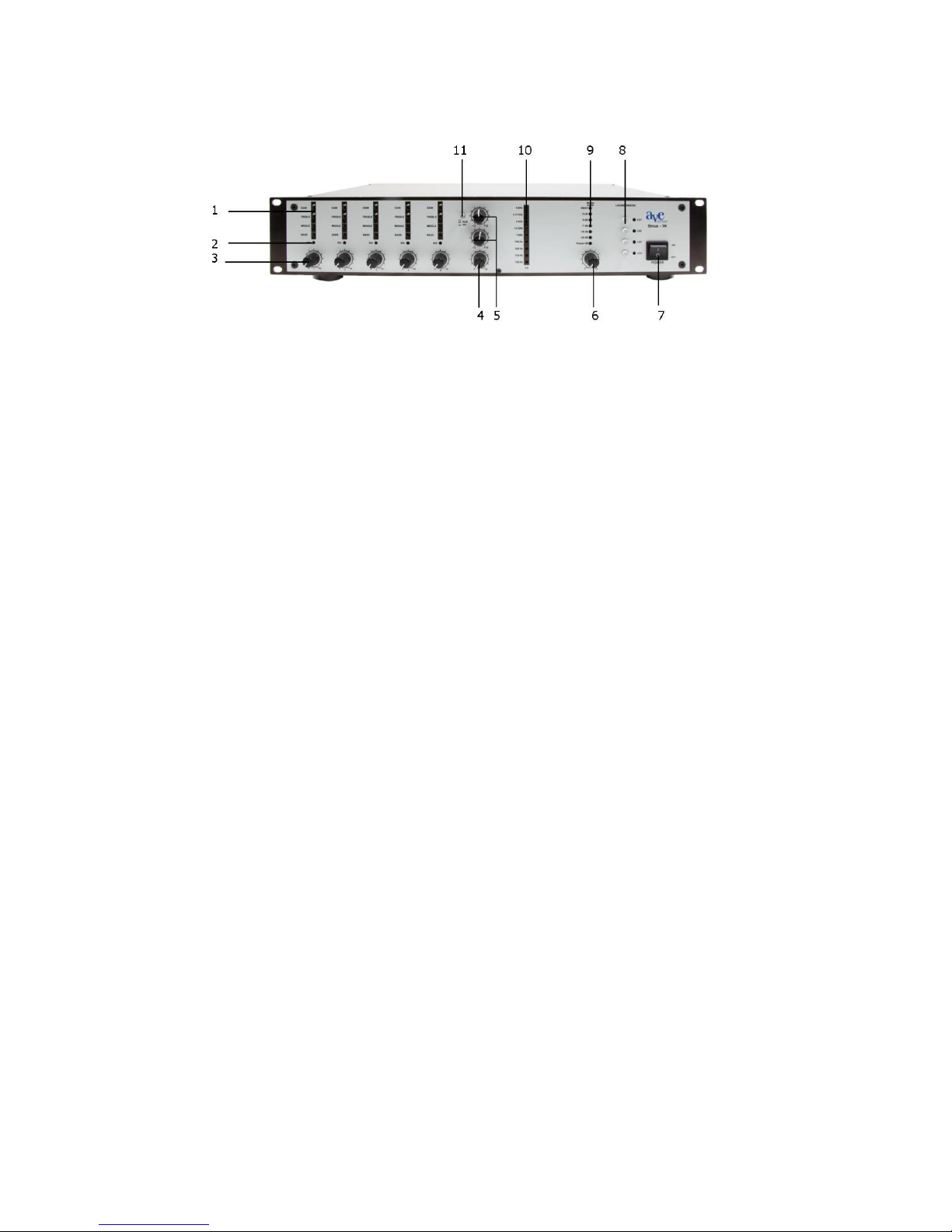

3. Description of components and their functions

1. Control dial for GAIN, THD, treble, middle and bass

The 4 potentiometers per channel allow following adjustments:

Gain: The Gain-controller customizes the amplification of the channel to the
level of the signal source of the input.
With the 3-band-equalizer (treble, middle and bass) the microphone is
adapted to the speaker to achieve an optimized sound.

Treble: ±12 dB at 10 kHz
Middle: ± 12 dB at 700 Hz
Bass: ± 12 dB at 70 Hz

2. Signal display (for channel 1 – 5):

Optical display of activated e.g. overdriven input.

3. Volume control (for channel 1 – 5):

With these volume controls all levels of the signal sources can be adjusted which
are plugged to the microphone/line-inputs (26). During installation by authorized
experts the optimized level will be marked with a sign.

4. Volume control for CD/Aux

5. Bass and treble control for CD/Aux

6. Master control

7. Power switch

8. 4 Output switches with optical display

9. VU meter, Out State display

Red: amplifier overdriven at input
Yellow: failure

When switching on the amplifier the LED flashes short time and disappears
afterwards.

10. Graphical 9-band equalizer

11. Channel switch CD/Aux:

Sound carrier selection. The reproducers can be connected at the backside.

12 11 10

13

1 2 3 4 5 6 7 8

1. PRE OUT 2 connection for additional amplifiers 0 dB.

2. Optional remote control

3. Sensitivity control AUX

4. Cinch-connection AUX

5. Cinch-connection CD

6. Cinch-connection for recording units

7. Direct OUT +6 dB:

Direct output without any signal processing. This output can be used for example
for transmission of the direct room settings to external rooms.

8. Level Direct OUT controls the volume oft he direct output.

9. DIP switch phantom power 48 V, line, micro low, micro high

10. Microphone/Line-inputs

11. Connection terminals for loudspeakers 1 – 4 (50, 70, 100 V, 4 Ohm)

12. Power supply

13. Fuse 3,15 A

Optional Remote Control

By insertion of the print
the possibility is given to
regulate the outputs from
distance.
Therefore jumper 11 must
be unsoldered.

Mute-Switch for all or
alternatively favoured
inputs. By removing or
jumper 1 - 6 you can obtain
that a favoured input is
active despite of mute­switch.

9

4. Technical Specifications

Line electronic balanced
Input sensitivity: -19 dBu  1dB
Frequency response: (-3dB): 40 Hz to 20 KHz

Microphone
Input sensitivity (mic high/mic low): -58 dBu/ -34 dBu ±1 dB
Frequency response (-3dB) input microphone: 160 Hz bis 20 KHz
CMMR: > 60 dB @ 1 kHz
THD-level: 20 dB
Hi-pass-filter: 160 Hz, 6 dB/oct
Phantom power: + 48 V for each input selectable

Equalizer
Treble: ±12 dB @ 10 kHz
Middle: ±12 dB @ 700 Hz
Bass: ±12 dB @ 70 Hz
LED-display: green (signal)

AUX/CD
Impedance AUX: 20 kΩ
Impedance CD: 27 kΩ
Input sensitivity AUX: -13 dBu/+3 dBu ± 1 dB
Input sensitivity CD: +3 dBu
Frequency response (-3dB) input CD/AUX: 20 Hz to 20 KHz

CD/AUX EQ
Bass: ±12 dB @ 100 Hz
Treble: ±12 dB @ 10 kHz

Outputs
Output impedance PREOUT 2: 140 Ω balanced; 70 Ω unbalanced
Output impedance PREOUT 2: 0 dBu
Output impedance DIRECT OUT: 140 Ω balanced; 70 Ω unbalanced
Output level DIRECT OUT: +9 dBu (variable potentiometer)
Output impedance REC: 70 Ω unbalanced
Output level REC: 0 dBu

Noise
Noise level OUT 2 (20 Hz – 20 kHz) master volume at 0: -95 dBu
Noise level OUT 2 (20 Hz – 20 KHz) master Volume max.: -80 dBu
Noise level CD/AUX (20 Hz – 20 KHz) master volume max.: -80 dBu
On Mic (20 Hz – 20 kHz) Rs = 150 Ω : -124 dBV

Output power
Output power: 1x150 W, 1x240 W
Output impedance: 50V/70V/100V
LED-display: yellow (dysfunction), red (overdriving)

General
Remote control: optional remote control for both outputs
Mute: Muting for each input
Operating voltage: 230 V~, 50-60 Hz
Power consumption: 80 W (1x150), 115 W (1x240)
Dimensions (W x H x D): 483 x 88 x 340 mm
Weight: 9,5 kg (1x150), 10,5 kg (1x240)

BEFORE OPENING THE UNIT, TURN IT OFF AND REMOVE THE POWER CORD.
ONLY THEN REMOVE THE SCREWS AND THE COVER.
