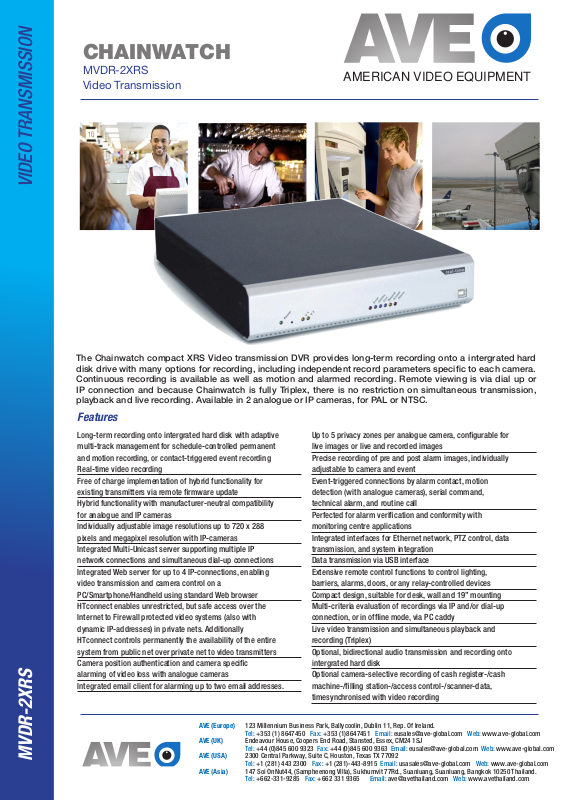

AVE MVDR-2XRS Specsheet

CHAINWATCH

MVDR-2XRS Video Transmission

AMERICAN VIDEO EQUIPMENT

The Chainwatch compact XRS Video transmission DVR provides long-term recording onto a intergrated hard disk drive with many options for recording, including independent record parameters speciﬁc to each camera. Continuous recording is available as well as motion and alarmed recording. Remote viewing is via dial up or IP connection and because Chainwatch is fully Triplex, there is no restriction on simultaneous transmission, playback and live recording. Available in 2 analogue or IP cameras, for PAL or NTSC.

Features

Long-term recording onto intergrated hard disk with adaptive multi-track management for schedule-controlled permanent and motion recording, or contact-triggered event recording Real-time video recording Free of charge implementation of hybrid functionality for existing transmitters via remote ﬁrmware update Hybrid functionality with manufacturer-neutral compatibility for analogue and IP cameras Individually adjustable image resolutions up to 720 x 288 pixels and megapixel resolution with IP-cameras Integrated Multi-Unicast server supporting multiple IP network connections and simultaneous dial-up connections Integrated Web server for up to 4 IP-connections, enabling video transmission and camera control on a PC/Smartphone/Handheld using standard Web browser HTconnect enables unrestricted, but safe access over the Internet to Firewall protected video systems (also with dynamic IP-addresses) in private nets. Additionally HTconnect controls permanently the availability of the entire system from public net over private net to video transmitters Camera position authentication and camera speciﬁc alarming of video loss with analogue cameras Integrated email client for alarming up to two email addresses.

Up to 5 privacy zones per analogue camera, conﬁgurable for live images or live and recorded images Precise recording of pre and post alarm images, individually adjustable to camera and event Event-triggered connections by alarm contact, motion detection (with analogue cameras), serial command, technical alarm, and routine call Perfected for alarm veriﬁcation and conformity with monitoring centre applications Integrated interfaces for Ethernet network, PTZ control, data transmission, and system integration Data transmission via USB interface Extensive remote control functions to control lighting, barriers, alarms, doors, or any relay-controlled devices Compact design, suitable for desk, wall and 19” mounting Multi-criteria evaluation of recordings via IP and/or dial-up connection, or in ofﬂine mode, via PC caddy Live video transmission and simultaneous playback and recording (Triplex) Optional, bidirectional audio transmission and recording onto intergrated hard disk Optional camera-selective recording of cash register-/cash machine-/ﬁlling station-/access control-/scanner-data, timesynchronised with video recording

MVDR-2XRS VIDEO TRANSMISSION

AVE (Europe) 123 Millennium Business Park, Ballycoolin, Dublin 11, Rep. Of Ireland.

Tel: +353 (1) 8647450 Fax: +353 (1)8647451 Email: eusales@ave-global.com Web: www.ave-global.com

AVE (UK) Endeavour House, Coopers End Road, Stansted, Essex, CM24 1SJ

Tel: +44 (0)845 600 9323 Fax: +44 (0)845 600 9363 Email: eusales@ave-global.com Web: www.ave-global.com

AVE (USA) 2300 Central Parkway, Suite C, Houston, Texas TX 77092

Tel: +1 (281) 443 2300 Fax: +1 (281)-443-8915 Email: usasales@ave-global.com Web: www.ave-global.com

AVE (Asia) 147 Soi OnNut44, (Sampheenong Villa), Sukhumvit 77Rd., Suanluang, Suanluang, Bangkok 10250 Thailand.

Tel: +662-331-9285 Fax: +662 331 9365 Email: ave@avethailand.com Web: www.avethailand.com

CHAINWATCH

MVDR-2XRS Video Transmission

Video

Video standard: CCIR/PAL and EIA/NTSC (analogue), dependant on IP camera (digital) Video compression: Device internal with HTcompress1 (M-JPEG differential compression with adjustable compression factor per Camera) Picture formats: With IP camera dependant on model: standard to megapixel resolution;with analogue cameras: Transmission: 720 x 288, 512 x 256, 256 x 128, 128 x 80 pixels and 16 Bit colour depth,

Audio (Optional)

AMERICAN VIDEO EQUIPMENT

Video inputs: 2 x CVBS (BNC), 1 Vpp/75 Ohm with loop through outputs (auto-termination) Video output: Camera switcher with manual, alarm and sequence control; 1 x CVBS (BNC), 1 Vpp/75 Ohm Motion Detection: Selectable per camera with adjustable detection zones for alarm transmission and event-triggered recording (HDD) Signal monitoring: Video signal monitoring (sync. and picture content) for all cameras

Genera:l Optional plugin-module (Audio Card) for bidirectional audio transmission and recording Audio compression: SPEEX Codec, 16Bit, 80-8000 Hz

Transmission, Recording

General Video: and audio transmission, recording and playback at the same time; online evaluation via local and remote receiver station or ofﬂine via removable HDD MultiCast / Unicast: Up to 6 IP or 5 IP and 1 dial-up Connections 4 IP and 2 dial-up connections simultaneously Web server: Up to 4 IP connections via PC, Smartphone, PDA browser Video transmission: Up to real-time via IP (LAN/WLAN, Imternet, (of Live and recorded images) DSL, GPRS, HSDPA, CDMA, UMTS, EDGE) and dial-up (PSTN/POTS, ISDN, GSM, HCSD) Recording speed: real-time recording in total depending on compresssion, image content and Bit rate Recording media: removable (E)IDE drive (160, 320, 500 or 1000 GByte) with adaptive track management (4 or 10 tracks) Initiation Trigger: Dry contact, built-in motion detection, serial command and timer based calender

Audio inputs: 1 x line in (0-2 Vpp, nominal 0.775 Vpp) or Mic in (electret or electrostatic microphone) Audio output :1 x line out (0-2 Vpp, nominal 0.775 Vpp) and 1 speaker out (1 Watt/8 Ohm)

Pricacy Zones: Up to 5 privacy zones per camera; options for each camera: live or live and recorded images Recording modes Image sequence, up to 50,000 events per camera with pre- and post alarm, continuous recording, all modes in conjunction with built-in timer based calender Recording intervall: Event recording: intervall=0-999s and duration=1-999s separately adjustable for pre- and post alarm; Continious recording: intervall=0-999s timer controlled (event optimised recording possible) (value “0”= as fast as possible) Callback: Automatic callback to pre-programmed receiver stations with CamControl software
