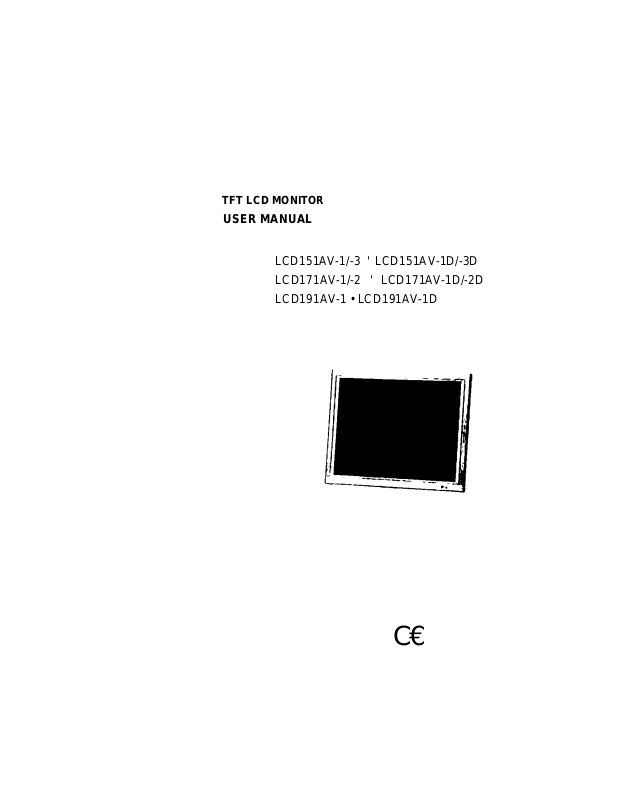

TFT LCD MONITOR
USER MANUAL
LCD151AV-1/-3 ' LCD151AV-1D/-3D
LCD171AV-1/-2 ' LCD171AV-1D/-2D
LCD191AV-1 • LCD191AV-1D
C€
Page 2
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION:
CAUTION
nitKO# CtCCYRiC »««UC«
OOMQTOPKH
CAUItON TOREOUCeT>«ERI$KOfELeCTft<C SHOCK.
00 NOT ftEUOVE COVEON BACK)
NO USER'SEftVICEAOlE PARIS IN SIRE
REFER SERVICMO TOQUALlFlEO SERVICE PERSONNCl.
Explanation of Graphical Symbols
Tho lightnmg (lash with arrowhead symbol, wiihin an eouilaioral (rtanglo. is intendod
lo alert the user to tho prosonco of uninsulated *dano«rous vollage* within Ihe product's
enclosure that may bo of siifficleni magnitude to constilute a risk ol electric
shock to persons.
The exclamation point vnthin an oqinlatcral mangle is intended to alert the user to the
presence of Impodanl operating and maintenance (servicing) instniclions in the
literature accompanying the product
Precautions
Safety
.............
.
Should any liquid or solid object fall into ihe
cabinet, unplug the unit and have it checked
by the qualified personnel before operating it
any further.
Unplug the unit from the wall outlet If it is
not going to be used for several days or more.
Todisconnecl the cord, pull it out by the plug.
Never puli the cord itself.
Allow adequate air circulation to prevent
internal heat built-up. Do not place the unit on
surfacesfrugs. blankets, etc.) or near materials
(curtains.draperies) that may block the
ventilation holes.
Installation*
Do not install Ihe unit in an extremely hot or humid
place or in a place subject lo excessive dust or
mechanical vibration.
The unit is not designed to be waterproof.
Exposure lo rain or water may damage the unit.
Cleaning*
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong
solvents such as thinner or benzine as they might
damage the finish of the unit.
Retain the original carton and packing materials
for safe transport of this unit in the future.
Page 3
Safety Precautions
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits fora
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions,may cause harmful interference to radio communications.
However.there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver Is connected.
Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved
by that party responsible for compliance could void your authority to
operate the equipment.
This device complies with Part 15 FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference
that may cause undesired
Page 4
Table Of Contents
Warning.............................................................................................................]
Safety Precautions............................................................................................2
Table Of Contents.............................................................................................3
Features............................................................................................................ 4—5
Operating Instruction........................................................................................ 5
Connections..................................................................................................... 7
OSD Architecture............................................................................................. 8
A. Audio Function........................................................................................... 8
B. Video Function........................................................................................... 9*^10
C. Image Function(PC Mode)
LCD Monitor Mounting guide
...........................................................................
..........................................................................
11
1 2
Connecting Device............................................................................................ 12
Specification...................................................................................................... 14
Appendixes........................................................................................................ 15
Remote Control................................................................................................ 16
Page 5
LCD151AV-1/-3,LCD151AV-1 P/-3D
• Compatible with VGA (640 x 480), SVGA (800 x 600).XGA(1024x768)
• Support vertical refresh rate up to 75 Hz for VGA. SVGA.XGA
• Automatic or manual detection of separate synchronize and
composite synchronize of VGA signal
• 15-inch LCD monitor with multiple inputs. (Composite video.
Y/C and D-sub computer)
• LCD151-1 High brightness of 250 cd/ni
LCD151-3 High brightness of 400 cd/ni
• LCD 151AV-1D/-3D with 3D comb Filter.
• High contrast 400:1.
• High quality Horizontal and Vertical Scaling with 2D De-interlacing for Display
• Wide viewing of 135* *. vertical and 160* horizontal(CH-151AV-3/-3D).
• Fast LCD response time of 12ms.
• Video input support NTSC / PAL standard.
• Built-in high precision Y/C Input signal.
• Video out support auto termination (75 Ohms).
• Audio live-out function with stereo phone Jack output.
• Build-in 2W+2W speaker.
• Support IR remote controller.
• VESA standard (100mm x 100mm ) bracket.
• Wail mountable capability.
• Compatible with V6A(640x 480), SVGA(800x600).XGA(1024x768).SXGA(1280x1024)
• Support vertical refresh rate up to 75 Hz for VGA, SVGA.XGA.(SXGA60HZ)
• Automatic or manual detection of separate synchronize and
composite synchronize of VGAsignal
• 17-inch LCD monitorwilh multiple inputs. (Composite video.
Y/C and D-sub computer)
• LCD171 High brightness of 300 cd/ni
• LCD171 High brightness of 400 cd/rri
• LCD171 AV-1 D/-2D with 3D comb filter
• High contrast 500:1.
• High quality Horizontal and Vertical Scaling with 2D De-interlacing for Display
• Wide viewing of 140', vertical and 140' horizontal.
• Fast LCD response time of Sms.
• Video input support NTSC / PAL standard.
• Built-in high precision Y/C Input signal.
• Video out support auto termination (75 Ohms).
• Audio live-out function with stereo phone Jack output.
• Build-in 2W+2W speaker.
• Support IR remote controller.
• VESAstandard (100mm x 100mm) bracket.
^ Wall mountable capability. 4
Page 6
LCD191AV-1.LCD191AV-1D
Compatible with VGA(640 x 480). SVGA (800 x 600).XGA(1024x768).SXGA(l280x1024)
Support vertical refresh rate up to 75 Hz for VGA, SVGA.XGA.(SXGA60HZ)
Automatic or manual detection of separate synchronize and
composite synchronize ofVGAsignal
19-inch LCD monitorwith multiple inputs. (Composite video,
Y/C and D-sub computer)
High brightness of 300 cd/in
LCD 191AV-1D with 3D comb filter
High contrast 700:1.
High quality Horizontal and Vertical Scaling with 2D De-interlacing for Display
Wide viewing of 160*, vertical and 160' horizontal.
Fast LCD response time ofSms.
Video input support NTSC/ PAL standard.
Built-in high precision Y/C Input signal.
Video out support auto termination (75 Ohms).
Audio live-out function with stereo phone Jack output.
Build-in 2W+2W speaker.
Support IR remote controller.
VESA standard ( 100mm x 100mm ) bracket.
Wall mountable capability.
Page 7
Operating Instructions-Control
17
1. Power
Monitor power ON / OFF. At OFF mode, monitor will be at
standby status.
LED-Green Light — Power On
Red Light -- Standby mode
2.3. Adjust <? I C>
Increase or decrease the value on OSD menu.
<5 Increase value on the OSD Menu or turn ON / OFF function.
Decrease value on the OSD Menu or turn ON / OFF function,
4. Item
Chose sub menu from Audio/Video.
Press again to enter selected option.
5. Menu
OSD menu ON / OFF control.
6. Source
Select input signal from AV1, AV2, S-Video or PC.
Page 8
Connections
--
a
A-
A
A-
o
s
©
Si .
Q
fiu
0
P ^ ^
^ ^ 6
^ f
F 11
^ 1
AUDIO 2 OUT
1
Audio looping outputs for AUDIO 2
2
AUDIO 2 IN
Audio Signal Input, this input
is forAV2, PC or Y/C (refer to Note below)
■> ^ 3
AUDIO 1 OUT
Audio looping outputs for AUDIO 1
AUDIO 1 IN
Audio Signal Input, this input isfor AV1
Y/C IN(S-Video)
Y/C separated signal Input
VIDEO 2 OUT
Video looping output for VIDEO 2
r H ^
VIDEO 2 IN
Composite signal Input for VIDEO 2
VIDEO 1 OUT
Video looping output for VIDEO 1
VIDEO 1 IN
Composite signal Input for V1DE01
10 Regulated DC12V Power Input
11
11 AUDIO LIVE OUT
NOTE :
Connections of Audio
Audio 1
PC
AVI
AV2
S-Video
V
Audio 2
V
V
V
12
12 PC VGA IN
Page 9
OSD Architecture

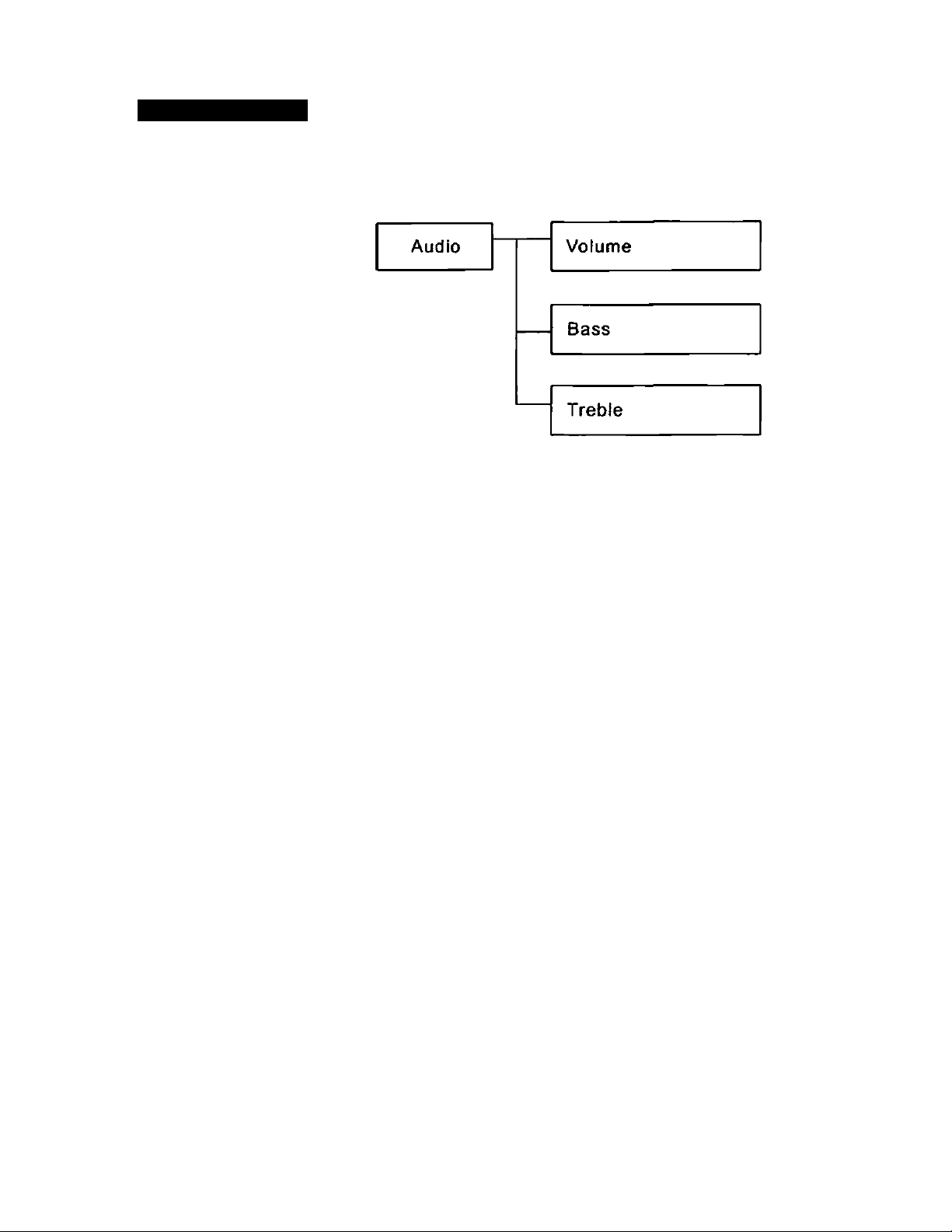

A. Audio Function
Press the MENU button to bring up the OSD Menu.
Press O i> to select AUDIO. Then, press ITEM to choose
functions that require adjustments.
As shown, press <j o key to adjust.
Note: In remote control, press ® key to adjust
(After adjustment, the monitor will store new settings)
Volume
Controls built-in speakers’ output volumes.
Bass
Audio bass adjustment.
Treble
Audio treble adjustment.
Page 10
B. Video Function
Under AV1, AV2. S-Video mode:
Press the MENU button to bring up the OSD Menu.
Press <i C> to select VIDEO. Then, press ITEM to choose
functions that require proper adjustments.
As shown, press <i C> key to adjust.
Note: tn remote control, press ® key to adjust.
(After adjustment, the monitor will store new settings)
Page 11
Contrast
Brightness
Color
Permits adjustment for contrast between light or dark areas of
the picture.
Example:
_______________________________
Setting
Slide bar
Adjusts the overall picture shade and brightness.
Tip: Use the Brightness to make details in the dark areas
of the picture to be just visible, and Contrast to
"brighten" the picture without causing noises and
foreheads to turn white.
Adds coloring to the black and white picture content (of a
color signal), and is usually set for viewer's preference in
color saturation.
TINT
Adjust all the colors on the screen, but is most noticeable to
the eye in reds and yellows, and is also usually set for
pleasing face tones.
Note: Appears in NTSC mode only.
Sharpness
Sets the desired sharpening enhancement to the picture.
3D Comb (Option)
Sets the desired comb filter function to ON or OFF..
10
Page 12
C. Video Function (PC Mode Only)
Under Image mode:
Press the MENU button to bring up the OSD Menu.
Press<i C>again to select IMAGE. Then, press ITEM to choose
functions that require proper adjustments.
As shown, press <J O key to adjust.
Note: in remote control, press ® key to adjust.
(After adjustment, the monitor will store new settings)
11
Page 13

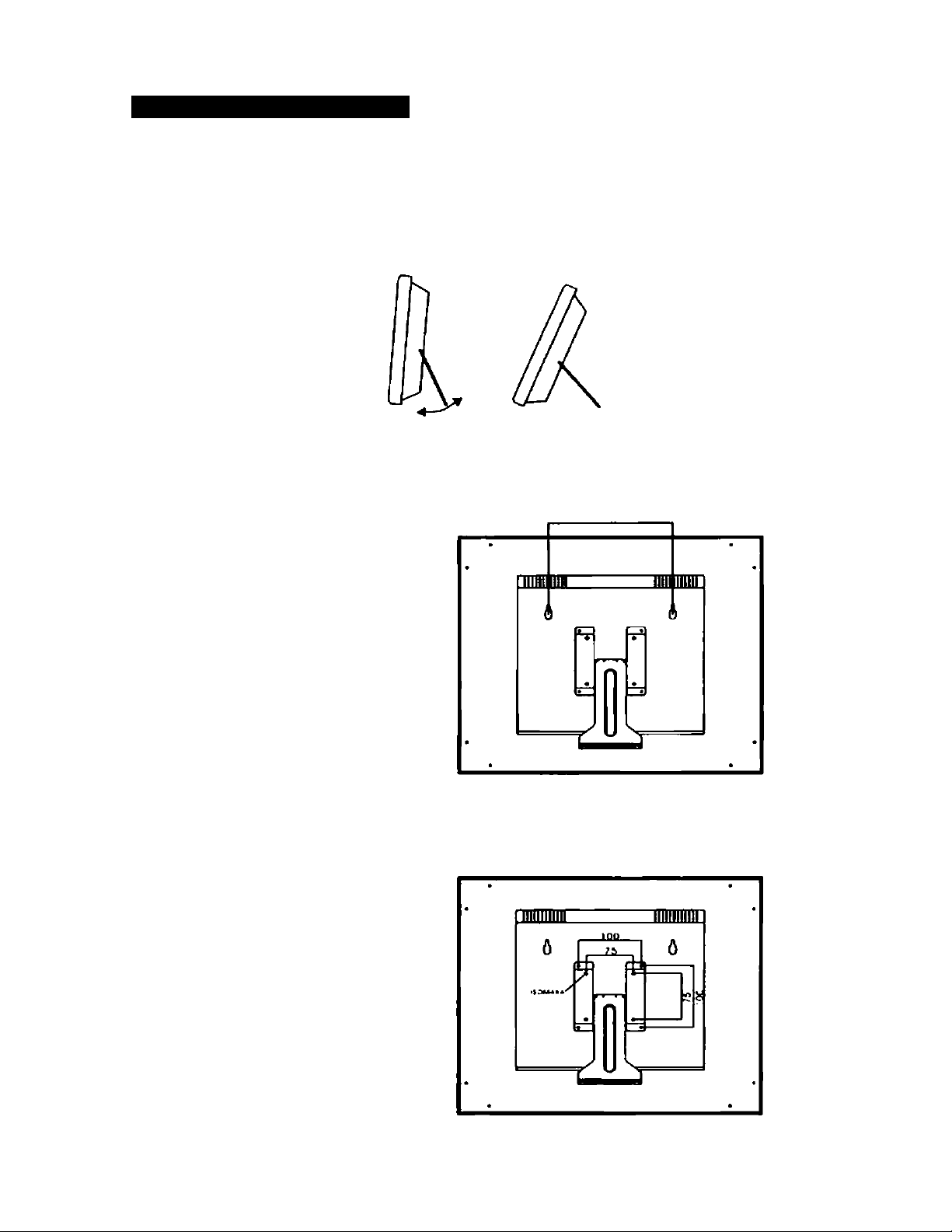

LCD monitor Mounting Guide
A. Desktop
Adjust the viewing angle of LCD to fit most comfortable monitoring status.
B. Wall mount
Free your space with wall mount design.
Please follow the fix-hole size in back panel to install the-LCD to the wall.
200
C. VESA Bracket
12
Page 14

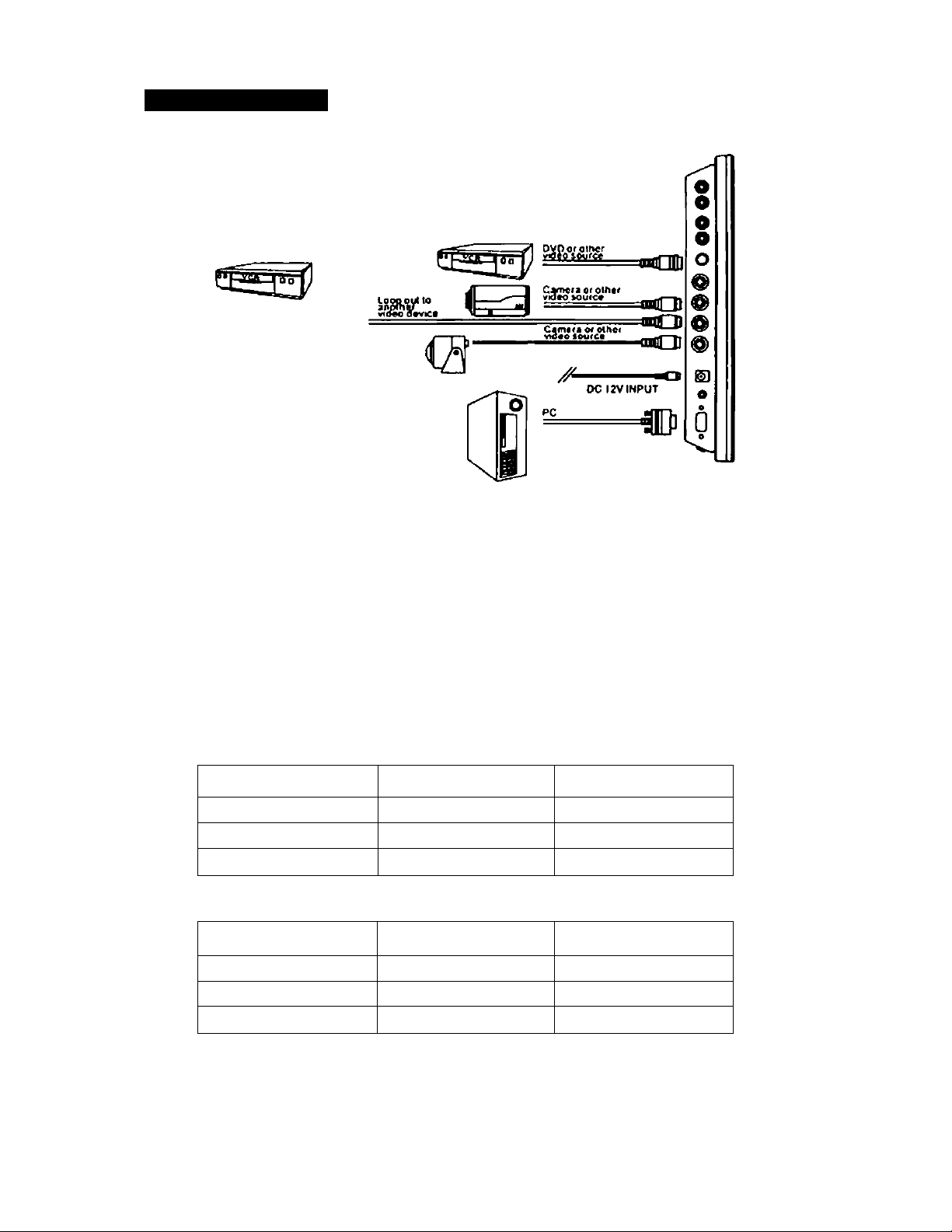

Connecting Device
I
a. Connect PC to Monitor through VGA connector as shown on the above
b. Connect External device such as DVD or Game Playerto Monitor as
shown on the above picture
c. Connect CCD Camera 1 and 2 to Monitor through Video Input 1 and 2
(BNC Connect) as showing on the above picture
D. Support Resolution
640x480 60Hz
640x480 72Hz
640x480 75Hz
640x480 60Hz
640x480 72Hz
640x480 75Hz
800x600 56Hz 1024x768 60Hz
800x600 70Hz 1024x768 70Hz
800x600 72Hz 1024x768 75Hz
800x600 75Hz
800x600 56Hz
800x600 70Hz 1024x768 70Hz
800x600 72Hz 1024x768 75Hz
800x600 75Hz
1024x768 60Hz
1280x1024 60Hz
13
Page 15
specification
Model
LCD Panel
Display Colors
Display area
Resolution
Brightness
Contrast Ratio
Response Time
View angle
Comb Filter
Input Signal
Audio In/Out
Operating
L/R
U/D
LCD151AV
•1MD -3/-3D -1MD -2/-2D -1MD
15-TFTLCD
26 M
304.128 x228.096mm
1024x768 (XGA)
250cd/m*
12 ms{Tr+lf)
t80l:up)/55l[Down)
2D/30
1.0 Vp-p Composite jBNCx2 Input
VGA
S-Video
400cd/m
500:1 typ.
0
Ì80
2D/3D 2D/3D 2D/3D
---------------------------
---------------------
Power ON/OFF OSD Control Function
300cd/rh
^BNC X 2 Output (Auto Termination)
D-Sub iSPin input
[-4 Pin Min Din X 1 Input
^4 Pin Min Din X 1 Output
RCAx 2 set Input
RCAx 2 set Output 2Wx2W/8ohm
LC0171AV LCD191AV
17* TFT LCD 19*'TFT LCD
16.2M
337.92 x 270.336mm 336 32x301.06mm
1280X 1024 (SXGA)
400cd/ni 300cd/ni
500:1 typ. 700:1 typ
8ms(Tr+lf) 6ms(Tr+tf)
±70“
±70“(up)/70“(Down)
t80“
80“
2D/3D
Power Supply
Power Consumption
Dimension
Weight
Temperature -lO'SOt
Humidity
W/Power Adapter In: AC 96-260V/50/60Hz Out:DCl2V 5A
1.5A/18W
356.6x282.5x64.2
3 2kg
2.5A/30W
391x325.4x68.8
4.5kg 4.8kg
20%~80%
Ì4
3A/36W
429.5x356x66.7
Page 16
Appendixes
A. TROUBLE SHOOTING
Problem:
1.No power
2.N0 video or audio
3.Bad video or audio
4.Image not stable
5.Ab-normal line
6.Ghost image
/.Desired video disappear
Checking:
I

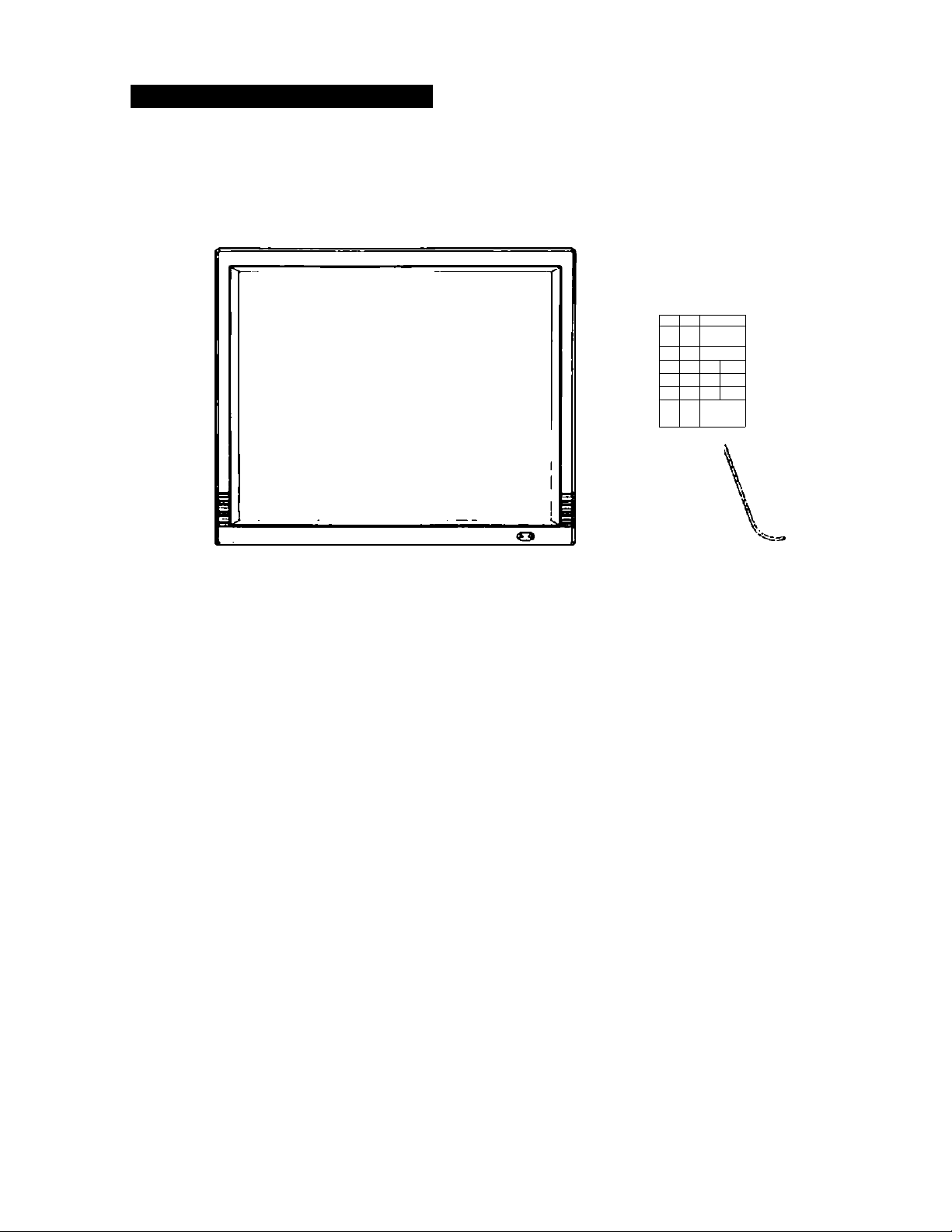

Package List
A. LCD Monitor x1
B. Power Cord x1
C. Accessory Kit
a. DB15-DB15VGACablex1 x 1
b. 1/8" male to 1/8" male audio cable x 1
D. User Manual x1
E. 12V PowerAdapter x1
F. Remote Control x 1
> Power-cord connecting Power-on
-¥■ Change to right input channel?
Check signal cable?
> Any interrupt from other devices?
> Adjust video control on OSD?
-> Adjust video source?
15
Page 17
1- Power
Monitor power ON / OFF. At OFF mode, monitor will be at
standby status.
LED- Green Light — Power On
Red Light — Standby mode
2. 3. Adjust ^ / O
Increase or decrease the value on OSD menu.
^ Increase value on the OSD Menu or turn ON / OFF function.
^ Decrease value on the OSD Menu or turn ON / OFF function
4. Item
Chose sub menu from Audio / Video
Press again to enter selected option
5. Menu
VIDEO/AUDIO control.
6. Source
Select input signal from AV1, AV2, S-Video or PC.
16
Loading...
