AVE GENIO 10 User Manual

User guide GENIO 10 Issue 10/2016

Vertriebs­ Entwicklungsgesellschaft
mbH

Genio 10

Automatic Mix-Amplifier

User guide

User guide GENIO 10 Page 2

Table of contents

1. Introduction…………………………………………………..…………….………………..……………..3

1.1 Safety notices..………………………………………………………………………..……………….…..4

2. Description of components and their functions……..………………..……….…………………….….5

3. Operation of the device

3.1 Microprocessor Gate control…………………………………………..……..…………………………..7

3.2 Programmable settings („Presets“)………………………………….……….………………………….8

3.3 Use of different settings („Presets“)………………………………………………….………….……….8

3.4 Change of existing preset settings………………………………………….…..……………………….8

4. Advanced features

4.1 Creating new presets……………………………….……………………………………………………..9

4.2 The parameter menu……………………………………………………………………………………10

4.2.1 Presets……………………………………………………………….……………………………………10

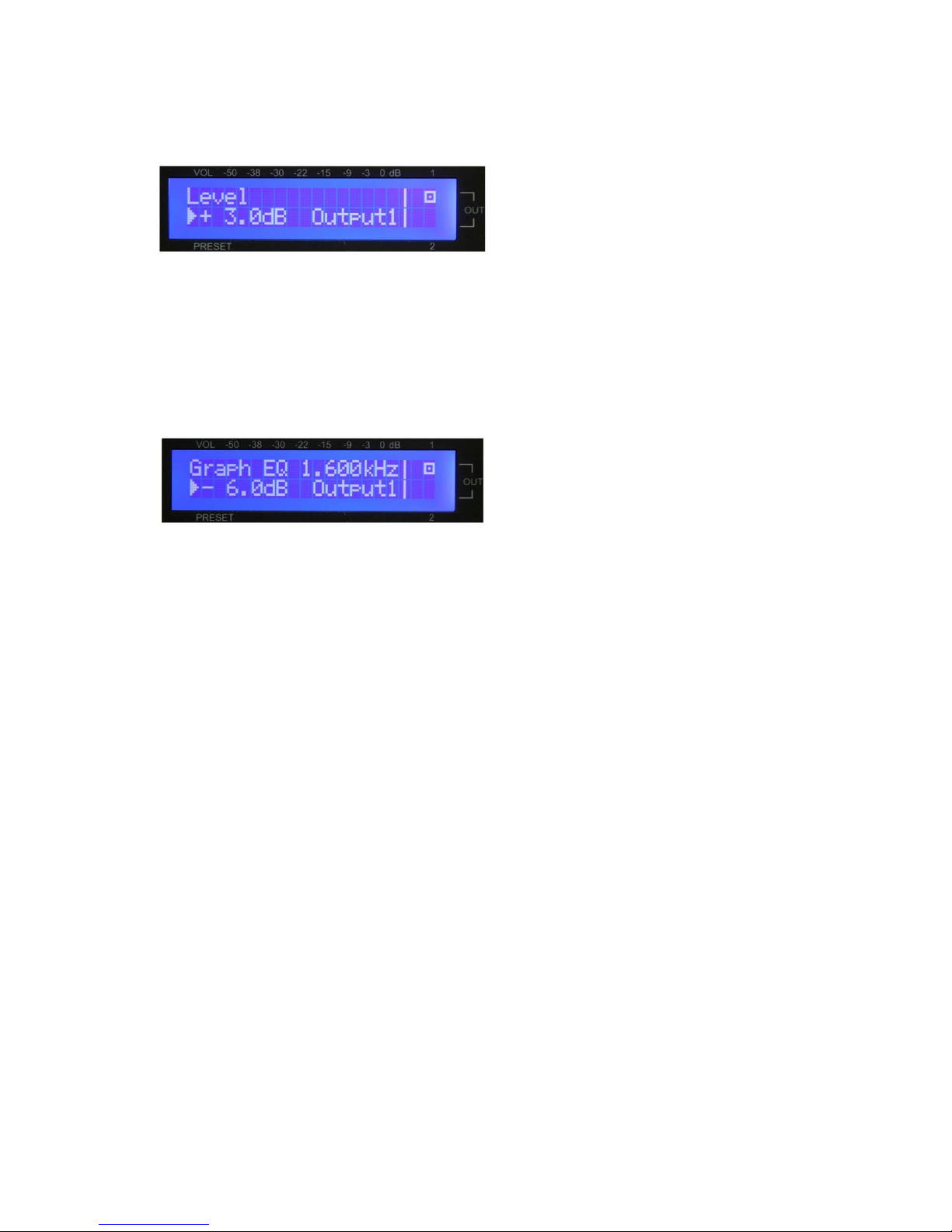

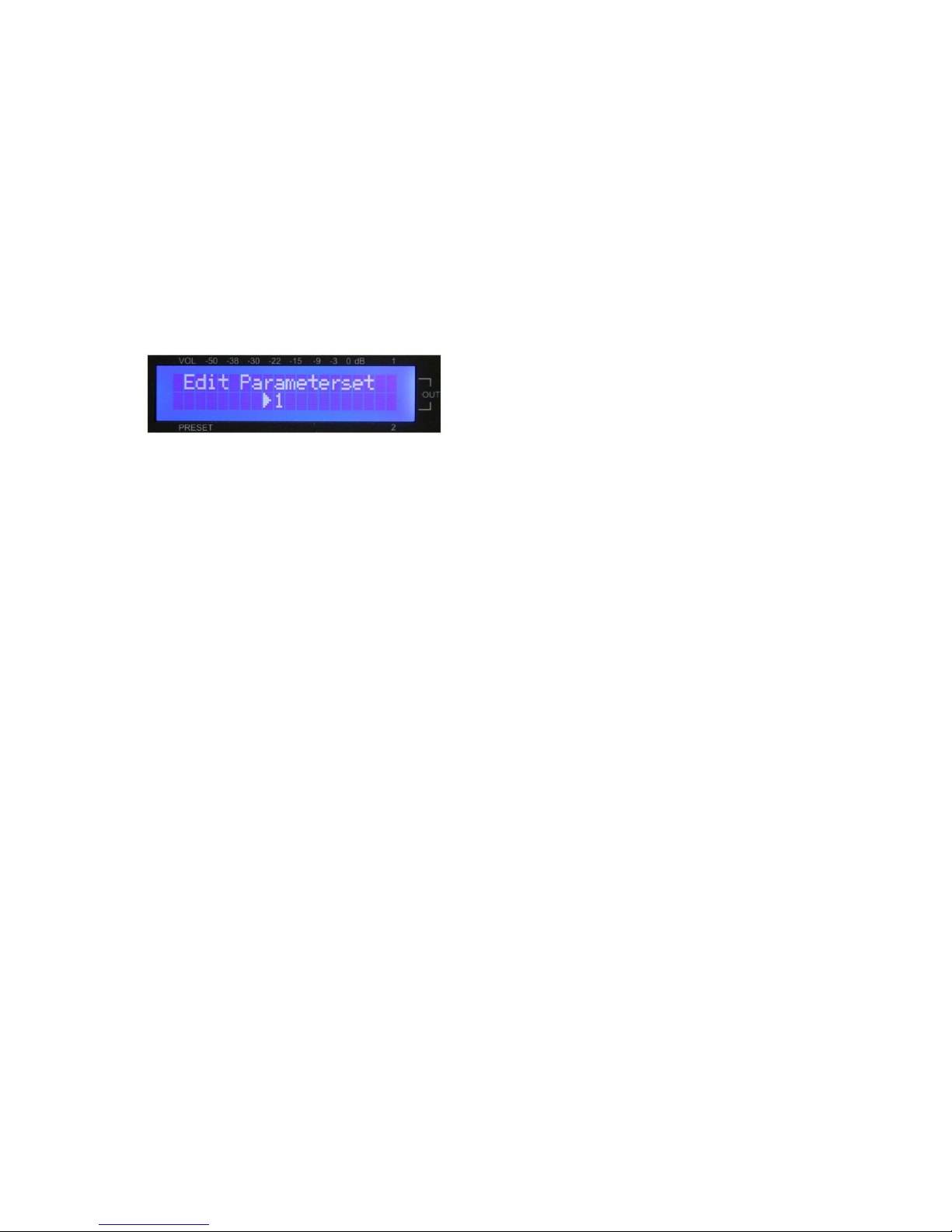

4.2.2 Parameters………………………………………………………………………………………………11

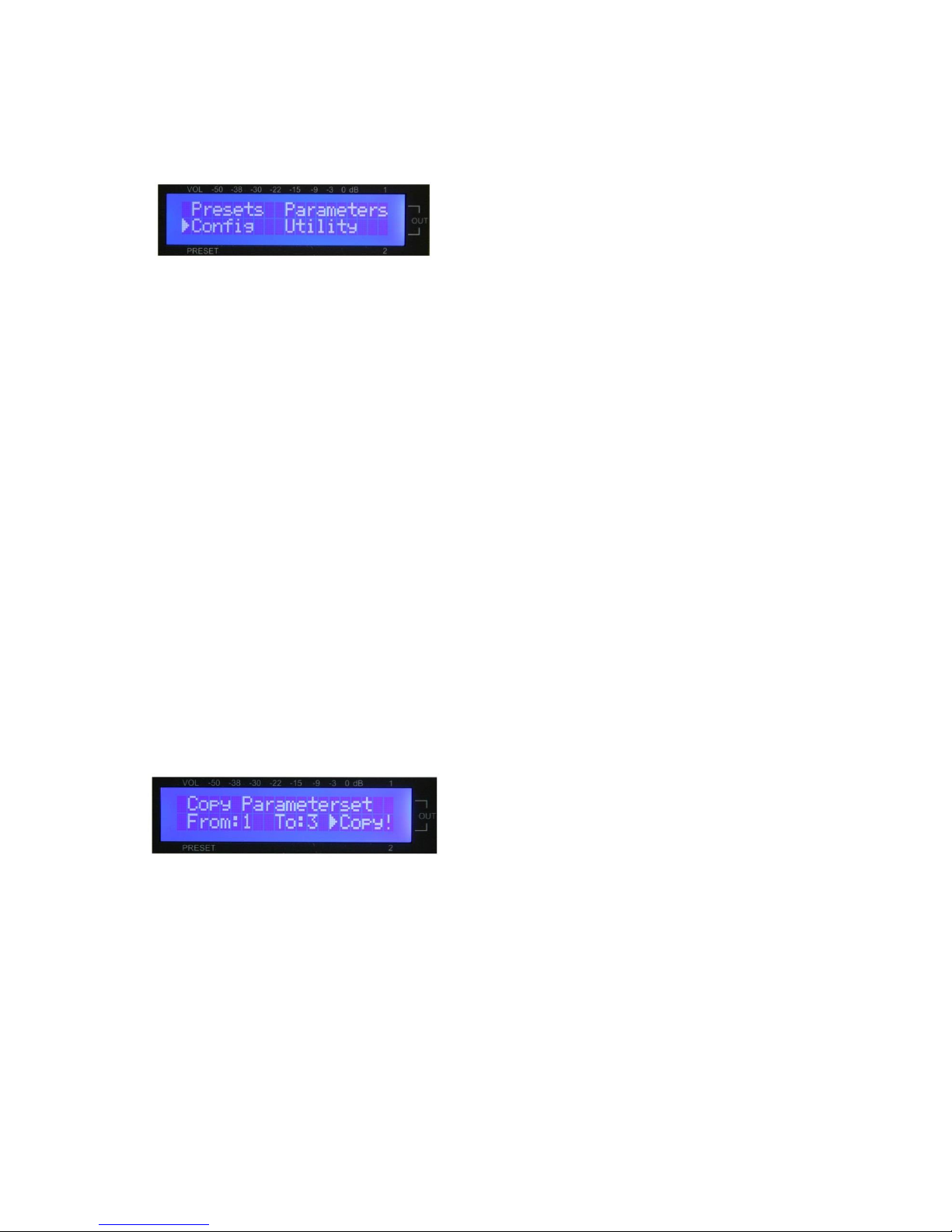

4.2.3 Configuration………………………………………………………………………………………….….12

4.2.4 Utility…………………………………………….……………………………………………………….12

4.3 Table with all programmable parameters……………………………………………………………..13

5. Specifications………….………………………………………………………………………………….14

User guide GENIO 10 Page 3

1. Introduction

Thank you for choosing the automatic mix-amplifier Genio 10 form AVE. Genio 10 is a device which
is used impressively in medium and large rooms where the acoustic conditions complicate
intelligibility.
Genio 10 is equipped with 10 inputs: 8 balanced mic/line inputs, 2 switchable CD/Aux inputs with
volume, treble and bass controls. Each mic/line input is equipped with a COMP controler, a GAIN
control, a 3-band EQ, a volume, operating and peak display and a rocker switch for adjusting Line,
Micro Low , Micro High and the connecting of phantom power (48 V). This makes it possible to
seamlessly connect any type of microphone and produce a uniform sound pattern for each
speaker.

The device also has a USB port and a SD card slot. The unit also offers a variety of additional
features such as a directly controllable output 0 - +6 dB, optional remote control, a switchable
sensitivity for CD, a switchable adjustable sensitivity for Aux, Output 1 and Output 2 for controlling
an external power amp. The speaker outputs are designed for 100/70/50 V and also for 4 ohm.
Each output has a 31-band graphic equalizer, a 6 parametric delay and a limiter assigned.

All sources are controlled by a 2-channel digital signal processor. The Genio 10 is equipped with its
own software. All settings are made through a menu-driven user interface directly on the device.
This makes programming easy and convenient – a laptop or PC is not needed. The user can
instantly recall 20 different presets which can be set for different occasions. A protection circuit
protects all settings from access by unauthorized persons.

Genio 10 is equipped with the latest technology (SMD, digital power amplifier, switching power
supply).
All components are integrated in a 19“ cabinet 2 U.

Genio 10 is available in for versions: 2x240 W, 1x240W, 2x150 W, 1x150 W.
Sections 2., 3. and 4.1 in the manual are intended for the user where the components oft he device

are explained and the operation is described. The subsequent part is aimed at qualified
professionals who are conducting the settings and programming.

User guide GENIO 10 Page 4

Safety Notices

Please read the information in this manual to familiarize yourself with the device.

LOCATED INSIDE THE UNIT ARE HAZARDOUS VOLTAGES. DO NOT REMOVE THE COVER.
INTERNAL MODIFICATIONS OR SERVICE WORK SHOULD ONLY BE CONDUCTED BY
QUALIFIED SERVICE PERSONNEL.

The GENIO 10 comes with an approved power cable. At one end of this cable is a three-pronged
AC power connector (IEC plug) and at the other end a CE-standard-compliant Schuko-plug for
connecting to a 230V/50 Hz AC voltage source. Please ensure that this power supply cable is not

damaged. Do not use defective or damaged power cables.
Subject to technical changes
Consulting • Planning • Developing • Assembly of electroacoustic sound systems

AVE GmbH • Gustav-Rau-Straße 6 • 74321 Bietigheim-Bissingen • Germany
Phone [phone] • Fax [phone]

[e-mail] • www.ave-stuttgart.de

User guide GENIO 10 Page 5

2. Description of the components and their functions

12 11 10

1

2

3 4 5 6 7 8 9

1. Control dial for COMP, GAIN, TREBBLE, MIDDLE and BASS

With the 5 potentiometers per channel the following settings can be made:

COMP: The compressor reduces the level after exceeding a threshold value.

GAIN: The GAIN control adjusts the gain of the channel at the level of the signal source at the input.

With the 3-band equalizer (treble, middle, bass) the microphone is adapted to the speaker to achieve

optimum sound.

TREBLE: ±12 dB bei 10 kHz
MIDDLE: ±12 dB bei 700 Hz
BASS: ±12 dB bei 70 Hz

2. Gate and Clipping display (channels 1–8): Visual indication of the activated or over-amplified input.

3. Volume control (channels 1–8): With the volume controls the level of the signal sources can be adjusted

which are connected to the microphone/line inputs. During the installation by the technical staff the optimal

level is set and will be indicated by an identification mark.

4. Bass and treble controls for CD/Aux

5. Volume control for CD/Aux

6. USB port

7. Connector for SD card

8. Volume/Value control dial: Control dial with integrated push button. Serves amongst others to control the

“Master Volume” that is to regulate the volume for all outgoing signals.

9. Preset/Parameter control dial: Control dial with integrated push button. Serves amongst others to retrieve

saved presets.

10. LCD Display: The bright display helps with a clear, user-friendly operation of the device.

11. Buttons: Rep, Prev Vol, Play Pause, Next Vol

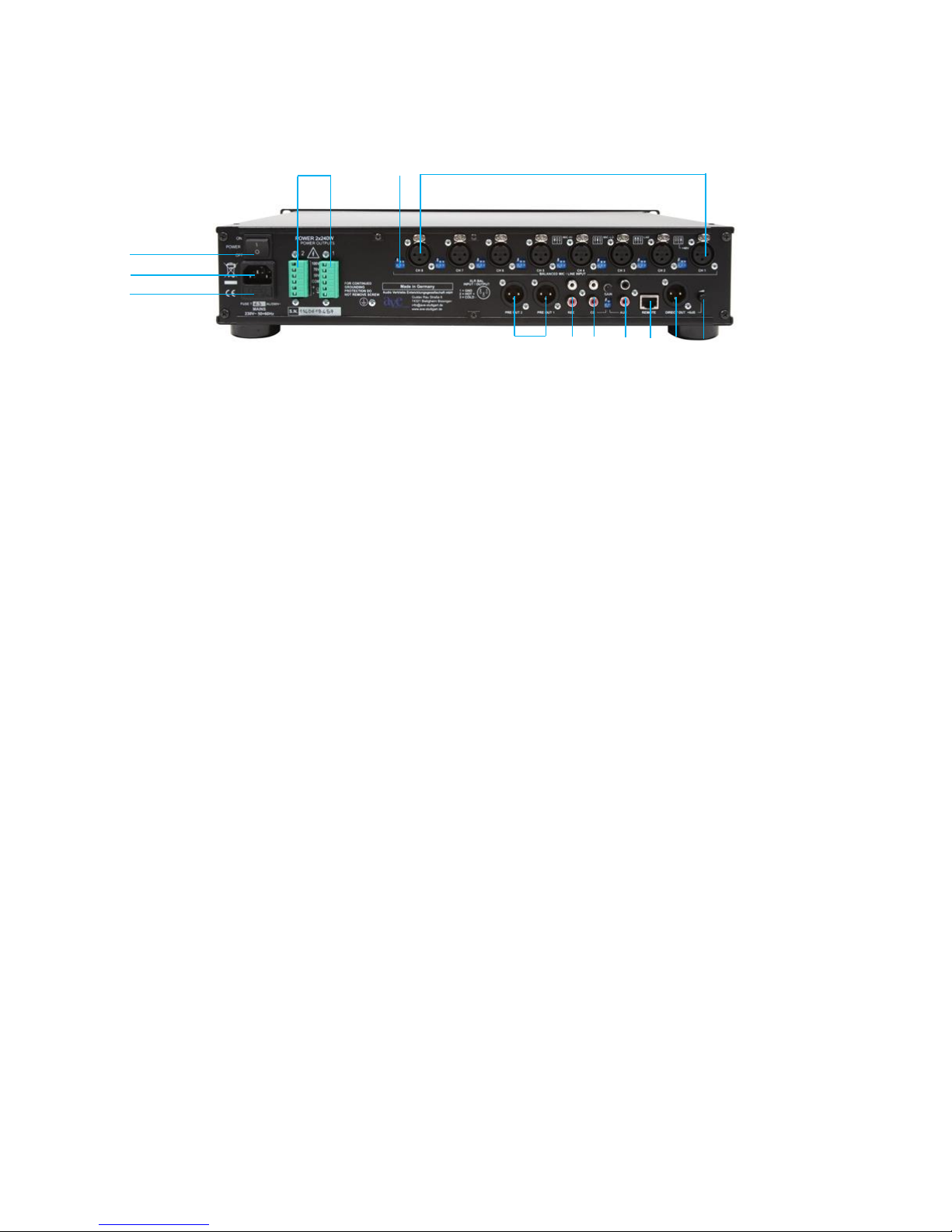

12. Channel switch CD/Aux: Media selection. The playback devices are connected to the back.
