AVE DMX-66 User Manual

User guide DMX-66 October 2018

Audio Vertriebs
Entwicklungsgesellschaft
mbH

DMX-66

Digital Mixer

with 6 mic/line inputs and 6 outputs

User Guide

User guide DMX-66 page 2

Table of contents

Introductions ....................................................................................................................................................... 3

Safety instructions .............................................................................................................................................. 3

Scope of delivery ................................................................................................................................................ 3

Explanation and description of the DMX-66 ....................................................................................................... 4

Section 1 (user)

Operation of the DMX-66 in user mode .............................................................................................................. 5

Section 2 (qualified personnel)

Installing the software ......................................................................................................................................... 5

Programming the DMX-66 .................................................................................................................................. 6

Detailed description of the automatic mixer...................................................................................................... 10

Technical specifications .................................................................................................................................... 12

User guide DMX-66 page 3

Introduction

Thank you for choosing the 6-channel digital mixer DMX-66 from AVE.
No matter what your requirements are, due to its advanced technical design, it ensures trouble-free use with
sound exposure in a variety of facilities such as churches, courtrooms, government offices, conference
rooms, schools, universities, etc.

The DMX-66 is equipped with its own software and offers users a wide range of practical functions.

Streaming Media Server:

DMX-66 is a live audio streamer..
It records audio from an input/output channel, encodes it and sends it to a streaming server.
DMX-66 can do live streaming, so people can hear your video while it is being recorded.
It can be used to create an internet radio station or a privately running jukebox and many things in between.
It is very versatile in that new formats can be added relatively easily.
DMX-66 supports open standards for communication and interaction.
DMX-66 supports TCP/IP, UDP, RTSP and RTMP streaming protocols.

Safety Instructions

Located inside the unit are hazardous voltages. Do not remove the cover. Internal modifications or
service work should only be conducted by qualified service personnel.

The DMX-66 comes with an approved power cable. At one end of this cable is a three-pronged AC power
connector (IEC plug) and at the other end of a CE-standard-compliant Schuko-plug for connection to a 230 V
/ 50 Hz AC voltage source. Please ensure that this power supply cable is not damaged. Do not use defective
or damaged power cables!

Scope of delivery

Please check immediately upon receipt the package integrity, the contents for completeness and proper
delivery of the unit.

The delivery scope of the unit includes:

- The DMX-66

- Power supply cable

- Cat 5 cable

Der DMX-66 is delivered with three presets set at the factory.
The presets are located in 11, 12 and 13.

Please keep the operating instructions in a safe place and make them available to qualified personnel for
making necessary changes to the device.

User guide DMX-66 page 4

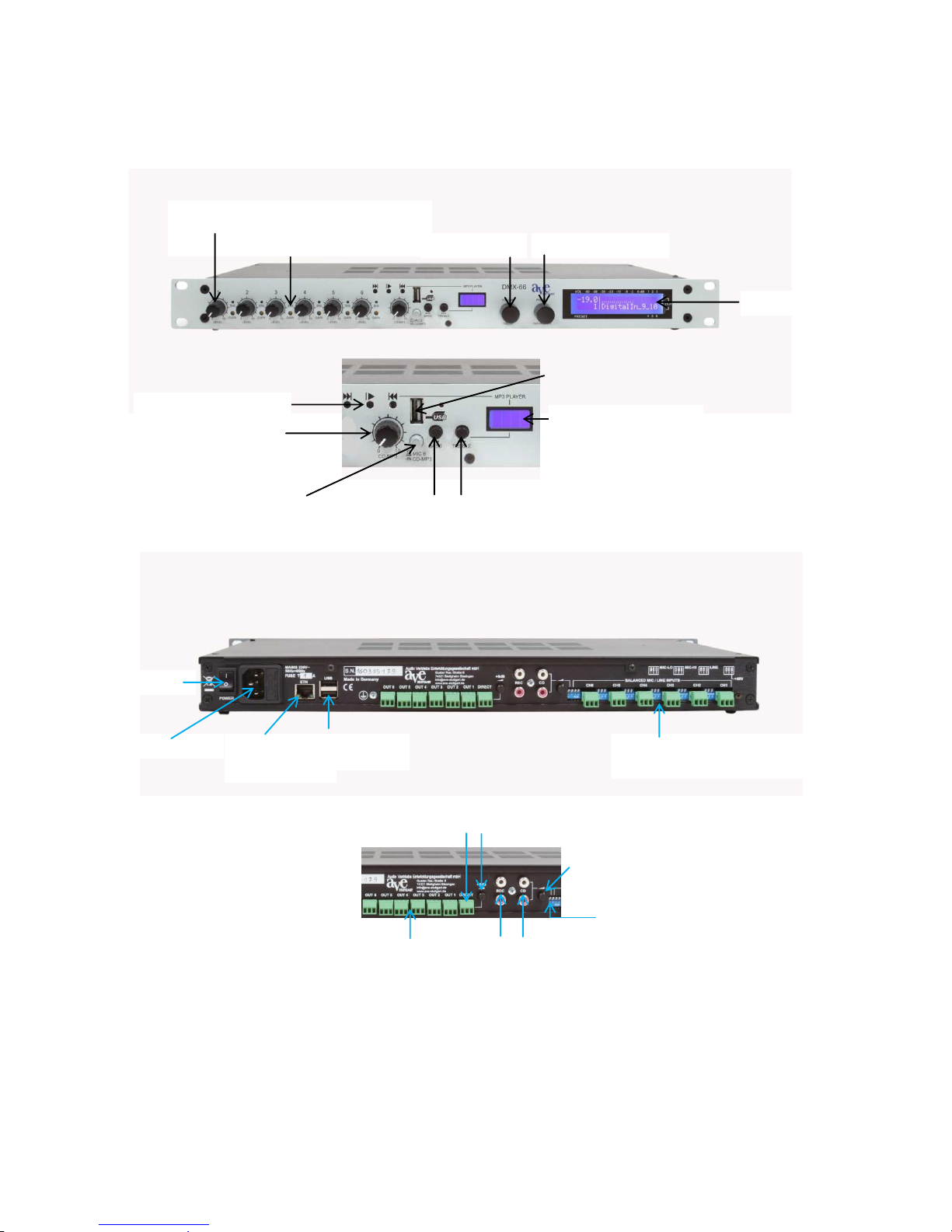

Explanation and description of the DMX-66

You should acquaint yourself with the different functions and optical circumstances of the device, before you
start programming.

6 Inputs

Volume control, LED for Signal
GAIN control

USB connection

Forward, Play, Rewindf
Volume control

Display MP3 Player

Switch Mic/CD-MP3

Bass

Treble

Volume/Value

Preset/Parameter

Display

Power switch

Power supply

Ethernet
connection

USB
6 Outputs

6 Inputs

DIP-Switch Mic-Lo, Mic-Hi, Line, +48V

DIRECT
Out

Output Rec

Control CD for input
sensitivity

Input CD

Control
+6dB

DIP-Switch CD On-Out

User guide DMX-66 page 5

This manual is divided into 2 sections:

The first section explains how the user can easily and comfortably change the master volume and retrieve the
presets (up to 20) directly on the DMX-66 device without using the laptop or PC. (User Modus)

The second section is intended for qualified personnel, which adjusts the settings via PC or laptop and the
programming of the parameters, the automatic, the matrix and the delays etc.

Section 1
Operation in "user mode"

Input Level 1 – 6

By turning the volume control the volume will be increased or decreased.
Input 6 is switchable to CD/USB or Micro/Line.

Control of the master volume

By turning the volume/value control the master volume will be increase or decreased

Select Preset

By turning the preset control the desired preset is selected.

Note

The volume control in "user mode" is restricted in order to prevent operating errors. If the protection is activated,
the volume and preset selection is adjusted by pressing and then turning.

Section 2

The following modifications are only to be performed by qualified technical personnel!

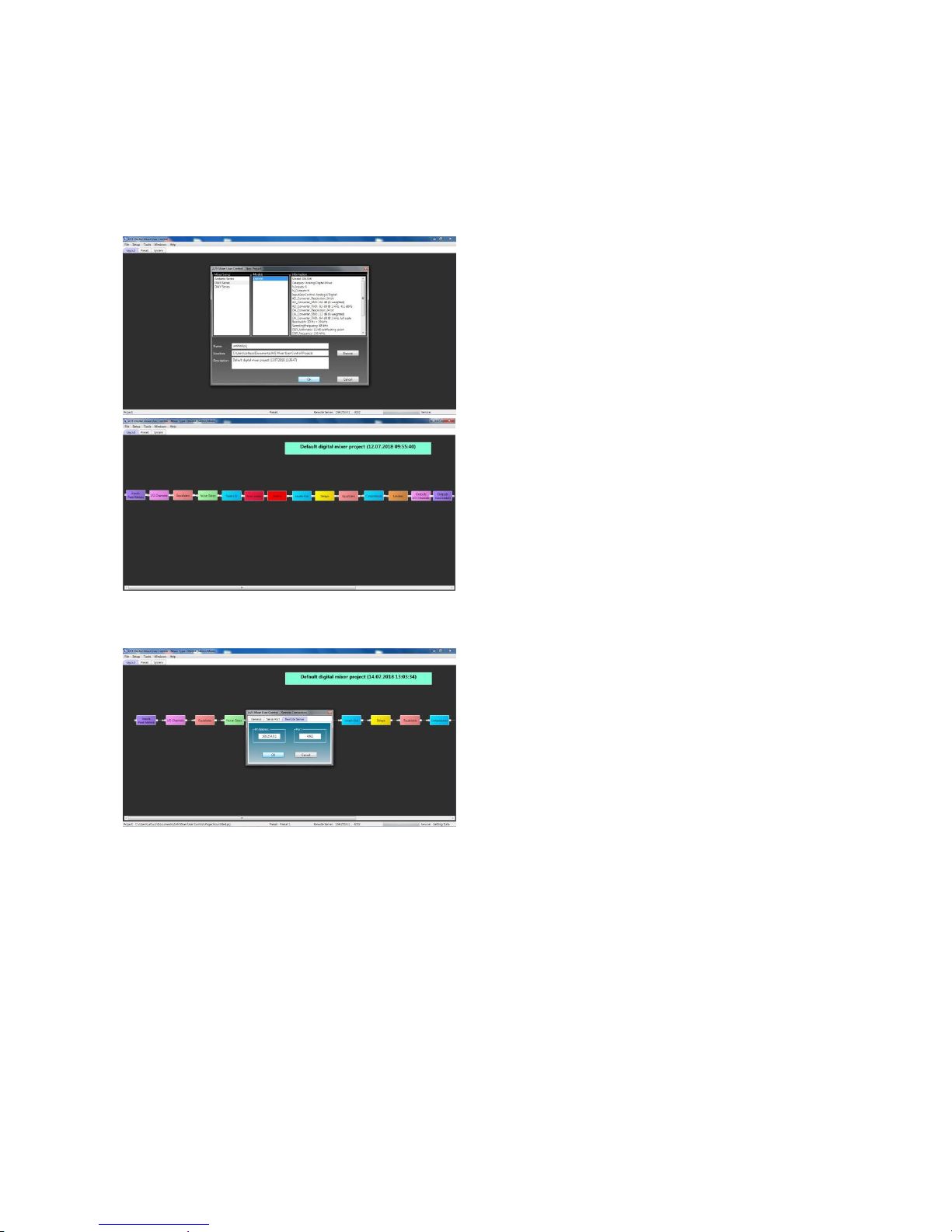

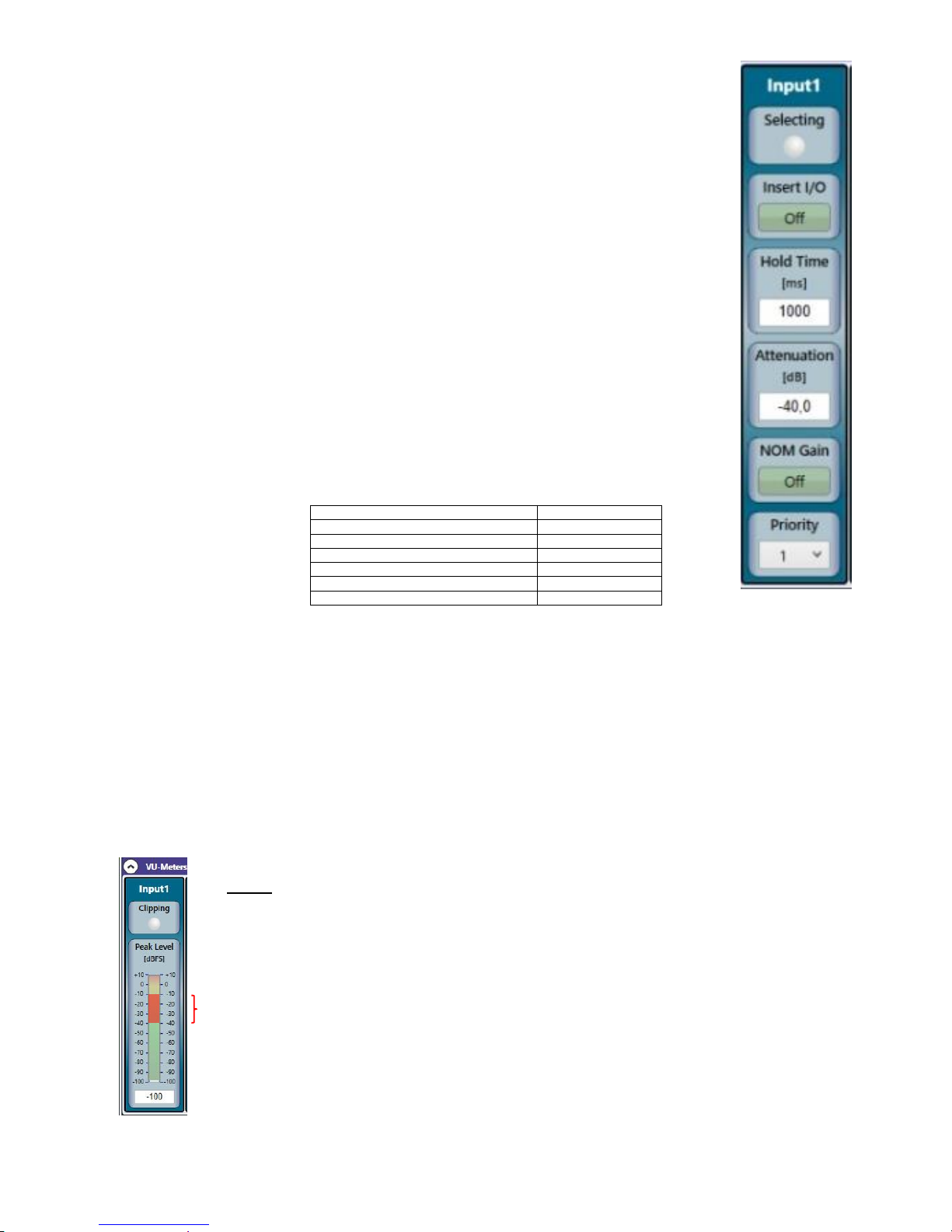

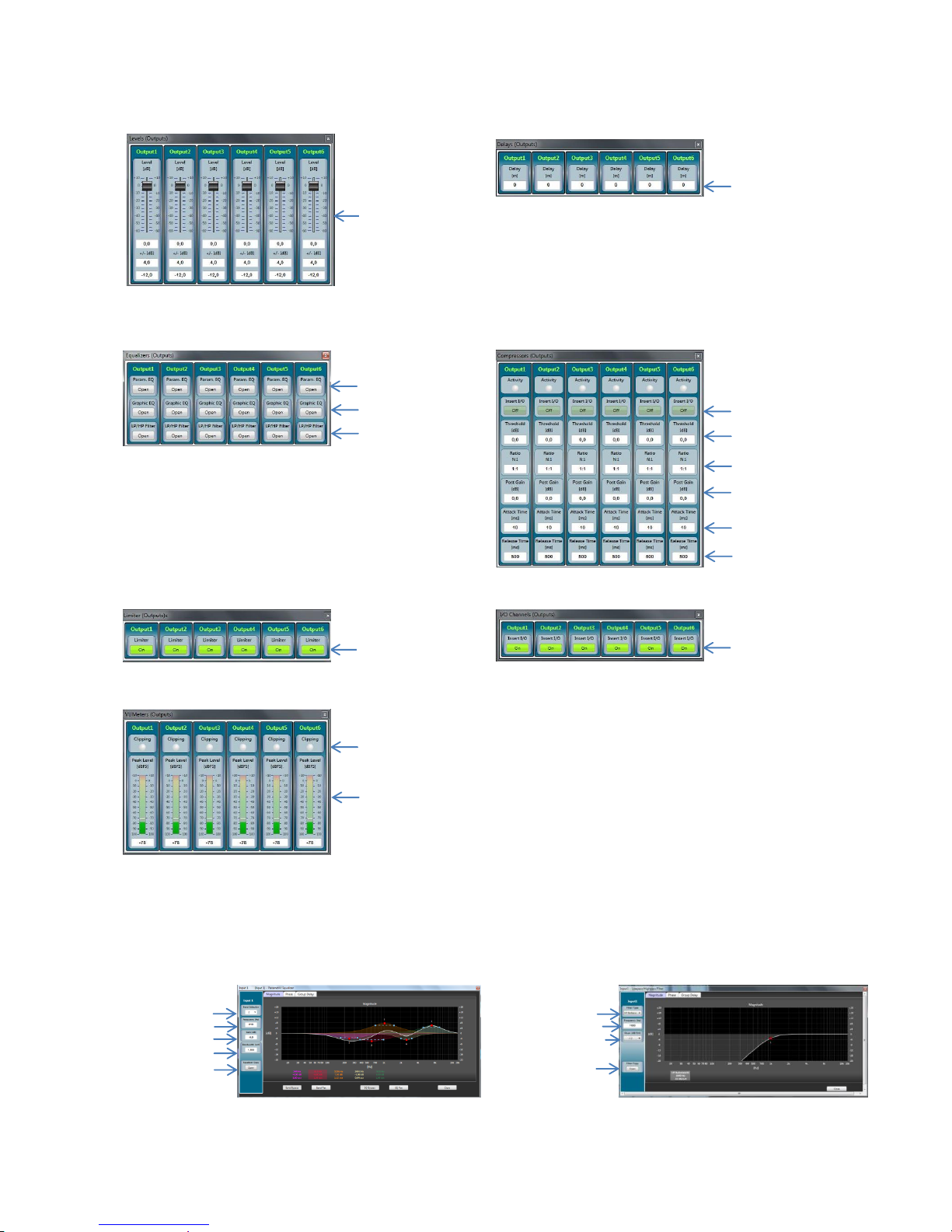

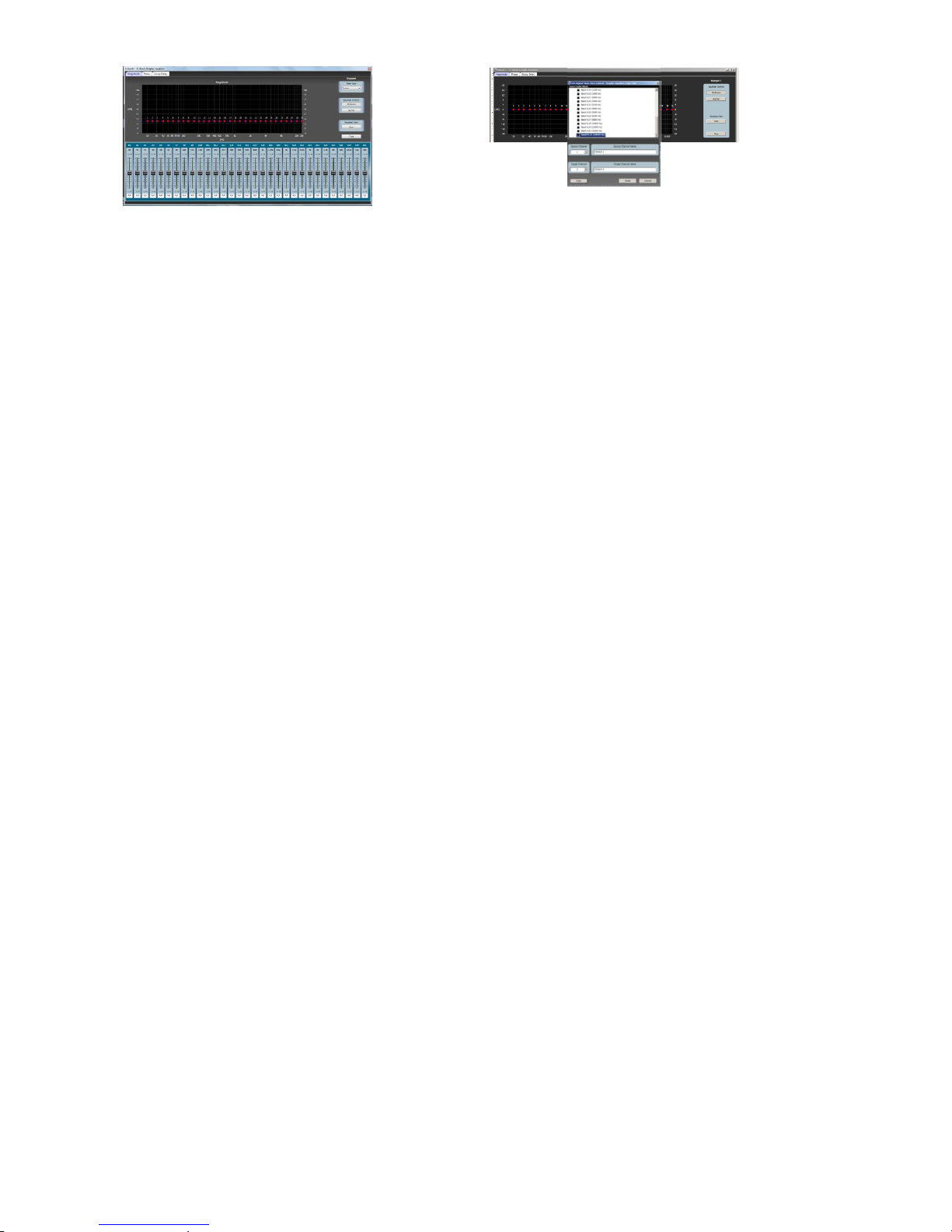

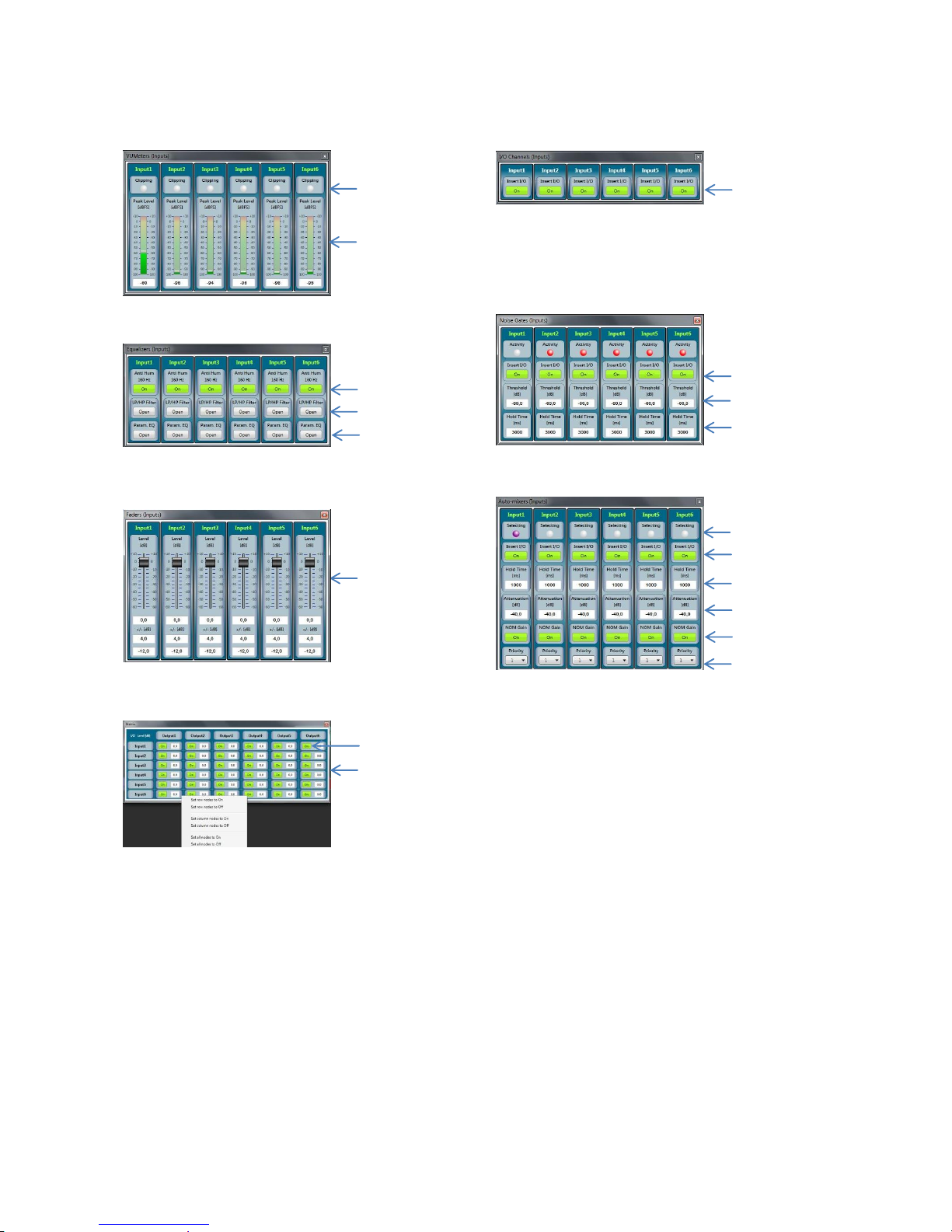

Parameter – Menue / Programming of the DMX-66

You will start the installation program by clicking on the appearing desktop
folder and then clicking on setup.exe

Then follow the installation instructions.

Enter your user name, your organization name and the
license number that was included.

After installation is complete you will have this link on the desktop.
