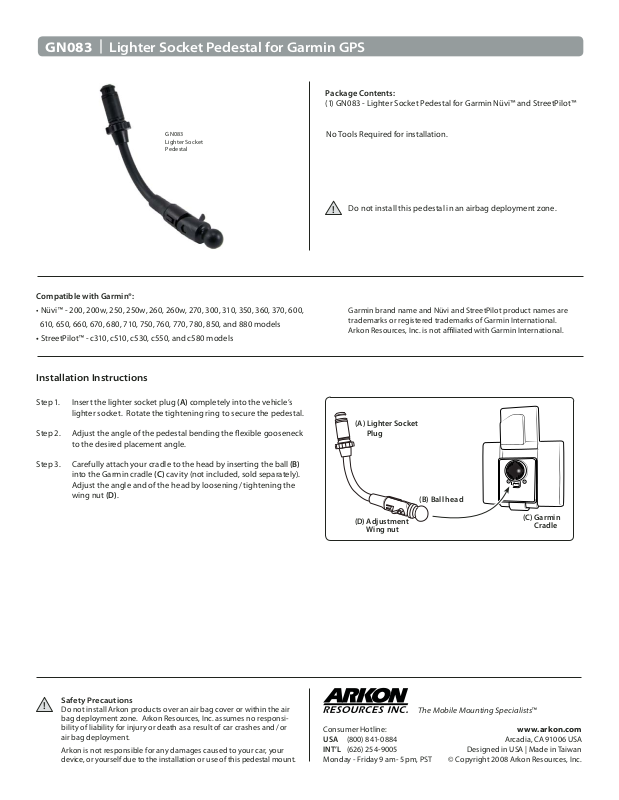

GN083 | Lighter Socket Pedestal for Garmin GPS

Package Contents:

(1) GN083 - Lighter Socket Pedestal for Garmin Nüvi™ and StreetPilot™

GN083 Lighter So cket Pedesta l

Compatible with Garmin®:

• Nüvi™ - 200, 200w, 250, 250w, 260, 260w, 270, 300, 310, 350, 360, 370, 600,

610, 650, 660, 670, 680, 710, 750, 760, 770, 780, 850, and 880 models

• StreetPilot™ - c310, c510, c530, c550, and c580 models

Installation Instructions

Step 1.

Step 2.

Insert the lighter socket plug (A) completely into the vehicle’s lighter socket. Rotate the tightening ring to secure the pedestal.

Adjust the angle of the pedestal bending the  exible gooseneck to the desired placement angle.

No Tools Required for installation.

Do not install this pedestal in an airbag deployment zone.

Garmin brand name and Nüvi and StreetPilot product names are trademarks or registered trademarks of Garmin International. Arkon Resources, Inc. is not a liated with Garmin International.

(A) Lighter Socket Plug

Step 3.

Carefully attach your cradle to the head by inserting the ball (B) into the Garmin cradle (C) cavity (not included, sold separately). Adjust the angle and of the head by loosening / tightening the wing nut (D).

Safety Precautions

Do not install Arkon products over an air bag cover or within the air bag deployment zone. Arkon Resources, Inc. assumes no responsibility of liability for injury or death as a result of car crashes and / or air bag deployment.

Arkon is not responsible for any damages caused to your car, your device, or yourself due to the installation or use of this pedestal mount.

(B) Ball head

(D) Adjustment Wing nut

The Mobile Mounting Specialists™

Consumer Hotline:

USA (800) 841-0884 INT’L (626) 254-9005

Monday - Friday 9 am - 5 pm, PST

www.arkon.com

Arcadia, CA 91006 USA

Designed in USA | Made in Taiwan
