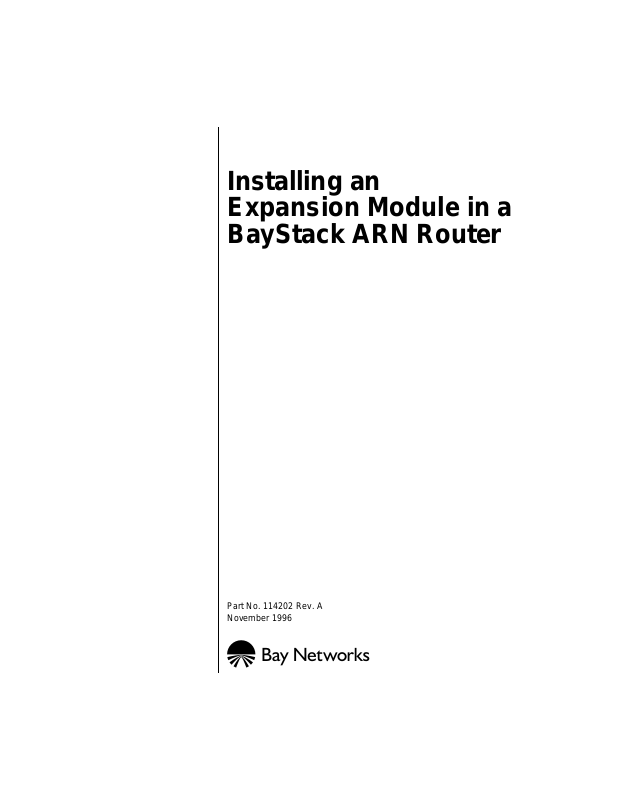

Avaya Expansion Module in a BayStack ARN Router User Manual

Installing an Expansion Module in a BayStack ARN Router

Part No. 114202 Rev. A November 1996

4401 Great America Parkway 8 Federal Street Santa Clara, CA 95054 Billerica, MA 01821

and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty . Users must take full responsibility for their applications of an y products speciﬁed in this document. The information in this document is proprietary to Bay Networks, Inc.

The software described in this document is furnished under a license agreement and may only be used in accordance with the terms of that license. A summary of the Software License is included in this document.

Restricted Rights Legend

Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.

Notice for All Other Executive Agencies

Notwithstanding any other license agreement that may pertain to, or accompany the delivery of, this computer software, the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in the Commercial Computer Software-Restricted Rights clause at FAR 52.227-19.

Trademarks of Bay Networks, Inc.

ACE, AFN, AN, BCN, BLN, BN, BNX, CN, FN, FRE, GAME, LN, Optivity, PPX, SynOptics, SynOptics Communications, W ellﬂeet and the Wellﬂeet logo are registered trademarks and Adv anced Remote Node, ANH, ARN, ASN, Bay•SIS, BayStack, BCNX, BLNX, EZ Install, EZ Internetwork, EZ LAN, PathMan, PhonePlus, Quick2Conﬁg, RouterMan, SPEX, Bay Networks, Bay Networks Press, the Bay Networks logo and the SynOptics logo are trademarks of Bay Networks, Inc.

Third-Party T rademarks

All other trademarks and registered trademarks are the property of their respective owners.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, Bay Networks, Inc. reserves the right to make changes to the products described in this document without notice.

Bay Networks, Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Portions of the code in this software product are Copyright © 1988, Regents of the Univ ersity of California. All rights reserved. Redistribution and use in source and binary forms of such portions are permitted, provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that such portions of the software were developed by the University of California, Berkeley. The name of the University may not be used to endorse or promote products derived from such portions of the software without speciﬁc prior written permission.

SUCH PORTIONS OF THE SOFTWARE ARE PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

In addition, the program and information contained herein are licensed only pursuant to a license agreement that contains restrictions on use and disclosure (that may incorporate by reference certain limitations and notices imposed by third parties).

114202 Rev. A

Electromagnetic Emissions

Meets requirements of: FCC Part 15, Class A

EN 55 022 (CISPR 22:1985), Class A <and Class B> VCCI Class 1 ITE

Canada Requirements Only

Canada CS-03 Rules and Regulations

Note:

The Canadian Department of Communications label identiﬁes certiﬁed equipment. The certiﬁcation means that the equipment meets certain telecommunications network protective operations and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company's inside wiring associated with a single line individual service may be extended by means of a certiﬁed connector assembly (telephone extension cord). The customer should be aware that compliance with the above conditions may not prevent the degradation of service in some situations.

Repairs to certiﬁed equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution:

inspection authority, or electrician, as appropriate.

Users should not attempt to make such connections themselves, but should contact the appropriate electric

Canada CS-03 -- Règles et règlements

Note:

L’étiquette du ministère des Communications du Canada indique que l’appareillage est certiﬁé, c’est-à-dire qu’il respecte certaines exigences de sécurité et de fonctionnement visant les réseaux de télécommunications. Le ministère ne garantit pas que l’appareillage fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer l’appareillage, s’assurer qu’il peut être branché aux installations du service de télécommunications local. L’appareillage doit aussi être raccordé selon des méthodes acceptées. Dans certains cas, le câblage interne du service de télécommunications utilisé pour une ligne individuelle peut être allongé au moyen d’un connecteur certiﬁé (prolongateur téléphonique). Le client doit toutefois prendre note qu’une telle installation n’assure pas un service parfait en tout temps.

Les réparations de l’appareillage certiﬁé devraient être conﬁées à un service d’entretien canadien désigné par le fournisseur. En cas de réparation ou de modiﬁcation effectuées par l’utilisateur ou de mauvais fonctionnement de l’appareillage, le service de télécommunications peut demander le débranchment de l’appareillage.

Pour leur propre sécurité, les utilisateurs devraient s’assurer que les mises à la terre des lignes de distribution d’électricité, des lignes téléphoniques et de la tuyauterie métallique interne sont raccordées ensemble. Cette mesure de sécurité est particulièrement importante en milieu rural.

Attention:

aux pouvoirs de réglementation en cause ou à un électricien, selon le cas.

114202 Rev. A

Les utilisateurs ne doivent pas procéder à ces raccordements eux-mêmes mais doivent plutôt faire appel

iii

Canada Requirements Only

(continued)

D. O. C. Explanatory Notes: Equipment Attachment Limitations

The Canadian Department of Communications label identiﬁes certiﬁed equipment. This certiﬁcation meets certain telecommunication network protective, operational and safety requirements. The department does not guarantee the equipment will operate to the users satisfaction.

Before installing the equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line indi vidual service may be e xtended by means of a certiﬁed connector assembly (telephone extension cord). The customer should be aware that compliance with the above condition may not prevent degradation of service in some situations.

Repairs to certiﬁed equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Caution:

inspection authority, or electrician, as appropriate.

Users should not attempt to make such connections themselves, but should contact the appropriate electrical

Notes explicatives du ministère des Communications: limites visant les accessoires

Attention:

aux pouvoirs de réglementation en cause ou à un électricien, selon le cas.

Les utilisateurs ne doivent pas procéder à ces raccordements eux-mêmes mais doivent plutôt faire appel

114202 Rev. A

Canada Requirements Only

(continued)

Canadian Department of Communications Radio Interference Regulations

This digital apparatus (Access Feeder Node, Access Link Node, Access Node, Access Stack Node, Backbone Concentrator Node, Backbone Concentrator Node Switch, Backbone Link Node, Backbone Link Node Switch, Concentrator Node, Feeder Node, Link Node) does not exceed the Class A limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Réglement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique (Access Feeder Node, Access Link Node, Access Node, Access Stack Node, Backbone Concentrator Node, Backbone Concentrator Node Switch, Backbone Link Node, Backbone Link Node Switch, Concentrator Node, Feeder Node, Link Node) respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Réglement sur le brouillage radioélectrique du ministère des Communications du Canada.

114202 Rev. A

Bay Networks Software License

Note:

This is Bay Networks basic license document. In the absence of a software license agreement specifying varying terms, this license -- or the license included with the particular product -- shall govern licensee’s use of Bay Networks software.

This Software License shall govern the licensing of all software provided to licensee by Bay Networks (“Software”). Bay Networks will provide licensee with Software in machine-readable form and related documentation (“Documentation”). The Software provided under this license is proprietary to Bay Networks and to third parties from whom Bay Networks has acquired license rights. Bay Networks will not grant any Software license whatsoev er , either explicitly or implicitly, except by acceptance of an order for either Software or for a Bay Networks product (“Equipment”) that is packaged with Software. Each such license is subject to the following restrictions:

1. Upon delivery of the Software, Bay Networks grants to licensee a personal, nontransferable, none xclusiv e license to use the Software with the Equipment with which or for which it was originally acquired, including use at any of licensee’s facilities to which the Equipment may be transferred, for the useful life of the Equipment unless earlier terminated by default or cancellation. Use of the Software shall be limited to such Equipment and to such facility. Software which is licensed for use on hardware not offered by Bay Networks is not subject to restricted use on any Equipment, however, unless otherwise speciﬁed on the Documentation, each licensed copy of such Software may only be installed on one hardware item at any time.

2. Licensee may use the Software with backup Equipment only if the Equipment with which or for which it was acquired is inoperative.

3. Licensee may make a single copy of the Software (but not ﬁrmware) for safekeeping (archives) or backup purposes.

4. Licensee may modify Software (but not ﬁrmware), or combine it with other software, subject to the provision that those portions of the resulting software which incorporate Software are subject to the restrictions of this license. Licensee shall not make the resulting software available for use by any third party.

5. Neither title nor ownership to Software passes to licensee.

6. Licensee shall not provide, or otherwise make available, any Software, in whole or in part, in any form, to any third party. Third parties do not include consultants, subcontractors, or agents of licensee who have licensee’s permission to use the Software at licensee’s facility, and who have agreed in writing to use the Software only in accordance with the restrictions of this license.

7. Third-party owners from whom Bay Networks has acquired license rights to software that is incorporated into Bay Networks products shall have the right to enforce the provisions of this license against licensee.

8. Licensee shall not remove or obscure any copyright, patent, trademark, trade secret, or similar intellectual property or restricted rights notice within or afﬁxed to any Software and shall reproduce and afﬁx such notice on any backup copy of Software or copies of software resulting from modiﬁcation or combination performed by licensee as permitted by this license.

114202 Rev. A

Bay Networks Software License

9. Licensee shall not reverse assemble, reverse compile, or in any way reverse engineer the Software. [Note: For licensees in the European Community, the Softw are Directiv e dated 14 May 1991 (as may be amended from time to time) shall apply for interoperability purposes. Licensee must notify Bay Networks in writing of any such intended examination of the Software and Bay Networks may provide review and assistance.]

10. Notwithstanding any foregoing terms to the contrary, if licensee licenses the Bay Networks product “Site Manager,” licensee may duplicate and install the Site Manager product as speciﬁed in the Documentation. This right is granted solely as necessary for use of Site Manager on hardware installed with licensee’s network.

11. This license will automatically terminate upon improper handling of Software, such as by disclosure, or Bay Networks may terminate this license by written notice to licensee if licensee fails to comply with any of the material provisions of this license and fails to cure such failure within thirty (30) days after the receipt of written notice from Bay Networks. Upon termination of this license, licensee shall discontinue all use of the Software and return the Software and Documentation, including all copies, to Bay Networks.

12. Licensee’s obligations under this license shall survive expiration or termination of this license.

(continued)

114202 Rev. A

vii

About This Guide

Before You Begin ............................................................................................................. xv

Conventions .....................................................................................................................xv

Acronyms .........................................................................................................................xvi

Ordering Bay Networks Publications ...............................................................................xvi

Technical Support and Online Services

Bay Networks Customer Service ...................................................................................xviii

Bay Networks Information Services .................................................................................xix

World Wide Web ........................................................................................................xix

Customer Service FTP ..............................................................................................xix

Support Source CD ................................................................................................... xx

CompuServe ............................................................................................................. xx

InfoFACTS .................................................................................................................xxi

How to Get Help ........................................................................................................xxi

Chapter 1 Installing the Expansion Module

Opening the ARN ...........................................................................................................1-2

Removing the Filler Panel ...............................................................................................1-4

Removing an Installed Expansion Module .....................................................................1-6

Installing the Module .......................................................................................................1-8

Closing the ARN ...........................................................................................................1-11

Connecting Cables .......................................................................................................1-13

Ensuring a Successful Installation ................................................................................1-15

Your Next Step ..............................................................................................................1-16

114202 Rev. A

Figures

Figure 1-1. ARN Power Switch (Off) and Power Cables .............................................1-2

Figure 1-2. Loosening the Captive Screws ................................................................1-3

Figure 1-3. Removing the ARN Enclosure .................................................................1-3

Figure 1-4. Filler Panel Covering Expansion Module Slot ..........................................1-4

Figure 1-5. Removing the Blank Panel From the Expansion Module Slot ..................1-5

Figure 1-6. Removing the Expansion Module Power Cable and Screws ...................1-6

Figure 1-7. Removing the Expansion Module ............................................................1-7

Figure 1-8. Location of the Expansion Module Connector on the Base Module ........1-8

Figure 1-9. Aligning the Expansion Module ................................................................1-9

Figure 1-10. Inserting the Expansion Module ............................................................1-10

Figure 1-11. Attaching the Power Cable and Securing the Expansion Module ..........1-11

Figure 1-12. Replacing the ARN Cover ......................................................................1-12

Figure 1-13. Ethernet Cables .....................................................................................1-13

Figure 1-14. Token Ring Cables .................................................................................1-14

Figure 1-15. Serial Cables ..........................................................................................1-14

Figure 1-16. ARN Base Module Diagnostic LEDs ......................................................1-15

114202 Rev. A

Tables

Table 1-1. Boot Status LEDs ...................................................................................1-16

Table 1-2. Site Manager Names for ARN Expansion Module Interfaces ................1-17

114202 Rev. A

xiii

About This Guide

If you are responsible for installing Bay Networks™ hardware, read this guide to learn how to install any of the following expansion modules in a BayStack™ Advanced Remote Node™ (ARN™) router:

• Ethernet

• Token Ring

• Tri-Serial

• Ethernet/Tri-Serial

• Token Ring/Tri-Serial Use these instructions to upgrade the ARN or to replace a failed expansion

module.

Before Y ou Begin

Make sure that you are running the latest version of Bay Networks Site Manager and router software. The ARN requires Router Software Version 11.00 Rev. 4n or later.

Conventions

italic text

quotation marks (“ ”) Indicate the title of a chapter or section within a book.

114202 Rev. A

Indicates variable values in command syntax descriptions, new terms, ﬁle and directory names, and book titles.

Installing an Expansion Module in a BayStack ARN Router

Acronyms

AUI Attachment Unit Interface STP shielded twisted-pair UTP unshielded twisted-pair

Ordering Bay Networks Publications

To purchase additional copies of this document or other Bay Networks publications, order by part number from the Bay Networks Press telephone or fax numbers:

• Telephone - U.S./Canada 1-888-4BAYPRESS

• Telephone - International 1-510-490-4752

• Fax 1-510-498-2609 You can also use these numbers to request a free catalog of Bay Networks Press

product publications.

™

at the following

xvi

114202 Rev. A

Technical Support and Online Services

To ensure comprehensive network support to our customers and partners worldwide, Bay Networks Customer Service has Technical Response Centers in key locations around the globe:

• Billerica, Massachusetts

• Santa Clara, California

• Sydne y , Australia

• Tokyo, Japan

• Valbonne, France

114202 Rev. A

The Technical Response Centers are connected via a redundant Frame Relay Network to a Common Problem Resolution system, enabling them to transmit and share information, and to provide live, around-the-clock support 365 days a year.

Bay Networks Information Services complement the Bay Networks Service program portfolio by giving customers and partners access to the most current technical and support information through a choice of access/retrieval means. These include the World Wide Web, CompuServe, Support Source CD, Customer Support FTP, and InfoFACTS document fax service.

xvii

Installing an Expansion Module in a BayStack ARN Router

Bay Networks Customer Service

If you purchased your Bay Networks product from a distributor or authorized reseller, contact that distributor’s or reseller’s technical support staff for assistance with installation, conﬁguration, troubleshooting, or integration issues.

Customers can also purchase direct support from Bay Networks through a variety of service programs. As part of our PhonePlus™ program, Bay Netw orks Service sets the industry standard, with 24-hour, 7-days-a-week telephone support available worldwide at no extra cost. Our complete range of contract and noncontract services also includes equipment staging and integration, installation support, on-site services, and replacement parts delivery -- within approximately 4 hours.

To purchase any of the Bay Networks support programs, or if you have questions on program features, use the following numbers:

Region Telephone Number Fax Number

United States and Canada

1-800-2LANWAN; enter Express Routing Code (ERC) 290 when prompted

(508) 670-8766

xviii

(508) 436-8880 (direct) Europe (33) 92-968-300 (33) 92-968-301 Asia/Paciﬁc Region (612) 9927-8800 (612) 9927-8811 Latin America (407) 997-1713 (407) 997-1714

In addition, you can receive information on support programs from your local Bay Networks ﬁeld sales ofﬁce, or purchase Bay Networks support directly from your authorized partner.

114202 Rev. A

Bay Networks Information Services

Bay Networks Information Services provide up-to-date support information as a ﬁrst-line resource for network administration, expansion, and maintenance. This information is available from a variety of sources.

W orld Wide Web

The Bay Networks Customer Support Web Server offers a diverse library of technical documents, software agents, and other important technical information to Bay Networks customers and partners.

A special beneﬁt for contracted customers and resellers is the ability to access the Web Server to perform Case Management. This feature enables your support staff to interact directly with the network experts in our worldwide Technical Response Centers. A registered contact with a valid Site ID can

• View a listing of support cases and determine the current status of any open case. Case history data includes severity designation, and telephone, e-mail, or other logs associated with the case.

Technical Support and Online Services

• Customize the listing of cases according to a variety of criteria, including date, severity, status, and case ID.

• Log notes to existing open cases.

• Create new cases for rapid, efﬁcient handling of noncritical network situations.

• Communicate directly via e-mail with the speciﬁc technical resources assigned to your case.

The Bay Networks URL is menu item on that home page.

Customer Service FTP

Accessible via URL combines and organizes support ﬁles and documentation from across the Bay Networks product suite, including switching products from our Centillion™ and Xylogics site lets you quickly locate information on any of your Bay Networks products.

114202 Rev. A

http://www.baynetworks.com

ftp://support.baynetworks.com

. Customer Service is a

(134.177.3.26), this site

business units. Central management and sponsorship of this FTP

xix

Installing an Expansion Module in a BayStack ARN Router

Support Source CD

This CD-ROM -- sent quarterly to all contracted customers -- is a complete Bay Networks Service troubleshooting knowledge database with an intelligent text search engine.

The Support Source CD contains extracts from our problem-tracking database; information from the Bay Networks Forum on CompuServe; comprehensive technical documentation, such as Customer Support Bulletins, Release Notes, software patches and ﬁxes; and complete information on all Bay Networks Service programs.

You can run a single version on Macintosh Windows 3.1, Windows 95, Windows NT, DOS, or UNIX computing platforms. A Web links feature enables you to go directly from the CD to various Bay Networks Web pages.

CompuServe

For assistance with noncritical network support issues, Bay Networks Information Services maintain an active forum on CompuServe, a global bulletin-board system. This forum provides ﬁle services, technology conferences, and a message section to get assistance from other users.

The message section is monitored by Bay Networks engineers, who provide assistance wherever possible. Customers and resellers holding Bay Networks service contracts also have access to special libraries for advanced levels of support documentation and software. To take advantage of CompuServe’s recently enhanced menu options, the Bay Networks Forum has been re-engineered to allow links to our Web sites and FTP sites.

We recommend the use of CompuServe Information Manager software to access these Bay Networks Information Services resources. To open an account and receive a local dial-up number in the United States, call CompuServe at 1-800-524-3388. Outside the United States, call 1-614-529-1349, or your nearest CompuServe ofﬁce. Ask for Representative No. 591. When you are on line with your CompuServe account, you can reach us with the command

GO BAYNET

114202 Rev. A

InfoFACTS

InfoFACTS is the Bay Networks free 24-hour fax-on-demand service. This automated system has libraries of technical and product documents designed to help you manage and troubleshoot your Bay Networks products. The system responds to a fax from the caller or to a third party within minutes of being accessed.

To use InfoFACTS in the United States or Canada, call toll-free 1-800-786-3228. Outside North America, toll calls can be made to 1-408-764-1002. In Europe, toll-free numbers are also available for contacting both InfoFACTS and CompuServe. Please check our Web page for the listing in your country.

How to Get Help

Use the following numbers to reach your Bay Networks Technical Response Center:

Technical Response Center Telephone Number Fax Number

Billerica, MA 1-800-2LANWAN (508) 670-8765 Santa Clara, CA 1-800-2LANWAN (408) 764-1188 Valbonne, France (33) 92-968-968 (33) 92-966-998 Sydney, Australia (612) 9927-8800 (612) 9927-8811 Tokyo, Japan (81) 3-5402-0180 (81) 3-5402-0173

Technical Support and Online Services

114202 Rev. A

xxi

Chapter 1

Installing the Expansion Module

Complete the steps in this chapter to install any of the following expansion modules in an ARN:

• Ethernet

• Token Ring

• Tri-Serial

• Ethernet/Tri-Serial

• Token Ring/Tri-Serial

114202 Rev. A

Although each expansion module type looks slightly different, you install them identically onto the ARN base module, as follows:

Open the ARN enclosure to access the component tray.

Attach an antistatic wrist strap.

Caution:

antistatic strap whenever you remove, install, or handle printed circuit boards.

Electrostatic discharge can damage hardware. You must wear the

Remove the expansion slot ﬁller panel; or, if present, remove an existing expansion module.

Install the new expansion module on the ARN base module. Close the ARN. Connect network cabling. Proceed to software conﬁguration tasks.

1-1

Installing an Expansion Module in a BayStack ARN Router

Opening the ARN

To open the enclosure and expose the base module:

Be sure that power is turned off (0).

Unplug the power cable from the wall receptacle and from the ARN

e 1-1).

(Figur

If present, unplug the redundant power supply cable from the ARN

e 1-1).

(Figur

Remove all back panel console port cables.

Power cable

100-240~

1.2A

50-60Hz

Redundant power supply cable

Redundant Power

ARN0017A

Figure 1-1. ARN Power Switch (Off) and Power Cables

Remove all front panel network cables.

Loosen the two captive screws that secure the top cover to the ARN enclosure (Figur

e 1-2).

1-2

Be sure to loosen these screws all the way.

Place the ARN tray on a table or other work surface.

114202 Rev. A

Installing the Expansion Module

Enclosure

100-240~ 50-60Hz

Redundant Power

1.2A

Back panel

Console Modem

ARN0049A

Figure 1-2. Loosening the Captive Screws

Holding the ARN front panel so it does not move, slide the enclosure away from the component tray (Figur

e 1-3).

114202 Rev. A

RLSD3

ISDN BRI

withNT1

RLSD

RLSD4

RLSD5

Expansion

Base

Pwr

Run

DCM

Adapter1

RPS

Boot

PCMCIA

Adapter2

Fan

Fail

Figure 1-3. Removing the ARN Enclosure

Attach an antistatic wrist strap.

You receive an antistatic wrist strap with the ARN system and with the upgrade module shipment. Refer to the instructions in the wrist strap bag.

BayStack Advanced Remote Node

ARN0050A

1-3

Installing an Expansion Module in a BayStack ARN Router

The antistatic wrist strap directs the discharge of static electricity from your body to the router chassis, thereby avoiding discharge to sensitive electronic components.

10.

Continue with the instructions for removing either the expansion slot ﬁller panel or an existing expansion module.

• To upgrade the ARN, proceed with “Removing the Filler Panel.”

• To replace an expansion module, proceed with “Remo

Expansion Module.”

Removing the Filler Panel

To remove the expansion slot ﬁller panel (Figure 1-4):

RLSD

Figure 1-4. Filler Panel Covering Expansion Module Slot

From inside the unit, locate the three locking tabs that secure the ﬁller

panel to the expansion slot (Figur

2. Insert a ﬂathead screwdriver beneath each tab and pull up to loosen the

tabs (Figur

ISDN BRI withNT1

COM

Serial

e 1-5).

ving an Installed

Filler panel

10BaseT

Ethernet 1

AUI

Run

Pwr

Base

Expansion

Boot

RPS

Adapter1

DCM

Diag

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node

ARN0030B

e 1-5).

1-4

114202 Rev. A

Installing the Expansion Module

Insert

flathead 

screwdriver 

under tabs

3 locking tabs

ARN0030A

Figure 1-5. Removing the Blank Panel From the Expansion Module Slot

With the locking tabs clear of their slots, push the ﬁller panel in toward

the component tray until you can remove the panel.

Warning: The expansion slot ﬁller panel has sharp, metallic edges; to avoid

cutting your hand or ﬁngers, handle the panel only on its surfaces, not edges.

114202 Rev. A 1-5

Installing an Expansion Module in a BayStack ARN Router

4. Set the ﬁller panel aside.

To operate the ARN without the expansion module in the future, you must reinstall the ﬁller panel.

5. Skip the next section and proceed to “Installing the Module.”

Removing an Installed Expansion Module

To remove an expansion module from the ARN:

1. Remove the ﬁve screws and washers that secure the expansion module to

the base module (Figur

e 1-6).

ARN0028A

Figure 1-6. Removing the Expansion Module Power Cable and Screws

1-6 114202 Rev. A

Installing the Expansion Module

Disconnect the power cable from its connector on the expansion module

(refer to Figur

e 1-6).

Pull up on the white tabs in the connector to loosen the cable.

3. Holding the expansion module at either end of its base module connector,

pull straight up to detach the connector from the base module socket.

Be prepared to use some force at ﬁrst, but stop pulling once the two connectors are free.

4. With the interface connectors resting inside the chassis expansion slot,

pull up until the module rests at a 90-degree angle to the base module.

5. Keeping the expansion module perpendicular to the base module, slide

the interface connectors horizontally toward the rear of the chassis until the module clears the top of the tray assembly and you can remove it

e 1-7).

(Figur

ARN0051B

Figure 1-7. Removing the Expansion Module

114202 Rev. A 1-7

Installing an Expansion Module in a BayStack ARN Router

6. Place the removed expansion module in an antistatic bag.

7. Proceed to the next section to install the replacement expansion module.

Installing the Module

To install the expansion module upgrade or replacement:

1. Locate the expansion module connector and ﬁve screw mounts standoffs

on the ARN base module (Figur

Expansion module  connector

e 1-8).

Standoff

screw mounts (5)

ARN0029A

Figure 1-8. Location of the Expansion Module Connector on the Base Module

1-8 114202 Rev. A

Installing the Expansion Module

Insert the module’s interface connector panel into the front panel

expansion slot (Figur

e 1-9).

To clear the mounting screw standoffs, hold the expansion module at a 45-degree angle and slide the interface connectors into the slot facing down.

ARN0051A

Figure 1-9. Aligning the Expansion Module

Rotate the module downward until the connectors ﬁt into place in the

expansion slot (Figur

114202 Rev. A 1-9

e 1-10).

Installing an Expansion Module in a BayStack ARN Router

Figure 1-10. Inserting the Expansion Module

ARN0027A

Press the module all the way forward into the expansion slot, until the

pins in the expansion module’s base module connector align with the base module connector socket.

5. Press down on the corners of the module at either end of the base module

connector until the module connector slides securely into place.

6. Insert ﬁve screws and washers into the base module mounting standoffs

e 1-11).

(Figur

Use the ﬁve screws and washers that came with the expansion module kit.

7. Tighten the screws using a Phillips screwdriver.

8. With the clip side up, insert the expansion module power cable into the

power connector on the expansion module (Figur

e 1-11).

Be sure that the cable locks into place and is completely secured.

1-10 114202 Rev. A

Installing the Expansion Module

ARN0028A

Figure 1-11. Attaching the Power Cable and Securing the Expansion Module

Closing the ARN

To replace the ARN enclosure:

1. Remove the antistatic wrist strap.

2. Align the enclosure top around the base module component tray and

slide the enclosure in until it meets the front panel (Figur

If you meet resistance, lift up slightly on the enclosure, and center the component tray between the enclosure edges.

3. Secure the two captive screws that hold the cover to the component tray.

114202 Rev. A 1-11

e 1-12).

Installing an Expansion Module in a BayStack ARN Router

Redundant Power

100-240~

1.2A

50-60Hz

Console Modem

RLSD3

ISDN BRI

withNT1

RLSD

RLSD4

RLSD5

Expansion

Base

Pwr

Run

DCM

Adapter1

RPS

Boot

PCMCIA

Adapter2

Fan

Fail

BayStack Advanced Remote Node

ARN0020A

Figure 1-12. Replacing the ARN Cover

1-12 114202 Rev. A

Connecting Cables

To reconnect the ARN:

1. Reconnect any console or network cables that you disconnected from the

front and back panel connectors.

2. Connect the appropriate cabling to the new Ethernet, token ring and/or

serial interfaces: COM, STP, AUI, or 10Base-T.

Refer to the Cable Guide for Routers and BNX Platforms for the cables available from Bay Networks.

Installing the Expansion Module

Figures 1-

13 through 1-15 show the cable connections.

Expansion module 10Base-T interface

RLSD

COM

Serial

To Ethernet network

10BaseT

AUI

Ethernet 2

AUI

Ethernet 1

RLSD3

RLSD4

RLSD5

Run

Boot

Diag

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node

Ethernet 10Base-T cables

ARN0073A

Expansion module AUI interface

RLSD

Serial

10BaseT

To Ethernet transceiver

Ethernet 2

Ethernet 1

AUI

RLSD3

RLSD4

RLSD5

Run

Boot

Diag

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA



BayStack Advanced Remote Node

Ethernet AUI drop cable

ARN0074A

Figure 1-13. Ethernet Cables

114202 Rev. A 1-13

Installing an Expansion Module in a BayStack ARN Router

Expansion module STP interface

RLSD

Serial

To Token Ring network

Serial

STP

Token Ring 2

STP

Token Ring 1

STP

Token Ring 2

STP

Token Ring 1

To Token Ring network

Expansion module UTP interface

UTP

RCVR

NSRT

WFLT

RCVR

NSRT

WFLT

Token Ring STP cable

Expansion module UTP interface

UTP

RCVR

NSRT

WFLT

RCVR

NSRT

WFLT

Token Ring STP cable

RLSD3

RLSD4

RLSD5

Run

Boot

Fail

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node



ARN0075A

RLSD3

RLSD4

RLSD5

Run

Boot

Fail

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node



ARN0075B

Figure 1-14. Token Ring Cables

1-14

114202 Rev. A

Installing the Expansion Module

ISDN BRI

withNT1

RLSD

COM

Serial

10BaseT

AUI

Ethernet 2

AUI

Ethernet 1

RLSD3

RLSD4

RLSD5

Run

Boot

Fail

To RS-232, RS-422, RS-530, V.35, or X.21 interface

Figure 1-15. Serial Cables

Plug in the power cord and, if applicable, redundant power supply cable.

Refer to Figure

1-1.

Ensuring a Successful Installation

After reconnecting the ARN to the network, you can ensure a successful upgrade by checking the diagnostic LEDs on the front panel of the base module (Figure

1-16).

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node

ARN0067A

114202 Rev. A 1-15

Installing an Expansion Module in a BayStack ARN Router

Run

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

AUI

COM

Serial

ISDN BRI

RLSD

10BaseT

AUI

Ethernet 2

AUI

Ethernet 1

RLSD3

RLSD4

RLSD5

Run

Boot

Fail

Figure 1-16. ARN Base Module Diagnostic LEDs

When you power on the ARN, the following sequence of front panel LED activity should occur:

1. All base module LEDs light momentarily; this tests that the LEDs are

operational.

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node

ARN0059A

2. The Run, Boot, and Fail LEDs count through a short, initial startup sequence.

3. The Pwr (power) LED lights and remains on.

4. The Run LED begins ﬂashing and continues to ﬂash until the ARN completes

all diagnostic tests.

5. As the diagnostic procedure tests each module, the LED representing that

module ﬂashes slowly. If the module passes its diagnostic test, the LED remains on. If the module fails its diagnostic test, the Fail LED remains on and the module LED ﬂashes rapidly.

1-16 114202 Rev. A

Installing the Expansion Module

After completing the diagnostic testing procedure, the boot process begins.

The Run and Boot LEDs indicate the boot status as shown in T

Table 1-1. Boot Status LEDs

Boot Status Run LED Boot LED

Local Boot Off On Netboot (attempting) Off Flashing Netboot (downloading) Flashing On Interrupted (using ARN monitor) Flashing Flashing

7. After the boot process completes, the Run LED lights and the Boot LED turns

able 1-1.

off, indicating that the ARN is operational.

If the LEDs on the ARN light in this sequence, your upgrade is successful. Contact the network administrator to verify that the ARN is now connected to the network.

If the LEDs do not light in this sequence, the network administrator can refer to Conﬁguring Remote Access to help troubleshoot the problem.

Note: If the ARN does not contain an expansion module, an adapter module, a

redundant power supply, a data collection module, or a Flash card, the LEDs associated with these components remain off.

If you need additional assistance, contact your local Bay Networks Technical Response Center.

Your Next Step

To connect the new interfaces to a network and modify the ARN conﬁguration ﬁle, you must follow the appropriate installation procedures. Refer to

• Installing and Operating BayStack ARN Routers or to the Conﬁguring Remote Access guide for instructions on using the script

• Conﬁguring Routers for information about using Site Manager to conﬁgure router interfaces

114202 Rev. A 1-17

inst_arn.bat T echnician Interface

Installing an Expansion Module in a BayStack ARN Router

• Modifying Software Images for Routers for information about changing the router image

able 1-2 indicates how the physical interface labels on the ARN correspond to

Site Manager connector names.

Table 1-2. Site Manager Names for ARN Expansion Module Interfaces

Expansion Module Physical Connector Label

AUI XCVR2 10Base-T XCVR2 UTP TOKEN2 STP TOKEN2 COM3 COM3* COM4 COM4* COM5 COM5*

*. Site Manager numbers the ARN COM interf aces e xactly as they are labeled. If

there are no Adapter modules installed in COM1 or COM2, COM3 through COM5 could be the ﬁrst three serial ports in the ARN.

Site Manager Connector Name

Note: Be aware that adding software for your expansion module interfaces

may increase the ARN memory requirements.

Contact your network administrator if you need additional information.

1-18 114202 Rev. A
