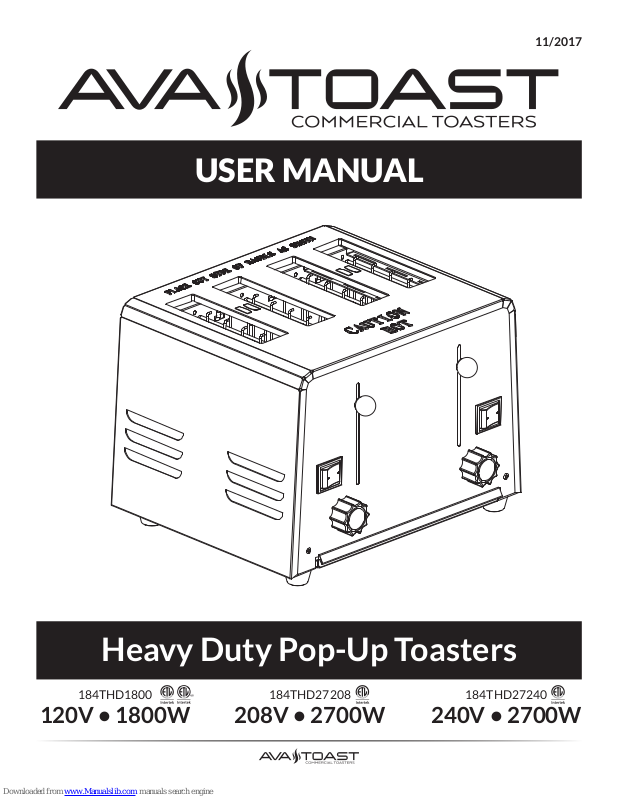

USER MANUAL
11/2017
Heavy Duty Pop-Up Toasters
184THD1800
120V • 1800W
184THD27208
208V • 2700W
184THD27240
240V • 2700W
Page 2
INDEX
Important Safety Information .............2
Identification of Key Parts .................3
Circuit Diagram ............................3
Before Using Your Oven ...................4
Using Your Oven ...........................4
Typical Operation Sequence ...............4
Cleaning & Maintenance...................5
Troubleshooting ...........................5
Limited Warranty ..........................5
Specifications ..............................6
1.
Page 3
SAFETY
When using electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read all instructions carefully and completely.
2. For commercial use only.
3. DO NOT touch hot surfaces.
4. Protect against electrical shock by keeping all cords, plugs, and other electrical
components away from water or other liquids.
5. Unplug this unit when not in use and before cleaning.
6. Allow the unit to cool before putting on or taking off parts.
7. DO NOT operate this or any appliance with a damaged electrical cord or plug.
8. DO NOT operate this or any appliance after it has malfunctioned or has been
damaged in any way.
9. DO NOT use outdoors.
10. DO NOT place on or near a hot gas or electric burner.
11. Attach plug to appliance first, then plug electrical cord into the wall outlet.
12. Disconnect the unit by removing the electrical plug from the wall outlet.
13. DO NOT use appliance for any application other than intended use.
14. DO NOT insert metal utensils or oversized foods into this unit, as they may cause
a fire and heighten the risk of electrical shock.
15. DO NOT store any item on top of this unit when in operation.
16. DO NOT allow this oven to touch or to be covered by flammable material,
such as curtains, draperies, walls, etc., when in operation.
17. DO NOT clean with metal scouring pads, as pieces can break off and touch electrical
components, heightening the risk of electrical shock
18. Never place materials such as paper, cardboard, plastic, etc. in this oven.
19. DO NOT cover interior of this unit with metal foil, as it may cause the oven to overheat.
20. Avoid scratching the surface or nicking the edges of this unit. If the oven is damaged
or broken, contact customer service before use.
21. Turn off the appliance by removing the plug from the wall outlet.
22. Note that the use of accessories not recommended by the manufacturer
may result in injury.
23. Children should be supervised to ensure that they DO NOT play with the oven.
24. This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge,
unless a person responsible for their safety has given them supervision or instruction
concerning use of the appliance.
25. When using the appliance in shops, snack bars, hotels etc., check the voltage and
outlet to make sure the appliance is correctly connected with power.
26. Place unit on a flat surface that is well ventilated. The appliance must be supervised
during operation. DO NOT leave appliance without powering off.
NOTE: Save these instructions for future reference.
2.
Page 4
1
KEY PARTS
1. Slots
5
7
2
2. Lift Carriage
3. Bagel/Bread
Rocker Switch
3
4. Brown Level
Control Knob
4
5. Side Panel
6. Crumb Tray
6
7. Foot

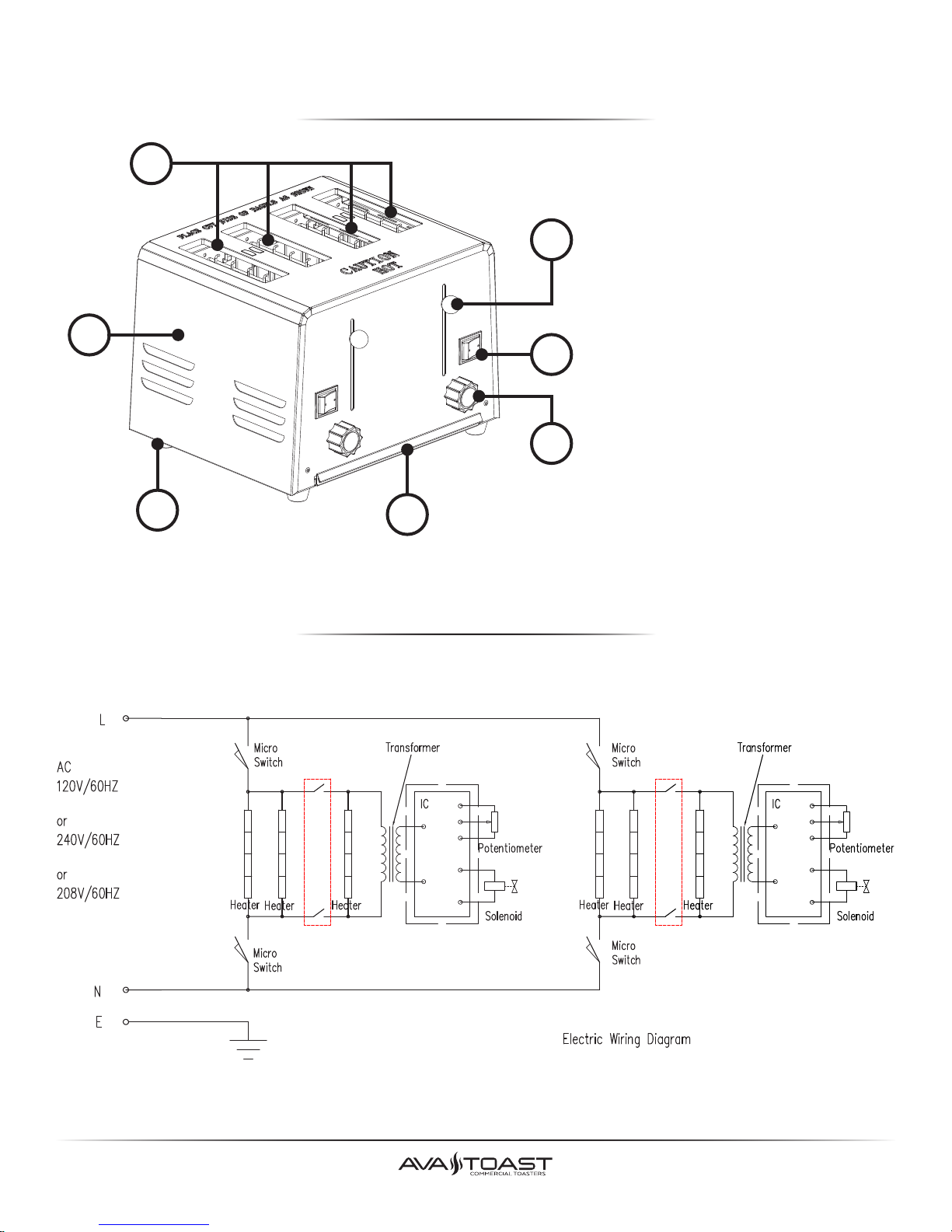

CIRCUIT DIAGRAM
3.
Bagel/Toaster
switch
Bagel/Toaster
switch
Page 5
BEFORE USING YOUR OVEN
Before cooking anything in your oven for the first time, please follow these simple instructions:
1. Use a damp cloth to wipe the interior and shell.
• DO NOT use a spray or abrasive polishing agent
• DO NOT wash or soak this oven with water
2. Preheat to its highest temperature setting for 5 minutes.
• The heating elements are well lubricated, and this initial use will help burn off
the extra grease.
• A light amount of smoke is normal during this process.
USING YOUR OVEN
1. Load the food.
2. Select either bagel or bread using the rocker switch.
• If toasting a bagel, only the outer heating elements will turn on.
Place the bagel with the flat sides facing outwards.
2. Set desired brown level.
• There are 2 Brown Level Control Knobs on the front panel of the oven.
Each one controls the 2 slots above. Set the desired brown level with the knobs
before pressing down the Lift Carriage.
3. Press the Lift Carriage down; the oven will start heating.
4. Once the toasting cycle is complete, the oven will ‘ding’ and the food will
pop up automatically.
• If you need to cancel cooking before the cycle is completed,
raise up the Lift Carriage. Food will pop up, and the cycle will end.
CAUTION: During the baking process, make sure that no metal accessory comes in contact
with the electric heating elements.
CAUTION: Foods baked in this oven will be hot. Use tools when reaching into the oven to
retrieve food.
TYPICAL OPERATION SEQUENCE
ACTION RESULT
Plug in your oven Power is connected, and oven is ready for cooking
Load food into the slot Food is ready to be cooked
Select bagel or bread Bagel turns on 1 heating element, bread turns on both
Adjust brown level control knob Set the brown level of food
Press the lift carriage down Oven starts heating
Raise up the carriage Oven stops toasting
Unload oven Product will be cooked/hot; use caution while removing
4.
Page 6
CLEANING & MAINTENANCE
1. Unplug the power cord from the wall outlet.
2. Wait for the oven to cool.
3. Use a damp cloth or sponge to gently wipe down the inside of the oven.
CAUTION: DO NOT soak this oven in water or use running water to clean it.
THIS WILL CAUSE SERIOUS DAMAGE TO THE UNIT.
TROUBLESHOOTING
PROBLEM: The oven does not become hot after being switched on.
• Be sure that the brown level is set.
• Be sure that the lift carriage is pressed down.
PROBLEM: There is a metallic sound when the oven is in use.
• DO NOT attempt to dismantle your oven.
• Discontinue use, and contact your service agent right away for examination.
PROBLEM: Food is often overcooked or burned.
• Check that the brown level is correctly set.
• Contact your service agent for examination.
LIMITED WARRANTY
All equipment, which is sold under Ava-Toast trademark and used for commercial
purpose is warranted against defects in materials and workmanship. The warranty
runs for one year from the date of purchase and is for the benefit of the original
purchaser only. All other Warranties, Expressed or Implied, Statutory or Otherwise,
including Without Limitation any implied Warranty of Merchantability or Fitness for
Purposes are excluded. The Seller shall in no event be liable for direct, indirect, or
consequential damages in connection with Ava-Toast commercial products.
This warranty is not effective if damage occurs because of accident, carelessness,
improper installation, lack of proper set–up, supervision when required, or if the
equipment is installed or operated in any manner contrary to the installation and
operating instructions. Work performed by unauthorized personnel or unauthorized
service agencies voids this Warranty.
This warranty does not apply to, and Ava-Toast is not responsible for, any warranty
claims made on products sold or used outside of the United States. Residential use
voids the warranty.
5.
Page 7
SPECIFICATIONS
Model # THD1800 THD27208 THD27240
Voltage 120V 208V 240V
Hertz 60Hz 60Hz 60Hz
Wattage 1800W 2700W 2700W
Dimensions 14”W x 13½”D x 11”H 14”W x 13½”D x 11”H 14”W x 13½”D x 11”H
Unit Weight 19.5 lb. 19.5 lb. 19.5 lb.
Shipping Weight 21 lb. 21 lb. 21 lb.
Slot Size 1½” 1½” 1½”
Plug NEMA 5-15P NEMA 6-20P NEMA 6-20P
6.
