WebMux™
Network Traffic Manager
User Manual
Virtual WebMux and Network Hardware Appliances
Version v13.x
(Rev September 2017)
WebMux chassis image represents models A425, A525, A620, A625, A725, A825
www.avanu.com
2
Table of Contents
SECTION I - GENERAL INFORMATION .................................................................................................................... 7
About AVANU® ...................................................................................................................................................................... 7
WebMux User Manual........................................................................................................................................................ 7
Audience ...................................................................................................................................................................................................... 7
Notice of Rights ....................................................................................................................................................................................... 7
Notice of Liability ..................................................................................................................................................................................... 7
Trademarks ................................................................................................................................................................................................ 7
Update Information ................................................................................................................................................................................ 8
Packing List .............................................................................................................................................................................. 8
Contact Information ............................................................................................................................................................. 8
Mailing Address ....................................................................................................................................................................................... 8
Service Center .......................................................................................................................................................................................... 8
Email............................................................................................................................................................................................................... 8
Telephone Numbers ............................................................................................................................................................................. 8
Hours of Operation ................................................................................................................................................................................ 8
SECTION II - WEBMUX MAIN COMPONENTS ...................................................................................................... 9

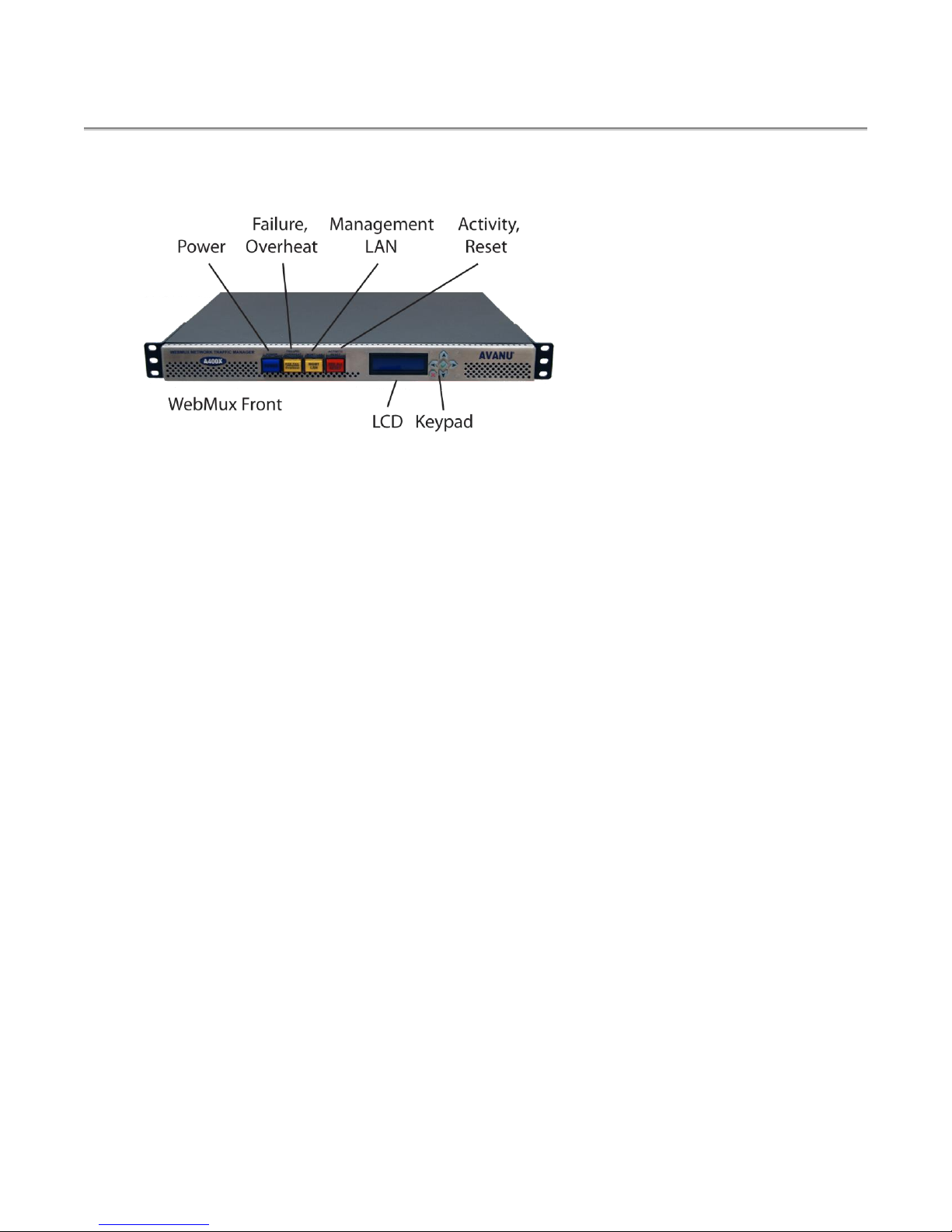

Front View ................................................................................................................................................................................. 9

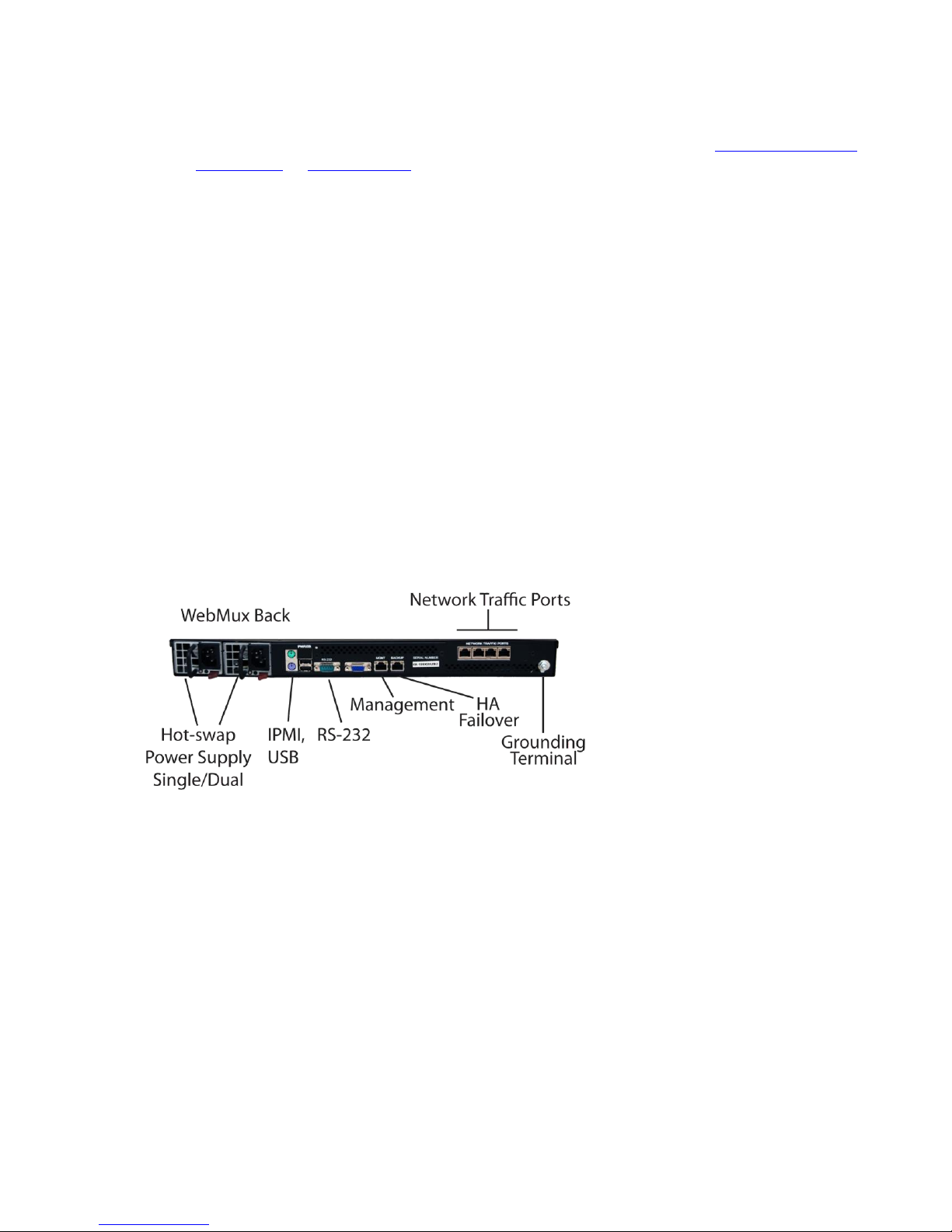

Rear View ............................................................................................................................................................................... 10
SECTION III - WEBMUX TOPOLOGY OVERVIEW........................................................................................... 12
WebMux Topology Modes ............................................................................................................................................ 12

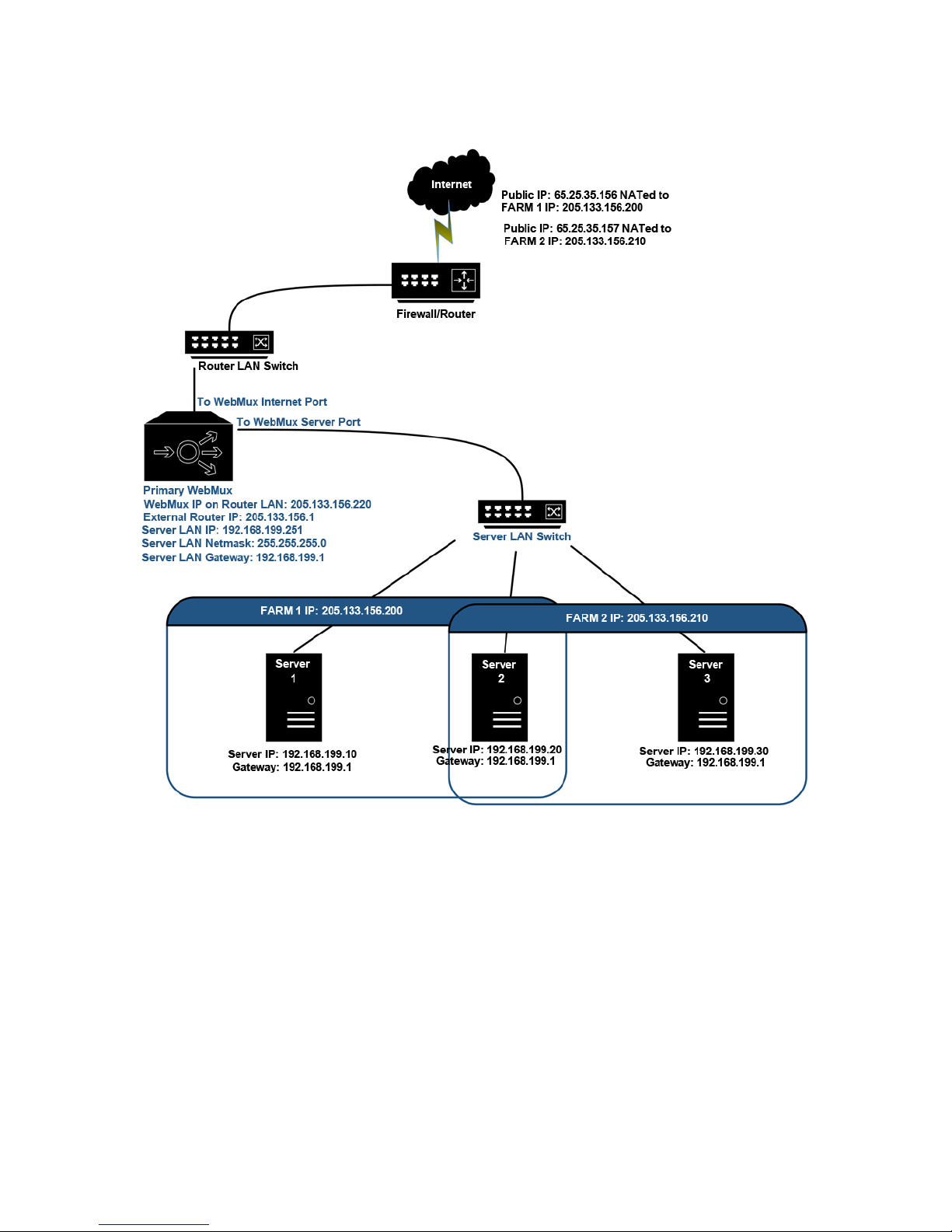

Two-Armed NAT Mode .................................................................................................................................................................... 13
Two-Armed Transparent Mode ................................................................................................................................................... 19
One-Armed Single Network Mode ............................................................................................................................................ 21
One-Armed Direct Server Return/DSR .................................................................................................................................. 22
Link Aggregation Group (Port Bonding) in Direct Server Return/DSR ............................................... 24
IPv6 Considerations ......................................................................................................................................................... 24

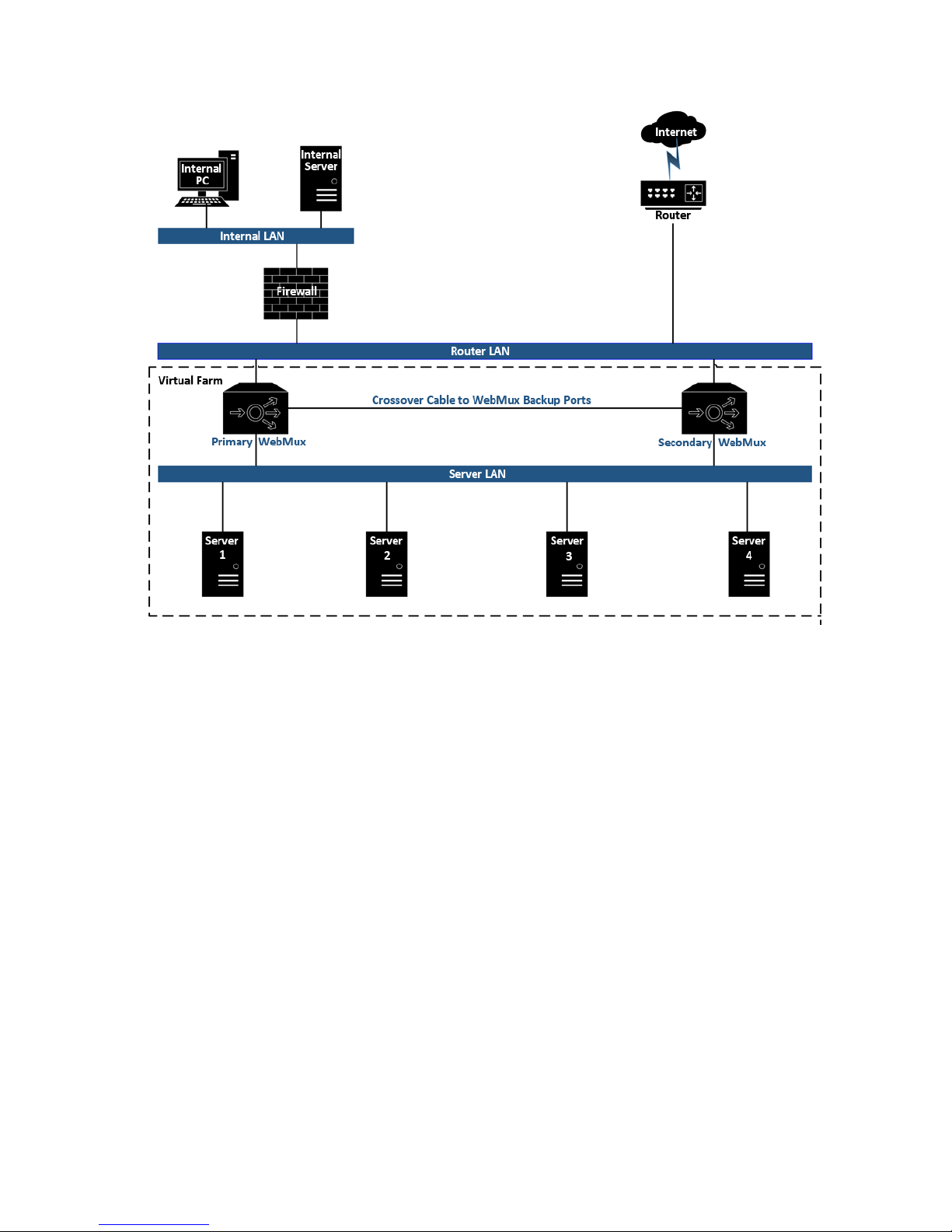

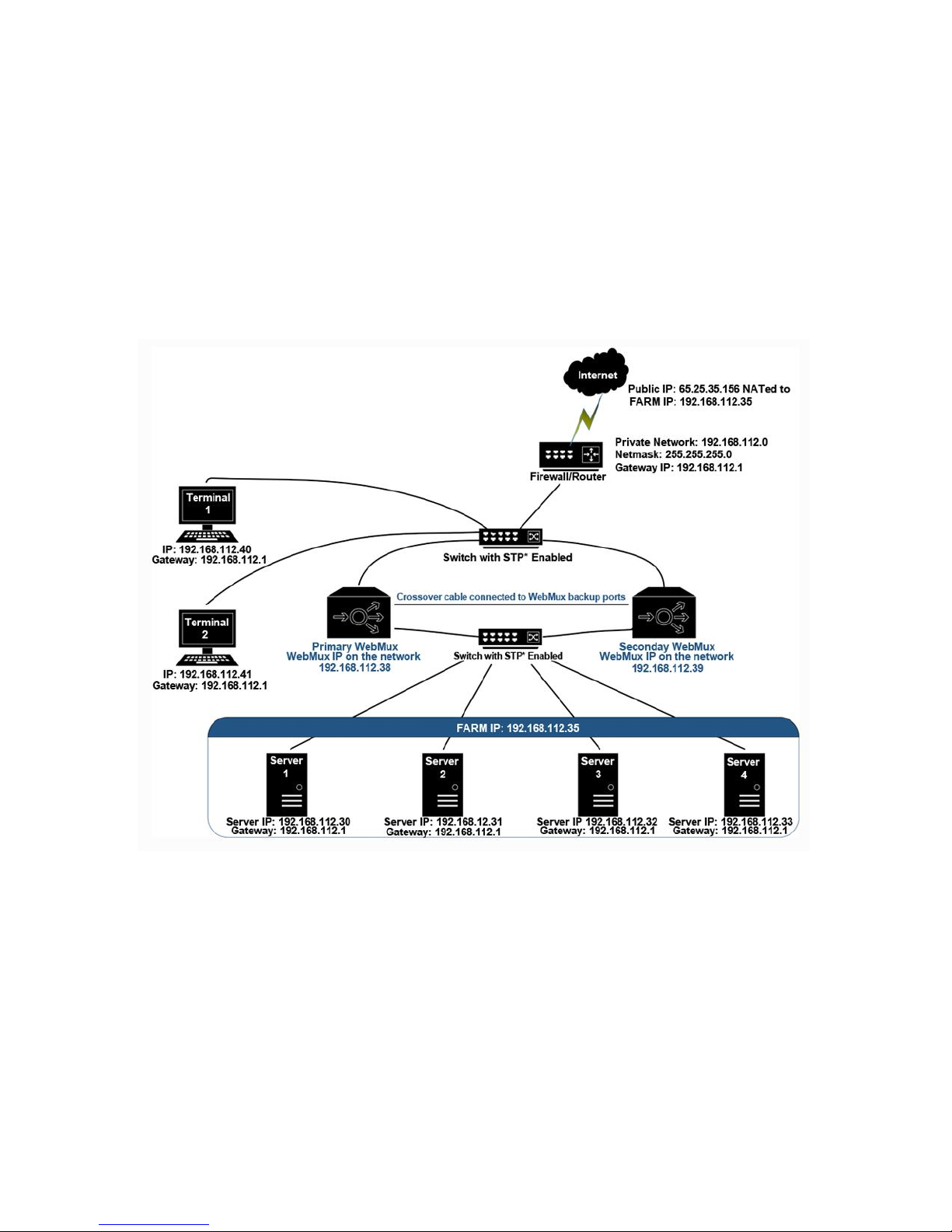

High Availability and Configuration .......................................................................................................................... 25
1) NAT mode: .................................................................................................................................................................................... 26
2) Transparent mode: ................................................................................................................................................................... 27
3) Single Network mode .............................................................................................................................................................. 27
4) Direct Server Return mode .................................................................................................................................................. 27
SECTION IV - CONFIGURING THE WEBMUX ................................................................................................... 29
Getting Started .................................................................................................................................................................... 29
Network Terminology ........................................................................................................................................................................ 29
3
Hardware Setup - Collect Information..................................................................................................................................... 30

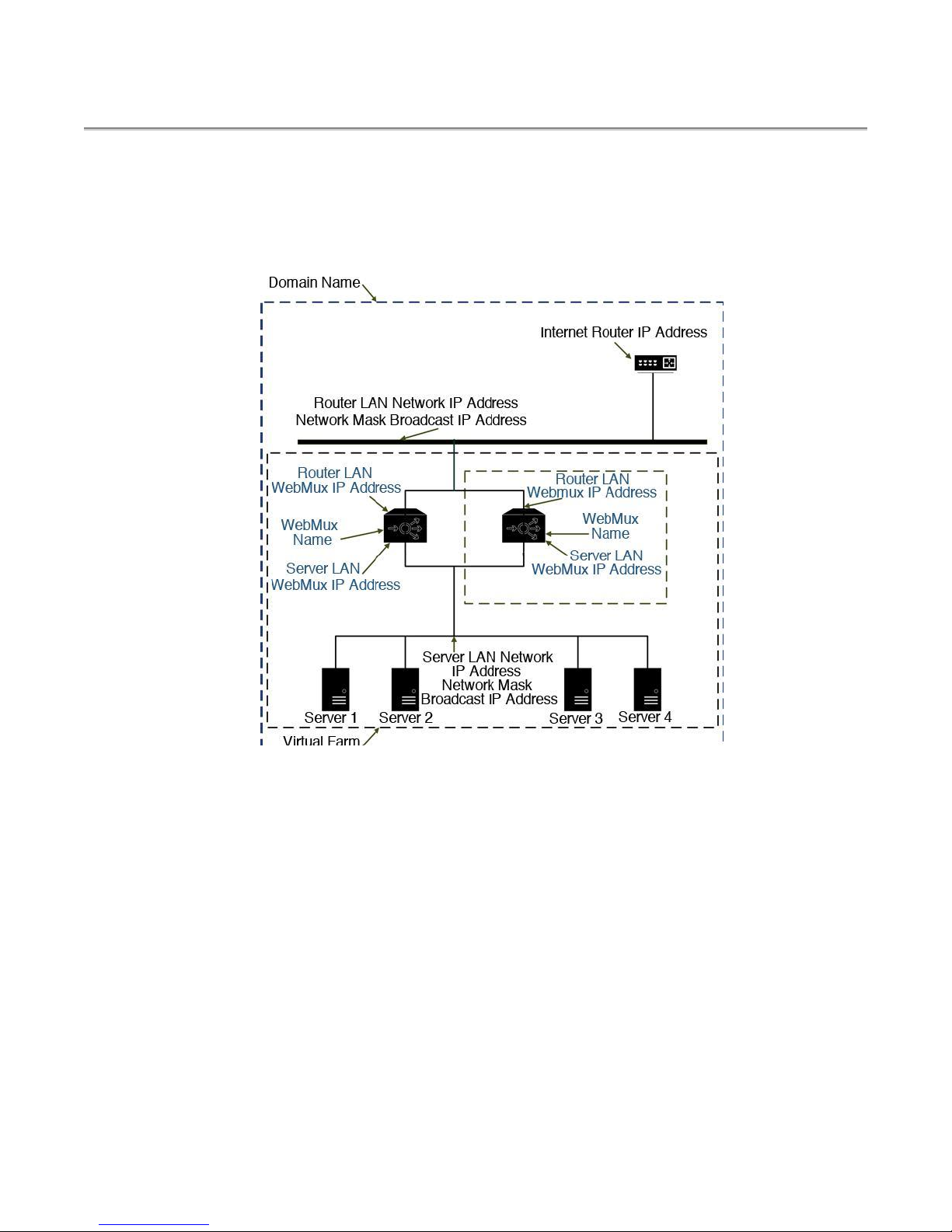

Hardware Setup - Network Environment .............................................................................................................................. 30
Initial Setup Though LCD Panel ................................................................................................................................ 30

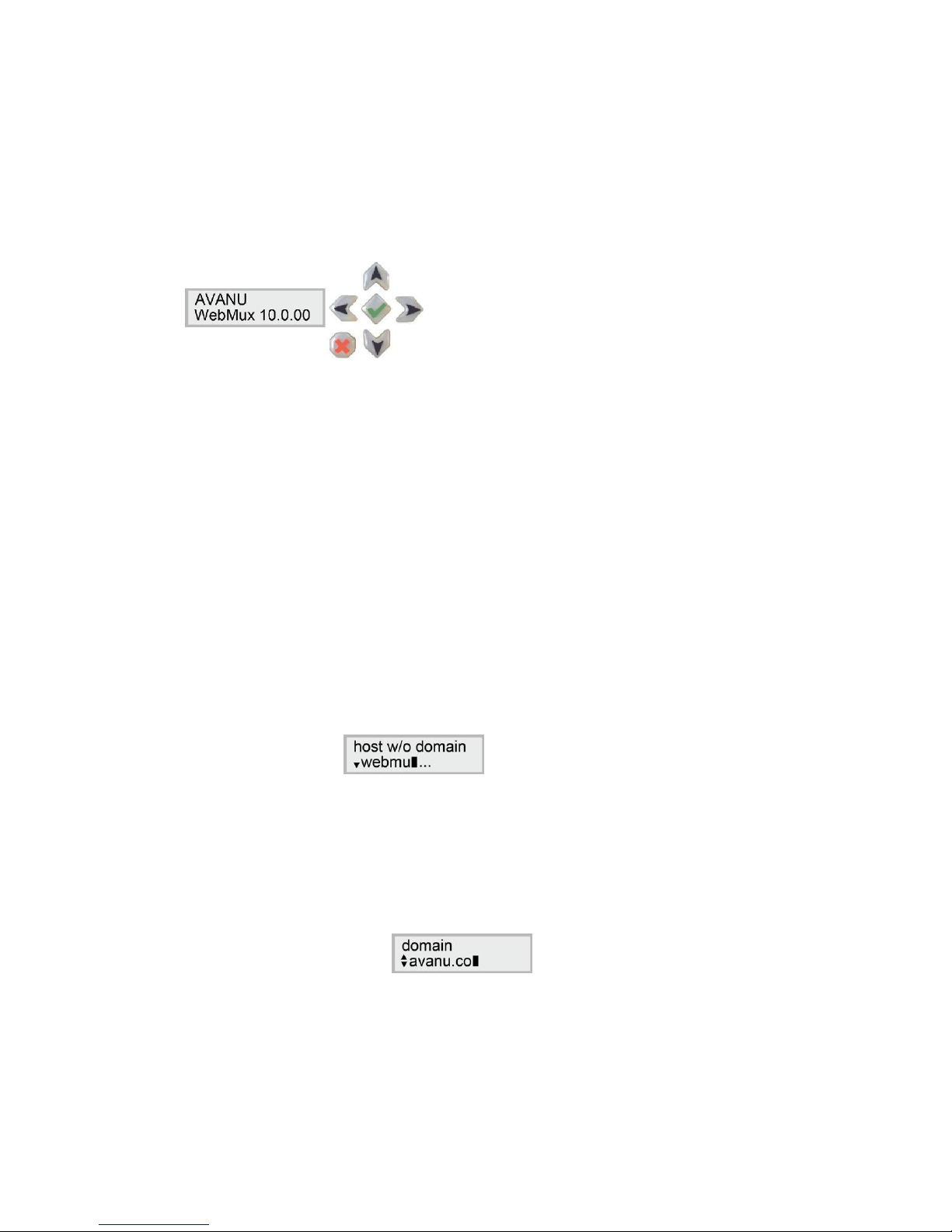

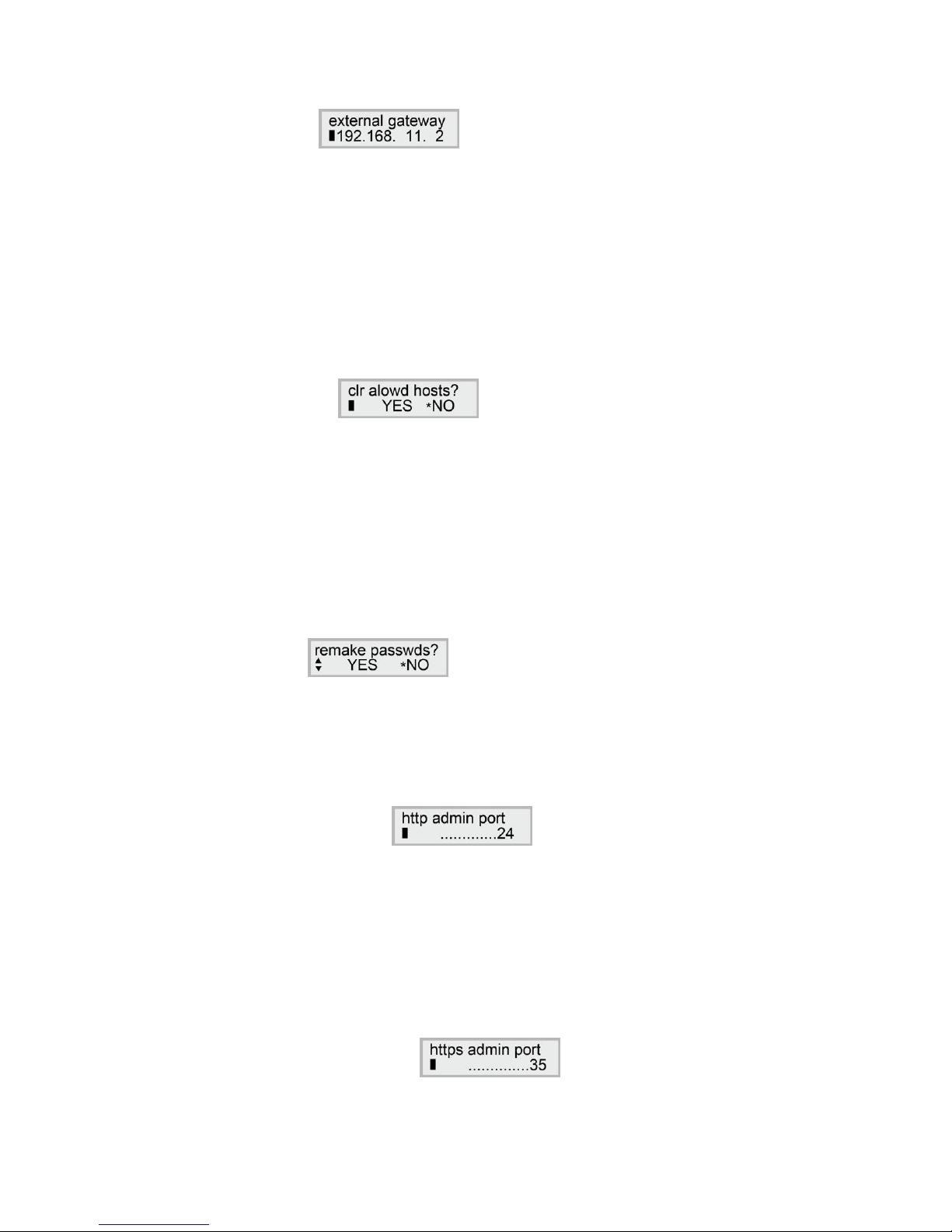

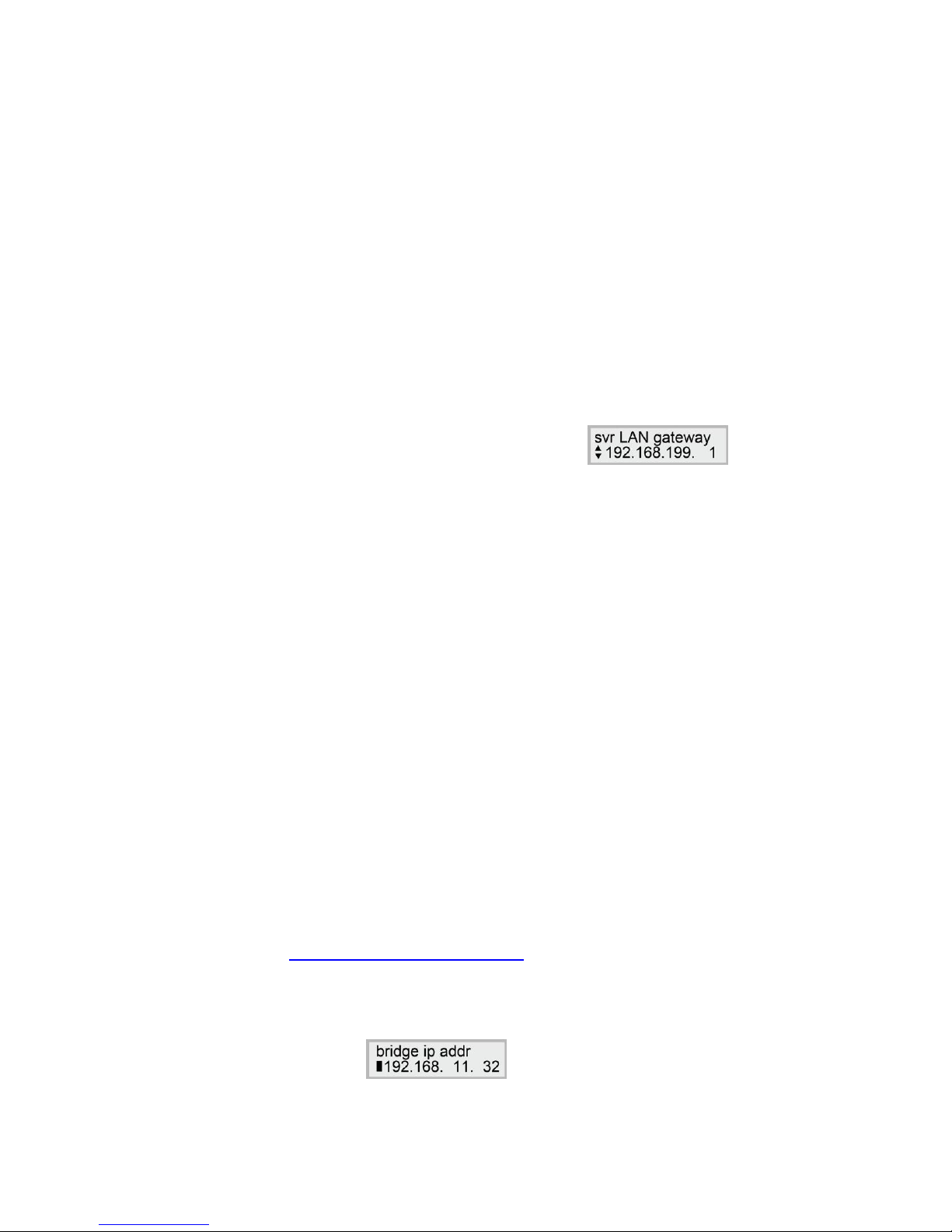

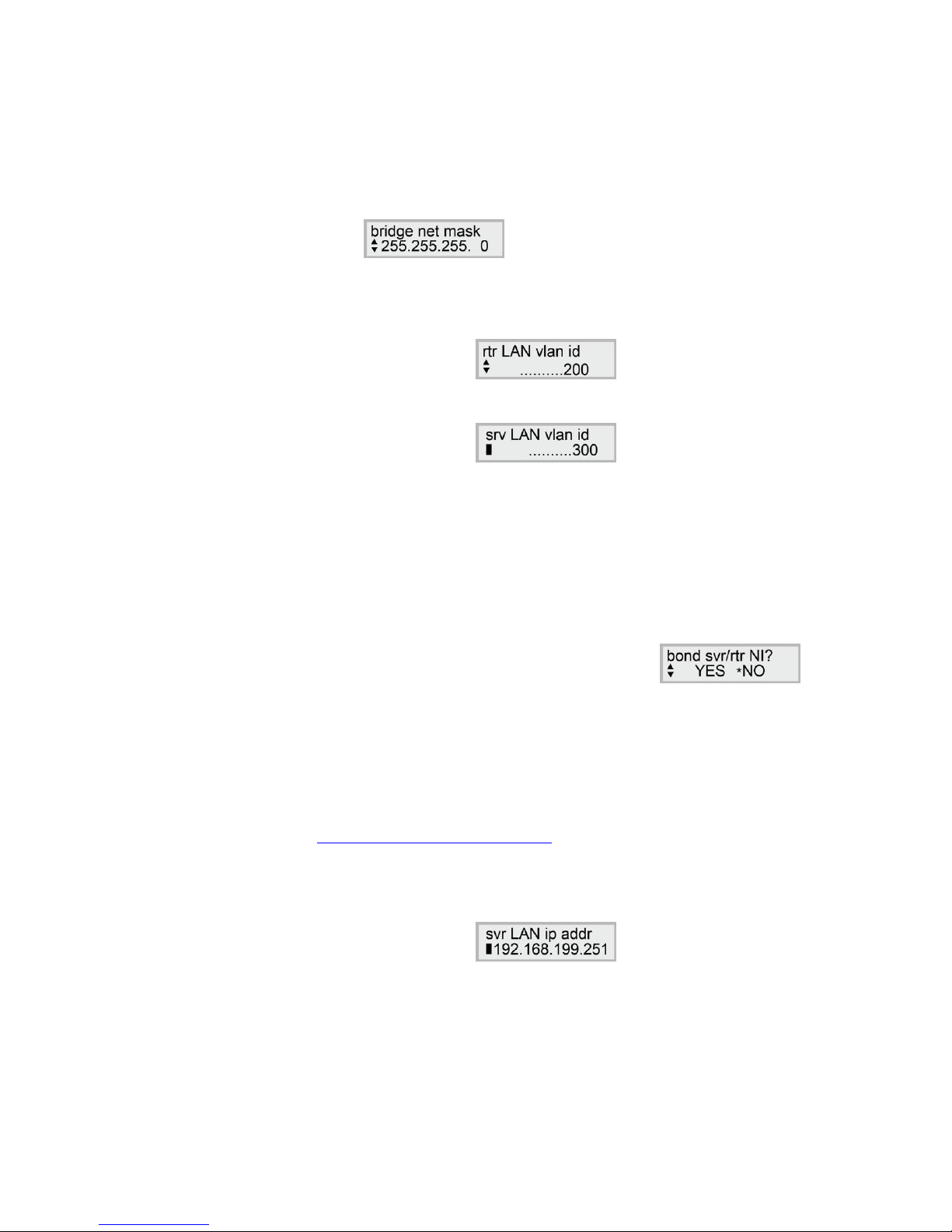

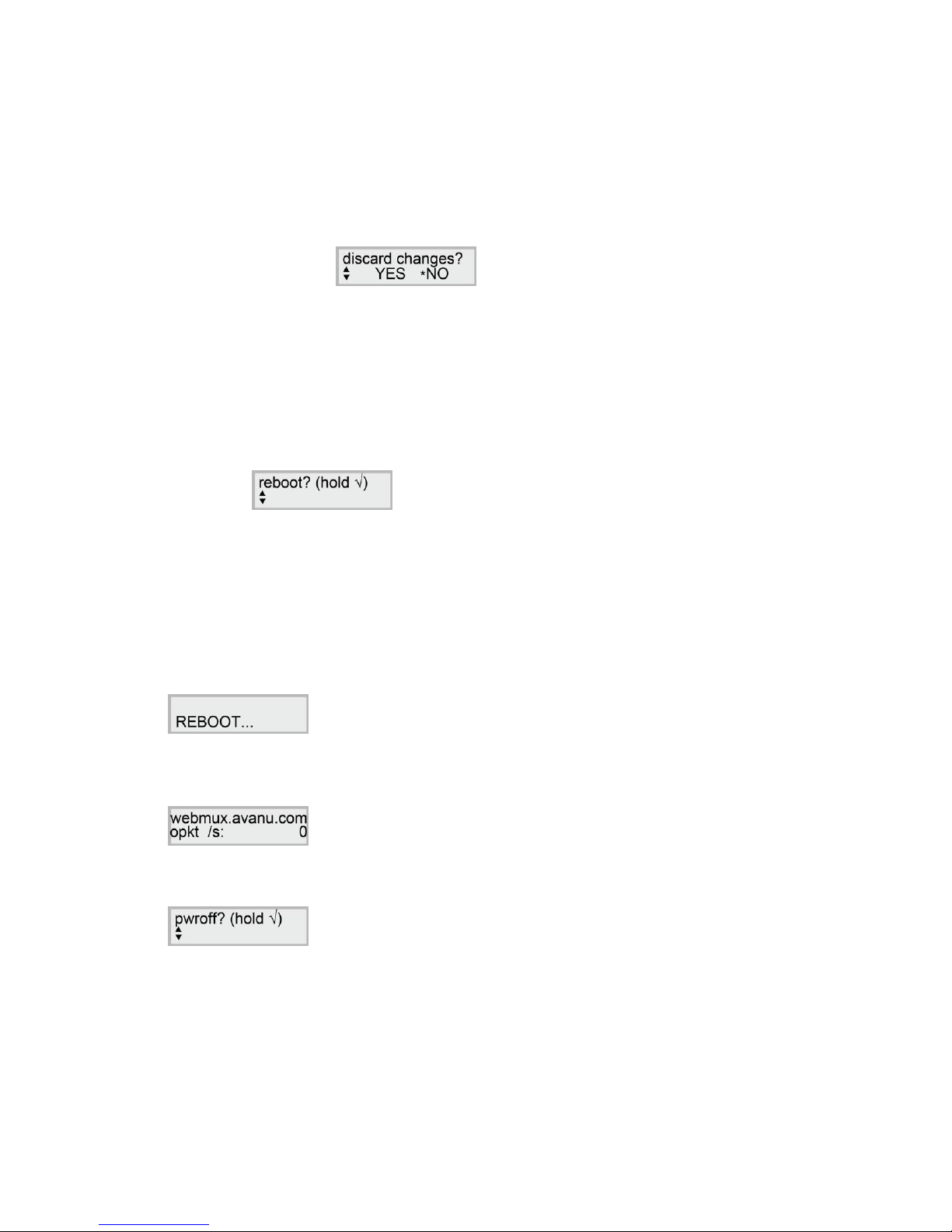

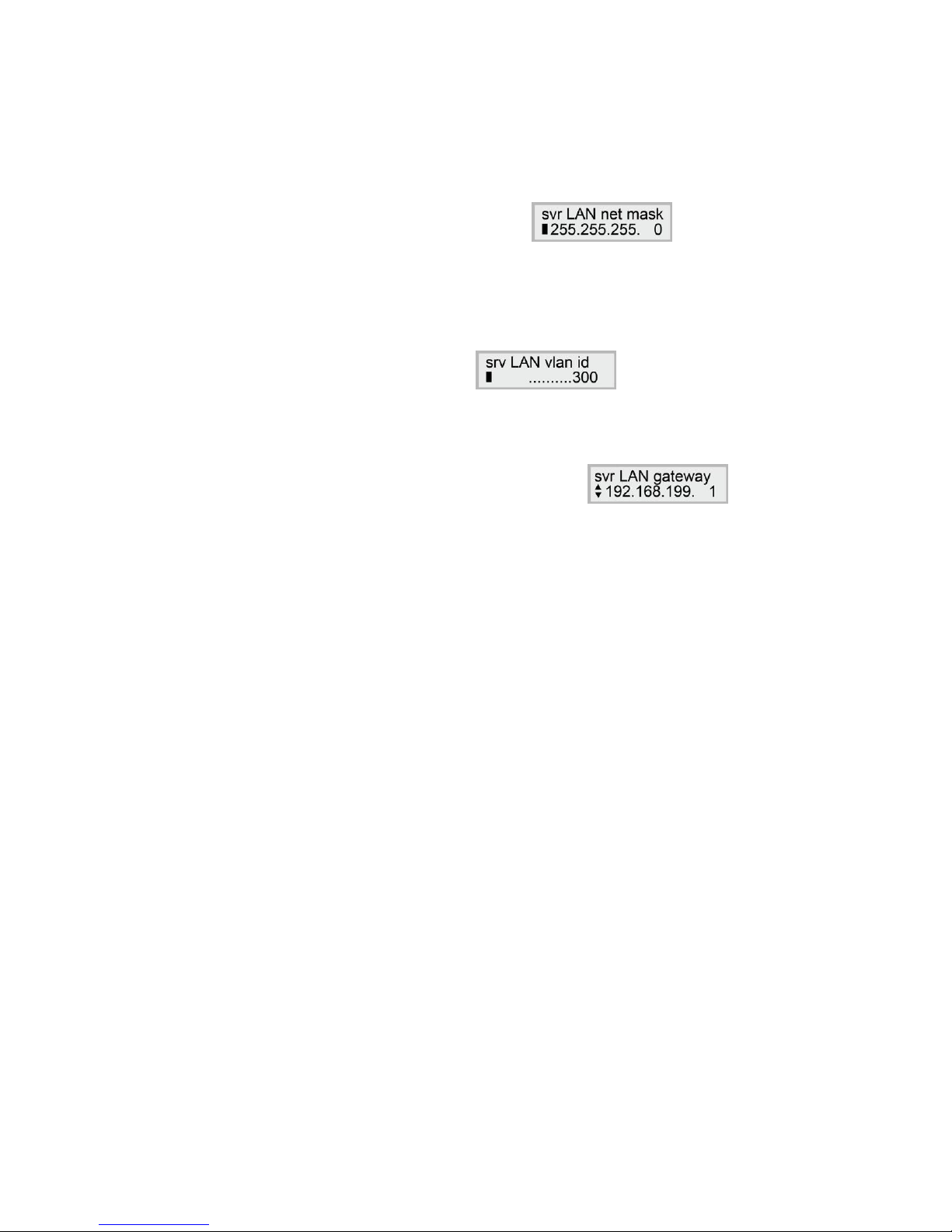

The LCD Setup Screens ................................................................................................................................................................. 31

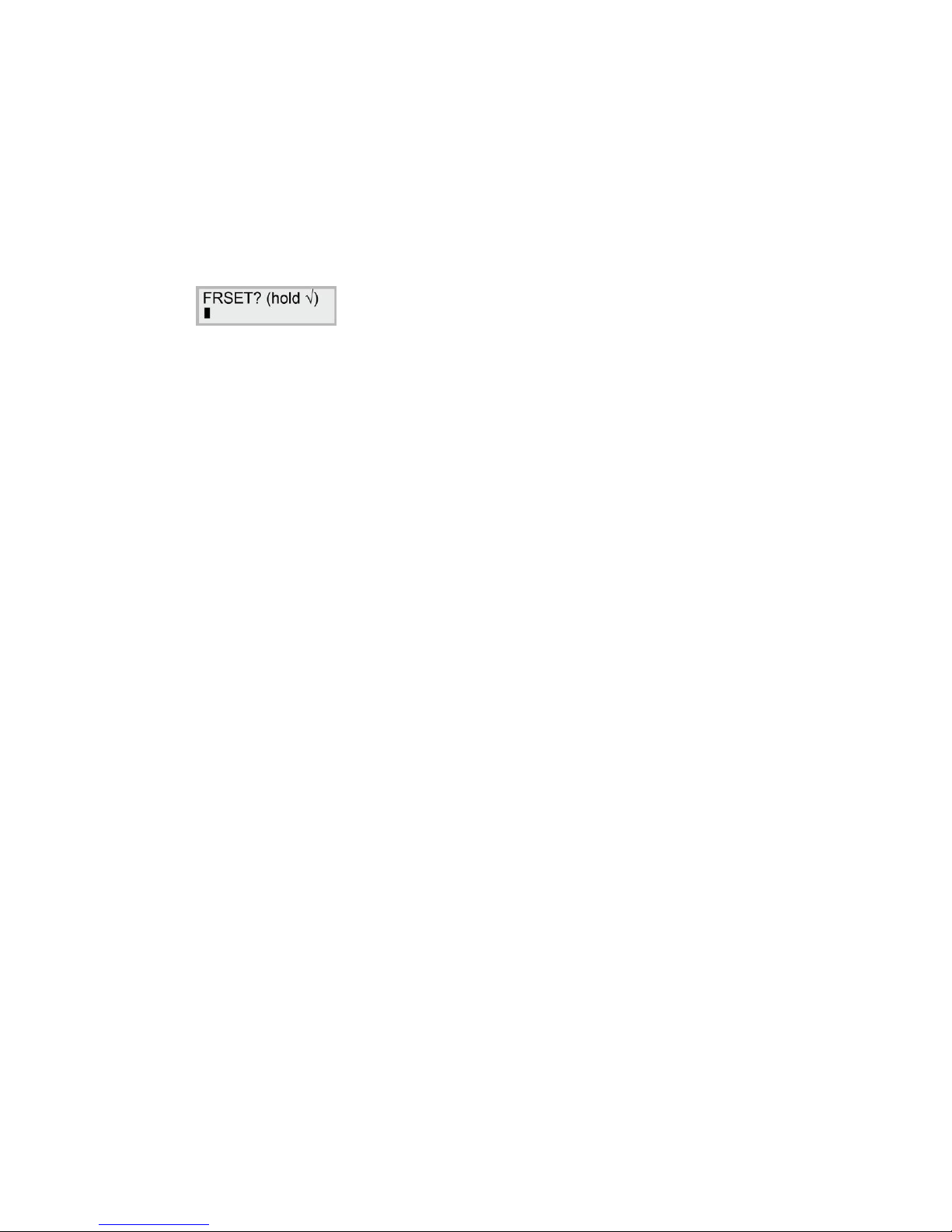

Factory Reset: ....................................................................................................................................................................................... 39
Fixing Configuration Mistakes...................................................................................................................................................... 39
Bond All Interfaces Setup ............................................................................................................................................................... 39
Setting Up the Management Port .............................................................................................................................................. 41
Initial Setup Through a Web Browser .................................................................................................................... 42

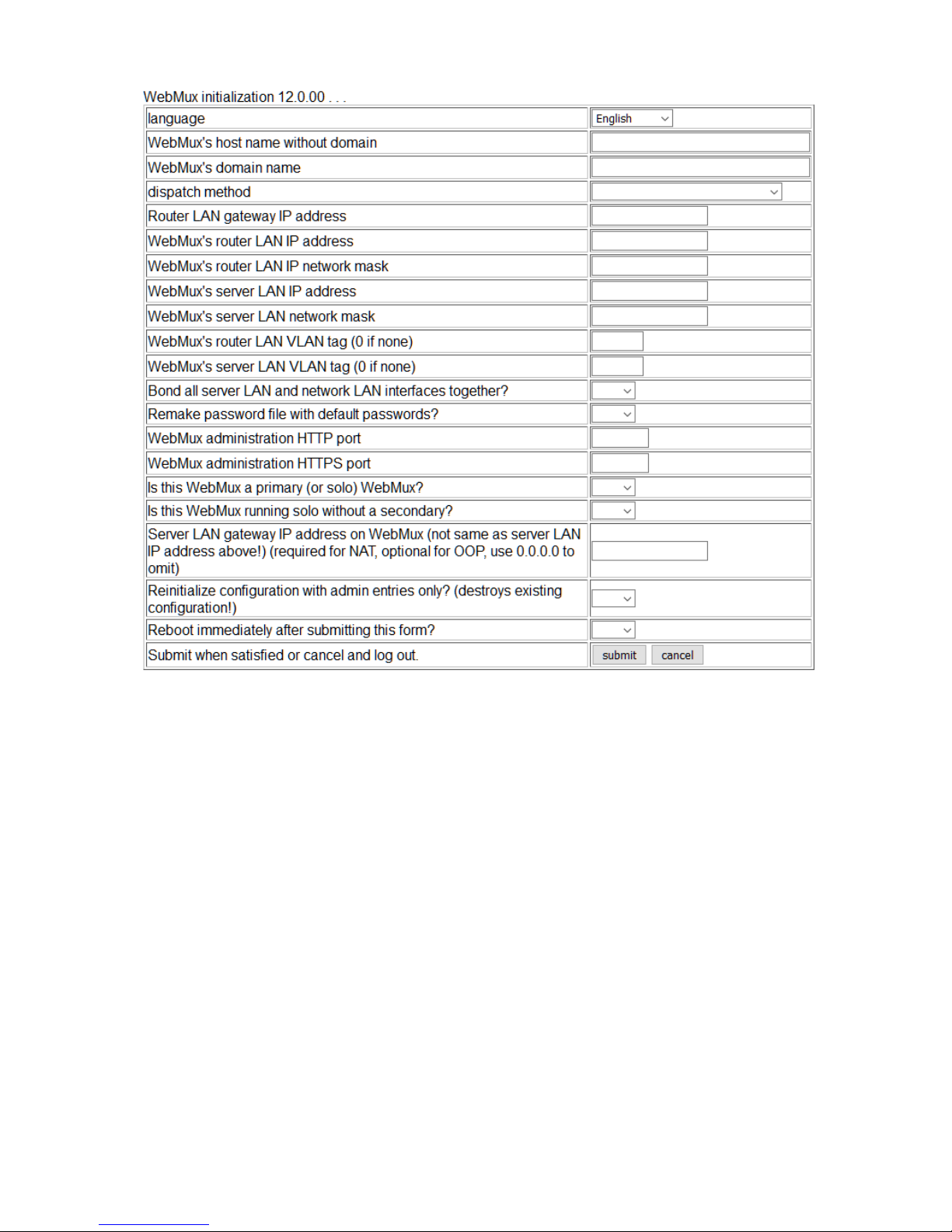

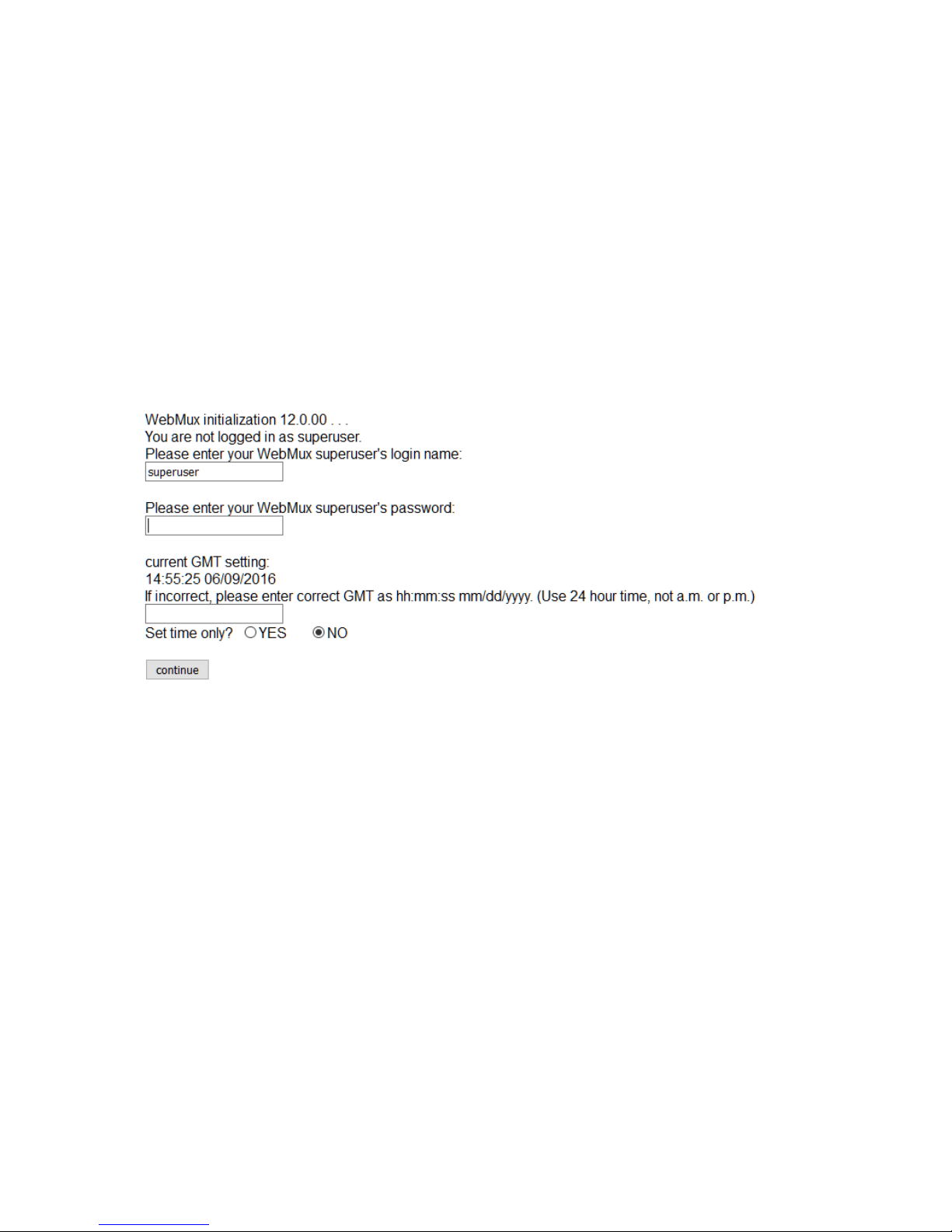

Web GUI Initialization Interface: ................................................................................................................................................. 42
WebMux Reconfigure Screen (an alternate way): .......................................................................................................... 44

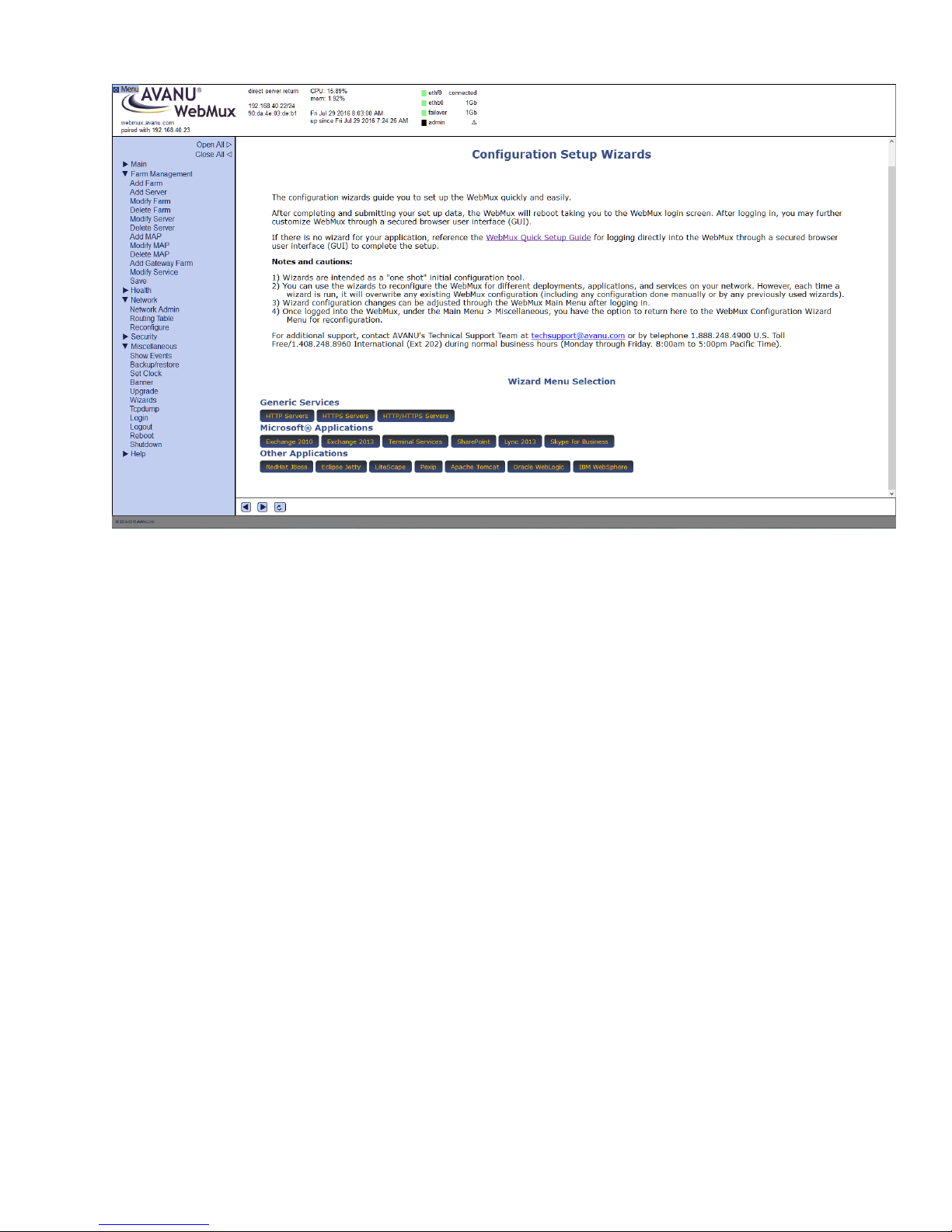

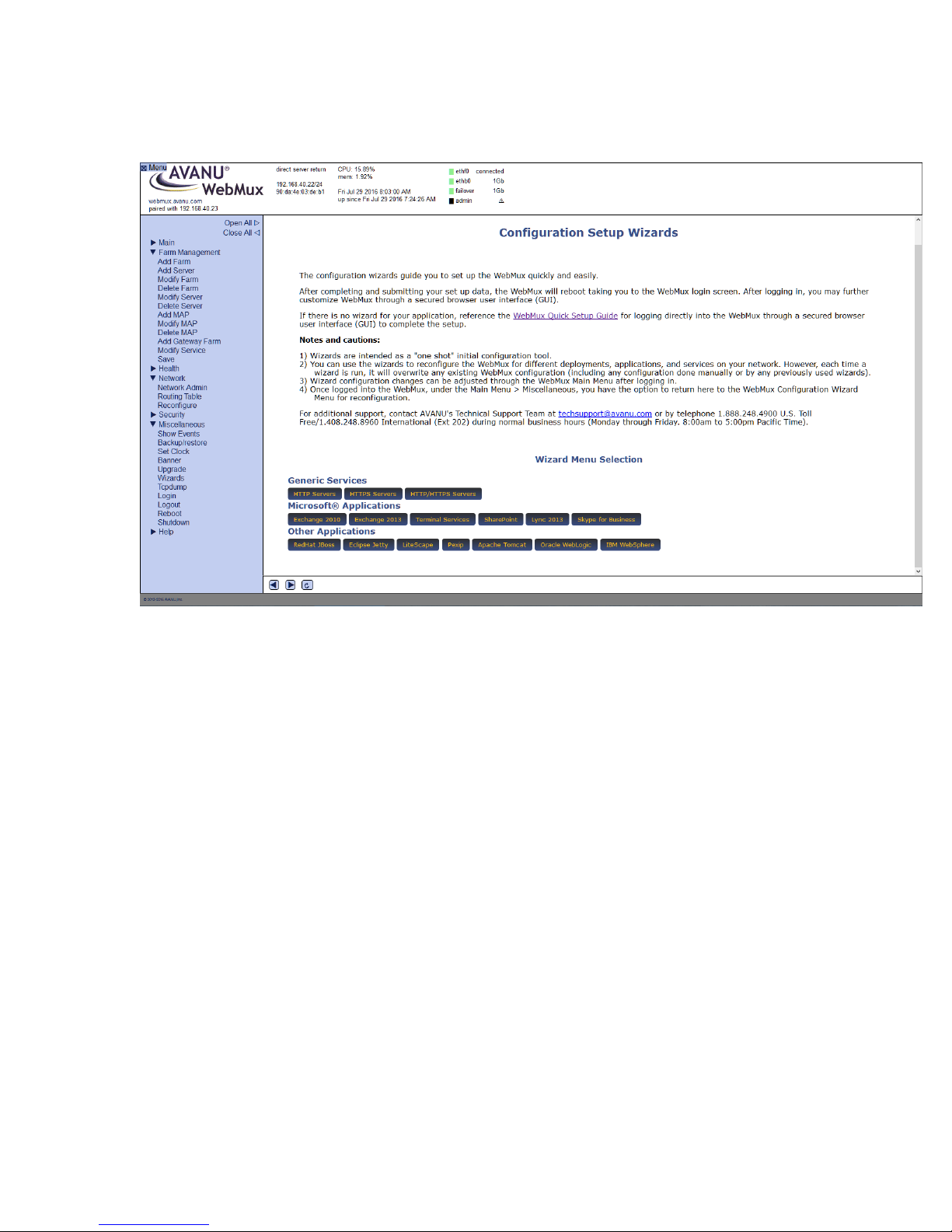

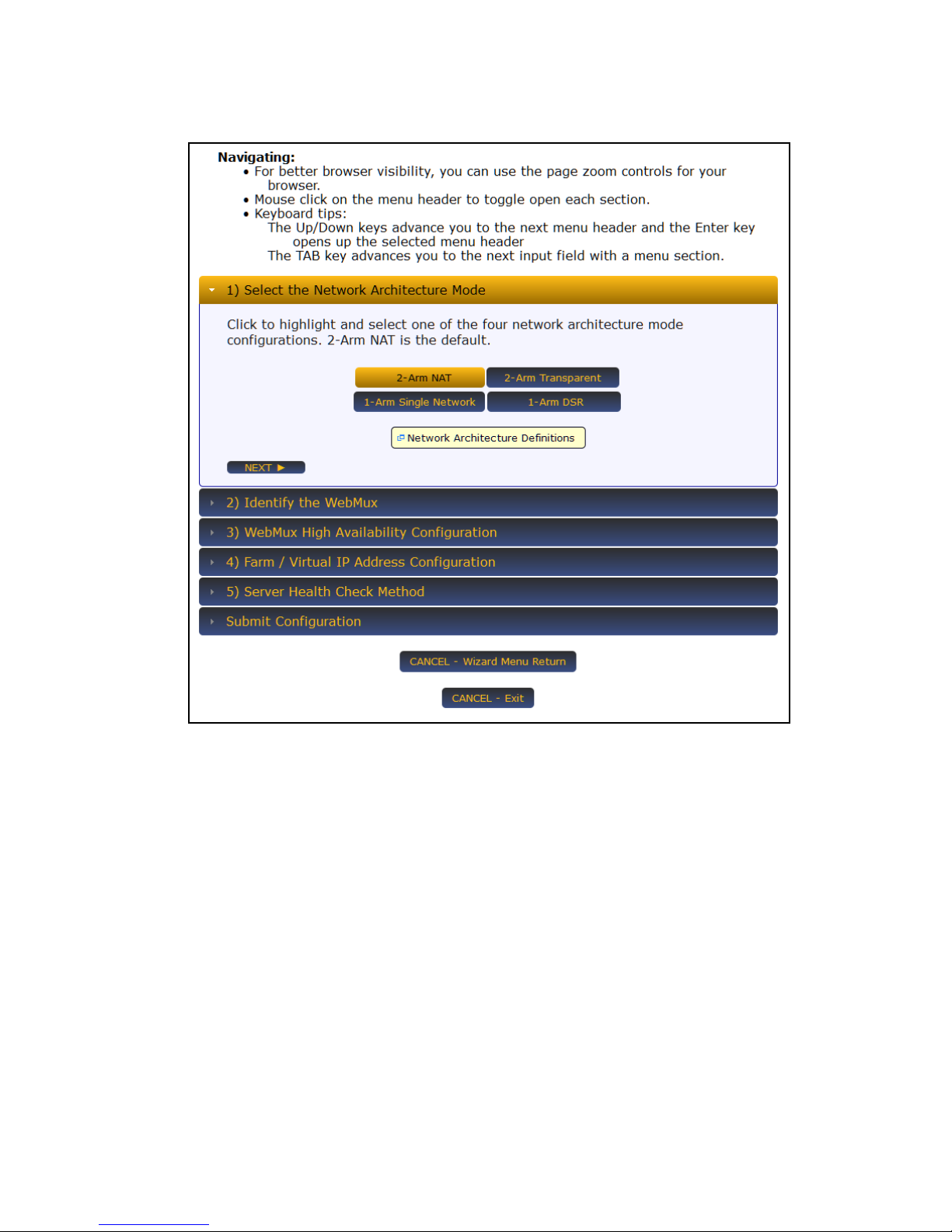

Configuration Wizards ...................................................................................................................................................................... 44
Command Line Interface (CLI) ................................................................................................................................... 47
Accessing the CLI ............................................................................................................................................................................... 47
Initialization via CLI ............................................................................................................................................................................ 47
CLI Commands List ............................................................................................................................................................................ 48
Additional Command Line Interface Features ................................................................................................... 50
Adding Commands to WebMux Startup Sequence ........................................................................................................ 50
Tagged VLAN and WebMux ......................................................................................................................................................... 51
Multiple Uplink/VLAN Support ..................................................................................................................................................... 52
SECTION V – MANAGEMENT CONSOLE (WEB GRAPHICAL USER INTERFACE).................. 57

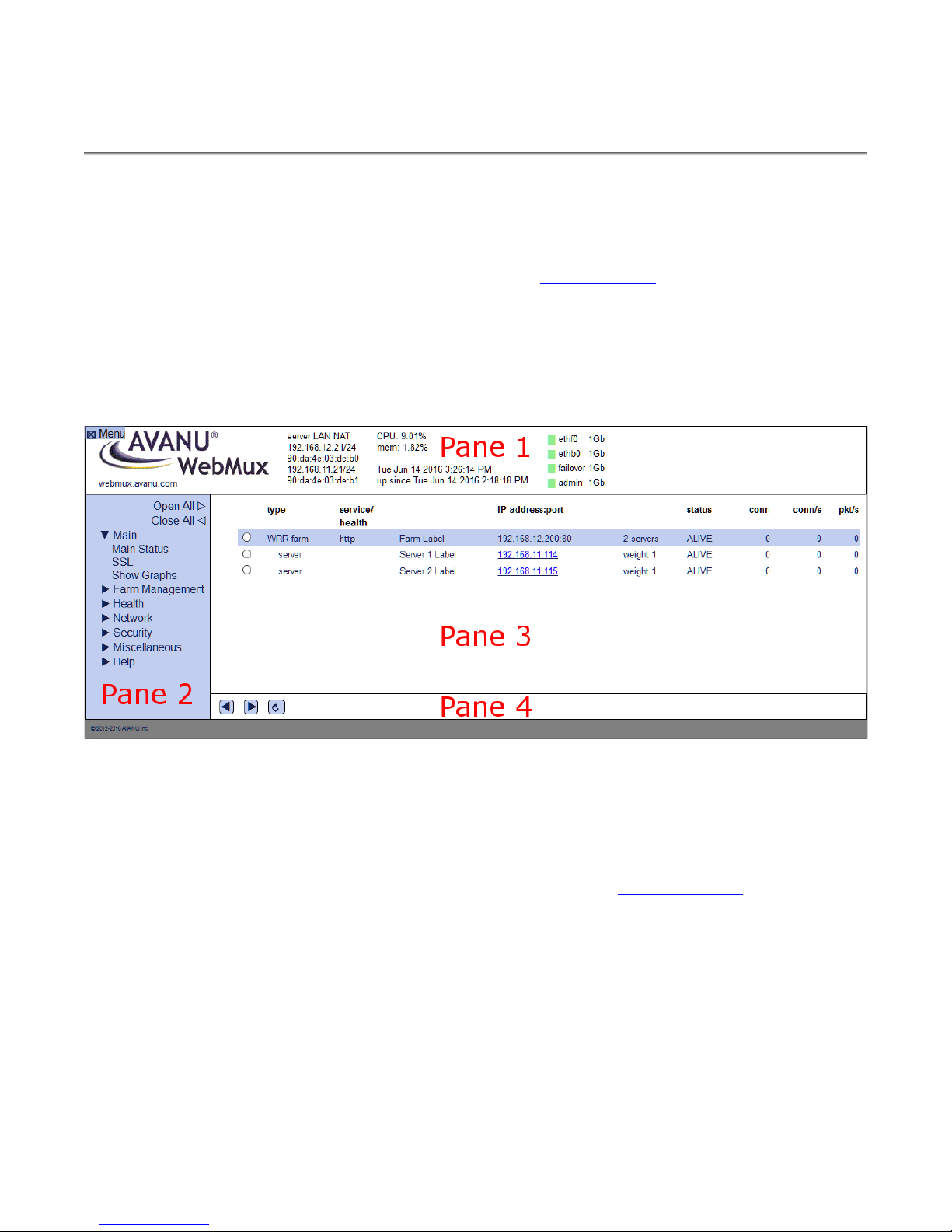

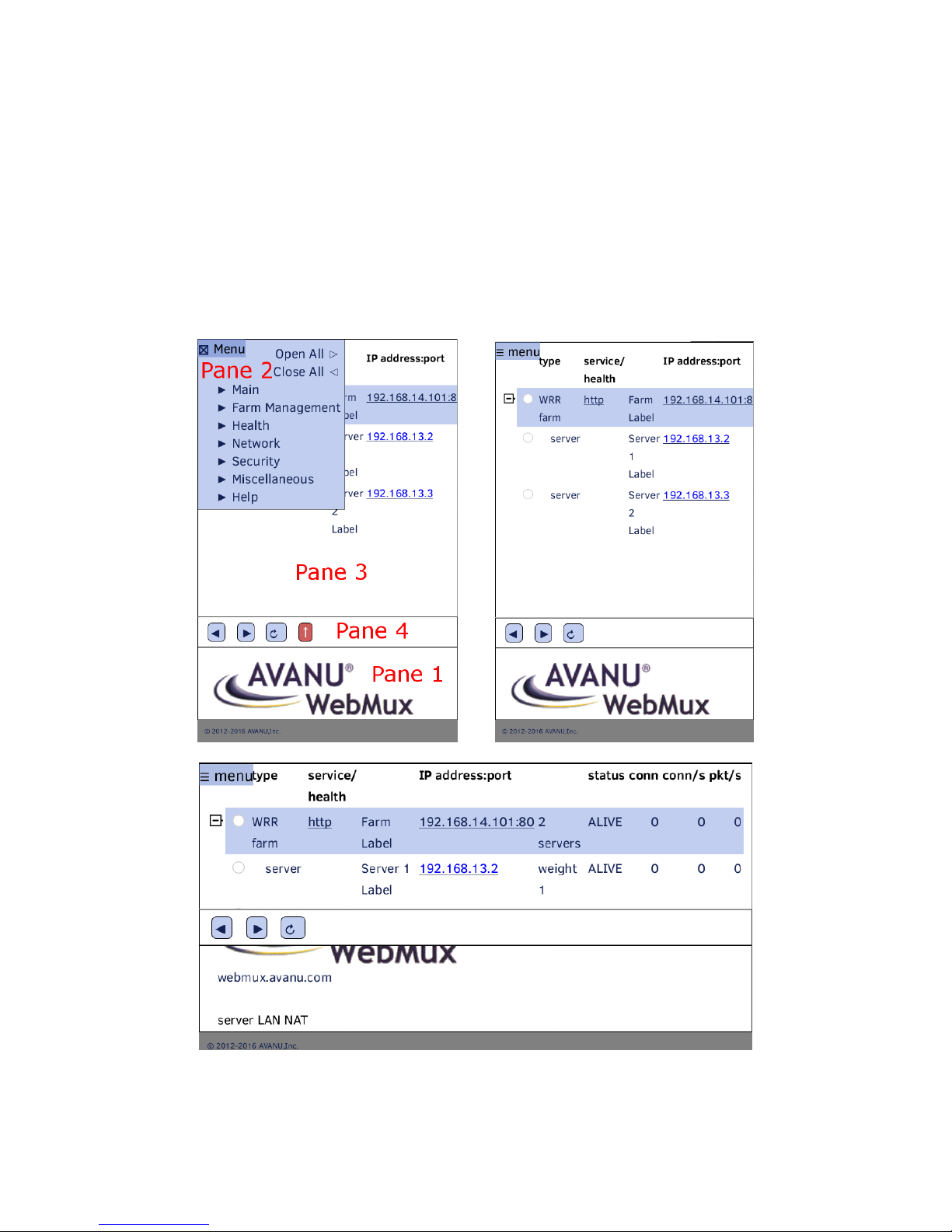

Overview of the Web GUI ............................................................................................................................................. 57

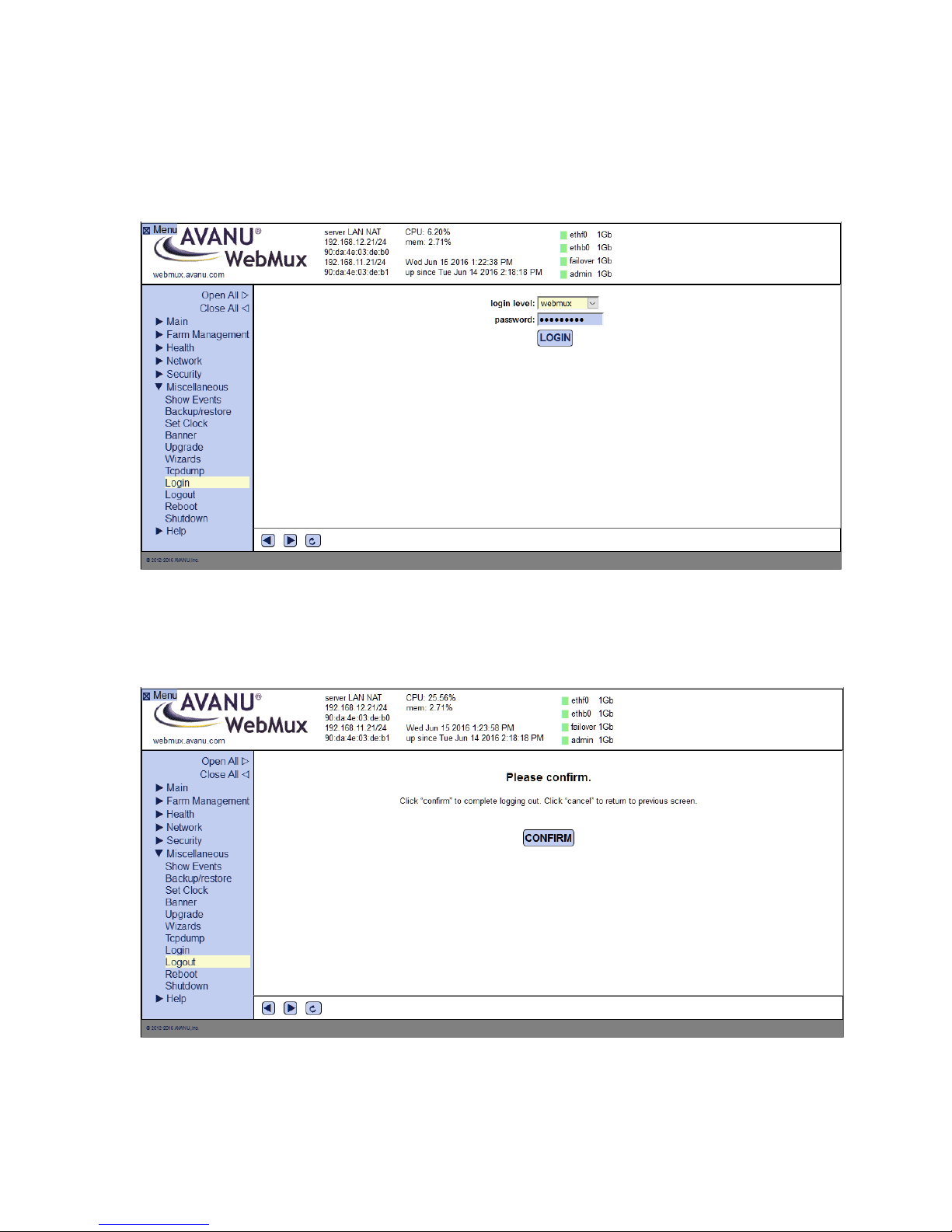

Logging into the WebMux Web GUI ....................................................................................................................... 59
Login Page: ............................................................................................................................................................................................. 59
Login Level: ............................................................................................................................................................................................. 59
Password:................................................................................................................................................................................................. 59
Login: .......................................................................................................................................................................................................... 60
Main ........................................................................................................................................................................................... 60

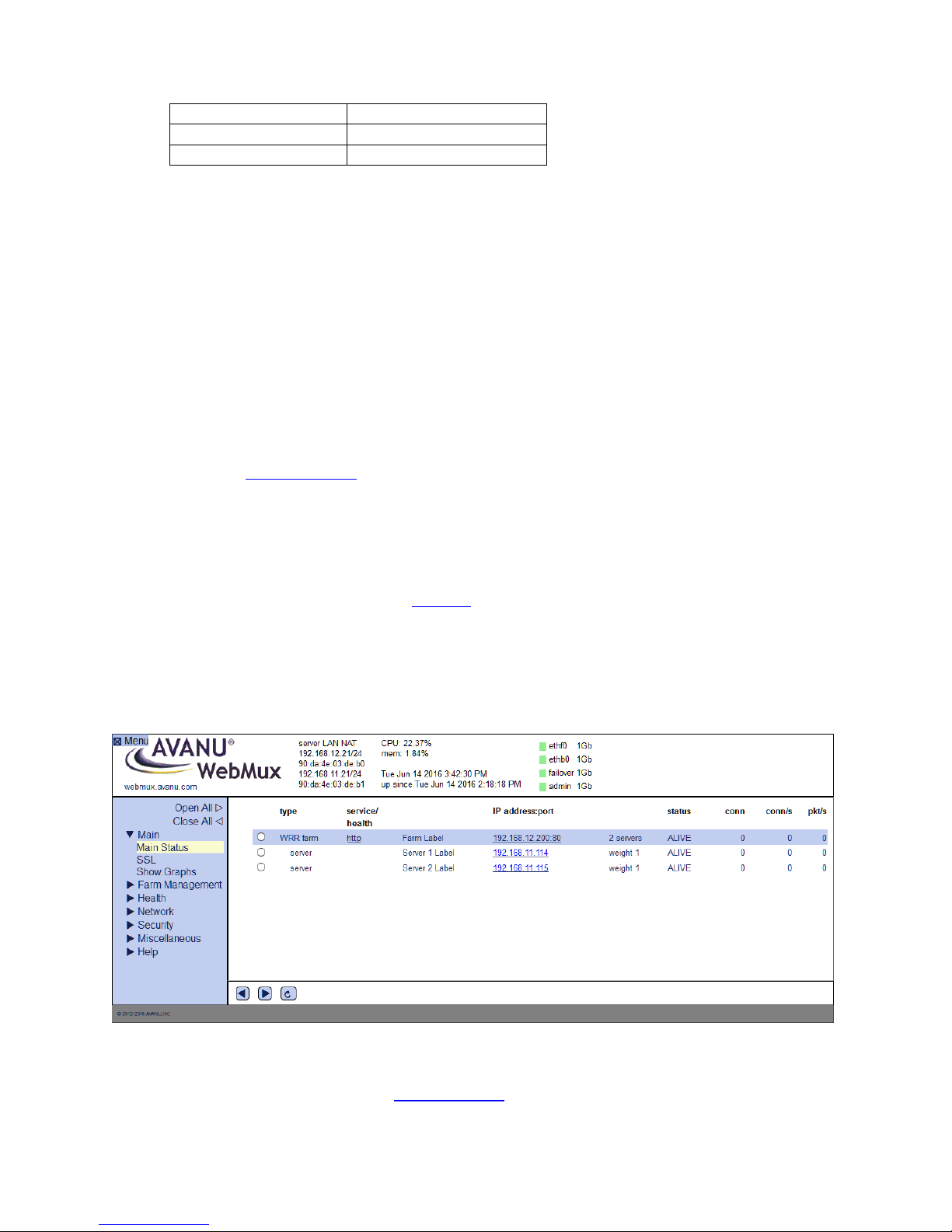

Main Status ............................................................................................................................................................................................. 60
SSL ............................................................................................................................................................................................................... 62
Show Graphs ......................................................................................................................................................................................... 63

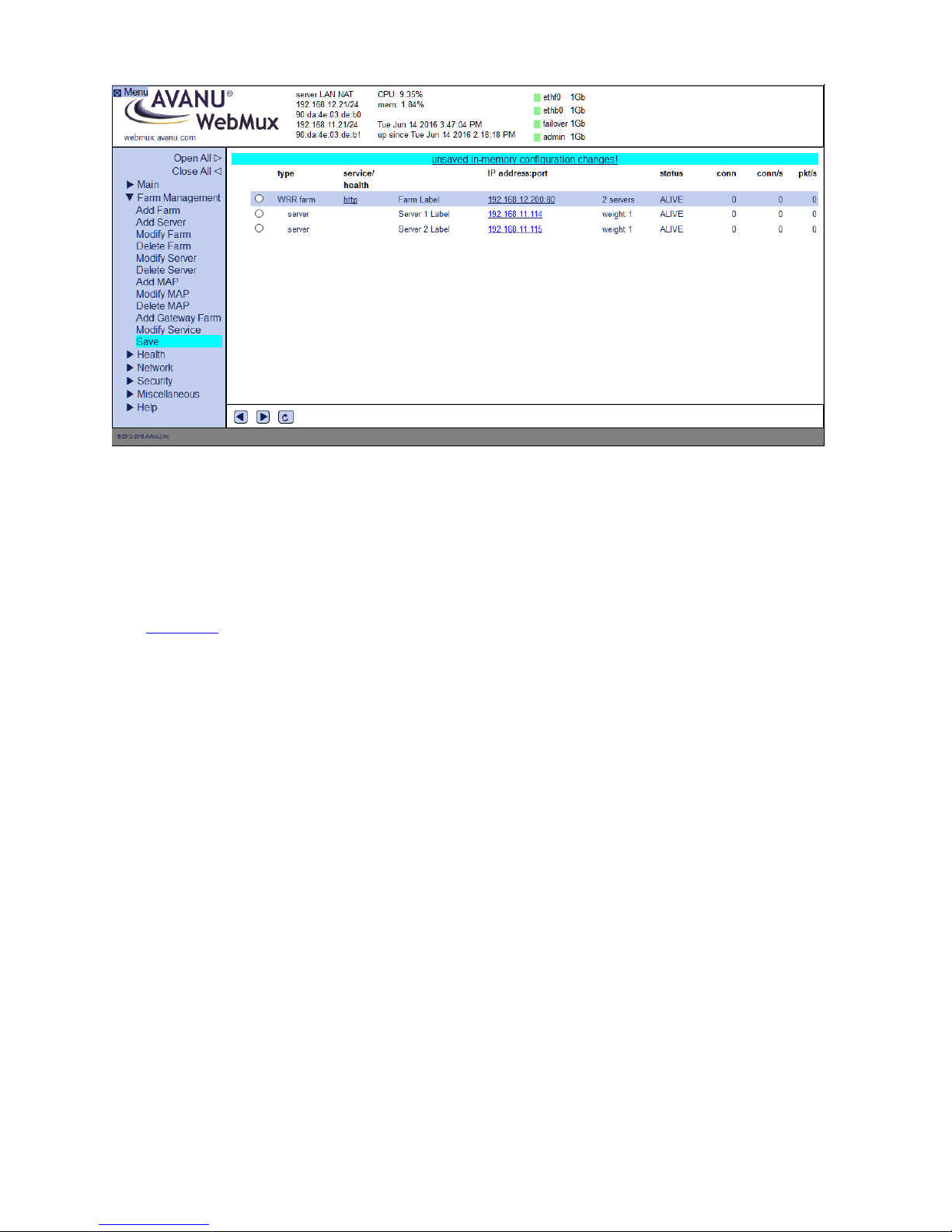

Farm Management ............................................................................................................................................................ 64
Health........................................................................................................................................................................................ 64
Network .................................................................................................................................................................................... 64

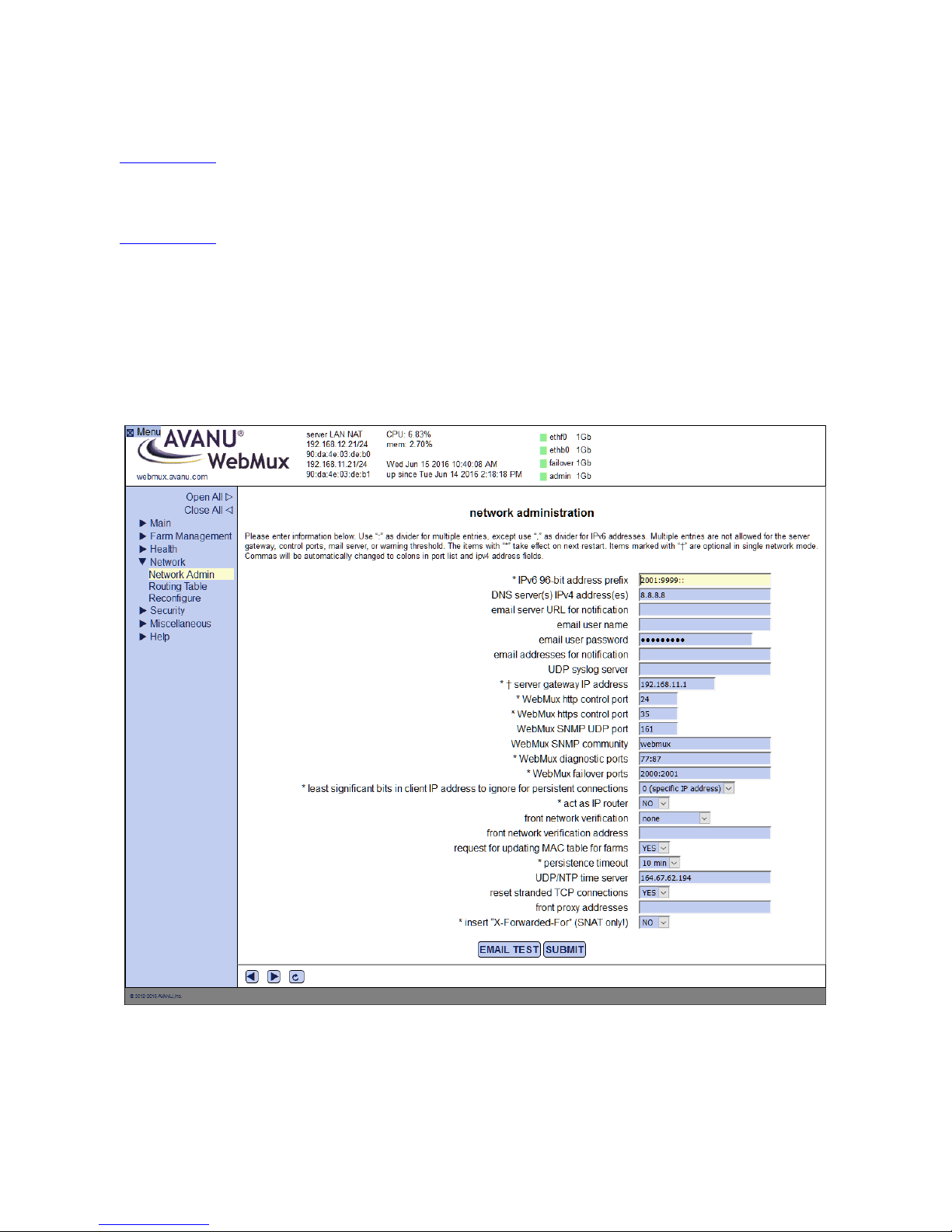

Network Admin ...................................................................................................................................................................................... 64
4

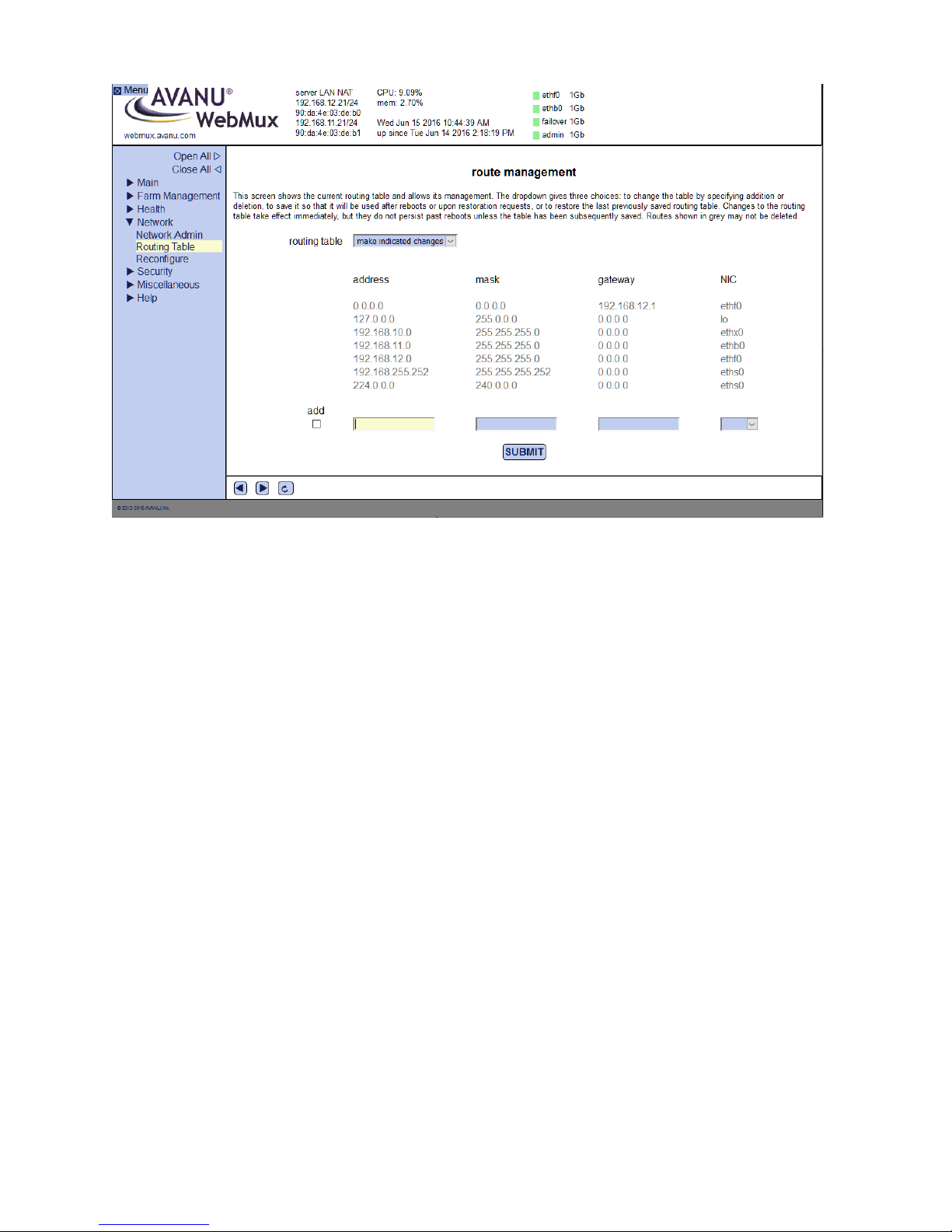

Routing Table ....................................................................................................................................................................... 69

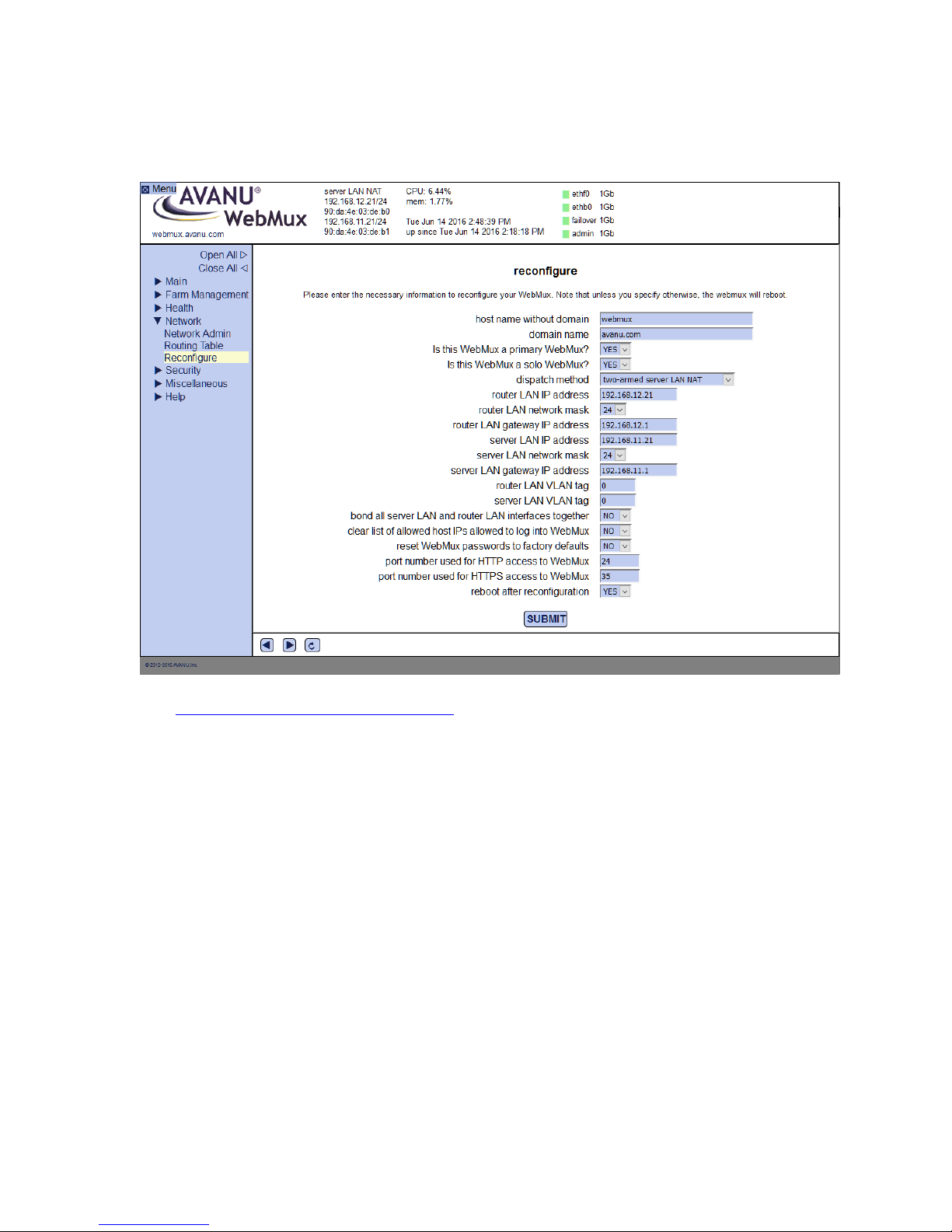

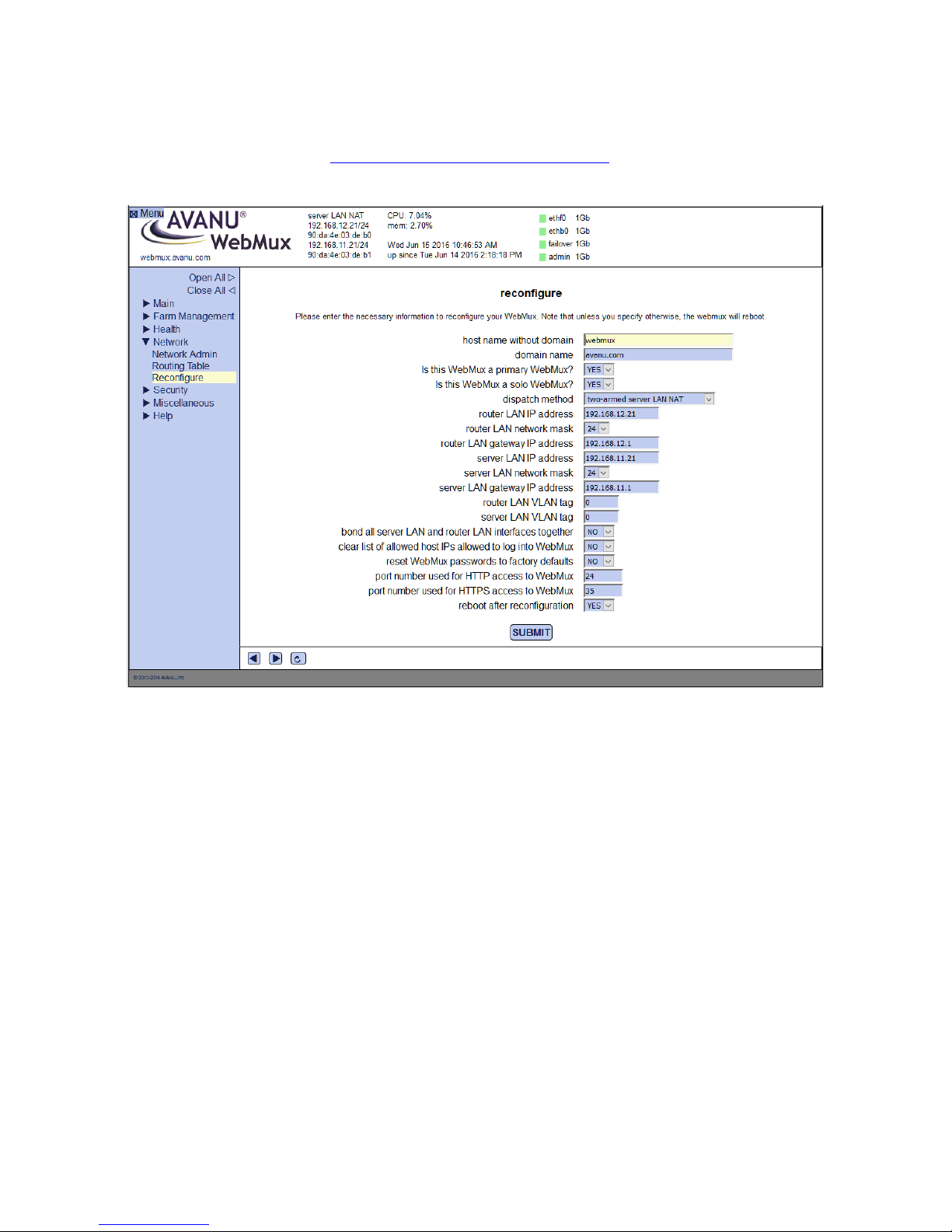

Reconfigure ........................................................................................................................................................................... 71

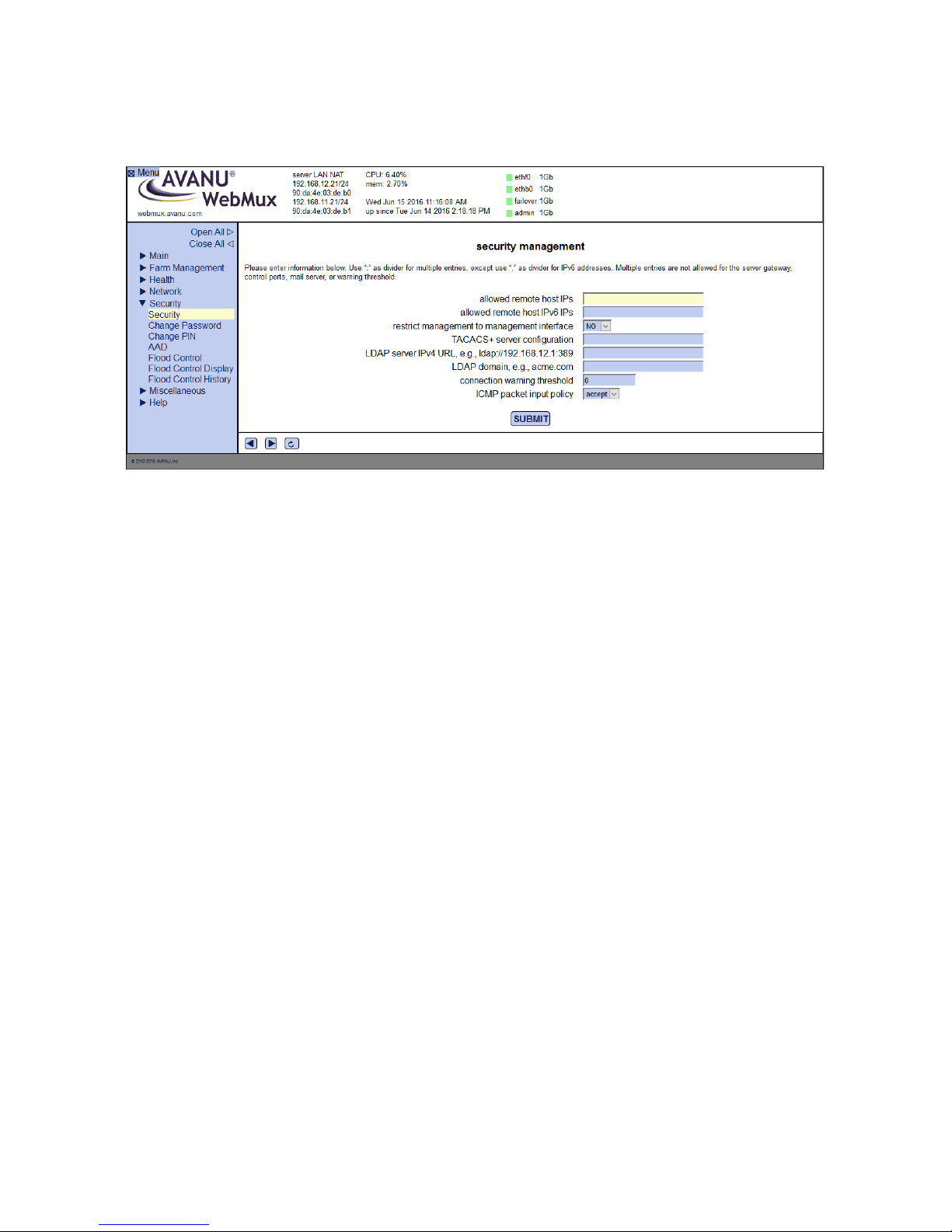

Security .................................................................................................................................................................................... 72
Security ...................................................................................................................................................................................................... 72

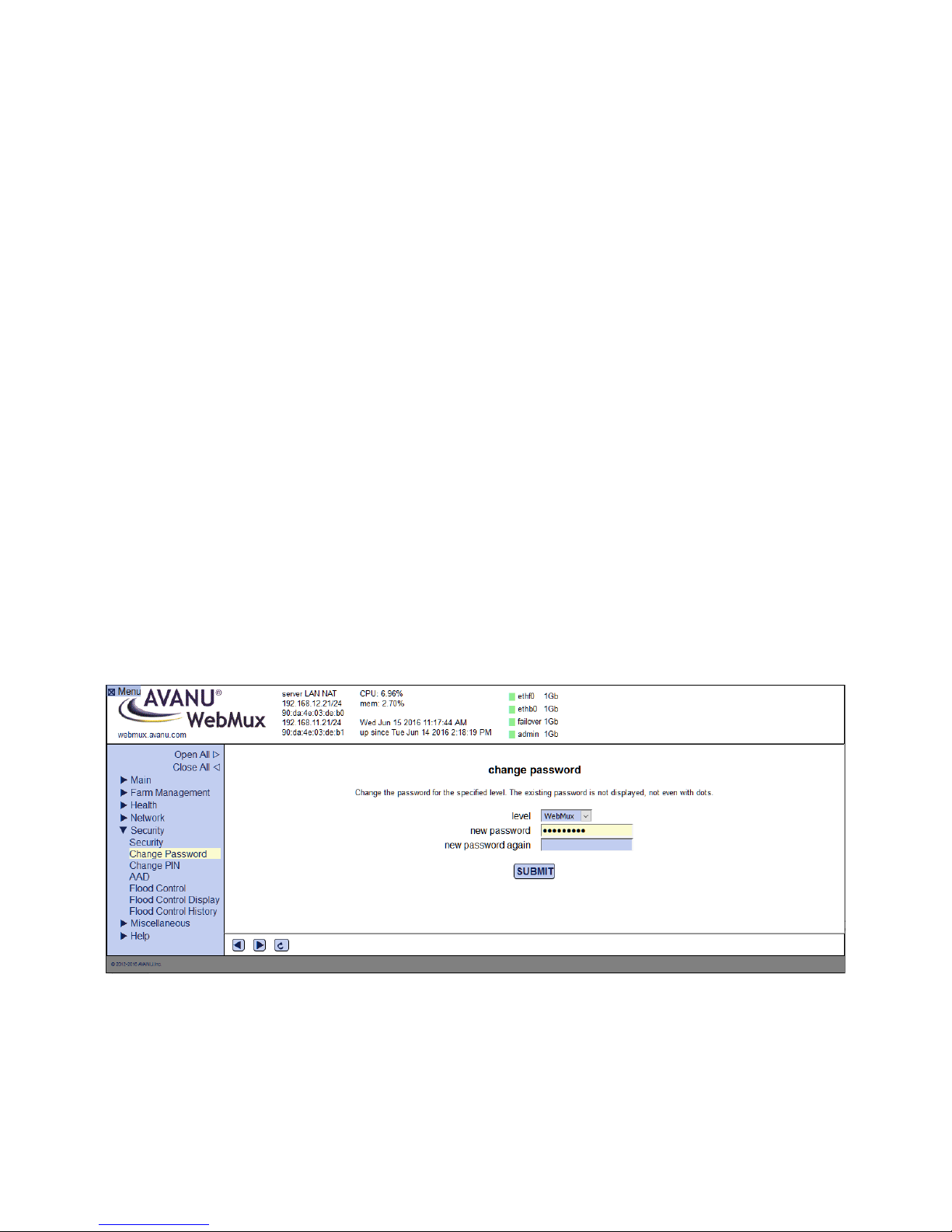

Change Password ............................................................................................................................................................................... 73

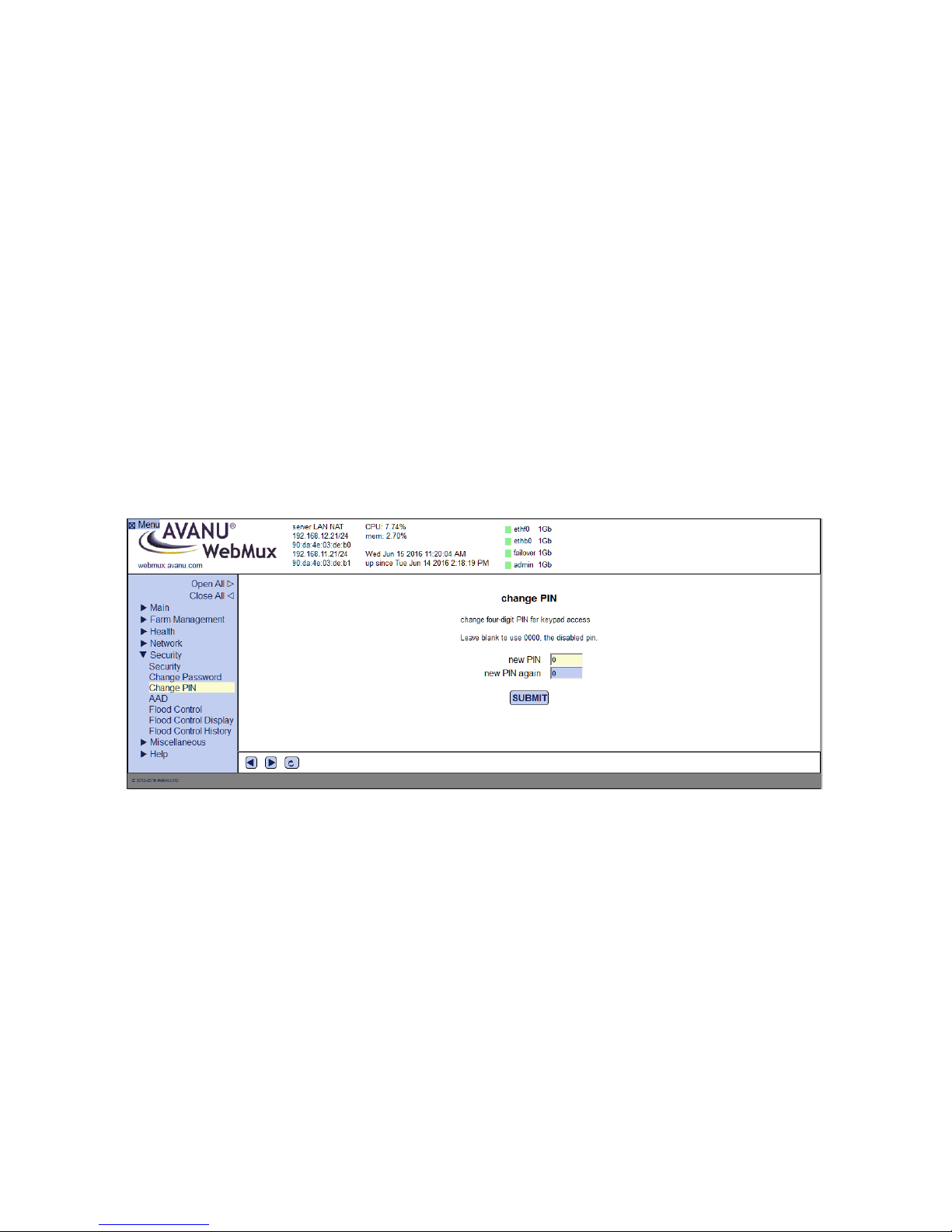

Change PIN............................................................................................................................................................................................. 74

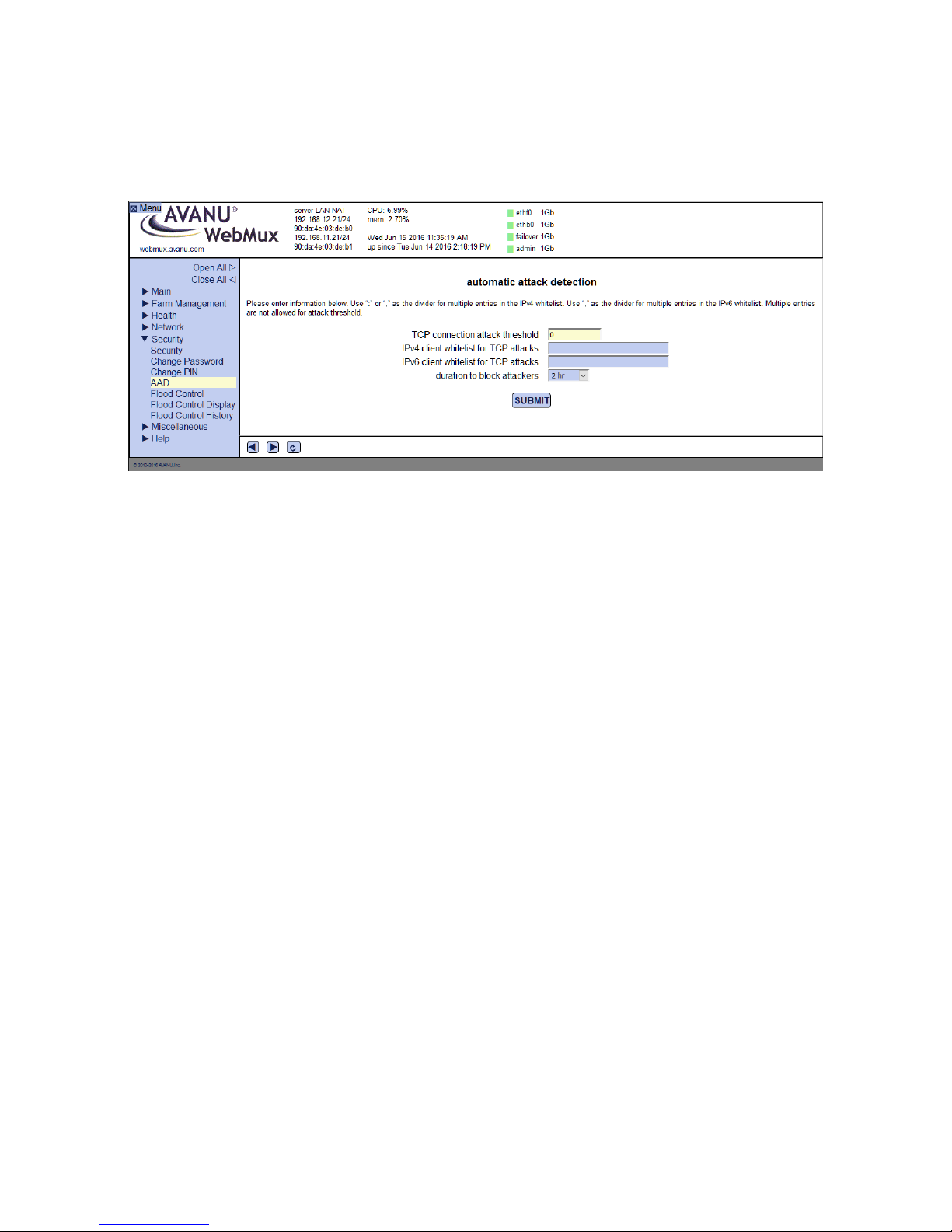

AAD (Automatic Attack Detection) ............................................................................................................................................ 75

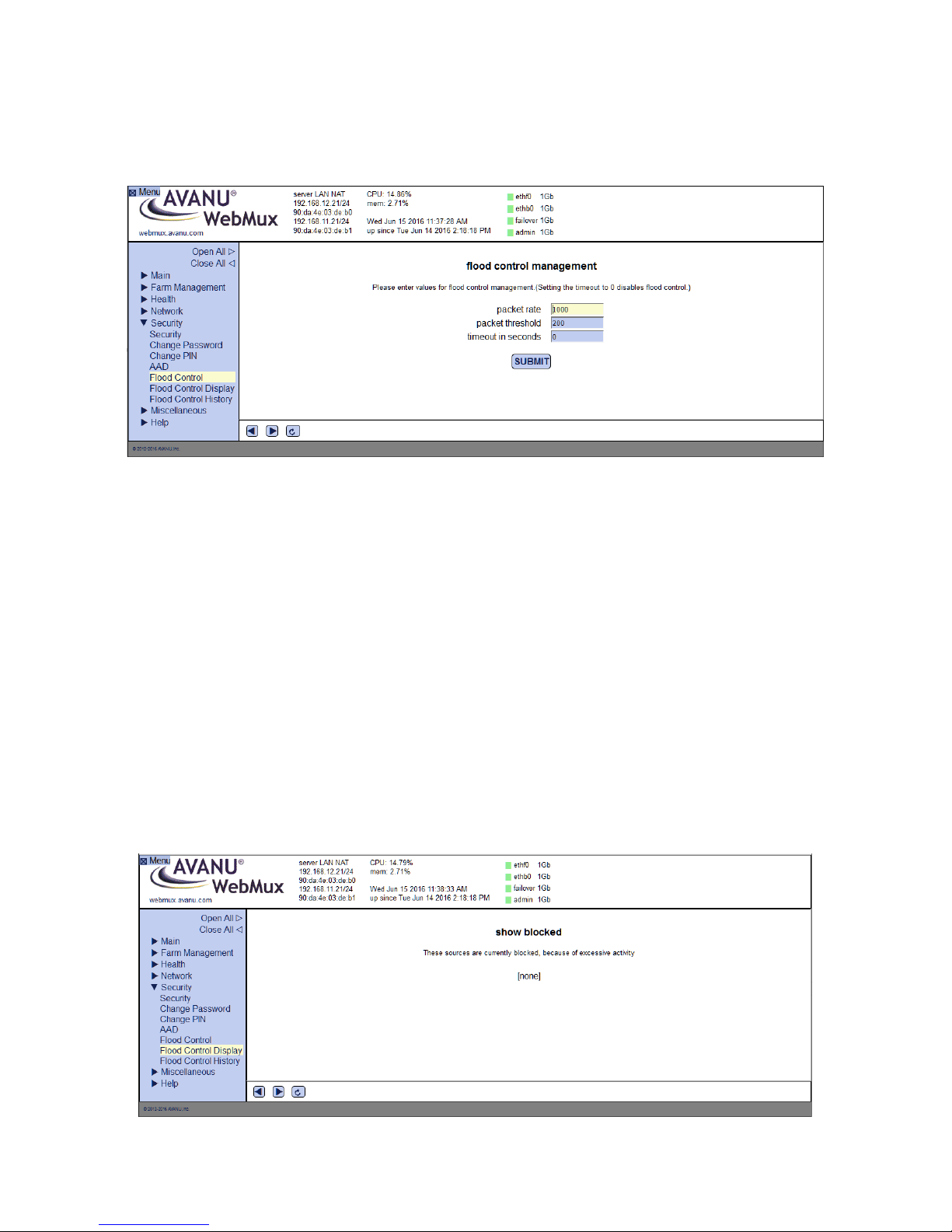

Flood Control .......................................................................................................................................................................................... 76
Flood Control Display ........................................................................................................................................................................ 76

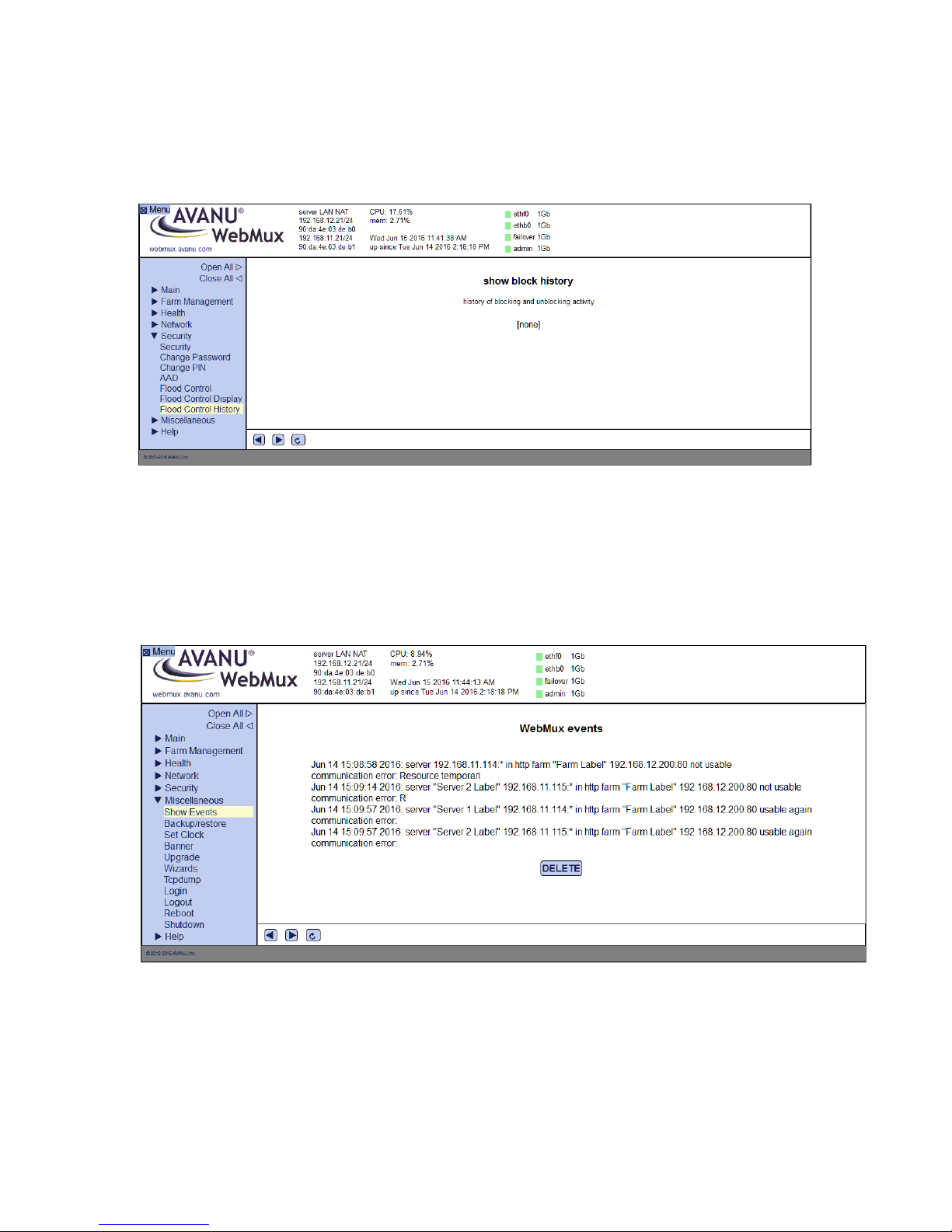

Flood Control History......................................................................................................................................................................... 77
Miscellaneous ...................................................................................................................................................................... 77
Show Events ........................................................................................................................................................................................... 77

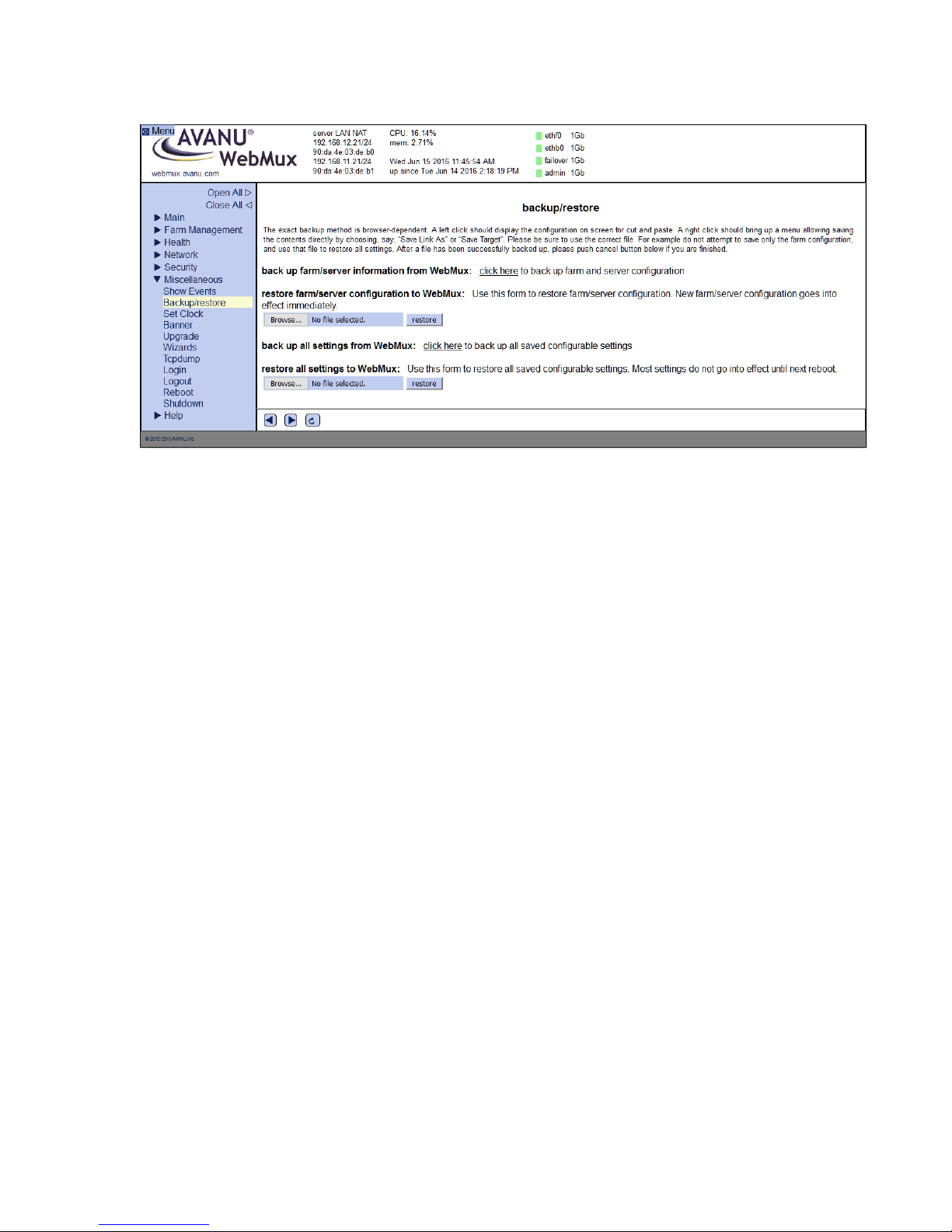

Backup/Restore .................................................................................................................................................................................... 78

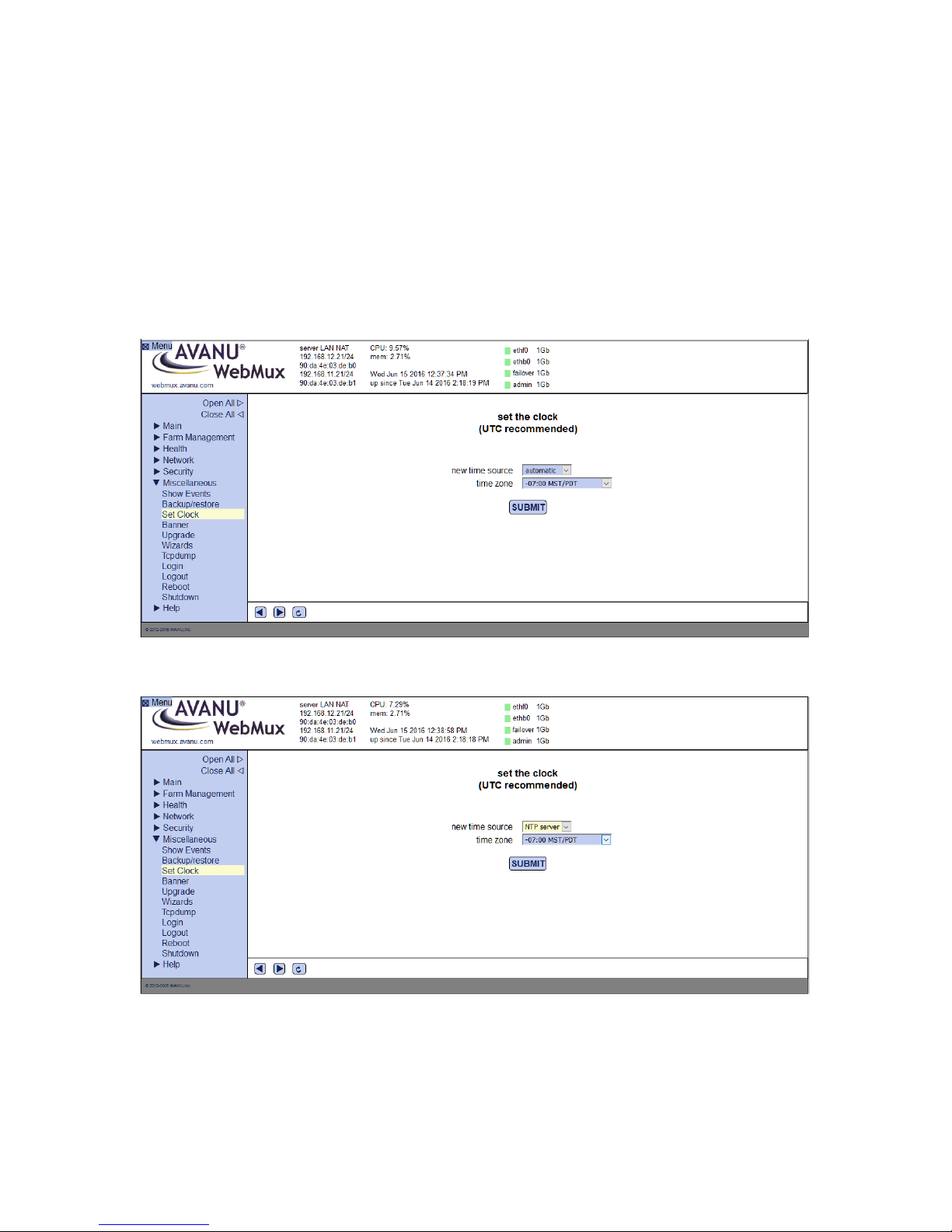

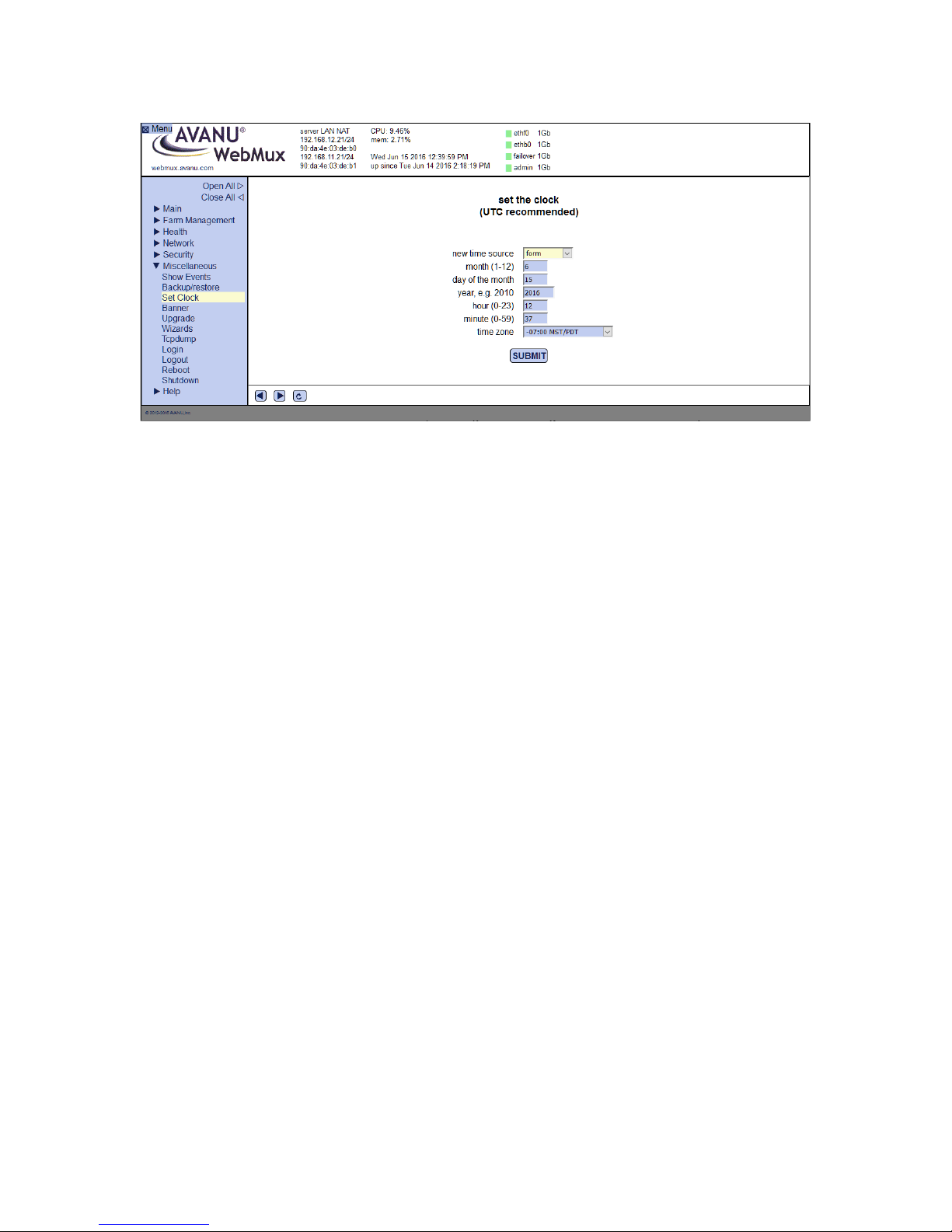

Set Clock................................................................................................................................................................................................... 79

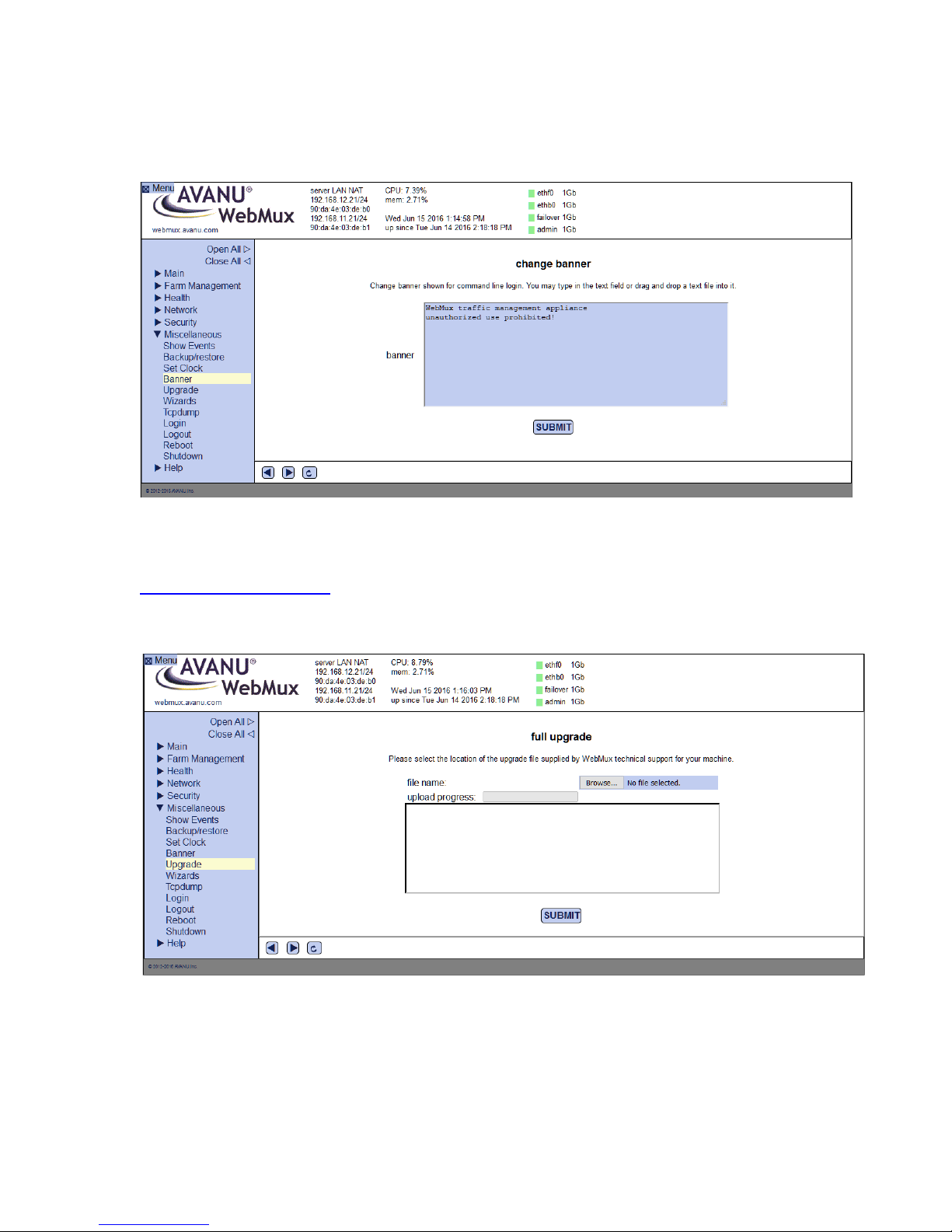

Banner ........................................................................................................................................................................................................ 81
Upgrade ..................................................................................................................................................................................................... 81
Wizards ...................................................................................................................................................................................................... 82

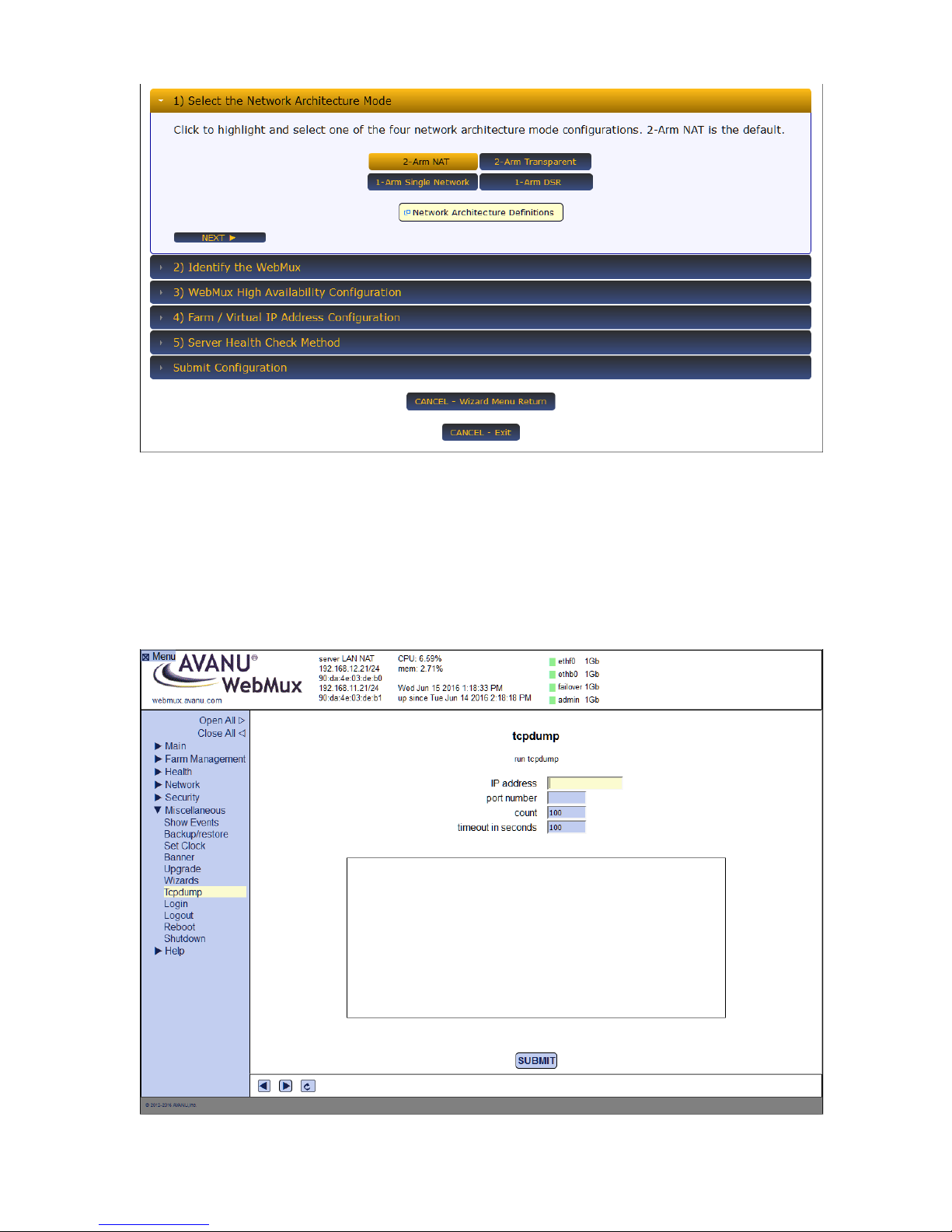

TCPdump ................................................................................................................................................................................................. 83
Login ............................................................................................................................................................................................................ 85
Logout ......................................................................................................................................................................................................... 85
Reboot ........................................................................................................................................................................................................ 86
Shutdown .................................................................................................................................................................................................. 86

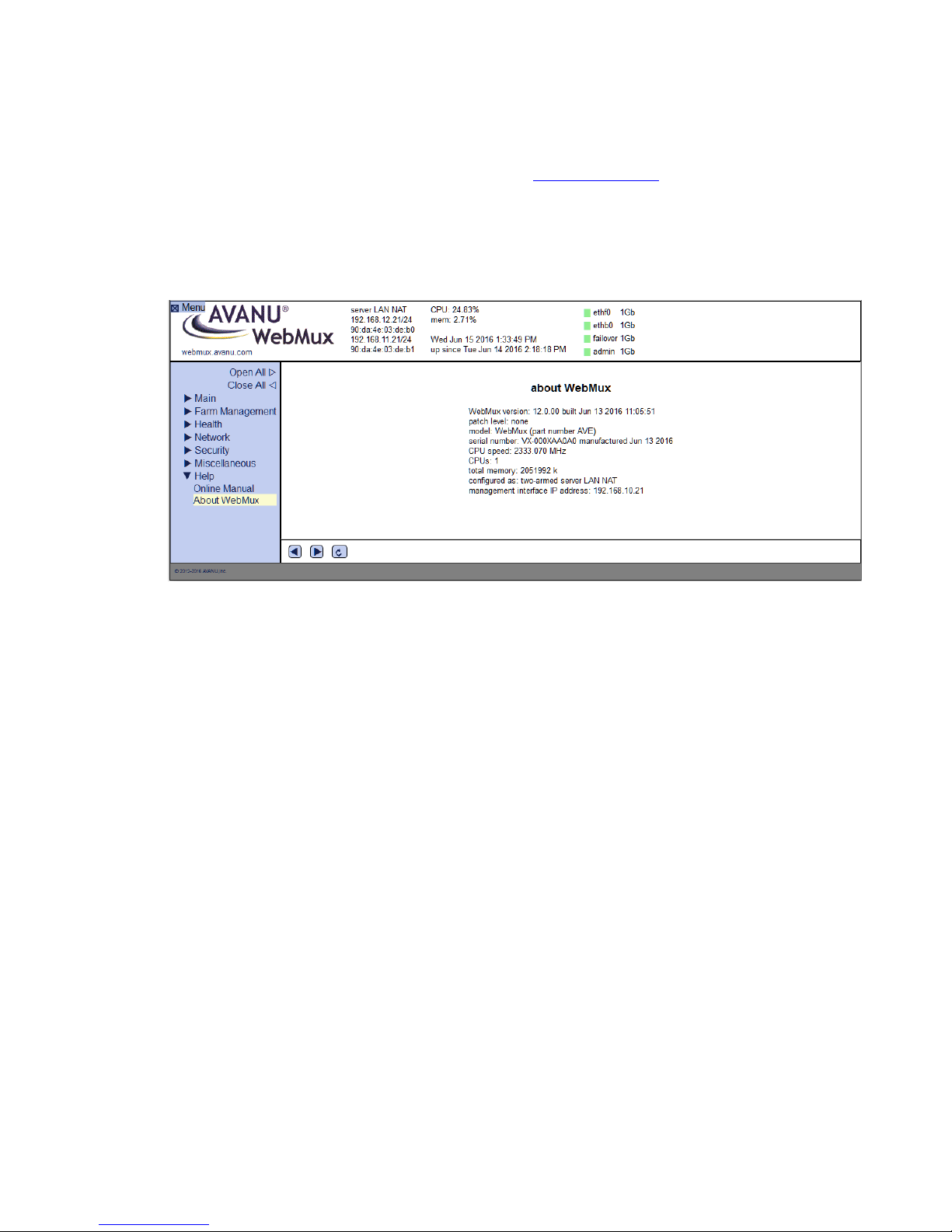

Help .............................................................................................................................................................................................................. 87
SECTION VI – FARM MANAGAMENT AND HEALTH ..................................................................................... 88
Farm Management ............................................................................................................................................................ 88

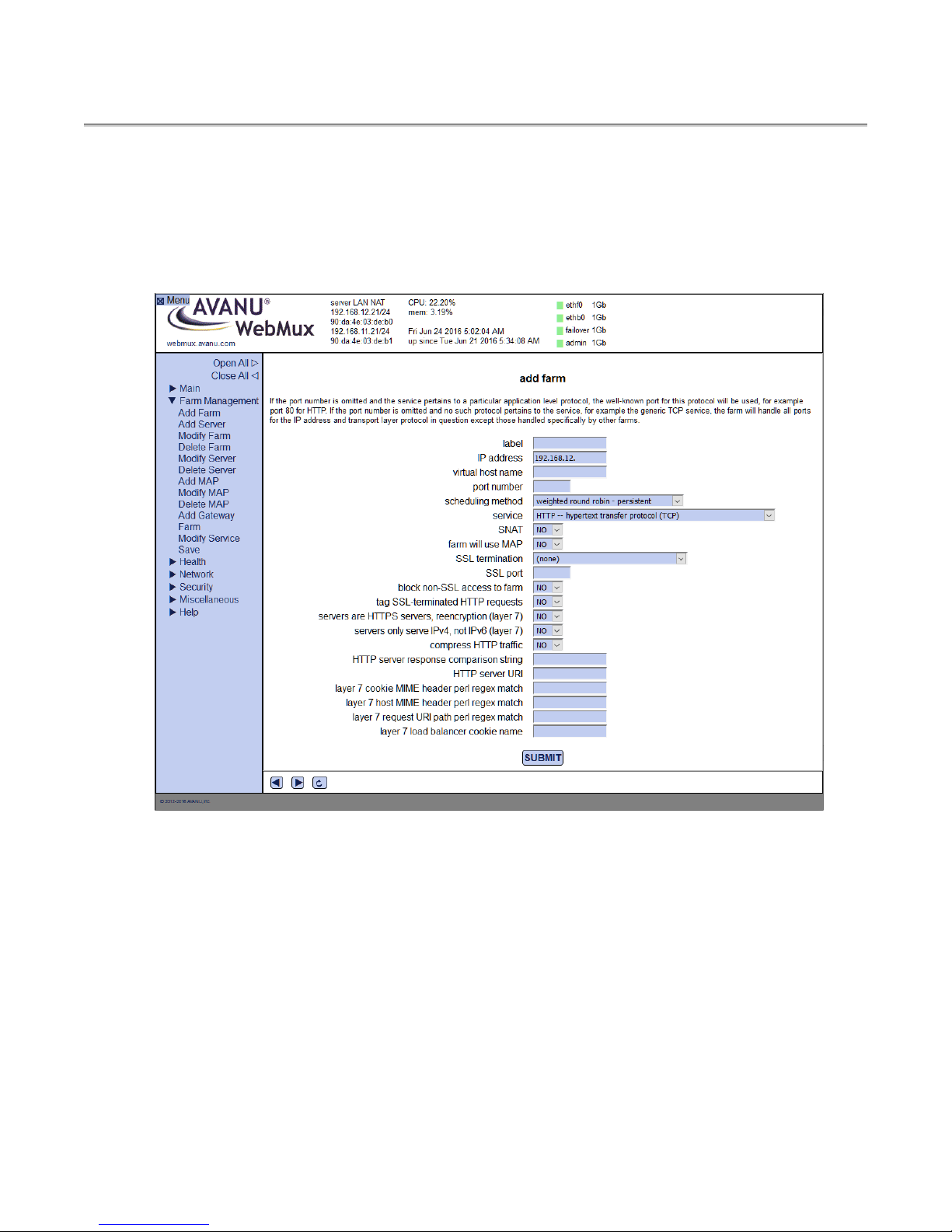

Add Farm .................................................................................................................................................................................................. 88

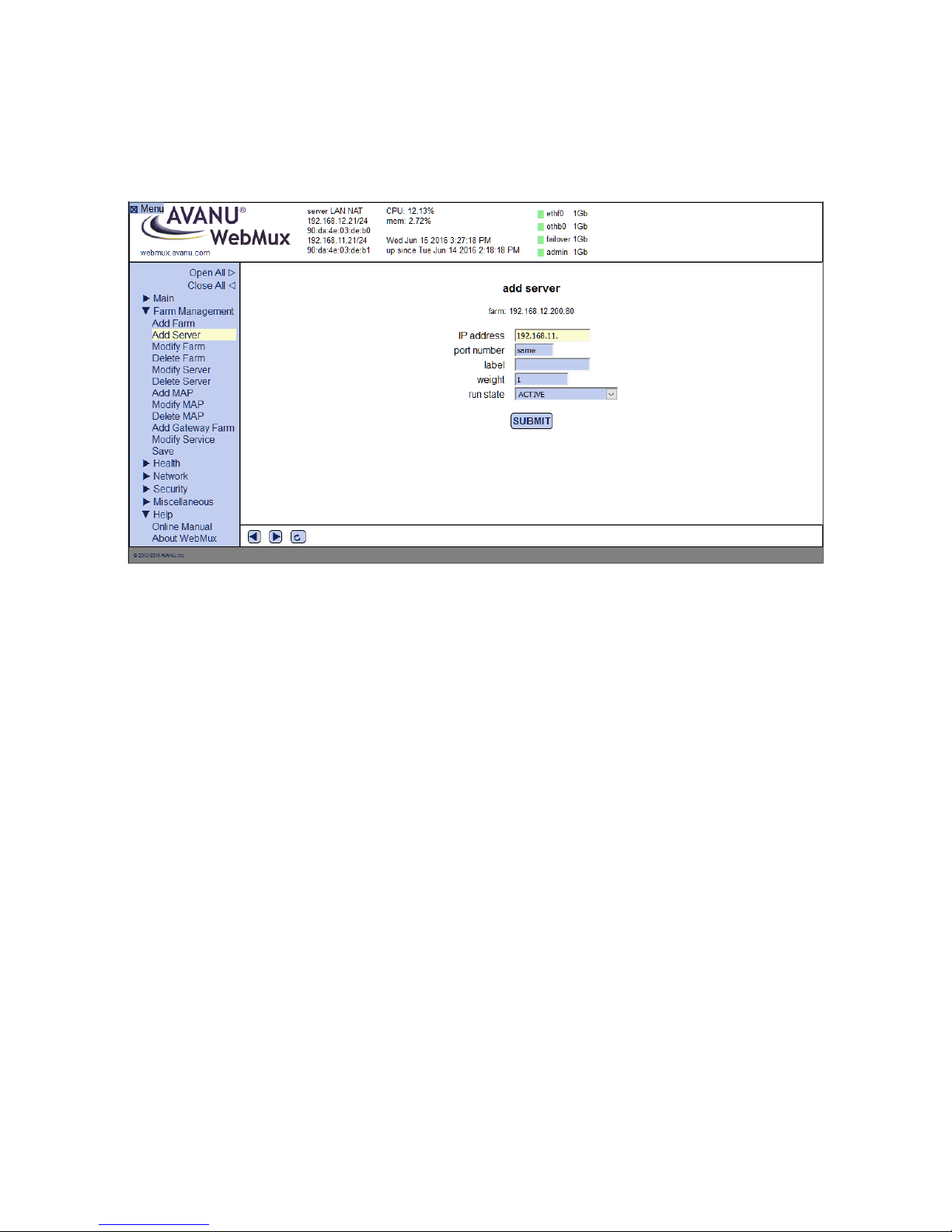

Add Server ............................................................................................................................................................................................... 95

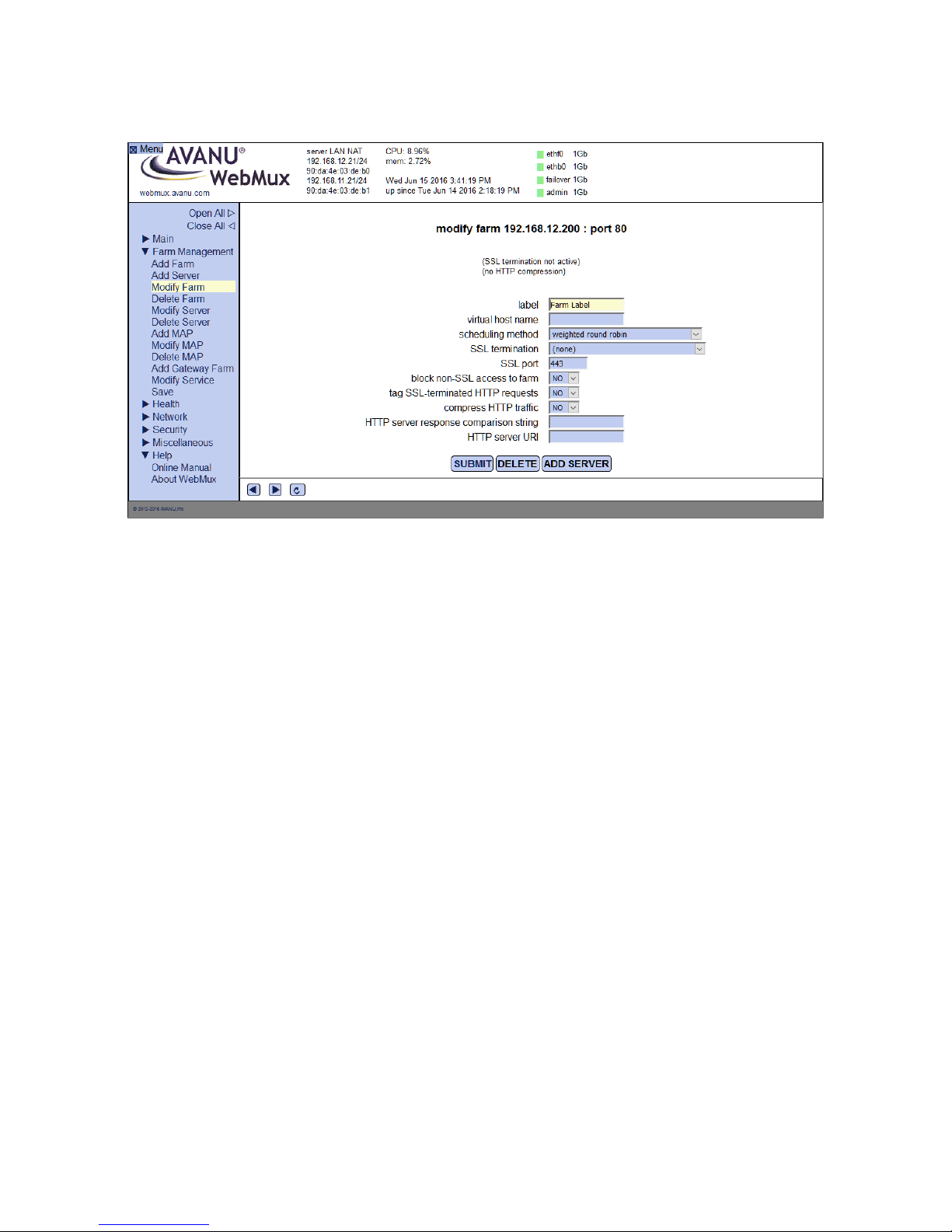

Modify Farm ............................................................................................................................................................................................ 96
Delete Farm ............................................................................................................................................................................................ 99
Modify Server ......................................................................................................................................................................................... 99
Delete Server ...................................................................................................................................................................................... 101
Add MAP™ ........................................................................................................................................................................................... 101
Modify MAP™ ..................................................................................................................................................................................... 103
Delete MAP™ ..................................................................................................................................................................................... 104
Add Gateway Farm ......................................................................................................................................................................... 104
5
Modify Service .................................................................................................................................................................................... 108
Save .......................................................................................................................................................................................................... 109
Health......................................................................................................................................................................................109
Timeouts ................................................................................................................................................................................................ 109
Frequency ............................................................................................................................................................................................. 110
Custom .................................................................................................................................................................................................... 110
HTTP ........................................................................................................................................................................................................ 113
SECTION VII – SSL MANAGEMENT .......................................................................................................................114
SSL Keys ..............................................................................................................................................................................114
Generating a CSR ...........................................................................................................................................................116
Importing Your Existing Private Key and Certificate ....................................................................................118
SECTION VIII - HOW TO ADD A LOOPBACK ADAPTER ..........................................................................119
Installing the Microsoft® Loopback Adapter (pre-Windows 8/Server 2012) ..................................119
Configuring the Microsoft® Loopback Adapter (pre-Windows 8/Server 2012) ............................119
Installing the Microsoft® Loopback Adapter (Windows 8/Server 2012 and newer) ..................119
Configuring the Microsoft® Loopback Adapter (Windows 8/Server 2012 and newer) ............122
Weakhost Settings for Windows Server 2008 and Newer .......................................................................124
Linux® 2.4/2.6 Systems: ..............................................................................................................................................125
SUSE® Enterprise Linux® 9: ....................................................................................................................................125
Hewlett Packard® HP/UX® 11.00 and 11i:.......................................................................................................126
FreeBSD®: ..........................................................................................................................................................................126
Oracle® Solaris®: ............................................................................................................................................................126
Apple® Servers:................................................................................................................................................................126
SECTION IX – HTTP TO HTTPS REDIRECT .....................................................................................................127
Creating an HTTP to HTTPS Redirect “Farm” ................................................................................................127
Completing the HTTP to HTTPS Redirect Configuration .........................................................................128
SECTION X – SAMPLE CONFIGURATIONS AND WORKSHEETS .....................................................129
Initial Configuration Worksheets .............................................................................................................................129
Sample Configuration Worksheets ........................................................................................................................130
Standalone WebMux NAT Mode ............................................................................................................................................ 130
Standalone WebMux Transparent Mode ........................................................................................................................... 131
Direct Server Return Installation of WebMux .................................................................................................................. 131

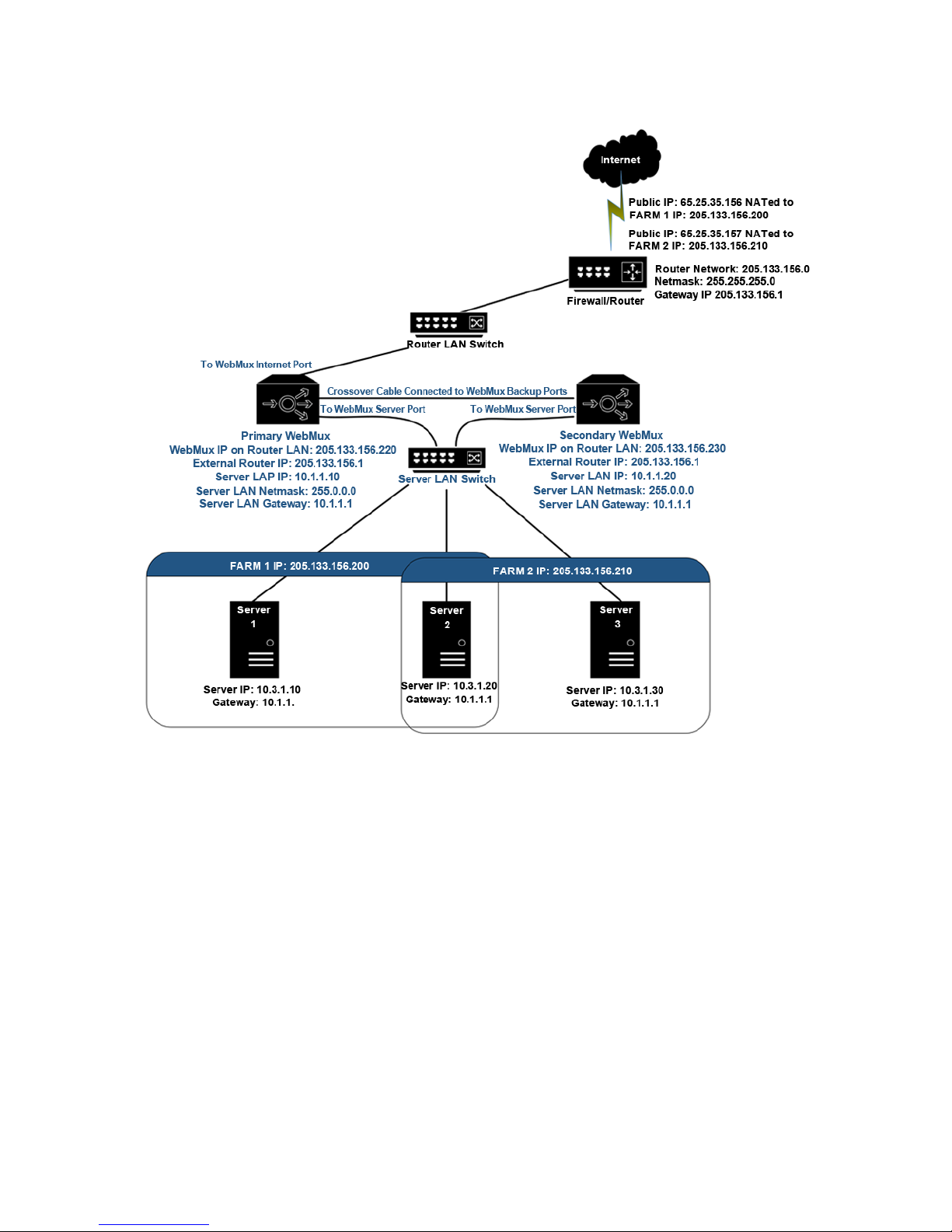

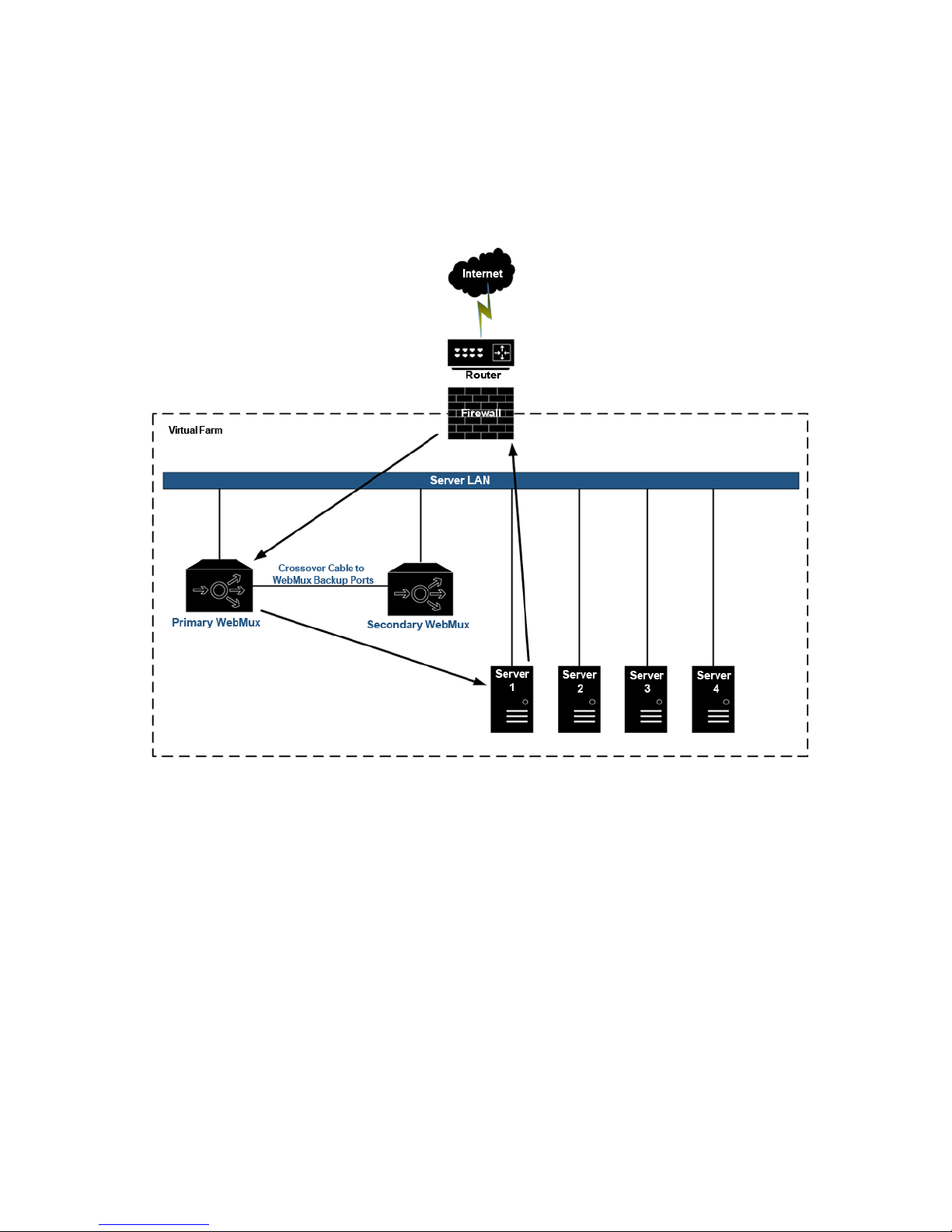

Redundant WebMux Installation ............................................................................................................................................. 133
SECTION XI – FREQUENTLY ASKED QUESTIONS – FAQs ..................................................................134
SECTION XII – LIMITED PRODUCT WARRANTY AND SUPPORT ....................................................137
6
7
SECTION I - GENERAL INFORMATION
About AVANU®
AVANU, Inc. is headquartered in San Jose, California and is a privately held product developer
with manufacturing and production in the United States. The company’s products are used in
mid-size to Fortune 500 companies and are specific for the network infrastructure and data
center environments. The company’s primary product line is the WebMux Network Traffic
Manager, a load balancing network appliance. Founded in 1997, AVANU is a certified
participant in the U.S. SBA’s 8(a)/SDB development program and is WOSB Certified.
For additional information, please visit www.avanu.com.
WebMux User Manual
Audience
The intended audience for this User Manual is IT professionals that are intimately familiar with
administration of networks. Other material available from AVANU may be useful to sales and
marketing professionals. This primer is designed to be a guide to the installation of a WebMux in
a network, to answer questions that may arise during installation of this product, and to help
understand how a WebMux functions.
The WebMux is a network traffic manager for load balancing Layers 4-7 of the OSI model
(Transport layer of OSI and TCP/IP) of networking supporting an extensive range of applications
and services.
Notice of Rights
Copyright 2013-2016 AVANU, Inc. All rights reserved. No part of any related WebMux
documents may be reproduced or transmitted in any form by any means without the prior written
permission of AVANU, the publisher, and the copyright holder. The AVANU central office may
be reached at customerservice@avanu.com for information on getting permission for reprints
and excerpts.
Notice of Liability
Information in any WebMux document is distributed “as is” and without warranty. While every
precaution has been taken in the preparation and manufacture of our products, AVANU nor its
resellers and representatives shall have any liability to any person or entity with respect to any
loss or damage caused or alleged to be caused directly or indirectly by the information and
instructions contained in any of these documents or by any computer software and hardware
described within.
Trademarks
AVANU and Flood Control are registered trademarks of AVANU, Inc. AVANUAdvantage,
AVANews, AVE, BAM, BlogWithUs, DNSMux, Inspired to Innovate, MAP, and WebMux are
trademarks of AVANU, Inc. AVANU states that we are using any and all trademarked names in
an editorial fashion and to the benefit of the trademark owner with no intention of infringement of
the trademark. All trademarks and registered trademarks are the property of their respective
owner(s).
8
Update Information
AVANU will always work to insure that the data contained in any WebMux documents are kept
up to date. As such, please visit our website at www.avanu.com/documents to retrieve the
latest version of our documents. All products and specifications are subject to change without
notice.
Packing List
One (1) WebMux Network Traffic Manager unit
One (1) Power Cord (Two for Dual Power Supply)
One (1) WebMux Quick Setup Guide
One (1) Product Registration Form
Contact Information
Mailing Address
AVANU®
5205 Prospect Rd # 135-143
San Jose CA 95129-5034
United States
Service Center
AVANU®
15011 Parkway Loop
Building 10, Suite D
Tustin CA 92780-6522
United States
Email
Sales & Product Info: sales@avanu.com
Product Technical Support: techsupport@avanu.com
Administration: customerservice@avanu.com
Online Form Request: www.avanu.com/contact
Telephone Numbers
1.888.248.4900 US Toll Free
1.408.248.8960 International
1.408.248.8961 FAX
Sales and Information: Extension 201
Product Technical Support: Extension 202
Customer Service: Extension 203
Hours of Operation
8:00 am to 5:00 pm Pacific time
Monday through Friday except for US Holidays
9
SECTION II - WEBMUX MAIN COMPONENTS
Front View
Switches and Indicator Lights
Power
This switch toggles power on and off. To power off, the switch must be pressed and held for
5 seconds. However, it is recommended that you do not regularly use this power switch to
shut down the unit.
It is highly recommended to use the LCD panel, web interface, or command line
interface to issue a proper system shut down.
Failure / Overheat Indicator
The system monitors the CPU and will flash this indictor light if it should fail. If the system
exceeds the CPU temperature limit, this indicator light will go on and the CPU will add idle
cylces - lowering performance (and heat). This is only likely to occur in cases of CPU fan
failure or a data center cooling failure to the WebMux.
Management LAN Indicator
Under normal operations this indicates activity on the Management LAN interface. Even if
the system is not running, there is still standby power. If there is an active Ethernet
connection in this port and the system is not running, it is useful both as a front panel
indication that there is standby power to the system and that there is a connection link on
the Management LAN interface (indicating that the switch at the remote end of the cable is
up too).
Activity/Reset
This indicator serves two functions, as the disk activity indicator and the HARD RESET
button to force restart the WebMux. Under normal operations the indicator light will
occasionally flicker if during disk activity. It may also indicate that the system may not be
“dead” despite other indicators. When this button is pushed in, it will force a reboot of the
WebMux. Only use this to reboot the WebMux if all other normal means to reboot the unit
(through the LCD, web GUI, or CLI) does not work.
10
LCD and Keypad
Rear View
It will take about a minute for the WebMux to completely reboot and begin
reporting activity in the LCD display. This will not reset your settings. It is for forcing
restarts. To perform a factory reset refer to the Factory Reset part in Section IV for LCD
instructions or CLI reference.
Up Arrow Button and Down Arrow Button
These buttons navigate through the menus when the LCD cursor is in the LEFTMOST
position and also allow changing characters in the input fields that you will see to the
right of that position. Note that it is generally best to use the “Checkmark” button for
proceeding through the menus in the LCD display. When the cursor is in the
LEFTMOST position, the “Up arrow” will take you to the previous screen.
These buttons will change letters and numbers (cycling through a list) in the fields where
you enter data. It goes through lower case letters, upper case letters, numbers and
symbols.
Left Arrow Button and Right Arrow Button
These move the cursor left and right, into data entry fields and back. Note that the
“Checkmark” button can be pressed when input is complete, rather than moving back to
the leftmost position, to proceed through the menus.
Power Supply
WebMux hot-swappable universal power supplies supports 90-264V input.
Devices with redundant power supplies should have the power cords plugged in to
separate circuits so WebMux does not fail due to one failed circuit. Properly ground the
WebMux at the grounding terminal.
Ports
IPMI port is for connecting to a management network for access to IPMI services on the
WebMux. This allows you to remotely control power on/off (including soft and hard resets),
monitor temperature, and even access a remote console.
USB port may be used for firmware updates and to collect log data when network options
for those functions are not available. This is a future option that is currently in
development.
11
RS-232 port is available for serial console connections as well as for modem-dependent
services, such as paging—where Internet-based services may be limited for security
purposes. To connect to this port using a serial communications terminal, set the
communications software for 115200 baud, 8 bit, Parity none, 1 stop bit.
MGMT port is a Gigabit Ethernet LAN connection that enables management (GUI and
command- line) to be limited to a separate port and network. By default, this interface will get
its IP via DHCP. A static IP can be assigned through the LCD setup or from the CLI.
BACKUP port is used in a High-Availability (HA) configuration to connect two (2) WebMux
units together. The cable is auto-sensed where straight or crossover cables can be used. Link
status LEDs will be lit when they are connected.
Network Traffic ports are the ports used for Internet-to-Server load balancing. The ports can
be configured to all be on the same network (in Transparent, Single Network, and Direct Server
Return modes) or on separate networks (NAT mode). In two port models, the “Internet” side
port is on the left; the “Server” side port is on the right. For units with four physical ports, the
“Internet” side are the two ports on the left; the “Servers” side are the two ports on the right. In
the four port models, the two port pairs are configured as bonded/LACP ports that can be paired
with a switch that is configured to aggregate the links and increase you bandwidth.
Other are the standard mouse, keyboard, USB, and VGA ports used for technical
troubleshooting should the system’s console need to be accessed.
12
SECTION III - WEBMUX TOPOLOGY OVERVIEW
WebMux Topology Modes
Two-Armed Network Address Translation/NAT Mode
Two-Armed Transparent Mode

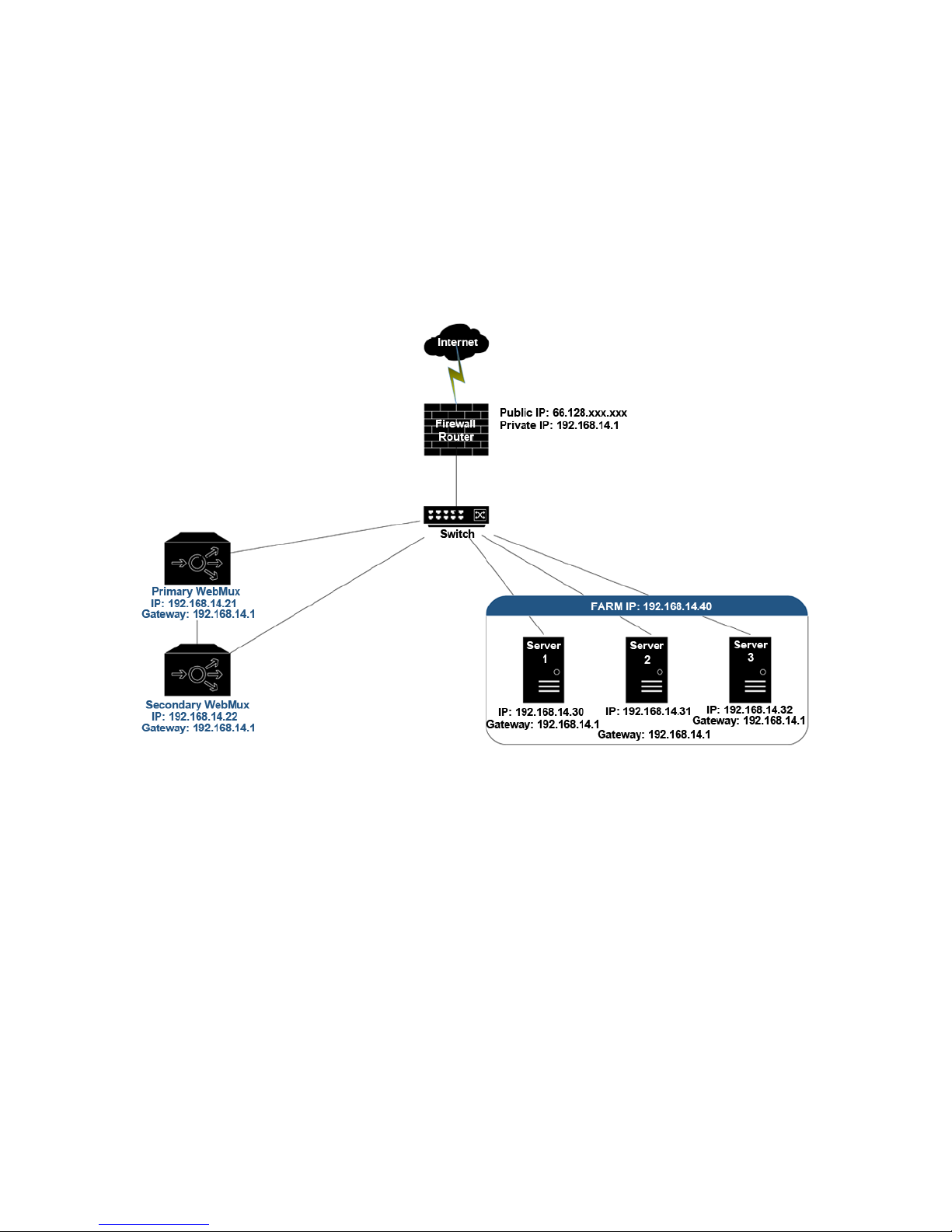

One- Armed Single Network Mode
One-Armed Direct Server Return/DSR
IPv4 and IPv6 work in all the modes. Each mode has its advantages and disadvantages.
In NAT mode, the farm IP address is on the router LAN/Internet side that will be used to as the
access point for the site. The real web or application server must have its IP address in the
address range of the Server LAN subnet. The WebMux accepts incoming connects to the farm IP
address and does NAT to forward the requests to the real server IP address. You can also use the
IP address you assigned as the Router LAN IP of the WebMux as a farm address in order to save
an IP address from being used up in your network, if your available public IPs are limited. You can
create more farms with the same IP address as long as the port number is different.
In NAT mode, the WebMux also acts as a firewall. All ports except the farm port(s) are blocked. All
servers behind the WebMux are reachable from the outside only through a WebMux farm.
Traffic from the servers to the outside network will be seen as coming from the WebMux unit’s
Router LAN IP address or the front proxy address (if you assigned one in the Network
Management). If a WebMux is placed behind a firewall, be sure to allow the WebMux Router LAN
IP address access to go outbound to anywhere or any port. All farm IP addresses should have
rules to allow incoming traffic mapped to the address and port number, as well as the return traffic
for each farm IP address to go outbound any port, anywhere.
In Transparent Mode or Single Network Mode, there is no firewall protection from the WebMux. All
servers talk to each other freely across the WebMux. Load balancing occurs when the farm IP is
accessed.

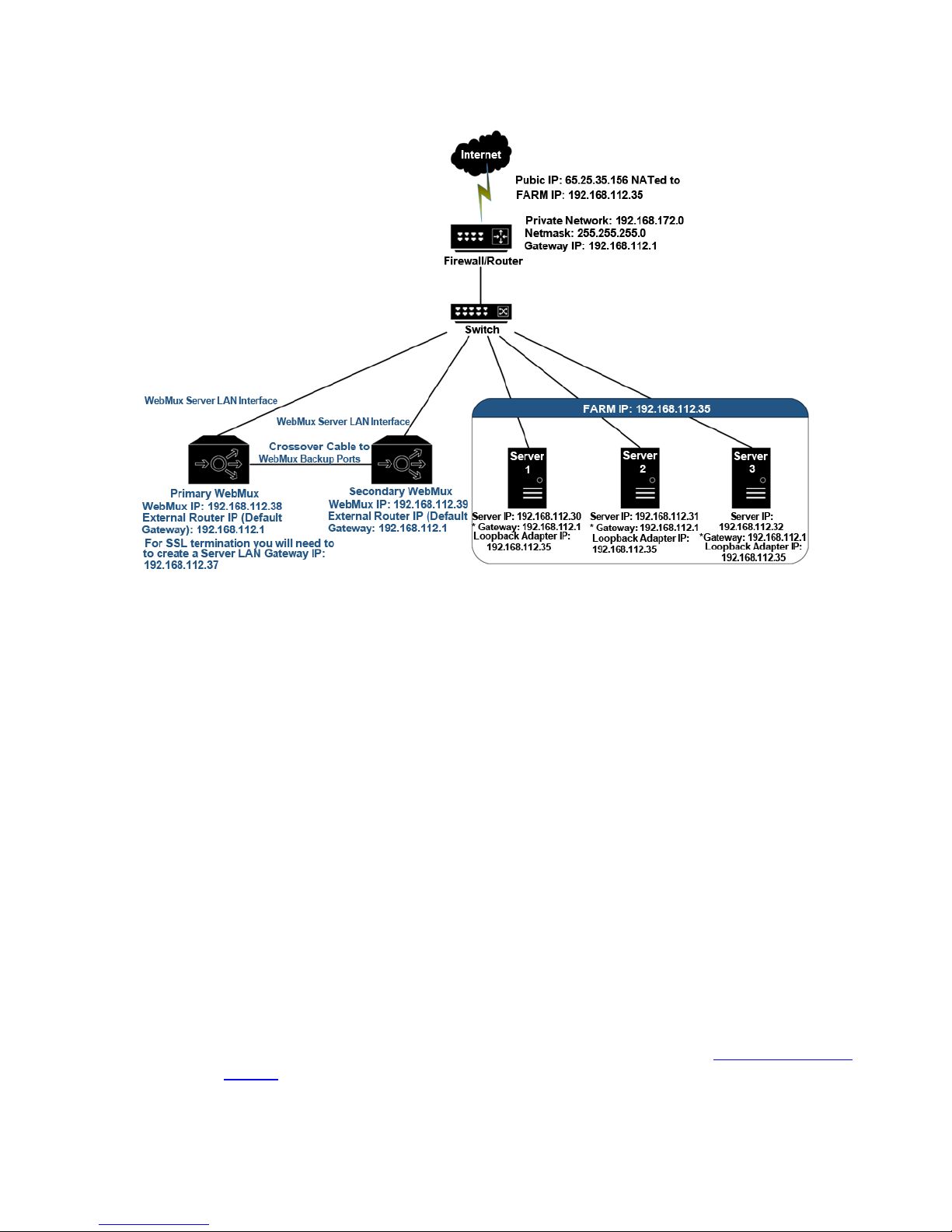

In Direct Server Return Mode, only the Server LAN port is connected, and the farm(s) must use a
different IP address than the WebMux Server LAN IP address. You can use reuse an IP address
for more than one farm as long as the port number is different from each other. In this mode, each
server must have a loopback adapter. In a Windows® server the route for the loopback adapter
must be removed. Please reference the section on adding a Loopback Adapter in this User Manual
for additional information. The WebMux has been tested extensively to work with all versions of
Windows®, Linux® and HP-UX® 11.X under this mode. Other operating systems should also work.
13
Two-Armed NAT Mode
o
The main purpose of the WebMux is to balance IP traffic amongst multiple web, or other,
servers. The diagram above shows a NAT installation with two WebMux units. In this example,
one WebMux is serving as the primary, and the other is serving as the secondary, or backup,
providing a fault tolerant solution (also called High Avaliability or HA).
In order for the web servers to share the incoming traffic, the WebMux must be connected to the
network. There may be two or four load balanced interfaces on the WebMux. The left-side,
load balanced interfaces connect to the Router LAN. This is the network to which the Internet
router is connected. The right-side, load balanced interfaces are connected to the Server LAN.
This network connects to all of the web servers. The WebMux routes traffic between these two
networks.
Next, virtual farms must be configured on the WebMux. A virtual farm is a single representation
of the servers to the clients. A farm consists of a group of servers that serve the same domain,
website or services.
For example, to configure a farm (or virtual farm) to serve www.avanu.com:
First, Server 1 and Server 2 would each need the website www.avanu.com configured
on them and HTTP/HTTPS services started; and
Second, a farm on the WebMux is defined with Server 1 and Server 2 in it. The servers
could be setup to either share the traffic (load balancing), or setup as a primary server
14
and standby server. In either case, if Server 1 goes down, Webux will redirect all traffic
to Server 2.
15
Two-Armed NAT Mode (Single WebMux)
In this example,
One WebMux unit is used
One WebMux interface (internet) connects to the router LAN. The other interface
(server) connects to the server LAN
The WebMux translates the router LAN IP addresses to private Class C addresses. In
this example, the netmask is 255.555.255.0. The IP address of the WebMux interface
on the router LAN is 205.133.156.220. The IP address of the WebMux interface
attached to the Server LAN is 192.168.199.251.
The Default Gateway for all the servers is 192.168.199.1
Farm 2 IP address is 205.133.156.210. Servers 2 and 3 serve Farm 2
16
Changes to the server: Set their IP addresses to the 192.168.199.xxx subnet and make
their default gateway point to 192.168.199.1. If a service on the server (HTTP/S, FTP,
etc.) is listening on a specific IP address, please make sure the service is configured to
listen on the new IP address.
Although the WebMux can work with any IP address range, all servers IP
should be private addresses.
If there is a firewall between the WebMux and the Internet router, a rule must be defined to
allow the farm IP address to communicate out to the Internet on all ports. In NAT mode, the
main IP address of the WebMux is used as the masquerade IP of outbound traffic. Both the
farm address and the main WebMux interface address must be translated to communicate
outbound on all ports.
17
Two-Armed NAT Mode (Redundant WebMux Installation)
In this example,
Two WebMux units are used. One is the primary and the other is the secondary. They
connect together with an Ethernet cable (straight or crossover) or through a hub or
switch. The primary’s Backup interface IP address is 192.168.255.253; the secondary’s
Backup interface IP address is 192.168.255.254. They cannot be changed.
Both WebMux units connect to the Router LAN and to the Server LAN. Each WebMux
interface has a unique IP address.
The IP address of the WebMux units’ virtual farms must be in the same network range
as the Internet router.
The WebMux translates the Router LAN IP addresses to a private Class A address. In
this example, the subnet mask is 255.0.0.0. The IP address of the WebMux interfaces
attached to the Server LAN are 10.1.1.10 and 10.1.1.20.
18
The default gateway for all the servers is 10.1.1.1
Farm 1 IP address is 205.133.156.200
Servers 1 and 2 serve Farm 1
Farm 2 IP address is 205.133.156.210
Servers 2 and 3 serve Farm 2
Change the default gateway on the servers to 10.1.1.1, as well as the IP addresses to
the 10.3.1.10/20/30 addresses. If there is a service on the server (HTTP/S, FTP, etc)
that is listening on a specific IP address, please make sure the service is listening on the
new IP address.
Although the WebMux can work with any IP address range, all server IP
addresses should be private addresses.
If there is a firewall between the WebMux and the Internet router, a rule must be defined in
the firewall to allow the IP address of the WebMux interfaces on the Router LAN in addition
to the farm IP address (could be same as the WebMux Router LAN IP address) to
communicate out to the Internet on all ports. Since the WebMux is doing Network Address
Translation of the farm address to a non-routable address, the farm addresses on the
WebMux must be able to communicate outbound on all ports defined in the farms.
When two WebMux units are in a high availability pair, the secondary unit will
not be reachable via its router side interface IP when it is in standby mode. You will
be able to reach it from its back interface IP.
19
Two-Armed Transparent Mode
Transparent Mode is a WebMux configuration that allows you to keep the existing IP
addresses of your servers. Like Direct Server Return Mode (explained later), the servers
and the WebMux will be on the same IP network segment. However, physically, the servers
will be connected to the WebMux in the same way they would be for NAT mode: on the
server LAN port. The “internet” port on the WebMux is connected towards the
Firewall/Router. In this mode, the WebMux functions as an Ethernet bridge.
Two-Armed Transparent Mode (Installation without IP Address Change)
* STP = Spanning Tree Protocol
In Two-Armed Transparent Mode, the servers need to be isolated from the rest of the
network with the WebMux in between, even though they are in the same network segment.
All communication from servers to other servers or clients must flow through the WebMux.
The WebMux will load balance any traffic targeted to the farm address and let all other
traffic flow through like a network switch. This simplifies some network configuration, but
isolating the servers is an additional requirement.
Since the WebMux acts as an Ethernet Bridge, anything connected to its back interface
(server LAN) is on the same network segment as its front interface (internet/router LAN). If
you look at the diagram above, you will see that the terminals are on the same network
segment as the servers, even though the servers are “behind” the WebMux. The terminals
20
can communicate with the servers IP directly as if the WebMux was not there, and vice
versa.
When creating a farm, choose a unique IP for the farm address in the network, and then add
the server IP address under that farm. Load balancing occurs when the “Farm IP” is
accessed instead of the servers’ actual IP.
There are no configuration changes that need to be made on the servers, except for the way
they are physically connected to the network.
The diagram also gives an example of a redundant WebMux setup. In this case, it is
absolutely required that the WebMux units are connected in between two switches. It is also
very important to remember that you should not have any network path that will bypass the
WebMux between the server side and the Internet/Router side. No parallel paths along-side
the WebMux whatsoever. Doing so will create bridge loops and will cause broadcast
flooding, effectively halting the network.
During a failover situation, you may immediately notice that the backup becomes temporarily
unreachable though the Internet LAN side.
When two WebMux units are in a high availability pair, the secondary unit will
not be reachable via its router side interface when it is in standby mode. You will be
able to reach it from its back interface.
21
One-Armed Single Network Mode
The WebMux supports two kinds of “One-Armed” modes: Single Network Mode and Direct
Server Return (DSR) Mode. For Single Network Mode, there are no changes required for the
network topology or server IP addresses. Requests from clients go to the farm address on the
WebMux, which will in turn go to the servers through load balancing methods. The server
replies are directed back to the WebMux and sent back to the clients. Single Network Mode
has a 65,000 concurrent connections limit per farm.
One-Armed Single Network Mode (Installation without IP Address Change)
In Single Network Mode, connections being load balanced and going to the real servers will
appear to come from the WebMux itself. You will not need to make any changes on your
servers since the servers will always reply back to the WebMux when sending back their
reply. You will only need to connect the “server LAN” side of the WebMux to the network.
Do not connect the “router LAN” side interfaces to your network.
Be aware that in this mode, the client’s real IP addresses will not be logged in your server
log unless you modify your server’s logging filter rules. You have to make sure your server
logs the “X-Forwarded-For” (XFF) HTTP MIME header content to find the client’s real IP
address. If the HTTP header already has the X-Forwarded-For tag in it, the WebMux will not
alter the tag. If the traffic is not for the HTTP port, WebMux will not insert the XFF header for
the traffic. Enabling XFF header insertion is optional on a per farm basis. If your host
software does not need this header, it is better not to insert it to reduce the WebMux CPU
usage.
22
One-Armed Direct Server Return/DSR
In Direct Server Return (DSR) Mode, only the server LAN is connected to the network. Internet
traffic or local connections can both be directly sent to the WebMux, which forwards the packets
to the proper server(s). The server(s) routes the return traffic back to the remote or local clients
directly.
In most situations, incoming traffic is in small requests and return traffic from servers back to
clients is large amounts of data (pictures or documents). Using Direct Server Return Mode will
allow up to 100 times more traffic to be handled by the WebMux load balancer. The
disadvantage for DSR Mode is that the inherent firewall protections of NAT Mode will no longer
function. Users must provide their own firewall for incoming and outgoing traffic.
Also, when using SSL termination, DSR Mode does not gain any advantage due to the
requirement that return traffic from servers must go back to WebMux for examination of the
data headers and/or re-encryption the data packets.
23
One-Armed Direct Server Return/DSR Mode (Installation without IP Address Change)
The above diagram is an example about how to configure the WebMux in DSR Mode
without changing the IP addresses of the web servers and other servers that already exist
on the network. This is another option that can be used if changing the existing network
topology of the servers causes problems.
In this configuration, all the servers still remain on the same IP network and can
communicate. From the servers’ “view,” the WebMux is on the same network as the
servers. On the WebMux, only the server LAN side is connected, since there is only one
network in Direct Server Return Mode. The WebMux takes at least two IP addresses to
work in this mode - the server LAN Interface IP address, which is the management IP
address of the WebMux, and the farm IP addresses.
If you are connected to a switch that allows you to create Link Aggregation Groups (LAG -
sometimes called “EtherChannel” or “Port Channel”), the Internet port and Server port on
the WebMux can both be connected to the switch and they will behave as one logical port
with about twice the bandwidth capabilities. It is important that you configure the switch
properly before connecting both interfaces. Please refer to your switch’s user manual about
creating Link Aggregation Groups.
Two simple changes must be made to each server in the farm.
1) Have a new loopback adapter installed and have its address set to the farm address.
Do not set the gateway on the loopback adapter. Reference the Loopback Adapter
section within this User Manual for additional information on how to add a loopback
adapter.
24
For DSR Mode to work properly, the loopback adapter must route the
return traffic through the real network interface. In other words, the loopback
adapter cannot have the gateway specified. Information on how to add a
loopback adapter on servers can be found in the “How to Add a Loopback
Adapter” section. In case the server is running Windows® 2003/2008, the route
created when adding a loopback adapter cannot be deleted; please make sure
the loopback adapter metric has a higher number.
2) If your service binds to any specific IP address, add the loopback adapter’s IP
address to that service.
The firewall configuration must be changed to point to the new farm address on the
WebMux. Since the WebMux always uses one IP address in the server LAN, the
farm address must be a different IP address in the server LAN in Direct Server
Return Mode.
Direct Server Return Mode also allows for redundancy. The two WebMux units are
connected to each other on their “backup” ports via a straight or crossover Ethernet
cable or with a hub or switch in between.
Under normal Direct Server Return operations, you will only need to set
the external gateway IP address for the WebMux. However, if you are going to
have the WebMux perform SSL termination, you must set a “server LAN
gateway” IP in the WebMux and have the servers’ default gateway point to that
IP address.
Link Aggregation Group (Port Bonding) in Direct Server Return/DSR
When the WebMux is in Direct Server Return mode, the “Internet” and “Server” ports are
configured in a Link Aggregation Group. If you have switch that has “LAG,” “EtherChannel,” or
“Port Channel” capabilities, the “Internet” and “Server” interfaces will behave as a single interface
and effectively double the amount of data throughput. You must enable the
LAG/EtherChannel/Port Channel capability in your switch to take advantage of this feature.
IPv6 Considerations
The WebMux can load balance IPv4 and IPv6 traffic in all above modes. Both IPv4 and IPv6 can
work in Layer 4. Simply specifying the IPv6 prefix will enable WebMux load balancing in IPv6 only.
Because IPv6 uses the colon (:) symbol in the address, there are special considerations needed
when using the IPv6 address in a web browser because the colon (:) is also used to denote a port
number (i.e. 192.168.12.21:24). Because accessing the WebMux unit’s web management requires
access to port 24, you cannot simply put the IPv6 address in the address bar of the browser like
you would for an IPv4 address. You must enclose the address in brackets ([]). For example, if the
IPv6 address of the WebMux is fec0::c0a8:c15, then you would enter http://[fec0::c0a8:c15]:24/ to
get to the web management.
There are also IPv6 versions of some basic networking tools such as ping6, traceroute6, and
tcpdump with the IPv6 flag, ip –f inet6, route –inet6, etc. in the CLI. Please be sure that network
25
software/client is indeed IPv6 capable or is the correct IPv6 version to use before assuming that
your network is not working.
Also, when adding an IPv6 address to your server’s NIC (network interface card), your server’s OS
might not automatically add a default gateway in its routing table for the IPv6 address. Please
double check the routing tables and make sure the proper entries are there. If your servers are not
accessible from the outside but are accessible within the subnet, you might want to check and
make sure that the default gateway was set up correctly.
WebMux IPv6 is supported all modes of operation: Two-Armed NAT mode, Transparent mode, as
well as One-Armed Single Network mode and Direct Server Return/DSR mode. It allows SNAT
Layer 4 operations, as well as SSL termination. It also allows incoming IPv6 traffic to be load
balanced to internal IPv4 based servers. However, for traffic initiated behind the WebMux (not load
balanced), it does not translate IPv4 to IPv6.
High Availability and Configuration
Two WebMux units can be paired together for high availability. In this configuration one unit must
be explicitly configured as a “primary” unit and “NOT running solo.” The other unit must be

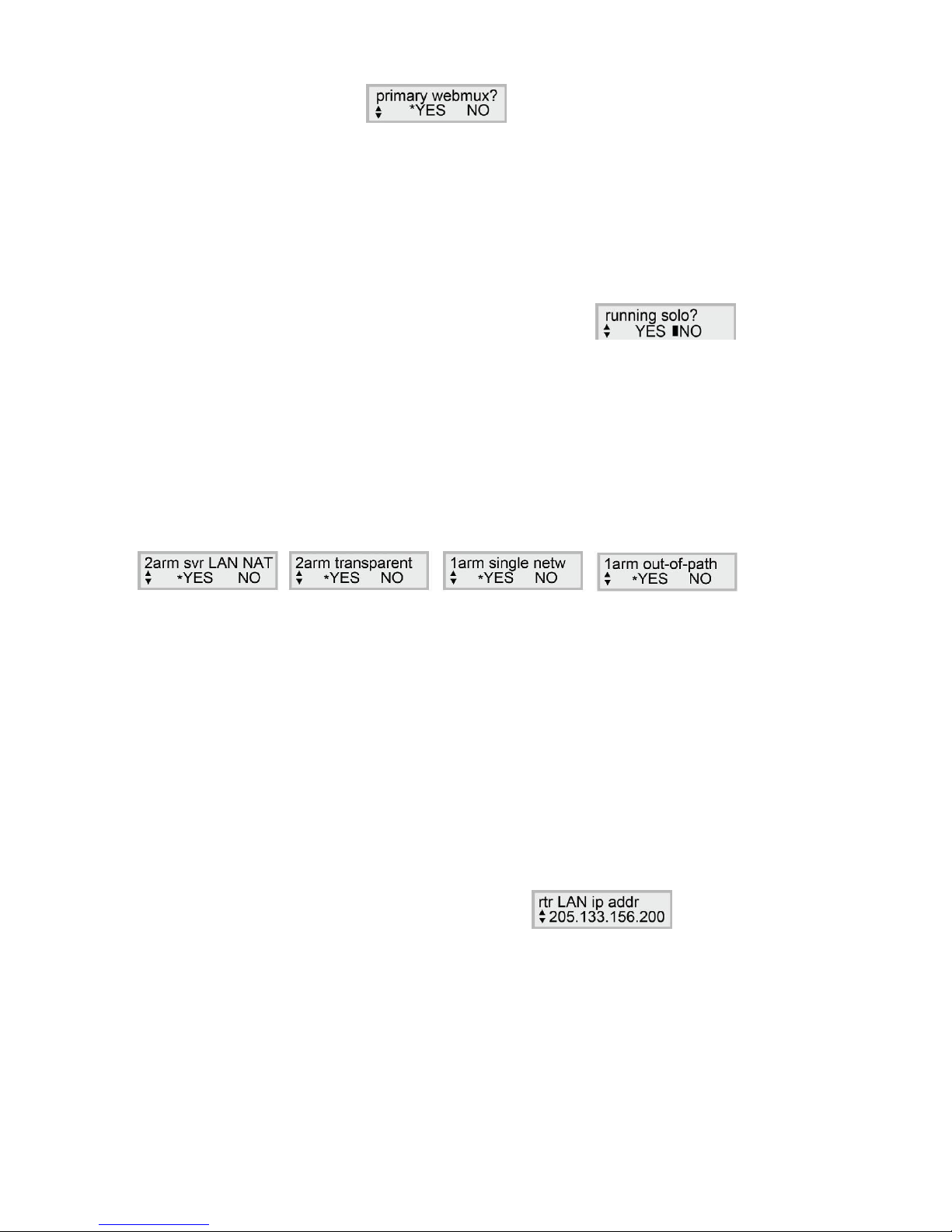

configured as “NOT primary.” This can be done through the LCD setup or though the
Administrative Web Management Interface at /cgi-bin/rec or by going to the “reconfigure” screen
from the “network” menu in the main console of the Administrative Web Management Interface. It
can also be done by running the “rec” utility from the CLI.
Each unit will need to complete the LCD setup or “reconfigure.” Be sure that each unit is assigned
its own unique IP address to avoid addressing conflicts on your network. In some modes such as
NAT mode and Direct Server Return mode, there is a setting for the Server LAN gateway IP
address. The Server LAN gateway IP is the IP address that the servers “behind” the WebMux will
use as their default gateway. This is optional in Direct Server Return mode, but is required in NAT
mode and if you plan on doing SSL offloading or Layer 7 load directing in DSR mode. Please
review the Direct Server Return mode configuration section to decide whether or not you need this.
The Server LAN gateway IP setting will only show up for the primary unit setup. This setting is
automatically passed to the secondary unit during synchronization. This IP address is up only on
the active unit.
If the primary unit goes down, the secondary unit will activate the Server LAN gateway IP on itself to
ensure that the real servers will always have a valid default gateway to use.
After these settings have been made, you will need to connect the two units together using a
crossover network cable plugged into the “backup” ports of the WebMux units.
To properly sync the two units, begin with both units turned off and be sure the Ethernet cable is
connected to the “backup” ports of both units. Turn the primary unit power on and wait for it to fully
boot and go into the active state. You will see the LCD screen showing the updating status. You
can now power on the secondary unit. When fully booted, the secondary will show the host/domain
name and “[backup standby]” underneath. You will also see the message “(backed up by <IP
address of the secondary unit>)” at the top of the main console screen of the web management GUI
of the primary unit, underneath the unit’s IP address(es). If you access the secondary unit, you will
see the message “Inactive member of a WebMux pair” and “(backed up by <IP address of primary
unit>).” A text version of the farm configurations will also appear on the secondary unit’s main web
console. This indicates that the units have properly synchronized. Setting and configurations made
on the primary unit will automatically synchronize with the secondary unit. It is important that you
26
explicitly click the save button on the main console page of the primary unit when changes are
made. Changes will not propagate to the secondary unit until this is done.
There are a few things to keep in mind when you have two units paired in a high availability
configuration. In NAT, Transparent, and Single Network modes, you will not be able to access the
secondary WebMux through the “Internet” interface. You generally will not ever need to access the
secondary unit when it is on standby. But, if you need to, you could access it from the “Server”
interface. In NAT and Transparent modes the server interfaces are on a different physical network
segment. Be sure your client machine is on the proper side of the network if you desire to access
the secondary unit. In Single Network and Direct Server Return modes only the “Server” interface
is used and you will always be able to access the secondary unit through that interface.
If you log in to the secondary WebMux, a text version of your farm configurations will be shown.
Please note that farm configurations can only be modified on the active unit. This is to ensure that
there will not be duplicate IP addresses on your network. You can, also, verify that the secondary
does in fact have the farm configurations by logging in to its command line interface and running
“getconfig.” You will see a text output of the farm configurations that the secondary unit received
from the primary.
When a failover occurs, the secondary unit’s LCD will show the updating information screen. Its
web console will show “backup webmux takeover.” Please note that if the primary unit remains
powered on and the conditions that caused it to failover has been fixed (for example, if a network
cable got unplugged and you were able to plug it back in), the primary unit will not take back control
unless you reboot the machine. Upon reboot of the primary unit, the secondary unit will return
control to the primary unit when it is up and running. The backup unit will return to the “[backup
standby]” state. Otherwise, the secondary unit will remain the active WebMux of the pair. Also, the
secondary WebMux will not failover back to the primary unit if there is a condition that will trigger its
failure. The primary unit must be restarted.
We suggest that you address the problems with the primary unit as soon as possible to ensure that
high availability is intact. Also, the secondary unit has a safeguard to not take over immediately if it
just recently gave back to the primary unit. After about 5 minutes the secondary unit will be
available to take over should the primary fail again.
It is recommended that you test the WebMux failover behaviors in a test environment and become
familiar with it before you put it in production. The WebMux failover logic behaves in the following
ways (these scenarios pertain to events on the primary unit):
1) NAT mode:
a) Internet port cable physically disconnected or reports no link level connection, server
port cable still connected (should failover to secondary)
b) Server port cable physically disconnected or reports no link level connection, Internet
port cable still connected (should failover to secondary)
c) Front network verification enabled with at least one farm configured. If for some reason
the primary unit is unable to get a response from its default gateway, the WebMux will
see that as a failure and will relinquish control over to the secondary unit. The primary
unit will assume that the problem is it own and that the secondary unit should be able to
get to the default gateway. In this scenario, it is VERY IMPORTANT that you ensure
that your default gateway, Internet router, or firewall will respond always to the WebMux
27
probes. Otherwise, a failover will occur and if the secondary unit is unable to get a
response from the default gateway as well, both units can potentially become inactive.
d) Multiple uplink gateways/next hop farms. The WebMux will not failover to the secondary
unit as long as there is one active gateway available.
2) Transparent mode:
a) Internet port cable physically disconnected or reports no link level connection, server
port cable still connected (should failover to secondary)
b) Server port cable physically disconnected or reports no link level connection, Internet
port cable still connected (should failover to secondary)
c) Front network verification enabled with one farm configured. (See the explanation in
NAT mode)
d) Multiple uplink gateways/nexthop farms. (See the explanation in NAT mode)
3) Single Network mode
Only one port needs to be connected in Single Network mode. The following scenarios take
the possibility that either the Internet port is used OR the Server port is used)
a) Internet port not connected, server port cable connected (should NOT failover to
secondary)
b) Server port not connected, Internet port cable connected (should NOT failover to
secondary)
c) Both ports not connected or reports no link level connection (should failover to
secondary)
d) Front network verification enabled with one farm configured. (See the explanation in
NAT mode)
e) Multiple uplink gateways/nexthop farms. (See the explanation in NAT mode)
4) Direct Server Return mode
Ports are bonded in this mode. Both ports can be connected at the same time, but it should
be OK for only one or the other to be connected
a) Internet port cable physically removed or reports no link level connection, server port
cable still connected (should NOT failover to secondary)
b) Server port cable physically removed or reports no link level connection, Internet port
cable still connected (should NOT failover to secondary)
c) Both port cables disconnected (should failover to secondary)
d) Front network verification enabled with one farm configured. (See the explanation in
NAT mode)
28
e) Multiple uplink gateways/nexthop farm. (See the explanation in NAT mode)
29
SECTION IV - CONFIGURING THE WEBMUX
Getting Started
Please collect the information about names and IP addresses designated by the arrows in the
network topology below.
Network Terminology
A Virtual Farm includes the WebMux and the servers under it. Functionally, it acts as a single unit
on a network. For example, http://www.you.com can be one virtual server farm;
https://www.me.com is another farm, and ftp://ftp.avanu.com is the third farm. The first farm works
on a set of servers on port 80, the second farm consists of another set of servers on port 443, and
the third farm works on a set of servers on port 21. The WebMux supports combining ports 80 and
443 one single farm, so that same client browsing the site in HTTP mode will be sent to the same
server for HTTPS requests. In the combined configuration, you must select HTTP/S as the farm
service. Ports 80/443 will then be combined into one farm.
To serve the Internet, there must be at least one Internet Router. The local area network that
connects the router and the WebMux is called the Router LAN. In this LAN, the WebMux takes
the Internet traffic and distributes it to the servers behind it. The LAN connecting the WebMux and
real servers together is called Server LAN.
30
The WebMux has four modes: Two-Armed Network Address Translation/NAT Mode, Two-Arm
Transparent Mode, One-Armed Single Network Mode, and One-Armed Direct Server Return/DSR
Mode. In NAT mode, the WebMux units are connected to both Router LAN and Server LAN. At
least one WebMux is needed to define the Router LAN and the Server LAN. We will explain other
modes in detail in later chapters.
The side of the WebMux that connects to the Router LAN sends and receives all the IP packets
from the router to the Internet. The side of the WebMux that connects to the Server LAN sends and
receives IP packets to and from the servers in the farms. By properly configuring the WebMux, one
can create one or more Virtual Farms on top of the physical hardware.
Hardware Setup - Collect Information
Make a drawing of the existing network and note all the configuration settings. This will
help you to fall back to the existing configurations if needed
Make a new drawing for the new setup with the WebMux and the web farm in place.
This will be used as a guide for setup and preparation of all the necessary material and
equipment
Collect all the IP addresses, their network masks, network addresses, and broadcast
addresses for the Server LAN and Router LAN WebMux interfaces. The IP address of
the Internet router is also needed
Label all the cables and prepare additional cables if needed
Make sure there are enough electrical or UPS outlets for all the new equipment
Hardware Setup - Network Environment
Install WebMux in network environment
If you have a secondary WebMux, connect the WebMux units with a crossover Ethernet
cable
Connect the servers to the Server LAN
Connect the WebMux to the uplink switch
Take all necessary measures to initiate basic network communications between all
devices in new configuration.
Verify that all the devices are up and running
The WebMux is now ready to be configured
Initial Setup Though LCD Panel
Warning! Do not proceed without collecting all necessary information
31
The IP addresses in the following examples are general examples and are not meant
for literal use in an actual setup
Turn on the WebMux by pushing the power-on button in the front of the WebMux momentarily. You
will see the version number on the LCD panel like this:
After the unit has fully booted, you will see a scrolling instruction screen. Hold down the CheckMark button on the WebMux until the LCD displays the first question - “Enter WebMux host name.”
During the initial configuration, you will be asked to provide names and IP addresses. (See next
section)
Each item is explained in the order it is asked.
Answer the questions. Reboot to save and activate you setting.
When reboot is complete, the service statistics screen will appear

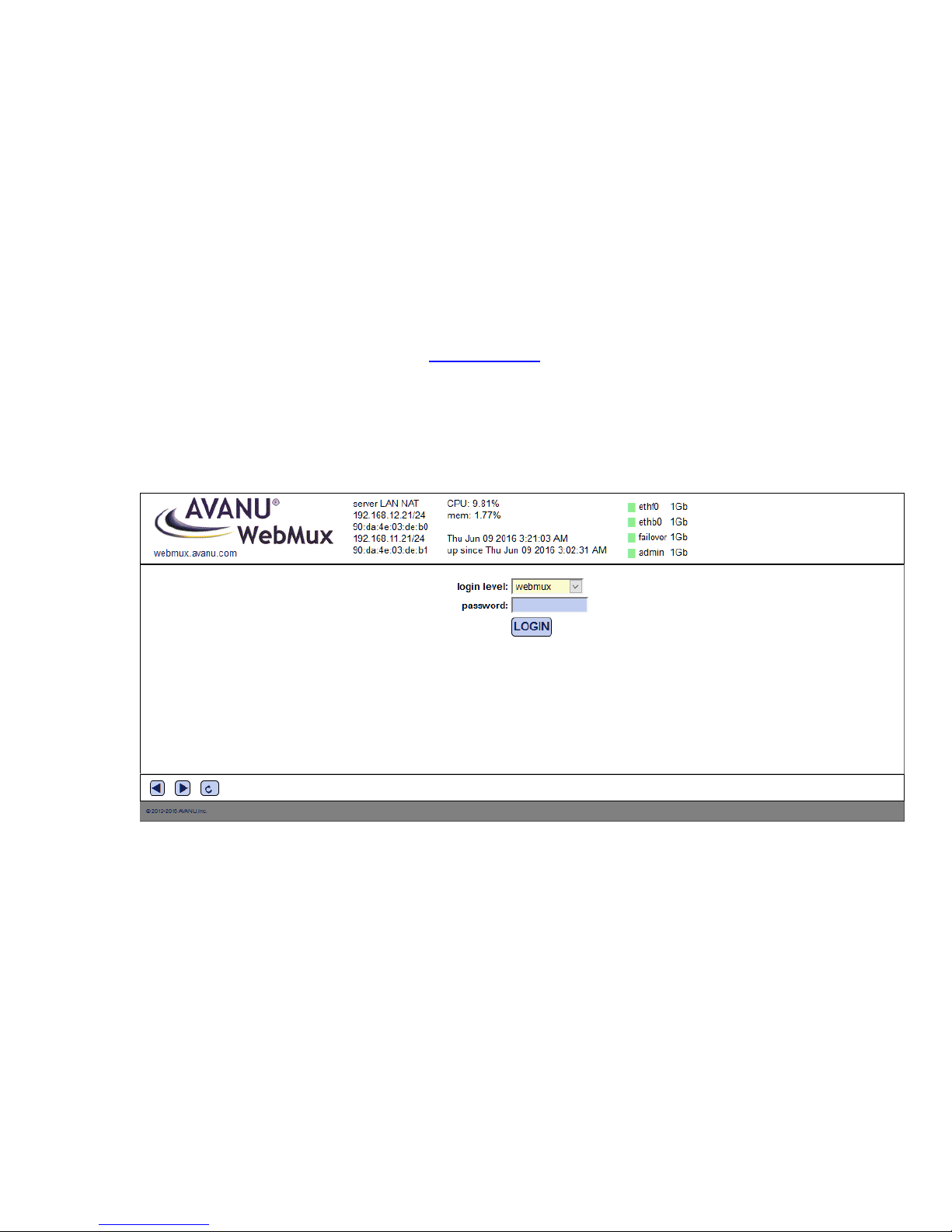

Log into the web management interface.

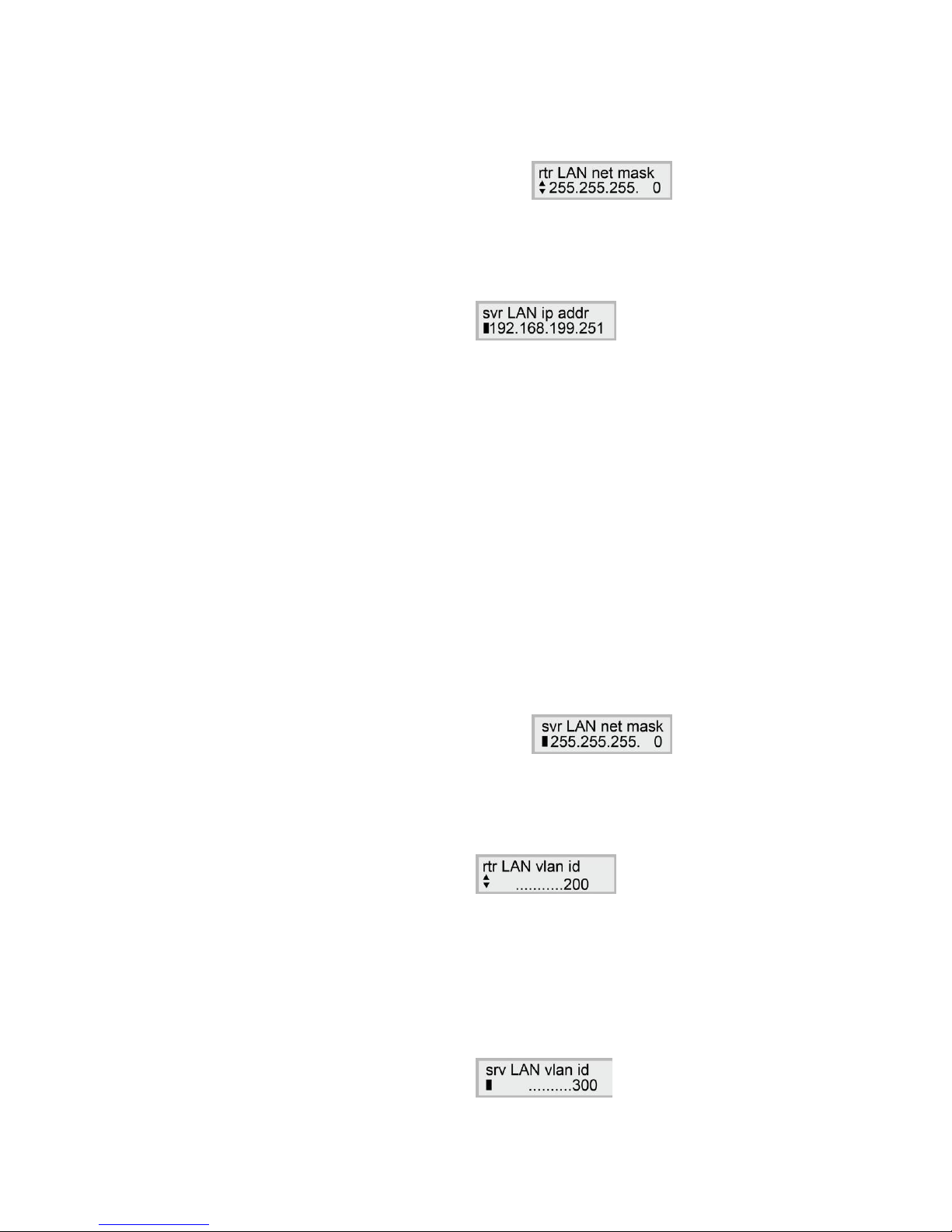

The LCD Setup Screens
Enter WebMux Host Name:
Enter the host name of the WebMux. Use the right arrow to move the position, the up and down
arrows to select characters, left arrow to move back in position, and the check mark button to
confirm the change. This host name is for identification purposes. You may call it webmux1,
webmux2, etc. (Press and hold down the up/down button for more than a second to make
quicker changes.) Note the left most down arrow on the LCD allows the user to move to other
settings.
Enter WebMux Domain Name:
This is for identification only; this has no effect for network operation. Although it can be any
name, we suggest using the primary domain name of the Router LAN network. If you have only
one domain, use that domain name. Note the left most position on the LCD has changed to an
up and down arrow, allowing the user to go back and forth for questions and answers.
32
Is this a Primary WebMux?
If this is the Primary, answer Yes. If this is the Secondary WebMux, answer NO. Please note,
you must still do the initial configuration on the secondary unit as well.
Primary WebMux Information
This question is not asked for the Secondary WebMux.
Is this WebMux running solo without a backup WebMux?
If the Primary WebMux is running in a standalone configuration (see sample configuration—
Standalone WebMux), answer Yes. If you plan to add a second WebMux in the future, you may
answer NO, even there is only one WebMux at the time. When you add a second WebMux later
on, the WebMux will automatically detect the backup and start functioning as an active/standby
pair.
Choose the WebMux Mode:
This is where to choose which mode you want to run the WebMux: Two-Armed NAT, TwoArm Transparent, One-Armed Single Network, or One-Armed DSR Mode. The “*” indicates the
default or selected option. Two-Armed NAT provides protection to the servers; it can handle
large amounts of data as noted in the specification. It provides the best security for isolating
servers from any other part of the networks. Two-Armed Transparent Mode or One-Armed
Single Network Mode provides the convenience of preserving your server IPs, but may require
physical relocation of the network connection or modifying the default gateways. DSR provides
better performance when large amounts of data need to go back to clients (up to 100X more
than on the specification chart); it also does not require a change to the server IP address. The
screens will cycle among the modes until you select yes on one of them. Once one is selected
it will continue to the next setup screen. Continue on to the related mode in the following pages.
NAT Mode Related Configuration
Enter Router LAN WebMux IP Address:
This will be the IP address of the WebMux interface that connect to the router LAN side.
This will also be the IP address that the WebMux uses as the masquerade IP address when
it functions as a proxy for outbound traffic, particularly in NAT mode. (This IP address can
be also be used as a farm IP, in NAT mode). When any server behind the WebMux (on the
Server LAN) initiates communication with another host, the WebMux substitutes the servers’
IP address with this address. (This is true for all services, except FTP services, which uses
the FTP farm IP address for passive FTP connection). In a redundant setup in NAT mode,
the secondary WebMux can also use the same IP address as the primary unit for this entry.
This address floats between primary and secondary WebMux units.
33
This is not true in Transparent, Single Network, or Direct Server Return modes.
Using the same router LAN IP both units will create duplicate IPs.
Enter Router LAN Network IP Address Mask:
This is the network mask of the Router LAN network. It is usually 255.255.255.0 for Class C
networks. Choose what applies for your specific environment.
Enter Server LAN WebMux IP Address:
This is the IP address of the WebMux interface that connects to the Server LAN side. This
IP address must also be unique for each WebMux.
This address must be different from the server LAN gateway address
The purpose of this IP address is to allow the WebMux to check the network and server
health situation. Even for the backup WebMux, this address must be unique. It is highly
recommended to add this IP address to your servers /etc/hosts file, along with the gateway
IP address, to allow faster name resolution in UNIX® or Linux® operating systems.
In an installation with a primary and secondary WebMux, a unique IP address is required for
each WebMux interface that connects to the Server LAN. Those two unique IP addresses
are in addition to the gateway IP address that is floating between the primary and secondary
WebMux.
These IP addresses cannot be your Internet registered addresses. They must be Internet
non-routable.
Enter Server LAN Network IP Address Mask:
This is the network mask of the Server LAN. For a Class A network, it may be 255.0.0.0. For
a Class C network, it may be 255.255.255.0. Choose what applies for your specific
environment.
Enter Router LAN VLAN ID (Optional):
This is the optional VLAN ID tag that will be used for the Router LAN (Internet) interface.
You may enter values from 1 – 4067. The cursor position will only go from 0 to 9. To enter a
value greater than a single digit, press the left arrow button to move the cursor to the next
digit.
Enter zero (0) to disable the VLAN ID for the Router LAN (Internet) interface.
Enter Server LAN VLAN ID (Optional):
34
This is the optional VLAN ID tag that will be used for the Router LAN (Internet) interface.
You may enter values from 1 – 4067. The cursor position will only go from 0 to 9. To enter a
value greater than a single digit, press the left arrow button to move the cursor to the next
digit. Enter zero (0) to disable the VLAN ID for the Router LAN (Internet) interface.
The VLAN ID is used for full 802.1q VLAN support. This means that your switch
must be configured to be using “tagged” VLAN. For additional details reference the
section Using VLAN with WebMux in this User Manual.
The IP address you put here will be assigned to the Server LAN interface. Make sure it is a
unique, unused IP address.
In the single WebMux setup, this address CANNOT be the same as the WebMux IP
interface address on the Server LAN. When configuring a backup unit, this screen will not be
displayed.
Enter Server LAN Gateway IP Address (Required):
The Server LAN Gateway IP address is required to be set for NAT mode. The IP address
you put for this setting is an IP alias (an additional IP address) on the server LAN interface
of the WebMux. THIS IS NOT YOUR INTERNET GATEWAY/ROUTER/FIREWALL IP. This
is the IP address that the servers behind the WebMux will be using as their default gateway.
It must be a unique IP address, otherwise you will create a duplicate IP problem on your
network, and it cannot be the same IP you used in for the Server LAN IP. In a single
WebMux deployment, it does not make a lot of sense to have two IP addresses on the
server LAN interface. It is certainly logical to use the WebMux server LAN IP that has
already been assigned earlier as the default gateway for the servers. However, for best
practice, we recommend that you use this server LAN gateway IP address in the case that
you may want to deploy a secondary backup unit.
In the primary/secondary HA configuration, each WebMux will have its own server LAN IP
address. If you were to use the server LAN IP as the server’s default gateway and WebMux
went out of service, that IP address would no longer be valid because the other WebMux
would have a different IP address. Therefore, the server LAN gateway IP is used instead.
The server LAN gateway IP is only up on the active WebMux. The the primary WebMux
automatically propagates this information to the secondary WebMux, but it will not be active
on the interface when the unit is in standby. When the active WebMux goes down, the
secondary unit will become active and bring up the server LAN gateway IP address on its
server LAN interface. That way the servers behind the WebMux will always have a valid
default gateway no matter which WebMux is active.
Continue to the Common Configuration section to complete the WebMux setup.
Transparent Mode or Single Network Mode Related Configuration
Enter Bridge IP Address:
35
This will be the IP address of the WebMux on the network so that you can use a web
browser to manage it. Although the “server” and “internet” ports are interchangeable in
transparent mode, it is recommended that you stick with a labeling scheme and connect the
port labeled “internet” to the switch on the firewall/router side and connect switch on the
servers to the port labeled “server.”
Enter Bridge Net Mask:
This should match the subnet mask of the existing network the containing the WebMux.
Enter Router LAN VLAN ID (Optional):
Enter Server LAN VLAN ID (Optional):
The VLAN ID is used for full 802.1q VLAN support. In Single Network Mode the
Router LAN VLAN ID and Server LAN VLAN ID still pertain to the specific ports on the
WebMux and they cannot be the same value. Even though you only need to use one of the
ports in Single Network Mode, it is important that your switch setting matches the value of
the port you are connecting to.
If you entered a non-zero value for the VLAN IDs, you will see an additional screen:
Bond rtr/svr NI? (“Bond router and server Network Interfaces”):
This option will allow you to use the “Internet/rtr” port and “Server/svr” port as a single
“bonded” interface, also known as Port Channel or Link Aggregation Group, allowing
substantially more data throughput than a single physical interface. Additional
information on this feature is in the “Bond All Interfaces Setup” section near the end of
this chapter.
Continue to the Common Configuration section to complete WebMux setup.
Direct Server Return Related Configuration
Enter Server LAN WebMux IP Address:
In Direct Server Return Mode, at minimum, you only need to connect the Server LAN
interface. This is the IP address of the WebMux Server LAN interface. This IP address must
also be unique for each WebMux. The purpose of this IP address is to allow the WebMux to
check the network and server health. Even for the backup WebMux, this address must be
unique. It is highly recommended that one should add this IP address to your servers
/etc/hosts file, along with the gateway IP address, to allow faster name resolution,
especially on Linux®/UNIX® systems.
36
In an installation with a primary and secondary WebMux, one unique IP address is required
for each WebMux interface that connects to the Server LAN. Those two unique IP
addresses are in addition to the farm IP address that is floating between the primary and
secondary WebMux.
Enter Server LAN Network IP Address Mask:
This is the network mask of the Server LAN. For a Class A network, it may be 255.0.0.0.
For a Class C network, it may be 255.255.255.0.
Enter Server LAN VLAN ID (Optional):
The VLAN ID is used for full 802.1q VLAN support
Enter Server LAN Gateway IP Address (Optional):
This is an optional configuration that is used only if you are going to do SSL termination.
Keep in mind that this is an IP address assigned to the Server LAN network interface. Be
sure to use a unique IP address or duplicate IPs on the network will occur. Enter 0.0.0.0 if
not needed.
If your setup requires you to put a server LAN gateway IP, be aware that the IP address you
put for this setting is an IP alias (an additional IP address) on the server LAN interface of the
WebMux. THIS IS NOT YOUR INTERNET GATEWAY/ROUTER/FIREWALL IP. This is the
IP address that the servers behind the WebMux will be using as their default gateway. It
must be a unique IP address, otherwise you will create a duplicate IP problem on your
network, and it cannot be the same IP you used in for the Server LAN IP. In a single
WebMux deployment, it does not make a lot of sense to have two IP addresses on the
server LAN interface. It is certainly logical to use the WebMux server LAN IP that has
already been assigned earlier as the default gateway for the servers. However, for best
practice, we recommend that you use this server LAN gateway IP address in the case that
you may want to deploy a secondary backup unit.
In the primary/secondary HA configuration, each WebMux will have its own server LAN IP
address. If you were to use the server LAN IP as the server’s default gateway and WebMux
went out of service, that IP address would no longer be valid because the other WebMux
would have a different IP address. Therefore, the server LAN gateway IP is used instead.
The server LAN gateway IP is only up on the active WebMux. The the primary WebMux
automatically propagates this information to the secondary WebMux, but it will not be active
on the interface when the unit is in standby. When the active WebMux goes down, the
secondary unit will become active and bring up the server LAN gateway IP address on its
server LAN interface. That way the servers behind the WebMux will always have a valid
default gateway no matter which WebMux is active.
Common Configuration - For NAT, Transparent, Single Network, and Direct Server Return
Mode
37
Enter External Gateway:
This is the common setup for NAT, Transparent, Single Network and Direct Server Return
modes. This is an address on the firewall or router local interface. In NAT mode, the WebMux
needs to know this to route the server replies back to the clients. Although in Direct Server
Return Mode this is not being used to route return traffic back to the Internet clients, the
WebMux uses this IP address to check the connectivity of the external network on this gateway
or through this gateway to the ISP side routers. For SSL termination, servers must route traffic
back to the WebMux via the server LAN gateway (previously mentioned). The WebMux then
forwards it to the client through the external gateway. If health check on external gateway is
enabled (by default), WebMux will turn the farm listing red to indicate the external gateway
failure.
Clear Allowed Host File?
The allowed host file prevents any unauthorized access to the WebMux Management Console.
If a workstation’s IP address is not in the allowed host file, that computer will not be able to
reach the WebMux management console through the network. However, sometimes a wrong
IP address is entered so that no computer can access the browser management console. At
that point, clearing the allowed host file will allow any browser to access it. By default, the
allowed host list is empty so that any IP address can access the WebMux. We do encourage
adding the host IP addresses that you would allow to manage the WebMux into the list. See
configuration through the browser interface for more details.
Remake Passwords?
This function is provided in case you have forgotten the passwords to access the Management
Console. Please use a browser to access Management Console for normal password changes.
The factory default password is the same as the login ID on the screen. Answer Y to reset the
Passwords to factory default. Answer N to leave them unchanged.
Enter Admin HTTP Port Number:
This is the HTTP port number for accessing the Management Console in non-secure mode.
Any unused port number can be used. The factory default port number is 24 and one could
choose to use any unused port below 1024 or port number above 1024 for this. Using a port
number above 1024 will require you to set up an “admin farm.” Basically, this is just a farm
configured with that port, without any servers in it. Creating the “admin farm” reserves that port
for use to that farm only and prevents port collision in case passive FTP is one of the other
farms. Using port number below 1024 will not require setting up an “admin farm.”
Enter Admin HTTPS Port Number:
38
This is the HTTPS port number for accessing Management Console in secure mode. The
factory default port number is 35, and one could choose to use any unused port below 1024 or
port number above 1024 for this. Using a port number above 1024 will require you to set up an
“admin farm IP”. Basically, this is just a farm configured with that port, without any servers in it.
Creating the “admin farm IP” reserves that port for use to that farm only and prevents port
collision in case passive FTP is one of the other farms. Using port number below 1024 will not
require setting up an “admin farm IP.”
Discard Changes Made?
If you select YES at this point, all the changes made will be discarded and you will exit the setup
mode. By default the answer is NO; all the changes will be saved. Only when you select NO
(do not discard changes), changes will be saved to the internal solid-state storage. Changes
will take effect after next reboot.
The next question will be Reboot Now?
Reboot Now?
This is the end of initial configuration. Most of the setup or changes require a reboot to tak
effect.
Press and hold the center Check-Mark button to make the WebMux reboot. Use the UP arrow
button to return to “Discard Changes” and select “Yes” to exit without change. Press the Down
arrow or the Cross Button to continue to the Factory Reset option (see Factory Reset below).
After the WebMux is rebooted, the statistics of the incoming packets, outgoing packets, etc. will
be displayed on the LCD display periodically.
Power Off:
Pressing the “Down” button at the “Reboot?” screen will bring you to the “Power Off” screen.
We recommend that you always power down the WebMux via the LCD panel, Web GUI, or
Command Line Interface.
LCD Brightness:
Pressing the “Down” button at the “Power off?” screen will bring you to the LCD Brightness
screen. This screen will allow you adjust the brightness of the LCD backlight. The setting will
39
default at 50. Valid values are from 0 to 100. The setting is activated when you press the check
mark button.
Going back to this screen will bring the value back to the default of 50.
Factory Reset:
Pressing the “down” button or the check mark button from the “LCD Brightness” screen will
bring you to the factory reset option. You will see:
This option will clear all current settings and reset the WebMux to original factory settings. Press
and hold the check-mark button for at least 20 seconds to activate the factory reset. The
process will take a few minutes and the WebMux will reboot itself.
Fixing Configuration Mistakes
You can always make changes to the hardware settings by pressing the Check-Mark button for
three (3) seconds when the statistic screen showing. It will start the prompt questions that will allow
you to navigate from one prompt to another by using the up/down button on the left most LCD
position.
For example, if you configured the Allowed Hosts wrong and lock yourself out, you can go to the
push buttons and select “Clr Allowed Hosts” option, save changes and reboot, which will allow all
the IP address to access the management console through browser. You can clear the allowed
hosts but not reset the password, or change one option and not change the others.
Bond All Interfaces Setup
When you specify a non-zero VLAN ID in NAT Mode or Transparent Mode, you will be given an
additional option to “Bond rtr/svr NI”. This feature allows you to use the “Internet” and “Server”
ports as a “single” bonded interface (also known as Port Channel or Link Aggregation Group).
When this option is enabled, the traditional “front” and “back” LAN of the WebMux is no longer
partitioned on the WebMux itself, rather, on the network SWITCH using tagged and untagged VLAN
ID settings.
Specific concepts need to be followed when setting up the WebMux with VLAN IDs. One is that the
ports on the switch connected to the WebMux MUST be configured to be using “tagged” VLAN
(802.1q). VLAN IDs configured on the WebMux for any mode (NAT, Transparent, or Out-of- Path)
is a “tagged” VLAN (802.1q) specification. For the rest of the network, there are two ways to
configure the switch and devices in order for them to be able to communicate with each other. One
way is to make all the devices in the local network use 802.1q VLAN tagging, since only devices
using 802.1q VLAN tagging will be able to communicate with each other. However, that option
depends on the actual network interface in the device and whether or not it supports 802.1q VLAN
tagging. The other option is to leave the network interface configuration on the other devices alone
and configure the switch to do the VLAN tagging. This will be the option that we will be using in our
example. All manageable switches with VLAN capabilities have these features, but since the switch
configuration commands vary from brand to brand, we will only lay out the main configuration
concepts and leave it up to you to refer to your switch user manual for specifics.
40
In the following example, we will be configuring a WebMux in NAT Mode using the “Bond rtr/svr NI”
option enabled:
RTR LAN IP: 192.168.12.21
RTR LAN mask: 255.255.255.0 SVR LAN IP: 192.168.11.21
SVR LAN mask: 255.255.255.0 RTR LAN vlan id: 100
SVR LAN vlan id: 200
Bond svr/rtr NI? YES
SVR LAN gateway IP: 192.168.11.1
External Gateway IP: 192.168.12.1
On the switch, we will be connecting ports 1 and 2 to the “Internet/rtr” port and “Server/svr” ports of
the WebMux. We will designate ports 3, 4, 5, and 6 for the “Front/Internet” LAN and ports 7, 8, 9,
and 10 for the “Back/Server” LAN.
First you will need to create a “port channel” or “link aggregation group” that includes physical ports
1 and 2. In most switches your real ports are designated by 0/1, 0/2, and so on. When you create a
port channel, a new interface may be created designated by something like 1/1, for example.
Next, you will assign the VLAN IDs to the PORT-CHANNEL interface (1/1). First, configure the
port-channel interface to “participate” or “include” VLAN 100 and make sure that it is TAGGED.
Then, configure the port-channel interface to “participate” or “include” VLAN 200 and make sure
that it is TAGGED. The port-channel interface should now be part of both VLAN 100 and VLAN 200
using TAGGED VLAN.
Now, configure the switch to use ports 3, 4, 5, and 6 for the “Front/Internet” LAN. The devices
connected these ports will not be using any VLAN configurations. The switch will be configured to
accept incoming “untagged” packets and automatically assign a VLAN ID to those packets. In this
case, you will be using VLAN ID 100. First, you will configure ports 3, 4, 5, and 6 to “participate” or
“include” VLAN 100 and make sure that you specify that it is UNTAGGED. On some switches, that
means you have to first issue the command to have the port “participate” on VLAN 100, then you
have no issue a “no vlan tagging 100” command. Next, to make this work properly, you must make
these ports “accept all frames” AND you must assign them the PVID of 100. If you are unsure
where, or how, to set the PVID, then please refer to your switch user manual. This tells the switch
that these ports are part of VLAN 100, the data from the devices connected will be untagged and it
should accept it anyway, and finally the switch will automatically assign a VLAN ID of 100 to these
untagged packets. At this point, assuming that your device has a 192.168.12.0/24 address, you
should now be able to ping the WebMux rtr LAN IP address of 192.168.12.21.
Finally, on the “server” side you will configure the switch to use ports 7, 8, 9, and 10 for the “Back/
Server” LAN. Again, the devices on these ports will not be using any VLAN configurations. The
switch will be configured to accept incoming “untagged” packets and automatically assign a VLAN
ID to those packets. Your “server” side VLAN ID is 200. You will need to configure ports 7, 8, 9,
and 10 to “participate” or “include” VLAN 200 and make sure that you specify that it is UNTAGGED.
Next you will need to make these ports “accept all frames” AND you must assign them the PVID of
200. Again, please refer to your switch user manual for specific commands. At this point, any
41
device connected to port 7, 8, 9, or 10 (and assuming that it already has a 192.168.11.0/24
address), you should now be able to ping the WebMux svr LAN IP address of 192.168.11.21.
Setting Up the Management Port
The management port on the WebMux is a dedicated interface on its own subnet. If you have a
DHCP server on your network, an IP address will automatically be assigned to this interface when
you plug it in to the network. To set up a static IP address on this port, hold down the “X” button on
the LCD panel for at least 3 seconds. Enter the IP address and netmask you want to use. It is
recommended that you do not configure the management port to be on a subnet that already exists
on either the Router LAN or Server LAN of the WebMux. Pressing the “check” button will
immediately activate the new IP settings. You can set the management port IP from the CLI using
the config-mgmt-ip-addr command. If you set a static IP for the management port and you want to
go back to using DHCP, use the config-mgmt-ip-addr command and set the IP to 0.0.0.0
42
Initial Setup Through a Web Browser
Web GUI Initialization Interface:
You may want to change the basic settings for the WebMux through the web Graphical User
Interface (web GUI), for example, when the WebMux located in a hosting center across the
country. If one has information about the WebMux current basic settings, one could change
those parameters through the web GUI. On a web browser, enter the following URL:
http[s]://webmux_ip:webmux_manage_port/cgi-bin/rec
For example, if your webmux_ip is 192.168.12.21, and your webmux_manage_port is 24, your
URL will be:
http://192.168.12.1:24/cgi-bin/rec
The first screen in “rec” (reconfiguration) asks for the superuser’s password. The default
superuser’s password is “superuser.” However, the actual superuser’s password may have
been changed by the system administrator. If you could not remember the superuser’s
password, someone has to go to the keypad to reset the password. For additional information
reference the section on Remake Password within this User Manual.
The next question on the screen asks to set the time in the WebMux. The WebMux uses its
clock to set the cookie for the management browser. When a WebMux manager is logged in for
more than 8 hours without activity, the WebMux will log out the user based on the cookie. If the
clock is off by more than 8 hours, the manager will not be able to login in to the WebMux. This
section on the “rec” screen will allow the manager to correct the clock if it is off. After entering
proper password and setting the clock information (optional), the “continue” button will bring up
this screen:
43
Click the mouse into a field or use the TAB key to move the cursor into a field to see the current
values. The user may change it based on new information obtained from ISP or network
engineers. Once you press on the submit button, the WebMux will save all the changes to its
internal solid state storage and reboot itself with the new value.
44
WebMux Reconfigure Screen (an alternate way):
You can also access these setting from the regular management console in the “reconfigure”
screen of the “network” section of the menu.
See SECTION V – Management Console for more details on accessing the regular
management console.
Configuration Wizards
The WebMux includes configuration wizards for quick deployment of the WebMux dispatch
method and farm configurations. You can access the selection of configuration wizards by
going to:
https://webmuxIP:webmuxPORT/wizards
Or you can log in to the WebMux web GUI and go to the “wizards” screen the “miscellaneous”
sections of the menu.
45
The configuration wizards are intended to be for first time setup and one time use. Once you
have configured the WebMux via the configuration wizard, additional configuration modifications
should be done via the WebMux management GUI. Each wizard will contain its own set of
detailed instructions. Running any wizard will overwrite any existing configuration you have on
the WebMux.
Current wizards available include:
Generic HTTP
Generic HTTPS
Generic HTTP/HTTPS
Microsoft Exchange
Microsoft Lync
Microsoft SharePoint
RedHat JBoss
Eclipse Jetty
LiteScape
Pexip
Apache Tomcat
Oracle WebLogic
IBM WebSphere
The wizards are laid out and operate in a significantly different way than the main WebMux GUI.
The wizard interface is divided into sections that can be expanded and collapsed in an “accordion”
style. By clicking on the section heading, you can expand that section. Be sure to read the
information and directions carefully, make your selections, and fill in all the required fields. You will
then submit the completed wizard and the WebMux will process the settings and reboot. After the
46
WebMux has rebooted and comes back online, you can log in to the regular WebMux GUI and
make modifications to the resulting configurations.
47
Command Line Interface (CLI)
Accessing the CLI
The CLI commands are intended for main initialization and simple diagnostics. You can use
ssh or telnet to access the CLI commands to help troubleshoot network problems or server
problems. There are maximum two diagnostic ports. By default they are 77:87. The first
one will be SSH and second one will be Telnet. If there is only one port specified, only SSH
access is allowed.
For example, to SSH into the WebMux, the following command can be issued from any
Linux®/UNIX® computer. For Windows® computers, PuTTY can be used and can be freely
downloaded over the Internet.
ssh –l superuser –p port_number WebMux_ip_address
Once logged into the CLI, the following screen will be shown:
Last login: Thu Jun 9 11:49:42 on tty1
WebMux version: 12.0.00 built Jun 8 2016 12:20:29
patch level: none
model: WebMux (part number AVE)
serial number: VX-000XAA0A0 manufactured May 09 2016
CPU speed: 2332.880 MHz
CPUs: 1
total memory: 2052176 k
configured as: two-armed server LAN NAT
management interface IP address: 192.168.15.159
Enter "help" for list of commands.
Enter "cmd --help" give help for the command "cmd".
Enter "exit" or "logout" to end this session.
Enter “cmd —help” give help for the command “cmd”.
Enter “exit” or “logout” to end this session.
Initialization via CLI
You can use the “rec” command in the CLI to do the same initialization steps that you would
see on the LCD on or the web initialization screen.
When you run the “rec” command, you will see:
$ rec
(re)configuration utility for WebMux version 12.0.00 ...
Please answer yes/no questions with y or n. Please supply IP
addresses as dotted quads. This program runs in a loop until you
agree to reboot with your entered settings or decide to quit.
After the first iteration through the questions, your earlier
answers will be used as the defaults. Any default value will
appear in brackets in a prompt. Simply entering a return will
accept the default.
48
Please enter WebMux's host name without domain [default
"webmux"]:
. . . and so on.
CLI Commands List
There are more commands available in CLI:
about - displays WebMux model, serial number, and firmware version information.
arp - manipulate the system ARP cache
arping - ping <address> on device <interface> by ARP packets, using source address
<source>
arptables - allows you to create custom packet filtering for the WebMux on the MAC
address level. The changes made here are not reboot persistent.
authorized_keys - allows you to import your authorized keys for password-less SSH
login. Run with --help for usage.
bootroot - There are two bootable partitions on the WebMux. Normally, you should
never need to use this. However, in case one partition becomes unusable, this will
change the default boot partition to the other one.
brctl - manually manipulate Ethernet bridge properties when the WebMux is in
Transparent Mode
checkssl - verifies key and certificate. For example, “checkssl 1” will check the key
and certificate in slot 1 (from the SSL Termination Management page of the web GUI). If
no messages are returned, the test passed.
chg_pass - use this command to change the passwords for the “webmux” and
“superuser” login.
config-mgmt-ip-addr - set the IP address for the dedicated management port. Run
with --help for usage.
date - displays current system date and time. Allows you to adjust system date and
time.
ethtool - allows you to display the status or manipulate the settings of the Ethernet
hardware
eud - runs WebMux self-tests.
factory_reset - reset WebMux settings to original settings, clear all current settings
floodcontrol - displays current blocked sources history of the flood control feature.
49
getallsettings - save all WebMux settings from WebMux to your PC
getconfig - save all farm/server settings from WebMux to your PC
hwclock - displays current hardware date and time. Allows you to adjust hardware date
and time
ifconfig - display and configure a network interface(s) ip - TCP/IP interface
configuration and routing utility
ip - command for configuring network interfaces and network settings.
ip6tables - allows you to create custom packet filtering for IPv6 addresses for the
WebMux. The changes made here are not reboot persistent.
iptables - allows you to create custom packet filtering for IPv4 addresses for the
WebMux. The changes made here are not reboot persistent
netstat - display network connections, routing tables, interface statistics, etc.
nwconfig - allows you create additional networks for use in multiple ISP configurations
and/or for multiple server subnets in NAT mode. Reference the “Multiple Uplink/VLAN
Support” section for details.
openssl - access to the openssl command console
ping - send ICMP ECHO_REQUEST packets to network hosts
ping6 - version of ping command for IPv6
poweroff - initiates the proper shutdown sequence
putallsettings - allows you to import your saved “all settings” files.
putconfig - restore farm/server settings from your PC to WebMux
rdev - verifies current running root partition of the WebMux.
reboot - initiates a soft reboot
rec - allowing configure basic WebMux IP without using pushbutton
restart - restarts the WebMux unit’s internal processes without rebooting the
hardware.
route - manipulate or display the routing table. Settings made here ARE reboot
persistent.
ssh - ssh client for WebMux CLI.
50
sysinit - allows you to create a custom startup script. (Useful for making custom
iptables rules reboot permanent, etc) See the “Adding Commands to WebMux Startup
Sequence” section for details.
takeover - utility to temporarily disable secondary WebMux takeover. Useful when
doing firmware updates on paired systems. This utility only runs on the secondary unit.
tcpdump - capture and display network traffic traceroute - print the route packets take to
network host
telnet - telnet client for WebMux CLI.
traceroute - traceroute utility for network diagnostics.
upgrade - this is the older upgrade command that is only used from incremental
patching. It cannot be used for downgrade
upgrade64 - this is the “full upgrade” command to be used for upgrading the firmaware.
uptime - display when the unit has be running since.
vconfig - manipulate VLAN configurations
Most commands can be found on UNIX®, for detailed usage, please refer to any UNIX®
man pages. Our support center does not support the usage of these commands.
Additional Command Line Interface Features
Adding Commands to WebMux Startup Sequence
Sometimes there is a need to add commands to the WebMux startup sequence so that
certain commands can be reboot persistent. The superuser command “sysinit” is provided
for the user to add iptables command or other commands to the startup sequence. Please
note that adding a wrong command to the startup sequence may render the WebMux not
accessible, thus it is always a good practice to test the commands first before adding it to
the WebMux startup sequence.
For example, if you want an SMTP server at 192.168.10.98 always appear to be sent from
one of your public IP addresses (i.e. 66.1.1.98) on the WebMux, you can use this iptables
command:
iptables -t nat -I POSTROUTING -s 192.168.10.98 -d ! 192.168.10.98 \
-m multiport -p tcp —destination-ports 25 -j SNAT —to-source \
66.1.1.98
This command works the moment it is issued, but when you reboot the WebMux, it gets lost.
To make it reboot persistent, you want to add it to the WebMux startup sequence. You can
use the sysinit command to add the above command to the sysinit table in the WebMux, so
that it will always be executed during the WebMux startup.
The sysinit command has following syntax:
51
$ sysinit —help
usage: sysinit [—help] [—quiet] [—write]
—help print help
—quiet skip prompts and confirmation
—write write stdin to superuser’s sysinit script table
(without parameter will read existing table) The superuser’s sysinit table may contain any
commands that are allowed at the superuser’s command prompt. At system startup, it will
be run after networking has been started.
If typing or pasting new input, use control-D for EOF.
$ sysinit —write
sysinit: Enter new script up to EOF (cntl-D):
echo AAA >/dev/console
sysinit: You entered 23 bytes. [done]
$ sysinit
sysinit: reading sysinit file: echo AAA >/dev/console
sysinit: sysinit file contains 23 bytes. [done]
For the purpose of the above example, the echo AAA will be saved in the sysinit table. If
you want to add a new command, it is always a good idea to test them before adding to the
sysinit table. To clear the sysinit table, use a space and control-D to write a blank table into
sysinit table. Please note that sysinit table will not be send over to the backup WebMux. In
case the wrong command caused user no longer able to login into WebMux, use the LCD
“factory reset” to reset the sysinit table to blank.
Tagged VLAN and WebMux
VLANs may be untagged and tagged. To use untagged VLANs, also known as port based
VLANs, no additional configuration of the WebMux is necessary. The VLAN configuration is
done on the switches. To the WebMux it appears as if no VLANs are used.
This section covers using tagged VLANs, also known as 802.1q VLANs for the main
networks configured on the WebMux.
When you configure the WebMux main network addresses and masks, whether with the
front keypad and LCD (see the section under Configuring the WebMux within this User
Manual); the web GUI (see the section Initial Setup Change through Browser within this
User Manual); or through the superuser’s command line interface with the “rec” command
(see the “Initialization via CLI” section within this User Manual); you may also specify VLAN
tagging for these networks. VLAN tagging is optional. If it is used, the switches to which the
52
WebMux is connected must also be configured correctly to use these tags. (When
additional networks are configured for the WebMux using the superuser’s command line
utility nwconfig, you may also arrange for their VLAN tagging at that time).
Besides configuring the WebMux to use VLAN tags, the switches to which the WebMux is
connected must be configured to use these tags. In most switches, there are three items to
be addressed when setting up VLANs: the VLAN name, the port participation, and if it will be
tagged or untagged.
First a VLAN must be chosen and named. Choosing a VLAN name on the switch does not
automatically determine whether its VLAN is tagged or untagged. It merely an identifier for
your own record.
Once the VLAN name has been chosen, you must next select which ports participate in this
VLAN. If the port selection does not match the physical connectivity, traffic will not pass.
The third (very important) setting to make sure is that the port on the switch connected to
the WebMux will accept correctly tagged VLAN packets only. In some switches, you must
first configure the port to use “general” mode and then specify that the port will be tagged. If
you plan to use more than one VLAN, you may configure the switch port to be a trunk port,
or add multiple VLAN tags to it.
At this point you should be able to access the WebMux from other devices that are also
using the same tagged VLAN ID.
There are some specific considerations when configuring VLAN IDs in NAT, Transparent, or
Out-of- Path Mode. In NAT mode, you have the option to have a VLAN ID for both the
Router (Internet) LAN interface and the Server LAN interface. Even though the WebMux will
allow for both sides to have the same VLAN ID, it is still recommended that you have a
different VLAN ID for each to ensure complete network separation between both sides.
In Transparent mode, you will only have one Bridge IP address, but you will need to create a
VLAN ID on both the Router (Internet) LAN interface and the Server LAN interface. The
WebMux will allow you to create the same VLAN ID on both interfaces, but this is not
recommended unless each physical side is on physically separate switches, completely
isolated from each other. Be wary of routing loops.
In Direct Server Return Mode, you only have one VLAN ID to assign for the original network
since the WebMux only uses one network for both incoming traffic from clients and outgoing
traffic to the servers. In Direct Server Return Mode, the Internet LAN interface and Server
LAN interface are bonded in a Link Aggregation Group, and both interfaces have identical
configuration (unless the port bonding is specifically disabled— reference section on
Bond all Interfaces Setup within this User Manual).
Multiple Uplink/VLAN Support
The WebMux supports load balancing multiple uplink capabilities. You can configure this
feature using the command line interface command:
nwconfig—additional network configuration add/list/delete/install tool
53
With multiple uplink, you can configure the WebMux to use multiple ISPs and gateways.
The WebMux uses source based routing to be sure that packets that came in from one ISP
will return through the same ISP. All uplinks are useable simultaneously. Once you have
configured farms on both networks, the WebMux will monitor the default gateways of the
different uplinks and failover to any available ISPs should one ISP go down.
To set up multiple uplinks, first log into the command line interface via telnet on port 87 or
ssh on port 77. We will refer to the main network configuration of the WebMux (the IP
addresses created via the LCD setup or the “rec” page in the web GUI or rec_cmdline from
the CLI) as the “original” network. Networks created with the “nwconfig” command will be
referred to as “additional” networks.
Usage:
nwconfig -A|—add NAME -i| —ipaddr IPADDR [other options] nwconfig -D|—delete
NAME
nwconfig -I|—install NAME nwconfig -L|—list [PATTERN …]
nwconfig -R|—replace NAME -i|—ipaddr IPADDR [other options]
nwconfig -U|—uninstall NAME
For the -A or —add option, the -i or —ipaddr option is required, but other options are
optional. Whatever information you supply is used, and what information is not supplied
is calculated from the supplied information as best as possible. However if an external
gateway address for routing is to be used, it must be specified with -g or —gateway.
Options:
-A|—add NAME add new network configuration NAME
-D|—delete NAME delete existing network configuration NAME
-I|—install NAME install network described by network configuration NAME
-R|—replace NAME like -A, except allows configuration to already exist
-U|—uninstall NAME uninstall network described by network configuration
NAME
-b|—broadcast BROADCAST broadcast address is BROADCAST, e.g.,
192.168.14.255
-g|—gateway GATEWAY address of gateway/router on the network is GATEWAY,
e.g. 192.168.14.1
—help|—usage print this usage message
-i|—ipaddr IPADDR WebMux unit’s IP address on the network is IPADDR, e.g.,
192.168.14.22
54
-L|—list [PATTERN … ] list existing additional network configurations whose name
match the given pattern(s). If no pattern is given, list all
additional network configurations.
-m|—netmask NETMASK network mask for the network is NETWORK, e.g.,
255.255.255.0
-n|—network NETWORK address of the network is NETWORK, e.g., 192.168.14.0
-r|—router-vid VID VLAN ID for the network for the router in transparent mode
-s|—server-vid VID VLAN ID for the network for the servers in transparent mode
-p|—prefix PREFIX network mask as a prefix width is PREFIX, e.g., 24
-v|—vid VID VLAN ID for the network is VID; default: original VLAN tag
For example:
nwconfig -A newISP -i 192.168.14.21 -g 192.168.14.1
The IP you specify will be the WebMux unit’s main IP on the additional network.
To activate the configuration immediately without rebooting: nwconfig -I newISP
If you need to assign VLAN ID for the additional network use the -v option: nwconfig -A
newISP -i 192.168.14.21 -g 192.168.14.1 -v 200
In NAT mode, if you do not specify a gateway IP, the new network will be put on the
Server LAN side.
If you will be pairing up WebMux units in a failover configuration, we recommend that
you perform these preliminary configurations first before attempting to connect the two
units together.
Important Considerations Pertaining Only to Additional Network Configurations.
NAT Mode VLAN and Server LAN Gateway IP:
In NAT mode, the interface assigned for the additional network depends on whether or not
you specify a gateway IP. If you specify a gateway IP, the additional network IP will be
configured on the Router (Internet) LAN interface for multiple uplink. Otherwise, it will be
used on the Server LAN interface to create additional networks for the server LAN side.
We recommend that you set up different tagged VLANs for each additional network you set
up for the WebMux.
If you already have a VLAN ID configured for your original network configuration and you do
not specify a VLAN ID for your additional network configuration with nwconfig, the additional
network will use the same VLAN ID that you specified for your original network configuration.
55
Even though the WebMux allows for this kind of configuration, it is generally not
recommended. We suggest that all separate networks be on separate VLAN IDs.
Also, you cannot create an additional network with a VLAN ID unless the original network is
also configured with a VLAN ID. This is true for all modes (NAT, Transparent, and Direct
Server Return). Generally, it is not recommended that you create additional networks
unless you are using VLANs.
If you are pairing up two WebMux units in a failover configuration, you can use the same
Router (Internet) LAN and Server LAN IP address for the additional networks in both the
primary and secondary units. In NAT mode, the Router (Internet) LAN and Server LAN
interfaces are deactivated when the unit is in standby to eliminate duplicate IP address
issues and to allow you to conserve available IP addresses.
In the original network configuration you had to specify a “server LAN gateway IP” to be
used as the servers’ default gateway IP address. The “server LAN gateway IP” is a floating
IP address that is available only on the active WebMux in a WebMux pair. When creating
additional network configurations on the server side, you do not have the option to create a
“server LAN gateway IP” like the original network configuration. In this case, you will need
to configure your additional server networks using the same IP addresses on the secondary
as with the primary. The IP address you create for you additional server network will be
used as the server’s default gateway IP. Since only the active WebMux will have this IP
enabled on its interface, you will not have a duplicate IP address between both units. If one
unit goes out of service, the IP address becomes available on the other unit and the servers
can continue to communicate to the external network uninterrupted.
Transparent Mode VLAN:
In Transparent mode, it is recommended that you assign a different VLAN ID for the
physical front and back interfaces with the -r (—router_vid) and -s (—server_vid) flags.
For example:
nwconfig -A tm_vlan -i 192.168.14.21 -g 192.168.14.1 -r 200 -s 300
If you use the -v flag, both the physical front and back interfaces will have the same VLAN
ID. It is not recommended that you use the same VLAN ID for the front and back interfaces
in Transparent mode.
Direct Server Return Mode VLAN and Server LAN Gateway:
When creating an additional network in Direct Server Return Mode, it is important that your
farm IPs are different from the main IP address you create with the “nwconfig” tool. This is
important because the main IP address you create will be the IP address the WebMux unit’s
health checks will appear to come from. You will have problems with Windows® servers if
you use a farm IP that is the same as the main IP. This is because Windows® utilizes the
MS Loopback Adapter with the farm IP. When the WebMux send its health check request
coming from the main IP, the Windows® machine will see that the IP address is on its
Loopback Adapter and will not send back a reply since it believes it is coming from itself.
The WebMux will mark the server dead since it will not receive a reply. To ensure that this
will not occur, do not use a farm IP that is the same as the main IP in Direct Server Return
Mode.
56
It is important to remember that when you are running a setup involving SSL termination that
you must point your servers’ default gateway back to the WebMux. In the original network
configuration, you had an option to create a “server LAN gateway IP.” The servers used this
IP address as their default gateway IP. This IP is a floating IP that transfers between
WebMux units in a failover configuration. Only the active WebMux will have that IP address
available on its network interface to avoid duplicate IP address issues.
Additional network configurations do not have the option to create a “server LAN gateway
IP” like the original network configuration. In this case, you will need to use the FARM IP as
your servers’ default gateway IP address. Since the FARM IPs are only available on the
active WebMux they will effectively serve as the floating server LAN gateway IP.
57
SECTION V – MANAGEMENT CONSOLE (WEB GRAPHICAL USER
INTERFACE)
After the initial configuration, you should be able to use a web browser to connect to the WebMux. The
Web Graphical User Interface (web GUI) is where all of the WebMux management is done.
It is recommended that you first complete the Network Admin setup after logging in the
the WebMux web GUI for the first time. More information on the Network Admin screen is found
further in this section.
Overview of the Web GUI
This is the web GUI as seen on a desktop web browser:
The web GUI is divided into several sections, or panes:
Pane 1 is the unit information pane. This displays the basic hardware and status information of the
WebMux, like the dispatch mode the WebMux is running, the device IP(s), CPU usage, memory usage,
link status of the network interfaces, current hardware date and time, and uptime. This pane also
contains clickable elements. The “menu” element will hide or show the menu pane (pane 2). Clicking
on the “AVANU WebMux” logo will open a new browser window to the www.avanu.com site. The
“webmux.avanu.com” element will appear as whatever host and domain name you assigned your
WebMux unit. Clicking on this take you to the unit’s “about” screen to show more information about the
unit such as its serial number and firmware version.
Pane 2 is the menu pane. The menu is divided into sections. Each section heading is marked by a
filled triangle. Click on the section heading to expand that section. Or use “open all” or “close all”
options to expand or collapse every section of the menu.
Pane 3 is the console pane. This pane will display the various management screens that the menu will
navigate to.
58
Pane 4 is the navigation pane. The navigation pane contains back, forward, and reload buttons that
behave like the browser’s back, forward, and reload buttons. However, these navigation buttons only
affect pane 3 (the console page). Whereas, the browser’s navigation buttons might affect the whole
browser screen.
The WebMux web GUI is a “responsive” web page. That means the page will arrange itself to
accommodate the smaller size of a mobile screen or if the desktop browser window is adjusted to a
small enough dimension. The “responsive” web GUI design helps make it easier to administer the
WebMux via a mobile interface such as a smartphone or tablet.
The following examples show the rearrangement of the web GUI on a mobile interface as well as the
appearance of the mobile interface with the menu hidden:
In mobile display, you can swipe to scroll the different panes vertically and/or horizontally as needed.
59
Logging into the WebMux Web GUI
Login Page:
Start a web browser from your management workstation.
Set URL to https://webmuxip:webmuxport/
webmuxip is the IP address of the WebMux on the server LAN.
webmuxport is the management port address of the WebMux. The default ports are 24 for an
unsecured connection, and 35 for the secured connection. Use HTTP instead of HTTPS on the
URL line if you decide to use port 24 for unsecured communications. (The port number can be
changed per your specification in the “network admin” section of the “network” menu).
The following login page will appear.
In order to use a browser to manage the WebMux, the browser must be set to
accept all cookies.
Login Level:
There are two preset user login levels:
1) superuser - Allows access to all screens and functions provided by the WebMux.
2) webmux - For viewing only. Does not allow the user to access or change any settings.
Password:
Fill in the correct password for the selected User ID. The password is case sensitive.
The default passwords are:
60
ID
PASSWORD
superuser
superuser
webmux
webmux
Login:
Main
Main Status
It is recommended to change the passwords periodically. No new user ID can be
added, with exception of using a TACACS+ or LDAP server
After entering the correct password, click Login.
For first time setup, please login as superuser and go to the Network Admin
screen, within the Network menu section. Depending on the dispatch method used, t is
important to set up the Server Farm Gateway IP address and network mask first.
If you want to restrict access to the web management console to HTTPS connections only,
go to the “network admin” screen within the “network” menu section and change the
WebMux HTTP control port number to 0.
For customers who have configured TACACS+ or LDAP support, the login screen
will display the TACACS+ or LDAP user login field and password. WebMux will validate
the user to the TACACS+ or LDAP server specified in the “Security Management”
screen. Please refer to the “security” section further down in this section of the user
manual for more details.
Once logged in to the web GUI, the main status screen will show by default. If you are logging in
the WebMux for the first time, the screen will display the words, “no farms!” If you have not done so
already, configure the options in the “network admin” screen before creating your farms. If you
61
already have some farms and servers configured, you can do the following things from the main
status screen:
Adjusting Health Check Timeout for Each Service
Clicking on the service type (under the service column) for the farm will take you to the
“modify service timeout” screen. In that screen, you can change the timeout value of
application level health check for each different service as well as other settings. For
example, the default timeout to check the HTTP protocol is 5 seconds. The WebMux will
wait 5 seconds for the server to respond. If the server does not repond within the timeout
period, it will check again. If the server fails to respond for three consecutive health checks,
then the WebMux will declare that server is dead and switch that server out from service and
notify the operator through email or pager. Please note that this change is global and will
affect all the farms using the same type of service.
WebMux will declare a server dead only if it fails the health check 3 consecutive
times.
If your web server is not really dead but for some reason is not responding to the checking
request within the given timeout, the WebMux will issue a false alarm. To avoid this, the
user can change the timeout value to a larger value.
Many times, servers try to and cannot resolve the IP address of WebMux server LAN
interface and could cause the server to not respond to the WebMux unit’s protocol checking
in a timely manner. Adding the WebMux unit’s server LAN IP address and server LAN
gateway address to the server’s name resolution table will help resolve this problem.
Please reference the Frequently Asked Questions section for more information.
See “timeouts” in the “health” menu section in SECTION VI – FARM MANAGEMENT AND
HEALTH for more details on the various settings you can configure.
Modify an Existing Farm
Clicking on the IP address/port of the farm the farm will take you to the “modify farm” screen
for that farm. See the “Modify Farm” section in SECTION VI – FARM MANAGEMENT AND
HEALTH for more details on the various settings you can configure.

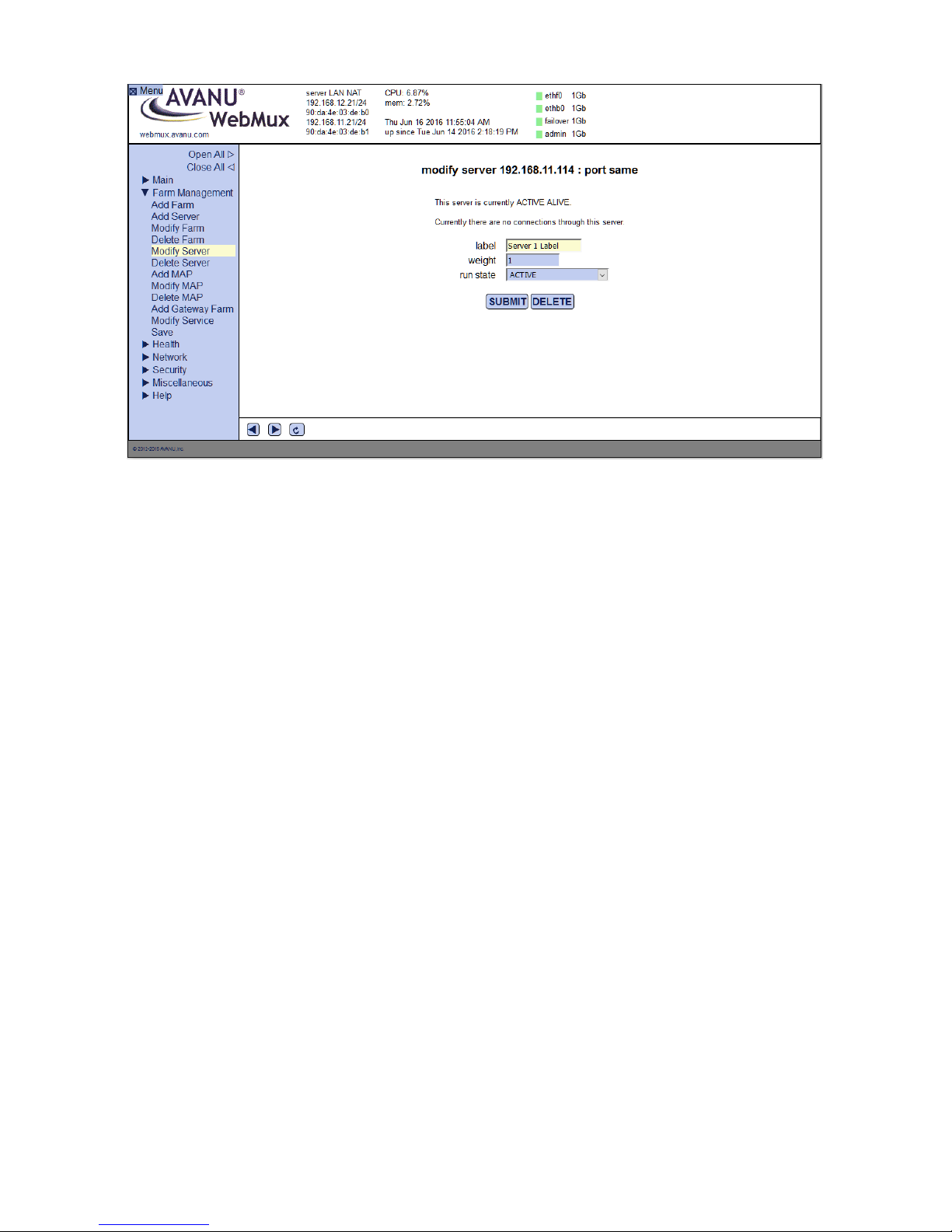

Modify an Existing Server
Clicking on the server IP address will take you to the “modify server” screen for that server.
See the “Modify Server” section in SECTION VI – FARM MANAGEMENT AND HEALTH for
more details.
Unsaved In-Memory Configuration Changes
The “main status” screen will have an “unsaved in-memory configuration changes!” message
appear if you make changes to any of your farm or server settings. You can click on the message
message itself to save your settings. You can also use the “save” link in the “farm management”
section of the menu to save your configuration.
62
The main status screen updates every 5 seconds. When the mouse is hovered over it or
if you touch that part of the screen on a touch screen, the updating will pause until you move the
mouse elsewhere or touch another part of the web GUI.
SSL
The second item in the “main” menu section is the link to the SSL management screen. Please see
the “SSL keys” section in SECTION VII – SSL MANAGEMENT for more details about that screen.
63

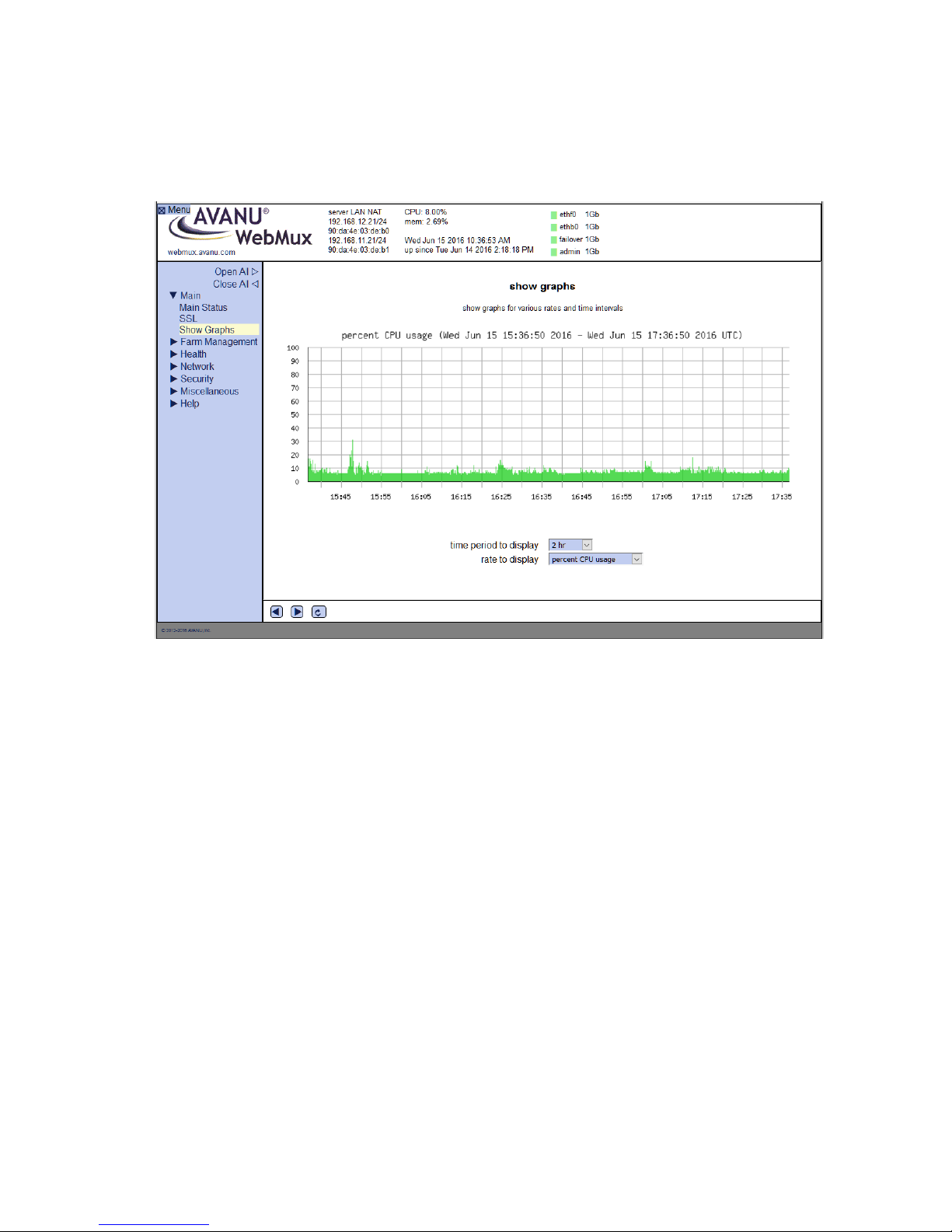

Show Graphs
To monitor the traffic history, memory and CPU usage, the WebMux maintains some of its statistics
information in the memory during running. The WebMux is able to keep a maximum of 2 weeks
worth of activity history. This history of information is able to persist past reboots.
Time Period to Display
Adjust the the time span of the history you would like to view by selecting from the drop down
menu:
2 weeks
1 week
1 day
12 hr
8 hr
4 hr
2 hr
Rate to Display
Select the information you would like to display on the graph. These are the global metrics for
the WebMux unit. The choices are:
conn/s (connections per second)
inbound pkt/s (packets per second)
outbound pkt/s (packets per second)
inbound bytes/s
outbound bytes/s
percent CPU usage
percent memory usage
64
Farm Management
See SECTION VI for details about this menu section.
Health
See SECTION VI for details about this menu section.
Network
Network Admin
After completing the initial WebMux configuration, you will want to configure these settings next.
These settings can always be changed later in the future as needed. Note that some setting will
require a reboot of the WebMux to take effect.
IPv6 96-bit Address Prefix
To load balance in IPv6, you will set the option field of an IPv6 address prefix. The IPv4
addresses will be appended to this prefix. For example, if you assigned 192.168.12.21 for
the WebMux unit’s server LAN IP and you assigned fec0:: as the IPv6 prefix, the WebMux
65
unit’s complete IPv6 address will be fec0::192.168.12.21 (or fec0::c0a8:c15). For additional
information reference the section on “IPv6 Considerations” in SECTION III – WEBMUX
TOPOLOGY OVERVIEW in this User Manual.
DNS Server(s) IPv4 address(es)
The WebMux will attempt to resolve names for settings such as the email server for email
notifications and front network verification (if an FQDN of an external site is used instead of
your external gateway/firewall IP). Specifying DNS servers will not have any effect on the
network traffic management functions of the WebMux. The DNS server of 8.8.8.8 (Google’s
public DNS server) is used by default. You can leave the field blank if you do not want to
use this feature.
Email Server URL for Notification
The WebMux can send email notifications. Enter the IP address or FQDN of the email
server that will forward the notifications.
Enter the email server information as a URL. For example:
smtps://xxx.xxx.xxx.xxx
SMTP will use port 25. Other protocols you can use are “msa” or “submission”, both will
default to port 587. If only an IP address is entered, “smtps” is assumed and will default to
port 465. Non-standard ports can be specified in the URL using a colon after the IP
address.
Email User Name
Enter the user name or login to authenticate on your email server.
Email User Password
Enter the password used to authenticate on your email server.
Addresses for Email Notification
Enter the email addresses to be notified. Separate multiple addresses with a colon. For
example: johndoe@anywhere.com:janedoe@anywhere.com
When you have the email server, email user name, email password, and email
addresses filled out, you can use the “Email Test” button on the bottom of the page to
make sure you are able to receive emails from the WebMux.
UDP Syslog Server IP Address Notification
The WebMux can be configured to send syslog messages to a remote syslogd server.
Enter the syslogd server IP address to use this feature. The syslogd server must be
configured to accept remote UDP syslog connections. The facility for WebMux syslog
messages is LOCAL6.
The notification levels of the syslog messages are as follows:
66
LEVEL
SEARCH KEY
DESCRIPTION
INFO
STATS
LCD display messages
NOTICE
LOGIN
Successful browser login/logout
NOTICE
SETUP
Significant access and changes to
setup and configuration items
NOTICE
EVENT
Same as paper/mail messages
WARNING
LOGIN
Unsuccessful browser login
Server Gateway IP Address
This setting is the same setting from the “server LAN gateway IP” in the LCD and CLI initial
setup. Most likely, this field is already filled with the IP that you have configured previously.
You can change it here, if needed, instead of going throught the LCD or CLI setup all over
again.
This setting only applies for the NAT mode (or for Direct Server Return Mode that requires
the WebMux to do SSL termination load balancing. Normally, this is optional for Direct
Server Return Mode). In those modes, the WebMux acts as a gateway or router for all the
servers in the farms. This is the IP address assigned on the WebMux that should be used
as the default gateway IP address on the web (or other) servers. It is highly recommend
that it is also added to the /etc/hosts file on your servers.
For first time setup, it is very important to set up this address and the Server
Farm network mask (below) first. Also when setting up the servers, you may be asked
to fill in the default gateway IP address for the server.
It is important to reiterate that THIS IS NOT INTERNET
ROUTER/FIREWALL/GATEWAY IP/DEFAULT ROUTE IP FOR THE WEBMUX ITSELF.
Putting that IP in this field WILL CREATE A DUPLICATE IP ON YOUR NETWORK.
Use this IP address as the default gateway for all the servers behind the WebMux. The
network traffic load balancing will not function properly if this IP address is not set correctly
for both WebMux and the servers.
WebMux HTTP Control Port
By default, the port is 24. You can change the port to any port that is not being used for any
load balancing farms, if so desired. The LCD panel setup can also be used to change this.
Since any IP address on the WebMux (including farm IPs) listen on the control
port, a non-standard port has been selected for the management port. If you have a
farm IP using port 24 as well, the WebMux will not be able to determine if the incoming
connection is destined for the management console or for network traffic management.
Therefore, always use a port that will not be used for any farm.
WebMux HTTPS Control Port
By default, the port is 35. You can change the port to any port that is not being used for any
load balanced farms, if so desired. The LCD panel setup can also be used to change this.
67
Since any IP address on the WebMux (including farm IPs) listen on the control
port, a non-standard port has been selected for the management port. If you have a
farm IP using port 35 as well, the WebMux will not be able to determine if the incoming
connection is destined for the management console or for network traffic management.
Therefore, always use a port that will not be used for any farm.
SNMP UDP Port
SNMP on the WebMux is active on port 161 by default. You can change the port here. Or
you can enter “0” or “none” or leave blank to disable SNMP altogether.
SNMP Community String
The WebMux uses SNMP v1 and the community string “webmux” by default. You can
change the community string in this field.
WebMux Diagnostic Ports
The WebMux allows diagnostic sessions from remote access for factory technical support or
trained network engineers through ssh or telnet. Access is also subject to the restriction of
the “Allowed-Host” setting earlier. “superuser” can login with its password using “ssh” to run
certain diagnostic tools (help shows the commands). When this entry is blank, any
diagnostic access is denied. This entry should remain blank under normal operations.
Default port numbers are 77 for ssh and 87 for telnet. If only one port is specified, only ssh
login is possible. You will need to notify us the port numbers before obtaining support from
us.
WebMux Failover Ports
The WebMux allows configuration of failover ports being used by primary and backup
WebMux units. Default port numbers are 2000 and 2001. Do not change this unless you
have very specific requirements to do so.
Least Significant Bits in Client IP Address to Ignore for Persistent Connections
This setting allows persistent connections to be handled properly when clients are coming
from behind cache servers. With cache servers, the IP address of the cache server is the
source address. Since a client can be sent through multiple cache servers; it is possible the
requests are actually coming from one client, but network traffic management will see it as
different clients and sent the requests to different web servers in the farm. Therefore,
applications that require persistent and secure connections, such as shopping carts, will not
work properly. This feature will treat a small range of IP differences as one source, thus the
WebMux can properly handle the persistent requests from browsers. From customers’
feedback, three (3) is good enough for most requests.
The WebMux will use this setting to determine how to load balance the network traffic. It
calculates based on two to the power of the setting value as the number of IP addresses to
combine. If too large a mask applied, it will defeat the load balancing function of the
WebMux.
68
Act as IP Router
If YES is selected, the WebMux router LAN IP can be used to route IP packets to the private
server LAN side. The WebMux will not act as a firewall in this mode.
If NO is selected, the WebMux will NOT route incoming IP packets through the WebMux.
Only connections to farms will be able to reach services in the server LAN side. This is the
default setting.
Front Network Verification
The WebMux checks the availability of the front network by checking on the IP address you
configured as your router IP (“external gateway IP”). The selection here determines the
protocol used to check the connectivity of that IP address. It can be “none,” “ARP,” “TCP
Connection,” or “ICMP (ping).” Depending on how the front end router responds, this can be
changed. For example, most Cisco routers will respond to the WebMux with ARP and TCP
Connection; however, most Cisco DSL modems will only respond to the WebMux through
ping. Changes to this verification method will take effect after the WebMux has been
rebooted. If you have configured a farm on the WebMux and the farm IP address is
showing dead, it is an indication that the WebMux is not able to reach the front network
gateway IP. It does not, however, mean that incoming traffic to the farm IP is not able to get
through. It is only an indication. Please verify that your router responds to the method you
have specified in this field.
Front Network Verification IP Address
You can specify a different IP address or the FQDN of an external site (if you have the DNS
server field filled in) for the WebMux to use to check the front network. It can be the router
in front of the WebMux, or a router in your ISP’s WAN. It can be any address that is
reachable through your Internet side. The protocol specified in the above field will be used to
check. If you see the farm IP turning red, it is an indication that this address failed the
check. Leaving this field blank will cause the WebMux to use the IP address you specified
as the “external gateway IP” when you first set up the WebMux.
Request for Updating MAC Table for Farms
This option will force the WebMux to periodically send Ethernet level ARP requests to force
local machines to update their MAC tables for the farm addresses. Unfiltered network traffic
captures will show periodic ARP requests coming from the WebMux. This is very minimal
traffic, but some would rather try to eliminate extraneous network chatter altogether. The
option here allows one to turn it off. Please keep in mind, however, that this enabling this
setting is extremely important especially if a WebMux failover has occurred in a highavailability configuration. When one WebMux takes over the farm IP addresses are the
same but the MAC address is changed to the current active unit. If other local machines are
unaware of this, they will continue to try to communicate to the old MAC address and will be
unable to reach it. The default setting is YES.
Persistence Timeout
The WebMux will keep track of the clients’ browser connections if a “persistent” scheduling
method for a farm is selected and accessed. The WebMux will send any request from the
same browser IP address to the same server if the returning request is done within the
timeout time period specified here. Our customer feedback indicates that 5–10 minutes is
69
the best value for most cases. The larger the persistence timeout value, the less chance the
user connection will get sent to a different server. Keep in mind that by keeping a lot of
connections in the WebMux memory, the maximum number of available connections for new
clients will drop. Also, a large persistence timeout will cause uneven load balancing if the
majority of the clients are returning clients.
UDP/NTP Time Server
The WebMux can sync its internal clock with any UDP NTP server. By default it points to a
tier 2 NTP server. You can also set it to your Internet NTP server, or wipe out the entry to
not sync to any NTP server.
Reset Stranded TCP Connections
When a server fails to function, there could be many TCP connections on the WebMux that
are still in the TCP_WAIT state. If this is set to “YES” when client tries to access the failed
server, the WebMux will pretend the server is sending TCP Reset to the client, thus freeing
all the TCP_WAIT state connections. The default setting is “YES” to conserve resources.
Front Proxy Addresses
By default, the WebMux will use the main IP address you configured in the router/internet
LAN interface or Bridge IP as the source IP for outgoing connections (the masquerade IP).
You may want to specify a different IP address instead. You can list more than one IP
address by separating them with a colon (:). If you have more than one front proxy address,
the WebMux will choose a proxy address in a round-robin fashion. This option is not
available in One-Armed DSR Mode.
Insert “X-Forwarded-For” (SNAT only!)
When SNAT is enabled for a farm, the WebMux will substitute its own IP address as the
originating source. When you enable this option, an “X-Forwarded-For” MIME header will be
inserted to the HTTP requests that will contain the original requesting client’s IP address.
You can use this information for your server logging or if your application server requires it.
Routing Table
You can add static routes to the WebMux using the Web GUI or through the Command Line
Interface (CLI). From the Web GUI menu, expand the “network” section and click on “routing table”.
You should see this screen:
70
Routes displayed that are “grayed out” cannot be modified. To add a route, make sure “make
indicated changes” is selected in the drop down menu, click the “add” checkbox, and fill in the
remaining fields. Click the “submit” button. Your new route should appear along with a “delete”
checkbox. You can check on the “delete” checkbox and click submit to delete the selected route.
Please remember that even though a new route is immediately active once you click the “submit”
button, it is not automatically saved and will get lost if the WebMux is rebooted or powered off. To
save your settings, select “save displayed table” from the drop down menu and click the “submit”
button.
If you made unsaved changes and want to quickly revert back to your previously saved settings,
select “restore last saved table” from the drop down menu and click the “submit” button.
To get to the CLI, you can either telnet or ssh in to the WebMux diagnostic port. By default it is port
77 for ssh and port 87 for telnet. Log in as “superuser.” Issue the “route” command to modify the
routing table. The network interfaces are as follows:
ethf0 — “Internet” / Router LAN interface(s)
eths0 — Interface labeled “Backup”
ethb0 — “Server” LAN interface(s)
In Single Network or Transparent modes, the main interface is br0.
Modifications to the routing table issued through the CLI are automatically saved after issuing the
command.
If you are running a backup WebMux unit, you need to make sure you also click the save
button on the main console screen in order to propagate the changes made to the backup unit.
71
Reconfigure
The Reconfigure button will bring you to the initial network settings page. Additional details about
this can be found under the “Initial Setup Through a Web Browser” section in SECTION IV –
CONFIGURING THE WEBMUX in this User Manual.
72
Security
Security
Allowed Remote Host IPs
The WebMux Web Management Administrative Console only allow logins from these IP
addresses to establish a management session. You can allow access from more than one
IP address by specifying all the allowed IP addresses separated by a “:” (except use “,” as
the separator for IPv6 addresses). You can put the netmask following the IP address to
specify the range of hosts that can access the management console. For example,
192.168.12.0/24 will allow all hosts in 192.168.12 network to access it. Omitting the “zero”
octet is allowed. For example, 192.168.12 will be allowed for Class C allowed host. If this
field is left blank, you can access the Web Management Administrative Console from any IP
address that is configured. It is recommended to set this up for security reasons. If the
wrong IP addresses are entered, the Web Management Administrative Console login might
not be possible.
Use the setup mode on the LCD panel to clear the allowed host list. This field is blank by
default.
TACACS+ Server Configuration
The WebMux allows you to control the user/passwords for the “superuser” group logins with
a TACACS+ server so that password changes can be administered to several WebMux
machines instantly through a central authentication server. In this field you will need to
specify the TACACS+ server IP with “server=xxx.xxx.xxx.xxx.” Other arguments include
“secret=” (if the TACACS+ server requires a password to be accessed) and “encrypt.” Each
argument must be separated with a space.
If for some reason the TACACS+ server is not working, the WebMux will default back to the
passwords configured in its password setup screen.
73
LDAP server IPv4 URL
Access to the WebMux GUI or CLI can be authenticated by an OpenLDAP server. Enter the
LDAP location as a URL, such as ldap://192.168.12.1:389.
LDAP domain
Enter the LDAP domain in this field.
Connection Warning Threshold
The WebMux monitors the number of connections established. When the number of
connections is greater than the value entered, the WebMux will page the designated
numbers. For example, if a DoS attack is occurring, the number of connections to the site
would be extremely high. Assuming they exceeded the value set for the “connection
warning” threshold, the designated numbers would be paged.
ICMP Packet Input Policy
Accept: The WebMux will allow all ICMP packets to travel through the WebMux or to IPs on
the WebMux itself. For CLI arp commands to work properly, this must be set to accept.
Deny: The WebMux will NOT allow any ICMP packets to travel through the WebMux.
During installation, having the ability to ping the other hosts on the networks is
typically useful when the installation is complet, setting the “ICMP packed policy” to
DENY is recommended as a security precaution.
Change Password
Level
Select the login level for which the password is to be changed.
74
New Password
Enter the new password for the selected login level.
New Password Again
Enter the same password as in the previous box. If this does not match the password
entered in the previous field, you will get a notification page stating so and you will need to
try again.
Submit
Click “submit" to execute the change.
Change PIN
To protect the WebMux from unauthorized changes from the front LCD panel, a PIN can be entered
here to prevent saving any changes from the front LCD panel. By default, there is no PIN. You can
unset the PIN by submitting blank fields. If a PIN was set and you want to remove it, you can set
this to 0000.
75
AAD (Automatic Attack Detection)
The Automatic Attach Detection (AAD) security feature controls how many concurrent open TCP
connections from a single source IP address is allowed to connect.
TCP Connection Attack Threshold
This will set the maximum number of concurrent connections a client can make before the
WebMux will consider it an attack. You do not want to set this value too low because most
of the time, servers will experience several concurrent connections during normal
operations. Usually a DoS or DDoS connection attack comes in by the hundreds. Set this
value according to your needs.
Client Whitelist for TCP Attacks
It may be necessary to allow certain IPs to make connections that may appear to be attacks.
For example, if you have a third party company that regularly benchmarks your services for
maximum load handling, you will need to allow that company uninterrupted access. You
can use a specific IP address or specify a network range (i.e. xxx.xxx.xxx.0/24). Separate
each entry with a colon (:).
Duration to Block Attackers
This sets the amount of time to block attacker IP addresses. It may not be desirable to block
specific IP addresses indefinitely because of the dynamic nature of IP addresses used by
the general public. You may end up blocking out potential customers in the future.
Therefore, this setting allows you to set the IP blocking duration that suite your needs.
Changing the settings in this page will not require a reboot and is effective once you click
the confirm button.
76
Flood Control
The Flood Control security feature limits the maximum allowable packet transfer rate for any single
IP address connecting through the WebMux.
Packet Rate
This will control the packets per second rate that will be allowed.
Packet Threshold
Some attacks are done in bursts rather than large streams. While the packet rate parameter
will control the maximum allowable steady rate of packets, the packet threshold detects the
maximum allowable packet bursts.
Timeout in Seconds
This setting will control duration in seconds that the connection blocking will be upheld.
Flood Control Display
The Flood Control Display screen will show you the list (if any) of source IP addresses that are
currently being blocked because of excessive activity.
77
Flood Control History
The Flood Control History screen will show all the past and current blocked and released IP
addresses.
Miscellaneous
Show Events
This page will show you the history of WebMux events such as detection of server dead status.
Events will be saved past reboots. You can clear the events history by clicking on the “Delete”
button.
78
Backup/Restore
Backup
This feature allows the saved configuration to be saved as a file on the local computer you
are using to access the WebMux web interface. Be sure you have saved your farm
configurations from the main screen before exporting your configuration to ensure that you
are getting your most recent changes.
There are two levels of backup: 1) farm and server information only, and 2) all settings.
The “farm/server information” backup will save only the farm and server configurations and
settings to a plain text file. Click on the Click Here link to display the configuration. Choose
’File->Save As’ from the browser menu to save it as a text file. It is possible to make
changes to this file and uploaded back to the WebMux to make instantaneous bulk changes
to the farm and server configuration. DO NOT change the first comment line.
The “all settings” backup is an encoded plain text file that not only includes the farm/server
configurations and settings, but all other settings just as the units main IP addresses,
settings from the network administration, and so forth. This file cannot be edited.
Restore
Restore allows a configuration file that has been saved at the browser workstation to be
uploaded to the WebMux. Enter the full path of the configuration file, or click on Browse to
search for the file. Click Upload to upload the file to the WebMux. This file will immediately
become the saved and active configuration. Upload ALL Settings to WebMux will actually
upload settings including IP addresses, farms, and information you entered in the Network
Admin screen. If you want to replace the WebMux with a new unit, you could save the
configuration and upload all settings to the WebMux, so that you do not need to go through
step by step configuration. Only restore an all settings backup to a unit running the same
firmware version. Restoring to different firmware versions may not carry over setting from
old to new firmware, or vice versa, correctly and can cause unpredicatable behavior.
79
Set Clock
Click the “set clock” link in the drop down menu and proceed to the page that controls the clock
settings. The time and date of the WebMux can then be set. Please note that the WebMux
internally uses GMT time zone, not your local time zone, per W3C/HTTP protocol. If the time
zone is not set correctly, the browser access could be denied due to “cookie” time out. If the
UDP NTP server is set up correctly, there is no need to set the clock anymore, since the
WebMux automatically sets its clock periodically.
You have 3 ways to set the clock on the WebMux.
1. Automatic will use the WebMux unit’s own predetermined NTP server to set the clock.
2. Use the NTP server specified in the “Network Management” page:
80
3. Set the time manually using the form:
Month
Enter the number of the month, 1 through 12. Leading zeroes are not necessary.
Day of the Month
Enter the day of the month, 1 through 31.
Year
Enter the year. Enter all 4 digits.
Hour
Enter the hour of the day. Use the 24 hour clock (military time).
Minute
Enter the minute of the hour.
Time Zone
Select the time or hour offset to the UTC (GMT) time. You can set the WebMux to your local
time, if your time zone is selected here.
Submit
Click “submit” to execute the date and time change.
It is recommended to set the WebMux clock to UTC (GMT) time
81
Banner
Upgrade
This screen will allow you to customize the login banner that will be seen on the telnet and SSH
login prompts.
To upgrade the WebMux firmware, you will first need to contact WebMux support at
techsupport@avanu.com and request for the latest firmware image. Save that image to your
local computer and use the Browse button to find that file. After you have selected the file, click
the “Submit” button. The text box below will show the progress of the upgrade.
82
Wizards
This will take you to the configuration wizards index page:
The configuration wizards are intended to be a first time and one time use feature. These
wizards will set all the main settings for the WebMux (IP addresses, dispatch method, farm and
servers, etc.) all in one shot. Running a configuration wizard will always overight any existing
WebMux configuration.
The wizards interface is slightly different from the regular WebMux interface. Each wizard is a
single form with the sections done in an “accordion” style interface. Each heading will expand a
section. Each section will contain specific instructions. Please read carefully the instructions.
Select and fill in the appropriate fields. Once you have gone through all the sections, you will
need to supply the superuser password (by default it is “superuser”). The wizard form will be
submitted and the WebMux will automatically reboot. After the WebMux is back online with the
new configurations, you can log in to the main WebMux interface and see the farms created by
the wizards. You can modify the existing farms; or add or delete farms as needed.
83
TCPdump
The tcpdump page allows you to do a simple packet capture session through the web interface.
Tcpdump is a useful utility for network traffic diagnotics. You can use this to check if hosts are
passing through the WebMux or to check if the WebMux is sending packets to the proper
distination, among other things. For more advanced tcpdump options, use the tcpdump utility
from the CLI. Tcpdump is a linux utility. You can search online for the tcpdump manpage for
detailed information.
84
IP address
Specify the IP address of the host you want to capture.
Port number
Specify the port you want to filter for.
Count
This will stop the capture when this number of packets have been reached
Timeout in seconds
This will stop the capture when the timeout period (in seconds) has been reached.
85
Login
This will bring you back to the login screen should you wish to quickly switch user accounts.
THIS DOES NOT LOG OUT YOUR CURRENT SESSION. When you log in as a different user,
the old session will end. However, we normally recommend that you correctly end your current
session by using the Logout from the drop down menu.
Logout
It is not recommended to leave the management browser logged in unattended. Click the
“confirm” button to close the session. The “Login” screen will re-appear.
86

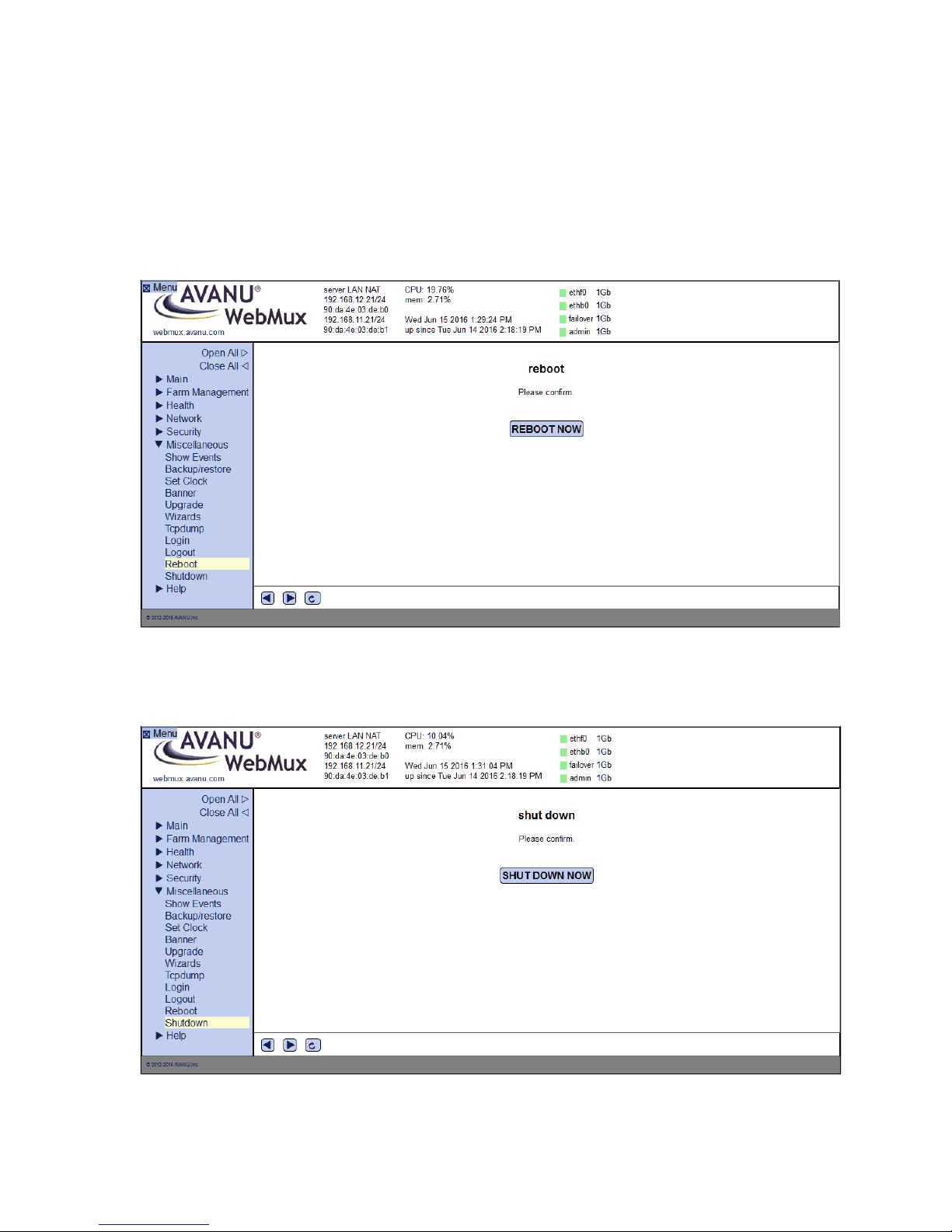

Reboot
Changes to “TACACS+ server configuration,” “server gateway address,” “server farm network
mask,” “WebMux http control port,” “WebMux https control port,” “WebMux SNMP UDP Port,”
“WebMux SNMP Community,” “WebMux diagnostic ports,” “least significant bits,” “forwarding
policy,” “front network verification,” and “persistence timeout”, many other fields that are marked
with an asterisk (*) require a reboot for the new configuration to take effect. You can use the
Reboot button to reboot the WebMux remotely. Reboot button will require confirmation before
proceeding with reboot.
Shutdown
The shutdown button will bring you to a confirmation screen to power off the WebMux.
87
Help
Online Manual
This will open a new windows to take you to the www.avanu.com support pages.
About WebMux
This will take you to the “about” screen of the WebMux. Here you will see information about
your WebMux unit, such as the firmware version, the model number, the serial number, etc.
88
SECTION VI – FARM MANAGAMENT AND HEALTH
Farm Management
Add Farm
This screen is where you create your farms and select your options for load balancing. Some fields
may be displayed or hidden depending on what options you might select.
Label
This is for your visual reference to be displayed on the main console for the farm entry. It
can be any alphanumeric text.
Farm IP Address
This is the IP address of the new farm.
For SSL terminated traffic, each farm must have its own IP address.
If your WebMux is on the public Internet the farm address could be an Internet known
address. Or, if the WebMux is behind a firewall, the address can be an IP that is NAT’ed by
your firewall. For example, if you want to create an HTTP farm for www.mydomain.com, the
farm IP address will be the IP address for www.mydomain.com from your DNS record. If the
89
IP address of www.mydomain.com is 205.188.166.10, then the Farm IP address is also
205.188.166.10. The WebMux will then forward requests to the farm address to the web
server address in your DMZ or internal network.
Virtual Host Name
For web servers that are serving name based virtual hosts, this field will be important for the
WebMux to perform a correct health check. The WebMux uses the data in this field as the
host name for the HOST mime header in its HTTP health check requests to the servers. In
some cases, name based virtual hosts have a default site that will still respond with a 400
OK even if a HOST MIME header is not specified in the request. In that case, leaving this
field blank may not have a negative effect. However, in other cases, a request that does not
have a specified HOST MIME header will end up receiving response from the server such
as 503 Service Unavailable. In which case, the WebMux will mark the server dead.
Therefore, it is important that you specifiy the correct host name of the site you are serving
for the farm in order for the WebMux health check to reach the correct site and get a valid
response from the server.
The format for the virtual host name field should be the site host name (i.e. www.xyz.com),
max length 75 bytes. Without a virtual host name specified, a 401 (Unauthorized) error
code is still considered a live server. If you have a virtual host name specified and the
server returns error code 401, then the WebMuxwill consider that server dead. For both
Microsoft® IIS and Apache® servers doing virtual hosting, the virtual host name field must
be an existing web site name on the server.
Virtual Hosting Issues
Servers serving more than one web site may do virtual hosting. The WebMux supports
virtual hosting by checking the virtual server’s response. There are three different
situations for the WebMux to handle.
WebMux supports health checking HTTPS servers with SNI (server name identification)
capability. If the web server supports SNI, the WebMux will be able to supply the virtual
hostname specified in the virtual host name field in order to do the HTTPS health check
for that specific host name.
For servers that do not have SNI support, there is no way to do virtual hosting on the
same IP address with HTTPS. The reason that each HTTPS server must have its own
IP address is because the web server cannot see the host name in URL of the HTTPS
packets, since they are encrypted. The server only decrypts the URL after the packet is
sent to a particular process. In those circumstances each HTTPS farm can be on a
different IP address on the same server.
If the service is HTTP, then any web server software, Microsoft® IIS or Apache®, can
host almost unlimited virtual farms on each IP address. Many hosting centers handle
this situation by putting all the servers serving each virtual host on a server farm on the
WebMux. The WebMux will load balance the traffic for all the incoming traffic for that IP
address to different servers in that farm. During farm setup, the virtual host name for the
farm could be one of the virtual farm’s base URL, say www.mydomain.com, the WebMux
actually periodically reads a page from this URL. If the server that serves that URL does
not response correctly, the WebMux will mark that server dead. Since every server in
90
that farm serves all the virtual farms, the WebMux expects the problem with one server
in one URL will affect all the URLs in that farm.
Another situation: the server that serves HTTP virtual sites is using a single private IP
address already before load balancing. After adding a load balancer, some of the sites
want to have their own IP addresses. The WebMux allows the set up of a separate farm
for each site having its own public IP address, but each farm will have the same sets of
servers in the private network. In this situation, each separate farm could have its own
label as www.site1.com and www.site2.com, etc. The WebMux will actually do a health
check on each URL by periodically reading a default page from that site.
In the virtual hosting situation, the virtual host name field and response from the web
servers are critical for reliable services. The WebMux checks the server for its health
situation based on the virtual host name supplied in the field. If the server response is
500 or, which is an error code indicating server internal error, the WebMux will exclude
that server from serving the farm. If server responses 402, which indicates access is
denied for that virtual farm, the WebMux will mark that server dead. We have checked
with Microsoft® IIS server and Apache® server sertups and they both follow the same
rules.
Port Number
This is the listening port for the farm. If you are choosing one of the known services (see
below), you do not have to specify anything in this field. However, if the service you choose
is not listed in the list below, you will need to specify a port number here. For example, for
Microsoft® Terminal Services, use port number 3389.
If you enable SSL termination (see “Enabling SSL Termination” section), you can specify
port 80 for the farm and servers in the farm. Choosing “HTTP—hypertext transfer protocol
will automatically specify port 80 for the farm. You can also specify non-standard ports for
the clear traffic port, if needed. There is a separate field to specify the SSL port. By default,
the WebMux will terminate all SSL traffic on port 443 and send them to port 80 on the
servers, unless you specify different ports.
Service
Select the service the type of that is running on the servers in the farm. This selection
determines the method which the WebMux will check the server health status. The service
type selection will automatically assign a well-known listening port for the farm. You
generally will not need to specify the port number if the service protocol is on the list.
However, you can manually modify it if your service is using a different port number, but you
still want to use the type of health check determined by the service selection. If your service
is not listed, then choose one of the “Generic” selections and enter the port number in the
PORT NUMBER field. The WebMux has level 7 protocol checks for the known ports in the
list. For Custom Defined TCP Service (custom health check), please specify the URL for the
CGI code in the Administration Setup screen.
Warning! Once a farm is created, the port number cannot be changed. Like the IP
address, the farm must be deleted and a new one created in order to change
farm settings.
91
Please choose “Generic TCP” and specify port number, if service is not listed
SERVICE
PROTOCOL
COMMON PORT #
DNS – Domain Name Service
TCP
53
FTP – File Transfer Protocol
TCP
21
HTTP – Hypertext Transfer Protocol
TCP
80
HTTPS – Secure Hypertext Transfer Protocol
TCP
443
HTTP/HTTPS Combined Ports
80/443
LDAP – Lightweight Directory Access Protocol
TCP
5050
NNTP – Network News Transfer Protocol
TCP
119
NTP – Network Time Protocol
123
POP3 – Post Office Protocol
110
SMTP – Simple Mail Transfer Protocol
TCP
25
SNPP – Simple Network Paging Protocol
GCP
444
Generic
TCP
User Specify
Generic
UDP
User Specify
Generic
TCP/UDP
User Specify
Generic – No Health Check
TCP
User Specify
Generic – No Health Check
UDP
User Specify
Generic – No Health Check
TCP/UDP
User Specify
Custom – Defined Services
TCP
User Specify
Custom – Defined Services & Generic
TCP
User Specify
Custom – Defined Services
UDP
User Specify
Custom – Defined Services
TCP/UDP
User Specify
Custom – Defined Paired HTTP and HTTPS Services
TCP
User Specify
below. If multiple ports to be used, please also select “Generic TCP” and specify
port number “0.”
Scheduling Method
The scheduling method is the way in which traffic is distributed among the servers in the
farm. Ten (10) different methods are supported. Persistent scheduling methods track the
client IP in order to return them to the same server upon reconnection within a given timeout
period. For example, if you are using a shopping cart service, a persistent scheduling
method is recommended.
Least connections
Least connections—persistent
Round robin
Round robin—persistent
Weighted least connections
Weighted least connections—persistent
Weighted round robin
92
CLEAR TRAFFIC PORT
SECURE PORT
SERVICE
80
443
HTTP
110
995
POP3
23
992
Telnet
25
465
SMTO
119
563
NNTP
143
993
IMAP
194
994
IRC
389
636
LDAP
Weighted round robin—persistent
Weighted fastest response
Weighted fastest response—persistent
HTTP to HTTPS redirect (see SECTION IX for more information about this feature)
SSL Termination
You must first import your private key and certificate in the SSL Key Management screen.
Please see SECTION VII – SSL MANAGEMENT for detailed information on importing or
generating your keys and certificates.
Selecting an SSL key in this section will enable SSL termination for this farm.
The HTTP service and POP3 service terminate to ports 443 and 995, respectively, and will
allow you to choose any port for the clear traffic to the servers.
When using the generic or custom services, specifying the clear traffic port for the service in
the
“port number” section causes the WebMux to automatically assume the secure port for the
following services:
Any of the port assignments can be manually overridden.
SSL Port
If the SSL traffic is not standard secure port listed above, user can specify his own.
Block Non-SSL Access to Farm
Block non-encrypted incoming traffic so that only encrypted traffic can reach your server.
This might be useful when you only want encrypted connections.
Tag SSL-terminated HTTP Requests
If the “Servers are HTTPS Servers, Re-encryption” setting is set to “No”, traffic between the
WebMux to your servers will be unencrypted traffic. Your servers will not be able to tell if the
93
originating connection was HTTPS or HTTP. This may be important if the application on the
server requires that kind of information. You can turn on “tag SSL-terminated
HTTP requests.” By selecting “Yes,” the decrypted traffic to the servers will have the added
MIME header “X-WebMux-SSL-termination: true.” It is up to you how you want the server
to process this information. For example, you can write a script on your server to identify if
the original traffic was HTTPS or HTTP, and then properly redirect the traffic to the HTTPS.
The WebMux allows SSL termination for any farm port. If your SSL/TLS traffic is other than
the standard HTTPS traffic, you can specify the SSL port in the “SSL port” field.
Servers are HTTPS Servers, Re-encryption (Layer 7)
This is only allowed on a farm doing SSL termination. When it is not enabled the forwarded
client connections between the WebMux and the real servers are unencrypted. With this
option enabled, the WebMux will use a secure, encrypted connection between itself and the
real servers. Microsoft® Lync® and Exchange® servers may need this feature.
Servers Only Serve IPv4, Not IPv6 (Layer 7)
If the incoming traffic is IPv6, WebMux can map them into IPv4 servers.
Farm Will Use MAP
If the Multiple Address/Ports feature is going to be used, this must be selected upon creation
of the farm. This cannot be set or disabled once the farm is created. You will need to delete
and recreate the farm to change this. Also, the MAP feature cannot be enabled in
conjunction with any Layer 7 features or the Compress HTTP Traffic feature.
Health Check Port Number (for generic TCP and custom TCP services)
By default, the WebMux will do its custom service check on port 80 no matter what port you
set up for the farm. If you wish to change this, you can specify a port here. This is a global
setting and will be used for all farms using the custom health check service.
Compress HTTP Traffic
Selecting “yes” to this option will activate the WebMux HTTP compression. If the client web
browser sends out a MIME header that states that it accepts compressed data, the WebMux
will compress HTTP data to the client browser. If the WebMux detects that the servers in
the farm are already compressing the data, the WebMux will not perform compression.
Instead, it will let the compressed data from the servers pass through without additional
processing. When enabled the MIME header “X-WebMux-Compression: true” will be
appended to the server response MIME header.
The WebMux will also automatically disable compression should its CPU usage reach 50%.
The MAP feature cannot be used in conjuction with the compression feature.
94
SNAT
Enable SNAT for the farm. SNAT means that all requests being load balanced through the
farm will have the source IP that comes from the WebMux rather than the original requesting
client.
HTTP Server Response Comparison String
When a string is entered in this field, WebMux HTTP Health Check will search the first 1024
bytes in the HTML content. String is a case sensitive match.
HTTP Server URI
By default, WebMux health check checks default page loading. If specifying a URI here, the
WebMux will use this URI instead of the default page do health check.
Layer 7 Cookie MIME Header Perl Regex Match
When a string is entered in this field, the cookie MIME header of the HTTP request is
examined for a match. Only matching requests will continue through to be forwarded to the
servers in this farm.
Layer 7 Host MIME Header Perl Regex Match
When a string is entered in this field, the host MIME header of the HTTP request is
examined for a match. Only matching requests will continue through to be forwarded to the
servers in this farm.
Layer 7 Request URI Path Perl Regex Match
When a string is entered in this field, the request URI (the part after the domain name) will
be examined for a match. Only matching requests will continue through to be forwarded to
the servers in this farm.
Layer 7 Load Balancer Cookie Name
Text entered into this field will be used as the load balancer cookie name that the WebMux
will generate. This field will only be visible if you select persistent scheduling method.
95
Add Server
In the Modify Farm screen click on the “Add Server” button to add a new server to this farm. Or you
can select the radio button of the farm from the main screen and click on the “Add Server” button on
the left.
Server IP Address
Enter the IP address of the real server to be added to the farm.
Warning! Once the server is added, the IP address cannot be changed. To correct
the IP address, the server must be deleted and a new one be created.
Label
Add a label to each server’s IP address. The purpose of labeling a server is only to help
identify the server in the farm. It has nothing to do with the name resolution of the server.
Although a label can be anything, it is always better to have a meaningful and unique label
for each server.
Server Port Number
If the port number specified in the farm setup is the same as the real server’s port number,
you can leave this as “same.” In NAT mode, the WebMux can perform port forwarding from
the farm IP port to the server IP port if you specify a server port that is different from the
farm port.
Warning! Like the IP address, once created, the port number cannot be changed. To
correct the port number, the server needs to be deleted and a new one to
be created.
Weight
96
This is for scheduling priority weight. Valid integer numbers are between 1 and 100. A
server that has a weight of 2 will be directed twice as much traffic as a server with a weight
of 1.
A special zero weight setting is provided for a graceful shutdown of a server. When the
weight is changed to zero, the WebMux will not send new connections, but will maintain all
current connections to the server. The connections will gradually reduce to zero as current
clients’ sessions terminated. When there are no connections, the server is functionally
“dead” or off line until the weight is changed back to a valid number. Then the server can
then be shutdown or taken out of service without affecting any users.
Warning! Unlike a server that can go down unexpectedly, the WebMux will not move
a STANDBY server to ACTIVE when one or more server’s weight is set to
zero. If the weight of all the servers in a farm were set to zero, then the
farm would be “down” because none of the servers are accepting new
connections.
If your scheduling method is of the “persistent” type, be aware that the
WebMux will continue to honor those existing persistent sessions. If you have clients
that continue to return before the persistence timeout has expired, then you will
continue to see connections coming in.
Run State
Active - The server will be put into service immediately after it is added. If there are
servers in the farm in Standby, the WebMux will activate a Standby server in its place if it
goes out of service. When the original server comes back in service, it will stay in
Standby mode until manually setting its run state to Active again through the browser
interface. This will give the system administrator time to fix the system or reboot the
server once some software/hardware update is completed.
Favorite Active - The server will be put into service immediately after it is added. If a
Favorite Active server failed, once it is operational, the WebMux will automatically put it
back to the Active state.
Standby - The server will be put into STANDBY, or backup, mode after it is added. The
WebMux will change a STANDBY server to ACTIVE when one or more ACTIVE servers
fail. The weights will also have an effect on the number of standby servers that are
activated. If the failed active server had a weight of 20 and there are two standby
servers with the weight of 10, the WebMux will activate the two standby servers to make
up the difference.
Last Resort Standby - The server will be put into STANDBY state. Unless all other
servers are out of services, this server will not be switch in. This will allow the last server
to show a different web page from others.
Modify Farm
The “Modify Farm” screen can be invoked from the main management console screen by clicking
on the farm IP address or selecting a radio button of a farm and clicking the “Modify Farm” button
on the left side of the screen.
97
The “Modify Farm” screen looks like this. Some of the fields will be hidden or displayed depending
on some of your selections.
Farm IP Address and Port Number
The farm IP and port that is being modified will be displayed. These fields are set in the
“Add Farm” screen. Once set, they are not changeable. If they must be changed, delete
the farm and then add a new one.
Label
This is for your visual reference to be displayed on the main console for the farm entry. It
can be any alphanumeric text.
Virtual Host Name
For web servers that are serving name based virtual hosts, this field will be important for the
WebMux to perform a correct health check. The WebMux uses the data in this field as the
host name for the HOST mime header in its HTTP health check requests to the servers. In
some cases, name based virtual hosts have a default site that will still respond with a 400
OK even if a HOST MIME header is not specified in the request. In that case, leaving this
field blank may not have a negative effect. However, in other cases, a request that does not
have a specified HOST MIME header will end up receiving response from the server such
as 503 Service Unavailable. In which case, the WebMux will mark the server dead.
Therefore, it is important that you specifiy the correct host name of the site you are serving
for the farm in order for the WebMux health check to reach the correct site and get a valid
response from the server.
Scheduling Method
Ten (10) different methods are supported:
98
Least connections
Least connections - persistent
Round robin
Round robin—persistent
Weighted least connections
Weighted least connections—persistent
Weighted round robin
Weighted round robin—persistent
Weighted fastest response
Weighted fastest response—persistent
SSL Termination
You can enable or change the SSL key/certificate pair used for this farm. All current
connections for this farm will be reset if you change the key/certificate pair selection.
SSL Port
This is this is the SSL port for the farm that clients will connect to. Standard ports will
automatically be chosen for certain standard services. Otherwise, you can specify your
own. This does not necessarily need to correlate to the SSL port of the servers behind the
farm, unless their ports will be configured as “same” when adding them.
Block Non-SSL Access to farm
If you do not want to allow non-encrypted traffic connecting to the farm, select “Yes.”
Tag SSL-terminated HTTP requests
If SSL termination is active for this farm, choosing “Yes” for this option will add an “XWebMux-SSL-termination: true” MIME header in the decrypted HTTP request going to the
real server.
Compress HTTP traffic
Enable or disable HTTP compression. When enabled the MIME header “X-WebMux-
Compression: true” will be appended to the server response MIME header. (NOT supported
in Direct Server Return Mode, except when used in a Layer 7 Farm; or with farms that have
MAP enabled).
HTTP Server Response Comparison String
99
When a string is entered in this field, WebMux HTTP Health Check will search the first 1024
bytes in the HTML content. String is a case sensitive match.
HTTP Server URI
By default, the WebMux health check checks default page of the server. If specifying a URI
here, the WebMux will use this URI instead of the default page do health check.
Delete
Click this button to delete the entire farm.
Warning! This function also deletes ALL the servers under this farm
Delete Farm
This link carries out an action that requires you to first select a farm using the radio button for the
farm in the Main Status screen. Once you have selected a farm radio button, you can click on this
link to delete the farm. If you click on this link and you have not selected a farm from the main
screen, you will see a notification instructing you to select a farm. If you click on this link while in a
different screen. You will see a notification and will be redirected back to the Main Status screen,
where you can select a farm you want to delete.
You can also detele the a farm by clicking on the the farm IP:port link on the Main Status screen
which will take you to the “Modify Farm” screen. From there, you candelete the farm using the
“Delete Farm” button.
Modify Server
This link requires you to first select a server using the radio button from the Main Status screen.
Once you have selected the server, you can click on this link to get to the “Modify Server” screen.
You can also get to this screen by clicking on the the server’s IP address from the Main Status
screen.
100
Destination server IP address and port number:
The IP and port of the selected server is displayed. These parameters are set in the
“Add Server” screen. Once set, these fields cannot be modified. To correct this setting,
delete the server and add a new one.
Label:
The label can be changed at any time. The change will not affect how the server
functions in the farm. It is for description purpose only.
Weight:
This is for scheduling priority weight. Valid integer numbers are between 0 and 100.
Changing the weight to zero will stop the incoming connections while all existing
connections continue until time out or connection is terminated by client and server.
Although all numbers from 1 to 100 will allow traffic to go through, using a smaller weight
number in each server will have the best load-distributing result.
Run State:
Active - The server will be put into service immediately after it is added. If there are servers
in the farm in Standby, WebMux will activate a Standby server in its place if it goes out of
service. When the original server comes back in service, it will stay Standby mode until
manually setting its run state to Active again through the browser interface. This will give the
system administrator time to fix the system or reboot the server once some
software/hardware update is completed.
Favorite Active - The server will be put into services immediately after it is added. If a
Favorite
Active server failed, once it is operational, the WebMux will automatically put it back to the
Active state.
