Avantree Roxa User Manual

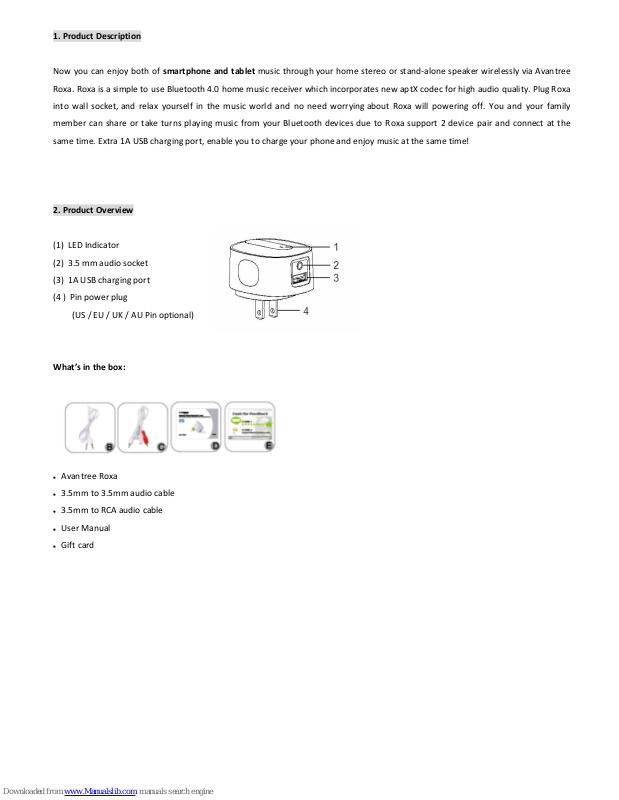

1. Product Description

Now you can enjoy both of smartphone and tablet music through your home stereo or stand-alone speaker wirelessly via Avantree

Roxa. Roxa is a simple to use Bluetooth 4.0 home music receiver which incorporates new aptX codec for high audio quality. Plug Roxa

into wall socket, and relax yourself in the music world and no need worrying about Roxa will powering off. You and your family

member can share or take turns playing music from your Bluetooth devices due to Roxa support 2 device pair and connect at the

same time. Extra 1A USB charging port, enable you to charge your phone and enjoy music at the same time!

2. Product Overview

(1) LED Indicator

(2) 3.5 mm audio socket

(3) 1A USB charging port

(4 ) Pin power plug

(US / EU / UK / AU Pin optional)

What’s in the box:

 Avantree Roxa

 3.5mm to 3.5mm audio cable

 3.5mm to RCA audio cable

 User Manual

 Gift card

3. Setting up your Bluetooth home music receiver

A） The red LED will go on automatically when the device is plugged into a standard AC socket
B） Plug the 3.5 mm audio cable end into Roxa’s 3.5 mm audio socket, and plug other end ( or 2 x RCA ) into the audio input on of

your home stereo system. Roxa’s blue LED will go on. 10 seconds later it will enter into pairing mode – the red and blue LEDs will

blink quickly. Pairing mode will last 2 minutes.

C） Paired with Bluetooth phone / tablet / PC or other Bluetooth transmitter
D） After successfully pairing and connect, you can enjoy music from your home stereo speaker, and control play-list via your phone

within 10 meter range.

4. Pairing with a Bluetooth device ( Tutorial online)

A ) Enter into pairing mode

Function

Operation

LED indicator

Power on

Plug Roxa into standard AC socket

Red Led stays on.

Turn on Bluetooth

Plug 3.5 mm audio cable end into Roxa’s

3.5 mm audio jack of Roxa

Red Led off, and Blue Led blinks every

1 seconds. ( lasting for 10 seconds)

Enter pairing mode

Roxa will enter pairing mode

automatically when turn on

Blue & red Led light blinks alternately

and quickly ( lasting for 2 minutes)

Turn off Bluetooth

Pull the 3.5mm audio cable from Roxa’s

3.5 mm audio jack

Blue LED off, Red Led stays on.

Notes:

The pairing mode will last 2 minutes, Roxa will into standby mode automacically, if no devices can be connected and paired within 2

minutes.(Based on if the 3.5 mm cable is still plugged into the Roxa’s 3.5 mm jack port of Roxa).

B） Pairing with Bluetooth phone / tablets :

Pls. make sure your phone has Bluetooth function and it is available. The pairing procedures are different for different devices. Please

refer to your cell phone / tablets / laptop / desktop user manual for further instructions.

The general pairing procedures are as follows: (Taking iPhone as an example)

A. Put Roxa and iPhone within 1 meter when pairing.
B. Make Roxa into pairing mode ( refer to “ Enter into pairing mode” above)

C．From your iPhone home page, tap “settings”  “General “  “ Bluetooth”  “ On”

D. iPhone will auto scan the available Bluetooth devices. Choose to tap “Avantree Roxa” from the list of devices shown; and now

your iphone and Roxa is connected and ready for use.

E. After pairing and connect successful, complete Blue LED will blink twice every 8 seconds.

C）Paring with Mac

The general pairing procedures please kindly reference below steps:

Step 1 – search bluetooth device from MacBook

Step 2 – double click Roxa and connect
