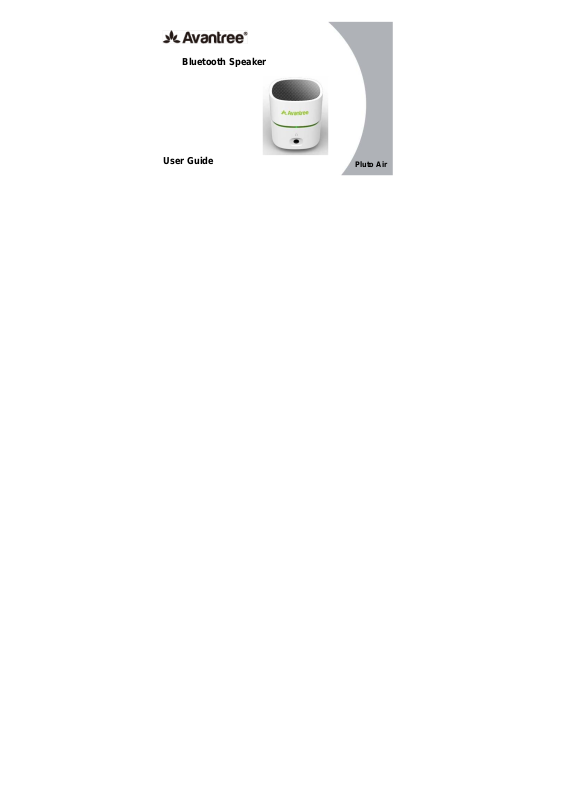

Avantree Pluto Air User Manual

Bluetooth Speaker

User Guide

Pluto Air

1. Product Description

Avantree Pluto Air is a multi-function Bluetooth speaker with high quality music
performance and mini compact design. This mini speaker can allow you to
stream music from Bluetooth-enabled mobile phones and laptops wirelessly. The

3.5mm universal audio jack interface on the speaker can also be used to play
music without Bluetooth, such as an MP3, MP4 or CD player. When connected to
a music player, it will bring you a great audio experience.

2. Product Overview

(1) Loudspeaker
(2) Charging port
(3) Indicator
(4) Line in jack
(5) ON/OFF/Bluetooth switch

What’s in box:

• Avantree Pluto Air

• 3.5mm audio jack cable

• USB charging cable

• Carry pouch

• User manual

• Warranty card

3. Charging

Avantree Pluto Air uses a popular Micro USB charging socket, and comes with
a USB charging cable.

1). Connect the USB lead to the port of the speaker and insert the other end
in the port of your PC or other suitable USB outlet.

2). Afterwards, each charge cycle may take 1.5 hours.

3). LED will indicate red while charging and off when charging is complete.

Note:

1. Only use the Avantree certified charger, or consult Avantree support if you

intend to use a third party charger.

2. When the battery is low, LED will flash red and beep sound will come out every

20 seconds. Please charge it.

4. Basic Operations

4.1 Using 3.5mm audio cable

1). Connect the 3.5mm audio cable from the speaker to your music player.
