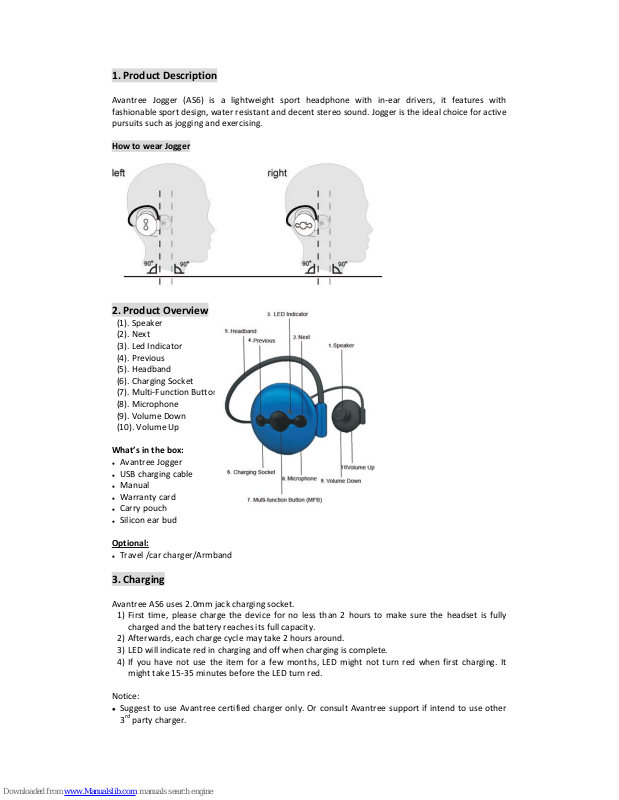

Avantree Jogger, AS6 Quick Start Manual

1. Product Description

Avantree Jogger (AS6) is a lightweight sport headphone with in-ear drivers, it features with
fashionable sport design, water resistant and decent stereo sound. Jogger is the ideal choice for active
pursuits such as jogging and exercising.

How to wear Jogger

2. Product Overview

(1). Speaker
(2). Next
(3). Led Indicator
(4). Previous
(5). Headband
(6). Charging Socket
(7). Multi-Function Button(MFB)
(8). Microphone
(9). Volume Down
(10). Volume Up

What’s in the box:

 Avantree Jogger
 USB charging cable
 Manual
 Warranty card
 Carry pouch
 Silicon ear bud

Optional:

 Travel /car charger/Armband

3. Charging

Avantree AS6 uses 2.0mm jack charging socket.

1) First time, please charge the device for no less than 2 hours to make sure the headset is fully

charged and the battery reaches its full capacity.

2) Afterwards, each charge cycle may take 2 hours around.

3) LED will indicate red in charging and off when charging is complete.

4) If you have not use the item for a few months, LED might not turn red when first charging. It

might take 15-35 minutes before the LED turn red.

Notice:

 Suggest to use Avantree certified charger only. Or consult Avantree support if intend to use other

3rd party charger.

 When battery power is low, the red indicator light will flash red every 15 seconds.

4. Turn On / Off

Turn On: From OFF, press and hold the “MFB” around 4 seconds until the indicator LED show Blue.
Turn Off: From On, press and hold the “MFB” around 4 seconds until the indicator LED show red.

5. Working with mobile phone (Tutorial online)

It is important to pair the headset with your Bluetooth Mobile phone for the first time use.

5.1 Pairing procedure:

A. Ensure the headset is off.
B. Press and hold the MFB button (about 7-10 seconds) until LED blinks blue and red alternately.
C. Search the headset from your phone.
D. Once “Avantree Jogger’’ found in search list, follow the steps and enter pin code 0000 to pair

(some phones do not request the pin code);

E. Connect the headset to your phone.
F. Headset is ready for use now.

Once paired and connected, the headset will be automatically connected to your phone whenever
you turn the headset on again, provided your phone is in the range.

We found most of the online technical support questions are caused by improper pairing between the
headset and the Bluetooth device. Please follow the instruction step-by-step.

5.2 Basic Operations:

● Answering a call:

Answering the first call: Press the “MFB” button once to answer the first call.
Answering the second call: Press the “MFB” button once to answer the second call and end the

first call simultaneously.

● Ending a call: Press the “MFB” button once to end a call.

● Reject a call:

Reject the first call: Press and hold the “MFB” button for 3 seconds to reject the first call.
Reject the second call: Press “Previous” button once to reject the second call.

● Voice Dial: If your mobile phone has voice dialing enabled, when in standby mode short press

both ”V+” and “V-” then say the voice tag you wish to call. (Note: Some phones need to record the
voice tag in advance, and some no need.)

● Last number redialing: In standby mode, double click the “MFB” button

● Switching a call between headset and mobile phone:

Headset to Mobile Phone: During a call, press and hold “MFB” for 2 seconds to transfer the call to
your mobile phone.
Mobile Phone to Headset: During a call, press and hold “MFB” for 2 seconds to transfer the call to
your headset.

● Mute&Unmute:

During a conversation -

Mute the microphone: press and hold “Next” button till you hear a short beep. In mute status, you
will hear two beeps every 3 seconds.

Unmute the speakerphone: press and hold “Next” button again till you hear a short beep

● Restore the Default Setting: Under standby mode, press and hold ”Next” button for 8 seconds

until the indicator flash blue and red, then press and hold “MFB” button for 4 seconds, then you will
hear a beep, the headphone is now back to original setting, and after power on again, it will enter
pairing mode automatically.
