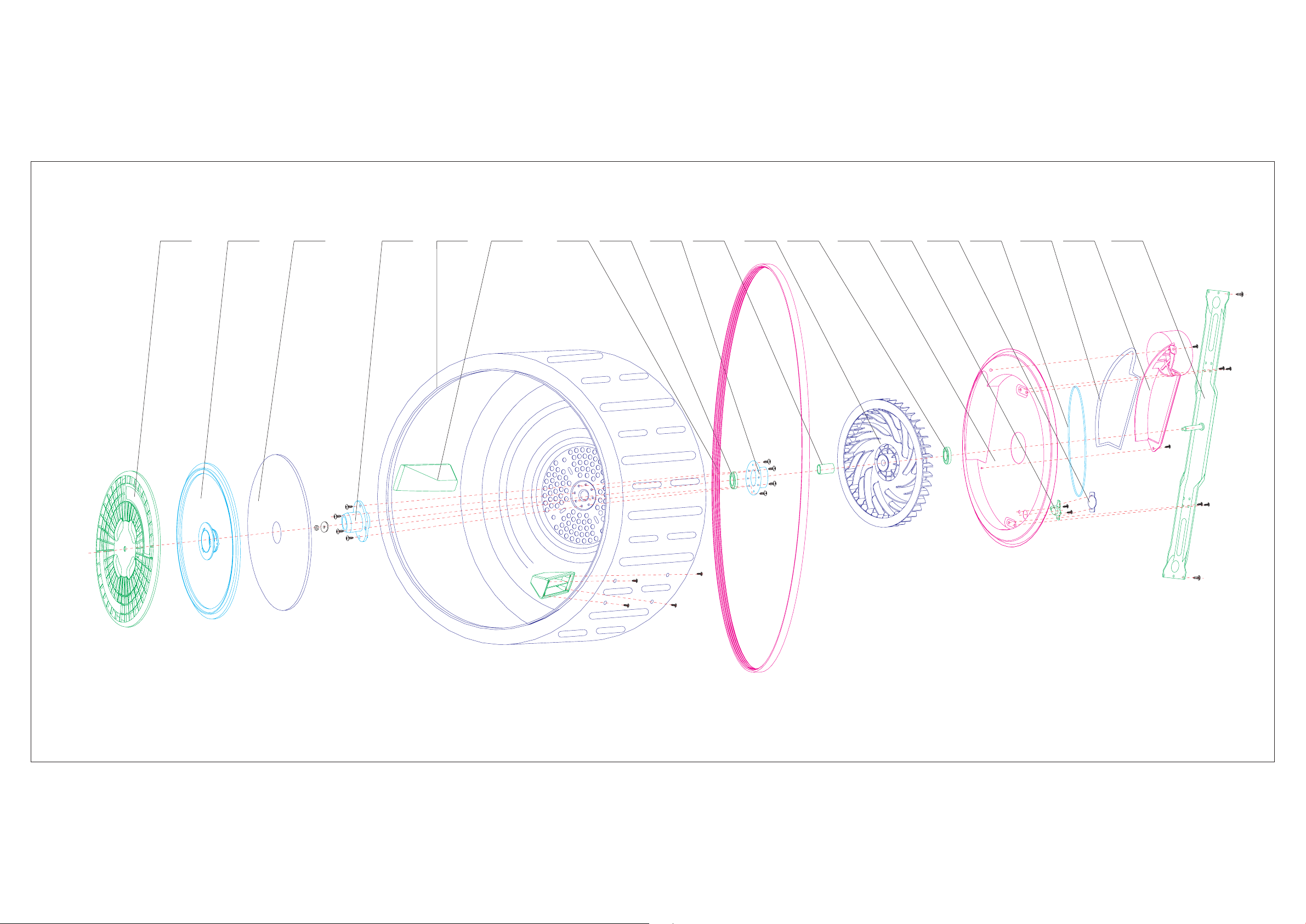

Avanti D110J2P-IS Exploded View Diagram B
61 62 6 3 6 4 6 5 6 6 6 7 6 8 6 9 7 0 7 1 7 2 7 3 74 75 76 77 78 79
Page 3

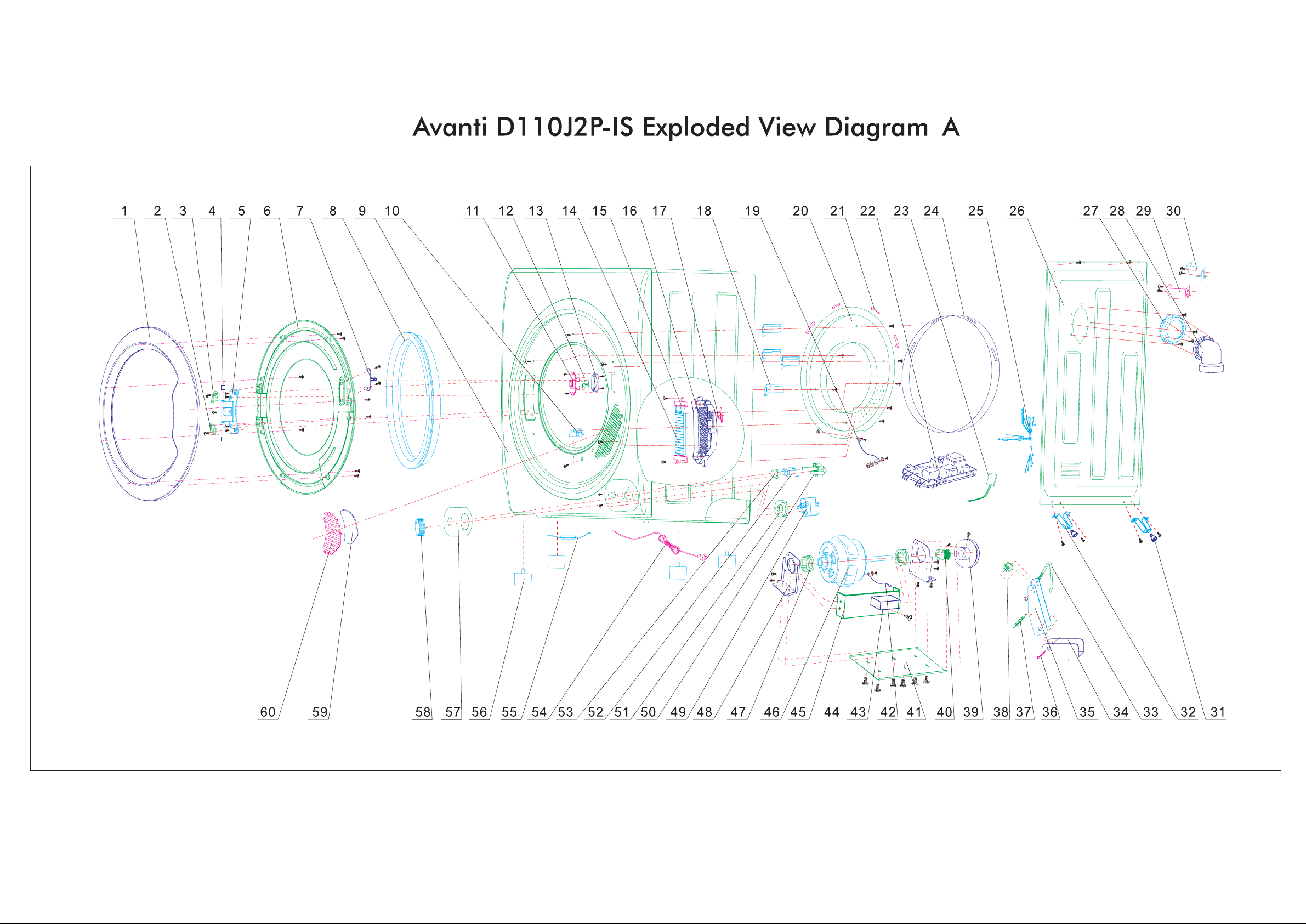

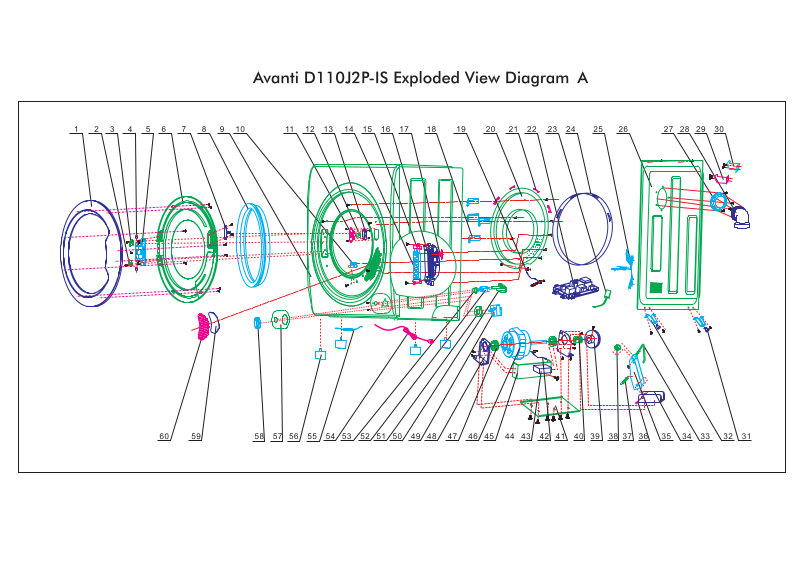

NO. Code Part Name Qty
79 GYJDQ4680801 Air exhaust thermal breaker 1
D110J2P-IS Part List
1 GYJSL82681004E Door 1
2 GYJSL478F1003C Door axis press piece up 1
3 GYJSL478F1002C Door axis press piece down 1
4 GYJSL4781004 Door axis 2
5 GYJYZ4781005 Door hinge 1
6 GYJSL478F1001 Door inner cover 1
7 GYJSL82681003D Door lock 1
8 GYJXJ4680102 Big seal 1
9 / / /
10 GYJDQ4680501 Door switch 1
11 GYJSL4781101B Door lock base 1
12 GYJWJ82681102 Door lock spring 1
13 GYJSL82681103 Door lock base cover 1
14 GYJDQ4680401B PTC heating element 1
15 GYJSL4680404 PTC installation rack 2
16 GYJSL4680405 PTC installation box 1
17 GYJDQ4680402A PTC thermal breaker 1
18 GYJSL4681304 Connecting pole 4
19 GYJDQ4680601B Ground wire at front seal disc 1
20 GYJCY4680602A Front seal disc 1
21 GYJXJ4680603 Rubber pad 4
22 GYJDQ4681502A DOE main PCB 1
23 GYJDQ778ES0305 778ES sensor 1
24 GYJHM4680604A Front seal disc seal cotton 1
25 GYJDQ4680403K 4kgAVT Wire 1
26 GYJCY4681311 Back cover 1
27 GYJSL4681324 Connector 1
28 GYJSL4681223 Exhaust pipe assembly 1
29 GYJCY4681204
30 GYJCY4681205
31 GYJXJ4681202 Back support gasket 2
32 GYJCY4681203 Back support 2
33 GYJWJ4680213
34 GYJCY4680209 Belt tension wheel spring 1
35 GYJCY4680210 Belt tension wheel support 1
36 GYJBZ82680106 Window pin 1
37 GYJWJ4680211A Draw spring for belt t ensi on w heel 1
38 GYJSL4680204 Belt tension wheel 1
39 GYJSL4680205 Motor puller for fan 1
40 GYJWJ4680212B Motor puller 1
41 GYJCY4681303 Motor fixing board 1
42 GYJDQ4680203 Motor connecting line 1
43 GYJDQ4680202B Capacitor 1
44 / / /
45 GYJCY4680208 Motor support contact blocks 1
46 GYJDQ4680201 Dryer motor 1
47 GYJXJ4680206 Motor vibration proof pad 2
48 GYJCY4680207 Motor supporting board 2
49 GYJDQ4680301 Timer 1
50 GYJSL4880301 Power switch Installation rack 1
51 GYJSL25780301 Timer Installation rack 1
52 GYJDQ4680304A Single switch 1
53 GYJSL4680310F Tandem switches cap 1
54 GYJDQ4681301 Power cord 1
55 GYJDQ4680701 Fuse tube 1
56 GYJSL4680103A3 Supporting foot 4
57 GYJYSAVT48801 Control Panel sticker 1
58 GYJYSTY5801 Knob 1
59 GYJHM4681306A Air inlet filter 1
60 GYJSL4681307 Air inlet cover 1
61 GYJSL4680902B Fi l ter case 1
62 GYJSL4680903 Filter 1
63 GYJHM4680901A Filter of inner tub 1
64 GYJSL4680807 Filter base 1
65 GYJCY4680802 Inner tub assembly 1
66 GYJSL4680808 Rotating check block 3
67 GYJBZ4680815 Bearing 608 1
68 GYJCY4680805 Bearing base 1
69 GYJXJ4680814 Poli-v belt 1
70 GYJWJ4680811 Axis set 1
71 GYJSL4680806 Ball bearing fan assembly 1
72 GYJBZ4680815 Bearing 608 1
73 GYJCY4680803 Wind case 1
74 GYJHM4680810 Air exhaust sealing sponge 1
75 GYJSL4680809 Air exhaust 1
76 GYJCY4680804 Supporting beam assembly 1
77 GYJXJ4680813 Plastic cover for thermal breaker 1
78 GYJXJ4680812 Fan belt 1
Left hook
Right hook
Belt tension wheel bearing 1
1
1
