Installation & Assembly
Parts List &
Before you start this installation make sure you have all the parts listed below.
Part Number
A
MOM9705
1
Mounting Bracket
C
9705-002
4
No. 8 x 1” Phillips Pan Head
Sheet Metal Screw
D
9705-003
4
Plastic Anchor (¼” x 1”)

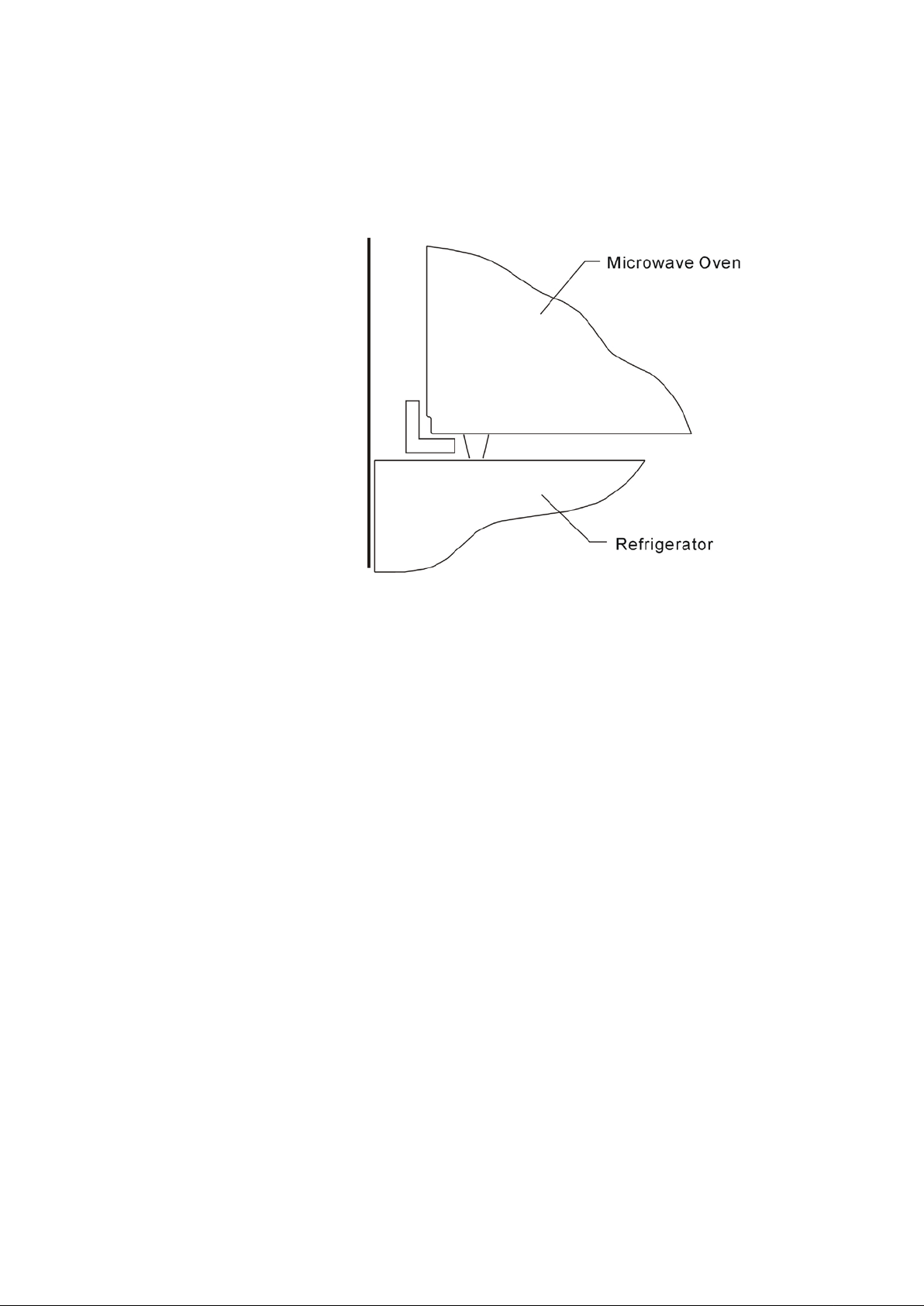

Microwave Oven Bracket Installation Instruction
For use with the following Avanti models:
Microwaves – MO7082MB, MO7191TW, MO7192TB, MO7103SST& MO8003BT
Refrigerators – Can be used with all Compact, Midsize & Counterhigh models except the
RM4550W-2, RM4551B-2, RM4589SS-2 and BCA4561B-2
Hardware
B 9705-001 1 Allen Wrench
E 9705-004 4 No. 8 x 5/8 Phillips Hex Head
Installation Procedures:
1) Bracket Configuration:
Holes (A) and (B) are the existing holes in the upper part of the Metal bracket to be attached to the
microwave oven. Holes (C), (D), (E) and (F) are also existing holes in the lower part of the Metal bracket to
be installed on to the refrigerator. See illustration #1.
Read entire installation sheet before you start assembly of this item.
Qty
Self T apping Screw & Wash er
Description
Illustration #1
2
Instructions below are for refrigerators with a solid top. If installing on refrigerator with a decorative (plastic)
top skip to Step #4
2) Installation of the lower side of the Metal bracket to the Refrigerator:
Lay and center the Metal bracket on top of the refrigerator as close to the back as possible.
Using the four (4) existing holes on the bracket as a guide, mark the locations where the Self Tapping Screws
are to be installed (C), (D), (E) and (F).

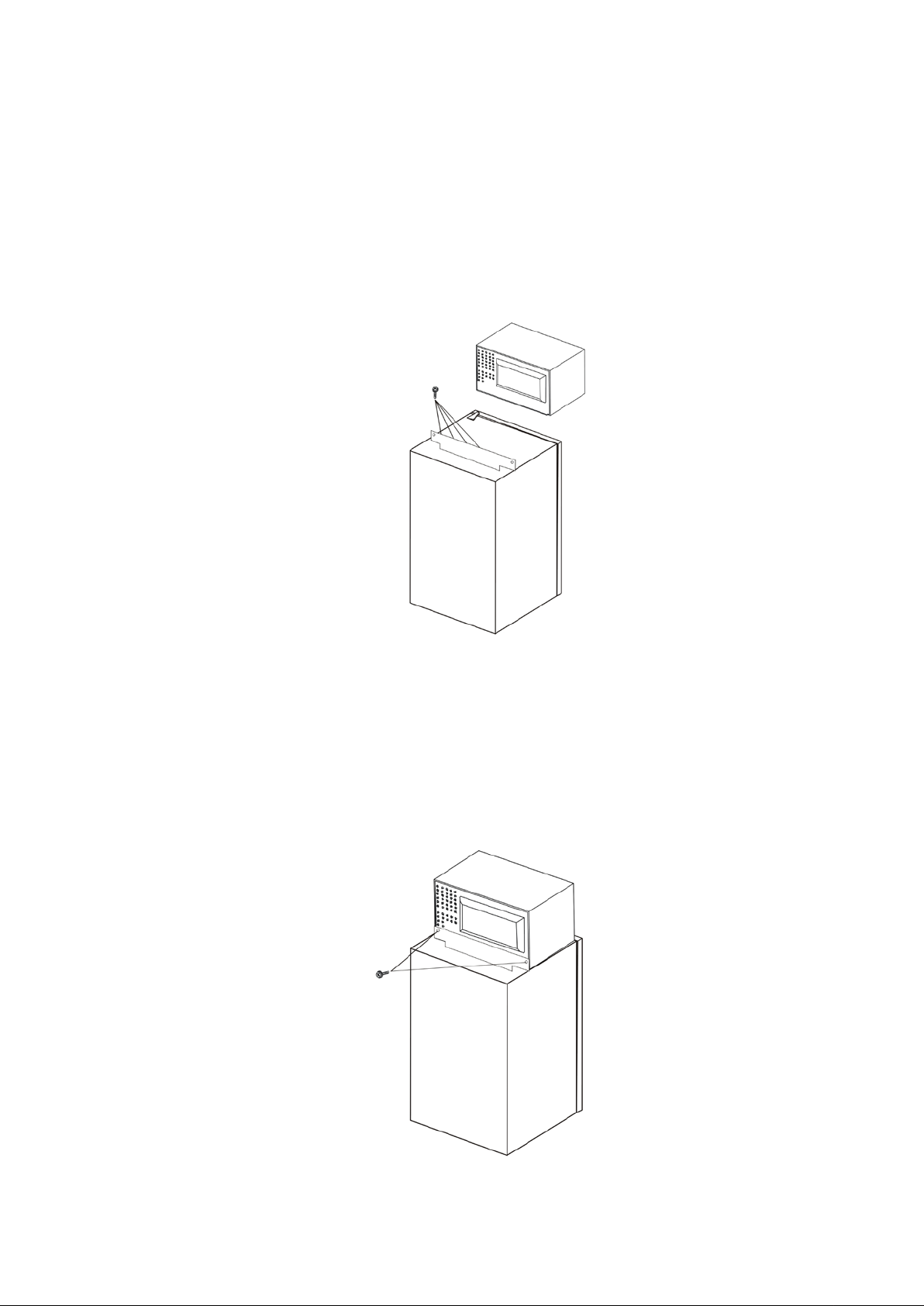

3) Affixing the Metal bracket to the refrigerator
Align the four (4) holes of the lower part of the metal bracket and attach the bracket using the (4) Self
Tapping screws provided. See illustration #2.
Illustration # 2
4) Drilling four holes to the Refrigerator: For refrigerators with decorative (plastic) top
After marking the locations of the four (4) holes, remove the bracket from the top of the refrigerator and
proceed drilling the four (4) holes with a ¼” drill bit into the rear portion of the top of the Refrigerator. Be
careful not to drill too deep and risk damaging the sealed system tubing or liner. See illustration #3
Illustration # 3
