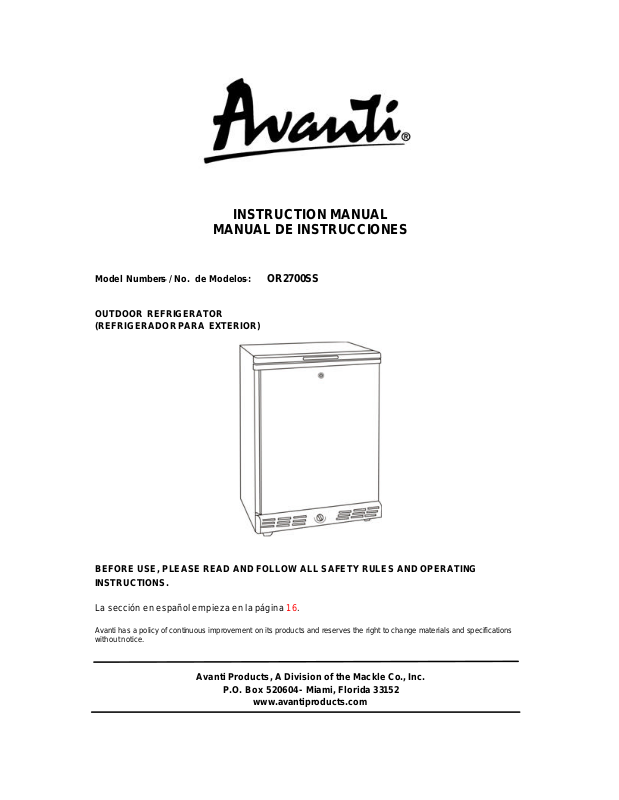

Page 1
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Numbers / No. de Modelos: OR2700SS
OUTDOOR REFRIGERATOR
(REFRIGERADOR PARA EXTERIOR)
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en españ ol empieza en la página 16.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice.
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
Page 2
REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the wards ” DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, or property or
equipment damage.
All safety message s will alert you do what the potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the instructions are not followed.
2
Page 3
IMPORTANT SAFEGUIDES
Before the refrigerator is used, it must be properly positioned and installed as
described in this manual,so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the refrigerator, follow basic precaution,
including the following:
? Plug into a grounded 3 -prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
? Replace all panels before operating.
? It is recommended that a separate circuit, serving only your refrigerator be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
? Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
? Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
? Do not connect or disconnect the electric plug when your hands are wet .
? Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
? Do not attempt to repair or replace any part of your refrigerator unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
? Use two or more people to move and install refrigerator. Failure to do so can result in back or
other injury.
? To ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 550F (130C) and below
900F (32 0C) if placed indoors.
? The refrigerator should not be located next to ovens, grills or other sources of high heat.
? The refrigerator must be installed with all electrical, water and drain connections in accordance
with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly
grounded in accordance with the National Electrical Code and local codes and ordinances is
required.
? Do not kink or pinch the power supply cord of refrigerator.
? The fuse (or circuit breaker) size should be 15 amperes.
? It is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
? All installation must be in accordance with local plumbing code requirements.
? Make certain that the pipes are not pinched or kinked or damaged during installations.
? Check for leaks after connection.
? Never allow children to operate, play with or crawl inside the refrigerator.
? If you use the drainage container, you MUST set the Drain Select switch to OFF or the water can
overflow from the drainage container
? Although the unit has been tested at the factory, due to long-term transit and storage, the first
batch of cubes must be discarded.
? Do not use solvent -based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
? Do not use this apparatus for other than its intended purpose.
3
Page 4
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100
days of purchase and receive these important benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O.Box 520604 – Miami, Florida 33152
? Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
? Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
-------------------------------------------------(detach here)----------------------------------------------------------
Avanti Registration Card
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number ?Own ?Rent
Did You Purchase An Additional Warranty: Your Age:
?Extended ?Food Loss ?None ?under 18 ?18-25 ?26-30
Reason For Choosing This Avanti Product: ?31-35 ?36-50 ?over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase ?Married ?Single
this product. Is This Product Used In The:
?Price ?Home ?Business
?Product Features How Did You Learn About This Product:
?Avanti Reputation ?Advertising
?Product Quality ?In Store Demo ?Personal Demo
?Salesperson Recommendation ?Other______________________________
?Friend/Relative Recommendation Comments____________________________
?Warranty _____________________________________
?Other_______________________ _____________________________________
4
Page 5
5
Page 6
CAUTION
:
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new unit properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
THIS UNIT IS NOT DESIGNED
FOR THE STORAGE OF
MEDICINE OR OTHER MEDICAL
PRODUCTS.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for assistance.
FIRST, contact the people who serviced your
unit. Explain why you are not pleased. In most
cases, this will solve the problem.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the unit.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your unit.
If you received a damaged unit, immediately
contact the dealer (or builder) that sold you the
unit.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
6
Page 7
PARTS & FEATURES
1? GLASS SHELF (2)
2? CRISPER DRAWERS WITH GLASS LID (2)
3? FRONT GRILLE
4? CASTERS WITH BRAKES (4).
5? ADJUSTABLE THERMOSTAT
6? DOOR BINS
7. SECURITY LOCK
7
Page 8
TABLE OF CONTENTS
REFRIGERATOR SAFETY _________________________________________________________2
IMPORTANT SAFEGUIDES_________________________________________________________3
REGISTRATION INFORMATION_____________________________________________________4
HELP US HELP YOU … ___________________________________________________________ 6
PARTS AND FEATURES __________________________________________________________ 7
IMPORTANT SAFETY INSTRUCTIONS_______________________________________________ 9
INSTALLATION INSTRUCTIONS____________________________________________________ 9
BEFORE USING YOUR UNIT______________ _____________________ 9
BUILT – IN INSTALLATION________________ ____________________ _ 9
OUTDOOR USE __ ________________ _____________________ 9
CASTER INSTALLATION SKETCH 10
INSTALLING YOUR UNIT ________________ ____________________ 10
ELECTRICAL CONNECTION ______________________________________________________ 10
EXTENSION CORD _____________________________________________________________ 11
REVERSING THE DOOR SWING OF YOUR UNIT ______________ 11
OPERATING YOUR UNIT _____________________ ________________ 11
SETTING THE TEMPERATURE CONTROL __________________________________________ 11
CARE AND MAINTENANCE ______________________________________________________ 11
CLEANING YOUR UNIT________________ _______________________ _11
DEFROSTING YOUR UNIT ___________________________ __________12
POWER FAILURE _______________________________________________________________ 12
VACATION TIME ________________________________________________________________12
MOVING YOUR UNIT _______________ __________________________ 12
ENERGY SAVING TIPS ___________________________________________________________12
SECURITY LOCK ___ ___________________________________________________________ 12
TROUBLESHOOTING GUIDE ______________________________________________________13
SERVICE FOR YOUR REFRIGERATOR _____________________________________________ 13
YOUR AVANTI PRODUCTS WARRANTY ____________________________________________ 14
WIRING DIAGRAM ______________________________________________________________ 15
INSTRUCCIONES EN ESPAÑOL _______________________ ________________________16-17
8
Page 9
IMPORTANT SAFETY INSTRUCTIONS
?WARNING ?
To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
? Read all instructions before using the refrigerator.
? DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or
abandoned refrigerator are still dangerous. . . even if they will “just sit in the
garage a few days.”
? Before you throw away your old refrigerator: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
? Never allow children to operate, play with, or crawl inside the refrigerator.
? Never clean refrigerator parts with flammable fluids. The fumes can create a fire
hazard or explosion.
? Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other refrigerator. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using Your Unit
? Remove the exterior and interior packing.
? Check to be sure you have all of the following parts:
? 2 Glass Shel ves
? 2 Crisper Drawers
? 1 Crisper Glass Lid
? 1 Instruction Manual
? 4 Castors with Brakes
? 2 Keys
? Before connecting the unit to the power source, let it stand upright for approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
? Clean the interior surface with lukewarm water using a soft cloth.
?
BUILT - IN INSTALLATION.
? This unit has been designed for either FREE-STANDING OR BUILT IN INSTALLATION.
? When built - in, it does not require additional clearance for top, sides or rear. However, the
front grille must not be obstructed.
OUTDOOR USE.
? High ambient temperature over 110º F(43.4º C) may reduce the unit's ability to reach low
inner temperatures.
? The same applies if the ambient temperature drops below 40º F (4.4º C).
? It is recommended that the unit be shut off in temperature outside these limits.
9
Page 10
CASTERS INSTALLATION SKETCH
?
? Install the four casters provided into the unit’s bottom four threaded holes supplied . Follow
the instructions in the installation sheet located inside the plastic bag that contains the user’s
guide.
(I) BEFORE (II) AFTER
Installing Your Unit
? Place your unit on a floor that is strong enough to support the unit when it is fully loaded. To
level your unit, adjust the leveling leg at the bottom of the unit.
? Locate the unit away from sources of heat (stove, heater, radiator, etc.). Heat sources may
increase electrical consumption. Extreme cold ambient temperatures may also cause the unit
not to perform properly.
? Avoid locating the unit in moist areas.
? Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.
? After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before
placing food in the refrigerator compartment.
Electrical Connection
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.
This unit should be properly grounded for your safety. The power cord of this unit is equipped with a
three-prong plug which mates with standard three prong wall outlets to minimize the possibility of
electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This unit requires a standard 115/120 Volt AC ~/60Hz electrical outlet with three-prong ground. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3 -prong wall outlet.
Warning?
10
Page 11
The cord should be secured behind the unit and not left exposed or dangling to prevent accidental
injury.
The unit should always be plugged into its own individual electrical outlet which has a voltage rating
that matches the rating label on the appliance. This provides the best performance and also prevent
overloading house wiring circuits that could cause a fire hazar d from overheated. Never unplug the
unit by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.
Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do
not use a cord that shows cracks or abrasion damage along its length or at either end. When moving
the unit, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this unit. However, if you must use an extension cord it is absolutely
necessary that it be a UL/CUL -Listed, 3-wire grounding type appliance extension cord having a
grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10
amperes.
Reversing the Door Swing of Your Appliance
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call customer service for reversal instructions.
OPERATING YOUR UNIT
Setting the Temperature Control
? Your unit has only one control for regulating the temperature. The temperature control is located
on the lower unit.
? The first time you turn the unit on, set the temperature control to “6.”
? The range of the temperature control is from position "1” to “6”. After 24 to 48 hours, adjust the
temperature control to the setting that best suites your needs. The setting of “4” should be
appropriate for use.
? To turn the appliance off, turn the temperature control to ”OFF”.
NOTE:
? Turning the temperature control to “OFF” position stops the cooling cycle but does not shut off the
power to the unit.
? If the uni t is unplugged, has lost power, or is turned off; you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the unit will not start.
CARE AND MAINTENANCE
Cleaning Your Unit
? Turn the temperature control to "OFF", unplug the unit, and remove the food, shelves, and trays.
? Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
? Wash the shelves and trays with a mild detergent solution.
? The outside of the unit should be cleaned with mild detergent and warm water.
? Wring excess water out of the sponge or cloth before cleaning the area of the controls, or any
electrical parts.
? Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
CAUTION:
Failure to unplug the unit could result in electrical shock or personal injury.
11
Page 12
Automatic Defrosting
There is no need to defrost the refrigerator. Defrost water collects and passes thru the drain
outlet in the rear wall into a tray located above the compressor, where it evaporates.
NOTE:
? If the unit is unplugged, power lost, or turned off; you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the refrigerator will not
start.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
unit if you minimize the number of times the door is opened. If the power is going to be off for a longer
period of time, you need to take the proper steps to protect your food.
Vacation Time
? Short vacations: Leave the unit operating during vacations of less than three weeks.
? Long vacations: If the appliance will not be used for several mo nths, remove all food and unplug
the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking it open if necessary.
Moving Your Unit
? Remove all the food.
? Securely tape down all loose items inside your unit.
? Turn the leveling screw up to the base to avoid damage.
? Tape the door shut.
? Be sure the unit stays secure in the upright position during transportation. Also protect the
outside of unit with a blanket, or similar item.
Energy Saving Tips
? The unit should be located in the coolest area of the room, away from heat producing appliances,
and out of the direct sunlight.
? Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the
compressor to run longer.
? Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts
down on frost build-up inside the unit.
? Unit storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners
interfere with cold air circulation, making the unit less efficient.
? Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
Security Lock
Your unit is provided with a lock and key combination. The keys are located inside the
plastic bag that contains the user’s guide . Insert the key into the lock and turn it counter
clockwise to unlock the door. To lock the door do the reverse operation making sure the
metal pin is engaged completely. Remove the key and put in a secure place for safekeeping.
12
Page 13
PROBLEMS WITH YOUR UNIT
You can solve many common unit problems easily, saving you the cost of a possible service call. Try
the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Unit does not operate.
Turns on and off frequently. The room temperature is hotter than normal.
Vibrations. Check to assure that the unit is level.
The unit seems to make too much noise.
The door will not close properly.
SERVICE FOR YOUR UNIT
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti refrigerators. With the purchase of your Avanti unit,
you can be confident that if you ever need additional information or assistance, the Avanti Products
Customer Service team will be here for you. Just call us toll -free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Part Orders
800-220-5570
In-Home Repair Service
800-220-5570
Not plugged in.
The circuit breaker tripped or a blown fuse.
The unit temperature control is set at “OFF”
position.
A large amount of food has been added to the
unit.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The unit does not have the correct clearances.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
unit.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The unit is not level.
The unit is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves, bins, or baskets are out of position.
Whatever your questions are about our products,
help is available.
You may order parts and accessories that will be
delivered directly to your home, by personal
check, money order, Master Card, or Visa.
An Avanti Products authorized service center will
provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your refrigerator inside and out.
13
Page 14
WHAT IS NOT COVERED
YOUR Avanti Products WARRANTY
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the
unit, which proves to be defective in
material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the u nit has been installed
and operated in accordance with the
written
instructions in this manual. In rental or
commercial use, the warranty period is
90 days. All Avanti Appliances of 3.5
cubic feet capacity or less must be
brought/sent to the appliance ser vice
shop for repair.
Staple your sales receipt here. Proof of original
purchase date is needed to obtain service under
warranty.
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible
for the service labor and freight charges. In
rental or commercial use, the limited
compressor warranty is one year and nine
months. Cost to move the unit to the servicers’
shop and back to the user's home, as may be
required, are the user's responsibility.
? Content losses of food due to spoilage.
? Incidental or consequential damages.
? Parts and labor costs for the following will
not be considered as warranty:
? Evaporator doors, door springs, and/or
frames.
? Inner door panels, door shelves, door
rails, and/or door supports.
? Chest refrigerator lid liners.
? Vegetable crispers.
? Light bulbs and/or plastic housing.
? Plastic cabinet liners.
? Punctured evaporator that voids the
warranty on the complete sealed system.
? Repairs performed by unauthorized
servicers.
? Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
? Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
? Replacement of house fuses or resetting
circuit breakers.
? Failure of the product if it is used for other
than its intended purpose.
? This warranty does not apply outside the
Continental USA.
14
Page 15
Wiring Diagram
15
Page 16
INSTRUCCIONES EN ESPAÑOL
INSTALACION
Retire los accesorios de empaque (plásticos protectores, cartón y tiras engomadas). Limpie el
exterior con un trapo suave y seco, y el interior con un trapo húmedo y tibio.
UBICACION
1. Seleccione un lugar con un piso firme y nivelad o.
2. Su refrigerador requiere ventilación. Deje un espacio mínimo de 5” hacia arriba y espacio
suficiente en el respaldo para permitir la circulación de aire.
3. Evite luz directa del sol o calor. La luz directa del sol puede afectar la capa de pintura. Las
fuentes de calor en su proximidad causarán un consumo mayor de electricidad.
4. Para un mejor desempeño, nivele el refrigerador utilizando las patas ajustables o tornillos
niveladores. Para verificar el nivel, abra la puerta hasta la mitad, debe regresar sola.
INSTALACION DE LA UNIDAD
Esta unidad ha sido diseñada para uso externo o interno incluso empotrada en gabinetes.
Si se usa empotrada en gabinetes, no es necesario dejar espacios libres arriba, en ambos
lados, o en la parte trasera pero las aperturas de l frente nunca deben ser obstruídas.
USO EXTERNO DE LA UNIDAD
En temperaturas ambientales que excedan 110º F (43.4º C) pudieran reducir la habilidad de
alcanzar temperaturas bajas en la parte interior de la unidad.
Lo mismo sucedería cuando las temperaturas ambientales bajan a menos de 40º F (4.4º C).
En estos casos es necesario apagar la unidad.
INSTRUCCIONES PARA LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable de escape para la
corriente eléctrica. Este aparato viene equipado con un cordón que posee un cable a tierra con un
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA
El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de choque eléctrico.
Consulte con un electricista si no comprende bien las instrucciones de conexión a ti erra o si existe
alguna duda sobre si el aparato está conectado a tierra correctamente.
NO USE UN CORDON DE EXTENSION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su refrigerador a cordones de prolongación
eléctrica o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Un refrigerador vacío es una atracción muy peligrosa para los niños. Quite los sellos magnéticos,
puertas o cerraduras de todo electrodoméstico que no esté en uso, es tambien aconsejable remover
o quitar ambas puertas al momento de desechar su refrigerador.
OPERACION
Enchufe el cable a la toma de corriente, que debe ser 115 -120v A/C, 10 AMP ó más. Para evitar
vibraciones, este equipo debe estar bien nivelado. Para encender el refrigerador, gire el control de
temperatura a la posición que corresponda al enfriamiento deseado.
16
Page 17
ADJUSTE DEL TERMOSTATO
El termostato regula automáticamente la temperatura interna de los compartimentos del refrigerador
y del congelador. Para enfriar más la unidad, sólo debe girar el control de temperatura desde la
posición 1 a la posición 6.
Bajo condiciones normales mueva el control entre la posición 3 y la 4.
Recuerde que la temperatura del ambiente, la temperatura de la comida almacenada y la frecuencia
con que se abra la puerta del refrigerador, afectan la temperatura en el compartimiento del
refrigerador. Si fuera necesario, modifique la temperatura seleccionada según sea el caso.
CUIDADOS EN LOS PERIODOS DE AUSENCIA
? Para cortos períodos de ausencia (menos de 21 días) el congelador podrá quedar funcionando.
Coloque el botón de control de temperaturas en la posición mínima.
? En períodos de ausencia más largos, se aconseja dejar el refrigerador limpio y desconectado.
? Saque todo lo que tenga adentro del refrigerador y haga el deshielo y la limpieza general.
También retire la bandeja del congelador, limpie bien y séquela internamente.
? Deje la puerta entreabierta para que penetre el aire y así evitar la formación de olores.
ECONOMIA DE ENERGIA
? Evite dejar por mucho tiempo la puerta abierta.
? Evite aperturas frecuentes de la puerta.
? Nunca coloque alimentos calientes dentro del refrigerador. Espere que estén a una
temperatura ambiental.
? Coloque el botón de control de temperaturas en la posición adecuada.
CERRADURA DE LA PUERTA
? Su unidad viene equipada con una combinación de cerradura y llave.
? Las llaves (2) están dentro de la bolsa plástica junto al manual de instrucciones.
? Introduzca la llave en la cerradura y gírela hacia la izquierda para abrir la puerta.
? Para cerrarla, gire la llave hacia la derecha.
? Quite la llave y colóquela en un lugar seguro para evitar que se pierda.
DESCONGELAMIENTO AUTOMÁTICO
No hay necesidad de descongelar el refrigerador. Toda el agua descongelada pasa por la
salida de drenaje de la pared posterior, a una bandeja ubicada sobre el compresor, donde
se evapora.
? NOTA Si la unidad es desenchufada, pierde poder o es apagada, espere de 3 a 5
minutos antes de reiniciar la unidad. Si usted intenta reiniciar antes de este tiempo, es
muy posible que el refrigerador no trabaje.
SI USTED SE VA DE VACACIONES POR UN PERIODO DE 30 DIAS O MAS
? Saque todos los artículos del refrigerador-congelador.
? Desconecte el refrigerador del tomacorriente y limpie el refrigerador bien, incluyendo la
bandeja del congelador.
? Deje la puerta abierta para evitar la formación de olores, condensación o moho.
SI USTED SE MUDA
? Desconecte el refrigerador del tomacorriente y limpie el refrigerador bien, incluyendo la
bandeja del congelador.
? Saque todas las partes movibles y empaquételas para que no se muevan durante la
transportación.
? Cierre la puerta del refrigerador y séllela con cinta adhesiva.
? Asegúrese que el refrigerador va parado durante el viaje y cúbralo con una frazada.
PRINTED IN CHINA
17
Loading...
