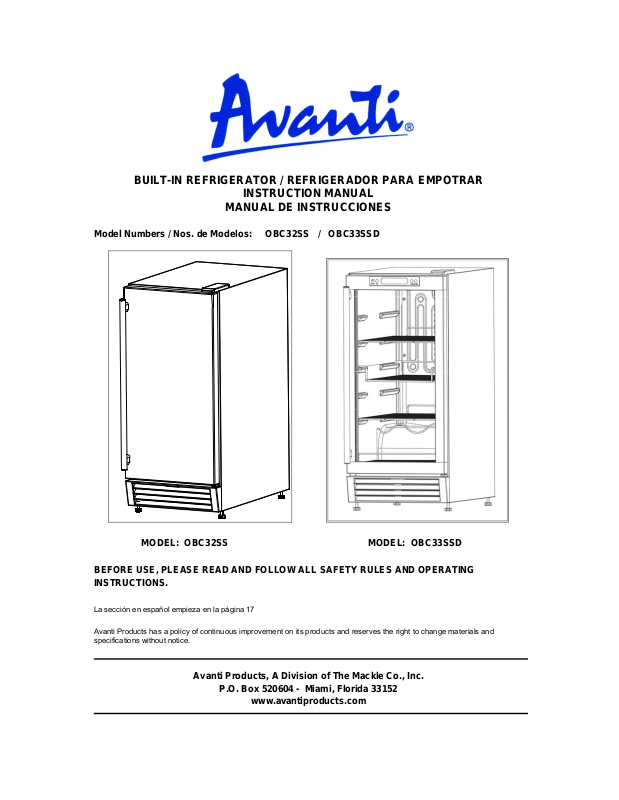

BUILT-IN REFRIGERATOR / REFRIGERADOR PARA EMPOTRAR
INSTRUCTION MANUAL
MANUAL DE INSTRUCC I O NE S
Model Numbers / Nos. de Modelos: OBC32SS / OBC33SSD
MODEL: OBC32SS MODEL: OBC33SSD
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 17
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co ., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
TABLE OF CONTENTS
Appliance Safety 3
Important Safeguides 4
Help Us Help You … 5
Parts and Features (Model: OBC32SS) 6
Parts and Features (Model: OBC33SSD) 7
Important Safety Instructions 8
Installation Instructions 8
Before Using Your Refrigerator 8
Installation of Your Refrigerator 8
Installing the Leveling Legs or Casters 9
Electrical Connection 10
Extension Cord 10
Surge Protector 10
Operating Your Refrigerator (Model: OBC32SS) 11
Reversing the Door Swing of Your Appliance (Model: OBC32SS ONLY) 11
Operating Your Refrigerator (Model: OBC33SSD) 12 - 13
Care and Maintenance 13
Cleaning Your Refrigerator 13
Power Failure 13
Moving Your Refrigerator 13
Energy Saving Tips 14
Troubleshooting Guide 14
Service for Your Appliance 15
Your Avanti Products Warranty 16
Instrucciones en Español 17 - 26
Registration Information and Registration Card 27
2
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words “DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, or property or
equipment damage.
All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the instructions are not followed.
3
IMPORTANT SAFEGUIDES
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical connections in accordance with state and local
codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with
the National Electrical Code and local codes and ordinances is required.
Do not kink or pinch the power supply cord of appliance.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
4
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new Refrigerator properly.
Keep it handy to answer your questions.
If you don't understand something or you
need more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
CAUTION:
THIS REFRIGERATOR IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
Wine Chiller. Explain why you are not pleased.
In most cases, this will solve the problem.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the Refrigerator.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your Refrigerator.
If you received a damaged Refrigerator,
immediately contact the dealer (or builder) that
sold you the Refrigerator.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
5
7
PARTS & FEATURES
MODEL: OBC32SS
6
1 Interior Light
2 Temperature Control
3 Stainless Steel Door
4 Light ON / OFF Switch
5 Front Grille
6 Leveling Legs or Casters
7 Shelves (Total 4)
6
PARTS & FEATURES
MODEL: OBC33SSD
1 Temperature Control
2 Stainless Steel Handle
3 Shelves (Total 4)
4 Interior Light
5 Glass Door
6 Leveling Legs or Casters
7 Front Grille
7
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Read all instructions before using the Refrigerator.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
Before you throw away your old Refrigerator: Take off the door. Leave the
shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR REFRIGERATOR
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
Before connecting the Refrigerator to the power source, let it stand upright for approximately
24 hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
INSTALLATION OF YOUR REFRIGERATOR
This appliance is designed to be for free standing installation or built-in (Minimum clearances:
¼” on each side, ½” at the back, and 1” on the top).
Place your Refrigerator on a floor that is strong enough to support it when it is fully loaded. To
level your Refrigerator, adjust the front leveling legs at the bottom of the Refrigerator.
Locate the Refrigerator away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
Avoid locating the unit in moist areas.
Plug the Refrigerator into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.
To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
8
INSTALLING THE LEVELING LEGS OR CASTERS.
TWO OR MORE PEOPLE REQUIRED FOR THIS PROCESS
Four casters are included with your refrigerator. They are ideal for rolling the unit from place
to place outdoors. If a mobile installation is chosen, you must install the casters.
a) Tip the unit to the left as shown in the illustration (¾ foot clearance from the floor to the top of
the unit).
b) Remove the leveling legs, and screw in one of the casters with the foot brake in the front
screw hole and one of the casters without the foot brake in the back screw hole.
c) Tip the unit to the right and repeat the steps above.
d) The unit should be level at all times, if you need to fix the level, adjust the wheel height by
turning it counter-clockwise to increase the height and clockwise to reduce it.
e) Repeat the steps on all casters until the unit is fully level.
9
ELECTRICAL CONNECTION
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.
Warning
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices / appliances
you use. The surge protector that you select must have a surge block high enough to protect the
appliance it is connected to. If you have any questions regarding the type and size of surge protector
needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your
product warranty.
REVERSING THE DOOR SWING OF YOUR APPLIANCE (MODEL OBC32SS ONLY)
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call service for reversal instructions.
10
OPERATING YOUR REFRIGERATOR (MODEL OBC32SS)
It is recommended you install the Refrigerator in a place where the ambient temperature is between
50º - 100ºF (10º - 38ºC ). If the ambient temperature is above or below recommended temperatures,
the performance of the unit may be affected. For example, placing your unit in extreme cold or hot
conditions may cause interior temperatures to fluctuate. The range of 35º - 50º F (2º - 10º C)may not
be reached.
SETTING THE TEMPERATURE CONTROL (MODEL OBC32SS – ONLY)
The unit turns on automatically once plugged in.

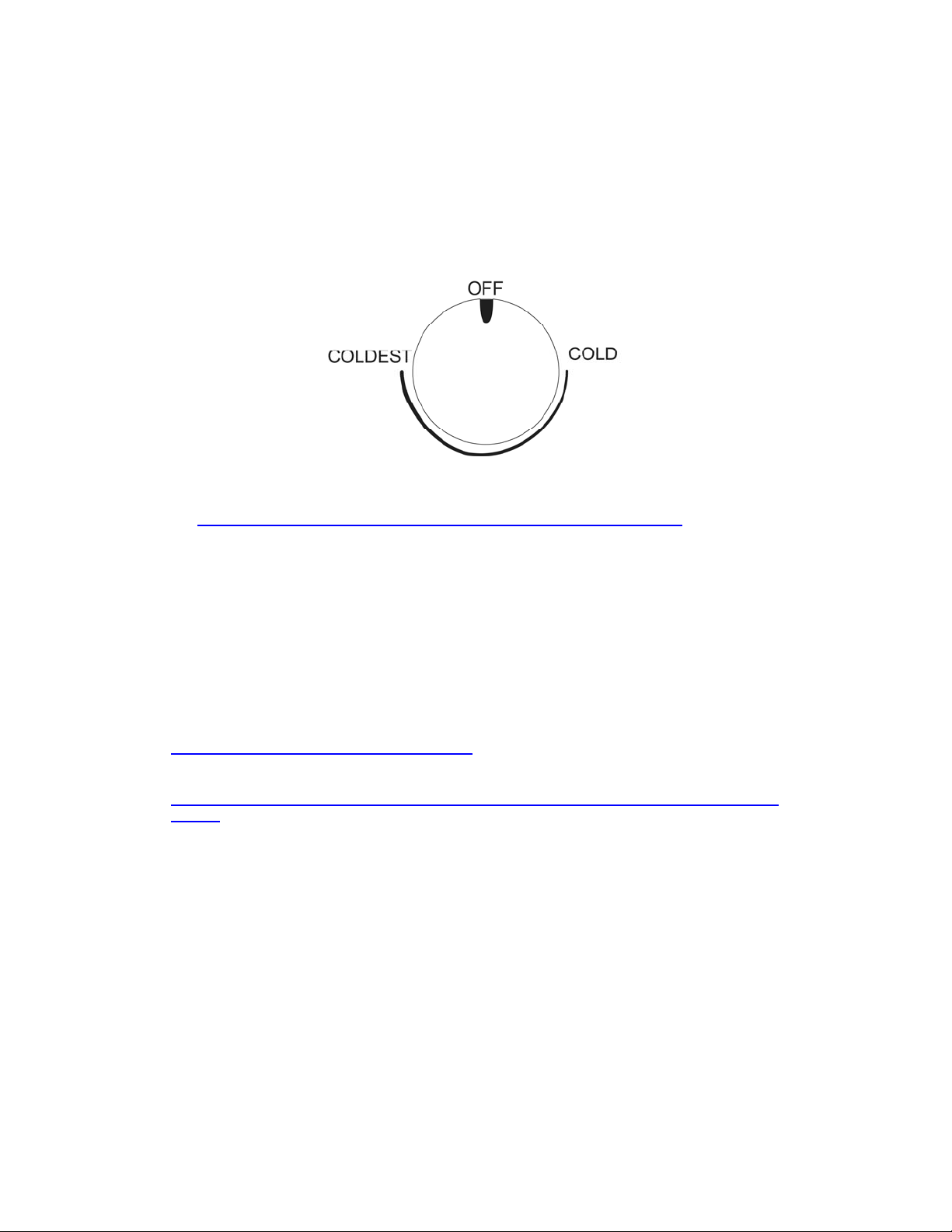

You can set the temperature as you desire by turning the temperature control dial.
The range of the temperature controls are from position “OFF” to “COLDEST” the coldest. After
24 to 48 hours, adjust the temperature control to the setting that best suits your needs. The mid
range between “COLD” and “COLDEST” should be correct for home or office use.
NOTE:
If the unit is unplugged, power lost, or turned off you must wait 3 to 5 minutes before restarting the
unit. If you attempt to restart before this time delay, the Refrigerator will not start.
INTERIOR LIGHT (MODEL OBC32SS ONLY)
The interior light with be turned ON every time the door is opened and OFF once the door is closed.
REVERSING THE OPENINGSWING OF YOUR BEVERAGE COOLER (MODEL 0BC32SS –
ONLY_
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call service for reversal instructions.
11
OPERATING YOUR REFRIGERATOR (MODEL OBC33SSD)
IMPORTANT SAFEGUARDS
As a natural result of condensation, in summer months or areas of high humidity, the glass door
may build up moisture on the outside. Just wipe it away.
It is recommended you install the Refrigerator in a place where the ambient temperature is between
50ºF - 100ºF (10º - 38ºC ). If the ambient temperature is above or below recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in
extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 36º - 64º F
(2º - 18º C)may not be reached.
CONTROL PANEL (MODEL OBC33SSD – ONLY)
The unit turns on automatically once plugged in.
Your beverage center is equipped with an electronic display that once any button is pressed the
display window will light on and will automatically light off two (2) minutes after the last button was
pressed.
CONTROL PANEL FEATURES / DESCRIPTIONS
Alarm Indicator Alarm mode: In the event there is a fault in the unit, an Alarm indicator
will appear in the area shown above on the control panel.
If at any time the following messages are shown in the display window,
consult an Avanti Products Authorized Service Center.
PROBE ERROR
LOW TEMP
HIGH TEMP
Compressor Run
Indicator
Temperature Display The set temperature and current average temperature of the unit will be
SET Button Use this button to activate the temperature setting mode and again to
Temperature
UP / DOWN
Light Switch The interior light can be operated manually by pressing the ON/OFF
When the unit’s compressor is running, the control panel will display a
moving “FAN” icon. Once the compressor stops running the icon will
also stop moving.
displayed in this area as shown above.
confirm the selected temperature setting.
Use these buttons to select the appropriate temperature. Temperature
setting will either advance or decrease each time you press the
respective button.
button on the control panel. The light will automatically turn itself OFF
after 5 minutes.
NOTE: Avoid extended use of the light as the heat generated by the light
bulb can raise the interior temperature of the unit and affect the
temperature of the items stored.
12
SETTING THE TEMPERATURE CONTROL (MODEL OBC33SSD – ONLY)
The temperature range for your Beverage Center is 36º - 64ºF (2º-18ºC).
The default temperature set at the factory is 41ºF (5ºC). Once the unit is plugged in, the default
temperature will be displayed in the digital display window.
To adjust the temperature, press the SET button, then use the UP or DOWN buttons to select the
preferred temperature. When the selected temperature is shown in the display window of the
control panel, press the SET button to confirm the setting.
Once the temperature selection has been confirmed, the actual current temperature of the unit will
be shown in the DISPLAY window on the control panel. The temperature shown will vary
depending on the amount of items stored and how frequently the door is opened.
In the event of a power outage, your unit is designed to remember the temperature setting and
will automatically return to that setting after the power has returned.
NOTE:
The temperature sensor monitors the average temperature of the unit. Cold air falls and warm air
rises, thus there will be a variation in temperature from the bottom to the top of the unit. The
bottom area of the unit will always be slightly cooler than the top area.
The temperature displayed in the control panel is an instantaneous average temperature of the
unit and there may be a variation of approximately 0 – 6ºF.
If the unit is unplugged, power lost, or turned off you must wait three (3) minutes before restarting
the unit. If you attempt to restart before this time delay, the refrigerator will not start.
INTERIOR LIGHT
The interior light can be operated manually by pressing the Light ON / OFF button on the control
panel. The light will automatically turn itself OFF after 5 minutes.
NOTE:
Avoid extended use of the light as the heat generated by the light bulb can raise the interior
temperature of the unit and affect the temperature of the items stored.
You can switch temperature display setting from Fahrenheit to Celsius degree by pushing the UP
button and hold for 10 seconds. Fahrenheit or Celsius degrees will appear in the temperature display
window .
CARE AND MAINTENANCE
CLEANING YOUR REFRIGERATOR
Turn off the power, unplug the appliance, and remove all items including shelves.
Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless
steel with steel particles and rusting may occur.
POWER FAILURE
13
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
MOVING YOUR REFRIGERATOR
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
ENERGY SAVING TIPS
Do not place the unit next to a heat source (heating vent, range, fireplace, direct sunlight, etc).
Keep the door closed as much as possible, especially in hot, humid weather.
Cover foods to reduce moisture build-up inside the appliance.
PROBLEMS WITH YOUR REFRIGERATOR?
You can solve many common Refrigerator problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Refrigerator does not operate.
Refrigerator is not cold enough. Check the temperature control setting.
Turns on and off frequently. The room temperature is hotter than normal.
The light does not work.
Vibrations. Check to assure that the Refrigerator is level.
The Refrigerator seems to make too much noise.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
A large amount of contents has been added to
the Refrigerator.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light bulb is burned out.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Refrigerator.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Refrigerator is not level.
14
The door will not close properly.
The Refrigerator is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
15
SERVICE FOR YOUR REFRIGERATOR
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti appliances. With the purchase of your Avanti
appliance, you can have the confidence that if you ever need additional information or assistance, the
Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Part Orders
800-220-5570
In-Home Repair Service
800-220-5570
Whatever your questions are about our products,
help is available.
You may order parts and accessories that will be
delivered directly to your home by personal
check, money order, Master Card, or Visa.
An Avanti Products authorized service center will
provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your appliance inside and out.
16
YOUR Avanti Products WARRANTYStaple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the unit, which
proves to be defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the unit has been installed
and operated in accordance with the
written instructions in this manual.
Avanti Products will provide you with a
reasonably similar replacement
product that is either new or factory
refurbished. In rental or commercial
use, the warranty period is 90 days.
All Avanti Appliances of 3.5 cubic feet
capacity or less must be brought/sent
to the appliance service shop for
repair.
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible
for the service labor and freight charges. In
rental or commercial use, the limited
compressor warranty is one year and nine
months. Cost to move the appliance to the
servicers’ shop and back to the user's home,
as may be required, are the user's
responsibility.
WHAT IS NOT COVERED
Content losses of food or other, due to
spoilage.
Incidental or consequential damages.
Parts and labor costs for the following will
not be considered as warranty:
Door springs, and/or frames.
Inner door panels, door rails and/or door
supports.
Light bulbs and/or plastic housing.
Plastic cabinet liners.
Punctured evaporator that voids the
warranty on the complete sealed system.
Repairs performed by unauthorized
servicers.
Shipping and handling costs associated
with the replacement of the unit.
Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
Surcharges including, but not limited to,
any after hour, weekend, or holiday
service calls, tolls, ferry trip charges, or
mileage expense for service call to remote
areas, including the State of Alaska.
Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
Replacement of house fuses or resetting
circuit breakers.
Failure of the product if it is used for other
than its intended purpose.
This warranty does not apply outside the
Continental USA.
17
INSTRUCCIONES EN ESPAÑOL
PRECAUCIÓN
Lea todas las instrucciones antes de usar su electrodoméstico.
Peligro o Precaución: Existe el riesgo que los niños queden atrapados.
Niños atrapados no son un problema del pasado. Los electrodomésticos son peligrosos
aún si solo los deja en el garaje por un par de días.
Antes de desechar su electrodoméstico o refrigerador usado: quítele las puertas. Deje
las repisas en su lugar para evitar que los niños se queden atrapados.
No permita que los niños manejen, jueguen o entren dentro del electrodoméstico.
No limpie su electrodoméstico con líquidos inflamables. Los gases pueden ocasionar
fuego o una explosión.
No guarde ni use gasolina u otros líquidos inflamables cerca de este o de cualquier otro
electrodoméstico. Los vapores pueden ocasionar fuego o explosión.
- Guarde estas instrucciones-
INSTRUCCIONES PARA LA INSTALACIÓN
ANTES DE INSTALAR SU ELECTRODOMESTICO
Retire la envoltura interna y externa.
Verifique que tenga las siguientes partes:
Antes de conectar su electrodoméstico a la corriente eléctrica, ubíquelo en posición vertical sobre
una superficie plana por lo menos por 2 horas. Esto reducirá la posibilidad de malfuncionamiento
en el sistema de enfriamiento por el manipuleo durante el transporte.
Limpie la superficie interior con agua tibia usando un trapo suave.
INSTALACION DE SU ELECTRODOMESTICO
Retire el embalaje exterior e interior. Use un trapo suave y seco para limpiar el exterior del
refrigerador completamente. Use un trapo limpio remojado en agua tibia para limpiar el interior del
refrigerador.
El air debe circular libremente frente al refrigerador. Evite colocarlos cerca de cualquier fuente de
calor o humedad, o directamente a la luz solar. La luz solar directa podría afectar el acabado, y las
fuentes de calor cercanas elevarán el consumo eléctrico.
Su refrigerador ha sido diseñado para ser usado independientemente o empotrado. Tiene
ventiladores motorizados en la parte trasera de la unidad que dirigen el calor generado por el
compresor hacia fuera y a través del frente de la unidad.
Si la unidad está empotrada, deje un espacio de ¼” en cada lado, ½” en la parte trasera, y 1” en la
parte superior.
NOTA: La unidad puede ser usada independientemente con las patas niveladoras o las ruedas de
pivotear
1Llave tipo Allen
Para reducir el riesgo de incendio, descarga
eléctrica, o daño cuando use su
electrodoméstico, siga las siguientes
precauciones.
(Para reversar la puerta) (Modelo: OBC32SS Solamente)
18
7
PARTES Y CARACTERISTICAS
MODELO: OBC32SS
6
1 Luz Interior
2 Control de Temperatura
3 Puerta de Acero Inoxidable
4 Interruptor de Luz Interior
5 Parilla Delantera
6 Patas Niveladoras o Ruedas
7 Repisas (Total 4)
19
PARTES Y CARACTERISTICAS
MODELO: OBC33SSD
1 Control de Temperatura
2 Manija de Acero Inoxidable
3 Repisas (Total 4)
4 Luz Interior
5 Puerta de Cristal
6 Patas Niveladoras o Ruedas
7 Parilla Delantera
20
INSTALACION DE LAS PATAS NIVELADORAS O RUEDAS DE PIVOTE
SE RECOMIENDA QUE SE HACE ENTRE DOS O MAS PERSONAS.
Su refrigerador viene equipada con 4 patas niveladoras. Incluido también con el refrigerador son
cuatro (4) ruedas de pivote. Son ideales para rodar la unidad de un lugar a otro en el exterior. Si
se escoge una instalación móvil, debe instalar las ruedas de pivote.
Fondo de
la unidad
Huecos para tornillos
1) Incline la unidad a la derecha de modo que quede un espacio de ¾ de pie a
la izquierda de la unidad. Pídale a alguien que le ayude a inclinar la unidad,
para evitar que se caiga sobre usted mientras instala las ruedas o las patas.
2) Retire las patas niveladoras, y atornille una de las ruedas de pivote que tiene
cierre, en el agujero frontal y luego atornille una de las ruedas de pivote que
no tiene cierre, en el agujero trasero. Guarde las patas niveladoras en un
lugar seguro donde pueden ser ubicados nuevamente si es necesario.
3) Repita los dos pasos previos con excepción de que ahora inclinará la unidad
a la izquierda para atornillar las dos ruedas restantes.
4) Las ruedas están instaladas.
5) La unidad debe estar nivelada. Si las condiciones del piso no permiten que la
unidad esté nivelada, ajuste la rueda girándola en sentido anti-horario para
aumentar la altura y en sentido horario para reducir la altura.
El procedimiento anterior puede usarse si se instala las patas o las ruedas.
21
Conexión Eléctrica
EL USO INAPROPIADO DEL ENCHUFE A TIERRA PUEDE OCASIONAR RIESGO DE UN
CHOQUE ELECTRICO. SI EL CORDON SE DAÑASE, LLEVELO A UN CENTRO DE
SERVICIO AUTORIZADO POR AVANTI PRODUCTS PARA QUE SE REEMPLACE.
Para su seguridad, la electrodoméstica debe estar apropiadamente conectada a tierra. El cordón
eléctrico de su refrigerador está equipado con un enchufe de tres puntas, el cual encaja
perfectamente en los receptáculos/enchufes de pared de tres puntas estándar, para minimizar la
posibilidad de un choque eléctrico.
Bajo ninguna circunstancia corte o retire la tercera punta (cable a tierra) del enchufe del cordón
eléctrico.
Nunca use un cable de extensión para conectar la unidad a la electricidad.
Nunca use un adaptado con enchufe de solo 2 puntas.
Si solo puede conectar la unidad a un receptáculo/enchufe de pared de 2 puntas, comuníquese
con un electricista calificado para que reemplace ese receptáculo/enchufe de pared por uno de 3
puntas, de acuerdo con los códigos de electricidad aplicables.
Esta máquina de hacer hielo requiere un receptáculo/enchufe de pared de tres puntas estándar
de 115/120 voltios ac.~/60hz.
Para prevenir cualquier daño físico o lesión, el cordón debe ser asegurado detrás de la unidad y
no estar expuesto o colgando.
ADVERTENCIA
Cable de Extensión
Debido al posible riesgo de seguridad causado bajo ciertas circunstancias, se recomienda
firmemente que no use un cable de extensión para este electrodoméstico. Sin embargo, si no tiene
otra opción mas que usar un cable de extensión, asegúrese que este sea un cable de extensión para
electrodomésticos que este listado bajo UL/CUL, que tenga enchufe y receptáculo para enchufe de
tres puntas (cable a tierra) y que la capacidad del cordón eléctrico sea de 115 voltios y no menos de
10 amperios.
Protector contra variaciones de corriente eléctrica (Surge Protector).
La mayoría de electrodomésticos utilizan una series de paneles de control para operar. Estos
paneles son muy susceptibles a las variaciones de corriente eléctrica, las cuales causan que estos se
dañen o destruyen.
Si vive en un área o ciudad done hay muchas variaciones de corriente o apagones, se recomienda
que utilice un protector contra variaciones de corriente para todos los electrodomésticos y aparatos
eléctricos. El protector que elija debe bloquear una variación de electricidad alta para poder proteger
el electrodoméstico al cual está conectado. Por favor contáctese con un electricista licenciado en su
área si tuviera preguntas en referencia al tipo y tamaño de protector que necesita.
Daños debido a variaciones de electricidad no se consideran un defecto del fabricante y podrían
anular la garantía.
COMO CAMBIAR LA DIRECCION DE APERTURA DE LA PUERTA
(MODELO OBC32SS SOLAMENTE)
En caso de que necesite cambiar el lado de apertura de la puerta, por favor consulte al servicio posventa de su localidad.
22
COMO MANEJAR SU REFRIGERADOR (MODELO OBC32SS)
Se recomienda que Ud coloque su refrigerador en un lugar donde la temperatura ambiental se
mantenga entre 50º - 100ºF (10º - 38ºC)..
Si la temperatura ambiental es mayor o menor que la temperatura recomendada, el funcionamiento
de la unidad podria ser afectado. Por ejemplo, si mantiene la unidad en condiciones de calor o frío
extremo, puede ocasionar que la temperatura interna fluctúe y que no se alcance el rango de 35º 50ºF (2º - 10ºC).
Su refrigerador ha sido diseñado con un rango de temperatura de 35º - 50ºF (2º - 10ºC).
IMPORTANTE: No enchufe el refrigerador hasta que hayan pasado 24 horas de instalar la unidad en
su lugar. No seguir este consejo podría dar como resultado que la unidad funcione
inadecuadamente.
El refrigerador tiene un botón giratorio de control de temperatura (termostato) dentro de la unidad que
está marcado con las configuraciones.
Con el fin de aumentar el enfriamiento. Adicionalmente, esta unidad emplea un calentador dentro del
gabinete y está diseñada para ser usada al aire libre.
OFF APAGADO
COLD FRÍO
COLDEST MÁS FRÍO
AJUSTAR LA TEMPERATURA (MODELO: OBC32SS – SOLAMENTE)
El refrigerador se enciende automáticamente cuando se le conecta.
Inicialmente fije el control de temperatura al punto medio entre las posiciones “COLD” (FRIO) y
“COLDEST” (MAS FRIO). El compresor funcionará continuamente unas pocas horas hasta que
la temperatura del interior de la unidad se estabilice. Cuando la unidad se estabilice, el
compresor funcionará normalmente.
Cuando la unidad está conectada por primera vez, se recomienda que no ponga ningún
comestible adentro hasta que la temperatura de la unidad se estabilice.
Cuando la temperatura de la unidad se estabilice, ajuste el termostato en sentido horario entre
las posiciones “COLD” (FRIO) y “COLDEST” (MAS FRIO).
Ajuste la posición del control a la temperatura adecuada para su uso.
23
NOTE:
Si la temperatura ambiental está sobre 40ºF (5ºC), gire el control de temperatura en sentido
horario a la posición apropiadamente entre “COLD” y “COLDEST” para enfriar los alimentos.
Si la temperatura ambiental está debajo de los 25ºF (-4ºC), no use la unidad para almacenar
alimentos / comestibles.
Si usted desenchufa el refrigerador o se corta el suministro eléctrico, deje que pasen un mínimo
de 8 minutos antes de volver a encender o enchufar la unidad. La unidad no funcionará
adecuadamente antes de un mínimo de 8 minutos.
LUZ INTERIOR
Su refrigerador está equipada con una luz interna para que usted pueda ver fácilmente el contenido
de su refrigerador. Cuando la puerta está abierta, la luz se encenderá y cuando está cerrada, la luz
se apagará.
COMO MANEJAR SU REFRIGERADOR (MODELO: OBC33SSD)
PRECAUCIONES IMPORTANTES
La parte externa de la puerta de vidrio puede mostrar signos de humedad durante los meses de
verano o en áreas de alta humedad, esto es el resultado natural de la condensación.
Se recomienda que Ud coloque su refrigerador en un lugar donde la temperatura ambiental se
mantenga entre 50º - 100ºF (10º - 38ºC).
Si la temperatura ambiental es mayor o menor que la temperatura recomendada, el funcionamiento
de la unidad podría ser afectado. Por ejemplo, si mantiene la unidad en condiciones de calor o frío
extremo, puede ocasionar que la temperatura interna fluctúe y que no se alcance el rango de 36º 64ºF (2º - 18ºC).
Su refrigerador ha sido diseñado con un rango de temperatura de 34º - 43ºF (1º - 6ºC).
IMPORTANTE: No enchufe el refrigerador hasta que hayan pasado 24 horas de instalar la unidad en
su lugar. No seguir este consejo podría dar como resultado que la unidad funcione
inadecuadamente.
PANEL DE CONTROLES (MODELO: OBC33SSD – SOLAMENTE)
Su refrigerador está equipado con una pantalla electrónica, con cual se configura y monitorea la
temperatura de su refrigerador. La pantalla electrónica alumbrará en cuanto se oprima cualquier
botón y apagará automáticamente dos minutos después.
24
CARACTERISTICAS – PANEL DE CONTROLES
1
Indicador de ALARMA
2
Indicador de función del
compresor
3
Indicador de temperatura
4
Interruptor de Luz
5
Botón de configuración
6
Pantalla electróni ca
7
Botónes para configurar
la temperatura
AJUSTAR LA TEMPERATURA (MODELO: OBC33SSD – SOLAMENTE)
El rango de la temperatura de su refrigerador es 36º - 64ºF (2º-18ºC).
La temperatura pre-programada por la factoría es 41ºF (5ºC).
Para ajustar la temperatura, presione el botón “SET”, luego use los botones (▲) o (▼) para
graduar a la temperatura preferida. Cuando la temperatura correcta esta mostrada en la pantalla
electrónica, presione el botón “SET” otra vez para confirmar la configuración.
En cuanto la configuración está confirmada, la temperatura actual del interior de la unidad estará
mostrada en la pantalla electrónica. La temperatura actual de la unidad variará dependiendo del
contenido almacenado en su refrigerador y la frecuencia que se abre la puerta.
Su refrigerador ha sido diseñado para “recordar” la última temperatura configurada. Si hay un
apagón o cualquier corte del suministro eléctrico, la unidad automáticamente regresará a la
configuración de temperatura anterior cuando vuelva la electricidad.
NOTA:
El sensor de temperatura registra la temperatura promedio de la unidad. El aire frío cae y el aire
tibio se eleva, y habrá una variación de la temperatura desde la parte más baja hasta la parte
más alta de la unidad. La temperatura en la parte baja de la unidad siempre será un poco más
fría.
La temperatura mostrada en la pantalla electrónica es la temperatura promedio instantánea de la
unidad y podría haber una variación de aproximadamente 0 a 6 grados
Si usted desenchufa el refrigerador o se corta el suministro eléctrico, deje que pasen un mínimo
de 8 minutos antes de volver a encender o enchufar la unidad. La unidad no funcionará
adecuadamente antes de un mínimo de 8 minutos.
En caso haya una falla en la unidad, una indicación de
ALARMA aparecerá en la pantalla.
En el modo ALARMA; la unidad hará un sonido de BEEP y
mostrará un mensaje de alarma.
Si cualquiera de los siguientes mensajes está mostrado en la
pantalla electrónica consulte la sección de Problemas de su
refrigerador con un técnico autorizado por Avanti Products:
PROBE ERROR: (ERROR DE DETECCION)
LOW TEMP: (TEMPERATURA BAJA)
HIGH TEMP: (TEMPERATURA ALTA)
Cuando el compresor de la unidad esté funcionando, el tablero
de control mostrará un icono en movimiento representando un
ventilador en funcionamiento. Cuando el compresor no está
funcionando el icono también detendrá.
Ambas temperaturas (la corriente y la configurada) serán
mostradas en la panta lla electrónica.
La luz interior se opera manualmente presionando el botón en el
panel de controles. La luz se apagará automáticamente después
de 5 minutos.
Presione este botón para configurar la temperatura a su gusto.
La pantalla electrónica muestra todas las condiciones corrientes
de su refrigerador.
Para configurar la temperatura a su gusto, presione el botón
apropiado (▲) o (▼). La temperatura mostrada aumentará o
bajará por un grado cada vez que presione el botón respectivo.
25
NOTA:
Si la temperatura ambiental está sobre 40ºF (5ºC), gire el control de temperatura en sentido
horario a la posición apropiadamente entre “COLD” y “COLDEST” para enfriar los alimentos.
Si la temperatura ambiental está debajo de los 25ºF (-4ºC), no use la unidad para almacenar
alimentos / comestibles.
Si usted desenchufa el refrigerador o se corta el suministro eléctrico, deje que pasen un mínimo
de 8 minutos antes de volver a encender o enchufar la unidad. La unidad no funcionará
adecuadamente antes de un mínimo de 8 minutos.
LUZ INTERIOR
La luz interior se opera manualmente presionando el botón en el panel de controles. La luz se
apagará automáticamente después de 5 minutos.
NOTA:
Evite el uso extendido de la luz interior pues el calor generado puede elevar la temperatura de los
contenidos almacenados.
Ud puede cambiar de grados Centígrados a Fahrenheit o viceversa, oprimiendo el botón marcado
“UP” y aguatándalo por 10 segundos . En la pantalla digital aparecerán los grados Fahrenheit o
Centígrados.
CUIDADO Y MANTENIMIENTO
Limpieza
Para limpiar el interior, use un paño suave con una solución de una cucharada de bicarbonato de
sodio por cada cuarto de agua, o una solución de espuma de jabón suave, o un detergente suave.
Para lavar las rejillas, sáquelas deslizándolas con cuidado, y use una solución de detergente suave;
luego séquelas con un paño suave. Limpie el exterior con un paño húmedo suave y un poco de
detergente suave o productos de limpieza para electrodomésticos.
Corte de corriente
La mayoría de los cortes de corriente se corrigen en una o dos horas y no afectarán las temperaturas
de su vinera. Sin embargo, Ud. deberá reducir la cantidad de veces que abra la puerta cuando la
corriente esté apagada.
Si Ud. se muda
Saque o asegure todos los artículos dentro de su vinera. Para evitar que los tornillos nivelantes se
averíen, gírelos completamente hacia la base.
26
PROBLEMAS CON SU REFRIGERADOR
Error mostrado en la pantalla Descripción
“PROBE ERROR”
(ERROR DE DETECCION)
“LOW TEMP”
(TEMPERATURA BAJA)
“HIGH TEMP”
(TEMPERATURA ALTA)
Este mensaje es una indicación que el sensor
del termostato ha funcionado mal.
Pónganse en contacto con el departamento
de servicio autorizado para que le reemplacen
el sensor
Este mensaje es una indicación que la
temperatura actual es más baja que la
temperatura configurada.
Este mensaje es una indicación que la
temperatura actual es mayor a la temperatura
configurada.
Causas posibles son:
• La puerta no está totalmente cerrada
• El refrigerante podría haber goteado
• La calentadora no puede estar funcionando
apropiadamente y debe ser reemplazada.
Si tiene certeza de que la puerta no es la
causa del problema, pónganse en contacto
inmediatamente con el departamento de
servicio.
27
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti products. Please fill out this form and return it within 100
days of purchase and receive these important benefits to the following address:
Avanti Products, A Division of The Mackle Co ., Inc.
P.O. Box 520604 - Miami, Florida 33152 USA
Protect your product:
We will keep the model number and date of purchase of your new Avanti Products product on
file to help you refer to this information in the event of an insurance claim such as fire or theft.
Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number Own Rent
Did You Purchase An Additional Warranty:
Extended Food Loss None under 18 18-25 26-30
Reason For Choosing This Avanti Product:31-35 36-50 over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase Married Single
this product. Is This Product Used In The:
Price Home Business
Product Features How Did You Learn About This Product:
Avanti Products Reputation Advertising
Product Quality In Store Demo Personal Demo
Salesperson Recommendation Other_______________________________
Friend/Relative Recommendation Comments____________________________
Warranty _____________________________________
