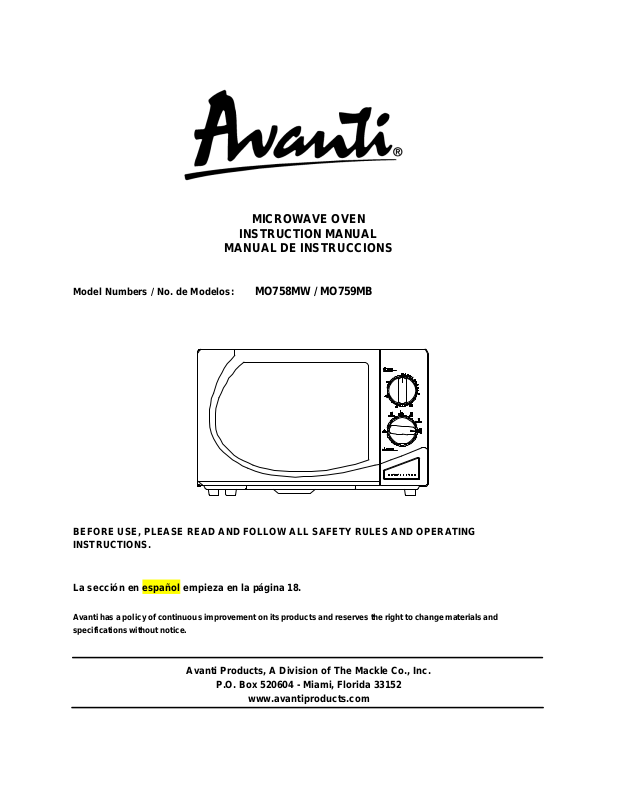

Avanti MO758MW, MO759MB User Manual
MICROWAVE OVEN
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONS
Model Numbers / No. de Modelos: MO758MW / MO759MB
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en es pañol empieza en la página 18.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
2
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100 days of
purchase and receive these important benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152 USA
? Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to help
you refer to this information in the event of an insurance claim such as fire or theft.
? Promote better products:
We value your input. Your responses will help us develop products designed to best meet your
future needs.
--------------------------------------------------------(detach here)----------------------------------------------------------
Avanti Registration Card
__________________________________ ______________________________________
Name Model # Serial #
__________________________________ ______________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number ?Own ?Rent
Did You Purchase An Additional Warranty: Your Age:
?Extended ?None ?under 18 ?18-25 ?26-30
Reason For Choosing This Avanti Product: ?31-35 ?36-50 ?over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase ?Married ?Single
this product. Is This Product Used In The:
?Price ?Home ?Business
?Product Features How Did You Learn About This Product:
?Avanti Reputation ?Advertising
?Product Quality ?In Store Demo ?Personal Demo
?Salesperson Recommendation ?Other_______________________________
?Friend/Relative Recommendation Comments____________________________
?Warranty _____________________________________
?Other_______________________ _____________________________________
3
4
HELP US HELP YOU…
Read this guide carefully.
It is intended to help you operate and maintain
your new microwave oven properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some steps
to follow for further assistance.
FIRST, contact the people who serviced your
microwave oven. Explain why you are not
pleased. In most cases, this will solve the
problem.
Write down the model and serial numbers.
You'll find them on a label located on the rear wall
of the microwave oven.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your microwave oven.
If you received a damaged microwave oven,
immediately contact the dealer (or builder) that
sold you the microwave oven.
Save time and money. Before you call for service,
check the Troubleshooting Guide. It lists causes
of minor operating problems that you can correct
yourself.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
5
PARTS AND FEATURES
6
3
2
7
5
4
8
1
1. DOOR SAFETY LOCK SYSTEM
2. OVEN WINDOW
3. OVEN AIR VENT
4. SHAFT
5. ROLLER RING
6. GLASS TRAY
7. CONTROL PANEL
8. DOOR RELEASE BUTTON
6
TABLE OF CONTENTS
Registration Information 2
Help Us Help You … 4
Parts And Features 5
Important Safety Instructions 7
Installation Instructions 8
Before Using Your Appliance 8
Installation Of Your Appliance 8
Safety Precautions 8
Electrical Connection 10
Operating Your Appliance 10
Operation Procedure 11
Control Panel 12
Operation 13
Cooking Techniques 14
Care And Maintenance 14
Cleaning Your Appliance 14
Troubleshooting Guide 15
Service For Your Appliance 15
Limited Warranty 16

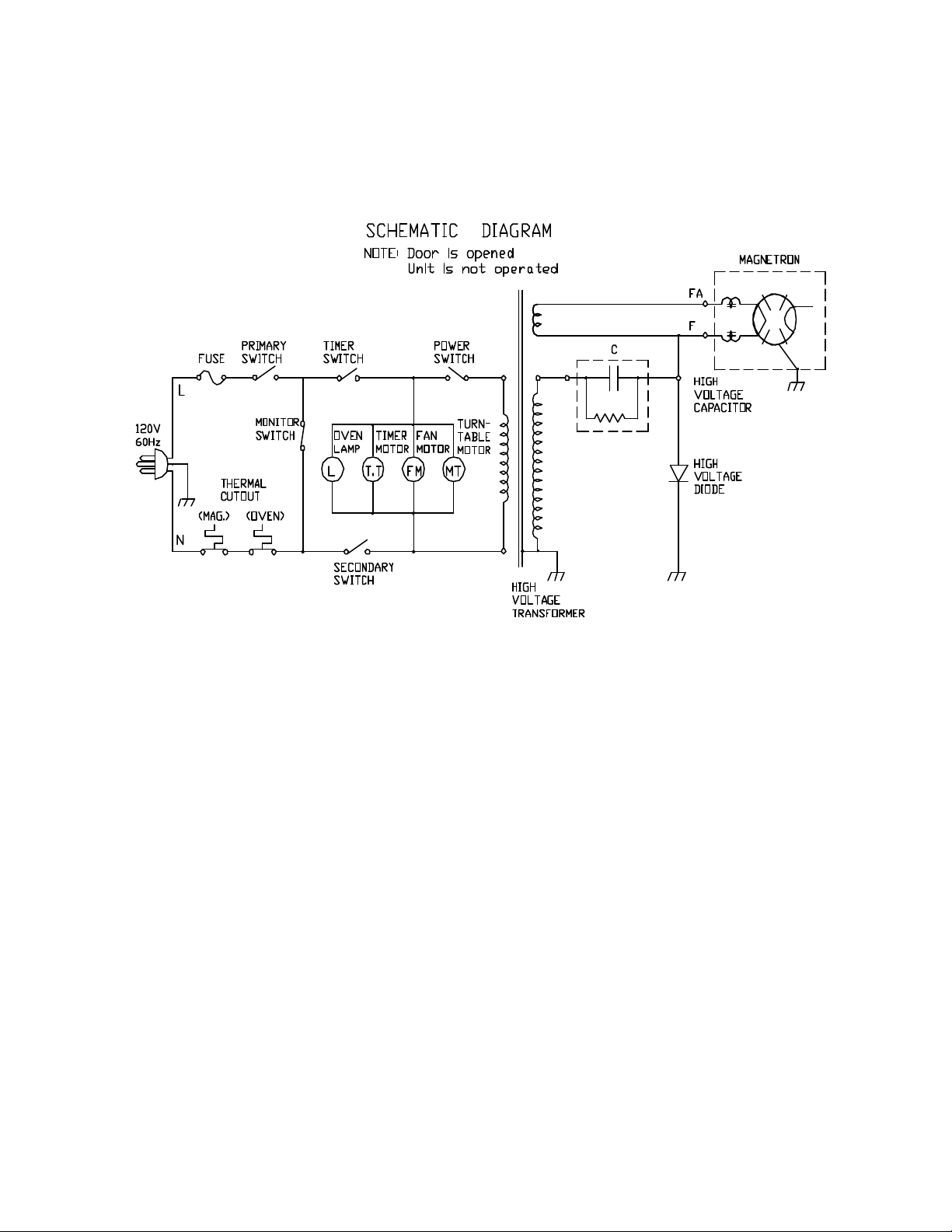

Wiring Diagram 17
INSTRUCCIONES EN ESPAÑOL 18~26
7
IMPORTANT SAFETY INSTRUCTIONS
?WARNING ?
? Read all instructions before using the appliance.
? Some products such as whole eggs and sealed containers-(for example, closed glass jars)
may explode and should not be heated in microwave oven.
? Use this microwave oven only for its intended use as described in this manual.
? Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
? As with any appliance, close supervision is necessary when used by children.
? Do not operate this microwave oven if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
? To reduce the risk of fire in the oven cavity:
? Do not overcook food. Carefully attend microwave oven if paper, plastic, or
combustible materials are placed inside the oven to facilitate cooking.
? Remove wire twist -ties from bags before placing bag in oven.
? If materials inside the oven should ignite, keep oven door closed, turn oven off at the
wall switch, or sh ut off power at the fuse or circuit breaker panel.
? Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
? Only qualified service personnel should service this appliance. Contact the nearest
authorized service facility for examination, repair or adjustment.
? Do not cover or block any openings on this appliance.
? Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and
chlorides). Vapors from such corrosive chemicals may interact with the contact and springs
of the safety interlock switches thereby rendering them inoperable.
? Do not immerse cord or plug in water.
? Keep cord away from heated surfaces.
? Do not let cord hang over edge of table or counter.
? Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or
explosion.
? Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
To reduce the risk of fire, electrical shock, or
injury when using your appliance, follow these
basic precautions:
8
INSTALLATION INSTRUCTIONS
? BEFORE USING YOUR AP PLIANCE
? Remove the exterior and interior packing.
? Check to be sure you have all of the following parts:
? Glass Tray
? Roller Ring
? Instruction Manual
? Inspect the oven after unpacking for any visual damage such as:
? Misaligned Door
? Damaged Door
? Dents or Holes in Door Window and Screen
? Dents in Cavity
If any of the above is visible, DO NOT use the oven.
? INSTALLATION OF YOUR APPLIANCE
? When positioning the microwave oven, it should be set on a flat, steady surface.
? Do not block air vents. If they are blocked during operation, the oven may overheat and
eventually cause oven failure.
? Poor television reception and radio interference may result if the oven is located close to a TV,
radio, antenna, or antenna wire. Position the oven as far from them as possible.
? Clean the interior surface with lukewarm water using a soft cloth.
? Keep the oven away from hot air, steam or splashing liquids when choosing a place to locate it,
otherwise, the unit’s operation may be adversely affected, causing it to break down.
? Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption.
? Plug the appliance into an exclusive properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.
? DO NOT place anything on the top of the oven.
? Keep the oven at least 5 inches away from both sidewalls and away from rear wall to ensure the
proper ventilation.
? DO NOT remove the turn-table drive shaft.
? SAFETY PRECAUTIONS
General Use
? DO NOT attempt to tamper with or make any adjustments or repairs to door, control panel or any
other part of the oven. DO NOT remove outer panel from oven. Repairs should only be done by
qualified service personnel.
? DO NOT operate the oven empty. The microwave energy will reflect continuously throughout the
oven if no food or water is present to absorb energy.
? If a fire occurs in the oven, turn to “0” and LEAVE THE DOOR CLOSED. Disconnect the power
cord, or shut off power at the fuse or circuit breaker panel.
? DO NOT attempt to dry clothes, newspapers or other materials in oven. They may catch on fire.
? DO NOT use recycled paper products, as they may contain impurities, which may cause sparks
and/or fires when used.
? DO NOT hit or strike control panel. Damage to controls may occur.
