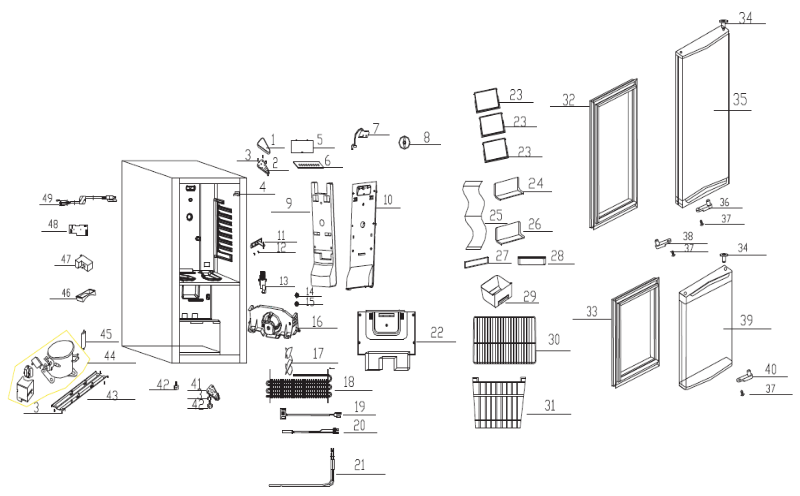

Avanti FFBM92H3S Part List
NO Part name Part code
C0817.4-3
C0817.1.2
C1323.1.2(001H)/A
B0213.1.2(B1)
49 POWER CORD 115V/60HZ Q/MLKT-138A/H2.CB7B.Y3
1 UPPER HINGE COVER C0507.1-1
2 UPPER HINGE C0507.1.3
3 BOLT B0343.1-6
4 LAMP SWITCH 115V/60HZ B9911.4.1.1/D
5 LAMP GUARD C0817.4.2-1
6 LED LAMP C0817.4.2
7 POTENTIOMETER C0817.4.8
8 Thermostat knob
9 AIR ROAD
10 AIR MASK
11 MIDDLE HINGE
12 BOLT ASSY OF MIDDLE HINGE B0343.1-6
13 FAN MOTOR C0817.4.5
14 MOTOR UPPER GASKET C0817.1-11
15 MOTOR BOTTOM GASKET B0543.4.25-3
16 FAN SUPPORT C0817.4-2(A1)
17 FAN BLA DE BCD-198W.4.1
18 EVAPORATOR C1323.3.2
19 Defrosting protector C1414.4.2
20 temperature fuse C0472.4.4/BD
21 DEFROST HEATER C0817.4.3
22 FREEZER AIR COVER C0817.1-5
23 REFRIGERATOR SHELF C0817.5-1
24 REFRIGERATOR DOOR UPPER RA CK C1323.5-10
25 CAN RACK(I) C0817.5-4
26 REFRIGERATOR DOOR MIDDLE RACK C1323.5-9
27 CAN RACK(II) C1323.5-11
28 BOTTOM BOTTLE BOX C0817.5-2
29 VEGETABLE BOX C0965.5-2
30 WIRE SHELF C0817.5-5
31 FREEZER DRAWER C0817.5-3
32 REFRIGERATOR DOOR GASKET C1323.20.2
33 FREEZER DOOR GASKET C1323.21.2
34 BUSH BCD-181C.2.1-4B
35 REFRIGERATOR FOAMED DOOR E1611.20.1
36 DOOR STOPPER B0376.2-1
37 SCREW Q/HBT-022
38 DOOR STOPPER (LEFT) C0507.2-1
39 FREEZER FOAMED DOOR E1418.21.1
40 DOOR STOPPER BCD-185E.2.3-2B
41 LOWER HINGE C0909.1.2
42 ADJUSTMENT FOOT B0501.1-2
43 COMPRESSOR PLATE C1322.1.3
44 COMPRESSOR HYS69MKU42 a
45 FILTER Q/MLKT-211
46 DRAIN TRAY B0901.1-20
47 TERMINAL BLOCK ENCLOSURE C0943.4-2
48 Control board C1416.4.1
