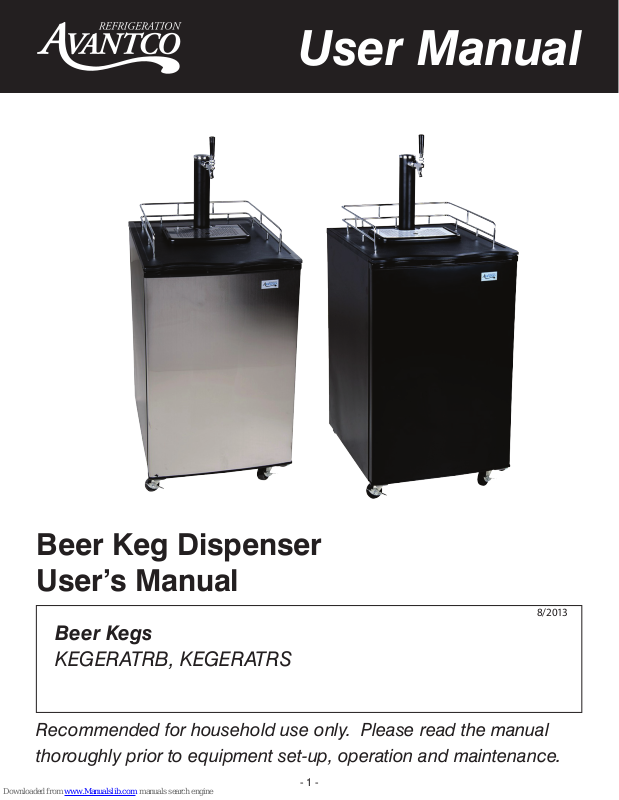

Avantco KEGERATRB, KEGERATRS User Manual

User Manual

Beer Keg Dispenser
User’s Manual

Beer Kegs

KEGERATRB, KEGERATRS

Recommended for household use only. Please read the manual
thoroughly prior to equipment set-up, operation and maintenance

8/2 013

.

- 1 -

User Manual

Safety Precautions

Read all of the instructions before using this appliance. When using this appliance, always exercise basic
safety precautions, including the following:

• Use this appliance only for its intended purpose as described in this operation manual.

• This appliance must be properly installed in accordance with the installation instructions before it is used.
See the installation section for more details.

• This appliance must be connected to a proper electrical outlet with the correct electrical supply.

• Proper grounding must be ensured to reduce the risk of shock and fire. Do not cut or remove the
grounding pin! If you do not have a three-prong electric receptacle, have a certified electrician install the
proper outlet. The wall receptacle must be properly grounded.

• Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull straight out
from the outlet.

• Immediately replace worn power cords or loose plugs. If the cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• To reduce the risk of electric shock or fire, do not use extension cords or adapters to connect the unit to an

electrical power source.

• Unplug your appliance before cleaning or making any repairs.

• We suggest that a certified technician perform the service if for any reason this product requires service.

• If your old appliance is being discarded, we recommend that you remove the door and leave the shelves in
place. This will reduce the possibility of danger to children.

• This appliance should not be recessed or built into an enclosed cabinet. It is designed for freestanding

installation only.

• Do not operate your appliance in the presence of explosive fumes.

• Do not tamper with the controls.

• Do not operate this appliance when parts are missing or broken.

• This appliance is best suited for household use.

• This appliance is designed for indoor use only and should not be used outdoors.

• To reduce the risk of injury, do not allow children to play in or on the appliance. Close supervision is

necessary when the appliance is used near children.

• Do not run cord over carpeting or other heat insulators. Do not cover the cord. Keep cord away from traffic
areas, and do not submerge in water. DO NOT attempt to operate this unit with a damaged cord or plug.

• DO NOT roll the Beer Keg Dispenser with loaded beer kegs on carpeted surfaces.

• When transporting the refrigerator, keep the unit in the upright position. Do not tilt the appliance beyond 45°

or place the unit upside down.

- 2 -

User Manual

Beer

Tower

8.5"

24.75"

High-Pressure Valve

CO² Bottle
Shut Off Safely

Keg
Coupler

9"

CO² Line

15.5"

13.5"

Single-Gauge

Valve

23"

Beer Keg
(Not Included)

CO² Tank

15.5"

Important Safety Precautions for CO2 (Carbon Dioxide) Gas

• CO2 gas can be dangerous! CO2 cylinders contain high-pressure compressed gas, which can be
hazardous if not handled properly. Make sure you read and understand all the procedures for the CO2

cylinders before installation.

• Always connect the CO2 cylinder to a regulator! Failure to do so may cause an explosion resulting in
possible death or injury when the cylinder valve is opened.

• Never connect the CO2 cylinder directly to the product container.

• Always follow the correct procedures when changing cylinders.

• Never drop or throw a CO2 cylinder.

• Always keep CO2 cylinders away from heat. Store extra cylinder at a cool place (preferably lower than
70°F). Securely fasten with a chain in an upright position when storing.

• Always ventilate and leave the area immediately if CO2 leakage has occurred!

• There are two safety devices in the pressure system in the form of a valve. One safety feature is on the CO2
bottle. The second is on the regulator.

• Never attempt to refill CO2 cylinder yourself. CO2 tanks can be refilled at locations such as welding supply
shops, party stores, fire supply shops, or where kegs are purchased.

Beer Line

Dispenser

23"

CO² Regulator
Low Pressure

- 3 -

User Manual

Accessories

Qty

Accessories

Qty

1. Keg Coupler

1

14. Keg Base Board

1

2. Back Flow Stopper

1

15. Metal Washer

4

3. Rubber Washer

1

16. Caster with Brake

2

4. CO2 Rubber Directional Washer

1

17. Caster

2

5. Beer Tower Washer

1

18. CO2 Tank Strap

1

6. Beer Tower Tap/Beer Hose Assembly

1

19. Air hose Wing Nut Washer

1

7. CO2 Regulator

1

20. Air Hose

1

8. High Pressure Washer

1

21. Air Hose Connector Washer

1

9. CO2 Tank Valve

1

22. Beer Tap Wrench

1

10. Guard Rail

1

23. Regulator Wrench

1

11. Drip Pan Top

1

24. Beer Tower Hole Cover

1

12. Drip Pan

1

25. Extra Washers (3, 4, 8, 19, 21)

1

13. Rubber Foot

4

Parts Diagram

H

- 4 -
