Avantco IC18DB User Manual

These Avantco Induction cookers are safer

than conventional countertop ranges since

there's no open ame or exposed burner--

plus they heat much faster too!

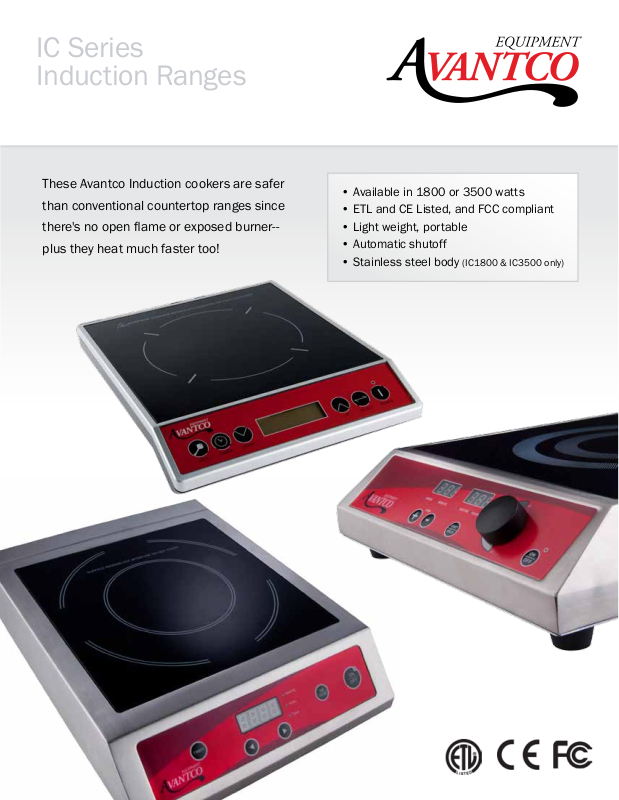

IC Series
Induction Ranges

• Available in 1800 or 3500 watts

• ETL and CE Listed, and FCC compliant

• Light weight, portable

• Automatic shutoff

• Stainless steel body

(IC1800 & IC3500 only)

IC18DB- Double Countertop
Induction Range

Double Countertop Induction Range 120V

Features

• 120V, 1800W

• Independantly operating hobs cook two different
foods at once

• Adjustable cooking temperature and timer

• Simple, 3-function controls

• 60 Second cool down fan

• Keypad locking feature prevents accidental timer

and temperature changes

• Warning beep when a non-induction pan is used

Description

Cook your customers' favorite dishes quickly with this Avantco
IC18DB double countertop induction range/cooker. This unit
features dual hobs that operate independently of each other,
allowing you to cook two different dishes at once. The left hob
operates at 300W to 1000W and the right hob operates at
300W to 800W. The total 1800W of power cooks food evenly at
temperatures ranging from 140 degrees Fahrenheit to 460 degrees
Fahrenheit, in 30 degree adjustable increments. The built-in timer
can be set between 5 and 180 minutes in 5 minute increments.
With only three functions, the controls are extremely simple for any
employee to use. Just pick your wattage and cooking temperature,
then set the timer and you are ready to cook!

This unit features a 60 second cool down fan and a lock button to
prevent accidental cooking temperature and cooking time changes.
Simply hold the "Lock" button for 3 seconds to initiate. To cut down
on kitchen mistakes and ensure your food is cooking properly, the
Avantco IC18DB will beep when a non-induction pan is put on the
hob. This unit is compatible with pans 4 3/4" to 10 1/4" in diameter.
This unit requires a 120V electrical connection and comes with a 5
ft. cord and NEMA 1-15P plug. It is ETL Listed.

Technical Data

Dimensions 26¼" W x 15½" D x 2½" H

Watts - Left Hob 300 - 1000W

Watts - Right Hob 300 - 800W

Voltage/Power 120V

Frequency 60 Hz

Temperature 140

Timer

(5 min. increm ents) 5 - 180 minutes

Weight 7.55 lbs.

o

F - 460oF
