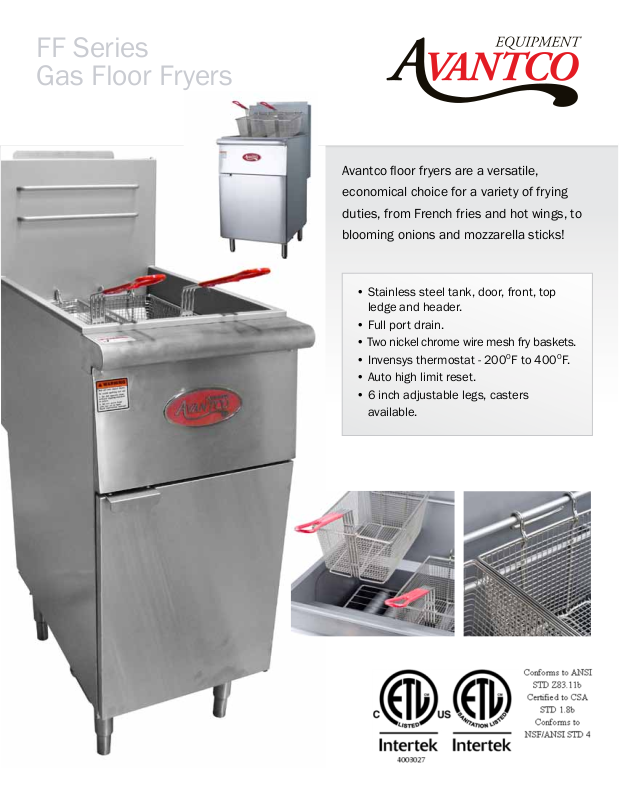

Avantco FF300 User Manual

Avantco oor fryers are a versatile,

economical choice for a variety of frying

duties, from French fries and hot wings, to

blooming onions and mozzarella sticks!

FF Series
Gas Floor Fryers

• Stainless steel tank, door, front, top
ledge and header.

• Full port drain.

• Two nickel chrome wire mesh fry baskets.

O

• Invensys thermostat - 200

F to 400OF.

• Auto high limit reset.

• 6 inch adjustable legs, casters
available.

Features

• All stainless steel fry tank, 40 lb. capacity

• Stainless steel front, top ledge and header

• 1 1/4 ball type - full port drain

• Cool zone in fry tank

• Three (30,000) BTU heat exchange tubes
with high heat bafes, total 90,000 BTU

• Double rod basket hanger

• Stainless steel door with integral liner

• Smooth nish, high grade G90 galvanized
sides and back

• Two nickel chrome wire mesh fry baskets - red
plastic coated handles

• Tube rack to rest fry baskets is nickel plated

• Invensys thermostat - 200

• Auto high limit reset

• 6 inch adjustable legs, casters available

• Warranty: 1 year parts and labor

O

F to 400OF

Three Tube Gas Floor Fryer Natural Gas or Propane

FF300
Three Tube Gas Floor Fryer

Description

The Avantco FF300 Floor Fryer is a three tube,
40 lb. capacity free standing gas fr yer. The fry
tank is all stainless steel and includes 3 heat
tubes with a high heat baf e system, cool zone
and 1 1/4 full port ball type drain valve. The
front and door is all stainless steel. The door
includes a fully integrated door liner.
Two fry baskets have red plastic coated
handles. An Invensys thermostat allows
temperature range from 200OF to 400OF.
High Limit control shuts fryer down if
shortening exceeds maximum temperature.

www.AvantcoEquipment.com

Technical Data

Capacity 40 lbs.

Dimensions (W x D x H) 15.5" x 30.25" x 47.125"

Working Height 36.25"

Tank Size 14" x 14"

BTU/HR 90,000

Shipping Weight 200 lbs.

Hose Connection .75"
