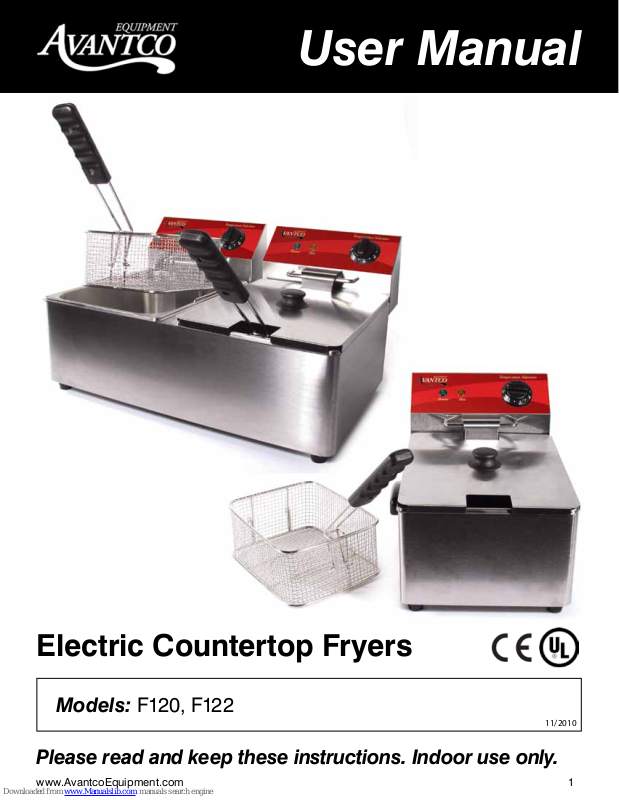

User Manual
User Manual
Electric Countertop Fryers
Models: F120, F122
Please read and keep these instructions. Indoor use only.
www.AvantcoEquipment.com 1
11/2010
User Manual
WARNINGS
This equipment must be operated by trained cooks
or professionals.
• Do not touch any hot surfaces.
• Do not immerse unit, cord or plug in liquid at any time.
• Unplug cord from outlet when not in use and before cleaning.
• It is recommended that the fryer not be moved when it contains hot oil or any other hot liquid.
• Do not use this unit for other than intended use.
• Do not use outdoors.
• Always cook on a firm, dry and level surface.
• High temperature will cause scalding. Do not stand over fryer when operating and do not touch any
part of machine while in operation, other than handle of basket and power controls.
• Do not use unit with a damaged cord or plug, in the event the appliance malfunctions, or has been damaged
in any manner.
• Keep children and animals away from fryer.
• Do not modify unit.
2 www.AvantcoEquipment.com
User Manual
Thank you for purchasing and using Avantco's Electric Fryer. Please read this manual thoroughly before using to
understand proper use and function. Safety warnings, cleaning suggestions and electrical recommendations are given
to reduce the risk of damage or injury.
Warning!
Any Incorrect Installation, Alterations, Adjustments And/or Improper Maintenance Can Lead To Property Loss And Injury. All Repairs Should Be Done By Authorized Professionals Only.
KEEP ALL FLAMMABLE AND COMBUSTABLE LIQUIDS AWAY FROM PRODUCT.
THIS MACHINE MUST BE PLACED ON A LEVEL SURFACE.
Parts of the Fryer
1. Power-on indicator
2. Heater-on indicator
3. Temperature regulator
4. Electrical circuit enclosure
5. Heater element
6. Power cable
7. Rubber feet
8. Outer case
9. Frying basket
10. Oil tank
11. Heater element cover
Features of the Fryer
1. The F series electric fryer is offered in 2 different models. One is a 1-tank fryer; another is a 2-tank fryer. The 2-tank
fryer can fry two different kinds of foods at the same time.
2. Oil temperature is regulated by the temperature regulator and includes a yellow (hot light) which cycles on and off to
indicate when desired temperature has been reached.
3. The automatic shut off feature will cut power when the oil has reached maximum allowable temperature. (446°F)
4. An automatic micro-switch is located at the bottom of the electrical enclosure. This will cut power from the electrical
unit if the enclosure is removed without unplugging the power cable.
5. The stainless steel tank has a removable oil insert with calibration marks for oil levels.
6. Heating coils are protected by a stainless panel base at the bottom of the unit.
www.AvantcoEquipment.com 3
User Manual
THE MAXIMUM QUANTITY OF FOOD TO BE PLACED IN THE
FRYER SHOULD NOT EXCEED AMOUNT SHOWN
DF-6L/6L-2 1.98 lbs/pot
NOTES ABOUT FOOD:
VOLUME OF FOOD SHOULD BE LIMITED TO AVOID OIL OVERFLOWING
FOO
DS THAT DO NOT ABSORB OIL EASILY SHOULD BE LIMITED TO AVOID
OVERFLOWING
PLACE LARGE FOODS INTO THE FRYER CAREFULLY TO PREVENT OIL
OVERFLOW AND SPATTER
D. Circuit Diagram
Basic Information of F Series Fryers
Name Deep Fryer Single 6 Liter Deep Fryer Double 6 Liter (x2)
Model F120 F122
Voltage 120V 50/60Hz 120V 50/60Hz
Power 1750W 2 x 1750W
Number of oil tanks 1 2
Size of oil tanks 9 1/2" x 12" x 6" 9 1/2" x 12" x 6"
Volume 1.5 Gallon 1.5 Gallon (x2)
Number of frying baskets 1 2
Size of frying baskets 7 1/4" x 8 1/4" x 4 1/2" 7 1/4" x 8 1/4" x 4 1/2"
Cooking temperature range 120 °F - 375°F 120 °F - 375°F
Temperature safety cut-off 446°F 446°F
Overall Dimensions 10 1/2" x 17" x 11 1/2" 21 1/2" x 17" x 11 1/2"
The Maximum Quantity Of Food To Be Placed In The Fryer Should Not Exceed 1.98 lbs/pot
Notes About Food:
• Volume of food should be limited to avoid oil overflowing.
• Foods that do not absorb oil easily should be limited to avoid overflowing.
• Place large foods into the fryer carefully to prevent oil overflow and spatter.

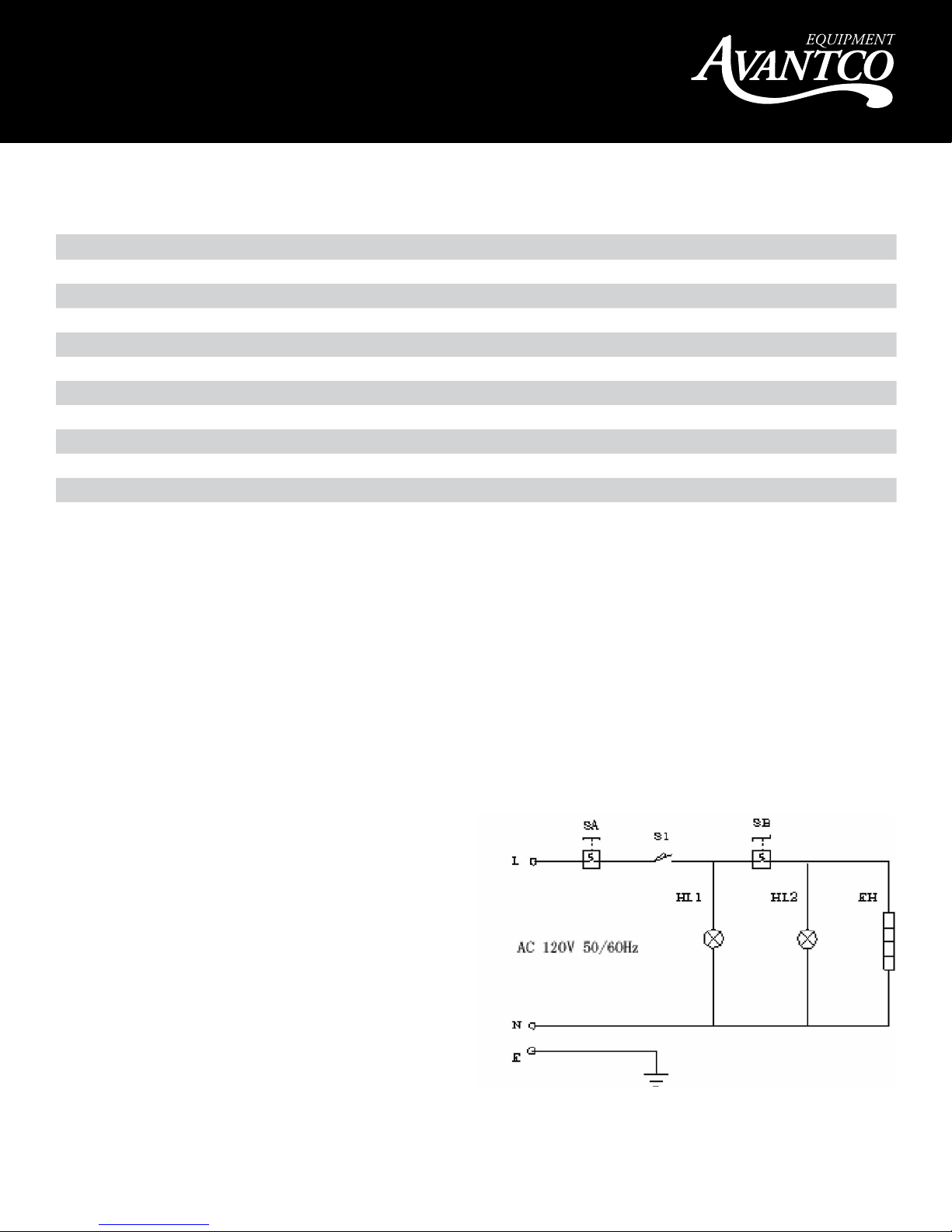

Circuit Diagram
S1 -Micro-switch
SA-Overheat switch
EH-Heater element
HL 1-Power-on indicator
HL 2-Heater-on cycling indicator
SB- Temperature regulator
E: Ground connection
Note: The circuits of the two fryers are identical. The difference is that the two tank fryer has two
separate electrical unit boxes and receptacles.
4 www.AvantcoEquipment.com
User Manual
Instructions for Fryer Usage
1. Please make sure the power supply you are using is adequate for continual fryer use and voltage is adequate. The
use of a surge protector or circuit breaker is advisable.
2. Fill oil receptacle with vegetable oil to between the minimum and maximum levels, allowing for food volume.
3. Make sure the temperature regulator knob is in the “OFF” position before you plug the machine into an outlet. Once
you plug the machine in, a green “Power Light” will come on. Then, rotate the temperature regulator knob clockwise
to the desired temperature indicated by the pointer. When the desired temperature has been reached, the yellow "Hot
Light" will turn off and cycle, and the temperature controller will maintain the temperature automatically.
4. Lift food basket up and away from machine to load food, and carefully place loaded basket into machine to avoid
splash. Gently shake off excess oil from food when removing from tank after frying.
5. The enclosed frying basket is intended to hold small foods such as French fries and onion rings. Large food can be
placed directly into the basket or oil tank.
Cleaning and Maintenance
1. After fryer usage, turn power controller counterclockwise to the “OFF” position Remove plug from power supply. Wait
for oil to cool down before removing tank from outer case. The procedure is as follows:
A. Remove protective panel bottom with large fork or tongs. Do not stick hand into oil.
B. Gently lift up electrical box unit from back of machine. Place in a safe dry place.
2. The micro-switch on the bottom of the electrical box unit will automatically cut off power in case electric plug is not
removed from power supply.
3. Lift oil tank out of outer case and carefully dispose of oil, removing any sludge.
4. Gently wash oil tank with soap and water, dry it thoroughly, and place it back into machine.
5. Always use fresh vegetable oil at every use. Never use old oil.
6. Cover the fryer tank with the night cover after the oil has cooled and the unit is not in use.
Tough on grease. Tough on carbon. Tempest deep fat
fryer cleaner offers thorough elimination of encrusted
grease and grime.
www.AvantcoEquipment.com 5
User Manual
Troubleshooting
Problem Causes Solution
Indicator light will not turn on and
unit will not heat.
Heating indicator is not on, the
temperature is not increasing.
Power indicator is on but the desired
temperature is not reached.
Temperature control is normal but
indicator is not on.
Temperature indicator is on, but
heater tube is not hot.
Temperature can not be controlled. Temperature limiter is out
Plug not properly inserted.
Micro-switch not closed. Adjust the limit distance of mircro-switch.
Electric heater tubes is
not properly connected.
Heater is defective. Change electric heating tube.
Temperature controller is
burned out.
Indicator light is burned
out.
Temperature limiter has
tripped.
of order.
Reinsert plug.
Tighten both sides of electric heater.
Change temperature.
Change indicator.
Reset over heating protecting button by hand on
bottom of electrical box.
Change temperature limiter.
Troubles listed are for reference. If any fault occurs, please discontinue use. Do not attempt to repair
yourself. This will void the warranty.
Transportation and Storage
During transportation, the machine should be careful handled by using the handles at the sides of the unit. The packaged machine should not be stored in the open. It should be put in a ventilated warehouse without corrosive atmosphere and placed right side up.
Daily Check
Before Using
• Make sure machine is on level surface.
• Check to see if power cord is frayed or damaged.
During Use
• Check control panel for damage.
• Check for any electrical smells.
• Check for any strange sounds coming out of machine
• Watch for oil spattering.
6 www.AvantcoEquipment.com

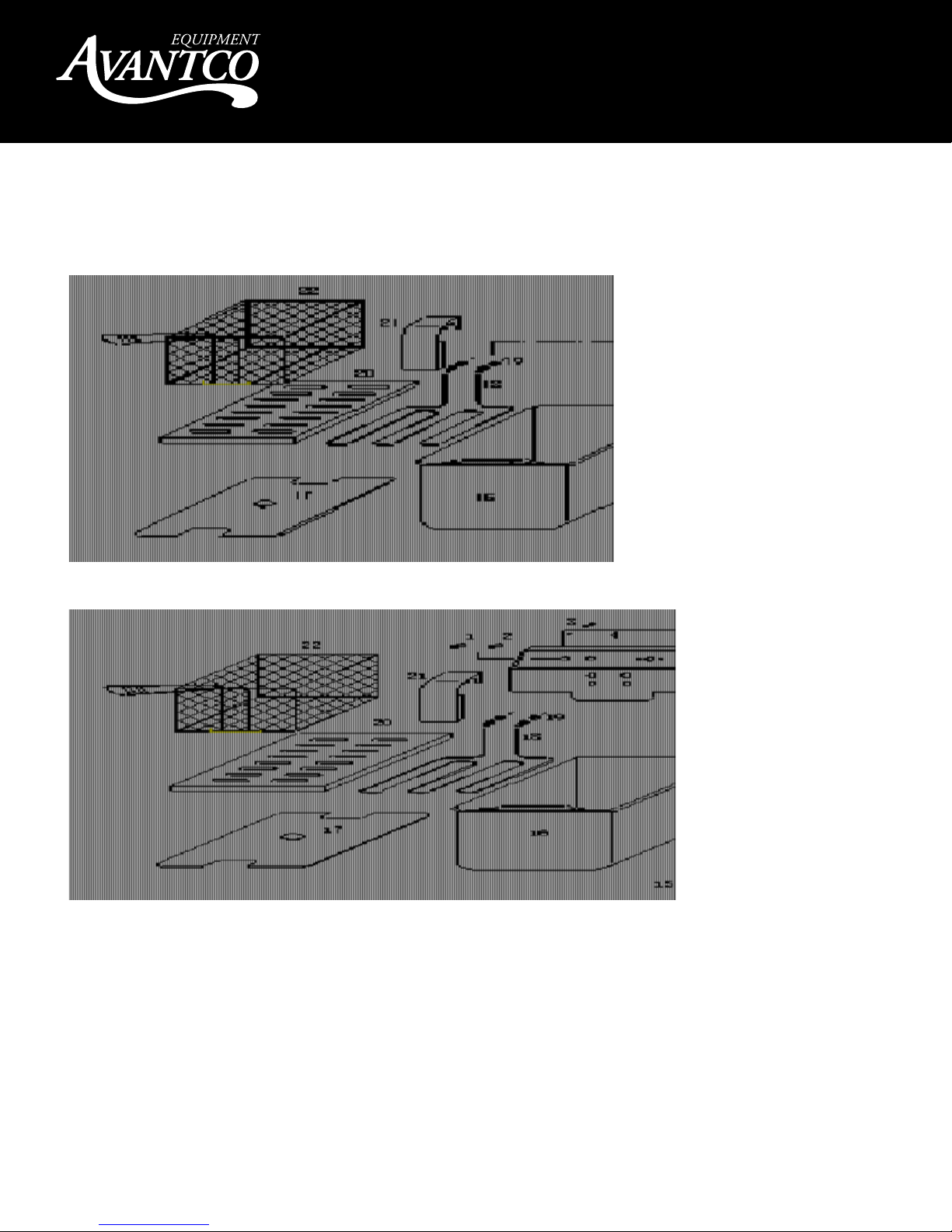

Parts Diagrams
I. Parts diagrams
DF series 1-tank electric fryer
I. Parts diagrams
DF series 1-tank electric fryer
DF series 2-tank electric fryer
F120 1-Tank Electric Fryer
User Manual
F122 2-Tank Electric Fryer
Parts List
1. Power indicator (Green )
2. Heating indicator (Yellow)
3. Back cover screw
4. Rear cover
5. Electrical enclosure
6. Over temperature limiter
7. Ceramic connector block
8. Micro-switch
9. Temperature controller
10. Knob
11. Power cable pigtail
12. Power cable
13. Ground screw
14. Outer case
15. Rubber feet
16. Oil tank
17. C o v e r
18. Electric heater
19. Connection screw
20. Protective cover
21. Heater cover
22. Frying basket
www.AvantcoEquipment.com 7
User Manual
F120 Part List
NO NAME SPECIFICATION AMOUNT NOTE
1 Power indicator 12 250V 1 Green, Merchant LH-580-N or Arcoelectric
0589
2 Heating indicator 12 250V 1 Yellow, Merchant LH-580-N or Arcoelectric
0589
3 Fix screw for back board M4×8 4 Pan Head
4 Rear cover Stainless S=0.8 1
5 Electric circuit enclosure Stainless S=0.8 1
6 Temperature limiter 4 46F/250V 1 E.G.O.56.11744.010
7 Connector block, ceramic Insu-
lated ceramic
8 Micro-switch KW-7-0/16A 1 SAIA-Burgess X3m502K2KA
9 Temperature controller 370F/250V 1 Linkco TY316 series or E.G.O.
10 Knob for temperature controller ABS Plastic 1 Chi Mei PA-757
11 Strain relief 15/A BS Plastic 1 Chi Mei PA-757
12 Power cable 14 A .W.G.-3 1 Ching Cheng plug orChau's Electrical with
13 Ground screw M6×15/b rass 1 With nut and washer
14 Lower enclosure Stainless S=0.8 1
15 Rubber feet 30×15/black 4
16 Oil pot Stainless steel 1 With level markings
17 Cover of oil pot Stainless S=0.8 1
18 Electric heater 120V, 1750W 1 SJHI (Xiamen) or Tamman Electric
19 Nut for electric heating tube 45# steel M12 2
20 Protective cover Stainless S=0.8 1
21 Heater element cover Stainless S=0.8 1
22 Frying basket Stainless wire, net 1 (Handle can be folded)
250V/16A 1
NEMA 5-15 plug
8 www.AvantcoEquipment.com
User Manual
F122 Part List
NO NAME SPECIFICATION AMOUNT NOTE
1 Power indicator 12 250V 2 Green, Merchant LH-580-N or Arco-
electric 0589
2 Heating indicator 12 250V 2 Yellow, Merchant LH-580-N or Arco-
electric 0589
3 Fix screw for back board M4×8 8 Pan Head
4 Rear cover Stainless S=0.8 2
5 Electric circuit enclosure Stainless S=0.8 2
6 Temperature limiter 446F/250V 2 E.G.O.56.11744.010
7 Connector block, ceramic Insulated
ceramic
8 Micro-switch KW-7-0/16A 2 SAIA-Burgess X3m502K2KA
9 Temperature controller 370F/250V 2 Linkco TY316 series or E.G.O.
10 Knob for temperature controller ABS Plastic 2 Chi Mei PA-757
11 Strain relief 15/A BS Plastic 2 Chi Mei PA-757
12 Power cable 14 A .W.G.-3 2 Ching Cheng plug orChau's Electri-
13 Ground screw M6×15/b rass 2 With nut and washer
14 Lower enclosure Stainless S=0.8 2
15 Rubber feet 30×15/black 8
16 Oil pot Stainless steel 2 With level markings
17 Cover of oil pot Stainless S=0.8 2
18 Electric heater 120V, 1750W 2 SJHI (Xiamen) or Tamman Electric
19 Nut for electric heating tube 45# steel M12 4
20 Protective cover Stainless S=0.8 2
21 Heater element cover Stainless S=0.8 2
22 Frying basket Stainless wire, net 2 (Handle can be folded)
250V/16A 2
cal with NEMA 5-15 plug
www.AvantcoEquipment.com 9
