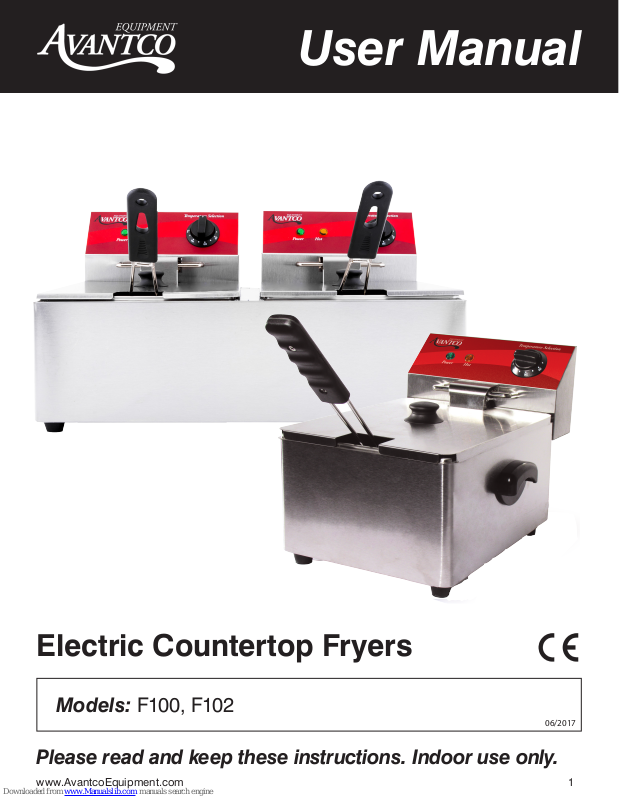

User Manual
User Manual
Electric Countertop Fryers
Models: F100, F102
Please read and keep these instructions. Indoor use only.
www.AvantcoEquipment.com 1
06/2017
User Manual
WARNINGS
• Unplug cord from outlet when not in use and before cleaning.
• DO NOT move or transport this fryer until fryer oil has cooled completely. Doing so can result in
severe burns.
• Do not use this unit for other than intended use.
• Do not use outdoors.
• Always cook on a firm, dry and level surface.
• High temperature will cause scalding. Do not stand over fryer when operating and do not touch any
part of machine while in operation, other than handle of basket and power controls.
• Do not use unit with a damaged cord or plug, in the event the appliance malfunctions, or has been damaged
in any manner.
• Keep children and animals away from fryer.
• Do not modify unit.
Limited Warranty
All equipment sold under the Avantco trademark and used for commercial purpose is warranted against defects in materials
and workmanship. The warranty runs for six months from the time of purchase and is for the benefit of the original purchaser
only. All other warranties, Expressed or Implied, Statutory or otherwise, including Without Limitation and any implied
warranty of Merchantability or Fitness for Purposes are excluded. The seller shall in no event be liable for direct, indirect, or
consequential damages in connection with Avantco commercial products.
This warranty is not effective if damage occurs due to accident, carelessness, improper installation, lack of proper
set-up, supervision when required, or if the equipment is installed or operated in any manner contrary to the installation
and operating instructions. Work performed by unauthorized personnel or unauthorized service agencies voids this
warranty.
This warranty does not apply to, and Avantco is not responsible for any warranty claims on products sold or used
outside of the contiguous United States. Residential use voids the warranty
2 www.AvantcoEquipment.com
User Manual
Thank you for purchasing and using Avantco's Electric Fryer. Please read this manual thoroughly before using to
understand proper use and function. Safety warnings, cleaning suggestions and electrical recommendations are given
to reduce the risk of damage or injury.
Warning!
Any Incorrect Installation, Alterations, Adjustments And/or Improper Maintenance Can Lead To Property Loss And Injury. All Repairs Should Be Done By Authorized Professionals Only.
KEEP ALL FLAMMABLE AND COMBUSTABLE LIQUIDS AWAY FROM PRODUCT.
THIS MACHINE MUST BE PLACED ON A LEVEL SURFACE.
Features of the Fryer
1. The F series electric fryer is offered in 2 different models. One is a 1-tank fryer; another is a 2-tank fryer. The 2-tank
fryer can fry two different kinds of foods at the same time.
2. Oil temperature is regulated by the temperature regulator and includes a yellow (hot light) which cycles on and off to
indicate when desired temperature has been reached.
3. The automatic shut off feature will cut power when the oil has reached maximum allowable temperature. (446°F)
4. An automatic micro-switch is located at the bottom of the electrical enclosure. This will cut power from the electrical
unit if the enclosure is removed without unplugging the power cable.
5. The stainless steel tank has a removable oil insert with calibration marks for oil levels.
6. Heating coils are protected by a stainless panel base at the bottom of the unit.
Basic Information of F Series Fryers
Name Deep Fryer Single 6 Liter Deep Fryer Double 6 Liter (x2)
Model F100 F102
Voltage 120V 50/60Hz 120V 50/60Hz
Power 1750W 2 x 1750W
Number of oil tanks 1 2
Size of oil tanks 9 1/2" x 12" x 6" 9 1/2" x 12" x 6"
Volume 1.5 Gallon 1.5 Gallon (x2)
Number of frying baskets 1 2
Size of frying baskets 7 1/4" x 8 1/4" x 4 1/2" 7 1/4" x 8 1/4" x 4 1/2"
Cooking temperature range 120 °F - 370°F 120 °F - 370°F
Temperature safety cut-off 446°F 446°F
Overall Dimensions 10 1/2" x 17" x 11 1/2" 21 1/2" x 17" x 11 1/2"
www.AvantcoEquipment.com 3
