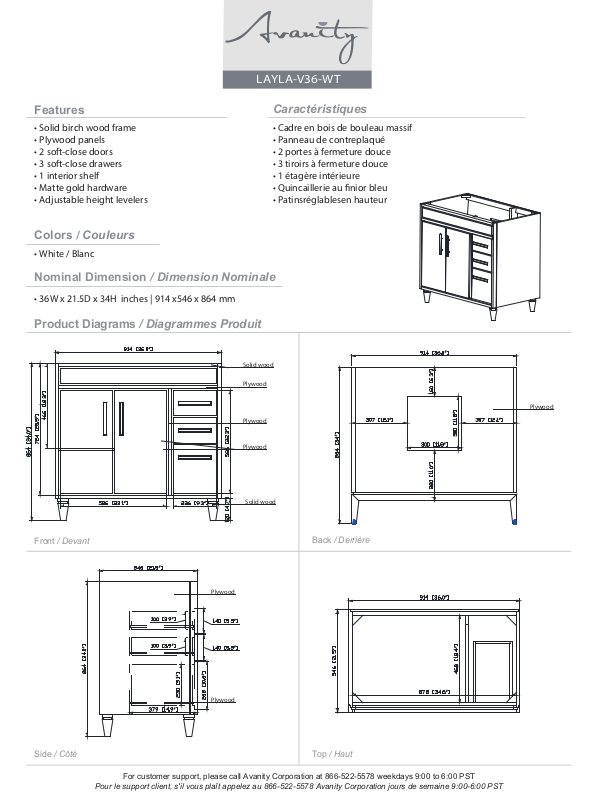

Page 1
LAYLA-V36-WT
Features
• Solid birch wood frame
• Plywood panels
• 2 soft-close doors
• 3 soft-close drawers
• 1 interior shelf
• Matte gold hardware
• Adjustable height levelers
Colors / Couleurs
• White / Blanc
Nominal Dimension / Dimension Nominale
• 36W x 21.5D x 34H inches | 914 x546 x 864 mm
Product Diagrams / Diagrammes Produit
Solid wood
Plywood
Caractéristiques
• Cadre en bois de bouleau massif
• Panneau de contreplaqué
• 2 portes à fermeture douce
• 3 tiroirs à fermeture douce
• 1 étagère intérieure
• Quincaillerie au nior bleu
• Patinsréglablesen hauteur
Front / Devant
Plywood
Plywood
Plywood
Solid wood
Back / Derrière
Plywood
Side / Côté
Plywood
Top / Haut
For customer support, please call Avanity Corporation at 866-522-5578 weekdays 9:00 to 6:00 PST
Pour le support client, s'il vous plaît appelez au 866-522-5578 Avanity Corporation jours de semaine 9:00-6:00 PST
Page 2
SUT37BK / SUT37CW / SUT37GB
Features
• Top cutout for single undermount sink
• Top pre-drilled for 8" widespread faucet
• 4" backsplash included
Nominal Dimension
• 37W x 22D x 1H inches
• 940 x 560 x 25 mm
Related Items
Sink CUM18WT CUM18LN
Vanity
DELANO-V36
MADISON-V36 TRIBECA-V36MODERO-V36
KELLY-V36
Product Diagrams
Colors / Finishes
• BK - Natural Black Granite
• CW - Natural Carrera White marble
• GB - Natural Galala Beige marble
LEXINGTON-V36 LOFT-V36
THOMPSON-V36
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
Page 3
CUM18LN / CUM18WT
• 1.8 in. drain opening
• Overflow outlet
Features
• Vitreous China
• Undermount application
Colors / Finishes
• LN - Linen
• WT - White
Nominal Dimension
• 18.1W x 15D x 7.9H inches
• 458 x 380 x 200 mm
Components
Drain VC-DRAIN-CP VC-DRAIN-BN
SUT25BK SUT25CW SUT25GB SUT31BK SUT31CW SUT31GB SUT37BK
Vanity Top
SUT37GB SUT37CW SUT49CW SUT49GB SUT49BK SUT61BK SUT61CW
SUT61GB SUT73BK SUT73CW SUT73GB
Product Diagrams
Front
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
