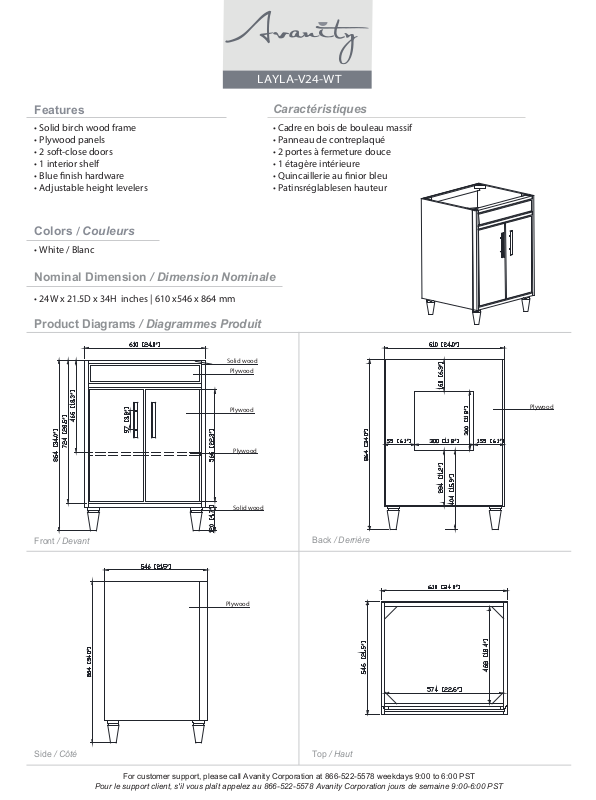

Page 1
LAYLA-V24-WT
Features
• Solid birch wood frame
• Plywood panels
• 2 soft-close doors
• 1 interior shelf
• Blue nish hardware
• Adjustable height levelers
Colors / Couleurs
• White / Blanc
Nominal Dimension / Dimension Nominale
• 24W x 21.5D x 34H inches | 610 x546 x 864 mm
Product Diagrams / Diagrammes Produit
Solid wood
Plywood
Caractéristiques
• Cadre en bois de bouleau massif
• Panneau de contreplaqué
• 2 portes à fermeture douce
• 1 étagère intérieure
• Quincaillerie au nior bleu
• Patinsréglablesen hauteur
Front / Devant
Plywood
Plywood
Solid wood
Plywood
Plywood
Back / Derrière
Side / Côté
Top / Haut
For customer support, please call Avanity Corporation at 866-522-5578 weekdays 9:00 to 6:00 PST
Pour le support client, s'il vous plaît appelez au 866-522-5578 Avanity Corporation jours de semaine 9:00-6:00 PST
Page 2
SUT25BK / SUT25CW / SUT25GB
Features
• Top cutout for single undermount sink
• Top pre-drilled for 8" widespread faucet
• 4" backsplash included
Nominal Dimension
• 25W x 22D x 1H inches
• 635 x 560 x 25 mm
Related Items
Sink
Vanity
CUM18WT CUM18LN
BROOKS-V24
KELLY-V24
TRIBECA-V24 TROPICA-V24
DELANO-V24
LEXINGTON-V24
Product Diagrams
Colors / Finishes
• BK - Natural Black granite
• CW - Natural Carrera White marble
• GB - Natural Galala Beige marble
HAMILTON-V24
LOFT-V24 NAPA-V24
THOMPSON-V24
WESTWOOD-V24
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
Page 3
CUM18LN / CUM18WT
• 1.8 in. drain opening
• Overflow outlet
Features
• Vitreous China
• Undermount application
Colors / Finishes
• LN - Linen
• WT - White
Nominal Dimension
• 18.1W x 15D x 7.9H inches
• 458 x 380 x 200 mm
Components
Drain VC-DRAIN-CP VC-DRAIN-BN
SUT25BK SUT25CW SUT25GB SUT31BK SUT31CW SUT31GB SUT37BK
Vanity Top
SUT37GB SUT37CW SUT49CW SUT49GB SUT49BK SUT61BK SUT61CW
SUT61GB SUT73BK SUT73CW SUT73GB
Product Diagrams
Front
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
