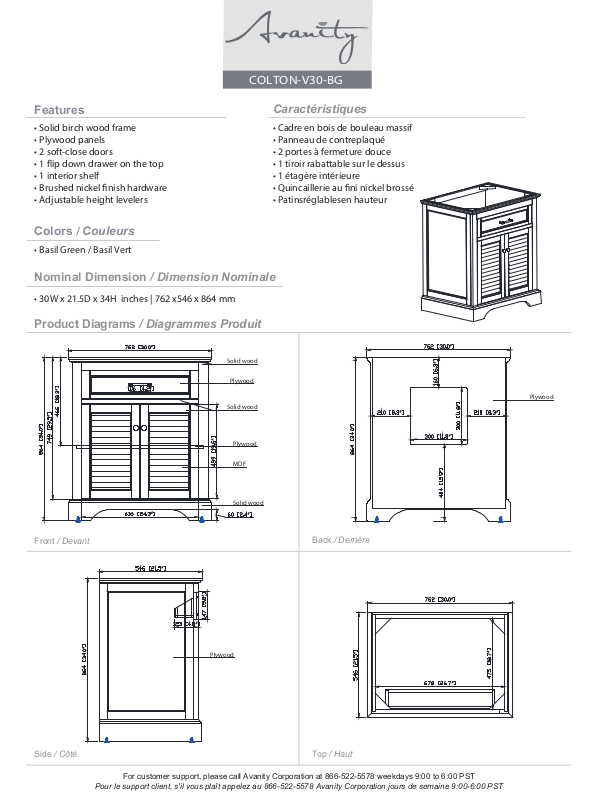

Page 1
COLTON-V30-BG
Features
• Solid birch wood frame
• Plywood panels
• 2 soft-close doors
• 1 ip down drawer on the top
• 1 interior shelf
• Brushed nickel nish hardware
• Adjustable height levelers
Colors / Couleurs
• Basil Green / Basil Vert
Nominal Dimension / Dimension Nominale
• 30W x 21.5D x 34H inches | 762 x546 x 864 mm
Product Diagrams / Diagrammes Produit
Solid wood
Plywood
Solid wood
Caractéristiques
• Cadre en bois de bouleau massif
• Panneau de contreplaqué
• 2 portes à fermeture douce
• 1 tiroir rabattable sur le dessus
• 1 étagère intérieure
• Quincaillerie au ni nickel brossé
• Patinsréglablesen hauteur
Plywood
Front / Devant
Plywood
MDF
Solid wood
Back / Derrière
Plywood
Side / Côté
Top / Haut
For customer support, please call Avanity Corporation at 866-522-5578 weekdays 9:00 to 6:00 PST
Pour le support client, s'il vous plaît appelez au 866-522-5578 Avanity Corporation jours de semaine 9:00-6:00 PST
Page 2
SUT31BK / SUT31CW / SUT31GB
Features
• Top cutout for single undermount sink
• Top pre-drilled for 8" widespread faucet
• 4" backsplash included
Nominal Dimension
• 31W x 22D x 1H inches
• 787 x 560 x 25 mm
Related Items
Sink
Vanity
CUM18WT CUM18LN
BROOKS-V30
KELLY-V30
MILANO-V30 WESTWOOD-V30
BRENTWOOD-V31
LOFT-V30 MILANO-V30
TROPICA-V30
Product Diagrams
Colors / Finishes
• BK - Natural Black Granite
• CW - Natural Carrera White marble
• GB - Natural Galala Beige marble
DELANO-V30
MODERO-V30
THOMPSON-V30
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
Page 3
CUM18LN / CUM18WT
• 1.8 in. drain opening
• Overflow outlet
Features
• Vitreous China
• Undermount application
Colors / Finishes
• LN - Linen
• WT - White
Nominal Dimension
• 18.1W x 15D x 7.9H inches
• 458 x 380 x 200 mm
Components
Drain VC-DRAIN-CP VC-DRAIN-BN
SUT25BK SUT25CW SUT25GB SUT31BK SUT31CW SUT31GB SUT37BK
Vanity Top
SUT37GB SUT37CW SUT49CW SUT49GB SUT49BK SUT61BK SUT61CW
SUT61GB SUT73BK SUT73CW SUT73GB
Product Diagrams
Front
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
