Page 1
BROOKS-V42-CG
BROOKS-V42-WT
BROOKS-V42-NB
Features
• Solid poplar wood frame, Birch veneer plywood
• 2 soft-close drawer, 1 open shelf
• Brushed nickel or matte gold finish hardware
• Adjustable height levelers
Components
Mirror
Vanity Top
Sink
14000-M28-CG
14000-M28-WT 14000-MC28-WT
SUT43BK-R
SUT43BK
CUM20WT-R CUM18WT CUM18LN
14000-MC28-CG
SUT43GB-R
SUT43GB

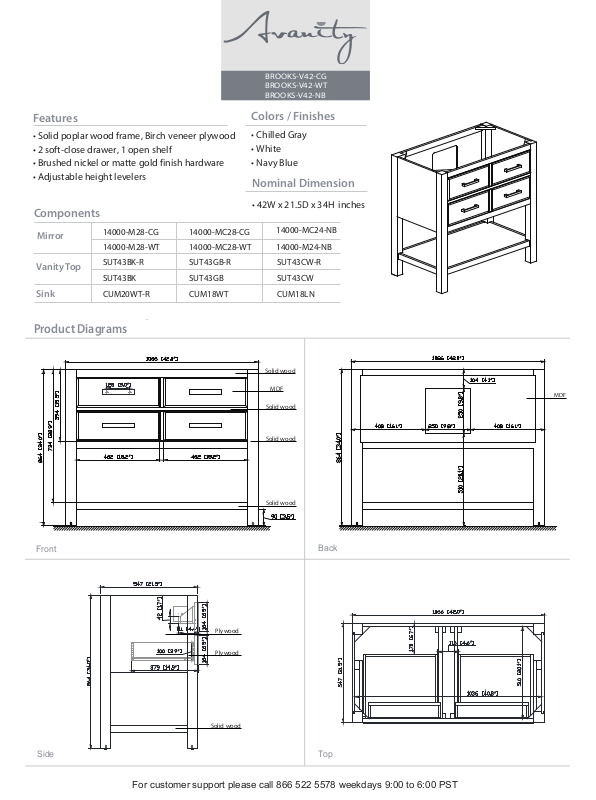

Product Diagrams
Colors / Finishes
• Chilled Gray
• White
• Navy Blue
Nominal Dimension
• 42W x 21.5D x 34H inches
14000-MC24-
14000-M24-
SUT43CW-R
SUT43CW
Solid wood
MDF
Solid wood
NB
NB
MDF
Front
Solid wood
Solid wood
Back
Plywood
Plywood
Solid wood
Side
Top
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
Page 2
SUT43BK / SUT43CW / SUT43GB
Features
• Top cutout for single undermount sink
• Top pre-drilled for 8" widespread faucet
• 4" backsplash included
Nominal Dimension
• 43W x 22D x 1H inches
• 1092 x 560 x 25 mm
Components
Sink CUM18WT CUM18WT
Vanity
ALLIE-V42 DEXTER-V42
EMMA-V42 HAMILTON-V42
BROOKS-V42
Product Diagrams
Colors / Finishes
• BK - Natural Black Granite
• CW - Natural Carrera White marble
• GB - Natural Galala Beige marble
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
Page 3
CUM18LN / CUM18WT
• 1.8 in. drain opening
• Overflow outlet
Features
• Vitreous China
• Undermount application
Colors / Finishes
• LN - Linen
• WT - White
Nominal Dimension
• 18.1W x 15D x 7.9H inches
• 458 x 380 x 200 mm
Components
Drain VC-DRAIN-CP VC-DRAIN-BN
SUT25BK SUT25CW SUT25GB SUT31BK SUT31CW SUT31GB SUT37BK
Vanity Top
SUT37GB SUT37CW SUT49CW SUT49GB SUT49BK SUT61BK SUT61CW
SUT61GB SUT73BK SUT73CW SUT73GB
Product Diagrams
Front
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
