Page 1

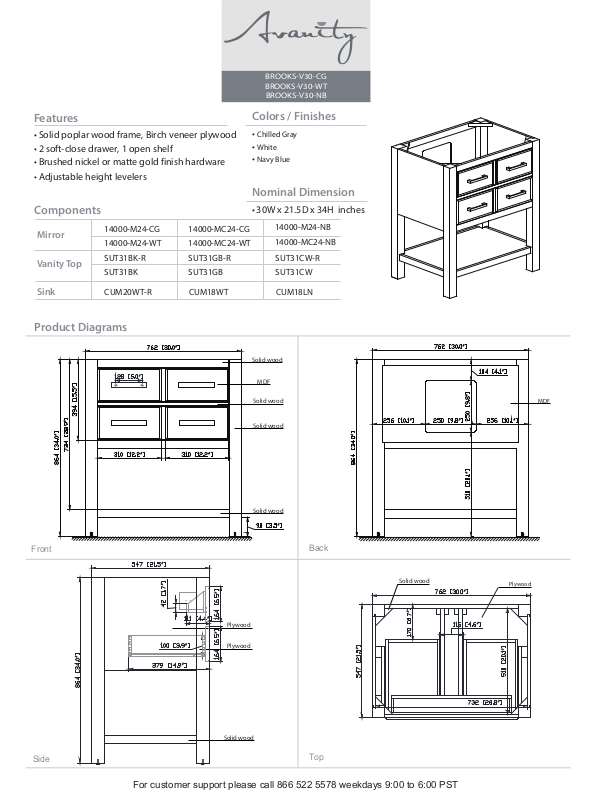

BROOKS-V30-CG
BROOKS-V30-WT
BROOKS-V30-NB
Features
• Solid poplar wood frame, Birch veneer plywood
• 2 soft-close drawer, 1 open shelf
• Brushed nickel or matte gold finish hardware
• Adjustable height levelers
Components
Mirror
Vanity Top
Sink
14000-M24-CG
14000-M24-WT 14000-MC24-WT
SUT31BK-R
SUT31BK
CUM20WT-R CUM18WT CUM18LN
14000-MC24-CG
SUT31GB-R
SUT31GB
Product Diagrams
Colors / Finishes
• Chilled Gray
• White
• Navy Blue
Nominal Dimension
• 30W x 21.5D x 34H inches
14000-M24-NB
14000-MC24-NB
SUT31CW-R
SUT31CW
Solid wood
MDF
Solid wood
MDF
Front
Plywood
Plywood
Solid wood
Solid wood
Back
Solid wood
Plywood
Side
Solid wood
Top
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
Page 2
BROOKS-V30-CG
BROOKS-V30-WT
BROOKS-V30-NB
Features
• Solid poplar wood frame, Birch veneer plywood
• 2 soft-close drawer, 1 open shelf
• Brushed nickel or matte gold finish hardware
• Adjustable height levelers
Components
Mirror
Vanity Top
Sink
14000-M24-CG
14000-M24-WT 14000-MC24-WT
SUT31BK-R
SUT31BK
CUM20WT-R CUM18WT CUM18LN
14000-MC24-CG
SUT31GB-R
SUT31GB
Product Diagrams
Colors / Finishes
• Chilled Gray
• White
• Navy Blue
Nominal Dimension
• 30W x 21.5D x 34H inches
14000-M24-NB
14000-MC24-NB
SUT31CW-R
SUT31CW
Solid wood
MDF
Solid wood
MDF
Front
Plywood
Plywood
Solid wood
Solid wood
Back
Solid wood
Plywood
Side
Solid wood
Top
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
Page 3
SUT31BK / SUT31CW / SUT31GB
Features
• Top cutout for single undermount sink
• Top pre-drilled for 8" widespread faucet
• 4" backsplash included
Nominal Dimension
• 31W x 22D x 1H inches
• 787 x 560 x 25 mm
Related Items
Sink
Vanity
CUM18WT CUM18LN
ALLIE-V30
DELANO-V30
MILANO-V30
BRENTWOOD-V31
EMMA-V30
MODERO-V30 THOMPSON-V30
Product Diagrams
Colors / Finishes
• BK - Natural Black Granite
• CW - Natural Carrera White marble
• GB - Natural Galala Beige marble
BROOKS-V30
KELLY-V30
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
Page 4
CUM18LN / CUM18WT
• 1.8 in. drain opening
• Overflow outlet
Features
• Vitreous China
• Undermount application
Colors / Finishes
• LN - Linen
• WT - White
Nominal Dimension
• 18.1W x 15D x 7.9H inches
• 458 x 380 x 200 mm
Components
Drain VC-DRAIN-CP VC-DRAIN-BN
SUT25BK SUT25CW SUT25GB SUT31BK SUT31CW SUT31GB SUT37BK
Vanity Top
SUT37GB SUT37CW SUT49CW SUT49GB SUT49BK SUT61BK SUT61CW
SUT61GB SUT73BK SUT73CW SUT73GB
Product Diagrams
Front
Top
Side
For customer support please call 866 522 5578 weekdays 9:00 to 6:00 PST
