Part No. E2017S190A0R
SID-21W9
Intel® Atom Z3735F 21.5" Semi Industrial Ultra Slim Panel PC
Quick Reference Guide
1
st
Ed –30 May 2016
Copyright Notice
Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
SID-21W9
2 SID-21W9 Quick Reference Guide
FCC Statement
Federal Communication Commission Interference Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice:
(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that only the supplied
power cord by used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Quick Reference Guide
SID-21W9 Quick Reference Guide
3
FCC RF Radiation Exposure Statement
This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65 and found compliant
to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF
Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far
below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a
manner that the potential for human contact during normal operation is minimized. When nearby
persons has to be kept to ensure RF exposure compliance, in order to comply with RF exposure limits
established in the ANSI C95.1 standards, the distance between the antennas and the user should not
be less than 20 cm.
WARNING
“CAUTION – Use suitable mounting apparatus to avoid risk of injury.”
“CAUTION - Use a power cord that matches the voltage of the power outlet, which has been
approved and complies with the safety standard of your particular country.”
“WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply
mains with protective earth.”
Notice
This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.
Copyright Notice
Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
SID-21W9
4 SID-21W9 Quick Reference Guide
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Life Support Policy
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose
failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.
A Message to the Customer
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
Quick Reference Guide
SID-21W9 Quick Reference Guide
5
Content
1. Getting Started ............................................................................................................ 6
1.1 Safety Precautions ................................................................................................ 6
1.2 Packing List ........................................................................................................... 6
1.3 System Specifications ........................................................................................... 7
1.4 System Overview ................................................................................................... 9
1.4.1 Front View .................................................................................................................................... 9
1.4.2 Bottom View ................................................................................................................................. 9
1.5 System Dimensions ............................................................................................. 10
1.5.1 Front and Rear side ................................................................................................................... 10
2. Hardware Configuration ........................................................................................... 11
2.1 SID-21W9 connector mapping ................................................................................. 12
2.1.1 Serial port connector (COM) ...................................................................................................... 12
SID-21W9
6 SID-21W9 Quick Reference Guide
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x SID-21W9 Panel PC
1 x AC/DC Power adapter 19V/3.42A
1 x Power cord
Quick Reference Guide
SID-21W9 Quick Reference Guide
7
1.3 System Specifications
Component
Mother Board
BCX11
CPU
ATOM Baytrail-T CR Z3735F CPU
CPU Cooler (Type)
By mechanical design
Memory
Onboard 2GB DDR3L
Power Supply
DC in Power adapter Delta ADP-65JH (BCC-ADP-065N-01R)
I/O chip
ENE IO3737LU
Audio Chipset
Realtek ALC5645-CGT
Ethernet chipset
Microchip LAN9512
Operating System
Windows 8.1/ Windows 10/ Andriod 4.4/ Ubuntu 14.04 Kernel 3.16
WLAN
WLAN standard
IEEE 802.11b/g/n, Wi-Fi compliant
Major chipset
Realtek RTL8723BS
WIFI PID/ VID
B723 / 024C
Antenna Type
PIFA
Frequency Range
WLAN: 2.4 GHz Band 2.412-2.472 GHz
Number of Channels
802.11b: USA, Canada and Taiwan : 1 ~ 11 Most European Countries :
1 ~ 13 Japan : 1 ~ 13
802.11g: USA and Canada : 1 ~ 11 Most European Countries : 1 ~ 13
802.11n: USA and Canada : 1 ~ 11 Most European Countries : 1 ~ 13
Modulation
WLAN: DSSS, OFDM, BPSK(9/6Mbps), QPSK(18/12Mbps),
DBPSK(1Mbps), DQPSK(2Mbps), CCK(11/5.5Mbps),
16-QAM(36/24Mbps), 64-QAM (72.2/54/48Mbps)
WLAN
Solid State Drive
Onboard 32GB eMMC
Panel
LCD Panel
21.5” M215HJK-L3B with PCAP Touch
Resolution
1920 x 1080
Luminance
250 cd/m
2
View angle
89 (U), 89 (D), 89 (L), 89 (R)
Others
Membrane for power/ volume/ brightness
External I/O
Serial Port
1 x RS-485 (optional RS-232)
USB Port
2 x USB 2.0
Video Port
1 x HDMI
Audio Port
Line out
SID-21W9
8 SID-21W9 Quick Reference Guide
LAN Port
1 x RJ45 10/100M only
Mechanical
Power Type
DC in +19V only
Power Connector Type
DC Jack
Dimension
303.3 x 505 x 41.7mm
Weight
5.5kg
Color
Metal housing black
Fanless
Yes
Mounting
Wall/Stand/VESA 100mm x 100mm
Reliability
EMI Test
CE/ FCC class B
Dust and Rain Test
Front Panel IP65
Vibration Test
IEC 60068-2-64, Random, 5~500Hz, 1hr/axis
Mechanical Shock Test
With CF/SSD: 10Grms, IEC 60068-2-27, Half Sine, 11ms
Drop Test
IEC-60068-2-32 Drop test standard
Operating Temperature
0 ~ 40 degree
Operating Humidity
0 ~ 90% Relative Humidity, Non-condensing
Storage Temperature
-20 ~ 60 degree
Note: Specifications are subject to change without notice.
Quick Reference Guide
SID-21W9 Quick Reference Guide
9
1.4 System Overview
1.4.1 Front View
1.4.2 Bottom View
Connectors
Label
Function
Note
Line out
Audio line-out connector
HDMI
HDMI connector
USB
2 x USB 2.0 connector
DCIN
DC power-in connector
LAN
RJ-45 Ethernet
COM
Serial port connector
(optional RS-232)
DB-9 male connector
SID-21W9
10 SID-21W9 Quick Reference Guide

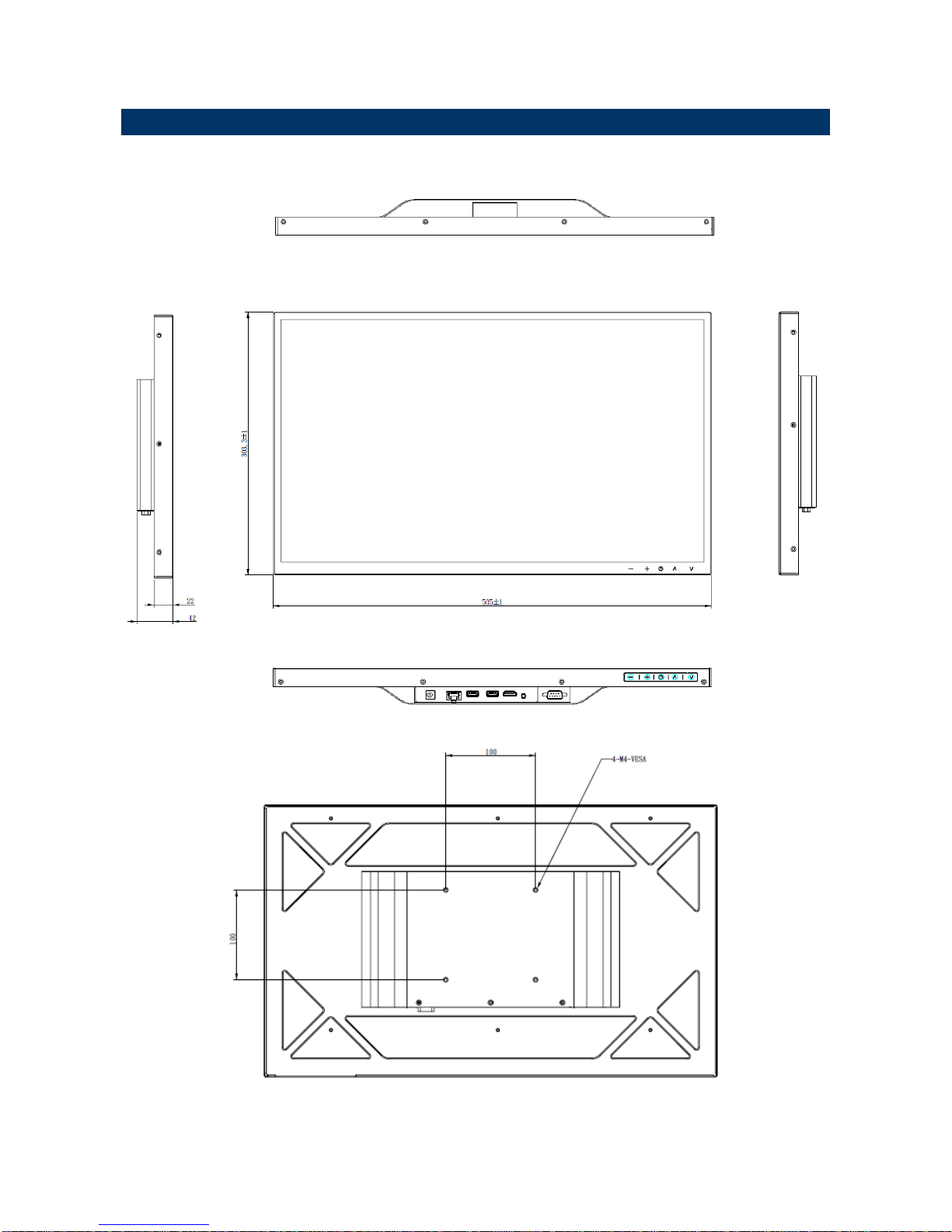

1.5 System Dimensions
1.5.1 Front and Rear side
(Unit: mm)
Quick Reference Guide
SID-21W9 Quick Reference Guide
11
2. Hardware
Configuration
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
SID-21W9
12 SID-21W9 Quick Reference Guide

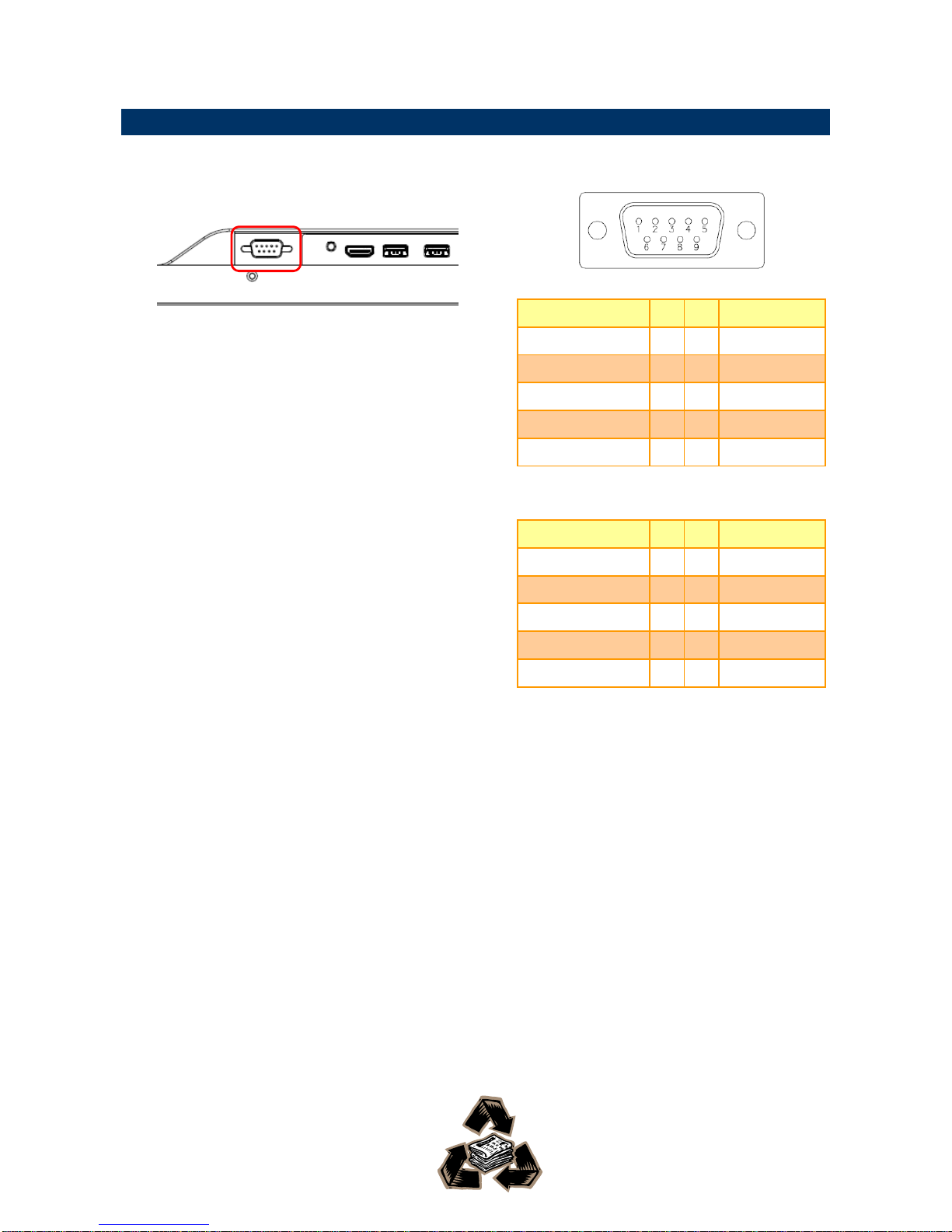

2.1 SID-21W9 connector mapping
2.1.1 Serial port connector (COM)
*Default
RS-485*
Signal
PIN
PIN
Signal
485_Tx-
1 6 NC
485_Tx+
2 7 NC
NC
3 8 NC
NC
4 9 NC
GND
5
RS-232
Signal
PIN
PIN
Signal
NC
1 6 NC
RXD
2 7 NC
TXD
3 8 NC
NC
4 9 NC
GND
5
