Avalue Technology RiPac-10P1 User Manual

RiPac-10P1
10” Mini POS POS
Users Manual
1st Ed – 01 April 2016
Copyright Notice
Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
RiPac-10P1
FCC Statement
Notice
Copyright Notice
Trademark Acknowledgement
Disclaimer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
This guide is designed for experienced users to setup the system within the shortest time. For detailed information, please always refer to the electronic user's manual.
Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
Brand and product names are trademarks or registered trademarks of their respective owners.
Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that
2 RiPac-10P1 User Manual
User Manual
3
Life Support Policy
A Message to the Customer
these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose failure to
perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial environments. Whether your new Avalue device is destined for the laboratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To ensure you get the full benefit of our services, please follow the instructions below carefully.
RiPac-10P1 User Manual
RiPac-10P1
Technical Support
We want you to get the maximum performance from your products. So if you run into technical difficulties, we are here to help. For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
4 RiPac-10P1 User Manual
User Manual
5
Content
1. Getting Started ........................................................................................................ 6
1.1 Safety Precautions .................................................................................................... 6
1.2 Packing List ............................................................................................................... 6
1.3 System Specifications ............................................................................................... 7
1.4 System Overview ................................ ................................ ................................ ...... 9
1.4.1 Top View .................................................................................................................................. 9
1.4.2 Left Side ................................................................................................................................... 9
1.4.3 Right Side .............................................................................................................................. 10
1.4.4 Bottom ................................................................................................................................... 10
1.4.5 I/O Interface ........................................................................................................................... 10
1.5 System Dimensions ................................................................................................ 11
1.5.1 RiPac-10P1 ............................................................................................................................ 11
2. Hardware Configuration ....................................................................................... 12
2.1 RiPac-10P1 Connector Mapping ............................................................................. 13
2.1.1 Serial Port Connector (COM) ................................................................................................ 13
2.1.2 RJ11 Connector ..................................................................................................................... 13
2.1.3 RJ45 ...................................................................................................................................... 14
2.1.4 USB ....................................................................................................................................... 14
2.1.5 DC Jack ................................................................................................................................. 15
3. Peripherals ............................................................................................................ 16
3.1 Thermal Printer ....................................................................................................... 17
3.1.1 Thermal Printer Specifications ............................................................................................... 17
3.1.2 Paper Roll Loading ................................................................................................................ 17
3.2 Second Display ....................................................................................................... 20
4. Hardware Maintenance ......................................................................................... 21
4.1 Replacement of Thermal Printer Module ................................................................. 22
RiPac-10P1 User Manual
RiPac-10P1
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.
1.2 Packing List
1 x RiPac-10P1 1 x 19.5V Adapter 1 x Power Cord 2 x Paper Holder
6 RiPac-10P1 User Manual
7
1.3 System Specifications
System
Processor
Intel Atom Z3735F 1.33GHz Processor
Memory
2GB DDR3L SDRAM
Wireless LAN
Built-In IEEE 802.11 b/g/n
Bluetooth
Built-In Bluetooth 4.0 + Class 1
Operating System
Windows 10, Linux, Android
Panel
LCD Panel
10.1" LCD, 5" LCD (customer side)
Resolution
1280 x 800 (10.1"), 1280 x 720 (5")
Touch Screen
Projected Capacitive Touch
Storage
Solid State Drive
32G (Default)/ 64G (Optional) eMMC
External I/O
Serial Port
2 x RS232 in DB9, Powered with 5/12V
USB Port
4 x USB 2.0
LAN Port
1 x RJ45
Cash Drawer
1 x RJ11
NFC
ISO/IEC 14443 A/B, 15693/18092
Thermal Printer
Printing Method
Thermal Dot Line Printing
Total Dots Per Line
576 Dots
Resolution
(W)8 Dots/mm, (H)8 Dots/mm
Max. Print Speed
200mm/s
Max. Print Width
72mm
Max. Paper Width
80mm
Paper Cutting
Full Cut & Partial Cut
Mechanical
Power Type
19.5V/6.15A 120W Lockable Adapter
Power Connection Type
Lockable DC Jack
Dimension
(L)299 x (W)316.2 x (H)148.9
Weight
3KG±10%
Color
Black & Gray
Fanless
Yes
Reliability
Certifications
CE/FCC
Operating Temperature
5°C ~ 40°C
Operating Humidity
0~95% Non-Condensing
User Manual
RiPac-10P1 User Manual
RiPac-10P1
Storage Temperature
-10°C~60°C
Note: Specifications are subject to change without notice.
8 RiPac-10P1 User Manual
9
1.4 System Overview
Printer Door Switch
1.4.1 Top View
User Manual
1.4.2 Left Side
RiPac-10P1 User Manual
RiPac-10P1
Connectors
I/O
Function
Note
COM
Serial port connector (RS232)
DB-9 male connector
RJ11
Cash drawer connector
Power Button
1.4.3 Right Side
1.4.4 Bottom
1.4.5 I/O Interface
10 RiPac-10P1 User Manual
11
LAN
1x RJ45 connectors
USB
4 x USB2.0 connectors
Kensington Lock
Kensington Security Slot
DC-in
DC Power-In connector

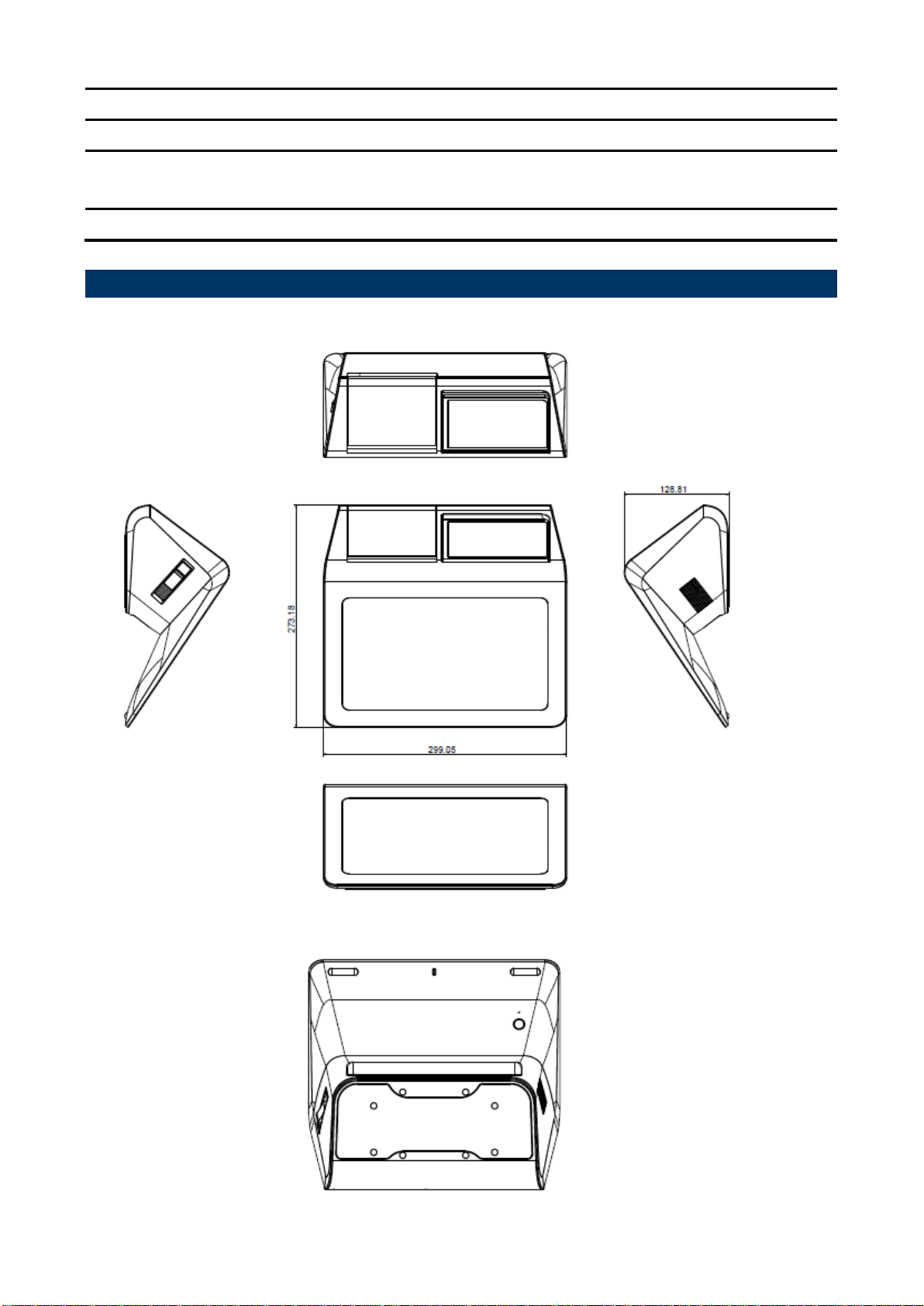

1.5 System Dimensions
1.5.1 RiPac-10P1
User Manual
RiPac-10P1 User Manual
RiPac-10P1
2. Hardware Configuration
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
12 RiPac-10P1 User Manual
13
2.1 RiPac-10P1 Connector Mapping
Signal
PIN
PIN
Signal
DCD#_1
1
6
DSR#_1
RXD_1
2
7
RTS#_1
TXD_1
3
8
CTS#_1
DTR#_1
4
9
RING/5V/12V
GND
5
Signal
PIN
GND
1
KICKOUT1
2
CASH_SENSE
3
+12VA_+24VA_CASH
4
KICKOUT2
5
GND
6
2.1.1 Serial Port Connector (COM)
User Manual
2.1.2 RJ11 Connector
RiPac-10P1 User Manual
RiPac-10P1
Signal
PIN
PIN
Signal
LAN0_MDIP0
1 8 N.C.
LAN0_MDIN0
2 9 Yellow_LED0-
LAN0_MDIP1
3
10
Yellow_LED0+
N.C.
4
11
Green_LED0-
N.C.
5
12
Green_LED0+
LAN0_MDIN1
6
13
N.C.
N.C.
7
14
Signal
PIN
VBUS1
1
USB20_N1
2
USB20_P1
3
GND
4
2.1.3 RJ45
2.1.4 USB
14 RiPac-10P1 User Manual
15
2.1.5 DC Jack
User Manual
RiPac-10P1 User Manual
RiPac-10P1
3. Peripherals
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
16 RiPac-10P1 User Manual
17
3.1 Thermal Printer
Thermal Printer
Printing Method
Thermal Dot Line Printing
Total Dots Per Line
576 Dots
Resolution
(W)8 Dots/mm, (H)8 Dots/mm
Max. Print Speed
200mm/s
Max. Print Width
72mm
Max. Paper Width
80mm
Type of Paper Cutting
Full Cut & Partial Cut
Step 1 Push down the switch to open the paper roll door.
Step 2
80mm Paper Roll If you are using an 80mm paper roll, load the paper roll into the printer, in the direction indicated in below picture and close up the printer door after loading.
3.1.1 Thermal Printer Specifications
3.1.2 Paper Roll Loading
User Manual
RiPac-10P1 User Manual
RiPac-10P1
58mm Paper Roll If you are using a 58mm paper roll, you can choose to load the paper roll either to the left, right or keep in the middle according to your printing settings and paper holders are provided to help keep the paper roll in place. Note that there are four holes in the printer for you to insert the paper holders.
The methods for loading the paper roll are as below.
1. 58mm Paper Roll on the Right Side.
Insert the paper holder into the second hole from the left.
Load the paper roll to the right side and close the printer door.
18 RiPac-10P1 User Manual
User Manual
19
2. 58mm Paper Roll on the Left Side
Insert the paper holder into the second hole from the right.
Load the paper roll to the left and close the printer door.
3. 58mm Paper Roll at the Middle.
Insert holders into the holes at the far left and the far right.
RiPac-10P1 User Manual
RiPac-10P1
Load the paper roll in between the two holders then close the printer door.
3.2 Second Display
20 RiPac-10P1 User Manual
User Manual
21
4. Hardware Maintenance
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
RiPac-10P1 User Manual
RiPac-10P1
Step 1 Push down the switch to open the paper roll door.
Step 2 Unscrew the three screws that connects the printer doo to the device in order to
take down the printer door.
Step 3 Unscrew the two screws on the printer door to remove printer wheel.
4.1 Replacement of Thermal Printer Module
22 RiPac-10P1 User Manual
User Manual
23
Step 4 Unscrew the two screws and the hex bolt to remove the printer assembly.
Step 5 Unscrew two screws on the printer assembly to take down the printer module.
Step 6 Disconnect the two FPCs from the PCB.
RiPac-10P1 User Manual
RiPac-10P1
Step 7 Connect the FPCs of the new printer module onto the PCB.
Step 8 Use the screws to tie the printer module.
Step 9 Install the printer assembly back into the device with the screws and insert the hex bolt back into place.
NOTE: Always install the hex bolt back before closing up the printer door.
24 RiPac-10P1 User Manual
User Manual
25
Step 10 Install the new printer wheel back onto the printer door.
Step 11 Fix the printer door back onto RiPac-10P1 and close up the door.
RiPac-10P1 User Manual
