Avalue Technology MPC-10W3 Quick Reference Manual

Part No. E201710W3A0R

MPC-10W3

Fanless Intel® Atom™ N270 10”W Multifunctional Touch
Panel PC with Intel® 945GSE + ICH7-M Chipset

Quick Reference Guide

1st Ed – March 2010

Copyright Notice

Copyright © 2010-2011 Avalue Technology Inc., ALL RIGHTS RESERVED.

MPC-10W3

2 MPC-10W3 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Copyright Notice

Copyright © 2010-2011 Avalue Technology Inc., ALL RIGHTS RESERVED.

No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.

Quick Reference Guide

MPC-10W3 Quick Reference Guide

3

Technical Support

We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Headquarters and Branch

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei, Taiwan
Tel: [phone] Fax: [phone]
Information: [e-mail]

Service: [e-mail]

Avalue USA

Avalue Europe

Avalue Technology Inc.

200 Tornillo Way, Suite 210, Tinton Falls,
NJ 07712
Tel: [phone]
Fax: [phone]
Information: [e-mail]
Service: [e-mail]

Avalue Europe A/S

Moelledalen 22C, 3140
Aalsgaarde, Denmark
Tel: [phone]
Fax:[phone]
Information: [e-mail]
Service: [e-mail]

BCM Advanced Research

Avalue China

BCM Advanced Research
an Avalue Company

7 Marconi, Irvine, CA92618
Tel: [phone]
Fax: [phone]
Information: [e-mail]
Web: www.bcmcom.com

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,
Caohejing Development Area,
Xuhui District, Shanghai
Tel: [phone]
Fax:[phone]
Information: [e-mail]
Service: [e-mail]

MPC-10W3

4 MPC-10W3 Quick Reference Guide

Contents

1. Getting Started ........................................................................................................5

1.1 Safety Precautions....................................................................................................5

1.2 Packing List...............................................................................................................5

1.3 System Specifications...............................................................................................6

1.4 System Overview......................................................................................................8

1.4.1 Top View.................................................................................................................................. 8

1.4.2 Bottom View............................................................................................................................. 8

1.5 System Dimensions ..................................................................................................9

2. Hardware Configuration .......................................................................................10

2.1 Installing CF card and Memory...............................................................................11

Quick Reference Guide

MPC-10W3 Quick Reference Guide

5

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.

Caution!

Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.

1.2 Packing List

z 1 x MPC-10W3 Panel PC
z 1 x Quick Reference Guide
z 1 x DVD-ROM contains the followings:

— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— Touch Screen Driver

z 1 x Packing set includes the followings:

⎯ 4 x screws (M4 x 4mm) for VESA-mounting

MPC-10W3

6 MPC-10W3 Quick Reference Guide

1.3 System Specifications

Panel

Model MPC-10W3
LCD Size

10”W, 17:10

Resolution

1024 x 600

Pixel Pitch

0.21525mm (H) x 0.21525mm (V)

Luminance

250cd/m²

Contrast Ratio

500

Viewing Angle

50(U), 60(D), 70(L), 70(R)

Response Time

25ms

Backlight

LED Backlight

Touch Type (Optional)

5-wires Resistive

Touch Interface

USB

Quick Reference Guide

MPC-10W3 Quick Reference Guide

7

System

Board

EBM-945GSE

CPU

Onboard Intel® Atom™ N270 1.6GHz (2.5W)

BIOS Award 8Mbit Flash BIOS
System Chipset Intel® 945GSE + ICH7-M
I/O Chipset ITE 8712F
System Memory

Onboard 1GB DDR2 and one 200-pin DDR2 SODIMM

supports up to 2GB DDR2 400/533 SDRAM (1GB Per Bank)

SSD

One CF socket bi IDE Secondary Slave Channel

supports Type I / II Compact Flash Card.

Watchdog Timer Reset: 1 ~ 65535 sec./min. and 1 min./step
Display Intel® 945GSE GMCH integrated GMA950 graphics
Audio Realtek ALC 655 supports 5.1-CH Audio
Ethernet Dual Realtek RTL8111C Gigabit LAN, supports wake on LAN

External I/O Ports

COM Port

1 x RS-232/422/485

Ethernet Port

2 x RJ-45

VGA / LCD Port

1 x DB-15

Audio Port

Line-out

USB Port

2 x USB 2.0

Speaker

2 x 2W Speaker

Peripheral

Camera

Optional 1.3M Pixels CMOS Sensor PC Camera

Bluetooth

Optional USB Bluetooth Module

Power Supply Unit

Power Input

100 ~ 250Vdc/ 47 ~ 63Hz

Power Output

+12Vdc/ 5A (60W)

Environment & Mechanical

Operating Temperature

0~40°C (32~104°F)

Storage Temperature

-20 to +75°C (-4~167°F)

Relative Humidity

5 ~ 90% @ 40°C (104°F), relative humidity, non-condensing

Size (L x W)

252.8 x 190 x 44.4mm

Weight

1.22Kgs

Mounting

VESA 75 x 75mm, Wall/ Stand

MPC-10W3

8 MPC-10W3 Quick Reference Guide

1.4 System Overview

1.4.1 Top View

1.4.2 Bottom View

Connectors

Label Function Note
CF

CF Type I/II Socket with Ejector

COM

Serial port DB-9 male connector

LINE OUT

Line-out audio jack

USB

2 x USB 2.0 connector Dock USB

LAN1

RJ-45 Ethernet connector 1

LAN2
(KB/MS)

RJ-45 Ethernet connector 2

(LAN2 is default, KB/MS is optional)

VGA

CRT connector DB-15 female connector

DC IN

DC Power-in connector

12V DC IN

V

GA

LAN

KB/MS/LAN

USBCOM

LINE OUT

Com

p

act Flash

Quick Reference Guide

MPC-10W3 Quick Reference Guide

9

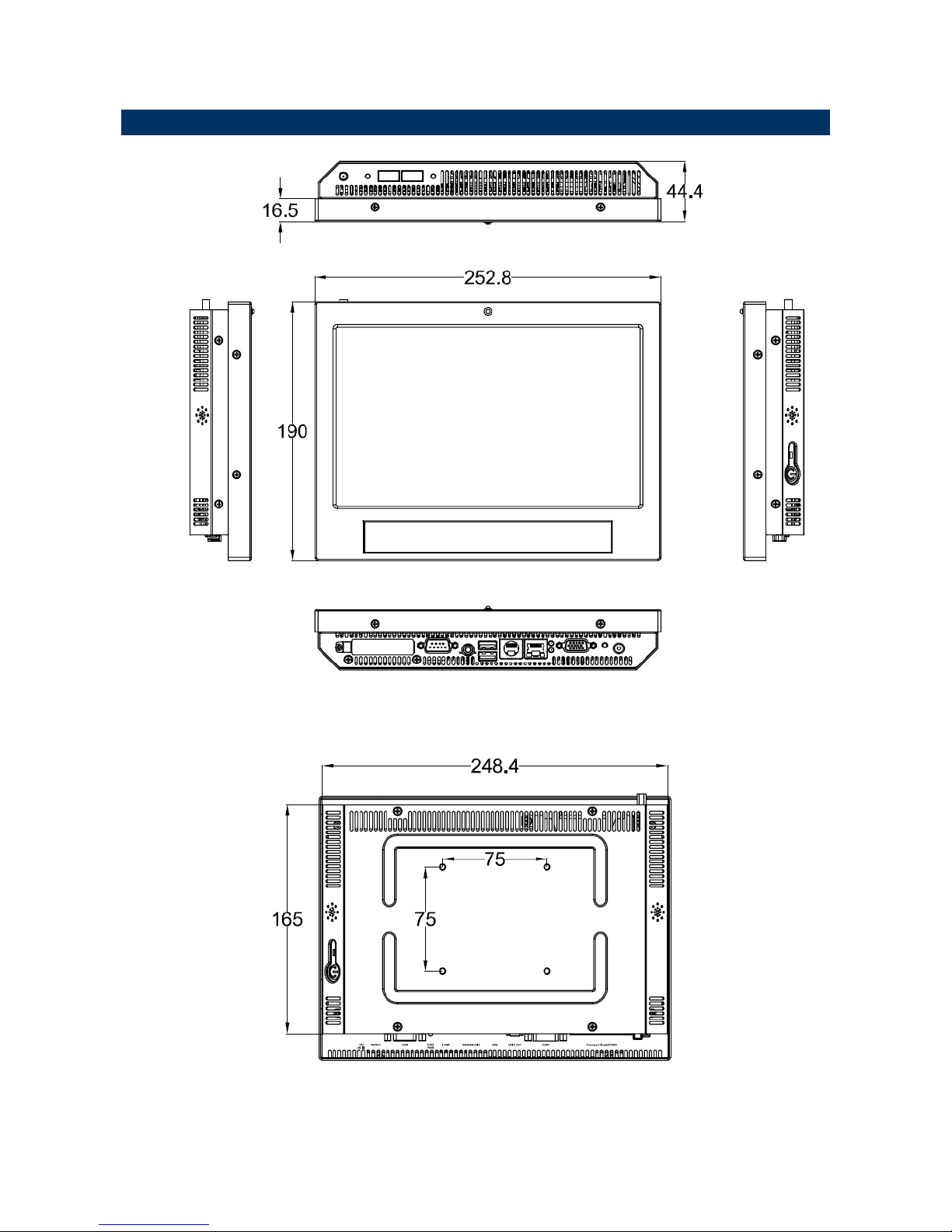

1.5 System Dimensions

MPC-10W3

10 MPC-10W3 Quick Reference Guide

2. Hardware
Configuration

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

Quick Reference Guide

MPC-10W3 Quick Reference Guide

11

2.1 Installing CF card and Memory

Step1. Unfasten 8 screws from the case then take off the top chassis.

Step2. Insert the SODIMM into the memory socket.

Step3. Place back the chassis with 8 screws locked.

MPC-10W3

12 MPC-10W3 Quick Reference Guide

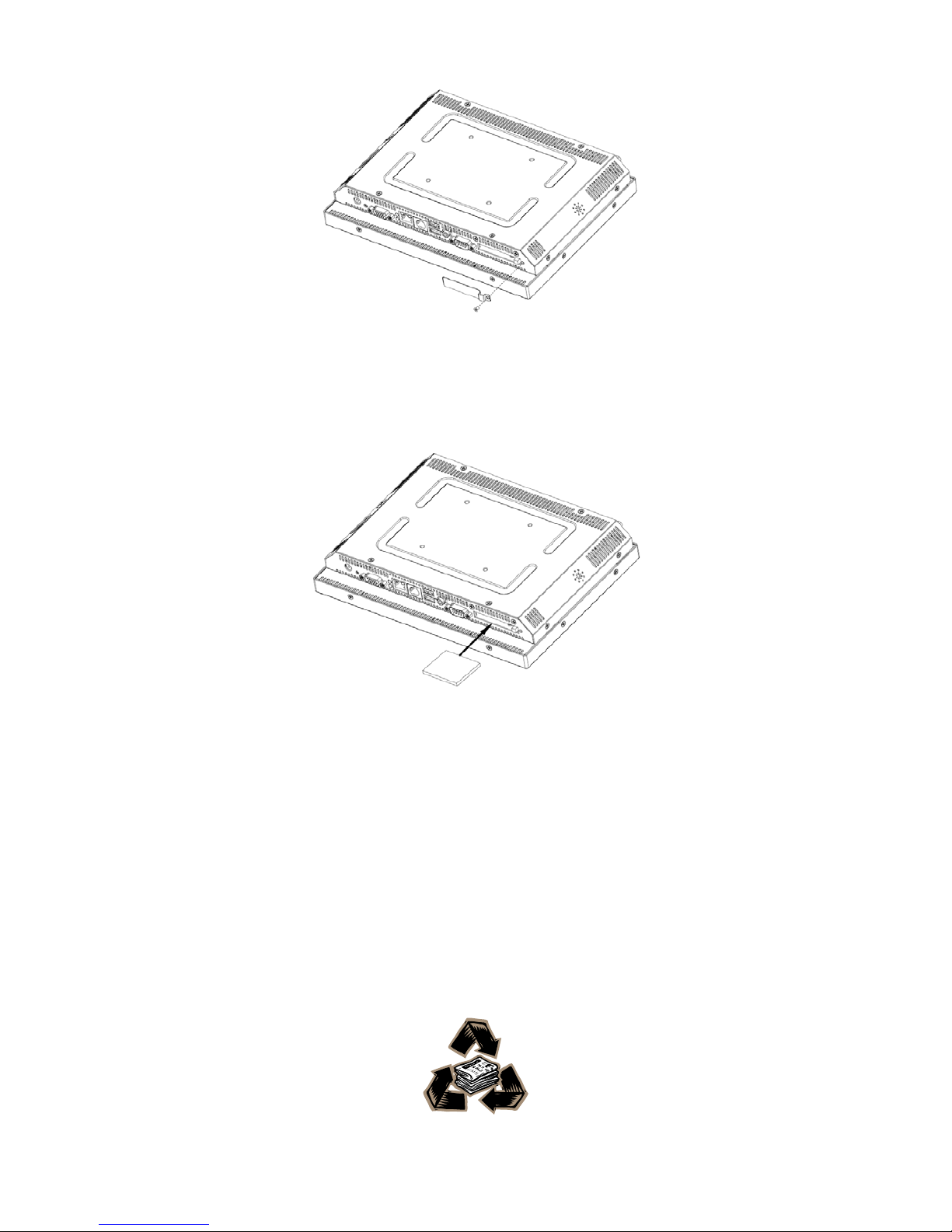

Step4. Unfasten the screws from the CF Socket cover.

Step5. Insert the Compact Flash Card into the CF Socket
