Avalue Technology EBM-PNV User Manual

Part No. E2047581401R

EBM-PNV

Intel® Atom™ Dual-Core 5.25” Mini Module with Intel®
ICH8-M Chipset

User’s Manual

1st Ed – 22 August 2011

EBM-PNV User’s Manual

2 EBM-PNV User‟s Manual

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.

Copyright Notice

Copyright  2011 Avalue Technology Inc., ALL RIGHTS RESERVED.

No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective
owners.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that

User’s Manual

EBM-PNV User‟s Manual

3

these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology‟s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to

perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue‟s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue‟s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user‟s manual

first.

To receive the latest version of the user‟s manual; please visit our Web site at:

http://www.avalue.com.tw/

EBM-PNV User’s Manual

4 EBM-PNV User‟s Manual

If you still cannot find the answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our dealers are well trained
and ready to give you the support you need to get the most from your Avalue‟s products. In
fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Avalue‟s engineers every business day.

We are always ready to give advice on application requirements or specific information on
the installation and operation of any of our products. Please do not hesitate to call or e-mail
us.

Headquarters and Branch

Avalue USA

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei,
Taiwan
Tel:[phone]
Fax: [phone]
Information:[e-mail]
Service: [e-mail]

Avalue Technology Inc.

9 Timber Lane, Marlboro, NJ 07746-1443
Tel: [phone]
Fax: [phone]
Information: [e-mail]
Service: [e-mail]

BCM Advanced Research

Avalue Europe

BCM Advanced Research
an Avalue Company

7 Marconi, Irvine, CA92618
Tel: [phone]
Fax: [phone]
Information: [e-mail]
Web: www.bcmcom.com

Avalue Europe A/S

Moelledalen 22C, 3140
Aalsgaarde, Denmark
Tel: [phone]
Fax:[phone]
Information: [e-mail]
Service: [e-mail]

Avalue China

Avalue Japan

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,
Caohejing Development Area,
Xuhui District, Shanghai
Tel: [phone]
Fax:[phone]
Information: [e-mail]
Service: [e-mail]

Avalue Technology Inc.

2F keduka-Bldg, 2-27-3 Taito,
Taito-Ku, Tokyo 110-0016 Japan
Tel: [phone]
Fax: [phone]
Information: [e-mail]

Service: [e-mail]

User’s Manual

EBM-PNV User‟s Manual

5

Product Warranty

Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products that have been repaired or altered by people
other than repair personnel authorized by Avalue, or that have been subject of misuse,
abuse, accident or improper installation. Avalue assumes no liability under the terms of this
warranty as a consequence of such events. Because of Avalue‟s high quality-control
standards and rigorous testing, most of our customers never need to use our repair service.

If any of Avalue‟s products is defective, it will be repaired or replaced at no charge during

the warranty period. For out-of-warranty repairs, you will be billed according to the cost of
replacement materials, service time, and freight. Please consult your dealer for more
details. If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU type and

speed, Avalue‟s products model name, hardware & BIOS revision number, other

hardware and software used, etc.) Note anything abnormal and list any on-screen
messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any

helpful information available.

3. If your product is diagnosed as defective, obtain an RMA (return material authorization)

number from your dealer. This allows us to process your good return more quickly.

4. Carefully pack the defective product, a complete Repair and Replacement Order Card

and a photocopy proof of purchase date (such as your sales receipt) in a shippable
container. A product returned without proof of the purchase date is not eligible for
warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your

dealer.

EBM-PNV User’s Manual

6 EBM-PNV User‟s Manual

Contents

1. Getting Started ............................................................................................................ 9

1.1 Safety Precautions .................................................................................................... 9

1.2 Packing List ............................................................................................................... 9

1.3 Document Amendment History ............................................................................... 10

1.4 Manual Objectives ................................................................................................... 11

1.5 System Specifications ............................................................................................. 12

1.6 Architecture Overview – Block Diagram .................................................................. 14

2. Hardware Configuration ........................................................................................... 15

2.1 Product Overview .................................................................................................... 16

2.2 Installation Procedure ............................................................................................. 17

2.2.1 Main Memory .................................................................................................................................. 18

2.3 Jumper and Connector List ..................................................................................... 20

2.4 Setting Jumpers & Connectors ............................................................................... 22

2.4.1 Clear CMOS (JBAT) ....................................................................................................................... 22

2.4.2 Multi-function select (SW1) ............................................................................................................ 22

2.4.3 Serial port 1/ 2 - RS-232/ 422/ 485 mode select (SW2) ................................................................. 23

2.4.4 Serial port 1/ 2 pin9 signal select (JRI1/ JRI2) ............................................................................... 23

2.4.5 Serial port 1/ 2 RS-232/ 422/ 485 mode select (JP1/ JP2) ............................................................ 24

2.4.6 SATA DOM Pin 7 Power mode selector (JP4) ............................................................................... 24

2.4.7 Battery connector (BAT) ................................................................................................................. 25

2.4.8 LCD backlight brightness adjustment (JVR1) ................................................................................ 26

2.4.9 LCD backlight brightness adjustment (JVR2) ................................................................................ 27

2.4.10 Power connector (PWR2) .......................................................................................................... 28

2.4.11 Serial ATA power connector (S_PWR1) .................................................................................... 28

2.4.12 LCD Inverter connector (JBKL1/ JBKL2) ................................................................................... 29

2.4.12.1 Signal Description – LCD Inverter Connector (JBKL1/ JBKL2) ............................................................. 29

2.4.13 Optional LPT connector (PRINT) ............................................................................................... 30

2.4.14 Serial port 1 connector (COM1) ................................................................................................. 31

2.4.15 CPU fan connector (CPU_FAN) ................................................................................................ 32

2.4.16 Audio connector (JAUDIO) ........................................................................................................ 32

2.4.17 Serial port 2 connector (JCOM2) ............................................................................................... 33

2.4.18 Serial port 3/ 4/ 5/ 6 connector (JCOM3/ JCOM4/ JCOM5/ JCOM6) ........................................ 34

2.4.19 General purpose I/O connector (JDIO) ...................................................................................... 34

2.4.20 LED indicator connector (JLED) ................................................................................................ 35

2.4.21 LVDS connector (JLVDS1) ........................................................................................................ 36

2.4.21.1 Signal Description – LVDS Connecter (JLVDS) ................................................................................. 36

User’s Manual

EBM-PNV User‟s Manual

7

2.4.22 LVDS connector (JLVDS2) ........................................................................................................ 37

2.4.23 Touch panel connector (JTOUCH) ............................................................................................ 38

2.4.24 USB connector 4&5, 2&3, 6&7 (JUSB1/ JUSB2)....................................................................... 38

2.4.25 USB connector 9 (JUSB4) ......................................................................................................... 39

2.4.26 OSD for front panel key (JKEY) ................................................................................................. 39

3. BIOS Setup ................................................................................................................... 40

3.1 Introduction ............................................................................................................. 41

3.2 Starting Setup ......................................................................................................... 41

3.3 Using Setup ............................................................................................................ 42

3.4 Getting Help ............................................................................................................ 43

3.5 In Case of Problems ................................................................................................ 43

3.6 BIOS setup .............................................................................................................. 44

3.6.1 Main Menu ...................................................................................................................................... 44

3.6.1.1 System Time ........................................................................................................................................ 44

3.6.1.2 System Date ......................................................................................................................................... 44

3.6.2 Advanced Menu ............................................................................................................................. 45

3.6.2.1 CPU Configuration .............................................................................................................................. 46

3.6.2.2 IDE Configuration ................................................................................................................................ 47

3.6.2.2.1 AHCI Configuration............................................................................................................................. 48

3.6.2.3 Super I/O Configuration ....................................................................................................................... 49

3.6.2.4 Hardware Health Configuration ........................................................................................................... 50

3.6.2.5 ACPI Settings ....................................................................................................................................... 50

3.6.2.5.1 General ACPI Configuration ................................................................................................................ 51

3.6.2.5.2 Advanced ACPI Configuration ............................................................................................................ 52

3.6.2.5.3 Chipset ACPI Configuration ................................................................................................................ 53

3.6.2.6 USB Configuration .............................................................................................................................. 54

3.6.2.7 APM Configuration .............................................................................................................................. 55

3.6.3 Advanced PCI/ PnP Settings ......................................................................................................... 56

3.6.4 Boot Settings .................................................................................................................................. 57

3.6.4.1 Boot Settings Configuration ....................................................................................................... 58

3.6.4.2 Boot Device Priority ................................................................................................................... 59

3.6.4.3 Hard Disk Devices ..................................................................................................................... 59

3.6.4.4 Removable Devices ................................................................................................................... 60

3.6.5 Security Settings ............................................................................................................................ 60

3.6.5.1 Change Supervisor/ User Password .......................................................................................... 61

3.6.5.2 Clear User Password ................................................................................................................. 62

3.6.5.3 Boot Sector Virus Protection ...................................................................................................... 62

3.6.6 Advanced Chipset Settings ............................................................................................................ 63

3.6.6.1 North Bridge Configuration ........................................................................................................ 64

3.6.6.1.1 Video Function Configuration ................................................................................................ 65

EBM-PNV User’s Manual

8 EBM-PNV User‟s Manual

3.6.6.2 South Bridge Configuration ........................................................................................................ 67

3.6.7 Exit Options .................................................................................................................................... 68

3.6.7.1 Save Changes and Exit ............................................................................................................. 68

3.6.7.2 Discard Changes and Exit ......................................................................................................... 69

3.6.7.3 Discard Changes ....................................................................................................................... 69

3.6.7.4 Load Optimal Defaults ............................................................................................................... 70

3.6.7.5 Load Failsafe Defaults ............................................................................................................... 70

4. Drivers Installation....................................................................................................... 71

4.1 Install Chipset Driver (For Intel ICH8-M) ................................................................. 72

4.2 Install Display Driver (For Intel Pineview) ................................................................ 73

4.3 Install Audio Driver (For Realtek ALC888) .............................................................. 74

4.4 Install Ethernet Driver (For Intel 82574L) ................................................................ 75

5. Mechanical Drawing .................................................................................................... 77

User’s Manual

EBM-PNV User‟s Manual

9

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.

Caution!

Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.

1.2 Packing List

Before you begin installing your single board, please make sure that the
following materials have been shipped:

 1 x EBM-PNV with Intel® Atom™ Dual Core & DDR3 SDRAM Mini

Module

 1 x DVD-ROM or CD-ROM contains the followings:

— User‟s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities

EBM-PNV User’s Manual

10 EBM-PNV User‟s Manual

1.3 Document Amendment History

Revision

Date

Comment

1st

August 2011

Initial Release

User’s Manual

EBM-PNV User‟s Manual

11

1.4 Manual Objectives

This manual describes in details Avalue Technology EBM-PNV Single Board.

We have tried to include as much information as possible but we have not duplicated
information that is already being provided in the standard IBM Technical References,
unless it proved to be necessary to aid in the understanding of this board.

We strongly recommend that you study this manual carefully before attempting to interface
with EBM-PNV series or change the standard configurations. Whilst all the necessary
information is available in this manual we would recommend that unless you are confident,
you contact your supplier for guidance.

Please be aware that it is possible to create configurations within the CMOS RAM that
make booting impossible. If this should happen, clear the CMOS settings, (see the
description of the Jumper Settings for details).

If you have any suggestions or find any errors concerning this manual and want to inform
us of these, please contact our Customer Service department with the relevant details.

EBM-PNV User’s Manual

12 EBM-PNV User‟s Manual

1.5 System Specifications

System

CPU

Onboard Intel® Atom™ D525 Dual-Core 1.8GHz CPU
800 MHz

FSB

BIOS

AMI 8Mbit Flash BIOS

System Chipset

Intel® ICH8-M Chipset (2.4W)

I/O Chip

Winbond W83627DHG-P

System Memory

Onboard 1GB DDR3 SDRAM & One 204-pin SODIMM Supports Up to
3GB DDR3

SSD

One CompactFlash Type I/II Socket

Watchdog Timer

Reset: 1 ~ 255min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring System Temperature, Voltage, and Cooling
Fan Status. Auto Trotting Control when CPU Overheats

Expansion

Two Mini PCIe Slots (One Supports optional Mini Card DOM)

I/O

MIO

1 x SATA (SATA 2 or SATA 3) optional, 1 LPT (Option), 2 x
RS-232/422/485,
4 x RS-232 (Option), 1 x K/B & Mouse (Option)

USB

7 x USB 2.0

DIO

16-bit General Purpose I/O for DI and DO 8-bit Parallel Port Data

Display

Chipset

Intel® Pineview™ Integrated, Gen3.5 + GFX Core @ 400MHz

Resolution

CRT Mode : Up to 2048 x 1536 @ 60Hz
LCD/ Simultaneous Mode: Up to 1366 x 768 @ 75Hz

Multiple Display

CRT + LVDS, LVDS + LVDS

LVDS

1 x 18-bit, 2 x 18/24-bit LVDS

Backlight Control

VR, PWM (Setting by BIOS)

Touch Screen Interface (Optional)

Chipset

ETP-CP-S458XRU

Touch Screen Interface

With 5-pin 2.54mm Pin Header (Can be Selected to Support 4/5-wire
Touch Screen)

User’s Manual

EBM-PNV User‟s Manual

13

Audio

HD Codec

Realtek ALC888 Supports 5.1-CH Audio

Audio Interface

Mic-in, Line-in, Line-out

Audio Amplifier

2 x 2W

Ethernet

LAN 1

Intel® 82574L PCI-E Gigabit Ethernet

LAN 2

Intel® 82574L PCI-E Gigabit Ethernet
(Optional 1 x PS/2 Keyboard & Mouse)

Ethernet Interface

1000 Base-Tx Gigabit Ethernet Compatible

Mechanical & Environmental

Power Consumption

+12V @ 1.80A

Power Type

+12V ~ +28V Power Input AT/Adapter

Operation Temperature

0 ~ 60°C (32 ~ 140°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Size ( L x W )

8” x 5.75” x 0.75” (203mm x 146mm x 19mm)

Weight

0.55lb (0.25kg)

EBM-PNV User’s Manual

14 EBM-PNV User‟s Manual

1.6 Architecture Overview – Block Diagram

The following block diagram shows the architecture and main components of EBM-PNV.

User’s Manual

EBM-PNV User‟s Manual

15

2. Hardware
Configuration

EBM-PNV User’s Manual

16 EBM-PNV User‟s Manual

2.1 Product Overview

User’s Manual

EBM-PNV User‟s Manual

17

2.2 Installation Procedure

This chapter provides you the instructions on how to setup your system.

1. Turn off the power supply.

2. Insert the SODIMM module (be careful with the orientation).

3. Insert all external cables for hard disk, floppy, keyboard, mouse, USB etc. except for flat
panel. A CRT monitor must be connected in order to change CMOS settings to support
flat panel.

4. Connect power supply to the board via the ATXPWR.

5. Turn on the power.

6. Enter the BIOS setup by pressing the delete key during boot up. Use the “LOAD BIOS
DEFAULTS” feature. The Integrated Peripheral Setup and the Standard CMOS Setup
Window must be entered and configured correctly to match the particular system
configuration.

7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before
connecting the display cable and turning on the power.

Note: Make sure the heat sink and the CPU top surface are in total contact to

avoid CPU overheating problem that would cause the system to hang or
show instability.

EBM-PNV User’s Manual

18 EBM-PNV User‟s Manual

2.2.1 Main Memory

EBM-PNV provides Onboard 1GB DDR3 SDRAM and One 204-pin SODIMM Supporting
Up to 3GB DDR3

Make sure to unplug the power supply before adding or removing SODIMMs
or other system components. Failure to do so may cause severe damage to
both the board and the components.

 Locate the SODIMM socket on the board.
 Hold two edges of the SODIMM module carefully. Avoid touching its connectors.

SODIMM

User’s Manual

EBM-PNV User‟s Manual

19

 Align the notch key on the module with the rib on the slot.
 Firmly press the modules into the socket which automatically snaps into the mounting

notch. Do not force the SODIMM module in with extra force as the SODIMM module
only fits in one direction.

 To remove SODIMM modules, simultaneously push the two ejector tabs outward,

then pull out the SODIMM module.

Note:

(1) Please do not change any DDR3 SDRAM parameter in BIOS setup to increase

your system‟s performance without acquiring technical information in advance.

(2) Static electricity can damage the electronic components of the computer or

optional boards. Before proceeding, ensure that you are discharged of static
electricity by briefly touching a grounded metal object.

Mounting Notch

Notch Key

Ejector

204-pin DDR3 SODIMM

EBM-PNV User’s Manual

20 EBM-PNV User‟s Manual

2.3 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board‟s jumpers and connectors.

Jumpers

Label

Function

Note

JBAT

Clear CMOS

3 x 1 header, pitch 2.54mm

JP1

Serial port 1 – RS232/ 422/ 485 mode select

4 x 3 header, pitch 2.0mm

JP2

Serial port 2 – RS232/ 422/ 485 mode select

4 x 3 header, pitch 2.0mm

JP4

SATA DOM Pin 7 Power mode selector

3 x 1 header, pitch 2.0mm

JRI1

Serial port 1 pin9 signal select

3 x 2 header, pitch 2.0mm

JRI2

Serial port 2 pin9 signal select

3 x 2 header, pitch 2.0mm

JVR1

LCD backlight brightness adjustment

3 x 2 header, pitch 2.0mm

JVR2

LCD backlight brightness adjustment

3 x 2 header, pitch 2.0mm

SW1

Multi-function select

DIP switch 6pin

SW2

Serial port 1/ 2 – RS232/ 422/ 485 mode
select

DIP switch 6pin

User’s Manual

EBM-PNV User‟s Manual

21

Connectors

Label

Function

Note

BAT

Battery connector

2 x 1 wafer, pitch 1.25mm

CFCARD

Compact Flash card connector

COM1

Serial Port 1 connector

D-sub 9 pin, male

CPU_FAN

CPU fan connector

3 x 1 wafer, pitch 2.54mm

DIMM

204-pin DDR3 SODIMM socket

JAUDIO

Audio connector

6 x 2 header, pitch 2.0mm

JBKL1

LCD Inverter connector

5 x 1 wafer, pitch 2.0mm

JBKL2

LCD Inverter connector

5 x 1 wafer, pitch 2.0mm

JCOM2

Serial Port 2 connector

5 x 2 header, pitch 2.0mm

JCOM3

Serial Port 3 connector

5 x 2 header, pitch 2.0mm

JCOM4

Serial Port 4 connector

5 x 2 header, pitch 2.0mm

JCOM5

Serial Port 5 connector

5 x 2 header, pitch 2.0mm

JCOM6

Serial Port 6 connector

5 x 2 header, pitch 2.0mm

JDIO

General purpose I/O connector

10 x 2 header, pitch 2.0mm

JLED

LED indicator connector

7 x 2 header, pitch 2.0mm

JLVDS1

LVDS Connector

DIN 40-pin wafer, pitch 1.25mm

JLVDS2

LVDS Connector

DIN 40-pin wafer, pitch 1.25mm

JTOUCH

Touch panel connector

5 x 1 header, pitch 2.54mm

JUSB1

USB connector 4&5

5 x 2 header, pitch 2.0mm

JUSB2

USB connector 2&3

5 x 2 header, pitch 2.0mm

JUSB4

USB connector 9

6 x 1 header, pitch 2.0mm

JKEY

OSD for front panel key

8 x 1 wafer, pitch 2.0mm

LAN1

RJ-45 Ethernet 1

LAN2

RJ-45 Ethernet 1(KB/MS-Optional)

LED

LED indicator connector

LINOUT

Audio line-out connector

MPCIE1

Mini-PCI connector 1

MPCIE2

Mini-PCI connector 2

PRINT

Optional LPT Connector

PWR1

Power connector

PWR2

Power connector

2 x 2 wafer, pitch 2.0mm

RSBTN

Reset button

S_PWR1

Serial ATA power connector

2 x 1 wafer, pitch 2.0mm

SATA1

Serial ATA connector 1

SATA2

Serial ATA connector 2

USB1

USB connector 0&1

VGA

VGA connector

D-sub 15-pin, female

EBM-PNV User’s Manual

22 EBM-PNV User‟s Manual

2.4 Setting Jumpers & Connectors

2.4.1 Clear CMOS (JBAT)

* Default

Protect*

Clear CMOS

2.4.2 Multi-function select (SW1)

ON

OFF

1

AT SEL

ATX SEL

2

CF Master

CF Slave

3

Touch off

Touch on

4

Touch: 4W

Touch: 5W

5

GPIO32:L

GPIO32:H

6

GPIO33:L

GPIO33:H

User’s Manual

EBM-PNV User‟s Manual

23

2.4.3 Serial port 1/ 2 - RS-232/ 422/ 485 mode select (SW2)

In Serial Port 1 mode

RS-232

RS-422

RS-485

1

ON

OFF

OFF

2

OFF

ON

OFF

3

OFF

OFF

ON

In Serial Port 2 mode

RS-232

RS-422

RS-485

4

ON

OFF

OFF

5

OFF

ON

OFF

6

OFF

OFF

ON

2.4.4 Serial port 1/ 2 pin9 signal select (JRI1/ JRI2)

* Default

Ring*

+5V

+12V

JRI2

JRI1

EBM-PNV User’s Manual

24 EBM-PNV User‟s Manual

2.4.5 Serial port 1/ 2 RS-232/ 422/ 485 mode select (JP1/ JP2)

* Default

RS-232*

RS-422/ 485

2.4.6 SATA DOM Pin 7 Power mode selector (JP4)

* Default

Clear*

Power

Signal

PIN

SATA_PWR

1

GND#7_1

2

GND

3

JP2

JP1

User’s Manual

EBM-PNV User‟s Manual

25

2.4.7 Battery connector (BAT)

Signal

PIN

GND

2

BAT

1

EBM-PNV User’s Manual

26 EBM-PNV User‟s Manual

2.4.8 LCD backlight brightness adjustment (JVR1)

* Default

Signal

PIN

PIN

Signal

+5V

1

2

DC

VR 3 4

VR

GND

5

6

PWM

Variation Resistor

(Recommended: 4.7KΩ, >1/16W)

Mode1: VR type

Mode 2: DC type*

Note: DC: 0V ~5V

Mode 3: Pulse-Width Modulated type

Note:

For inverters with adjustable Backlight function, it is possible to control the LCD brightness
through the VR signal controlled by JBKL1. Please see the JBKL1 section for detailed circuitry
information.

User’s Manual

EBM-PNV User‟s Manual

27

2.4.9 LCD backlight brightness adjustment (JVR2)

* Default

Signal

PIN

PIN

Signal

+5V

1

2

DC2

VR 3 4

VR

GND

5

6

PWM2

Variation Resistor

(Recommended: 4.7KΩ, >1/16W)

Mode1: VR type

Mode 2: DC type*

Note: DC: 0V ~5V

Mode 3: Pulse-Width Modulated type

Note:

For inverters with adjustable Backlight function, it is possible to control the LCD brightness
through the VR signal controlled by JBKL2. Please see the JBKL2 section for detailed circuitry
information.

EBM-PNV User’s Manual

28 EBM-PNV User‟s Manual

2.4.10 Power connector (PWR2)

Signal

PIN

PIN

Signal

VIN

4

3

VIN

GND

2 1 GND

2.4.11 Serial ATA power connector (S_PWR1)

Signal

PIN

SATA_PWR

2

GND

1

User’s Manual

EBM-PNV User‟s Manual

29

2.4.12 LCD Inverter connector (JBKL1/ JBKL2)

Signal

PIN

+5V

5

BRIGHT

4

BLK_ON

3

GND

2

+12V

1

Note:

For inverters with adjustable Backlight function, it is possible to control the LCD brightness through
the VR signal controlled by JVR1/ JVR2. Please see the JVR1/ JVR2 section for detailed circuitry
information.

2.4.12.1 Signal Description – LCD Inverter Connector (JBKL1/ JBKL2)

Signal

Signal Description

BRIGHT

Vadj = 0.75V ~ 4.25V (Recommended: 4.7KΩ, >1/16W)

BKL_ON

LCD backlight ON/OFF control signal

JBKL1

JBKL2

EBM-PNV User’s Manual

30 EBM-PNV User‟s Manual

2.4.13 Optional LPT connector (PRINT)

Signal

PIN

GND

20

GND

19

GND

18

SLIN#

17

PAR_INIT#

16

ERR#

15

AFD#

14

SLCT

13

PE

12

BUSY

11

ACK#

10

PTD7

9

PTD6

8

PTD5

7

PTD4

6

PTD3

5

PTD2

4

PTD1

3

PTD0

2

STB-

1

PRINT (Rear side)

User’s Manual

EBM-PNV User‟s Manual

31

2.4.14 Serial port 1 connector (COM1)

In RS-232 Mode

Signal

PIN

PIN

Signal

DCD1

1 2 RxD1

TxD1

3 4 DTR1

GND

5 6 DSR1

RTS1

7 8 CTS1

RI1

9 NC

In RS-422 Mode

Signal

PIN

PIN

Signal

TxD1-

1 2 RxD1+

TxD1+

3 4 RxD1-

GND

5 6 NC

NC

7 8 NC

NC

9 NC

In RS-485 Mode

Signal

PIN

PIN

Signal

DATA1-

1 2 NC

DATA1+

3 4 NC

GND

5 6 NC

NC

7 8 NC

NC

9 NC

EBM-PNV User’s Manual

32 EBM-PNV User‟s Manual

2.4.15 CPU fan connector (CPU_FAN)

Signal

PIN

FAN_TAC1

3

+12V

2

GND

1

2.4.16 Audio connector (JAUDIO)

Signal

PIN

PIN

Signal

APM_LOUT_R

1 2 APM_LOUT_L

GND

3 4 GND

LINEIN_R

5 6 LINEIN_L

MIC-R

7 8 MIC-L

FRONT-JD

9

10

LINE1-JD

MIC1-JD

11

12

GND

User’s Manual

EBM-PNV User‟s Manual

33

2.4.17 Serial port 2 connector (JCOM2)

In RS-232 Mode

Signal

PIN

PIN

Signal

DCD2

1 2 RxD2

TxD2

3 4 DTR2

GND

5 6 DSR2

RTS2

7 8 CTS2

RI2

9

10

NC

In RS-422 Mode

Signal

PIN

PIN

Signal

TxD2-

1 2 RxD2+

TxD2+

3 4 RxD2-

GND

5 6 NC

NC

7 8 NC

NC

9

10

NC

In RS-485 Mode

Signal

PIN

PIN

Signal

DATA2-

1 2 NC

DATA2+

3 4 NC

GND

5 6 NC

NC

7 8 NC

NC

9

10

NC

EBM-PNV User’s Manual

34 EBM-PNV User‟s Manual

2.4.18 Serial port 3/ 4/ 5/ 6 connector (JCOM3/ JCOM4/ JCOM5/ JCOM6)

Signal

PIN

PIN

Signal

DCD

1 2 RxD

TxD

3 4 DTR

GND

5 6 DSR

RTS

7 8 CTS

RI

9

10

NC

2.4.19 General purpose I/O connector (JDIO)

Signal

PIN

PIN

Signal

DIO0

1 2 DIO10

DIO1

3 4 DIO11

DIO2

5 6 DIO12

DIO3

7 8 DIO13

DIO4

9

10

DIO14

DIO5

11

12

DIO15

DIO6

13

14

DIO16

DIO7

15

16

DIO17

SMB_CLK_S

17

18

SMB_DATA_S

GND

19

20

+5V

JCOM3

JCOM4

JCOM5

JCOM6

User’s Manual

EBM-PNV User‟s Manual

35

2.4.20 LED indicator connector (JLED)

Signal

PIN

PIN

Signal

GND

1 2 +3.3V

HD_ACT#

3 4 +3.3V

LAN1_ACT

5 6 3.3V_SB

LAN2_ACT

7 8 3.3V_SB

ROUT-

9

10

ROUT+

LOUT-

11

12

LOUT+

PWRBTN#

13

14

GND

EBM-PNV User’s Manual

36 EBM-PNV User‟s Manual

2.4.21 LVDS connector (JLVDS1)

Signal

PIN

PIN

Signal

+5V

2 1 +3.3V

+5V

4 3 +3.3V

I2C_DAT

6 5 I2C_CLK

GND

8 7 GND

Txout0

10 9 Txout1

Txout0#

12

11

Txout1#

GND

14

13

GND

Txout2

16

15

NC

Txout2#

18

17

NC

GND

20

19

GND

NC

22

21

NC

NC

24

23

NC

GND

26

25

GND

NC

28

27

NC

NC

30

29

NC

GND

32

31

GND

Txclk

34

33

NC

Txclk#

36

35

NC

GND

38

37

GND

+12V

40

39

+12V

2.4.21.1 Signal Description – LVDS Connecter (JLVDS)

Signal

Description

I2C_DAT, I2C_CLK

I2C interface for panel parameter EEPROM. This EERPOM is mounted on the
LVDS receiver. The data in the EEPROM allows the EXT module to automatically
set the proper timing parameters for a specific LCD panel.

User’s Manual

EBM-PNV User‟s Manual

37

2.4.22 LVDS connector (JLVDS2)

Signal

PIN

PIN

Signal

+5V

2 1 +3.3V

+5V

4 3 +3.3V

NC

6 5 NC

GND

8 7 GND

Txout0

10 9 Txout1

Txout0#

12

11

Txout1#

GND

14

13

GND

Txout2

16

15

Txout3

Txout2#

18

17

Txout3#

GND

20

19

GND

Txout4

22

21

Txout5

Txout4#

24

23

Txout5#

GND

26

25

GND

Txout6

28

27

Txout7

Txout6#

30

29

Txout7#

GND

32

31

GND

Txclk1

34

33

Txclk2

Txclk1#

36

35

Txclk2#

GND

38

37

GND

+12V

40

39

+12V

Note: Single/Dual 24-bit LVDS

1. CRT's resolution < LCD's resolution.

If we boot from CRT & LCD, the resolution is fixed by CRT's resolution.
If we boot from LCD only and plug the CRT in the OS, LCD works well but the CRT will have wrong
resolution.

2. CRT's resolution > LCD's resolution.

Everything is fine.

EBM-PNV User’s Manual

38 EBM-PNV User‟s Manual

2.4.23 Touch panel connector (JTOUCH)

Signal

PIN

UL

1

UR

2

PROBE

3

LR

4

LL

5

NOTE: Under 4W situation
UL=X+, UR=Y+, LR=Y-, LL=X-

2.4.24 USB connector 4&5, 2&3, 6&7 (JUSB1/ JUSB2)

Signal

PIN

PIN

Signal

+5V

1

2

GND

D-

3 4 GND

D+

5 6 D+

GND

7 8 D-

GND

9

10

+5V

JUSB2

JUSB1

User’s Manual

EBM-PNV User‟s Manual

39

2.4.25 USB connector 9 (JUSB4)

Signal

PIN

+5V

1

D- 2 D+ 3 GND

4

GND

5

+3.3V

6

2.4.26 OSD for front panel key (JKEY)

Signal

PIN

GND

1

K-LED_GREEN

2

K-LED_RED

3

K-POWER

4

K-AUTO

5

K-MENU

6

K-RIGHT

7

K-LEFT

8

EBM-PNV User’s Manual

40 EBM-PNV User‟s Manual

3. BIOS Setup

User’s Manual

EBM-PNV User‟s Manual

41

3.1 Introduction

The BIOS setup program allows users to modify the basic system configuration. In this
following chapter will describe how to access the BIOS setup program and the
configuration options that may be changed.

3.2 Starting Setup

The AMI BIOS™ is immediately activated when you first power on the computer. The BIOS

reads the system information contained in the CMOS and begins the process of checking
out the system and configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <Del> immediately after switching the system on, or
By pressing the <Del> key when the following message appears briefly at the bottom of the
screen during the POST (Power On Self Test).

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys. If you do not press the keys at the correct time and the system does not boot, an error
message will be displayed and you will again be asked to.

Press F1 to Continue, DEL to enter SETUP

EBM-PNV User’s Manual

42 EBM-PNV User‟s Manual

3.3 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.

Button

Description

↑

Move to previous item

↓

Move to next item

←

Move to the item in the left hand

→

Move to the item in the right hand

Esc key

Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and
return to Main Menu

PgUp key

Increase the numeric value or make changes

PgDn key

Decrease the numeric value or make changes

+ key

Increase the numeric value or make changes

- key

Decrease the numeric value or make changes

F1 key

General help, only for Status Page Setup Menu and Option Page Setup Menu

(Shift) F2 key

Change color from total 16 colors. F2 to select color forward, (Shift) F2 to select
color backward

F3 key

Calendar, only for Status Page Setup Menu

F4 key

Reserved

F5 key

Restore the previous CMOS value from CMOS, only for Option Page Setup Menu

F6 key

Load the default CMOS value from BIOS default table, only for Option Page Setup
Menu

F7 key

Load the default

F8 key

Reserved

F9 key

Reserved

F10 key

Save all the CMOS changes, only for Main Menu

 Navigating Through The Menu Bar

Use the left and right arrow keys to choose the menu you want to be in.

Note: Some of the navigation keys differ from one screen to another.

 To Display a Sub Menu

Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A “” pointer marks all sub menus.

User’s Manual

EBM-PNV User‟s Manual

43

3.4 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1
key again.

3.5 In Case of Problems

If, after making and saving system changes with Setup, you discover that your computer is
no longer able to boot, the AMI BIOS supports an override to the CMOS settings which
resets your system to its defaults.

The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both Award and your systems manufacturer to
provide the absolute maximum performance and reliability. Even a seemingly small change
to the chipset setup has the potential for causing you to use the override.

EBM-PNV User’s Manual

44 EBM-PNV User‟s Manual

3.6 BIOS setup

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the
screen. The Main Menu allows you to select from several setup functions and exit choices.
Use the arrow keys to select among the items and press <Enter> to accept and enter the
sub-menu.

3.6.1 Main Menu

This section allows you to record some basic hardware configurations in your computer and
set the system clock.

3.6.1.1 System Time

Use the system Date option to set the system date. Manually enter the day, month and
year.

3.6.1.2 System Date

Use the system time option to set the system time. Manually enter the hours, minutes and
seconds.

Note: The BIOS setup screens shown in this chapter are for reference purposes

only, and may not exactly match what you see on your screen.
Visit the Avalue website (www.avalue.com.tw) to download the latest
product and BIOS information.

User’s Manual

EBM-PNV User‟s Manual

45

3.6.2 Advanced Menu

This section allows you to configure your CPU and other system devices for basic operation
through the following sub-menus.

EBM-PNV User’s Manual

46 EBM-PNV User‟s Manual

3.6.2.1 CPU Configuration

Item

Options

Description

Max CPUID Value Limit

Disabled,

Enabled

This item allows you to limit CPUID maximum
value.

Execute-Disable Bit

Capability

Disabled,

Enabled

This item allows you to enable or disable the
No-Execution page protection technology.

Hyper Threading

Technology

Disabled,

Enabled

This item allows you to enable or disable
Intel® Hyper Threading technology.

Intel® SpeedStep™ tech

Disabled,

Enabled

This item allows you to enable or disable
Intel® SpeedStep™ tech.

User’s Manual

EBM-PNV User‟s Manual

47

3.6.2.2 IDE Configuration

Item

Options

Description

ATA/ IDE Configuration

Disabled,

Compatible,

Enhanced

This can be configured as Disabled,
Compatible or Enhanced.

Configure SATA as

IDE,

RAID,

AHCI

Use the configure SATA as BIOS option to
configure the SATA port as an IDE drive, a
SATA drive (AHCI mode) or a SATA drive in a
RAID configuration.

Primary/ Secondary/ Third IDE

Master

Disabled,

Enabled

Use the IDE Master and IDE Slave
configuration menu to view both primary and
secondary IDE device details and configure
the IDE devices connected to the system.

Primary/ Secondary/ Third IDE

Slave

Disabled,

Enabled

Use the IDE Master and IDE Slave
configuration menu to view both primary and
secondary IDE device details and configure
the IDE devices connected to the system.

Hard Disk Write Protect

Disabled,

Enabled

Disable/ Enable device write protection. This
will effective only if device is accessed through
BIOS.

IDE Detect Time Out (Sec)

0/ 5/ 10/ 15/ 20/ 25/ 30/

35

This allows you to select the time out value for
detecting ATA/ ATAPI devices.

EBM-PNV User’s Manual

48 EBM-PNV User‟s Manual

3.6.2.2.1 AHCI Configuration

While entering setup, BIOS auto detects the presence of IDE devices. This displays the
status of auto detection of IDE devices.

Item

Options

Description

SATA Port 0/ 1/ 2

Auto,

Not Installed

Serial port 0/ 1/ 2 mode select.

S.M.A.R.T.

Disabled,

Enabled

Select the smart monitoring, analysis, and
reporting technology.

User’s Manual

EBM-PNV User‟s Manual

49

3.6.2.3 Super I/O Configuration

You can use this item to set up or change the Super IO configuration for FDD controllers,
parallel ports and serial ports.

Item

Options

Description

Serial Port 1/ 2/ 3/ 4/ 5/ 6

Address

Disabled,
3F8, 2F8,

3E8, 2E8,

2F0, 2E0

This item allows you select serial port 1 ~ 6 of
base addresses.

Serial Port 2/ 5/ 6 Type

422,

485

This item allows you select serial port 2/ 5/ 6 of
type.

Serial Port 3/ 4/ 5/ 6 IRQ

4/ 9/ 10/ 11

This item allows you select serial port 3 ~ 6 of
IRQ.

Parallel Port Address

Disabled,

378,
278,
3BC

The Parallel Address BIOS option assigns the
I/O port address of the parallel port.

Parallel Port Mode

Normal,

EPP,
ECP,

EPP+ECP

The Parallel Port Mode selection selects the
mode the parallel port operations in.

Parallel Port IRQ

IRQ5,

IRQ7

The Parallel Port Address BIOS option
assigns the parallel port interrupt address.

EBM-PNV User’s Manual

50 EBM-PNV User‟s Manual

3.6.2.4 Hardware Health Configuration

This section allows you to control H/W monitoring.

3.6.2.5 ACPI Settings

You can use this item to set up ACPI Configuration. Please refer to 3.5.2.5.1 ~ 3.5.2.5.3 for
more details.

User’s Manual

EBM-PNV User‟s Manual

51

3.6.2.5.1 General ACPI Configuration

Item

Options

Description

Suspend Mode

S1 (POS),

S3 (STR),

Auto

Select the ACPI states used for system
suspend.

Repost Video on S3 Resume

No,

Yes

This item allows you to invoke VGA BIOS
POST on S3/ STR resume.

Deep S5

Disabled,

Enabled

All PME/ wakeup event will be disabled in S4/
S5 mode when enabled DEEP S5.

Note:
Deep S5=ErP

ErP mode: 1. No Timer-Power-On

2. No Wake On Ring/ LAN

EBM-PNV User’s Manual

52 EBM-PNV User‟s Manual

3.6.2.5.2 Advanced ACPI Configuration

Item

Options

Description

ACPI Version Features

ACPI v1.0,
ACPI v2.0,
ACPI v3.0

This item allows you enable RSDP pointers to
64-bit fixed system description tables.

ACPI APIC support

Enabled,
Disabled

Include APIC table pointer to RSDT pointer
list.

AMI OEMB table

Enabled,
Disabled

Include OEMB table pointer to R(x)SDT
pointer list.

Headless mode

Disabled,

Enabled

Enable/ Disable Headless operation mode
through ACPI.

User’s Manual

EBM-PNV User‟s Manual

53

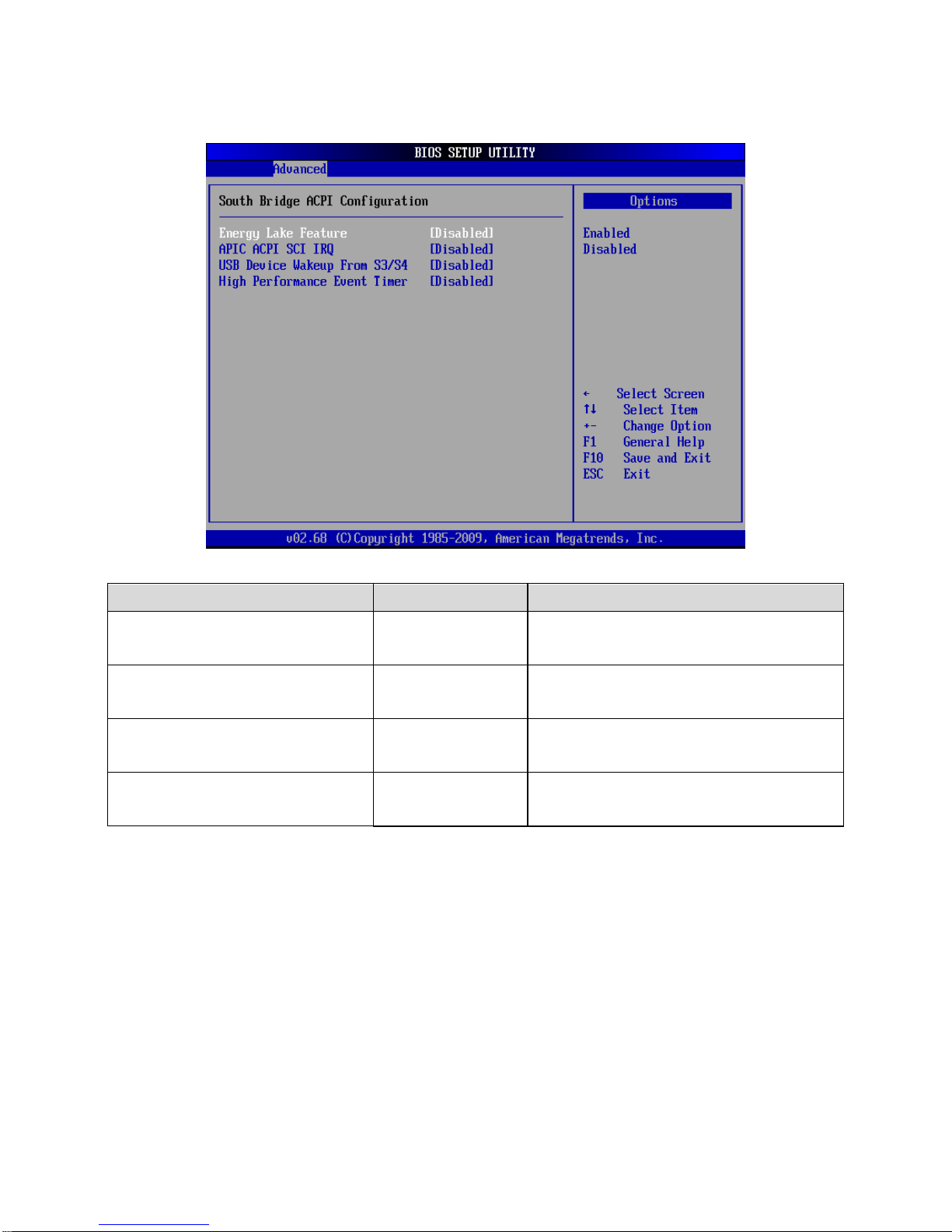

3.6.2.5.3 Chipset ACPI Configuration

Item

Options

Description

Energy Lake Feature

Disabled,

Enabled

This item allows selecting energy lake feature
mode.

APIC ACPI SCI IRQ

Disabled,

Enabled

This item allows to enable/ disable APIC ACPI
SCI IRQ.

USB Device Wakeup From S3/ S4

Disabled,

Enabled

This item allows selecting USB device wakeup
mode.

High Performance Event Timer

Disabled,

Enabled

This section helps to set high performance
event timer.

EBM-PNV User’s Manual

54 EBM-PNV User‟s Manual

3.6.2.6 USB Configuration

The USB configuration menu is used to read USB configuration information and configure
the USB setting.

Item

Options

Description

Legacy USB Support

Enabled,

Disabled,

Auto

Use the Legacy USB Support BIOS option to
enable USB mouse and USB keyboard
support. Normally if this option is not enabled,
any attached USB mouse or USB keyboard
does not become available until a USB
compatible operating system is fully booted
with all USB drivers loaded. When this option
is enabled, any attached USB mouse or USB
keyboard can control the system even when
there is no USB driver loaded onto the system.

USB 2.0 Controller Mode

HiSpeed (480Mbps),
FullSpeed (12Mpbs)

This item allows you to select HiSpeed
(480Mbps) or FullSpeed (12Mpbs).

BIOS EHCI Hand-Off

Enabled,
Disabled

This is a workaround for OSs without EHCI
hand-off support. The EHCI ownership change
should be claimed by EHCI driver.

Hotplug USB FDD Support

Enabled,

Disabled,

Auto

A dummy FDD devices is created that will be
associated with the hotplugged FDD later.
Auto option creates this dummy device only if
there is no USB present.

User’s Manual

EBM-PNV User‟s Manual

55

3.6.2.7 APM Configuration

The APM Configuration menu allows the advanced power management options to be
configured.

Item

Options

Description

Restore on AC Power Loss by

IO

Power On,
Power Off,
Last State

Use this to set up the system response after a
power failure.

Resume On Ring

Disabled,

Enabled

Use the Resume on Ring BIOS option to
enable activity on the RI (ring in) modem line
to rouse the system from a suspend or
standby state. That is, the system is roused by
an incoming call on modem.

Resume On RTC Alarm

Disabled,

Enabled

Use the Resume on RTC Alarm option to
specify the time the system should be roused
from a suspend state.

EBM-PNV User’s Manual

56 EBM-PNV User‟s Manual

3.6.3 Advanced PCI/ PnP Settings

Item

Options

Description

Clear NURAM

No,

Yes

Set this value to force the BIOS to clear the
Non-volatile Random Access Memory
(NVRAM). The Original and Fail-Safe default
setting is No.

Plug & Play O/S

No,

Yes

When set No, BIOS configures all the device
in the system. When set to Yes and if you still
a Plug and Play operating system, the
operating system configures the plug and Play
device not required for boot.

PCI Latency Timer

32, 64, 96,

128, 160, 192,

224, 248

Value in units of PCI clocks for PCI device
latency timer register.

Allocate IRQ to PCI VGA

No,

Yes

When set to Yes will assigns IRQ to PCI VGA
card if card requests IRQ. When set to No will
not assign IRQ to PCI VGA card even if card
requests an IRQ.

PaletteSnooping

Disabled,

Enabled

This item designed to solve problems caused
by some non-standard VGA card.

User’s Manual

EBM-PNV User‟s Manual

57

PCI IDE BusMaster

Disabled,

Enabled

When set to enabled BIOS uses PCI
busmastering for reading/ writing to IDE
drives.

OffBoard PCI/ ISA IDE

Card

Auto,

PCI Slot 1/ 2/ 3/ 4/ 5/ 6

Some PCI IDE cards may require this to be set
to the PCI slot number that is holding the card.
When set to auto will works for most PCI IDE
cards.

IRQ3/ 4/ 5/ 7/ 9/ 10/ 11

Available,
Reserved

Use the IRQ# address to specify what IRQs
can be assigned to a particular peripheral
device.

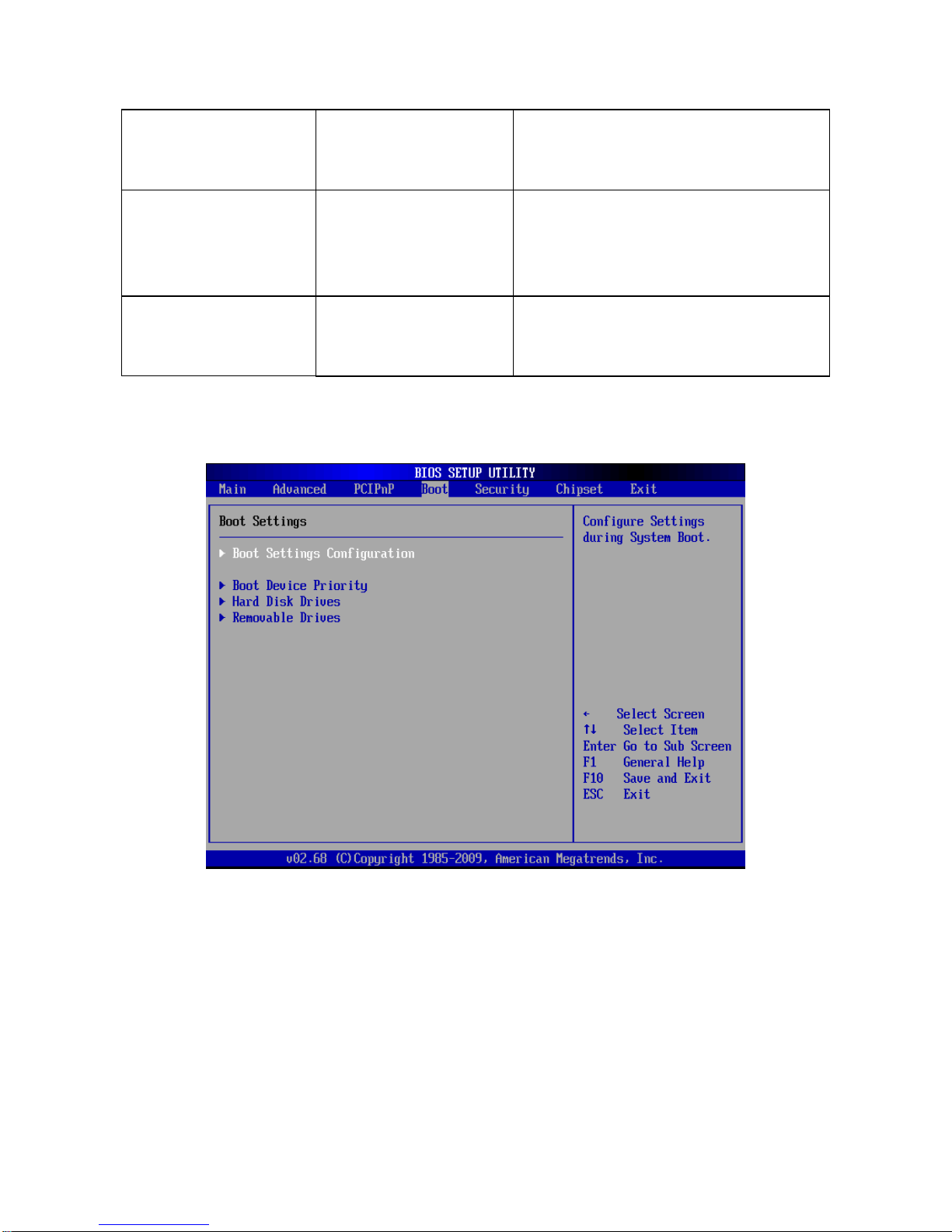

3.6.4 Boot Settings

Use the Boot menu to configure system boot options.

EBM-PNV User’s Manual

58 EBM-PNV User‟s Manual

3.6.4.1 Boot Settings Configuration

Item

Options

Description

Quick Boot

Disabled,

Enabled

Use the quick boot BIOS option to make the
computer speed up the boot process.

Quiet Boot

Disabled,

Enabled

Use the quiet boot BIOS option to select the
screen display when the system boots.

AddOn ROM Display Mode

Force BIOS,
Keep Curren

The AddOn ROM Display Mode option allows
add-on ROM (read-only memory) messages
to be displayed.

Bootup Num-Lock

On,

Off

The Bootup Num-Lock BIOS option allows the
number Lock setting to be modified during
boot up.

PS/2 Mouse Support

Disabled,

Enabled,

Auto

This select support for PS/w mouse.

Wait For ‘F1’ if Error

Disabled,

Enabled

When set to enable, the system waits for the
F1 key to be pressed when error occurs. This
allows option ROM to trap interrupt19.

Hit ‘DEL’ Message Display

Disabled,

Enabled

This displays „Press <DEL> to run Setup> in
POST.

Interrupt 19 Capture

Disabled,

Enabled

This allows option ROMs to trap interrupt19.

User’s Manual

EBM-PNV User‟s Manual

59

3.6.4.2 Boot Device Priority

Use the Boot Device Priority menu to specify the boot sequence from the available devices.

3.6.4.3 Hard Disk Devices

Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs.

EBM-PNV User’s Manual

60 EBM-PNV User‟s Manual

3.6.4.4 Removable Devices

Use the Removable Drives menu to specify the boot sequence of the available FDDs.

3.6.5 Security Settings

Use the Security menu to set system and user password.

User’s Manual

EBM-PNV User‟s Manual

61

3.6.5.1 Change Supervisor/ User Password

To either install or change the password.

EBM-PNV User’s Manual

62 EBM-PNV User‟s Manual

3.6.5.2 Clear User Password

Use the Clear User Password to clean a user password.

3.6.5.3 Boot Sector Virus Protection

The boot sector virus protection will warn if any program tries to write to the boot sector.

User’s Manual

EBM-PNV User‟s Manual

63

3.6.6 Advanced Chipset Settings

Use the chipset menu to access the Northbridge and Southbridge configuration menus.

EBM-PNV User’s Manual

64 EBM-PNV User‟s Manual

3.6.6.1 North Bridge Configuration

Item

Option

Description

DRAM Frequency

Auto,

667MHz

This item allows you to manually
change DRAM frequency.

Configure DRAM Timing by

SPD

Disabled,

Enabled

This item allows you to enable or
disable by DRAM SPD.

Initate Graphic Adapter

IGD,

PEG/IGD

This item allows you to select
which graphics controller to use
as the primary boot device.

Internal Graphics Mode Select

Disabled,
Enabled 32MB,
Enabled 64MB,

Enabled 128MB

This option determines the
amount of system memory that
can be used by the internal
graphics device.

PEG Port Configuration

Disabled,

Enabled

Use the PEG Port option to
enable or disable the PCI Express
port.

User’s Manual

EBM-PNV User‟s Manual

65

3.6.6.1.1 Video Function Configuration

Item

Option

Description

DVMT Mode Select

Fixed Mode,
DVMT Mode,
Combo Mode

Displays the active system
memory mode.

DVMT/ FIXED Memory

64MB,

128MB,

Maximum DVMT

Specifies the amount of DVMT/
FIXED system memory to allocate
for video memory.

Boot Display Device

VBIOS-Default,

CRT,

LVDS,

CRT+LVDS

Select boot display device at post
stage.

EBM-PNV User’s Manual

66 EBM-PNV User‟s Manual

Flat Panel Type

640 x 480,

800 x 600,
1024 x 768,
1024 x 600,
1024 x 576,

800 x 480,
1280 x 720,
1280 x 768,

800 x 600,
1024 x 600,
1024 x 768,
1024 x 768,
1024 x 768,
1280 x 800,
1280 x 600,

1366 x 768

This item allows you to select
which panel resolution you want.

RTD-2553 Chip EDID support

Disabled,

Enabled

This item allows you to enable or
disable RTD-2553 Chip EDID
support.

Panel 1/ 2 Back light mode/

Control

PWM mode,

DC mode

This item allows you to select
Panel 1/ 2 backlight mode/
control.

Spread Spectrum Clock

Disabled,

Enabled

This item allows you to enable or
disable spread spectrum clock.

User’s Manual

EBM-PNV User‟s Manual

67

3.6.6.2 South Bridge Configuration

Item

Option

Description

USB Functions

Disables,

2/ 4/ 6/ 8/ 10 USB Ports

This option enables the number of
USB ports desired or disables the
USB function.

USB 2.0 Controller

Disabled,

Enabled

This option is disabled by default.

HAD Controller

Disabled,

Enabled

This option is used to enable the
southbridge high definition audio
controller.

SMBUS Controller

Disabled,

Enabled

This option is enabled by default.

PCIe Wake

Disabled,

Enabled

This section allows selecting PCIe
wake mode.

LAN Boot rom

Disabled,

Enabled

This section allows selecting LAN
boot rom mode.

PCIE Port 0/ 1/ 2

Disabled,

Enabled,

Auto

This section allows selecting
PCIE port 0/ 1/ 2 mode.

EBM-PNV User’s Manual

68 EBM-PNV User‟s Manual

3.6.7 Exit Options

Use the Exit menu to load default BIOS values, optional failsafe values and to save

configuration changes.

3.6.7.1 Save Changes and Exit

Use the save changes and reset option to save the changes made to the BIOS options and

to exit the BIOS configuration setup program.

User’s Manual

EBM-PNV User‟s Manual

69

3.6.7.2 Discard Changes and Exit

Use the Discard changes and Exit option to exit the system without saving the changes

made to the BIOS configuration setup program.

3.6.7.3 Discard Changes

Use the Discard Changes option to discard the changes and remain in the BIOS

configuration setup program.

EBM-PNV User’s Manual

70 EBM-PNV User‟s Manual

3.6.7.4 Load Optimal Defaults

Use the Load Optimal Defaults option to load the optimal default values for each of the

parameters on the setup menus. F9 key can be used for this operation.

3.6.7.5 Load Failsafe Defaults

Use the Load Failsafe Defaults option to load failsafe default values for each of the

parameters on the Setup menus. F8 key can be used for this operation.

User’s Manual

EBM-PNV User‟s Manual

71

4. Drivers Installation

Note: Installation procedures and screen shots in this section are

for your reference and may not be exactly the same as
shown on your screen.

EBM-PNV User’s Manual

72 EBM-PNV User‟s Manual

4.1 Install Chipset Driver (For Intel ICH8-M)

Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue‟s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Chipset\Intel\ICH8-M.

Note: The installation procedures and

screen shots in this section are
based on Windows XP operation
system. If the warning message
appears while the installation
process, click Continue to go on.

Step 3. Click Yes.

Step1. Locate 「\Driver_Chipset\Intel\

OM57\ \infinst_autol.exe」.

Step 4. Click Next.

Step 2. Click Next.

Step 5. Click Finish to complete setup.

User’s Manual

EBM-PNV User‟s Manual

73

4.2 Install Display Driver (For Intel Pineview)

Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the

index page of Avalue‟s products

automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Video\Intel\Pineview.

Note: The installation procedures and

screen shots in this section are
based on Windows XP operation
system.

Step 3. Click Yes.

Step 1. Locate「Driver_Video\Intel\

Pineview\Setup.exe」.

Step 4. Click Next.

Step 2. Click Next.

Step 5. Click Finish to complete setup.

EBM-PNV User’s Manual

74 EBM-PNV User‟s Manual

4.3 Install Audio Driver (For Realtek ALC888)

Insert the Supporting CD-ROM to
CD-ROM drive, and it should show the
index page of Avalue‟s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Audio\Realtek \ALC888.

Note: The installation procedures and

screen shots in this section are
based on Windows 2000 operation
system.

Step 3. The program executes the Setup
automatically.

Step 1. Locate 「\Driver_Audio\Intel\
6300ESB ALC888\setup.exe」.

Step 4. Click Finish to complete the setup.

Step 2. Select Next to the next step.

User’s Manual

EBM-PNV User‟s Manual

75

4.4 Install Ethernet Driver (For Intel 82574L)

Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the

index page of Avalue‟s products

automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to D:\Driver_Gigabit\Intel\ 82574L.

Note: The installation procedures and

screen shots in this section are
based on Windows XP operation
system.

Step 3. Click Next to run the installation.

Step 1. Locate 「\Driver_Gigabit\Intel\

82574L」and choose your system OS.

Step 4. Click Accept to continue.
Step 2. Click Next.

Step 5. Click Next.

EBM-PNV User’s Manual

76 EBM-PNV User‟s Manual

Step 5. Click Install to next step.

Step 6. Click Next to next step.
Step 7. Click Finish to complete the setup.

User’s Manual

EBM-PNV User‟s Manual

77

5. Mechanical Drawing

EBM-PNV User’s Manual

78 EBM-PNV User‟s Manual

Unit: mm

User’s Manual

EBM-PNV User‟s Manual

79

Unit: mm
