CPC-2102
21.5” Intel® Celeron® Processor N3160 Fanless PCAP Touch
Panel PC
Quick Reference Guide
1st Ed –07 March 2017
Copyright Notice
Copyright 2017 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017CP22A0R
CPC-2102
FCC Statement
Copyright Notice
Disclaimer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Copyright 2017 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
2 CPC-2102 Quick Reference Guide
Quick Reference Guide
3
CONTENT
1. Getting Started ............................................................................................................ 4
1.1 Safety Precautions ................................................................................................ 4
1.2 Packing List ........................................................................................................... 4
1.3 System Specifications ........................................................................................... 5
1.4 System Overview ................................................................................................... 8
1.4.1 Front View .................................................................................................................................... 8
1.4.2 Rear/Side View ............................................................................................................................ 8
1.5 System Dimensions ............................................................................................. 10
2. Hardware Configuration ........................................................................................... 11
2.1 CPC-2102 connector mapping ............................................................................ 12
2.1.1 Serial port connector (COM) ...................................................................................................... 12
2.1.2 VGA connector (VGA) ................................................................................................................ 12
2.2 Installing Hard Disk .............................................................................................. 13
CPC-2102 Quick Reference Guide
CPC-2102
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x CPC-2102 21.5” Intel® Celeron® Processor N3160 Fanless PCAP
Touch Panel PC
Other major components include the followings:
— 1 x Power Cord
— 1 x Adapter
— 2 x Ornaments
— 1 x Screws pack
4 CPC-2102 Quick Reference Guide
5
Component
Mother Board
Mother Board of EMX-BSWB (EMX-BSWB-A1R)
CPU
Intel® Celeron® Processor N3160 (2M Cache, up to 2.24 GHz)
LVDS in
2CH 18/24bits LVDS 1920 x 1080 input
Memory
2 x 204-pin DDR3L 1600 MHz SO-DIMM supports up to 8GB
(Default 1x 4GB DDR3L)
Storage
1 x 2.5” Storage
Power Supply
DC in
Adapter
60W (BCC-ADP-060N-02R)
System Fan
Fanless
Speaker
2 x 3W Speakers
Camera
1.0M pixel, HD 720P Webcam (Optional)
Panel
LCD Panel
21.5” 16:9 Full HD 1920 x 1080 panel with PACP (w/ Touch Control
Board)
B/L
Inverter/Converter
LED Driver Board ZX-L0712-2247R
Touch Screen
21.5” PCAP
Touch Controller
USB Control board
Others
1 x Button for power ON/OFF,
1 x Reserve button
External I/O
USB Port
2 x USB3.0, 2 x USB 2.0
Video Port
1 x VGA
1 x HDMI
Audio Port
1 x Mic-in, 1 x Line-out
LAN Port
1 x RJ45
Wireless LAN Antenna
2 x PIFA Antenna
Indicator Light
1 x Power LED
Expansion Slots
Right Side IO: 1 x USB
Left Side IO: 1 x COM
Mechanical
Power Type
+12V DC in
Power Connector Type
DC Jack
Dimension
528 x 345 x 62 mm
Weight
8.4 kg
1.3 System Specifications
Quick Reference Guide
CPC-2102 Quick Reference Guide
CPC-2102
Color
Plastic White
Fanless
Yes
Reliability
EMI Test
CE/FCC Class A
Safety
UL/CB design compatible
Vibration Test
Sine Vibration test (Non-operation)
Test Fc : Vibration sinusoidal
1. Test Acceleration : 2G
2. Test frequency : 5 ~ 500 Hz
3. Sweep：1 Oct/ per one minute. (logarithmic)
4. Test Axis : X,Y and Z axis
5. Test time : 10 min. each axis
6. System condition : Non-Operating mode
7. Reference IEC 60068-2-6 Testing procedures
Package Vibration Test
1. PSD: 0.026G²/Hz, 2.16 Grms
2. Non-operation mode
3. Test Frequency : 5-500Hz
4. Test Axis : X,Y and Z axis
5. 30 min. per each axis
6. IEC 60068-2-64 Test:Fh
Random Vibration Operation
Reference IEC60068-2-64 Testing procedures
Test Fh : Vibration boardband random Test
1. PSD: 0.00050513G²/Hz, 0.5 Grms
2. Operation mode
3. Test Frequency : 5-500Hz
4. Test Axis : X,Y and Z axis
5. 30 minutes per each axis
6. IEC 60068-2-64 Test: Fh
7. Storage : N/A
Mechanical Shock Test
Bump Test
1. Wave form：Half Sine wave
2. Acceleration Rate：10g for operation mode
3. Duration Time：11ms
4. No. of Shock：Z axis 300 times
5. Test Axis: Z axis
6. Operation mode
6 CPC-2102 Quick Reference Guide
Quick Reference Guide
7
7. Reference IEC 60068-2-29 Testing procedures Test Eb : Bump
Test
Drop Test
Packing Drop
1. One corner , three edges, six faces
2. ISTA 2A, IEC-60068-2-32 Test:Ed
Operating Temperature
0°C ~ 40°C (32°F ~ 104°F), ambient w/ air flow
Operating Humidity
0 ~ 90% Relative Humidity, Non-condensing
Storage Temperature
-20°C ~ 60°C (-4°F ~ 140°F)
Note: Specifications are subject to change without notice.
CPC-2102 Quick Reference Guide
CPC-2102
1.4 System Overview
1.4.1 Front View

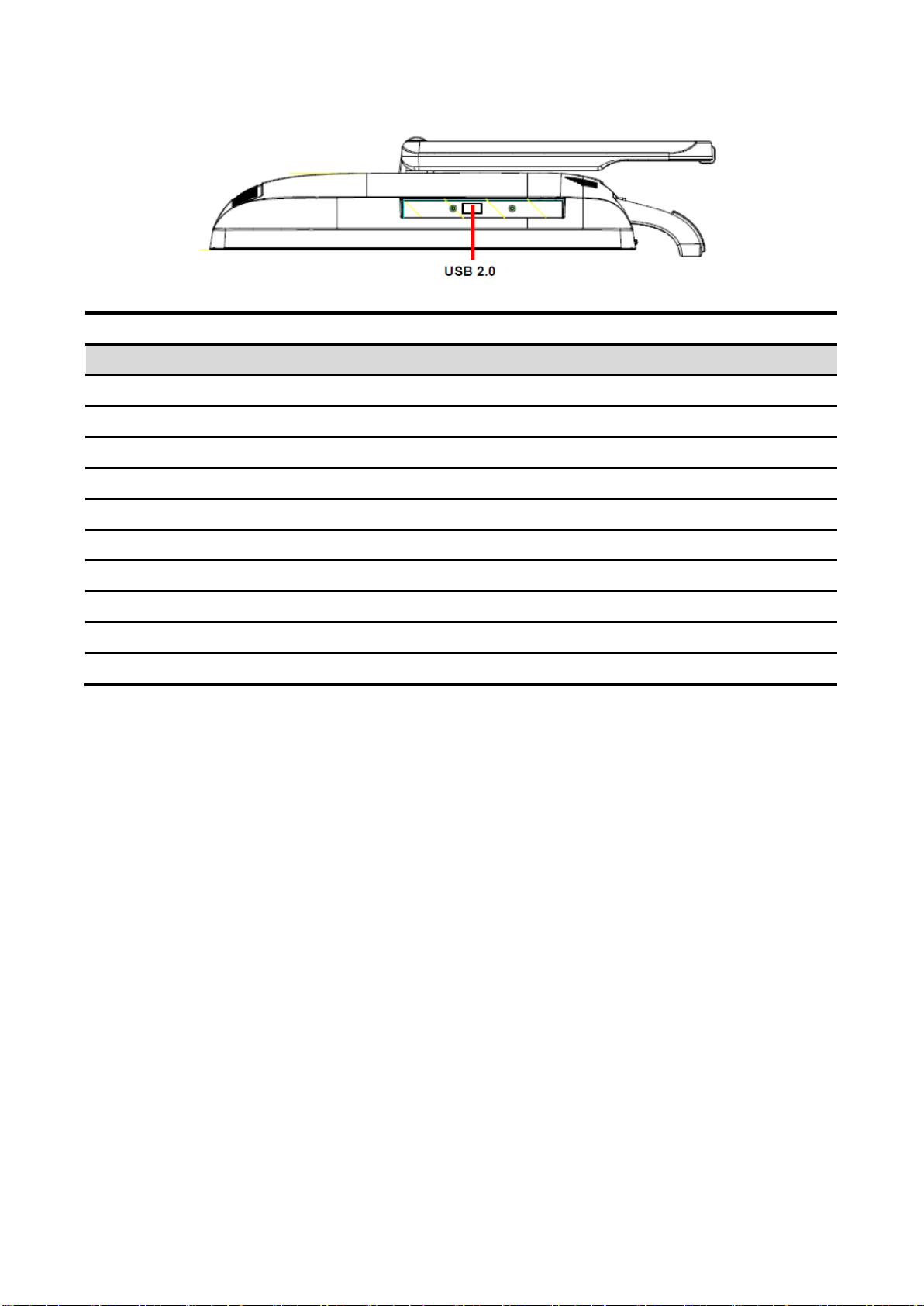

1.4.2 Rear/Side View
8 CPC-2102 Quick Reference Guide
Quick Reference Guide
9
Connectors
Label
Function
Note
DC IN
DC power-in connector
HDMI
HDMI connector
VGA
VGA connector
USB 2.0
3 x USB2.0 connector
USB 3.0
2 x USB3.0 connector
LAN
RJ-45 Ethernet
LINE OUT
Line-out audio jack
MIC IN
Mic-in audio jack
COM
Serial port connector
S/PDIF
Sony/Philips Digital Interface
CPC-2102 Quick Reference Guide
CPC-2102
(Unit: mm)
1.5 System Dimensions
10 CPC-2102 Quick Reference Guide
11
2. Hardware
Configuration
For advanced information, please refer to:
1- EMX-BSWB User’s Manual
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
Quick Reference Guide
CPC-2102 Quick Reference Guide
CPC-2102
Signal
PIN
PIN
Signal
NDCD#
1 6 NDSR#
NRXD
2 7 NRTS#
NTXD
3 8 NCTS#
NDTR#
4 9 NRI#
GND
5
PIN
Signal
PIN
Signal
PIN
Signal
1
RED
6
GND
11
NC
2
GREEN
7
GND
12
DDCDAT
3
BLUE
8
GND
13
HSYNC
4
NC 9 +5V
14
VSYNS
5
GND
10
GND
15
DDCCLK
2.1 CPC-2102 connector mapping
2.1.1 Serial port connector (COM)
2.1.2 VGA connector (VGA)
12 CPC-2102 Quick Reference Guide
13
2.2 Installing Hard Disk
Quick Reference Guide
Step1. Unfasten 6 screws of the back cover and take it off.
Step2. Secure HDD by means of 4 screws.
Step3. Re-assemble your system back through previous steps to complete the installation.
CPC-2102 Quick Reference Guide
