BFC-10W9
10.1" Multifunctional Bezel Free Multi-Touch Panel Computer
Quick Reference Guide
1st Ed –22 September 2016
Copyright Notice
Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E201710W9A0R
BFC-10W9
Content
1. Getting Started ............................................................................................................ 3
1.1 Safety Precautions ................................................................................................ 3
1.2 Packing List ........................................................................................................... 3
1.3 System Specifications ........................................................................................... 4
1.4 System Overview ................................................................................................... 6
1.4.1 Front & Top View (A1/A2 Version) ............................................................................................... 6
1.4.2 Front & Top View (B1 Version) .................................................................................................... 7
1.4.3 Rear View (A1/A2 Version) .......................................................................................................... 8
1.4.4 Rear View (B1 Version) ............................................................................................................... 9
2. Hardware Configuration ........................................................................................... 10
2.1 BFC-10W9 connector mapping (A1/A2 Version) ................................................. 11
2.1.1 External Serial Port 1 connector (COM1) .................................................................................. 11
2.1.2 External Serial Port 2 connector (COM2) .................................................................................. 11
2.1.3 VGA connector (VGA) ................................................................................................................ 12
2.2 BFC-10W9 connector mapping (B1 Version)....................................................... 13
2.2.1 External Serial Port 1 connector (COM1) .................................................................................. 13
2.2.2 External Serial Port 2 connector (COM2) .................................................................................. 13
2.2.3 VGA connector (VGA) ................................................................................................................ 14
2.3 Installing Memory (BFC-10W9 A1/A2 Version).................................................... 15
2.4 Installing mini PCIe device (BFC-10W9 B1 Version) ........................................... 17
2.5 Installing Memory & mini PCIe device (BFC-10W9 B1 Version) .......................... 18
2.6 Installing Storage (BFC-10W9 B1 Version) ......................................................... 20
2 BFC-10W9 Quick Reference Guide
Quick Reference Guide
3
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x BFC-10W9 10.1" Multifunctional Bezel Free Multi-Touch Panel
Computer
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— Chipset drivers
Other major components include the followings:
— 60W adapter and power cord
BFC-10W9 Quick Reference Guide
BFC-10W9
System
Version
BFC-10W9 A1/A2
BFC-10W9 B1
Part Number
BFC-10W9-384-A1R
BFC-10W9-384-A2R
BFC-10W9-190-B1R
Board
ECM-BYT
CPU
Intel® Atom™ E3845 4-Core 1.91GHz CPU
Intel® Celeron® J1900 4-Core 2.0GHz CPU
BIOS
AMI uEFI BIOS, 64M-bit SPI Flash BIOS
I/O Chip
EC ITE IT8528E
System Memory
One SODIMM socket supports up to 8GB DDR3L 1333MHz SDRAM
CF
One CompactFlash Type I/II socket
Hard Driver Bay
2.5” HDD or SSD (Total height: 66.05mm)
*By Optional with MOQ apply
Support One 2.5” HDD or SSD
WiFi
By Optional Mini PCIe WiFi module
Watchdog Timer
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
H/W Status Monitor
Monitoring system temperature and voltage.
Auto throttling control when CPU overheats
Expansion
1 x Mini-PCIe (mSATA supported)
Panel
Panel Model
AUO G101STN01.0
IVO M101GWT9 R4
LCD size
10.1", 16:9
Display type
LED
Resolution
1024 x 600
Pixel pitch
0.2175 (H) x 0.2088 (V)
Luminance
250 cd/m²
350 cd/m²
Contrast ratio
500
Viewing angle
70(U), 70(D), 60(L), 60(R )
70(U), 70(D), 70(L), 70(R )
Response time
16 ms
Backlight
LED Backlight
Touch Type
Projected Capacitive Touch
Transmission
86%
Touch Interface
USB
Rear I/O
Serial Port
1 x RS232, 1x RS232/422/485 (selected by jumper)
Ethernet
2 x RJ-45 (Dual Intel I211AT Gigabit Ethernet)
Display
1 x HDMI & 1 x VGA
Audio port
1 x Mic in
1 x Mic in, 1 x Line out
1.3 System Specifications
4 BFC-10W9 Quick Reference Guide
Quick Reference Guide
5
USB
1 x USB3.0, 3 x USB2.0
Speaker
2 x 2W
Display
Chipset
Intel® Valleyview SOC integrated Graphics Support Dual display (Intel® HD Graphics)
Resolution
VGA: Max. 2560x1080@ 60 Hz
HDMI: Max. 1920x1200@ 60 Hz
LVDS: Max. 1920x1080@ 60 Hz
LVDS
Dual 18/24-bit LVDS
Audio
AC97 Codec
Realtek ALC892 supports 5.1CH Audio
Mechanical & Environmental
Mounting
Wall/Stand/VESA 75 mm x 75 mm
Wall/Stand/VESA 75 mm x 75 mm
Wall/Stand/VESA 100 mm x 100 mm
Power Input
+12V ~ +26V DC in
Power Type
AT/ATX
Operating Temp.
32 to 104°F (0 to 40°C)
Storage Temp.
-14 to 140°F (-10 to 60°C)
Operating Humidity
5%~90% relative humidity, non-condensing
Dimensions
251.94 x 154.5 x 45.25mm
251.94 x 154.5 x 66.05 (w/ HDD)
252.2 x 154.7 x 48.85mm
Weight
1.4kg
1.6kg
Reliability
EMI Test
CE/FCC Class B
Dust and Rain Test
Front side IP65
BFC-10W9 Quick Reference Guide
BFC-10W9
Connectors
Label
Function
Note/ Location
COM2
Serial port connector
DB-9 male connector/4
MIC in
Mic in connector
Audio Jack/ 2
Line Out
Line Out connector
Audio Jack/ 3 (By optional)
Antenna
Antenna for WIFI/ BT
(Reserve for Antenna)/ 1
1.4 System Overview
1.4.1 Front & Top View (A1/A2 Version)
6 BFC-10W9 Quick Reference Guide
7

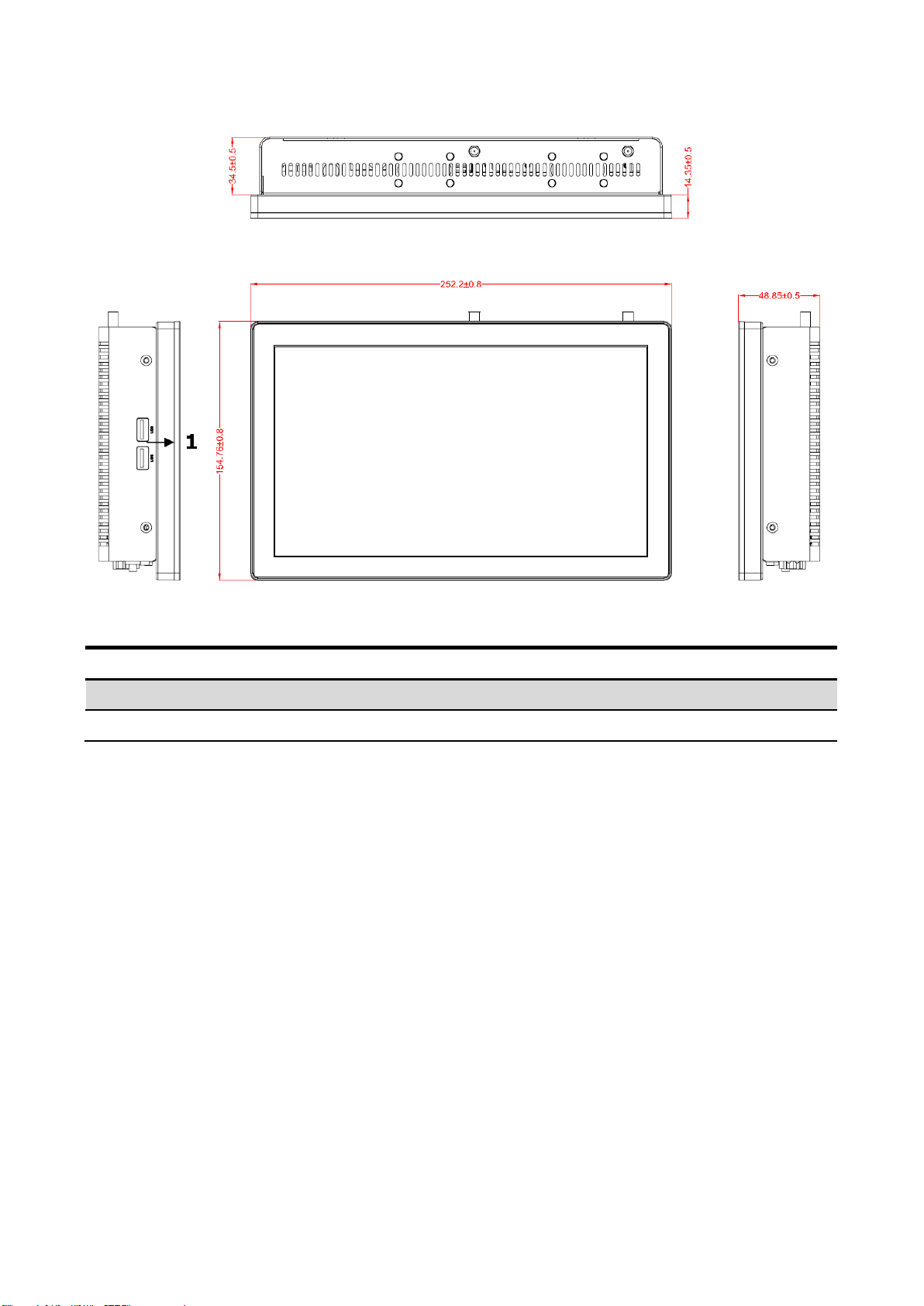

1.4.2 Front & Top View (B1 Version)
Connectors
Label
Function
Note/ Location
USB
USB connector
USB2.0/ 1
Quick Reference Guide
BFC-10W9 Quick Reference Guide
BFC-10W9
Connectors
Label
Function
Note/ Location
COM1
Serial port connector
DB-9 male connector/ 2
HDMI
HDMI connector
HDMI out/ 5
VGA
VGA connector
VGA Out/ 3
HDD
HDD Indicator
HDD status/ 10
LAN
RJ-45 Ethernet
LAN port/ 6
Power
System power switch
Power on/ off/ 8
USB
USB connector
USB2.0/ 4
PWR
Power Indicator
Power status/ 11
DC-IN
Lockable DC Jack
DC in/ 9
CF
CF card slot
CF/ 1
USB
USB connector
USB2.0/ 7
1.4.3 Rear View (A1/A2 Version)
8 BFC-10W9 Quick Reference Guide
9
1.4.4 Rear View (B1 Version)
Connectors
Label
Function
Note/ Location
COM1
Serial port connector
DB-9 male connector/ 2
COM2
Serial port connector
DB-9 male connector/ 7
HDMI
HDMI connector
HDMI out/ 5
VGA
VGA connector
VGA Out/ 3
HDD
HDD Indicator
HDD status/ 12
LAN
RJ-45 Ethernet
LAN port/ 6
Power
System power switch
Power on/ off/ 11
USB
USB connector
USB2.0/ 4
PWR
Power Indicator
Power status/ 13
DC-IN
Lockable DC Jack
DC in/ 10
CF
CF card slot
CF/ 1
Mic in
Mic in connector
Audio Jack/ 8
Line Out
Line Out connector
Audio Jack/ 9
Quick Reference Guide
BFC-10W9 Quick Reference Guide
BFC-10W9
2. Hardware
Configuration
For advanced information, please refer to:
1- BFC-10W9 Quick Reference Guide or User’s Manual
2- ECM-BYT included in this manual.
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
10 BFC-10W9 Quick Reference Guide
11
Signal
PIN
PIN
Signal
DCDA#
1 2 RxDA
TxDA
3 4 DTRA#
GND
5 6 DSRA#
RTSA#
7 8 CTSA#
RIA#
9
10
NC
Signal
PIN
PIN
Signal
DCDB#
1 2 RxDB
TxDB
3 4 DTRB#
GND
5 6 DSRB#
RTSB#
7 8 CTSB#
RIB#
9
10
NC

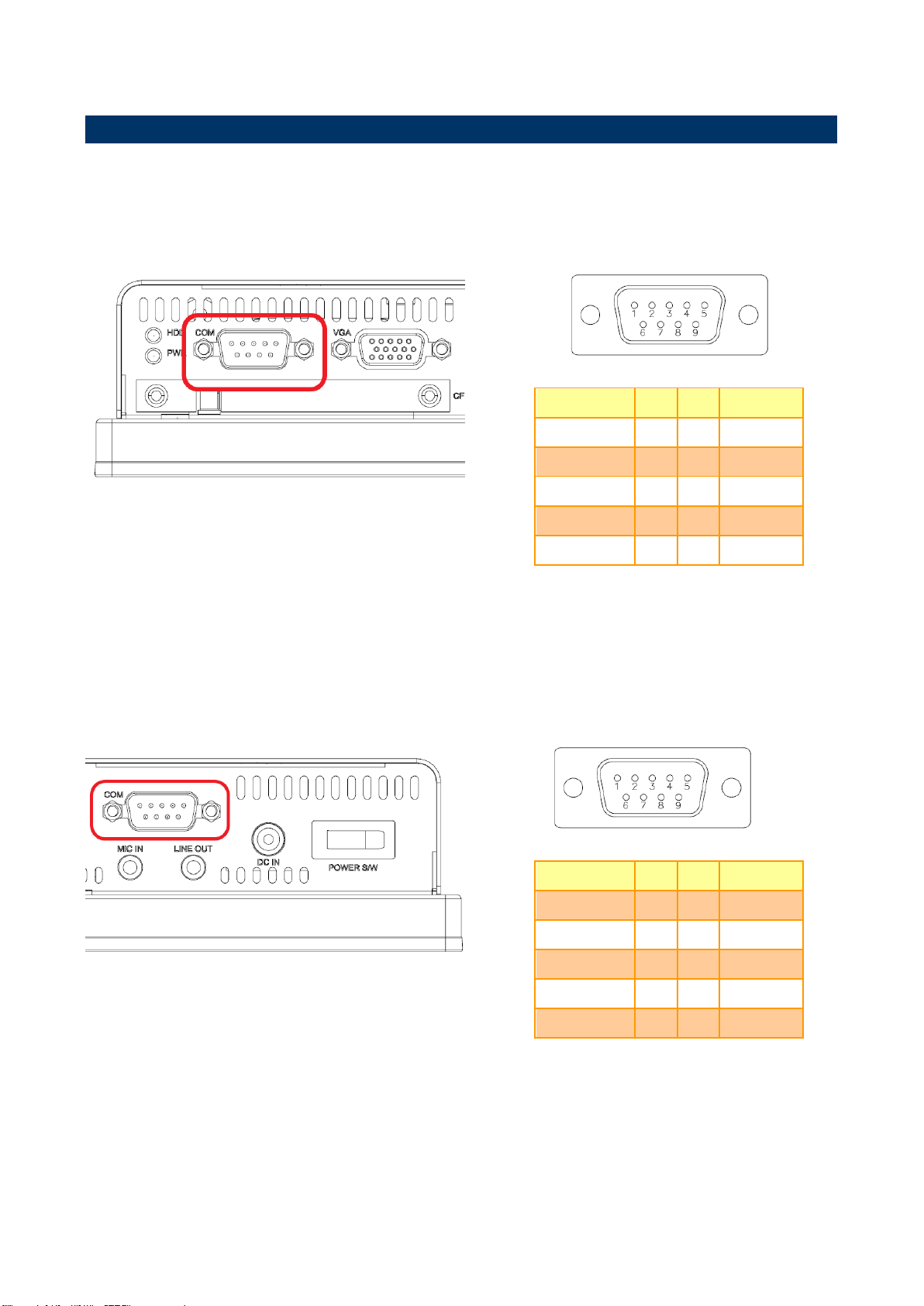

2.1 BFC-10W9 connector mapping (A1/A2 Version)
2.1.1 External Serial Port 1 connector (COM1)
Quick Reference Guide
2.1.2 External Serial Port 2 connector (COM2)
BFC-10W9 Quick Reference Guide
BFC-10W9
PIN
Signal
PIN
Signal
PIN
Signal
1 R 6
GND
11
NC 2 G 7 GND
12
DATA 3 B 8 GND
13
HSYNC
4
NC 9 +5V
14
VSYNC
5
GND
10
GND
15
CLK

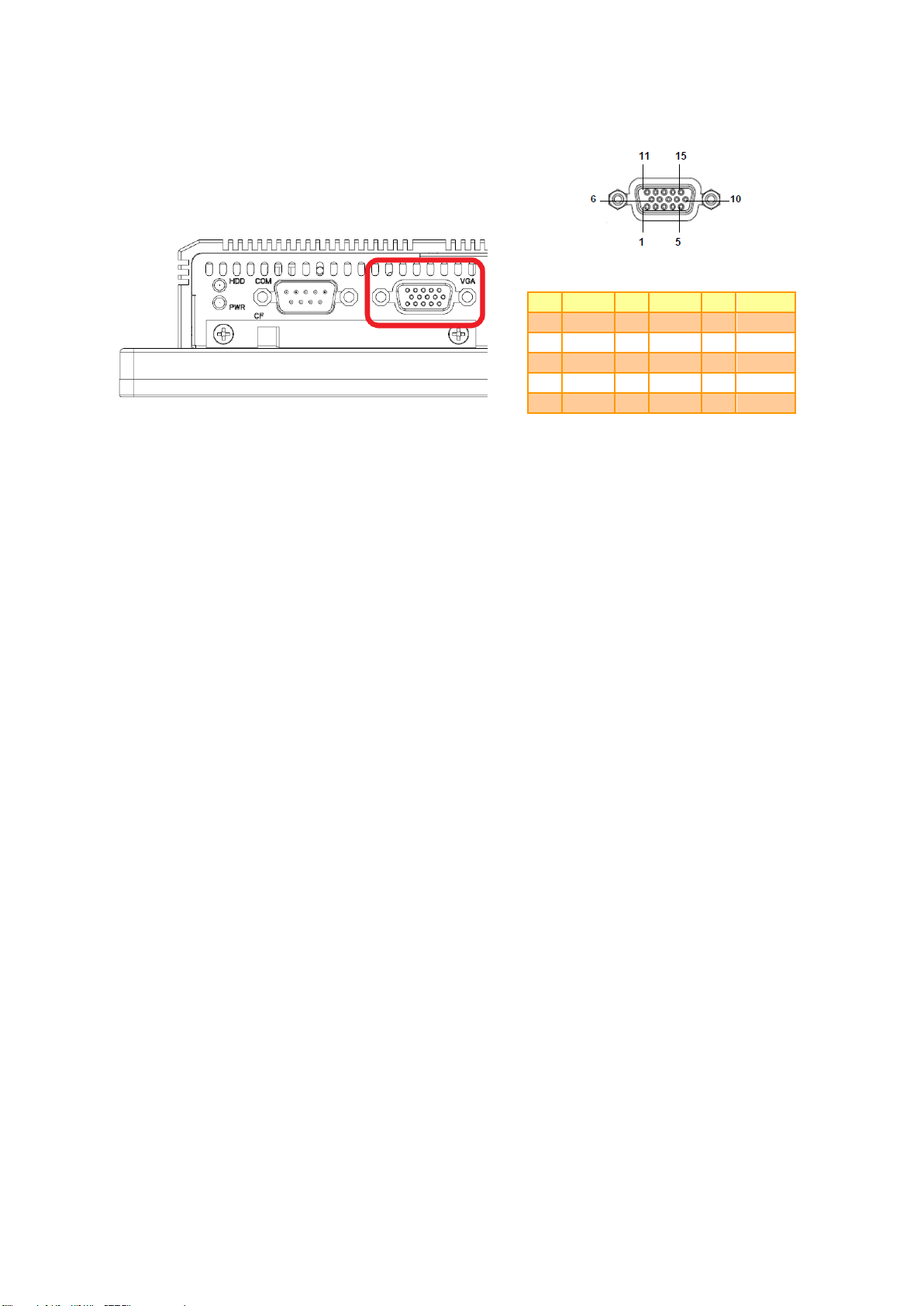

2.1.3 VGA connector (VGA)
12 BFC-10W9 Quick Reference Guide
13
Signal
PIN
PIN
Signal
DCDA#
1 2 RxDA
TxDA
3 4 DTRA#
GND
5 6 DSRA#
RTSA#
7 8 CTSA#
RIA#
9
10
NC
Signal
PIN
PIN
Signal
DCDB#
1 2 RxDB
TxDB
3 4 DTRB#
GND
5 6 DSRB#
RTSB#
7 8 CTSB#
RIB#
9
10
NC
2.2 BFC-10W9 connector mapping (B1 Version)
2.2.1 External Serial Port 1 connector (COM1)
Quick Reference Guide
2.2.2 External Serial Port 2 connector (COM2)
BFC-10W9 Quick Reference Guide
BFC-10W9
PIN
Signal
PIN
Signal
PIN
Signal
1 R 6
GND
11
NC 2 G 7 GND
12
DATA 3 B 8 GND
13
HSYNC
4
NC 9 +5V
14
VSYNC
5
GND
10
GND
15
CLK
2.2.3 VGA connector (VGA)
14 BFC-10W9 Quick Reference Guide
15

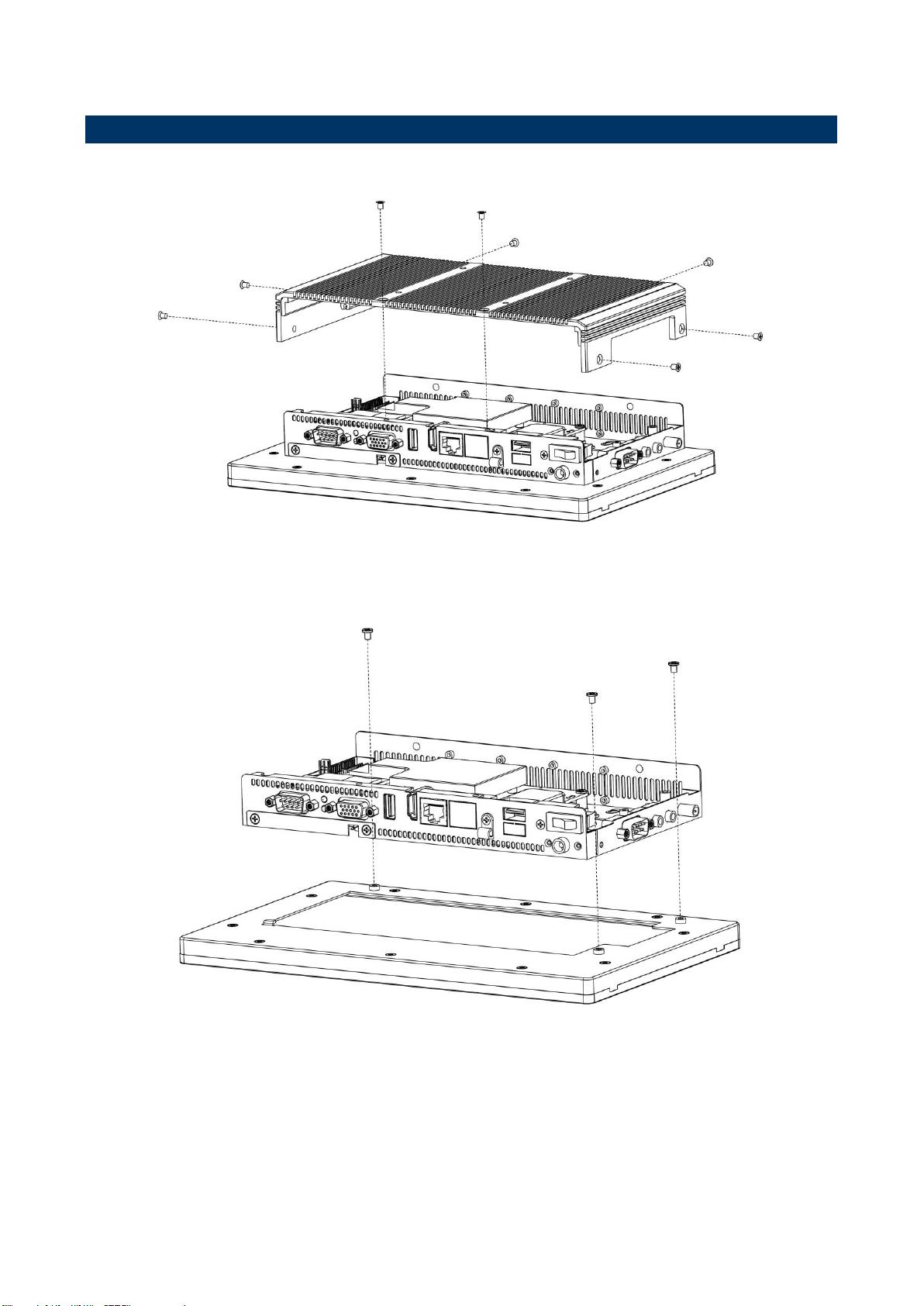

Step 1. Remove the 8 screws to disassemble your system back cover.
Step 2. Remove the 3 screws to disassemble your panel pc bezel.
2.3 Installing Memory (BFC-10W9 A1/A2 Version)
Quick Reference Guide
BFC-10W9 Quick Reference Guide
BFC-10W9
Step 3. Insert DDR3 SO-DIMM memory into the memory socket.
16 BFC-10W9 Quick Reference Guide
Quick Reference Guide
17
Step1. Remove the 8 screws to disassemble your system back cover.
2.4 Installing mini PCIe device (BFC-10W9 B1 Version)
Step2. Please install mini PCIe device, and fasten with 2 screws
Noted: if mini PCIe slot without screw holes, you can just plug in mini PCIe device without fasten screws
BFC-10W9 Quick Reference Guide
BFC-10W9
Step 1. Remove the 8 screws to disassemble your system back cover.
Step 2. Remove the 4 screws on COM port and VGA port
2.5 Installing Memory & mini PCIe device (BFC-10W9 B1 Version)
18 BFC-10W9 Quick Reference Guide
Quick Reference Guide
19
Step 3. Remove 4 screws on SBC and release SBC from the box
Step 4. Install Memory & mini PCIe device to correct slot.
BFC-10W9 Quick Reference Guide
BFC-10W9
Step1. Remove the 8 screws to disassemble your system back cover.
2.6 Installing Storage (BFC-10W9 B1 Version)
Step2. Fasten your storage (2.5” HDD or SSD) into HDD bracket with 4 screws
20 BFC-10W9 Quick Reference Guide
21
Step3. Fasten your storage (2.5” HDD or SSD) on box with 4 screws
Quick Reference Guide
BFC-10W9 Quick Reference Guide
