SPC-1209/1709
Full IP-65 Stainless Steel Chassis
Fanless Touch Panel PC
Quick Reference Guide
1st Ed – 22 October 2014
Copyright Notice
Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017S291A0R
SPC-1209/1709
FCC Statement
A Message to the Customer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
2 SPC-1209/1709 Quick Reference Guide
Quick Reference Guide
3
Content
1. Getting Started ........................................................................................................ 4
1.1 Safety Precautions .................................................................................................... 4
1.2 Packing List ............................................................................................................... 4
1.3 System Specifications ............................................................................................... 5
1.4 System Overview ................................ ................................ ................................ ...... 7
1.4.1 SPC-1209 Rear View .............................................................................................................. 7
1.4.2 SPC-1709 Rear View .............................................................................................................. 7
1.5 System Dimensions .................................................................................................. 8
1.5.1 SPC-1209 Front, rear and side view ....................................................................................... 8
1.5.2 SPC-1709 Front, rear and side view ....................................................................................... 9
2. Hardware Configuration ....................................................................................... 10
2.1 SPC-1209/1709 connector mapping ....................................................................... 11
2.1.1 Waterproof DB-9 connector (COM) ....................................................................................... 11
SPC-1209/1709 Quick Reference Guide
SPC-1209/1709
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x SPC-1209/1709 Panel PC
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— Wi-Fi drivers and utilities
— Touch controller drivers and utilities
1 x Power Adapter
1 x DC-in extended cable
4 SPC-1209/1709 Quick Reference Guide
5
Panel
Model
SPC-1209
SPC-1709
LCD size
12.1”, 4:3
17", 4:3
Display type
XGA
SXGA
Resolution
1024 x 768
1280 x 1024
Pixel pitch
0.240mm(H) x 0.240mm(V)
0.264mm(H) x 0.264mm(V)
Luminance
600 cd/m²
350 cd/m²
Contrast ratio
700
800
Viewing angle
70(U), 70(D), 80(L), 80(R)
80(U), 80(D), 85(L), 85(R )
Response time
16 ms
30 ms
Backlight
LED
Touch type
5 Wires resistive
Touch Light
transmission
80
Touch interface
USB
System
Board
EBM-BYT
EBM-BYT
CPU
Onboard Intel® Atom Quad-Core E3845 1.91GHz with Integrated Chipset
I/O Chipset
E/C IT8528E
System Memory
One 204-pin DDR3L SODIMM Socket Supports Up to 8GB DDR3L 1333 SDRAM
SSD
One CompactFlash Type I/ II Socket (Support optional InnoDisk CF-SATA)
Hard Driver Bay
One 2.5" SATA HDD
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec./1sec.step
H/W Status
Monitor
Monitoring system temperature, voltage, and cooling fan status. Auto throttling
control when CPU overheats
Expansion
1 x mPCIe with SIM Slot, 1 x mPCIe Supports mSATA
Rear I/O
Serial Port
1 x RS-232
Ethernet
1 x RJ-45
USB
3 x USB 2.0
Speaker
2 x 5W
1.3 System Specifications
Quick Reference Guide
SPC-1209/1709 Quick Reference Guide
SPC-1209/1709
Display
Chipset
Intel Bay Trail SoC Integrated Graphics
Resolution
HDMI 1.4a resolutions up to 1920x1200@ 60 24bpp
Audio
AC97 Codec
Realtek ALC892 supports 5.1-CH Audio
Ethernet
LAN Chip
Intel® I210IT Gigabit LAN, Optional Dual LAN
Ethernet
10/100/1000 Base-Tx Fast Ethernet compatible
Mechanical & Environment
Color
Front & Rear Panel Silver
Mounting
Wall/Stand/VESA 75 mm x 75 mm
Power
Requirement
+12 V ~ +26 V
Power Adapter
Input: 100~240 Vac/ 50~60 Hz
Output: +24 Vdc / 2.5 A (60W)
Power Type
AT/ATX
Operating Temp.
0 ~ 40°C
Storage Temp.
-20 ~ 60°C
Operating
Humidity
5%~90% relative humidity, non-condensing
Demensions
311 x 272 x 58 mm
405 x 353 x 66.6 mm
Weight
4.23 Kgs
7.5 Kgs
6 SPC-1209/1709 Quick Reference Guide
7
Connectors
Label
Function
Note
DC-IN
Waterproof DC Power-in connector
18pin
Waterproof 18pin connector
(Use attached cable to convert 1xUSB/1xLAN/1xCOM)
USB
Waterproof USB 2.0 connector x 2
Connectors
Label
Function
Note
Membrane
Power & 3 programmable buttons
USB
Waterproof USB 2.0 connector x 3
COM
Waterproof DB-9 connector
LAN
Waterproof RJ-45 connector
DC-IN
Waterproof DC Power-in connector
1.4 System Overview
1.4.1 SPC-1209 Rear View
Quick Reference Guide
1.4.2 SPC-1709 Rear View
SPC-1209/1709 Quick Reference Guide
SPC-1209/1709
(Unit: mm)
1.5 System Dimensions
1.5.1 SPC-1209 Front, rear and side view
8 SPC-1209/1709 Quick Reference Guide
9
(Unit: mm)

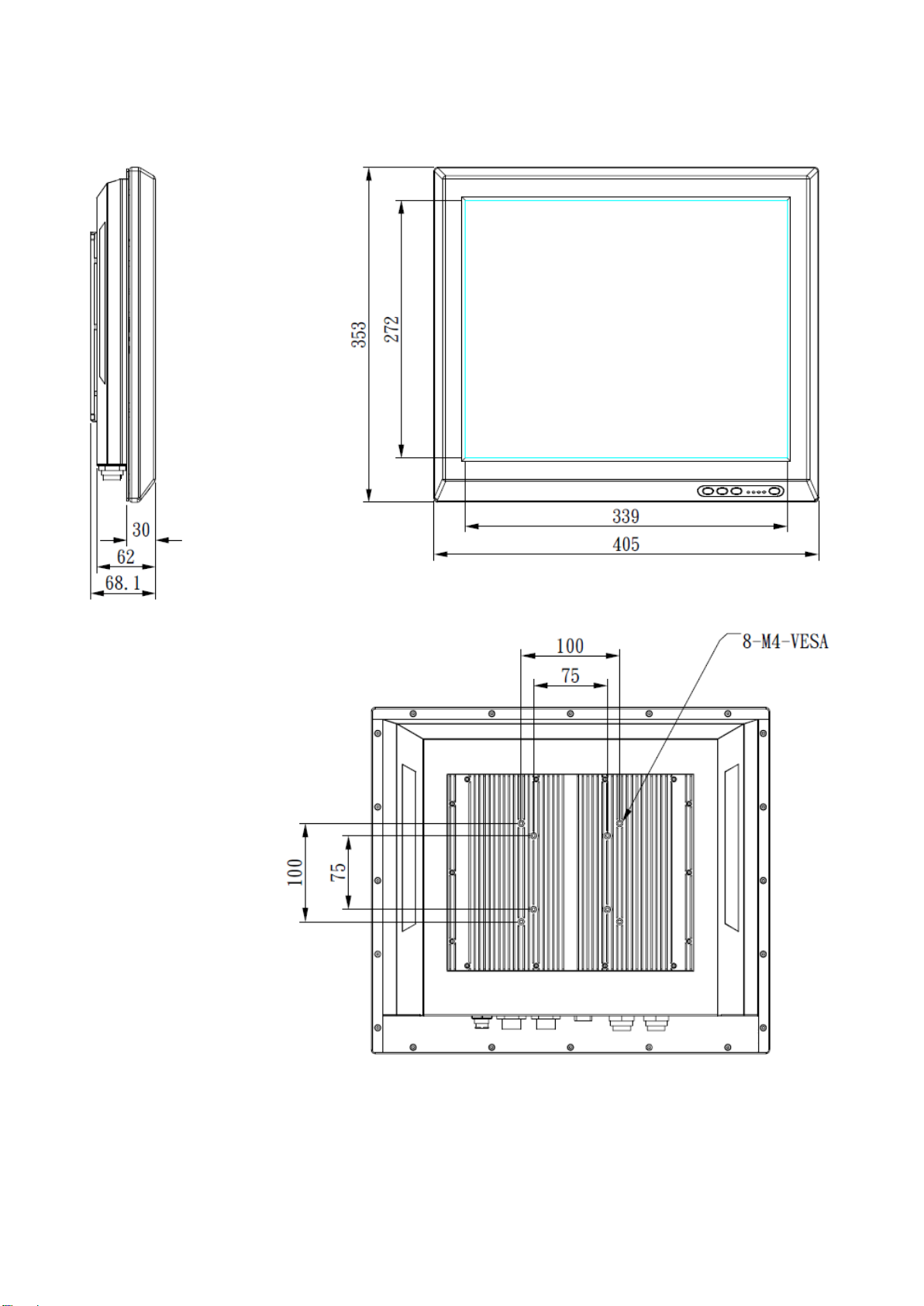

1.5.2 SPC-1709 Front, rear and side view
Quick Reference Guide
SPC-1209/1709 Quick Reference Guide
SPC-1209/1709
2. Hardware
Configuration
For advanced information, please refer to:
1- EBM-BYT User’s Manual
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
10 SPC-1209/1709 Quick Reference Guide
11
Signal
PIN
PIN
Signal
NDCDA#_485TXN
1 6 NDSRA#
NRXDA_485TXP
2 7 NRTSA#
NTXDA_485RXP
3 8 NCTSA#
NDTRA#_485RXN
4 9 NRIA#
GND
5
2.1 SPC-1209/1709 connector mapping
2.1.1 Waterproof DB-9 connector (COM)
Quick Reference Guide
SPC-1209/1709 Quick Reference Guide
