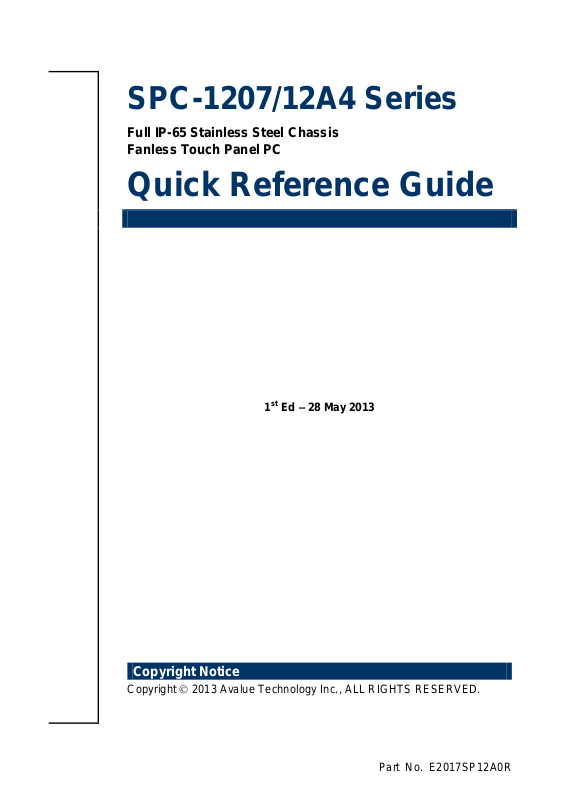

SPC-1207/12A4 Series
Full IP-65 Stainless Steel Chassis
Fanless Touch Panel PC
Quick Reference Guide
1st Ed – 28 May 2013
Copyright Notice
Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017SP12A0R
SPC-1207/12A4 Series
FCC Statement
A Message to the Customer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
2 SPC-1207/12A4 Series Quick Reference Guide
Quick Reference Guide
3
Contents
1. Getting Started ........................................................................................................ 4
1.1 Safety Precautions .................................................................................................... 4
1.2 Packing List ............................................................................................................... 4
1.3 System Specifications ............................................................................................... 5
1.4 System Overview ................................ ................................ ................................ ...... 7
1.4.1 Rear View ................................................................................................................................ 7
1.5 System Dimensions .................................................................................................. 8
1.5.1 Front and rear side .................................................................................................................. 8
SPC-1207/12A4 Series Quick Reference Guide
SPC-1207/12A4 Series
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x SPC 12" Series Panel PC
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— WiFi drivers and utilities
— Touch controller drivers and utilities
1 x Power Adapter
1 x DC-in extended cable
1 x USB+LAN+COM External Cable
4 SPC-1207/12A4 Series Quick Reference Guide
5
Panel
Model
SPC-1207
SPC-12A4
LCD Size
12.1”, 4:3
Resolution
1024 x 768, XGA
Pixel Pitch
0.240mm (H) x 0.240mm (V)
Luminance
600cd/m²
Contrast Ratio
700
Viewing Angle
70 (U), 70 (D), 80 (L), 80 (R)
Response Time
16ms
Backlight
LED
Touch Screen
5-wire Resistive
Light Transmission
80%
Touch Interface
USB Touch Control Board EETI
System
Board
EBM-CDV
EBM-A50M
CPU
Onboard Intel® Atom™ D2550
1.86GHz CPU
Onboard AMD eOntario T40E 1.0GHz
CPU
System Chipset
Intel® NM10 Chipset
AMD A50M Chipset
I/O Chipset
E/C IT8518E
Nuvoton W83627DHG-P
System Memory
One 204-pin SODIMM Supports Up to
4GB DDR3 1066MHz SDRAM
Onboard 2GB DDR3 and One 204-pin
SODIMM Supports Up to 4GB DDR3
1066MHz SDRAM
Storage
One Type I/II Compact Flash Socket
One 2.5” HDD Bay
One Type I/II Compact Flash Socket
One 2.5” HDD Bay
Watchdog Timer
Reset: 1sec. ~ 255min. and 1sec. or
1min./step
Reset: 1sec. ~ 255min. and 1sec. or
1min./step
H/W Status Monitor
Monitoring System Temperature,
Voltage, and Cooling Fan Status. with
Auto Throttling Control
Monitoring System Temperature,
Voltage, and Cooling Fan Status. with
Auto Throttling Control
Expansion
1 x Mini PCIe Slot, Optional Supports
mSATA
2 x Mini PCIe Slots
External I/O Ports
Serial Port
1 x RS-232 (Via Combo Port, Water
Proof, IP-67 Rating)
1 x RS-232 (Via Combo Port, Water
Proof, IP-67 Rating)
Ethernet
1 x RJ-45 (Via Combo Port, Water
Proof, IP-67 Rating)
(Intel® 82574L Gigabit Ethernet,
Optional Dual 82574L Gigabit Ethernet)
1 x RJ-45 (Via Combo Port, Water
Proof, IP-67 Rating)
(Realtek RTL8111E Ethernet,
Supports Wake on LAN)
USB
3 x USB 2.0 (1 x USB via Combo Port,
Water Proof, IP-67 Rating)
3 x USB 2.0 (1 x USB via Combo Port,
Water Proof, IP-67 Rating)
Power Switch
1 x Membrane Power Button
1 x Membrane Power Button
1.3 System Specifications
Quick Reference Guide
SPC-1207/12A4 Series Quick Reference Guide
SPC-1207/12A4 Series
Power Input
1 x DC-in (Water Proof, IP-67 Rating)
1 x DC-in (Water Proof, IP-67 Rating)
Speaker
2 x 2W Speaker
2 x 2W Speaker
Environment & Mechanical
Color
Front & Rear Panel Silver
Mounting
VESA/ Wall/ Stand 75mm x 75mm & 100mm x 100mm
System Power Requirement
+12 ~ 26V DC Power Input
Power Adapter
Input: 100 ~ 250VAC/ 47 ~ 63Hz
Output: 60W Adapter (24V @ 2.5A Adapter)
Operating Temperature
0 ~ 40°C (32 ~ 104°F)
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Relative Humidity
5% ~ 90% Relative Humidity, Non-condensing
Dimensions (W x D x H)
311mm x 272mm x 58mm
Weight
4.23Kgs
6 SPC-1207/12A4 Series Quick Reference Guide
7
Connectors
Label
Function
Note
POWER
Power jack
Combo Port
Waterproof USB2.0 + LAN + COM connector
USB
Waterproof USB 2.0 connector x 2
1.4 System Overview
1.4.1 Rear View
Quick Reference Guide
SPC-1207/12A4 Series Quick Reference Guide
SPC-1207/12A4 Series
(Unit: mm)
1.5 System Dimensions
1.5.1 Front and rear side
