Avalue SPC-1205 User Manual
SPC 12”/15”/17”/22”W Series
12”/15”/17”/22”W Stainless Steel Touch Panel PC
Quick Reference Guide
2nd Ed – 16 December 2011
Copyright Notice
Copyright 2007-2011 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017SPC0A1R
SPC 12”/15”/17”/22”W Series
Contents
1. Getting Started ........................................................................................................ 3
1.1 Safety Precautions .................................................................................................... 3
1.2 Packing List ............................................................................................................... 3
1.3 System Specifications ............................................................................................... 4
1.4 System Overview ................................................................ ................................ .... 12
1.4.1 12”/15” Rear View .................................................................................................................. 12
1.4.2 17”/22”W Rear View .............................................................................................................. 12
1.5 System Dimensions ................................................................................................ 13
1.5.1 SPC-12 Front, rear and side view ......................................................................................... 13

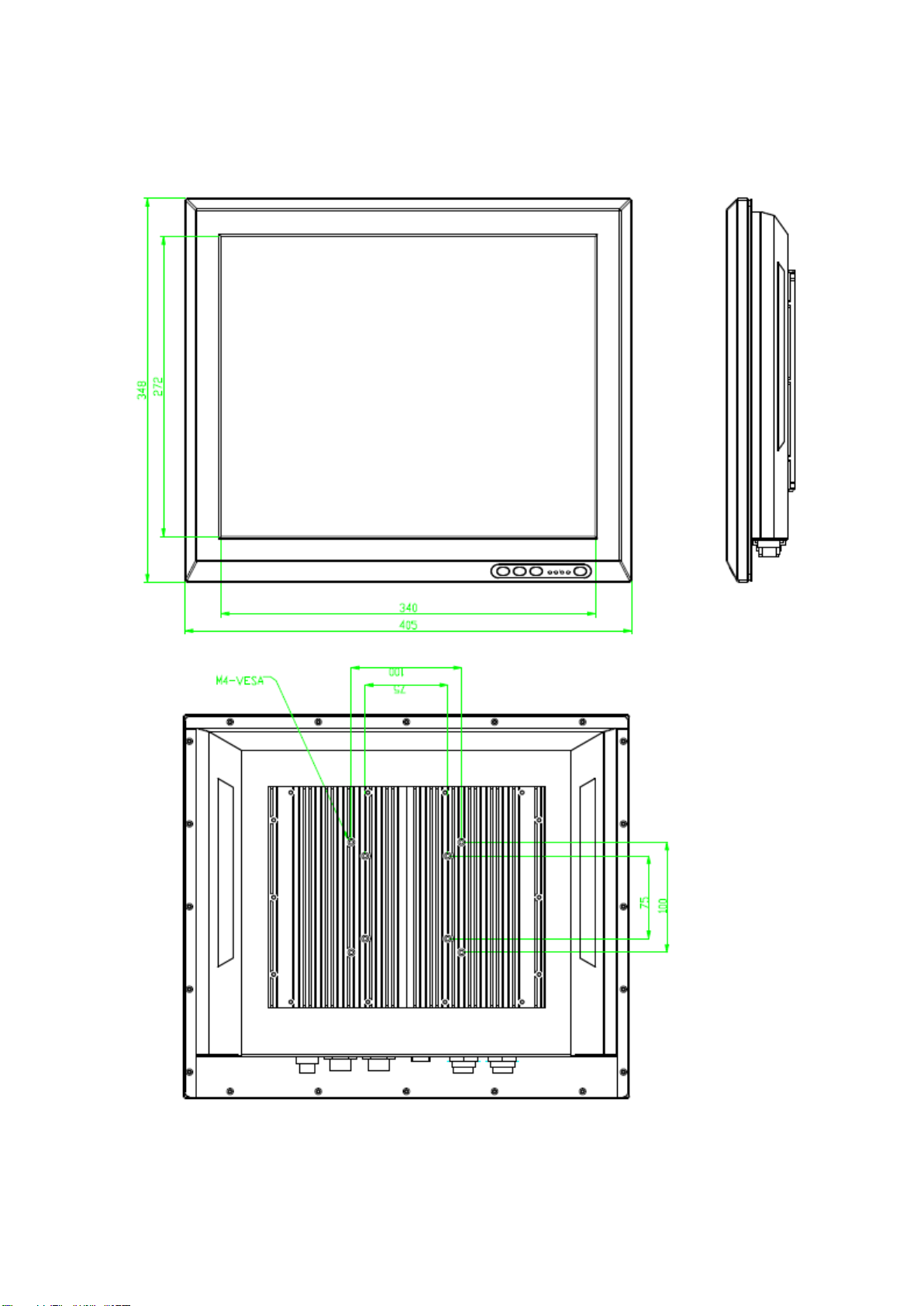

1.5.2 SPC-15 Front, rear and side view ......................................................................................... 14
1.5.3 SPC-17 Front, rear and side view ......................................................................................... 15

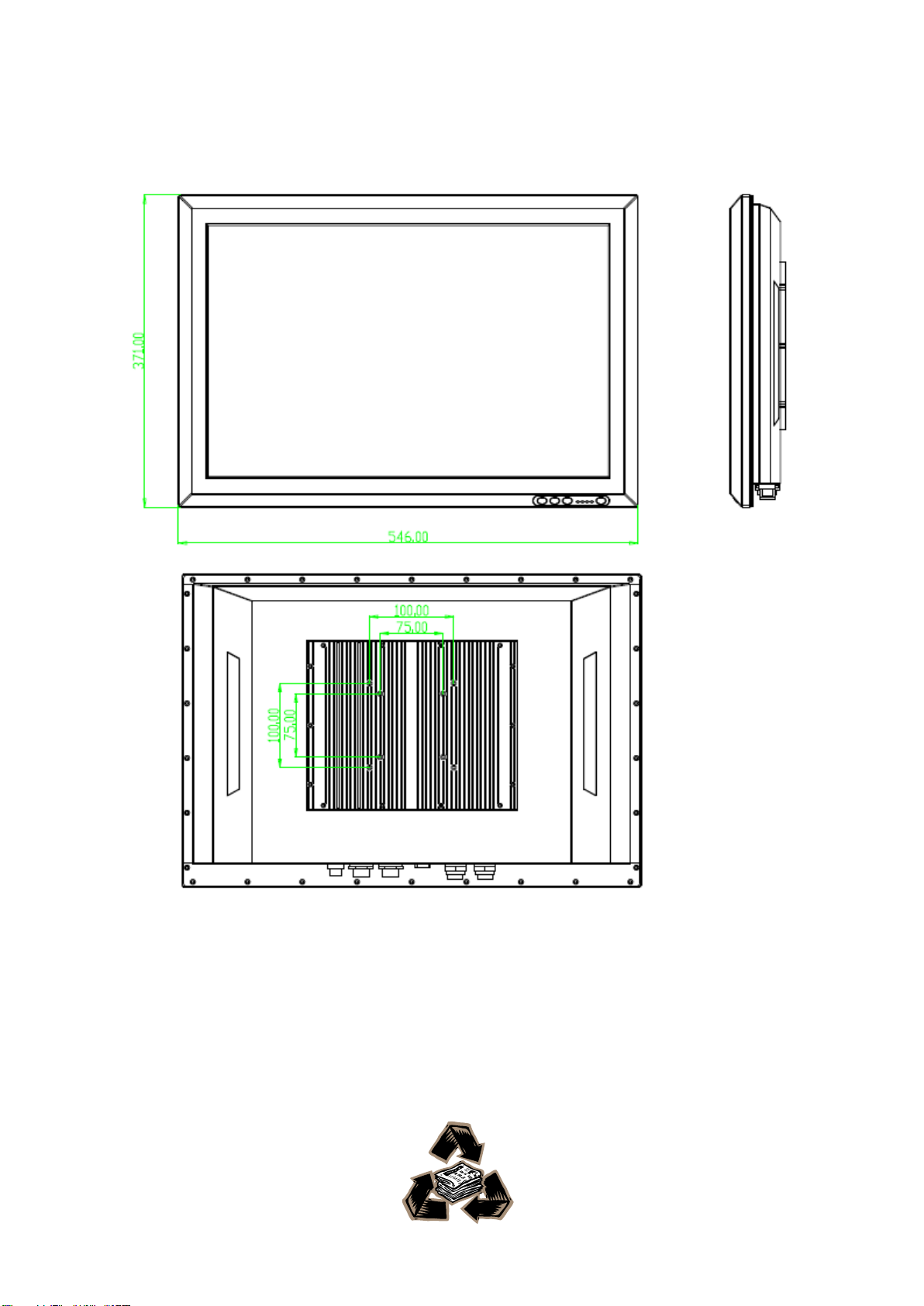

1.5.4 SPC-22W Front, rear and side view ...................................................................................... 16
2 SPC 12”/15”/17”/22”W Series Quick Reference Guide
Quick Reference Guide
3
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x SPC 12"/15"/17"/22"W Series Panel PC
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— Wi-Fi drivers and utilities
— Touch controller drivers and utilities
1 x Power Adapter
1 x DC-in extended cable
SPC 12”/15”/17”/22”W Series Quick Reference Guide
SPC 12”/15”/17”/22”W Series
Panel
Model
SPC-1203
SPC-1205
LCD size
12”, 4:3
Display type
XGA
Resolution
1024 x 768
Color
262K
Pixel pitch
0.240mm(H) x 0.240mm(V)
Luminance
600 cd/m²
Contrast ratio
700
Viewing angle
70(U), 70(D), 80(L), 80(R)
Response time
16 ms
Backlight
LED
Touch type
5 Wires resistive
Touch interface
USB
System
Board
EBM-945GSE
EBM-PNV
CPU
Onboard Intel Atom N270 1.6GHz
(2.5W)
Onboard Intel® Atom™ D525 Dual-Core
1.8GHz CPU
BIOS
Award 4 Mbit Flash BIOS
AMI 8 Mbit Flash BIOS
System Chipset
Intel 945GSE + ICH7-M
Intel® ICH8-M Chipset
I/O Chipset
ITE 8712F
Winbond W83627DHG-P
System Memory
Onboard 1GB DDR2, extra one
SODIMM supports up to 2GB 400/533
SDRAM
Onboard 1GB, One 200-pin SODIMM
Support Up to 3GB SDRAM
SSD
One CF socket supports Type I / II
Compact Flash Card.
One CF socket supports Type I / II
Compact Flash Card.
HDD
Optional 2.5” SATA HDD or 44-pin
enhanced IDE HDD
One 2.5” SATA HDD
WiFi
Optional USB WiFi 802.11b/g
Optional USB WiFi 802.11b/g/n
Watchdog Timer
Reset: 1 ~ 65535 sec./min. and 1
min./step
Reset: 1 ~ 255min. and 1sec. or
1min./step
Display
Intel 945GSE GMCH integrated
GMA950 graphics
Intel Pineview integrated, Gen3.5 + GFX
Core @ 400MHz (PNV-D)
Audio
Realtek ALC 892 supports 5.1-CH Audio
Realtek ALC 888 supports 5.1-CH Audio
Ethernet
Dual Realtek RTL8111C Gigabit LAN
Intel® 82574L Gigabit Ethernet
1.3 System Specifications
4 SPC 12”/15”/17”/22”W Series Quick Reference Guide
Quick Reference Guide
5
External I/O Ports
COM Port
1 x RS-232
1 x RS-232
Ethernet Port
2 x Giga LAN
1 x Giga LAN
USB Port
2 x USB 2.0
3 x USB 2.0
Power Supply Unit
Power Input
12V
Power Output
5A (60W)
Environment & Mechanical
Operating Temperature
0~40°C (32~104°F)
Storage Temperature
-20 to +75°C (-4~167°F)
Relative Humidity
5 to 90% @ 40°C (104°F), relative humidity, non-condensing
Dimension (W x D x H)
295 x 240 x 53mm
Weight
4.23 Kgs
Mounting
VESA 75 x 75 & 100 x 100 mm
SPC 12”/15”/17”/22”W Series Quick Reference Guide
