1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x RITY Series Panel PC
1 x Power Adapter
1 x Power Cord
1 x Stand (option)
4 RITY150 Quick Reference Guide
5
Panel
LCD size
15", 4:3
Display Type
XGA
Resolution
1024 x 768
Color
16.2M
Luminance
400cd/m²
Contrast ratio
700
Viewing angle
80(H) x 70(V)
Response time
8 ms
Backlight
LED
Touch Type
5 Wires resistive/ PCT
Touch Light
Transmission
RES 75 %/ PCT 90%
Touch Controller
Onboard RS232 touch (PenMount)/ USB touch (EETI)
System
SBC
ACP-CDVPOS
Processor
Intel® Atom™ D2550 Dual-Core 1.8 GHz CPU
System Chipset
Intel® NM10 Express Chipset
I/O Chipset
EC ITE IT8518E
System Memory
1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB
Watchdog Timer
H/W Reset: 1sec.~255min. and 1sec. or 1min./step
Expansion &
Storage
Expansion
1 x Mini PCIe Supports mSATA
Storage
1 x 2.5” Drive Bay
1 x mSATA
I/O
USB
6 x USB 2.0
COM Port
2 x RS-232/422/485 (BIOS)
1 x RS-232
Display
Chipset
Intel® Cedarview Integrated Graphics
Supports dual display
Resolution
LVDS: Max. resolution 1024x768 @ 60Hz
VGA: Max. resolution 1024x768 @ 60Hz
1.3 System Specifications
Quick Reference Guide
RITY150 Quick Reference Guide
RITY150
Audio
Chipset
Realtek ALC892 supports 2-CH
Audio Interface
Line-Out
Speaker Output
2 x 2W
Ethernet
Chipset
2 x Realtek 8111E
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
LAN Port
1 x RJ-45
Power
Requirement
Power Connector
minidin 4P for DC in w/ lock type
Power
Requirement
+19V ~ +24V
Power Type
AT/ATX (ATX is default setting)
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 90W Adapter (24V @ 3.75A Adapter)
AC-DC Adapter
Mechanical &
Environmental
Power Connector
Fanless
Construction -
Front
Black Coverlens
Construction -
Rear
Black
Dimension
362.1 x 290.08 x 51 mm
Weight
6/with Stand Kgs
Operating
Temperature
0°C ~ 35°C (32°F ~ 95°F)
Storage
Temperature
0°C ~ 60°C (0°F ~ 140°F)
Operating
Humidity
0% ~ 90% Relative Humidity, Non-condensing
Vibration Test
With SSD/mSATA : 1.5Grms, IEC 60068-2-64,
Random, 5 ~ 500Hz, 30min/axis
Shock Test
With SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
Certifications &
Software Support
Certification
Information
CE
FCC Class B
6 RITY150 Quick Reference Guide
Quick Reference Guide
7
VCCI
OS Information
POS Ready, Win 7, Win XP
Note: Specifications are subject to change without notice.
RITY150 Quick Reference Guide
RITY150
Connectors
Label
Function
Note
COM1/2/6
External Serial Port 1/2 connector
(For RS-232/422/485)
External Serial Port 6 connector (For
RS-232)
DB-9 male connector
VGA/HDMI
VGA connector
HDMI connector
C/D
Cash Drawer connector
USB
6 x USB 2.0 connector
LAN
2 x RJ-45 Ethernet connector
DC-IN
DC Power-in connector
DC 24V OUT
DC Power-out connector
KB/MS
Keyboard & Mouse connector
USB
1.4 System Overview
1.4.1 Right View
1.4.2 Bottom View
8 RITY150 Quick Reference Guide
9
(Unit: mm)
1.5 System Dimensions
Quick Reference Guide
RITY150 Quick Reference Guide
RITY150
2. Hardware
Configuration
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
10 RITY150 Quick Reference Guide
11
In RS-232 Mode
Signal
PIN
PIN
Signal
DCDA#
1 6 DSRA#
RXDA
2 7 RTSA#
TXDA
3 8 CTSA#
DTRA#
4 9 RIA#
GND
5
In RS-422 Mode
Signal
PIN
PIN
Signal
TxD1-
1 6 NC
TxD1+
2 7 NC
RxD1+
3 8 NC
RxD1-
4 9 NC
GND
5
In RS-485 Mode
Signal
PIN
PIN
Signal
DATA1-
1 6 NC
DATA1+
2 7 NC
NC
3 8 NC
NC
4 9 NC
GND
5
2.1 RITY150 connector mapping
2.1.1 External Serial Port 1 connector (COM1)
Quick Reference Guide
RITY150 Quick Reference Guide
RITY150
In RS-232 Mode
Signal
PIN
PIN
Signal
DCDB#
1 6 DSRB#
RXDB
2 7 RTSB#
TXDB
3 8 CTSB#
DTRB#
4 9 RIB#
GND
5
In RS-422 Mode
Signal
PIN
PIN
Signal
TxD1-
1 6 NC
TxD1+
2 7 NC
RxD1+
3 8 NC
RxD1-
4 9 NC
GND
5
In RS-485 Mode
Signal
PIN
PIN
Signal
DATA1-
1 6 NC
DATA1+
2 7 NC
NC
3 8 NC
NC
4 9 NC
GND
5
2.1.2 External Serial Port 2 connector (COM2)
12 RITY150 Quick Reference Guide
13

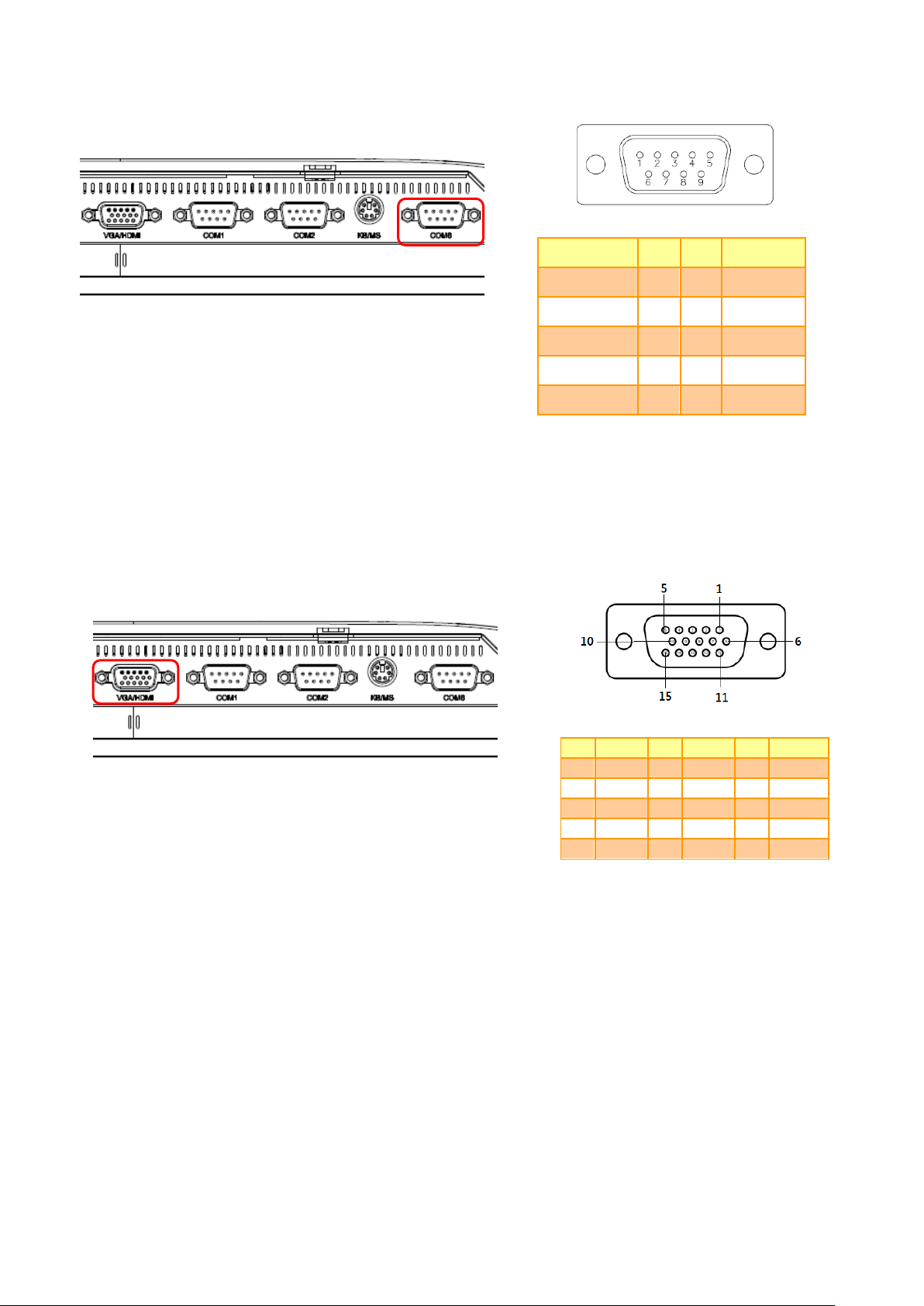

2.1.3 External Serial Port 6 connector (COM6)
Signal
PIN
PIN
Signal
DCD
1 6 DSR
RXD
2 7 RTS
TXD
3 8 CTS
DTR
4 9 RI
GND
5
PIN
Signal
PIN
Signal
PIN
Signal
1 R 6
GND
11
+12V 2 G 7 GND
12
DATA 3 B 8 GND
13
HSYNC
4
+12V
9
+5V
14
VSYNC
5
GND
10
GND
15
CLK
Quick Reference Guide
2.1.4 VGA/HDMI connector (VGA/HDMI)
RITY150 Quick Reference Guide
RITY150
Step 1. Memory Installation: Unfasten 2 screws from the case. Then take off the top
chassis.
Step 2. Insert the SODIMM into the memory socket.
2.2 Installing Memory, Mini PCI-e device & Hard Disk
14 RITY150 Quick Reference Guide
Quick Reference Guide
15
Step 3. Mini PCI-e device Installation: Unfasten 2 screws from the case. Then take off the
top chassis.
Step 4. Insert the Mini PCI-e device into the socket and fasten 2 screws.
RITY150 Quick Reference Guide
RITY150
Step 5. HDD Installation: Unfasten 2 screws from the case. Then take off the top chassis.
Step 6. Insert the HDD into the bracket and fasten 4 screws.
Step 7. Re-assemble your system back through previous steps to complete the installation.
16 RITY150 Quick Reference Guide
