Avalue MX1900J User Manual

MX1900J
Intel® Quad Core Bay Trail 4th gen Atom™
Mini ITX Motherboard
1st Ed – 18 March 2015
Part No. E2017MX1900R
MX1900J Quick Installation Guide
FCC Statement
Notice
Copyright Notice
Trademark Acknowledgement
Disclaimer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
This guide is designed for experienced users to setup the system within the shortest time. For detailed information, please always refer to the electronic user's manual.
Copyright 2015 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
Brand and product names are trademarks or registered trademarks of their respective owners.
Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that
2 MX1900J Quick Installation Guide
Quick Installation Guide
3
Life Support Policy
A Message to the Customer
these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial environments. Whether your new Avalue device is destined for the laboratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into technical difficulties, we are here to help. For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
Content
1. Getting Started ............................................................................................................ 5
1.1 Safety Precautions .................................................................................................... 5
1.2 Packing List ............................................................................................................... 5
2. Hardware Configuration ............................................................................................. 6
2.1 Product Overview ...................................................................................................... 7
2.1.1 Board Layout .................................................................................................................................... 7
2.1.2 Back Panel ....................................................................................................................................... 8
2.2 Setting Jumpers & Connectors ................................................................................. 9
2.2.1 ATX Power connector (ATX12V1) ................................................................................................... 9
2.2.2 ATX/AT Mode Selection (JPSON1) ................................................................................................. 9
2.2.3 Clear CMOS Jumper (CLCMOS1) ................................................................................................. 10
2.2.4 Front Panel connector (F_PANEL1) .............................................................................................. 10
2.2.5 Fan connector (CPU_FAN1, SYS_FAN1) ...................................................................................... 11
2.2.6 Serial Port connector (COM1) ........................................................................................................ 11
2.2.7 COM1 Ring-In/ +12V/ +5V Select (JCOMPWR1) .......................................................................... 12
2.2.8 LPT Port connector (LPT1) ............................................................................................................ 12
2.2.9 SATA 3.0 Ports (SATA1, SATA2) .................................................................................................. 13
2.2.10 SATA Power Header (SATAPW1) ............................................................................................. 13
2.2.11 mSATA Mode Select (JSATA1) ................................................................................................. 14
2.2.12 Front USB2.0 Headers (USB56, USB78) .................................................................................. 14
2.2.13 Front Panel Audio connector (AAFP1) ...................................................................................... 15
2.2.14 Amplifier connector (JAMP1) ..................................................................................................... 15
2.2.15 Digital I/O connector (JDIO1) ..................................................................................................... 16
2.2.16 LVDS Panel connector (JLVDS1) .............................................................................................. 16
2.2.17 LVDS Panel Backlight connector (JBKL1) ................................................................................. 17
3. Mechanical Drawing .................................................................................................... 18
4 MX1900J Quick Installation Guide
Quick Installation Guide
5
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.
1.2 Packing List
Before you begin installing your single board, please make sure that the following materials have been shipped:
1 x MX1900J Motherboard 1 x SATA Power Cable 1 x I/O Shield
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
2. Hardware Configuration
6 MX1900J Quick Installation Guide
7
2.1 Product Overview
2.1.1 Board Layout
Quick Installation Guide
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
2.1.2 Back Panel
8 MX1900J Quick Installation Guide
9
Note:
This header doesnt need to be connected to an ATX power supply if a 12V DC adapter is connected to DC1 connector.
2.2 Setting Jumpers & Connectors
2.2.1 ATX Power connector (ATX12V1)
Quick Installation Guide
2.2.2 ATX/AT Mode Selection (JPSON1)
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
2.2.3 Clear CMOS Jumper (CLCMOS1)
2.2.4 Front Panel connector (F_PANEL1)
10 MX1900J Quick Installation Guide
11
2.2.5 Fan connector (CPU_FAN1, SYS_FAN1)
CPU_FAN1
SYS_FAN1
Quick Installation Guide
2.2.6 Serial Port connector (COM1)
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
2.2.7 COM1 Ring-In/ +12V/ +5V Select (JCOMPWR1)
2.2.8 LPT Port connector (LPT1)
12 MX1900J Quick Installation Guide
13

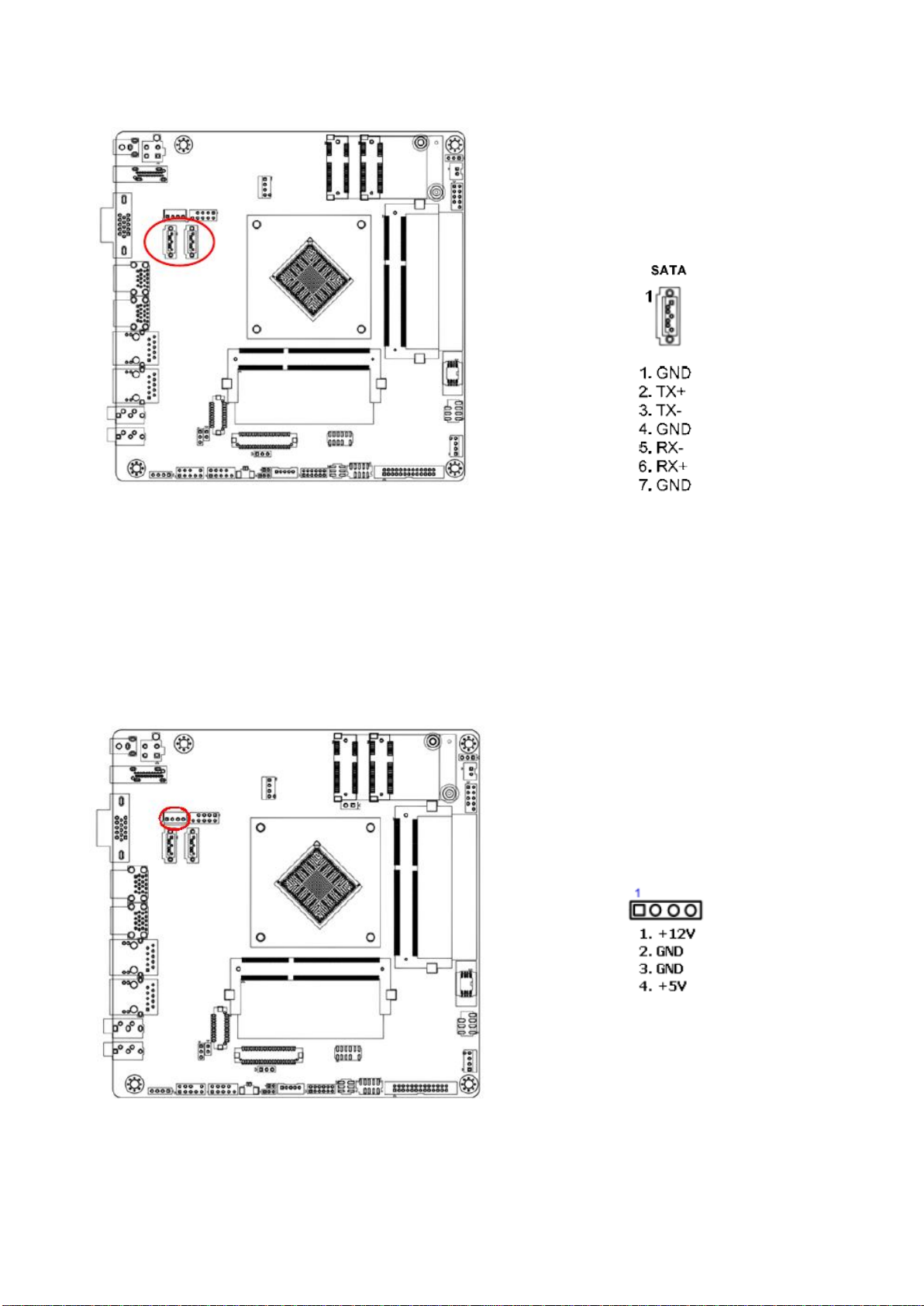

2.2.9 SATA 3.0 Ports (SATA1, SATA2)
Note:
Due to SATA2 and MINI_CARD1 (mSATA) are sharing the same SATA channel, only either one of them can be used. Please DO NOT install devices to these two headers at the same time.
Quick Installation Guide
2.2.10 SATA Power Header (SATAPW1)
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
Note:
Remove this jumper only when there is trouble for BIOS to detect the installed mSATA device on connector MINI_CARD1.
USB78
USB56
2.2.11 mSATA Mode Select (JSATA1)
2.2.12 Front USB2.0 Headers (USB56, USB78)
14 MX1900J Quick Installation Guide
15
2.2.13 Front Panel Audio connector (AAFP1)
Quick Installation Guide
2.2.14 Amplifier connector (JAMP1)
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
2.2.15 Digital I/O connector (JDIO1)
2.2.16 LVDS Panel connector (JLVDS1)
16 MX1900J Quick Installation Guide
17
2.2.17 LVDS Panel Backlight connector (JBKL1)
Quick Installation Guide
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
3. Mechanical Drawing
18 MX1900J Quick Installation Guide
Quick Installation Guide
19
Unit: mm
MX1900J Quick Installation Guide
MX1900J Quick Installation Guide
Unit: mm
20 MX1900J Quick Installation Guide
