LPC-1508
15" Fanless Multifunctional Touch Panel Computer
Quick Reference Guide
1st Ed – 26 August 2014
Copyright Notice
Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017L158A0R
LPC-1508
FCC Statement
A Message to the Customer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
2 LPC-1508 Quick Reference Guide
Quick Reference Guide
3
Contents
1. Getting Started ........................................................................................................ 4
1.1 Safety Precautions .................................................................................................... 4
1.2 Packing List ............................................................................................................... 4
1.3 System Specifications ............................................................................................... 5
1.4 System Overview ................................ ................................ ................................ ...... 7
1.4.1 Front View ................................................................................................................................ 7
1.4.2 Rear View ................................................................................................................................ 7
1.5 System Dimensions .................................................................................................. 8
2. Hardware Configuration ......................................................................................... 9
2.1 LPC-1508 connector mapping ................................................................................ 10
2.1.1 External Serial Port connector (COM1) ................................................................................. 10
2.2 Installing Hard Disk & Memory ................................................................................ 11
LPC-1508 Quick Reference Guide
LPC-1508
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x LPC-1508 15" Fanless Multifunctional Touch Panel Computer
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— WiFi drivers and utilities
— Touch controller drivers and utilities
— Chipset drivers and utilities
1 x Power Adapter
4 LPC-1508 Quick Reference Guide
5
Panel
LCD size
15", 4:3
Display Type
XGA
Resolution
1024 x 768
Pixel pitch
0.297mm(H) x 0.297mm(V)
Luminance
400 cd/m²
Contrast ratio
700
Viewing angle
70(U), 70(D), 80(L), 80(R )
Response time
16 ms
Backlight
LED
Touch Type
5 Wires resistive
Touch Light
transmission
80
Touch Interface
USB (EETI)
System
Board
EBM-QM87U
CPU
Onboard Intel® 4th Generation Core i5 4300U Processor (2 Die MCP, 15W)
System Chipset
Intel® Lynx Point (2 Die MCP; Integrated in Processor)
I/O Chip
E/C IT8528E
System Memory
2 x 204-pin DDR3L 1333/1600 SO-DIMM up to 16GB
SSD
One CompactFlash Type I/II socket
Hard Driver Bay
Optional One 2.5”HDD or SSD
Watchdog Timer
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
H/W Status
Monitor
Monitoring system temperature, voltage, and cooling fan status. Auto
throttling control when CPU overheats
Expansion
2 x Mini-PCIe slot (one mSATA only, one supports SIM card slot)
Rear I/O
Serial Port
1 x RS-232
Ethernet
2 x RJ-45
HDMI
1 x HDMI
Audio port
1 x Line-out
USB
2 x USB 3.0
Display
Chipset
2 Die MCP; Integrated in Processor
Resolution
LVDS through eDP: 1920 x 1200 @ 60Hz
1.3 System Specifications
Quick Reference Guide
LPC-1508 Quick Reference Guide
LPC-1508
Dual Display
Intel® Lynx Point Integrated w/ CPU
Audio
AC97 Codec
Realtek ALC892 supports 5.1-CH Audio
Audio Interface
Speaker (2x1W), Line-out
Ethernet
LAN Chip
1 x Intel® I210 GbE controller, 1 x Intel® I218LM GbE PHY
Ethernet Interface
10/100/1000 Base-Tx Fast Ethernet compatible
Mechanical &
Environmental
System Fan
Fanless
Color
Front Silver & Rear panel Black
Mounting
Wall/Stand/VESA 75 mm x 75 mm/ 100mm x 100mm
Power
Requirement
+12 V ~ +26 V
Power Adapter
Input: 100 ~ 240 Vac/ 50 ~ 60 Hz
Output: +12 Vdc / 5 A (60W)
ACPI
n/a
Power Type
AT/ATX (ATX mode is default)
Operating Temp.
0 to 40°C
Storage Temp.
-10 to 60°C
Operating
Humidity
5%~90% relative humidity, non-condensing
Dimensions
350 x 273.9 x 53.1 mm
Weight
4.2 Kgs
6 LPC-1508 Quick Reference Guide
7
Connectors
Label
Function
Note
POWER
Power on button
Compact
Flash/COM2
CF Type I/II Socket with Ejector
Optional for 2nd COM port
COM1
External Serial Port connector
DB-9 male connector
LINE OUT
Line-out audio jack
USB
2 x USB 3.0 connector
Dock USB
LAN1
RJ-45 Ethernet connector 1
KB/MS/LAN2
RJ-45 Ethernet connector 2
Optional PS/2
HDD
HDD indicator
PWR
System power indicator
HDMI
HDMI connector
RESET
Reset button
DC-IN
DC Power-in connector

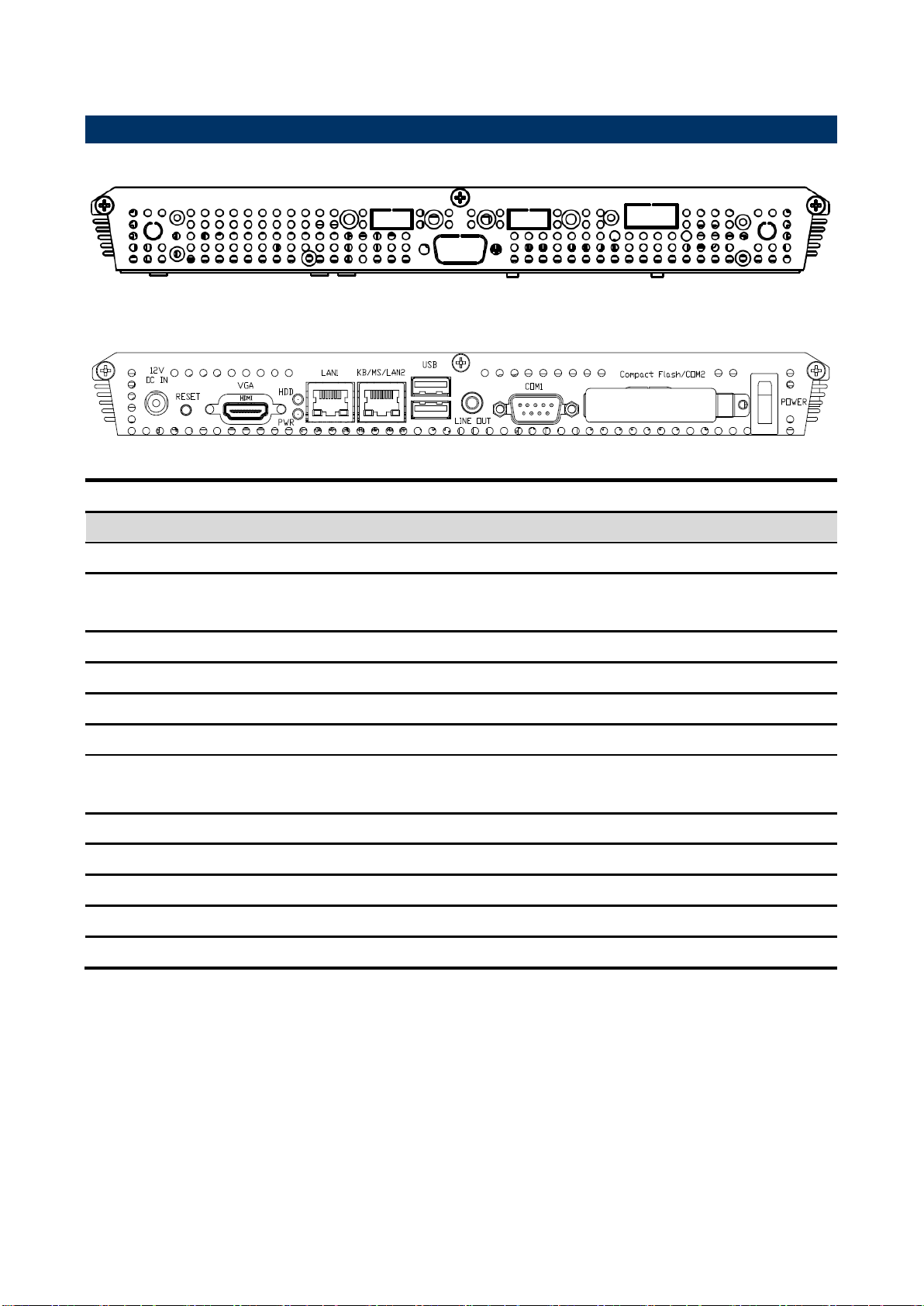

1.4 System Overview
1.4.1 Front View
1.4.2 Rear View
Quick Reference Guide
LPC-1508 Quick Reference Guide
LPC-1508
1.5 System Dimensions
8 LPC-1508 Quick Reference Guide
Quick Reference Guide
9
2. Hardware
Configuration
Please refer to EBM-QM87U Quick Installation Guide or User’s Manual for
advanced information.
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
LPC-1508 Quick Reference Guide
LPC-1508
Signal
PIN
PIN
Signal
DCD
1 2 RXD
TXD
3 4 DTR
GND
5 6 DSR
RTS
7 8 CTS
RI
9
10
NC
2.1 LPC-1508 connector mapping
2.1.1 External Serial Port connector (COM1)
10 LPC-1508 Quick Reference Guide
11
Step 1. Memory Installation: Unfasten 6 screws from the case to take off the top chassis.
Step 2. Insert the SODIMM into the memory socket.
Step 3-1. HDD Installation: Unfasten 2 screws of the HDD bracket and take it off.
2.2 Installing Hard Disk & Memory
Quick Reference Guide
LPC-1508 Quick Reference Guide
LPC-1508

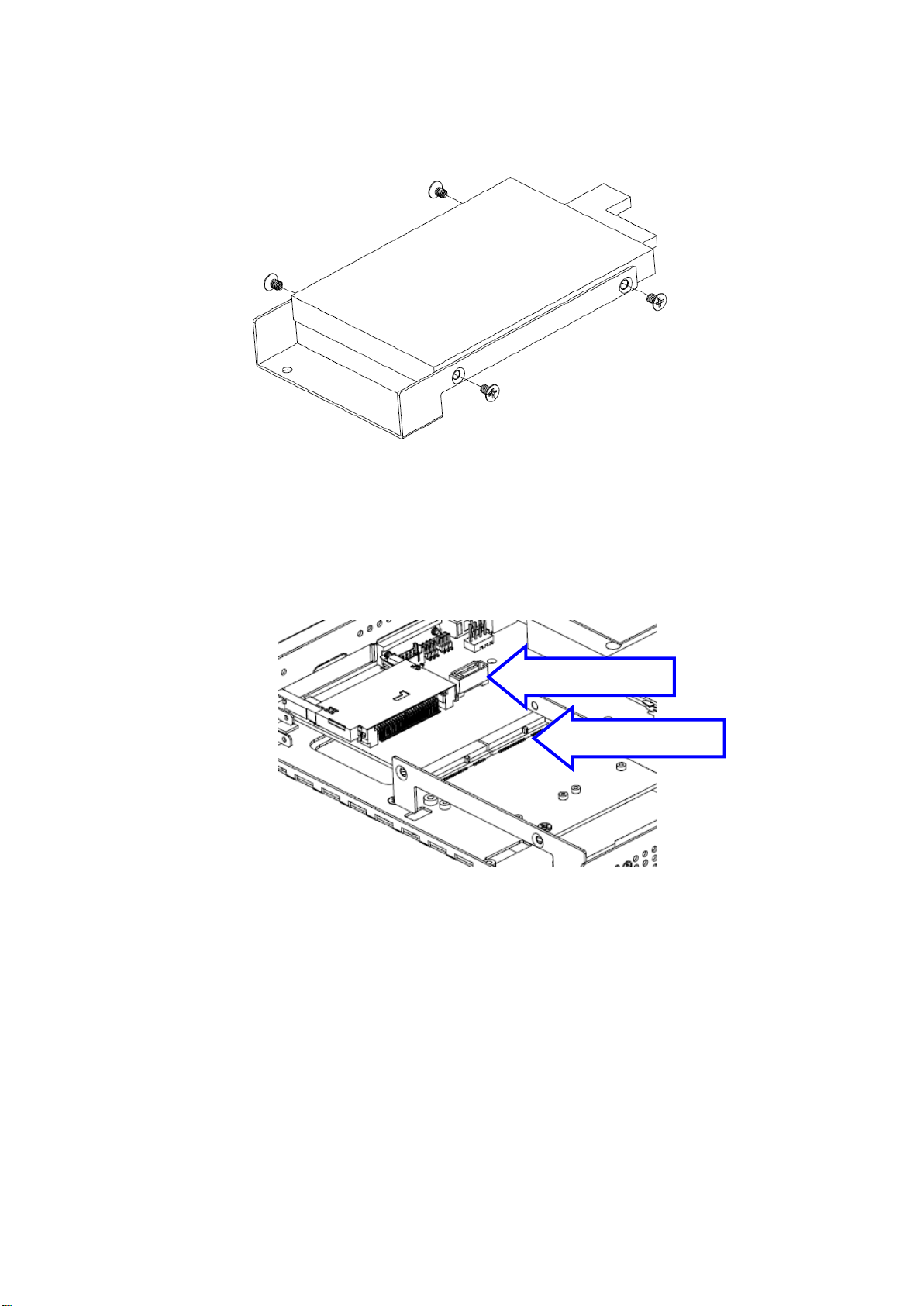

Step 3-2. Insert the HDD into the bracket and fasten 4 screws.
Step 3-3. SATA HDD Installation: By default, the SATA cables had been inserted to the
according connectors. Just connect to SATA HDD with the two cables.
SATA connector 1
MPCIE connector
12 LPC-1508 Quick Reference Guide
Quick Reference Guide
13
Step 3-4. Insert the HDD back and fasten 2 screws.
Step 4. Place back the chassis with 6 screws locked.
HDD
LPC-1508 Quick Reference Guide
