Avalue LPC-1505 User Manual

LPC 15” Series

15” Multifunctional Touch Panel PC

Quick Reference Guide

2nd Ed – 09 October 2013

Copyright Notice

Copyright  2013 Avalue Technology Inc., ALL RIGHTS RESERVED.

Part No. E2017L153A2R

LPC 15” Series

Contents

1. Getting Started ........................................................................................................ 3

1.1 Safety Precautions .................................................................................................... 3

1.2 Packing List ............................................................................................................... 3

1.3 System Specifications ............................................................................................... 4

1.4 System Overview ...................................................................................................... 6

1.4.1 Front View ................................................................................................................................ 6

1.4.2 Rear View ................................................................................................................................ 6

1.5 System Dimensions .................................................................................................. 7

2. Hardware Configuration ......................................................................................... 8

2.1 COM port BIOS Setting ............................................................................................. 9

2.1.1 LPC-1503 RS232/422/485 setting by BIOS ............................................................................ 9

2.1.2 LPC-1505 RS232/422/485 setting by SW2 ............................................................................. 9

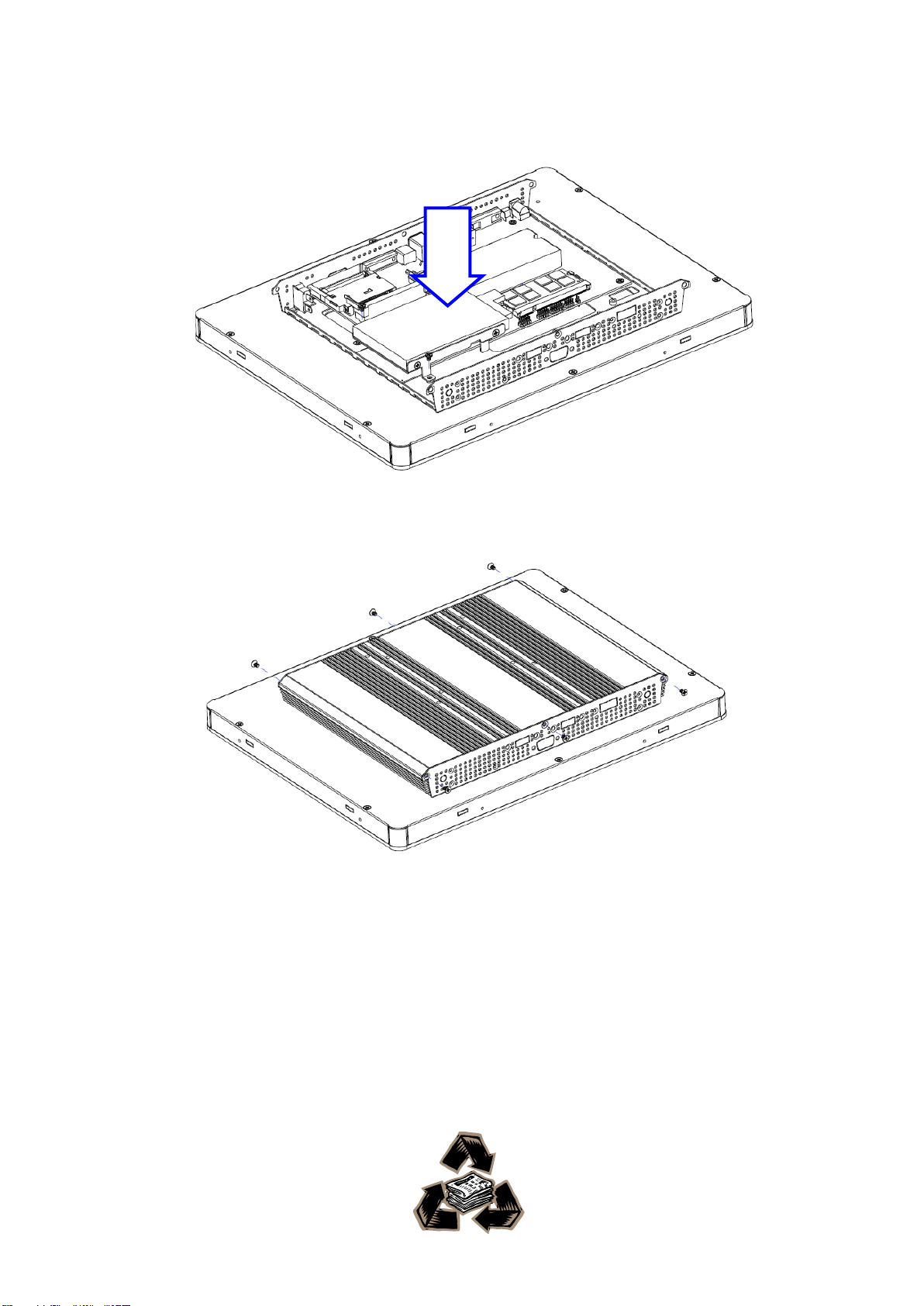

2.2 Installing Hard Disk & Memory ................................................................................ 10

2 LPC 15” Series Quick Reference Guide

Quick Reference Guide

3

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.

Caution!

Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.

1.2 Packing List

 1 x LPC 15" Series Panel PC
 1 x Quick Reference Guide
 1 x DVD-ROM contains the followings:

— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— WiFi drivers and utilities
— Touch controller drivers and utilities

 1 x Power Adapter

LPC 15” Series Quick Reference Guide

LPC 15” Series

Panel

Model

LPC-1503

LPC-1505

LCD size

15”, 4:3

Display type

XGA

Resolution

1024 x 768

Color

262K

Pixel pitch

0.297mm(H) x 0.297mm(V)

Luminance

300 cd/m²

Contrast ratio

500

Viewing angle

65(U), 60(D), 70(L), 70(R)

Response time

8 ms

Backlight

CCFL

Touch type

5 Wires resistive

Touch interface

USB

System

Board

EBM-945GSE

EBM-PNV

CPU

Onboard Intel Atom N270 1.6GHz

Onboard Intel Pineview D525 1.8GHz

BIOS

Award 8 Mbit Flash BIOS

Award 512KB Flash BIOS

System Chipset

Intel 945GSE + ICH7-M

Intel ICH8-M

I/O Chipset

ITE 8712F

Nuvoton W83627DHG-P

System Memory

Onboard 1GB DDR2and one SODIMM

supports up to 2GB

Onboard 1GB DDR3 and one SODIMM

supports up to 3GB

SSD

One CF socket supports Type I / II Compact Flash Card.

HDD

Optional 2.5” SATA HDD

WiFi

Optional USB WiFi 802.11b/g

Watchdog Timer

Reset: 1 ~ 65535 sec./min. and 1 min./step

Audio

Realtek ALC 892 supports 5.1-CH Audio

Realtek ALC888 supports 5.1-CH Audio

Ethernet

Dual Realtek RTL8111C Gigabit LAN,

supports wake on LAN

Intel® 82574L Gigabit LAN, Optional

Dual LAN

1.3 System Specifications

4 LPC 15” Series Quick Reference Guide
