LPC-0807
8” Multi-functional Touch Panel Computer
Quick Reference Guide
1st Ed –16 January 2015
Copyright Notice
Copyright 2015 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017L870A0R
LPC-0807
FCC Statement
A Message to the Customer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
2 LPC-0807 Quick Reference Guide
Quick Reference Guide
3
Content
1. Getting Started ........................................................................................................ 4
1.1 Safety Precautions .................................................................................................... 4
1.2 Packing List ............................................................................................................... 4
1.3 System Specifications ............................................................................................... 5
1.4 System Overview ................................ ................................ ................................ ...... 7
1.4.1 Right View ................................................................................................................................ 7
1.4.2 Bottom View ............................................................................................................................. 7
1.5 System Dimensions .................................................................................................. 8
2. Hardware Configuration ......................................................................................... 9
2.1 LPC-0807 connector mapping ................................................................................ 10
2.1.1 VGA connector (VGA) ........................................................................................................... 10
2.1.2 Serial port 1 connector (COM1) ............................................................................................. 10
2.1.3 Serial port 2 connector (COM2) ............................................................................................. 11
2.2 Installing Memory ..................................................................................................... 12
2.3 Installing CF Card ..................................................................................................... 14
LPC-0807 Quick Reference Guide
LPC-0807
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x LPC-0807 Panel PC
1 x Driver/Utility DVD-ROM
1 x Power Adapter
4 x screws for VESA
4 LPC-0807 Quick Reference Guide
5
Panel
LCD size
8"
Display type
SVGA TFT
Resolution
800 x 600
Pixel pitch
0.0675mm(H) x 0.2025mm(V)
Luminance
500 cd/m²
Contrast ratio
500
Viewing angle
50(U), 70(D), 70(L), 70(R)
Response time
25 ms
Backlight
LED
Touch type
5 Wires resistive
Touch Light
Transmission
80%
Touch interface
USB (EETI)
System
Board
ECM-CDV
CPU
Intel® Cedarview D2550 1.86GHz CPU
System Chipset
Intel® NM10
I/O Chipset
Winbond W83627DHG
Memory
One 204-pin DDR3 SODIMM Socket, Supports Up to 4GB DDR3 800/ 1066
SDRAM
SSD
One CompactFlash Type I/II Socket
Expansion
1 x Mini PCIe (mSATA Supported)
Rear I/O
Serial Port
1 x RS-232, 1 x RS-232 or Optional RS-422/485
Ethernet
Dual Intel® 82574L Gigabit LAN
WIFI
Optional USB WiFi 802.11 b/g
VGA
1 x DB-15
HDMI
1 x HDMI
Audio
Line out (Realtek ALC892)
USB
3 x USB 2.0
Mechanical & Environment
Color
Front panel Silver
Mounting
Rear panel Black
System Power
Requirement
+12 V ~ +26 V
1.3 System Specifications
Quick Reference Guide
LPC-0807 Quick Reference Guide
LPC-0807
Power Adapter
Input: 100~240 Vac/ 50~60 Hz
Output: +12 Vdc / 5 A (60W)
Operating Temp.
0°C to 40°C
Storage Temp.
-20°C to 60°C
Relative
Humidity
10% to 95% @ 40°C, non-condensing
Mounting
Wall/Stand/VESA 75 mm X 75 mm
Dimensions
202.5 x 159.5 x 46.5 mm
Weight
1.5 Kgs
Note: Specifications are subject to change without notice.
6 LPC-0807 Quick Reference Guide
7
1.4 System Overview
COM
DC IN
USB
LINE
OUT
USB
Right View
POWER
LAN LAN
VGA
HDD
PWR
COM
DC-IN
CF
HDMI
USB
Bottom View
Connectors
Label
Function
Note
POWER
Power on button
CF
CF Type I/II Socket with Ejector
COM1/2
Serial port 1/2 connector
DB-9 male connector
Note：COM2 supports RS422/485
by BIOS setting and needs to
change cable.
LINE OUT
Line-out audio jack
USB
USB 2.0 connector x 3
LAN
RJ-45 Ethernet connector x 2
HDMI
HDMI connector
HDD
HDD indicator
PWR
System power indicator
VGA
VGA connector
DC-IN
DC Power-in connector
LAN2
LAN1
1.4.1 Right View
1.4.2 Bottom View
Quick Reference Guide
LPC-0807 Quick Reference Guide
LPC-0807
POWER
LAN LAN
VGA
HDD
PWR
COM
DC-IN
CF
HDMI
USB
COM
DC IN
USB
LINE
OUT
USB
WiFi antenna
(Unit: mm)
1.5 System Dimensions
8 LPC-0807 Quick Reference Guide
9
2. Hardware
Configuration
For advanced information, please refer to:
1- ECM-CDV User’s Manual
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
Quick Reference Guide
LPC-0807 Quick Reference Guide
LPC-0807
PIN
Signal
PIN
Signal
PIN
Signal
1 R 6
GND
11
NC 2 G 7 GND
12
DATA 3 B 8 GND
13
HSYNC
4
NC 9 +5V
14
VSYNC
5
GND
10
GND
15
CLK
Signal
PIN
PIN
Signal
NDCD#
1 6 NDSR#
NRXD
2 7 NRTS#
NTXD
3 8 NCTS#
NDTR#
4 9 NRI#
GND
5
2.1 LPC-0807 connector mapping

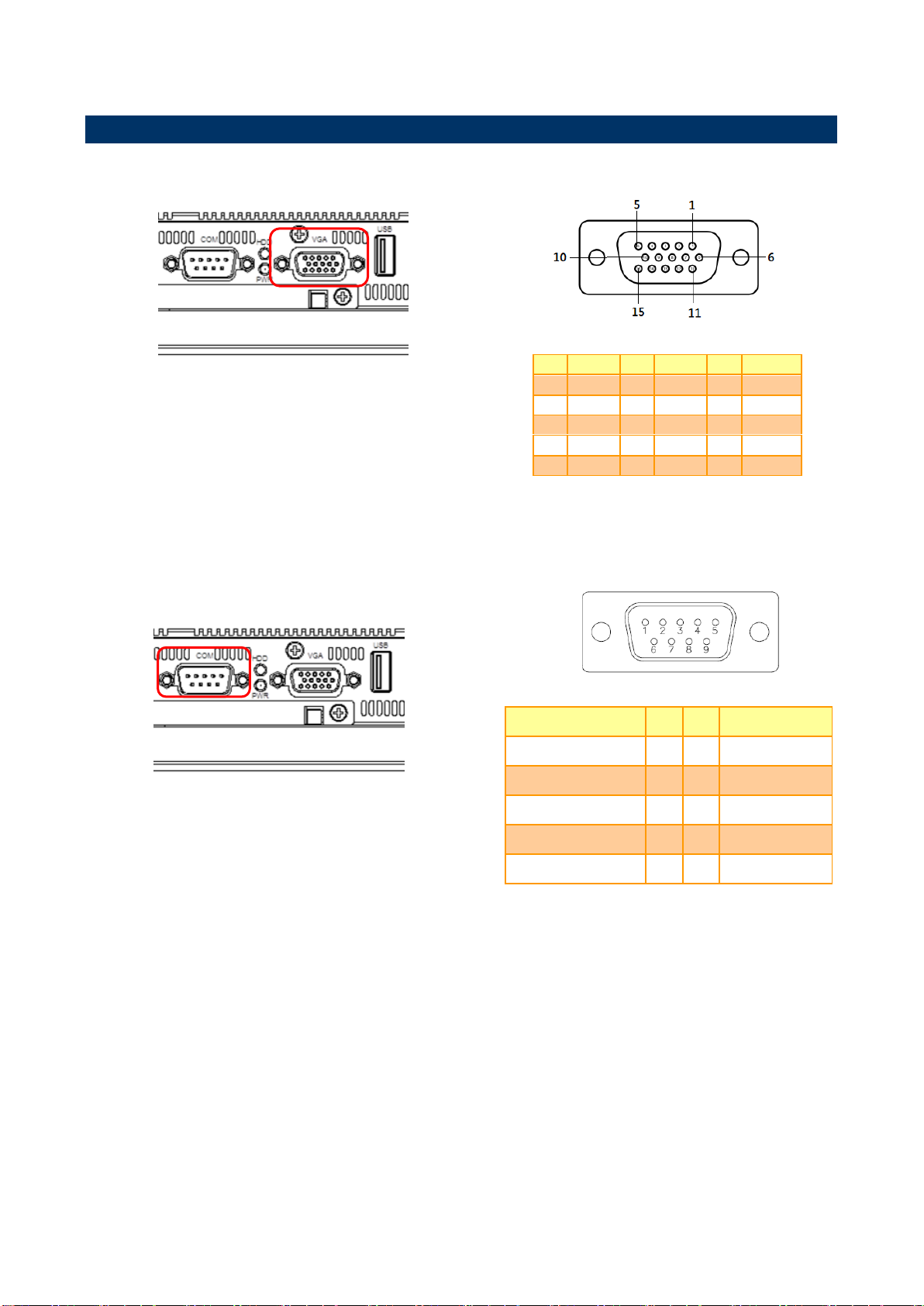

2.1.1 VGA connector (VGA)
2.1.2 Serial port 1 connector (COM1)
10 LPC-0807 Quick Reference Guide
11
2.1.3 Serial port 2 connector (COM2)
RS-232
Signal
PIN
PIN
Signal
DCD
1 6 DSR
RXD
2 7 RTS
TXD
3 8 CTS
DTR
4 9 RI
GND
5
RS-422
Signal
PIN
PIN
Signal
TxD-
1 6 NC
RxD+
2 7 NC
TxD+
3 8 NC
RxD-
4 9 NC
GND
5
RS-485
Signal
PIN
PIN
Signal
DATA-
1 6 NC
NC
2 7 NC
DATA+
3 8 NC
NC
4 9 NC
GND
5
Quick Reference Guide
LPC-0807 Quick Reference Guide
LPC-0807

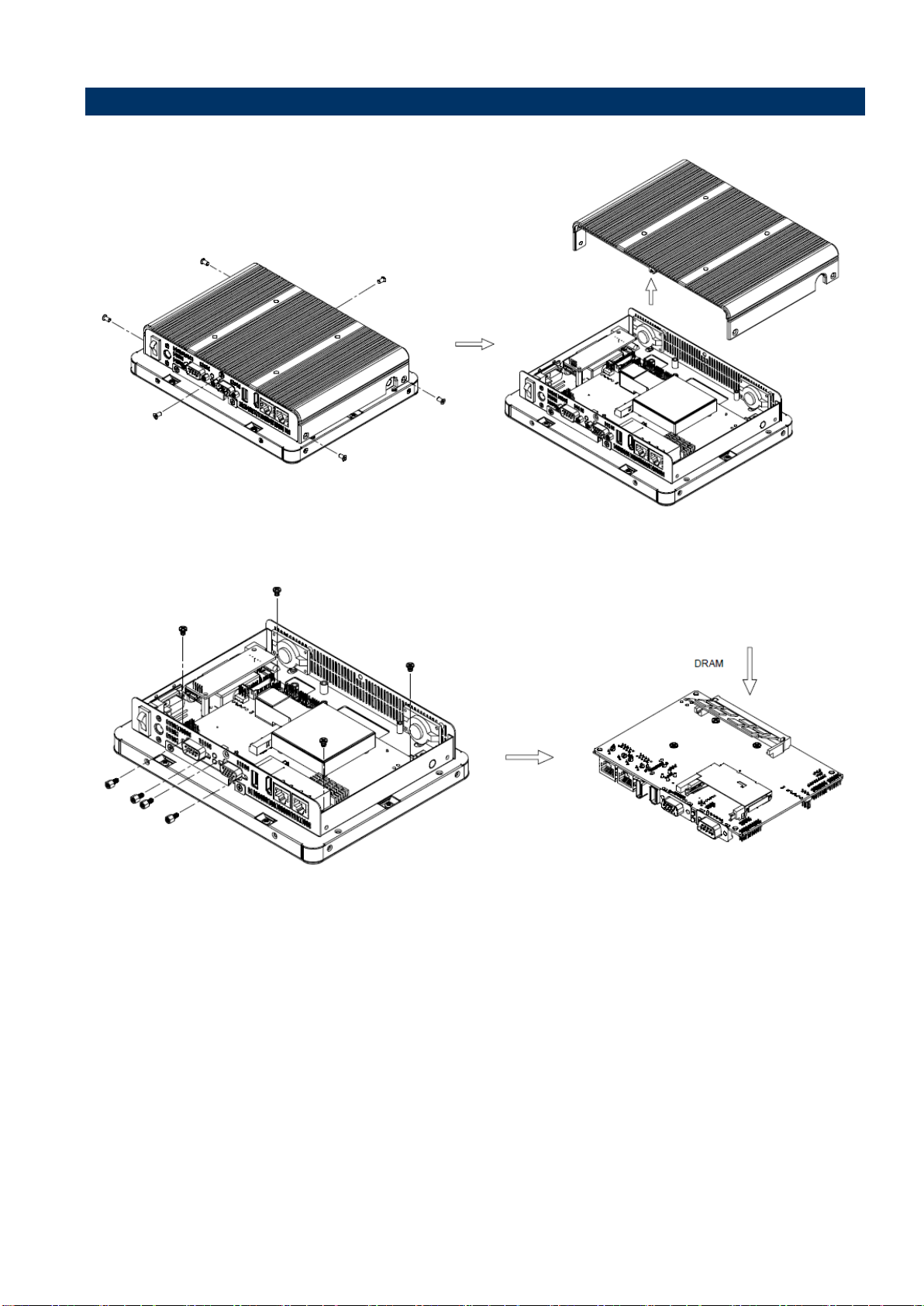

2.2 Installing Memory
Step 1. Unfasten 6 screws to remove the back cover.
Step 2. Unlock 4 coppers from the rear I/O of VGA & COM ports.
Step 3. Release 4 screws to take off the board, and install the RAM module into the memory
slot.
12 LPC-0807 Quick Reference Guide
Quick Reference Guide
13

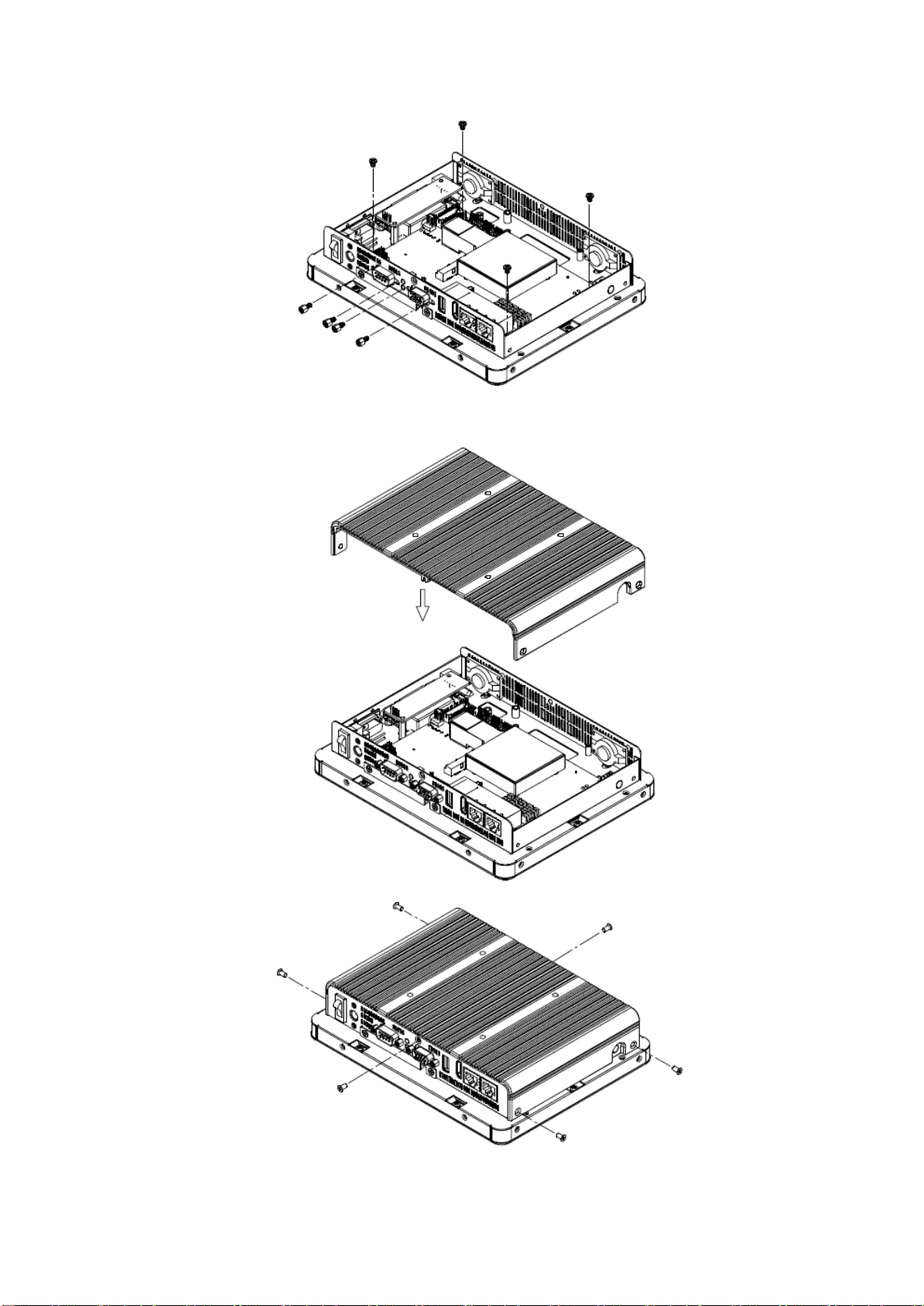

Step 4. Assemble the board and back cover back as step 3 to step 1.
LPC-0807 Quick Reference Guide
LPC-0807
2.3 Installing CF Card
Step 1. Unlock 2 screws from the rear side of the panel PC as above.
Step 2. Put the CF card into the socket and fasten 2 screws back.
14 LPC-0807 Quick Reference Guide
