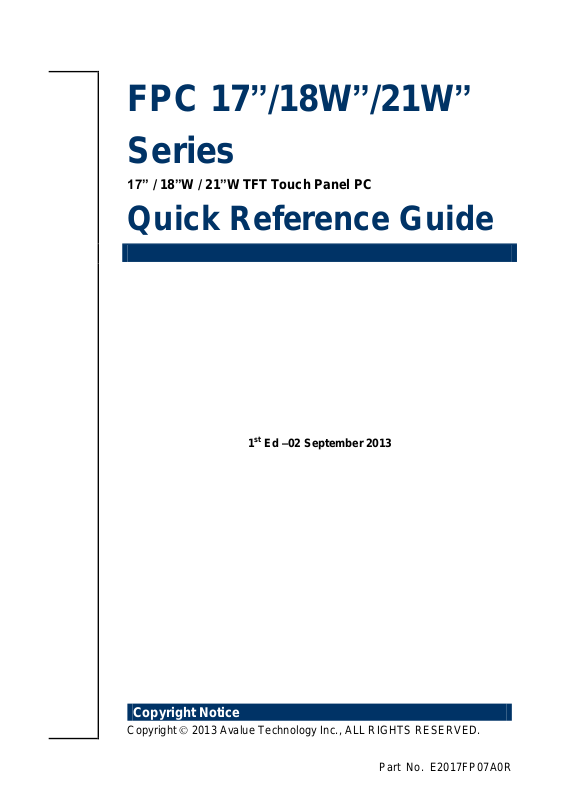

FPC 17”/18W”/21W”
Series
17” / 18”W / 21”W TFT Touch Panel PC
Quick Reference Guide
1st Ed –02 September 2013
Copyright Notice
Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017FP07A0R
FPC 17”/18W”/21W” Series
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x FPC 17”/18W”/21W” Series Touch Panel PC
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— Chipset drivers
Other major components include the followings:
— 60W/84W adapter and power cord
2 FPC 17”/18W”/21W” Series Quick Reference Guide
3
Component
FPC-1707
FPC-18W07
FPC-21W07
Mother Board
EMX-CDV
CPU
Onboard Intel® Atom™ D2550 1.86GHz CPU
CPU Cooler (Type)
Fanless Heatsink
Memory
Two 204-pin SODIMM Supports Up to 4GB DDR3 1066MHz
SDRAM
System Power
Requirements
+12V DC Power Input
Adapter
Input: 100 ~ 250Vdc/ 47 ~ 63Hz
Output: 60W Adapter (12V @ 5A Adapter)
Speaker
8Ω 2W*2
Wireless LAN
optional USB WiFi 802.11b/g/n
Operating System
Windows 7 Embedded
Storage
Hard Disk Drive
2.5” HDD
Solid State Drive
2.5” SSD
Panel
LCD Panel
17" SXGA TFT LCD
1280*1024
G170EG01
18.5" WXGA TFT
LCD 1366*768
G185XW01
21.6" FHD TFT
LCD 1920*1080
M216H1
LCD Control Board
Built-in
B/L Inverter/Converter
QF132V4.20S
GP1502-09C
GP1904-03B0
Touch Screen
5-wire Resistive
Touch Controller
USB Touch Control Board EETI
External I/O
PS/2 KB & Mouse
1 x PS/2 KB & MS
Serial Port
4 x COM D-sub 9 pin RS-232
USB Port
5 x USB
Video Port
1 x VGA D-sub 15 pin, 1 x HDMI
Audio Port
1 x Line out , 1 x Mic in , 1 x Line in (Azalia Realtek ALC269)
LAN Port
2 x RJ-45 (Realtek 8111E)
Switch
1 x Power switch
Mechanical
Power Type
AT/ATX, 12V Power DC input
Power Connector Type
Power switch
1.3 System Specifications
Quick Reference Guide
FPC 17”/18W”/21W” Series Quick Reference Guide
FPC 17”/18W”/21W” Series
Dimension
387.5mm x 346mm
x 76.6mm
459.5mm x 309mm
x 79.6mm
526mm x 346.5mm
x 80.4mm
Weight
6.14Kgs
5.77Kgs
7.32Kgs
Color
Black
Fanless
Fanless
Reliability
EMI Test
Class B
Safety
CE FCC
Operating Temperature
0°C ~ 40°C
Operating Humidity
0%~90% relative humidity, non-condensing
Storage Temperature
-10~50°C
4 FPC 17”/18W”/21W” Series Quick Reference Guide
5
Connectors
Label
Function
Note
COM1~4
Serial port connector1~4
DB-9 male connector
HDMI
HDMI connector
VGA
VGA connector
DB-15 female connector
PS/2
PS/2 connector
LAN1
RJ-45 Ethernet 1
LAN2
RJ-45 Ethernet 2
LINE IN
Line-in audio jack
LINE OUT
Line-out audio jack
Power
System power switch
USB
USB connector
DC-IN
DC power-in connector
MIC IN
Microphone-in audio jack
1.4 System Overview
1.4.1 Rear View
Quick Reference Guide
FPC 17”/18W”/21W” Series Quick Reference Guide
FPC 17”/18W”/21W” Series
(Unit: mm)
1.5 System Dimensions
1.5.1 FPC-1707
6 FPC 17”/18W”/21W” Series Quick Reference Guide
Warning: Use suitable mounting apparatus to avoid risk of injury.
7
1.5.2 FPC-18W07
(Unit: mm)
Quick Reference Guide
Warning: Use suitable mounting apparatus to avoid risk of injury.
FPC 17”/18W”/21W” Series Quick Reference Guide
FPC 17”/18W”/21W” Series
(Unit: mm)
1.5.3 FPC-21W07
8 FPC 17”/18W”/21W” Series Quick Reference Guide
Warning: Use suitable mounting apparatus to avoid risk of injury.
9
2. Hardware
Configuration
For advanced information, please refer to:
1- FPC 17”/18W”/21W” Series Quick Reference Guide or User’s Manual
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
Quick Reference Guide
FPC 17”/18W”/21W” Series Quick Reference Guide
FPC 17”/18W”/21W” Series
Signal
PIN
PIN
Signal
NDCD_D-
1 6 NDSR-
NRXD_D-
2 7 NRTS-
NTXD_D-
3 8 NCTS-
NDTR_D-
4 9 NRI-
GND
5
2.1 FPC 17”/18W”/21W” Series connector mapping
2.1.1 Serial Port connector 1~4 (COM1~4)
10 FPC 17”/18W”/21W” Series Quick Reference Guide
Quick Reference Guide
11
2.2 Installing Hard Disk & Memory
WARNING: Make sure the power is completely cut off before opening the device.
Remove 12 screws as indicated below to open the back of the chassis.
2.2.1 Install Memory
Step 1. Insert the SODIMM into the memory socket.
FPC 17”/18W”/21W” Series Quick Reference Guide
FPC 17”/18W”/21W” Series
Step 1. Attach the HDD bracket to the 2.5” SATA HDD by means of 4 screws as shown
above, and then connect HDD data and power cables.
Step 2. Position the HDD bracket & 2.5” SATA HDD assembly into the chassis and lock
with 4 screws as indicated above.
2.2.2 Install HDD
12 FPC 17”/18W”/21W” Series Quick Reference Guide
