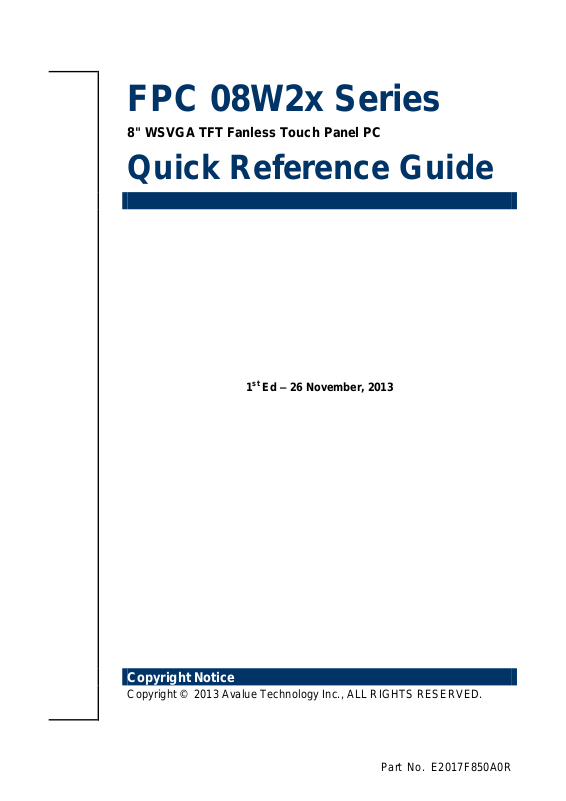

Avalue FPC-08W27 User Manual

FPC 08W2x Series

8" WSVGA TFT Fanless Touch Panel PC

Quick Reference Guide

1st Ed – 26 November, 2013

Part No. E2017F850A0R

FPC-08W2x Series

FCC Statement

Notice

Trademark Acknowledgement

Disclaimer

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

This guide is designed for experienced users to setup the system within the shortest time. For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.

Brand and product names are trademarks or registered trademarks of their respective owners.

Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that

2 FPC-08W2x Series Quick Reference Guide

Quick Reference Guide

Life Support Policy

A Message to the Customer

these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure reliable performance in the harsh and demanding conditions typical of industrial environments. Whether your new Avalue device is destined for the laboratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into technical difficulties, we are here to help. For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

FPC-08W2x Series Quick Reference Guide

FPC-08W2x Series

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.

Caution!

Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.

1.2 Packing List

 1 x FPC 08W2x Series Panel PC  1 x CD/DVD-ROM contains the followings:

— User’s Manual (this manual in PDF file) — Ethernet driver and utilities — VGA drivers and utilities — Audio drivers and utilities — WiFi drivers and utilities — Touch controller drivers and utilities

 1 x Power Adapter  4 x screws for VESA

4 FPC-08W2x Series Quick Reference Guide

Panel

Specifications

FPC-08W21

FPC-08W24

LCD size

Display type

WSVGA TFT

Resolution

1024x600

Color

256K

Pixel pitch

0.1725mm(H) x 0.1656mm(V)

Luminance

500 cd/m²

Contrast ratio

700

Viewing angle

Response time

20 ms

Backlight

LED

Touch Type

5-wire Resistive

Touch Light Transmission

80%

Touch Interface

USB onboard Touch Controller

PenMount 6000

USB Touch Control Board EETI

System

Board

ECM-LX800D

ECM-945GSE

CPU

Onboard AMD Geode LX800 @ 0.9

W 500 MHz with 128K L2 cache

Intel® Atom processor N270 1.6GHz

CPU

Cooling Method

Passive CPU heatsink

System Chipset

AMD Geode LX800/CS5536

Intel® 945GSE / ICH7-M

I/O Chip

Winbond W83627HG-AW

ITE IT8712F

Memory

Onboard 512MB DDR Memory

One 200-pin SODIMM socket supports

up to 2GB DDR2 400/533MHz

SDRAM

SSD

One CF socket by IDE secondary slave channel supports Type I / II Compact

Flash Card

Mouse & KB

1 x PS/2 Keyboard connector

n/a

1.3 System Specifications

Quick Reference Guide

FPC-08W2x Series Quick Reference Guide

FPC-08W2x Series

Rear Panel I/O

Serial Port

1 x RS-232, 1 x RS-232 or optional RS-422/485

Ethernet

Dual Realtek RTL8101L LAN

Dual Marvell 88E8053 GigaLAN

WIFI

Optional USB WiFi 802.11 b/g

(occupy one USB port)

Optional USB WiFi 802.11 b/g

VGA

1 x DB-15

HDMI

n/a

Audio

Line out, Mic in (Realtek ALC203)

Line out, Mic in (Realtek ALC655)

USB

2 x USB 2.0

4 x USB 2.0

Mouse & KB

1 x PS/2 Keyboard connector

n/a

Mechanical & Evironmental

Color

Front panel Black

Rear panel Black

System Power Requirement

+12V ~ +20V power input

+12V single power input

Power Adapter

Input: 100~250 Vdc/ 47~63 Hz; Output: +12 Vdc / 5 A (60W)

Operating Temperature

-10°C to 60°C

0°C to 40°C

Storage Temperature

-20°C to 70°C

-10°C to 50°C

Relative Humidity

10% to 95% @ 40°C, non-condensing

Mounting

Wall/Stand/VESA 75 mm X 75 mm

Dimensions

225 x 129 x 40.4 mm

Weight

1.26 Kgs

6 FPC-08W2x Series Quick Reference Guide
