Avalue ERS-BYT User Manual
ERS-BYT
Intel® Celeron® SoC Processor J1900 Fanless Rugged
Embedded System
Quick Reference Guide
1st Ed – 04 December 2014
Copyright Notice
Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017EA90A0R
ERS-BYT
FCC Statement
A Message to the Customer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
2 ERS-BYT Quick Reference Guide
Quick Reference Guide
3
Content
1. Getting Started ............................................................................................................ 4
1.1 Safety Precautions ................................................................................................ 4
1.2 Packing List ........................................................................................................... 4
1.3 System Specifications ........................................................................................... 5
1.4 System Overview ................................................................................................... 7

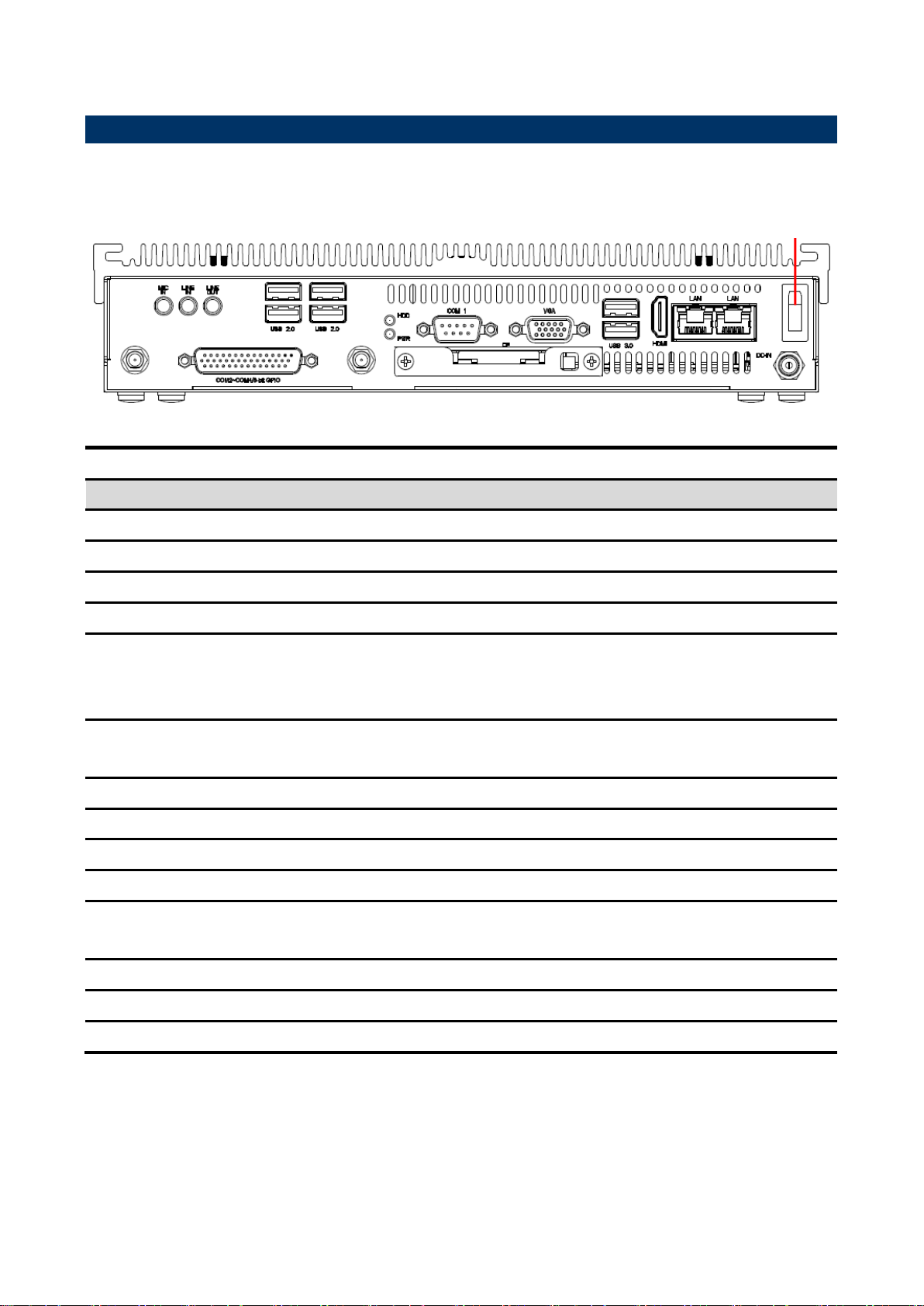

1.4.1 Rear View ................................................................................................................................ 7
1.5 System Dimensions ............................................................................................... 8
1.5.1 Front & Top View ......................................................................................................................... 8
2. Hardware Configuration ............................................................................................. 9
2.1 ERS-BYT connector mapping.............................................................................. 10
2.1.1 Serial port 1 connector (COM1) ................................................................................................. 10
2.1.2 VGA connector (VGA) ................................................................................................................ 11
2.1.3 Multi-Function Port combined COM2, COM3, COM4 and 8-bit GPIO (COM2~COM4/8bit GPIO)
11
2.2 Installing Hard Disk & Memory ............................................................................ 12
2.3 Installing CF Card ................................................................................................ 14
ERS-BYT Quick Reference Guide
ERS-BYT
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x ERS-BYT Intel® Celeron® SoC Processor J1900 Fanless Rugged
Embedded System
1 x DVD-ROM contains the followings:
— QRG in PDF file
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
— Chipset drivers and utilities
Other major components include the followings:
— AC/DC adapter
— Screw kit for 2.5” SSD/HDD fixing
— EU Power Cord
— Wall Mount Kit
4 ERS-BYT Quick Reference Guide
5
System
Mother Board
ECM-BYT
CPU
Intel® Celeron® Processor J1900 Family
BIOS
AMI uEFI BIOS, 64Mbit SPI Flash ROM
I/O Chipset
EC (IT8528E)
System Memory
1 x 204-pin SODIMM Socket Up to 8GB DDR3L 1333 SDRAM
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec.
H/W Status
Monitor
Monitoring System Temperature, Voltage with Auto Throttling Control
Storage
Solid State Drive
1 x CF, 1 x 2.5” Drive Bay(7mm HDD Restricted), 1 x mSATA
External I/O
COM Port
1 x RS-232/422/485, 3 x RS-232
USB Port
6 x USB
Video Port
1 x VGA, 1 x HDMI
Audio Port
1 x Mic-In, 1 x Line-Out, 1 x Line-In
LAN Port
2 x RJ45
GPIO
4-bit GPI & 4-Bit GPO
Switch
1 x Power on/off
Indicator Light
1 x Power on/off LED on the front side
1 x Storage LED on the front side
CF
1 x CompactFlash Type I/II Socket w/ Cover
Expansion Slots
1 x Mini PCIe (mSATA supported)
Display
Chipset
Intel® Valleyview SoC integrated Graphics
Multiple Display
Dual Display, VGA + HDMI
Resolution
VGA Mode: 2560 x 1600 @ 60Hz
HDMI Mode: 1920 x 1200 @ 60Hz
Audio
HD Codec
Realtek ALC892 Supports 5.1-CH Audio
Audio Interface
Mic-in, Line-in, Line-out
Ethernet
Chipset
2 x Intel® I211AT Gigabit Ethernet Controller
Ethernet
Interface
10/100/1000 Base-Tx Gigabit Ethernet Compatible
Mechanical
1.3 System Specifications
Quick Reference Guide
ERS-BYT Quick Reference Guide
