EQM-BYT
Intel® Atom™ SoC Processors Qseven Module
Quick Installation Guide
1st Ed – 26 February 2014
Notice
This guide is designed for experienced users to setup the system within the
shortest time. For detailed information, please always refer to the electronic
user's manual.
Copyright Notice
Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No.E2017223000R
EQM-BYT
Content
1. Getting Started ........................................................................................................... 3
1.1 Safety Precautions ................................................................................................ 3
1.2 Packing List ................................................................................................................ 3
2. Hardware Configuration ............................................................................................ 4
2.1 Product Overview .................................................................................................. 5
2.2 Jumper and Connector List.................................................................................... 6
2.3 Setting Jumpers & Connectors .............................................................................. 7
2.3.1 QSeven connector (GF1) ................................................................................. 7
2 EQM-BYT Quick Installation Guide
Quick Installation Guide
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1x EQM-BYT Intel® Atom™ SoC Processors Qseven Module
1 x Quick Installation Guide
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
EQM-BYT Quick Installation Guide 3
EQM-BYT
2. Hardware
Configuration
4 EQM-BYT Quick Installation Guide

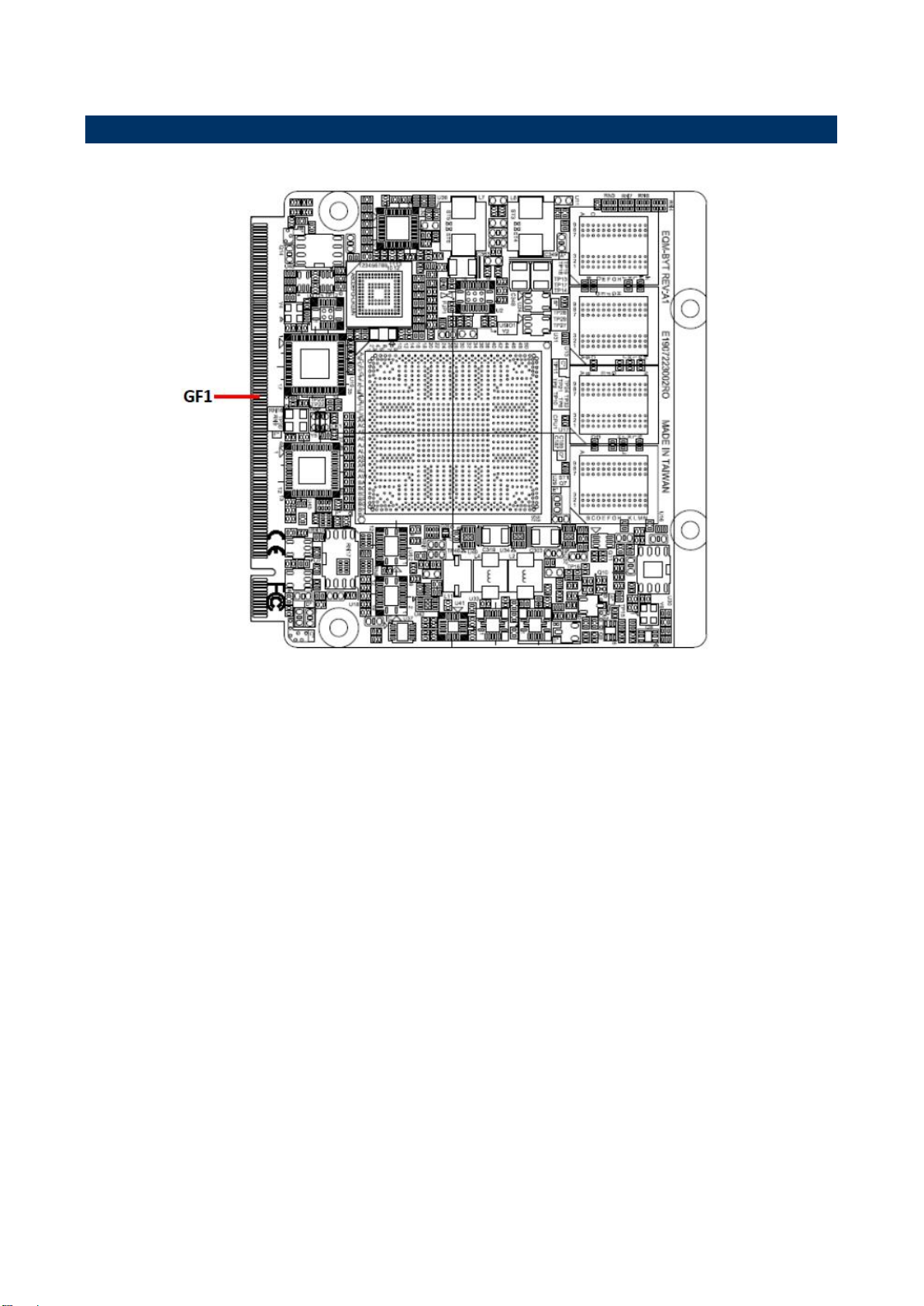

2.1 Product Overview
Quick Installation Guide
EQM-BYT Quick Installation Guide 5
EQM-BYT
Connectors
Label
Function
Note
GF1
QSeven connector
2.2 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board's jumpers and connectors.
6 EQM-BYT Quick Installation Guide
Quick Installation Guide
*Default
Signal
PIN
PIN
Signal
GND7
39
40
GND8
BIOS_DISABLE#
41
42
SDIO_CLK#
SDIO_CD#
43
44
NC
SDIO_CMD
45
46
SDIO_WP
SDIO_PWR#
47
48
SDIO_DAT1
SDIO_DAT0
49
50
SDIO_DAT3
SDIO_DAT2
51
52
NC
NC
53
54
NC
NC
55
56
NC
GND9
57
58
GND10
HDA_SYNC
59
60
SMB_CLK
HDA_RST#
61
62
SMB_DAT
HDA_BCLK
63
64
SMB_ALERT#
HDA_SDI
65
66
I2C_CLK
HDA_SDO
67
68
I2C_DAT
NC
69
70
WDTRIG#
THRMTRIP#
71
72
WDOUT
GND11
73
74
GND12
USB3_TXN0
75
76
USB3_RXN0
USB3_TXP0
77
78
USB3_RXP0
USB_6_7_OC#
79
80
USB_4_5_OC#
USB_P5-
81
82
USB_P4-
USB_P5+
83
84
USB_P4+
USB_2_3_OC#
85
86
USB_0_1_OC#
USB_P3-
87
88
USB_P2-
USB_P3+
89
90
USB_P2+
NC
91
92
NC
USB_P1-
93
94
USB_P0-
USB_P1+
95
96
USB_P0+
GND13
97
98
GND14
LVDS_A0+
99
100
LVDS_B0+
LVDS_A0-
101
102
LVDS_B0-
LVDS_A1+
103
104
LVDS_B1+
Signal
PIN
PIN
Signal
GND1
1 2 GND2
GBE_MDI3-
3 4 GBE_MDI2-
GBE_MDI3+
5 6 GBE_MDI2+
GBE_LINK100#
7 8 GBE_LINK1000#
GBE_MDI1-
9
10
GBE_MDI0-
GBE_MDI1+
11
12
GBE_MDI0+
NC
13
14
GBE_ACT#
NC
15
16
SUS_S4#
WAKE#
17
18
SUS_S3#
NC
19
20
PWRBTN#
SLP_BTN#
21
22
LID_BTN#
GND3
23
24
GND4
GND5
25
26
PWGIN
BATLOW#
27
28
RSTBTN#
SATA0_TX+
29
30
SATA1_TX+
SATA0_TX-
31
32
SATA1_TX-
SATA_ACT#
33
34
GND6
SATA0_RX+
35
36
SATA1_RX+
SATA0_RX-
37
38
SATA1_RX-

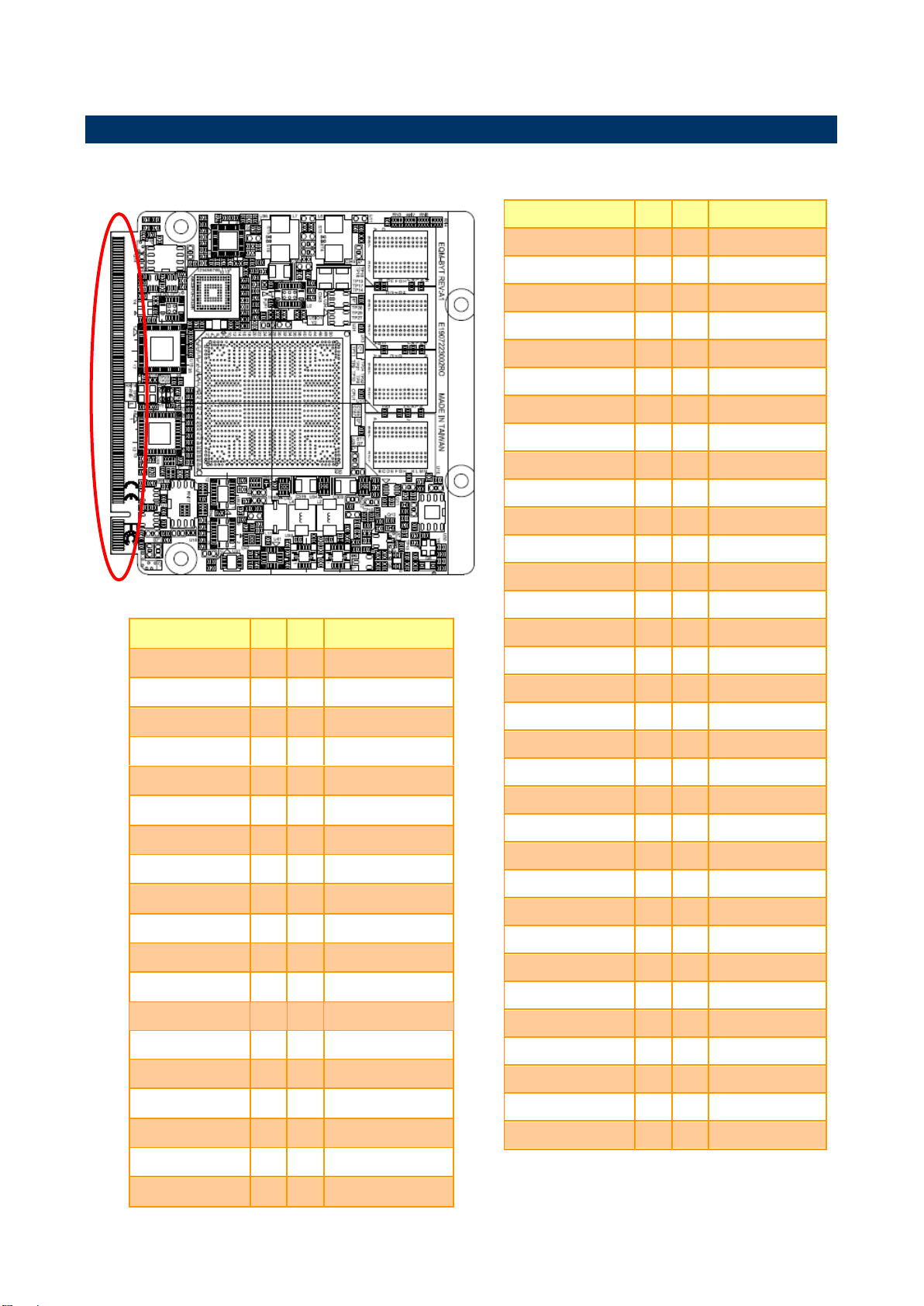

2.3 Setting Jumpers & Connectors
2.3.1 QSeven connector (GF1)
EQM-BYT Quick Installation Guide 7
EQM-BYT
Signal
PIN
PIN
Signal
LVDS_A1-
105
106
LVDS_B1-
LVDS_A2+
107
108
LVDS_B2+
LVDS_A2-
109
110
LVDS_B2-
LVDS_PPEN
111
112
LVDS_BLEN
LVDS_A3+
113
114
LVDS_B3+
LVDS_A3-
115
116
LVDS_B3-
GND15
117
118
GND16
LVDS_A_CLK+
119
120
LVDS_B_CLK+
LVDS_A_CLK-
121
122
LVDS_B_CLK-
LVDS_BLT_CTRL
123
124
NC
NC
125
126
NC
NC
127
128
NC
RSVD129
129
130
RSVD130
DP_TXP3_HDMI_CLK_P
131
132
NC
DP_TXP3_HDMI_CLK_N
133
134
NC
GND17
135
136
GND18
DP_TXP1_HDMI_TXP_1
137
138
DP_AUXP
DP_TXN1_HDMI_TXN_1
139
140
DP_AUXN
GND19
141
142
GND20
DP_TXP2_HDMI_TXP_0
143
144
NC
DP_TXN2_HDMI_TXN_0
145
146
NC
GND21
147
148
GND22
DP_TXP0_HDMI_TXP_2
149
150
HDMI_DDC_SDA
DP_TXN0_HDMI_TXN_2
151
152
HDMI_DDC_SCL
DP_HDMI_HPD_N
153
154
DP_HPD#
PCIE_CLK_REF+
155
156
PCIE_WAKE#
PCIE_CLK_REF-
157
158
PCIE_RST#
GND23
159
160
GND24
NC
161
162
NC
NC
163
164
NC
GND25
165
166
GND26
PCIE2_TX+
167
168
PCIE2_RX+
PCIE2_TX-
169
170
PCIE2_RX-
Signal
PIN
PIN
Signal
UART_TX
171
172
UART_RTS
PCIE1_TX+
173
174
PCIE1_RX+
PCIE1_TX-
175
176
PCIE1_RX-
UART_RX
177
178
UART_CTS
PCIE0_TX+
179
180
PCIE0_RX+
PCIE0_TX-
181
182
PCIE0_RX-
GND27
183
184
GND28
LPC_AD0
185
186
LPC_AD1
LPC_AD2
187
188
LPC_AD3
LPC_CLK
189
190
LPC_FRAME#
SERIRQ
191
192
LPC_LDRQ#
VCC_RTC
193
194
SPKR
FAN_TACHOIN
195
196
FAN_PWMOUT
GND29
197
198
GND30
SPI_MOSI
199
200
SPI_CS#
SPI_MISO
201
202
NC
SPI_CLK
203
204
NC
VCC_5V_SB1
205
206
VCC_5V_SB2
MFG_NC0
207
208
MFG_NC2
MFG_NC1
209
210
MFG_NC3
VCC1
211
212
VCC2
VCC3
213
214
VCC4
VCC5
215
216
VCC6
VCC7
217
218
VCC8
VCC9
219
220
VCC10
VCC11
221
222
VCC12
VCC13
223
224
VCC14
VCC15
225
226
VCC16
VCC17
227
228
VCC18
VCC19
229
230
VCC20
8 EQM-BYT Quick Installation Guide
