Page 1
Part No. E2047EPAP01R
EPX-APLP
Intel® Celeron® Processor Apollo Lake Pico ITX
Motherboard
User’s Manual
2nd Ed – 12 January 2018
Page 2
EPX-APLP User’s Manual
2 EPX-APLP User’s Manual
FCC Statement
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Notice
This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.
Copyright Notice
Copyright 2018 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
Page 3
User’s Manual
EPX-APLP User’s Manual
3
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Life Support Policy
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose
failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.
A Message to the Customer
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
Page 4
EPX-APLP User’s Manual
4 EPX-APLP User’s Manual
Product Warranty
Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Avalue, or which have been subject to
misuse, abuse, accident or improper installation. Avalue assumes no liability under the
terms of this warranty as a consequence of such events. Because of Avalue’s high
quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Avalue’s products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example,
CPU type and speed, Avalue’s products model name, hardware & BIOS
revision number, other hardware and software used, etc.) Note anything
abnormal and list any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information available.
3. If your product is diagnosed as defective, obtain an RMA (return material
authorization) number from your dealer. This allows us to process your good
return more quickly.
4. Carefully pack the defective product, a complete Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales
receipt) in a shippable container. A product returned without proof of the
purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it
prepaid to your dealer.
Page 5
User’s Manual
EPX-APLP User’s Manual
5
Content
1. Getting Started ............................................................................................................ 8
1.1 Safety Precautions .................................................................................................... 8
1.2 Packing List ............................................................................................................... 8
1.3 Document Amendment History ................................................................................. 9
1.4 Manual Objectives ................................................................................................... 10
1.5 System Specifications ............................................................................................. 11

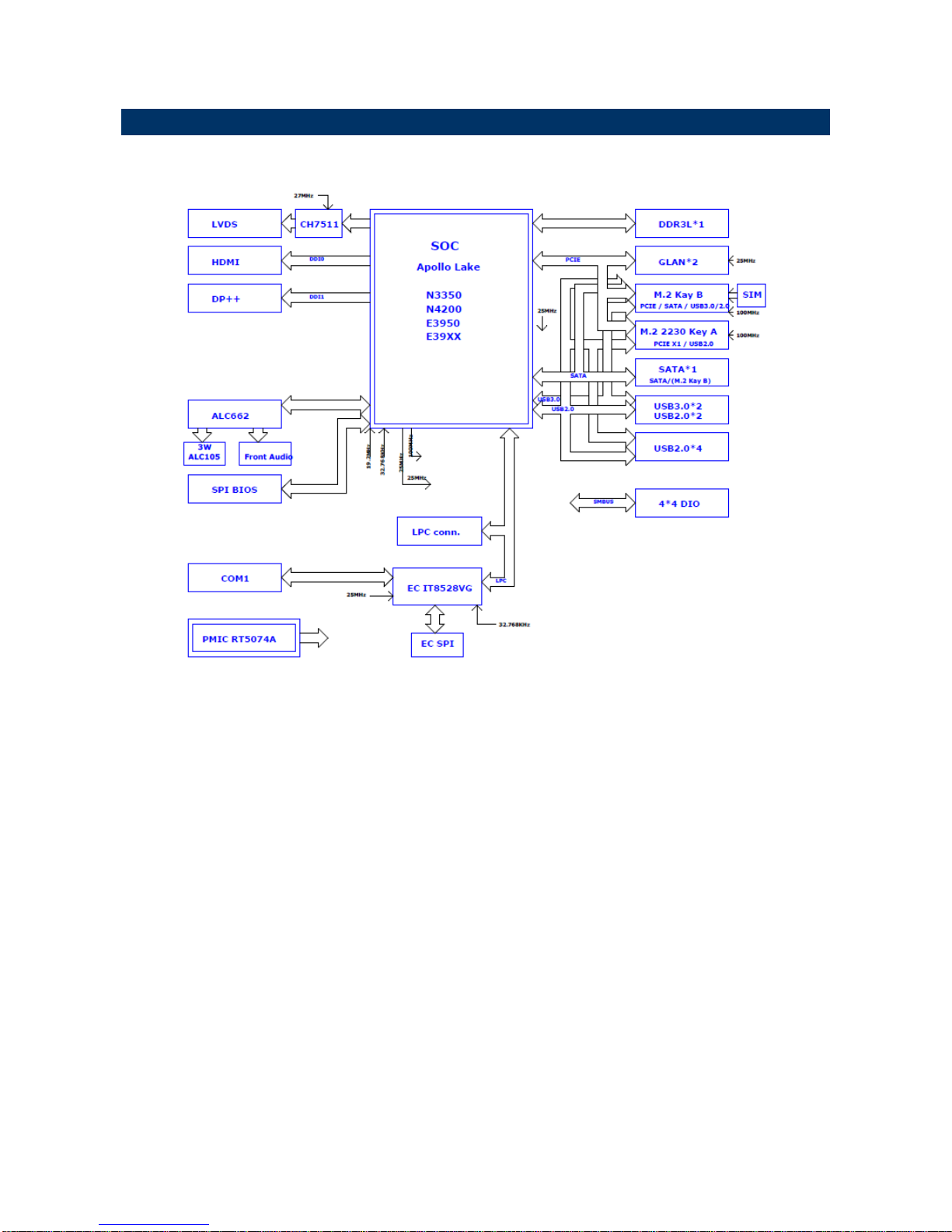

1.6 Architecture Overview—Block Diagram .................................................................. 14
2. Hardware Configuration ........................................................................................... 15
2.1 Product Overview .................................................................................................... 16
2.2 Jumper and Connector List ..................................................................................... 17

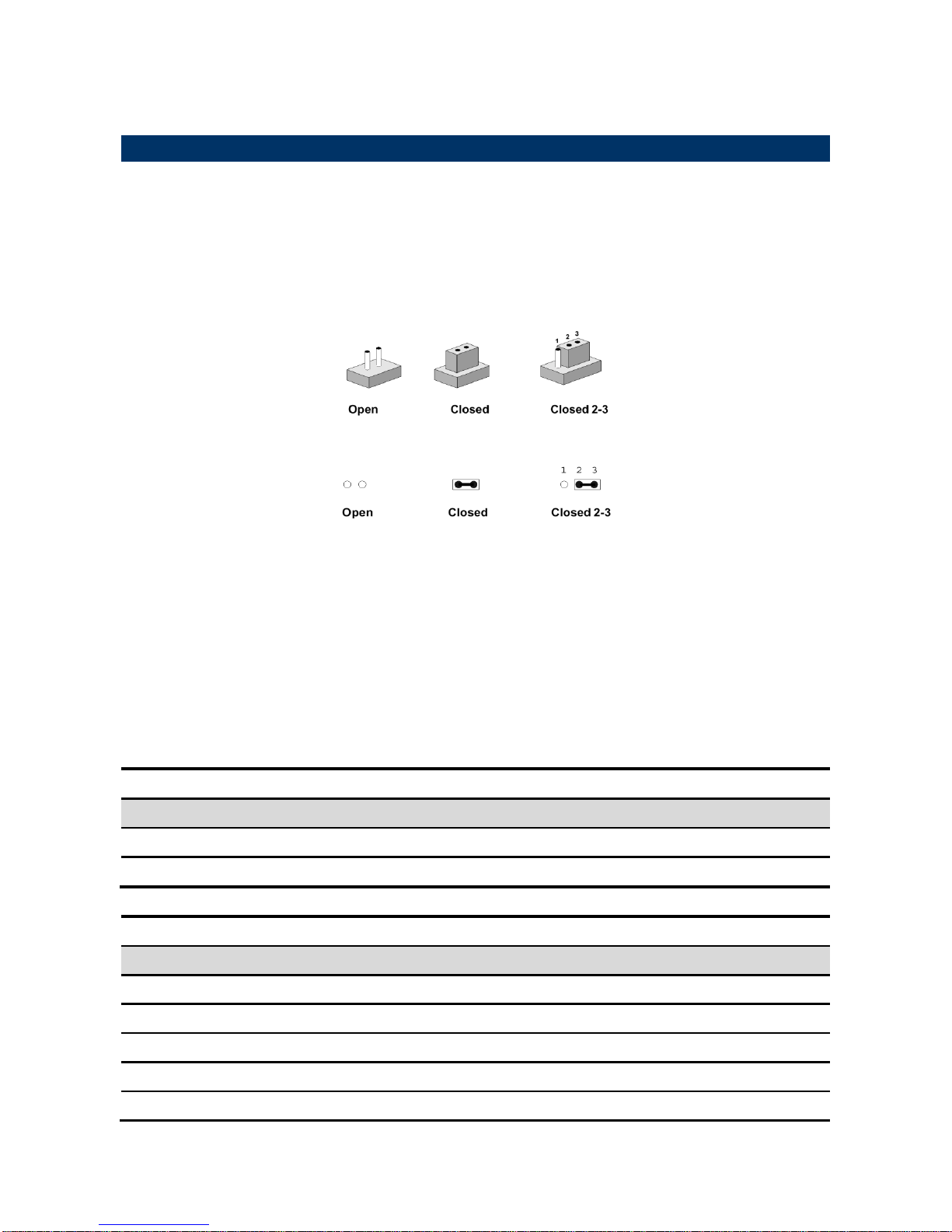

2.3 Setting Jumpers & Connectors ............................................................................... 19

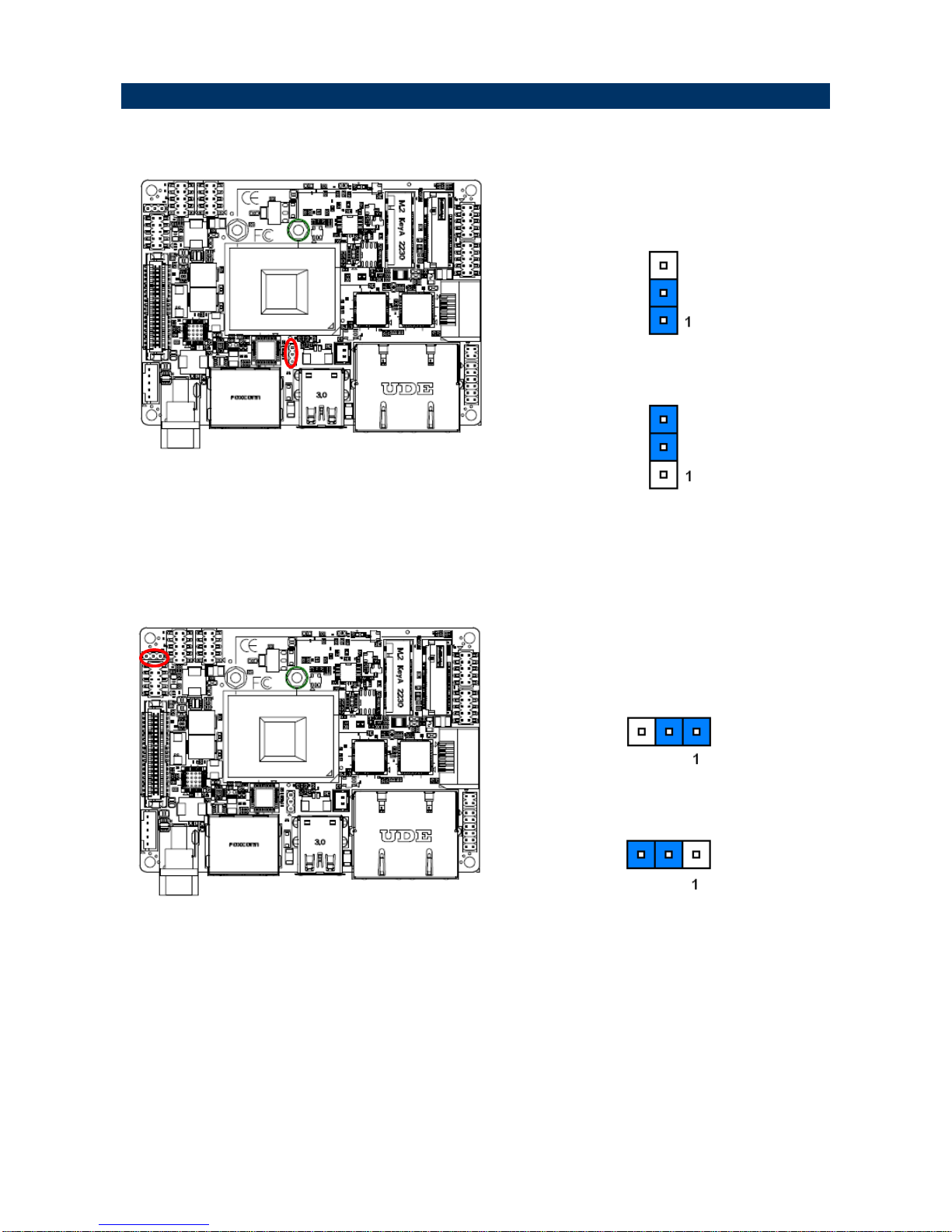

2.3.1 Clear CMOS (CMOS1) ................................................................................................................... 19
2.3.2 AT/ATX Input power select (JSATX1) ............................................................................................ 19
2.3.3 LCD Inverter connector (JBKL1) .................................................................................................... 20
2.3.4 Serial port 1 connector (COM1) ..................................................................................................... 20
2.3.5 General purpose I/O connector (DIO1) .......................................................................................... 21
2.3.6 SATA Power header (SPWR1) ...................................................................................................... 21

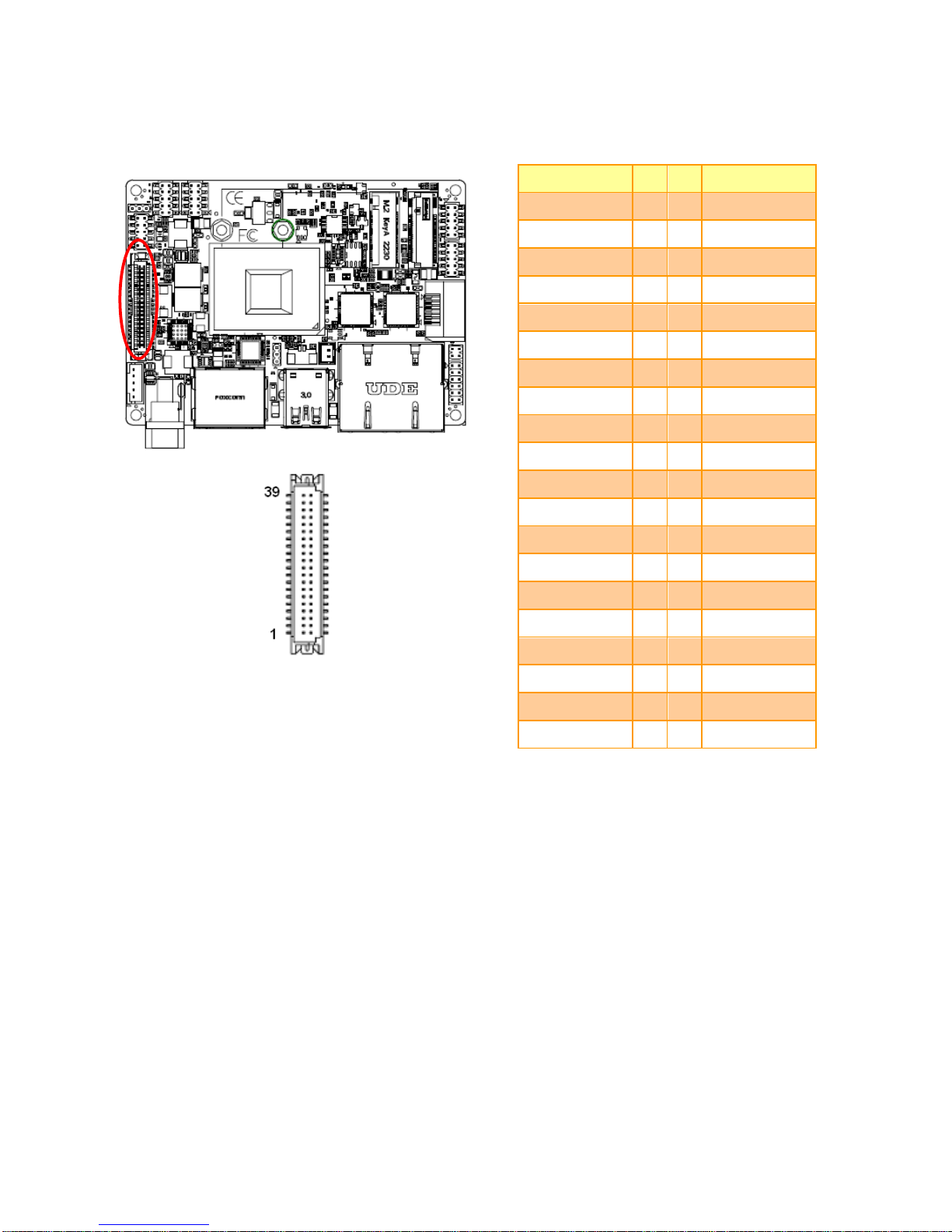

2.3.7 LVDS connector (LVDS1) .............................................................................................................. 22
2.3.8 On-board header for USB2.0 (USB45) .......................................................................................... 23
2.3.9 On-board header for USB2.0 (USB67) .......................................................................................... 23
2.3.10 Low pin count interface (JLPC1) ................................................................................................ 24
2.3.11 LPC power select (LPCP1) ........................................................................................................ 24
2.3.12 Miscellaneous setting connector (FPT1) ................................................................................... 25
2.3.13 Battery connector (BT1) ............................................................................................................. 25
2.3.14 SPI header (SPI1) ...................................................................................................................... 26
2.3.15 Audio connector (FAUD1) .......................................................................................................... 26
2.3.15.1 Signal Description – Audio connector (FAUD1) .................................................................. 26
2.3.16 Speaker connector (SPK1) ........................................................................................................ 27
3.BIOS Setup .................................................................................................................... 28
3.1 Introduction ............................................................................................................. 29
3.2 Starting Setup ......................................................................................................... 29
3.3 Using Setup ............................................................................................................ 30
3.4 Getting Help ............................................................................................................ 31
3.5 In Case of Problems ................................................................................................ 31
3.6 BIOS setup .............................................................................................................. 32
3.6.1 Main Menu ...................................................................................................................................... 32
Page 6
EPX-APLP User’s Manual
6 EPX-APLP User’s Manual
3.6.1.1 System Language ................................................................................................................ 33
3.6.1.2 System Date ........................................................................................................................ 33
3.6.1.3 System Time ........................................................................................................................ 33

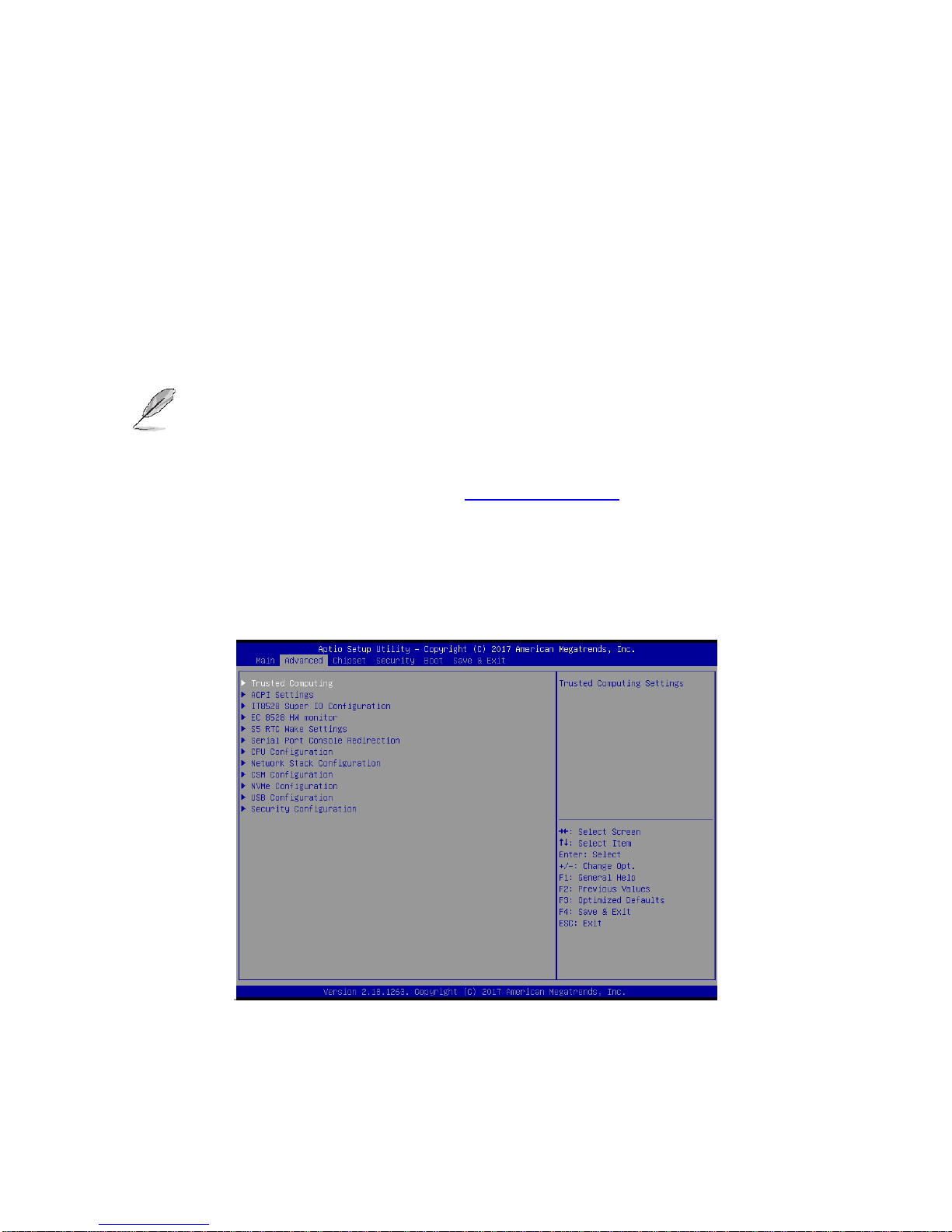

3.6.2 Advanced Menu ............................................................................................................................. 33

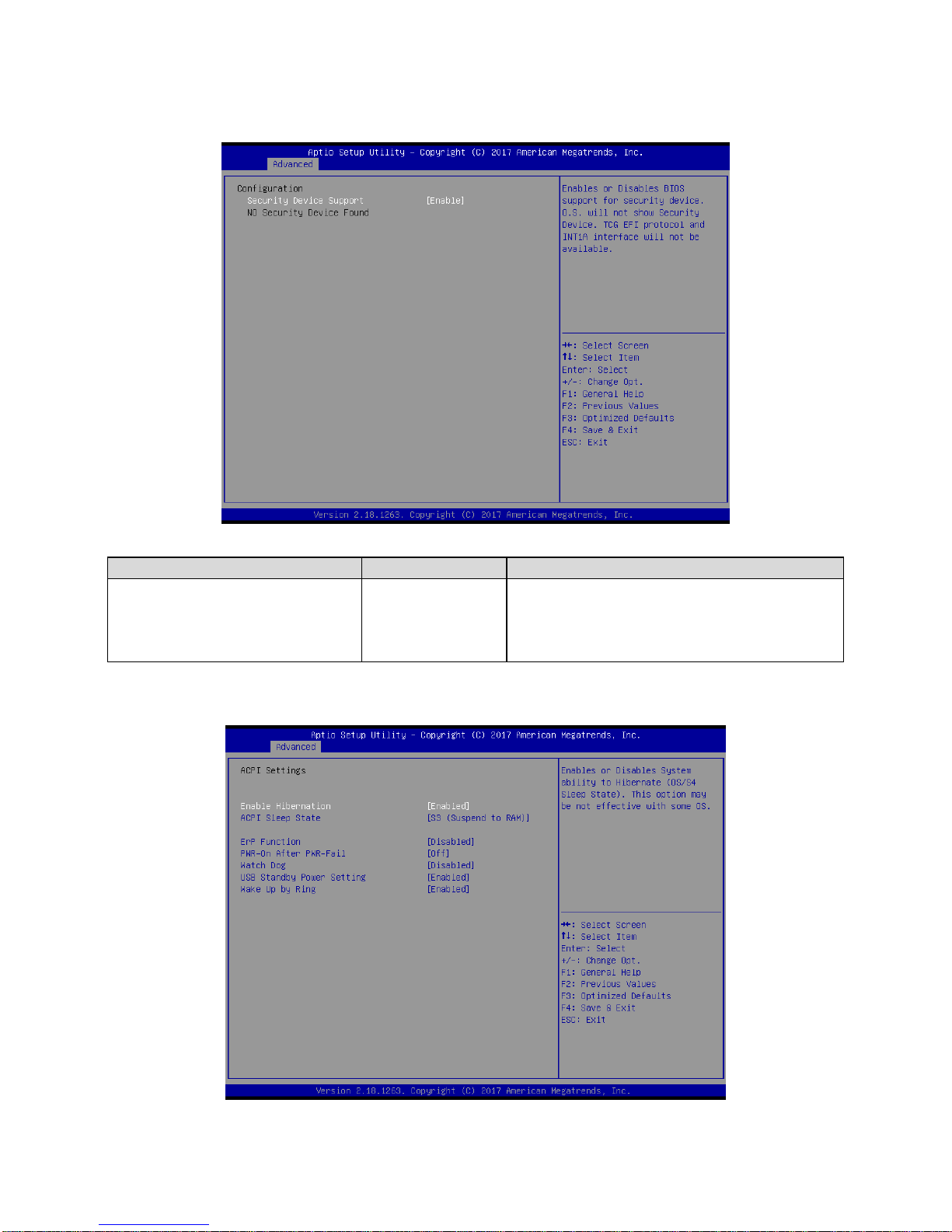

3.6.2.1 Trusted Computing .............................................................................................................. 34
3.6.2.2 APCI Settings....................................................................................................................... 34

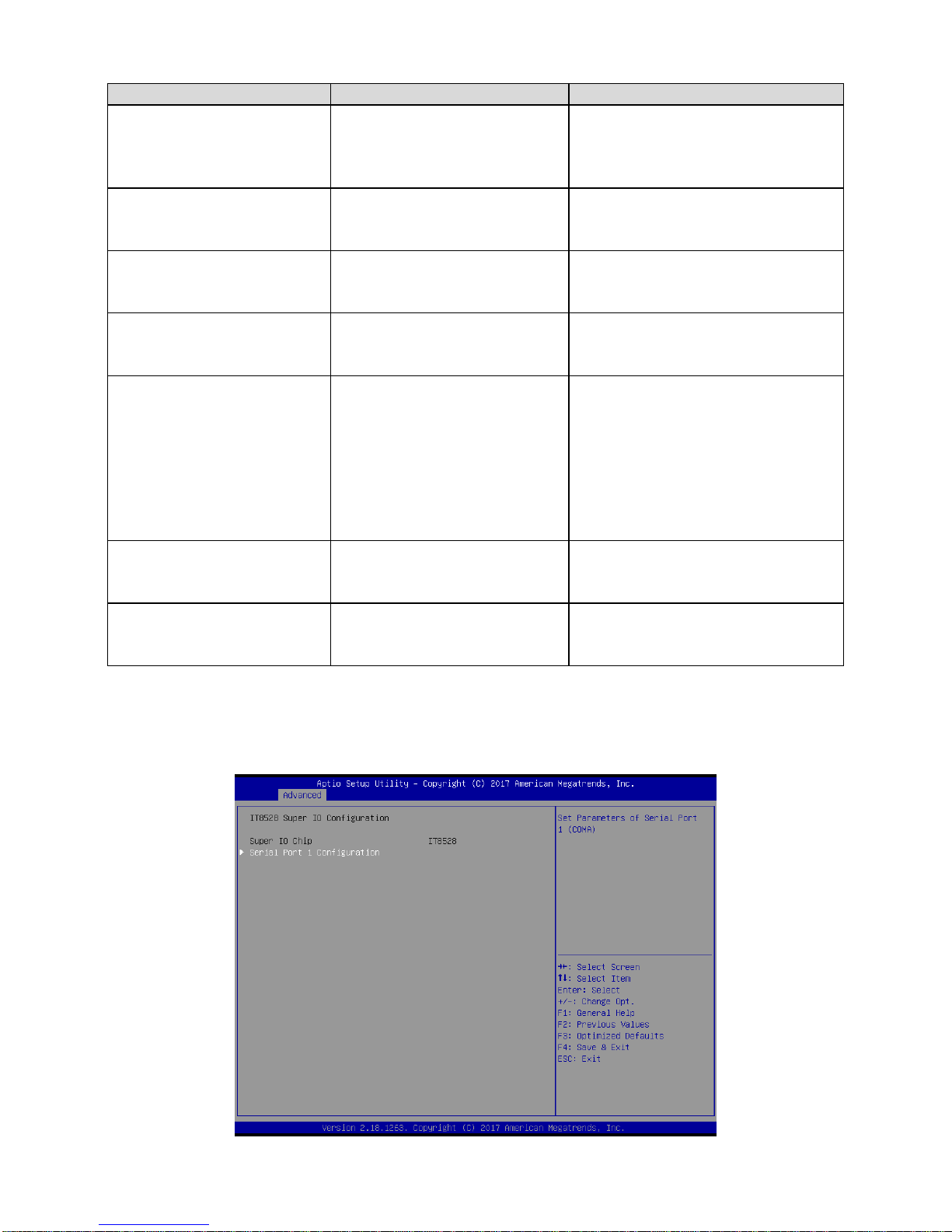

3.6.2.3 IT8528 Super IO Configuration ............................................................................................ 35

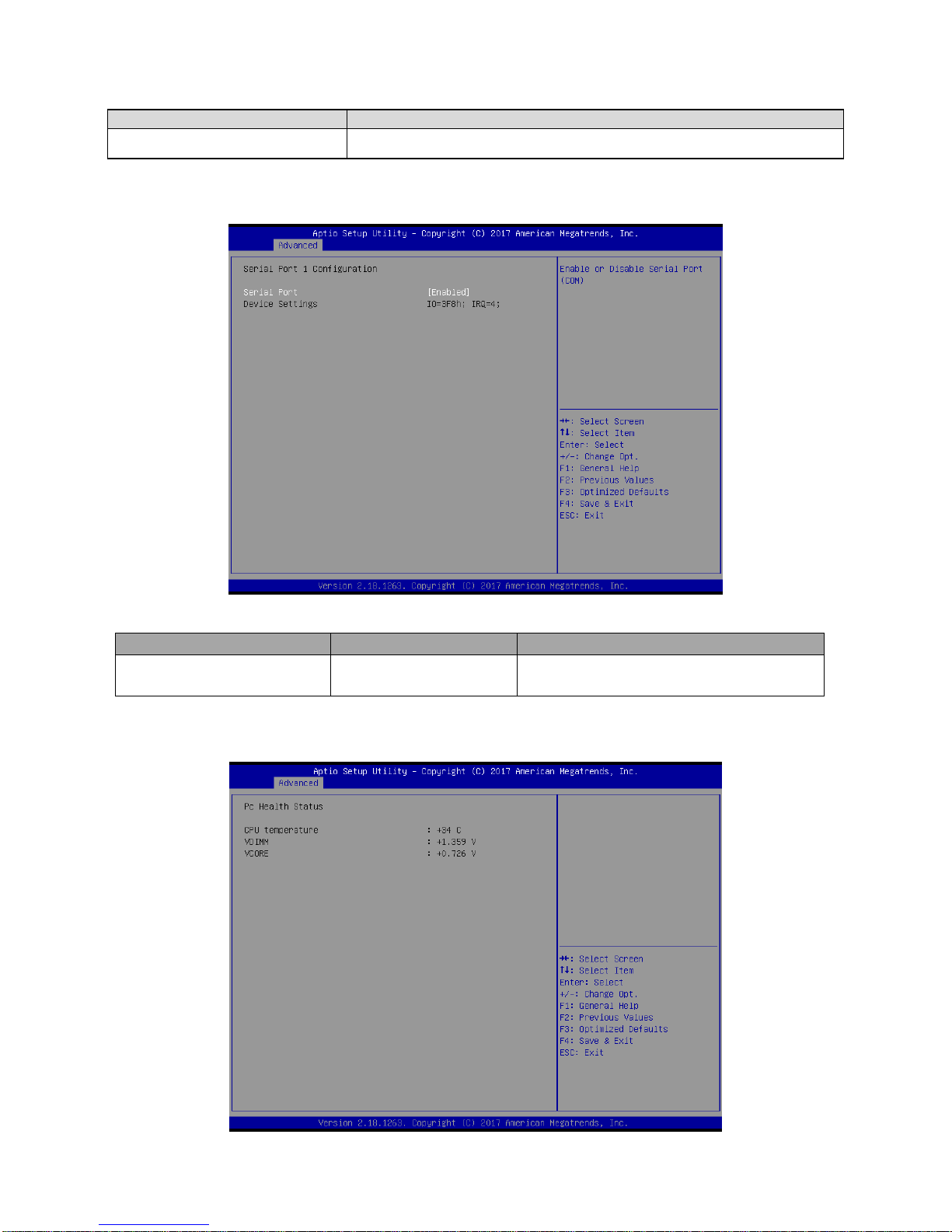

3.6.2.3.1 Serial Port 1 Configuration ................................................................................................... 36
3.6.2.4 H/W Monitor ......................................................................................................................... 36

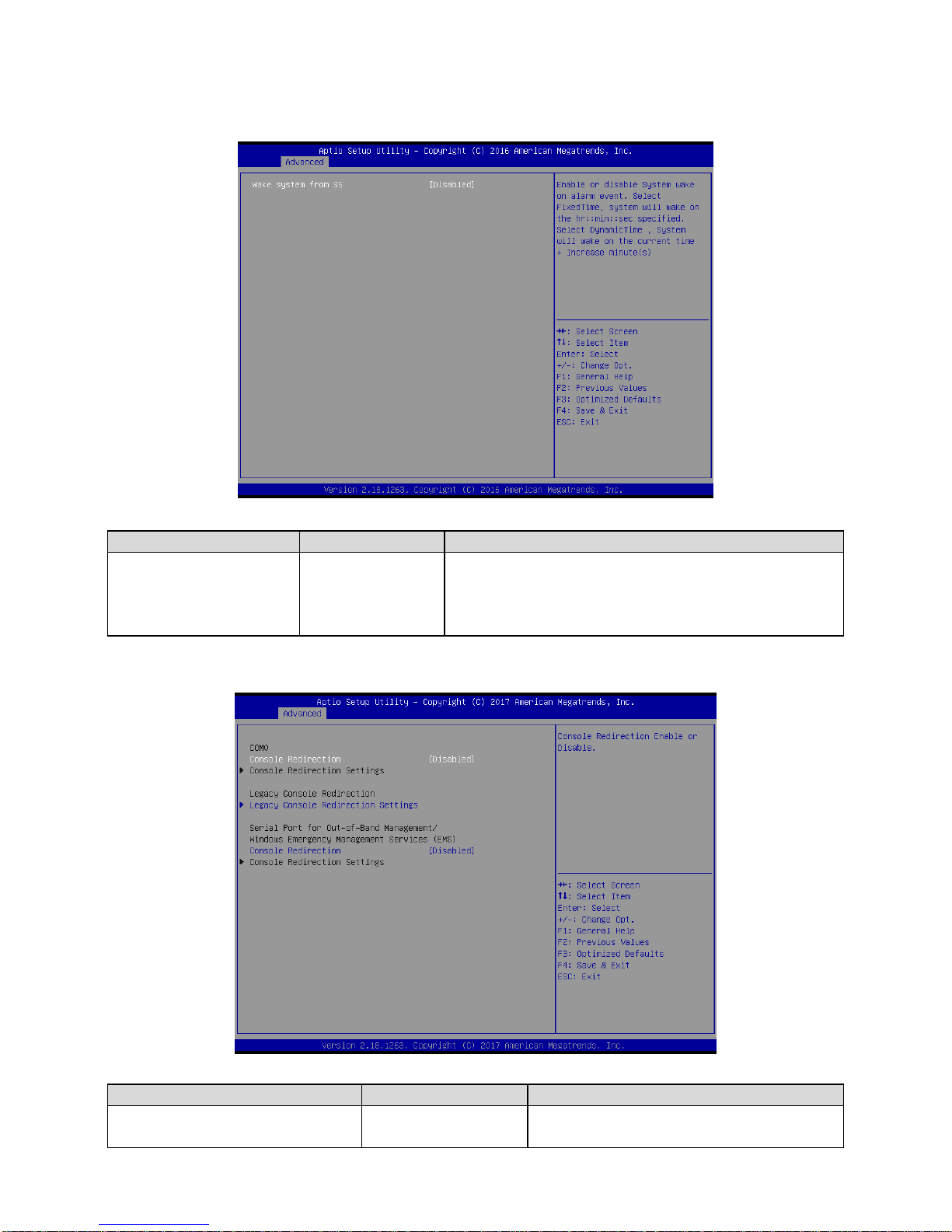

3.6.2.5 S5 RTC Wake Settings ........................................................................................................ 37
3.6.2.6 Serial Port Console Redirection........................................................................................... 37

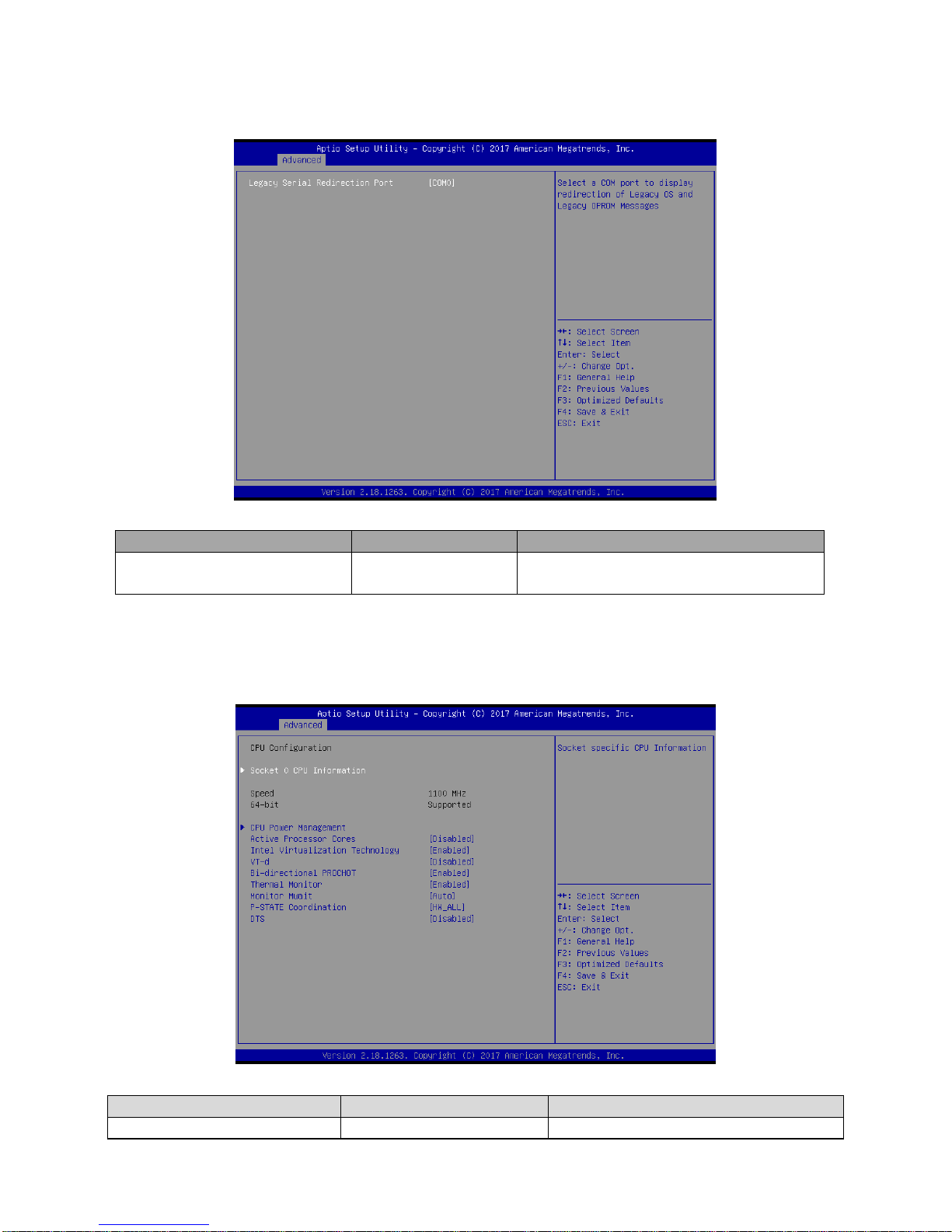

3.6.2.6.1 Legacy Console Redirection Settings .................................................................................. 38
3.6.2.7 CPU Configuration ............................................................................................................... 38

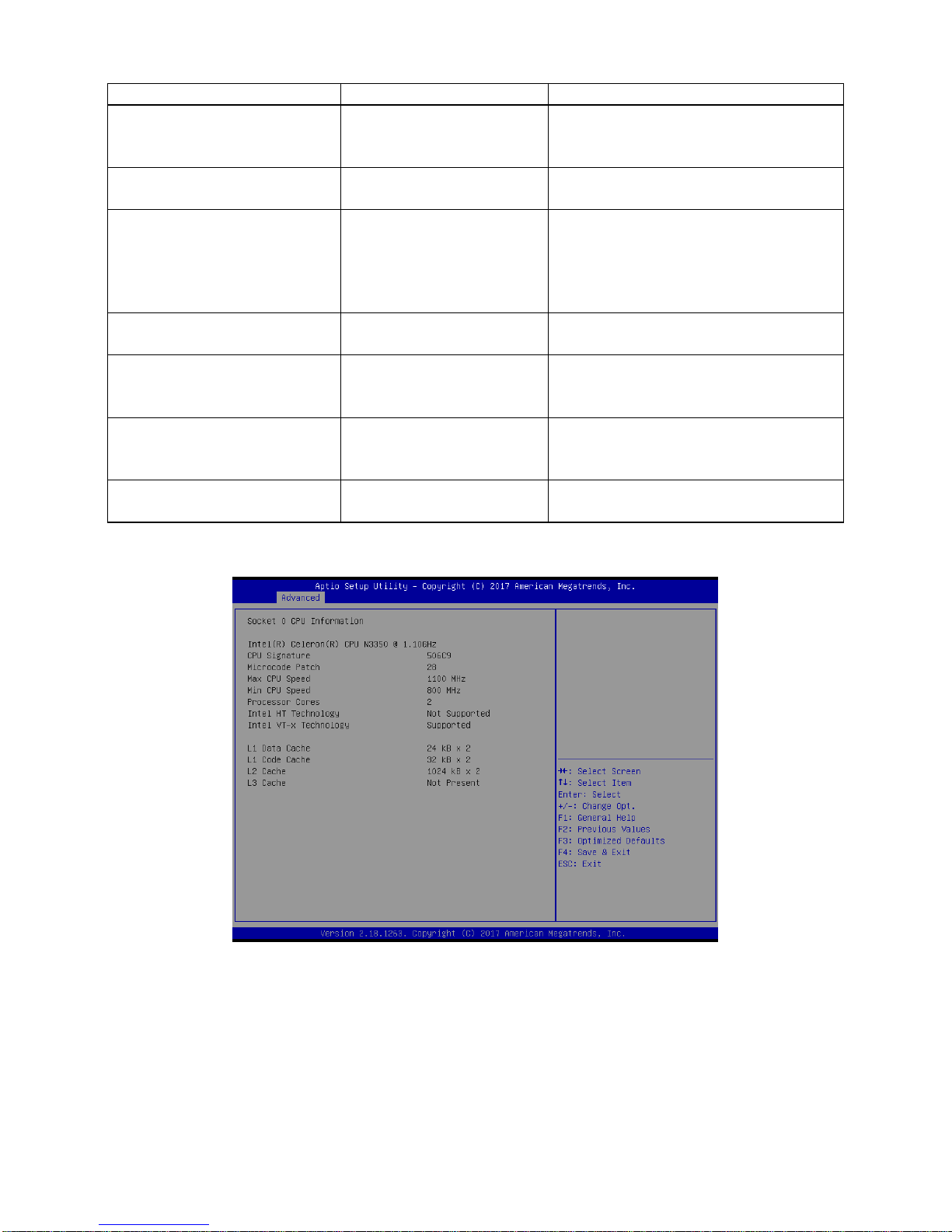

3.6.2.7.1 Socket 0 CPU Information ................................................................................................... 39

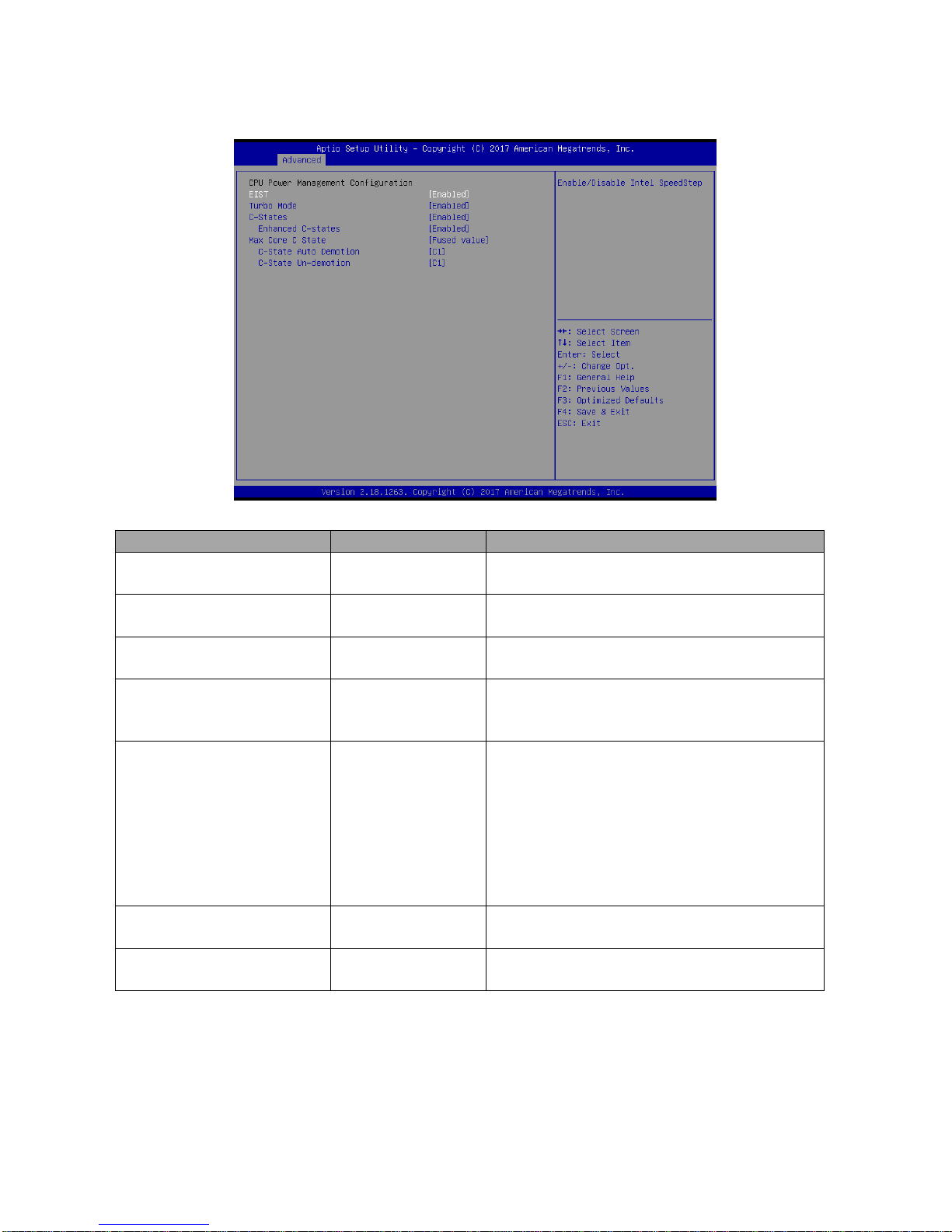

3.6.2.7.2 CPU Power Management Configuration ............................................................................. 40
3.6.2.8 Network Stack Configuration ............................................................................................... 41
3.6.2.9 CSM Configuration .............................................................................................................. 41

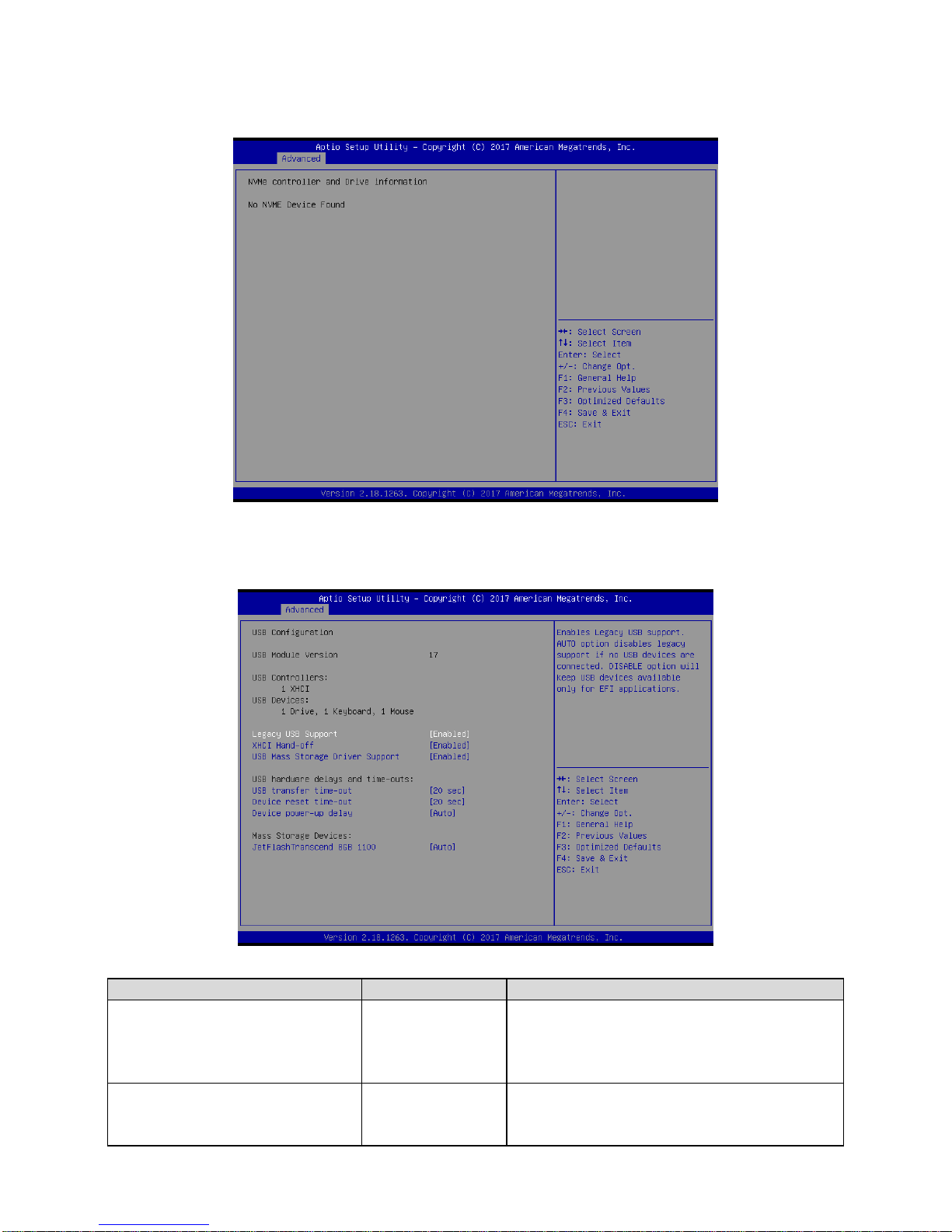

3.6.2.10 NVMe Configuration ............................................................................................................ 42
3.6.2.11 USB Configuration ............................................................................................................... 42
3.6.2.12 Security Configuration ......................................................................................................... 43

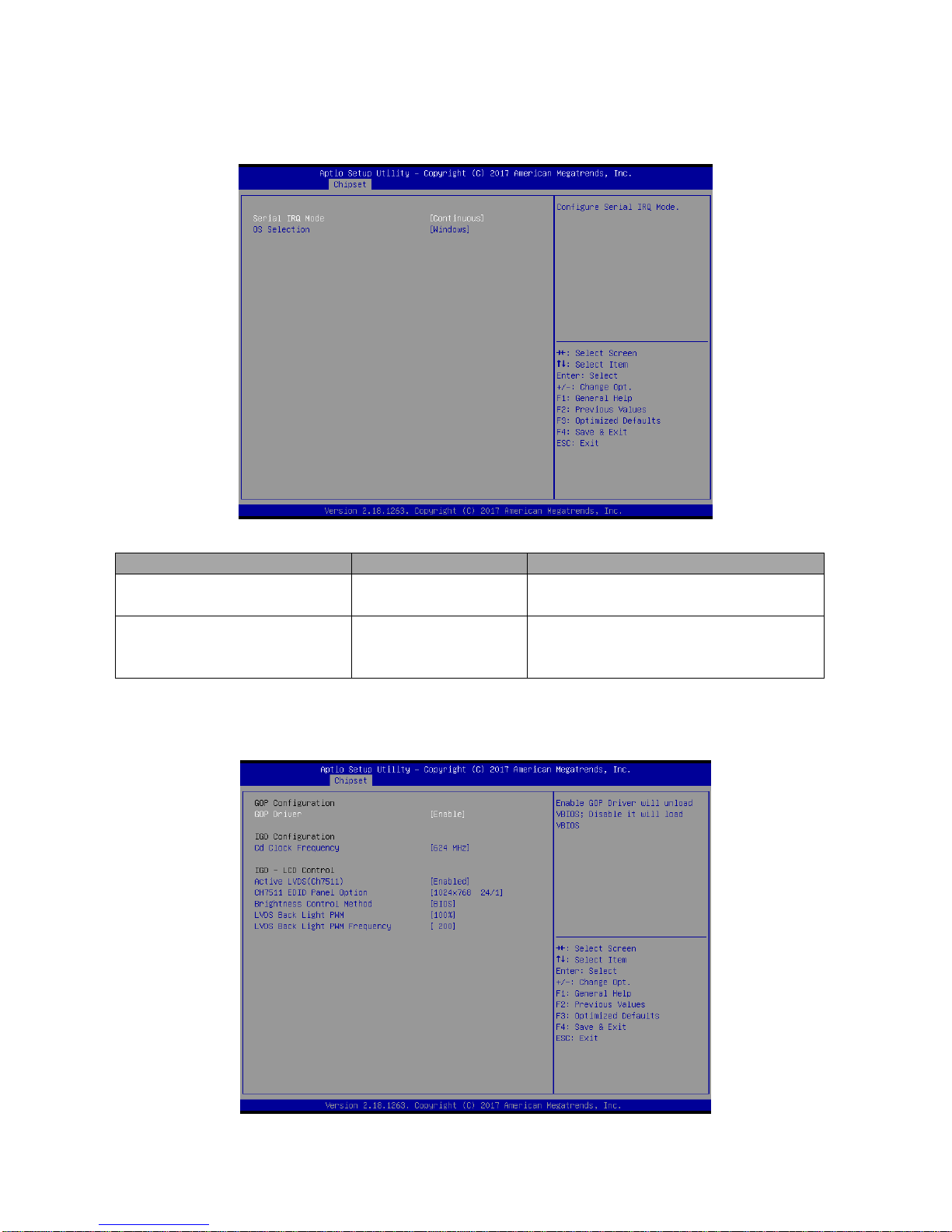

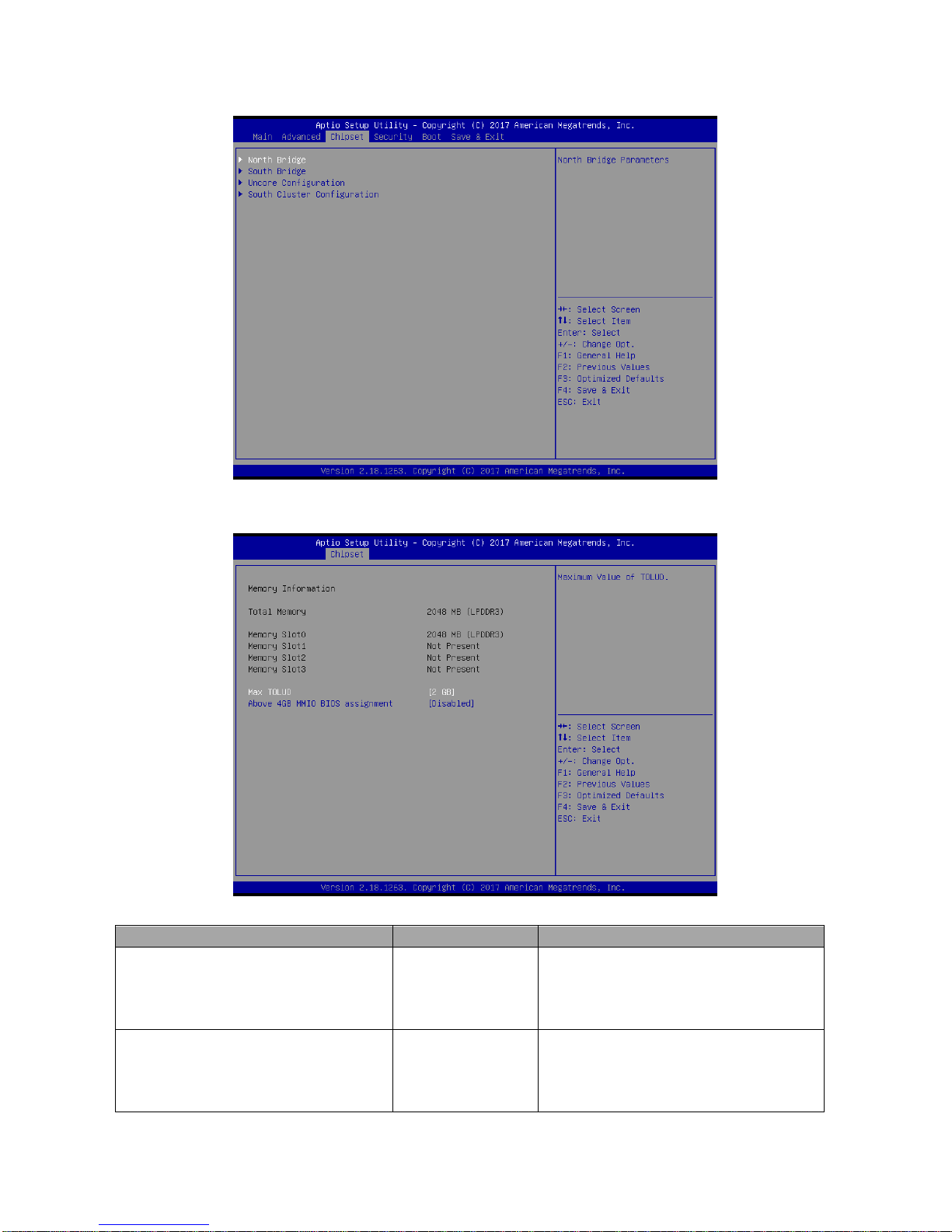

3.6.3 Chipset.......................................................................................................................................... 44
3.6.3.1 North Bridge ......................................................................................................................... 44
3.6.3.2 South Bridge ........................................................................................................................ 45
3.6.3.3 Uncore Configuration ........................................................................................................... 45
3.6.3.4 South Cluster Configuration ................................................................................................. 47

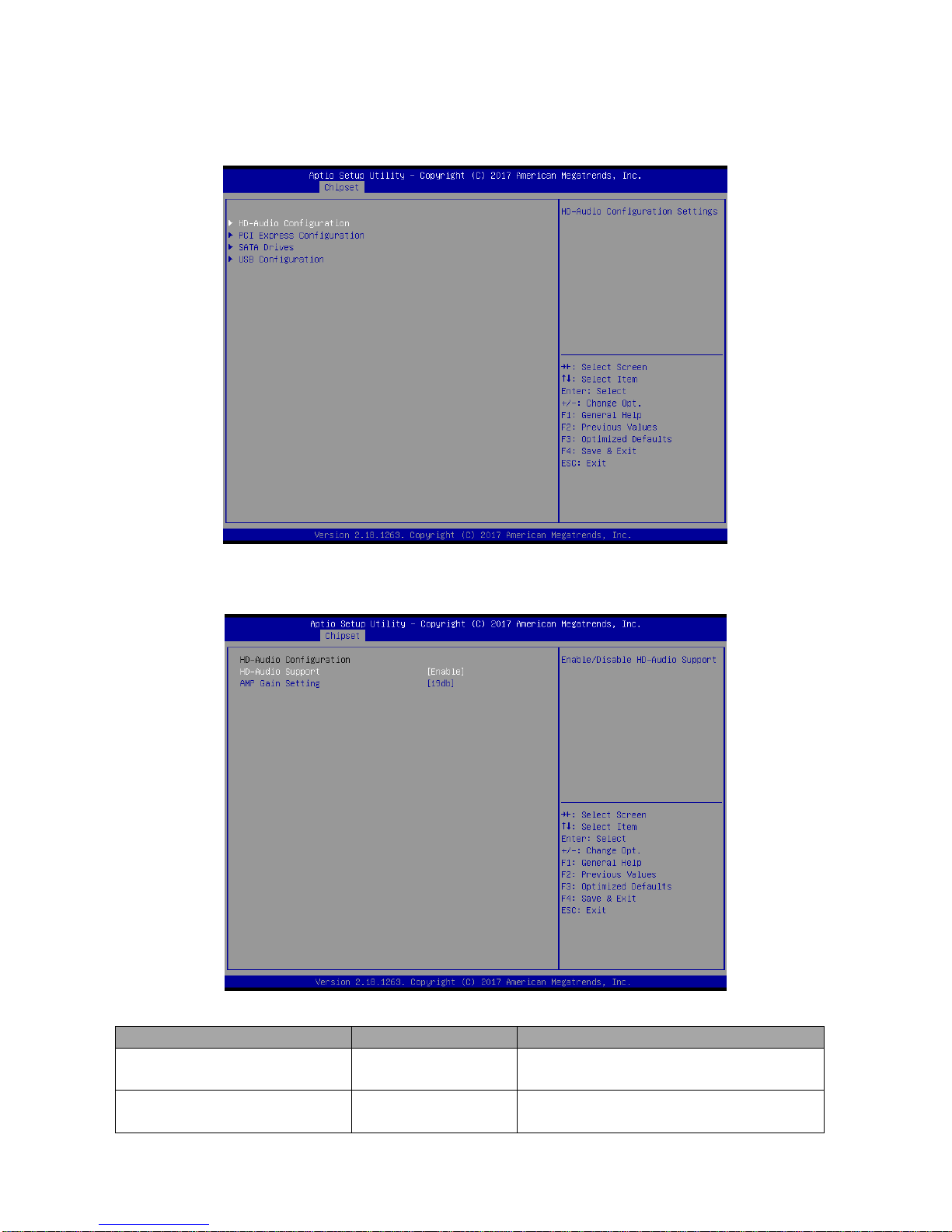

3.6.3.4.1 HD-Audio Configuration ........................................................................................................... 47

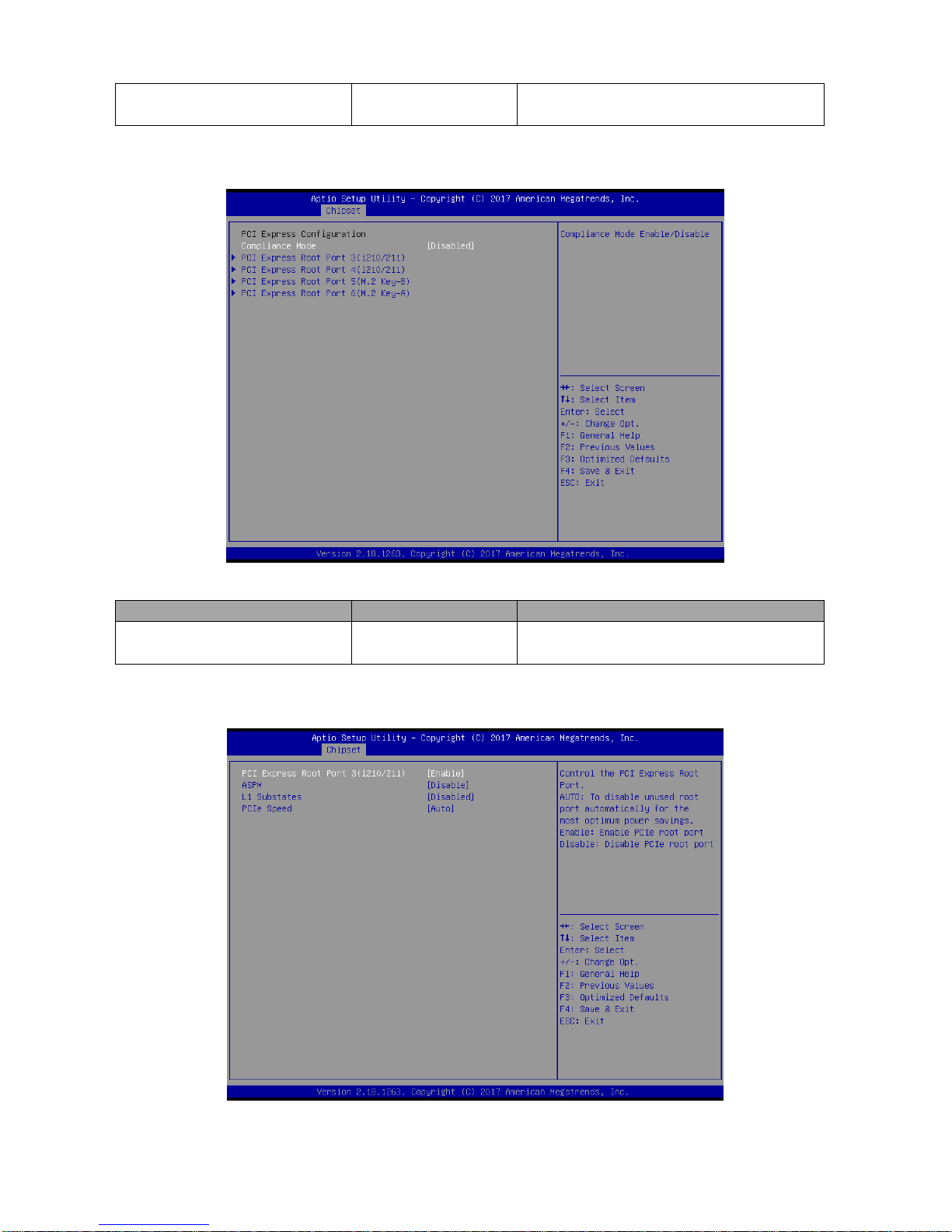

3.6.3.4.2 PCI Express Configuration ...................................................................................................... 48
3.6.3.4.2.1 PCI Express Root Port 3(i210/211) ...................................................................................... 48
3.6.3.4.2.2 PCI Express Root Port 4(i210/211) ...................................................................................... 49
3.6.3.4.2.3 PCI Express Root Port 5(M.2 Key-B) ................................................................................... 50

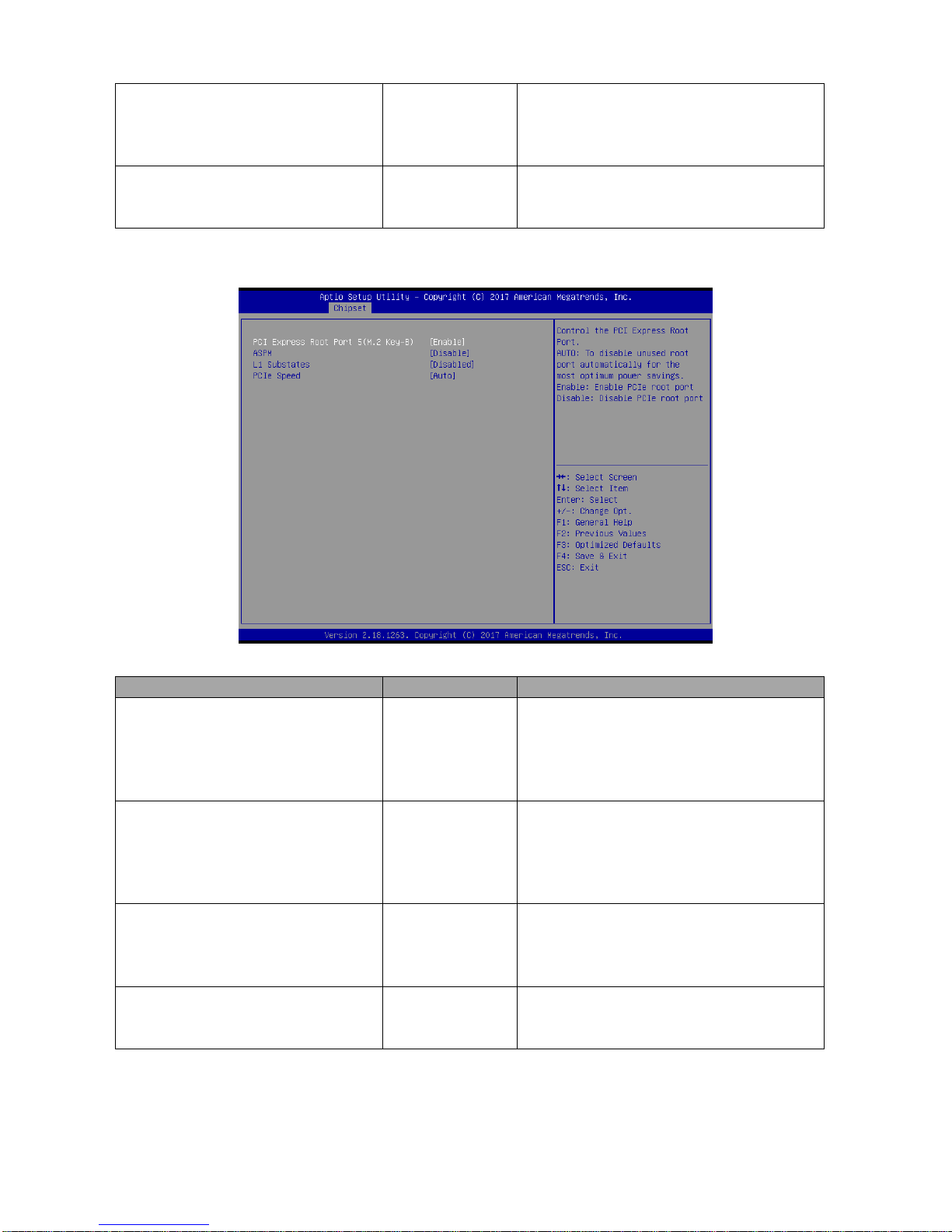

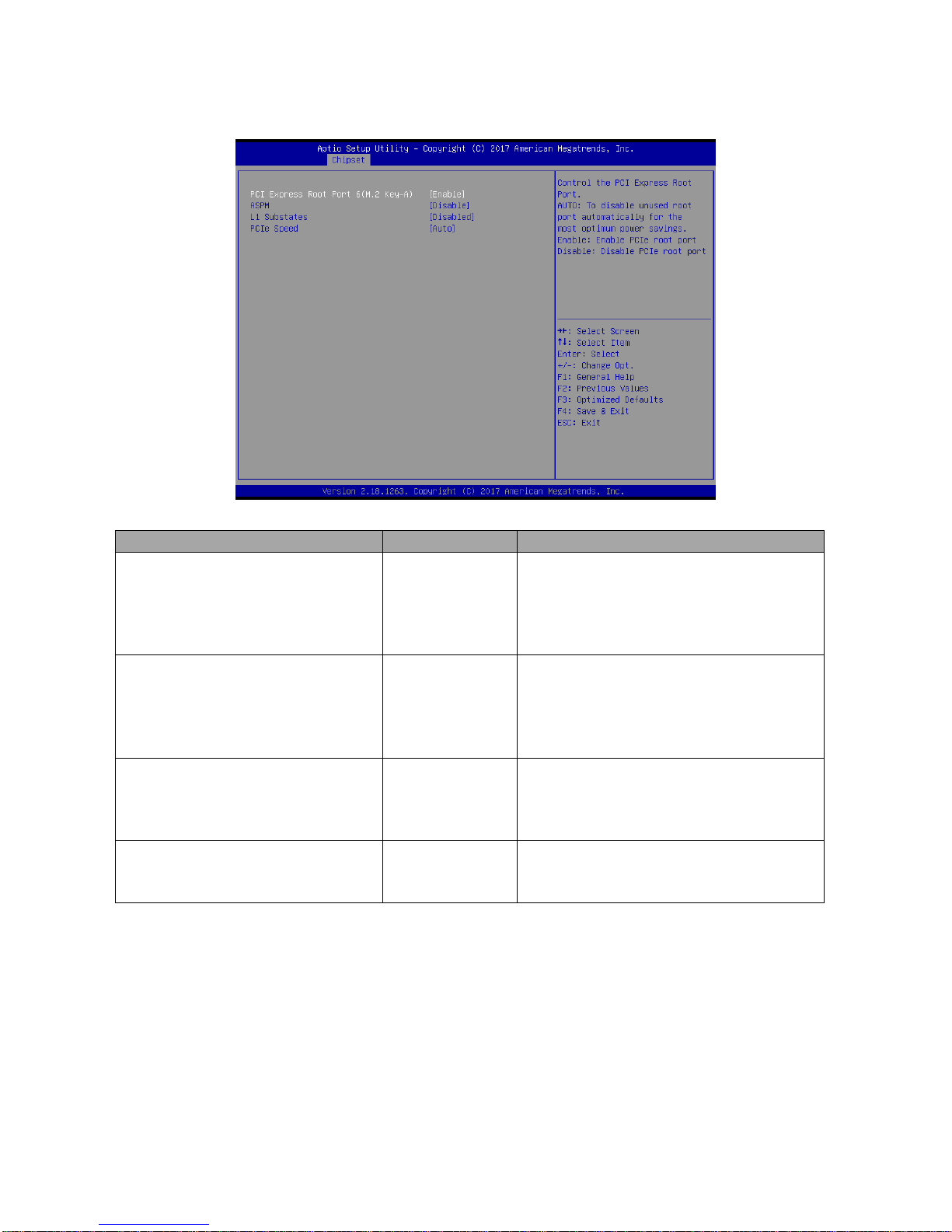

3.6.3.4.2.4 PCI Express Root Port 6(M.2 Key-A) ................................................................................... 51

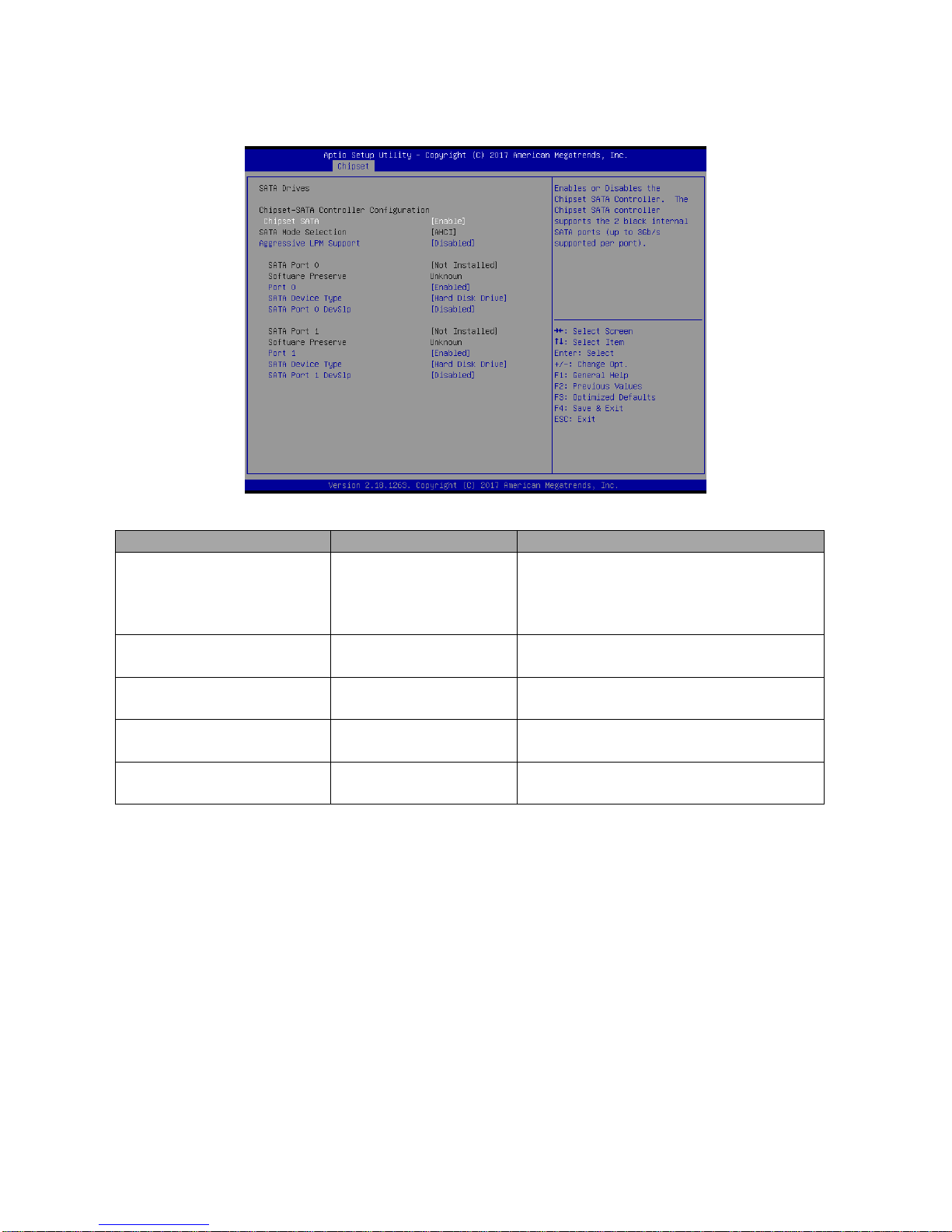

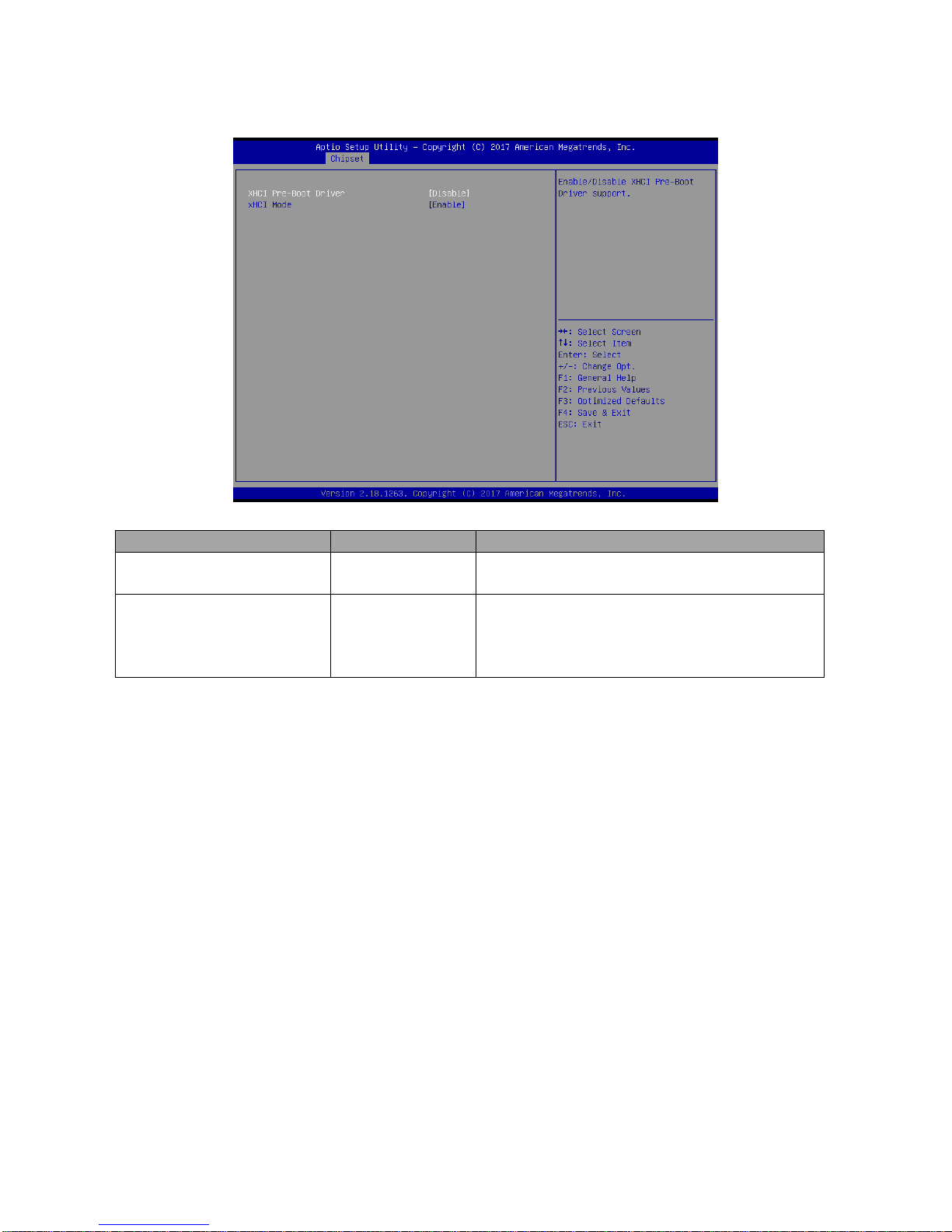

3.6.3.4.3 SATA Drivers ........................................................................................................................... 52
3.6.3.4.4 USB Configuration ................................................................................................................... 53

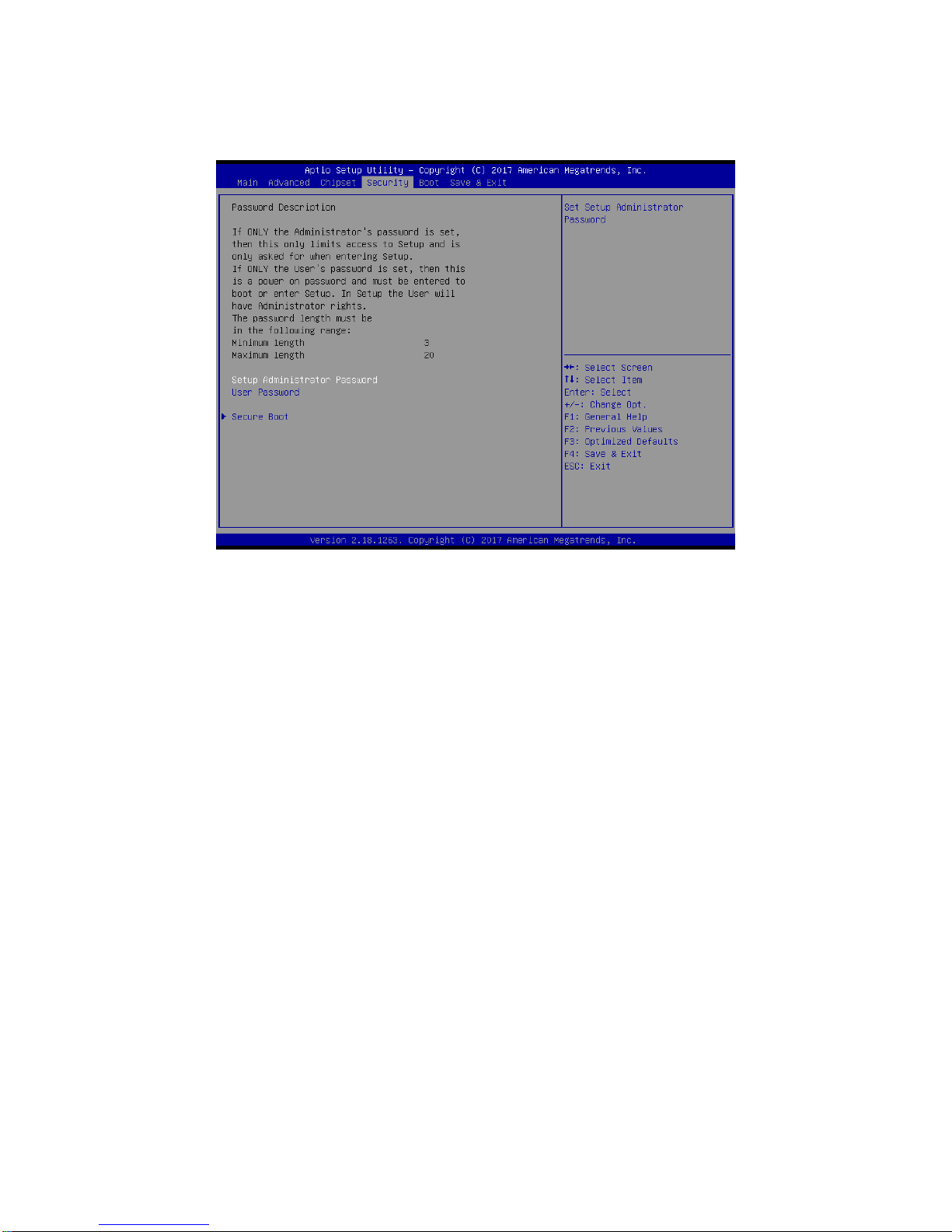

3.6.4 Security ......................................................................................................................................... 54

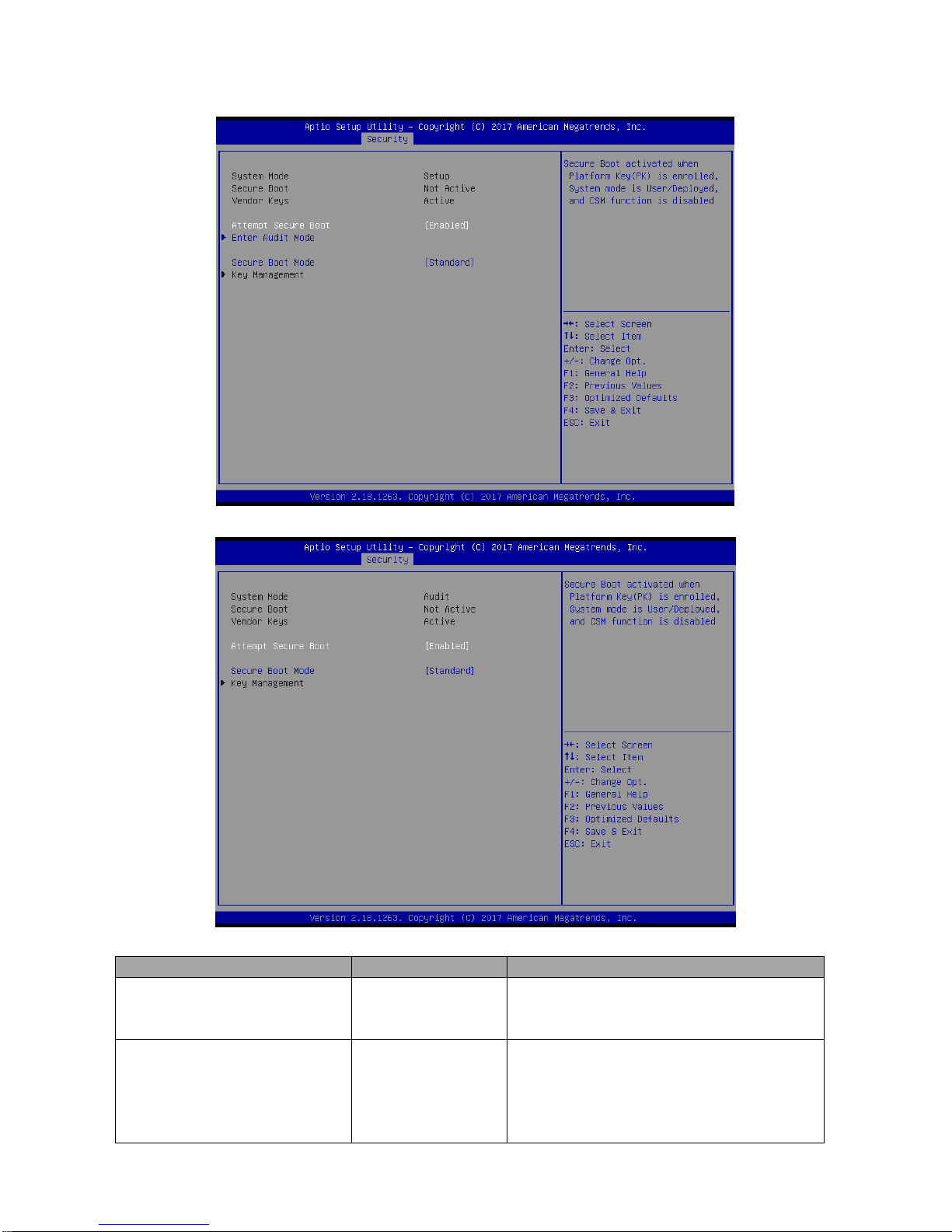

3.6.4.1 Secure Boot ......................................................................................................................... 55

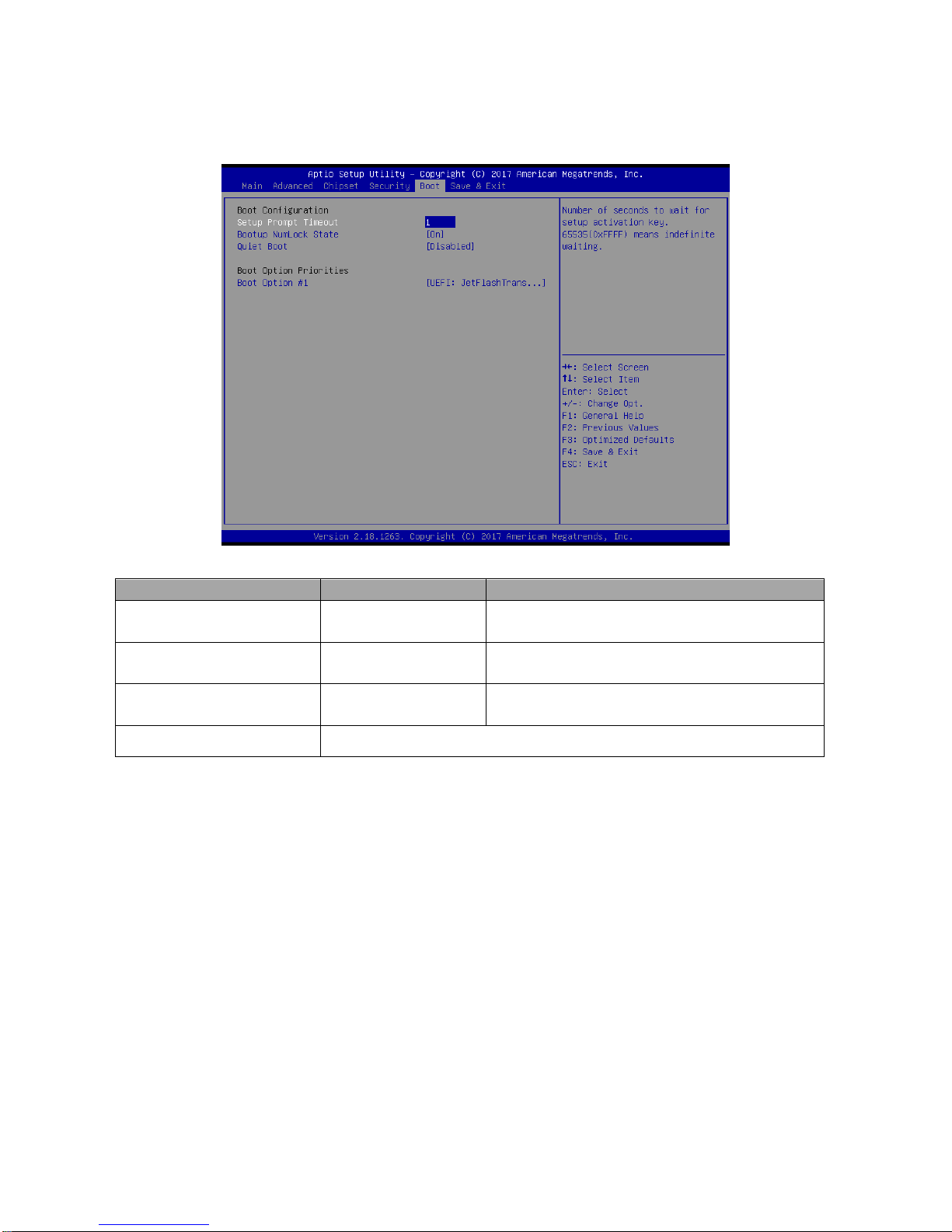

3.6.5 Boot .............................................................................................................................................. 56

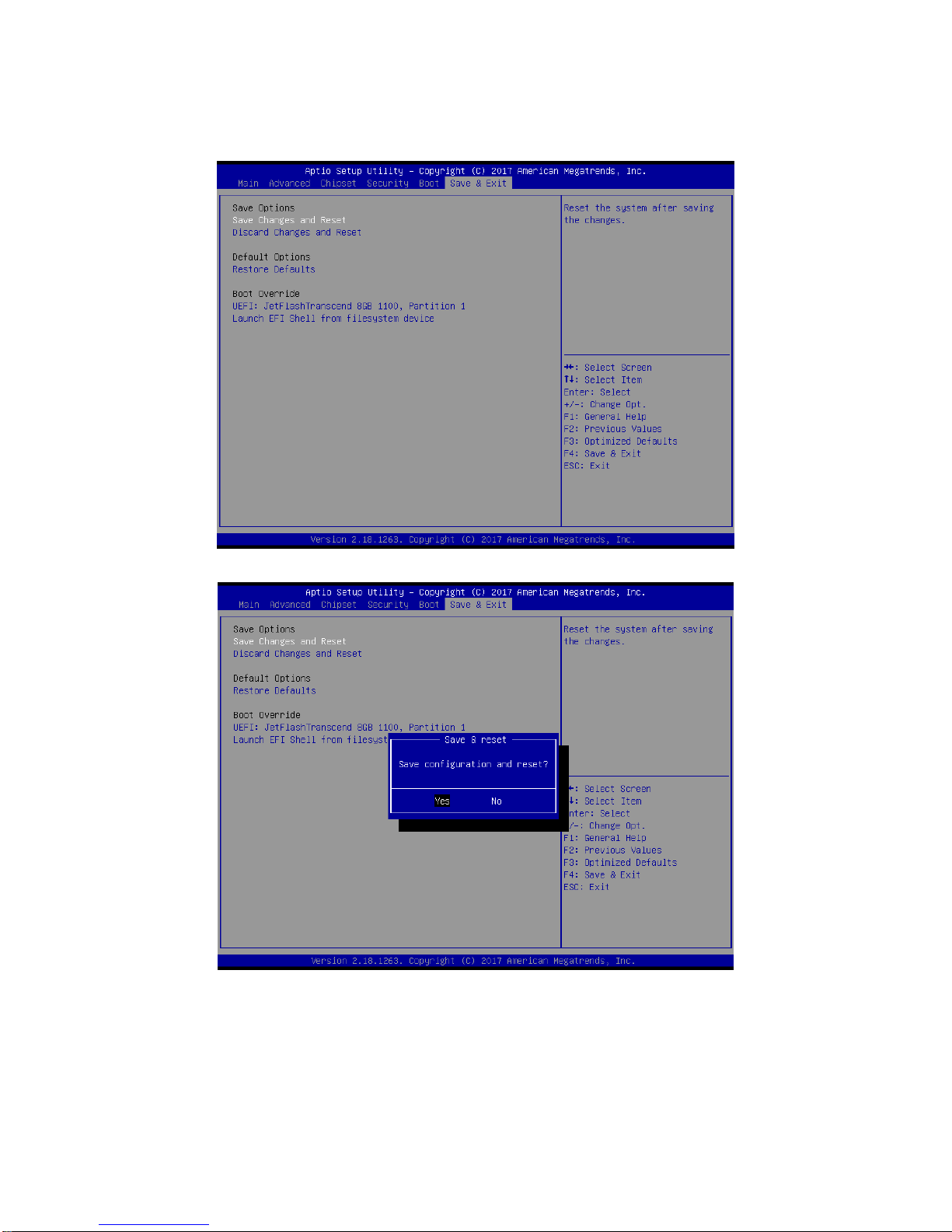

3.6.6 Save and exit ................................................................................................................................ 57
3.6.6.1 Save Changes and Reset .................................................................................................... 57
3.6.6.2 Discard Changes and Reset ................................................................................................ 57
3.6.6.3 Restore Defaults .................................................................................................................. 58
Page 7
User’s Manual
EPX-APLP User’s Manual
7
3.6.6.4 Launch EFI Shell from filesystem device ............................................................................. 58
4. Drivers Installation....................................................................................................... 59

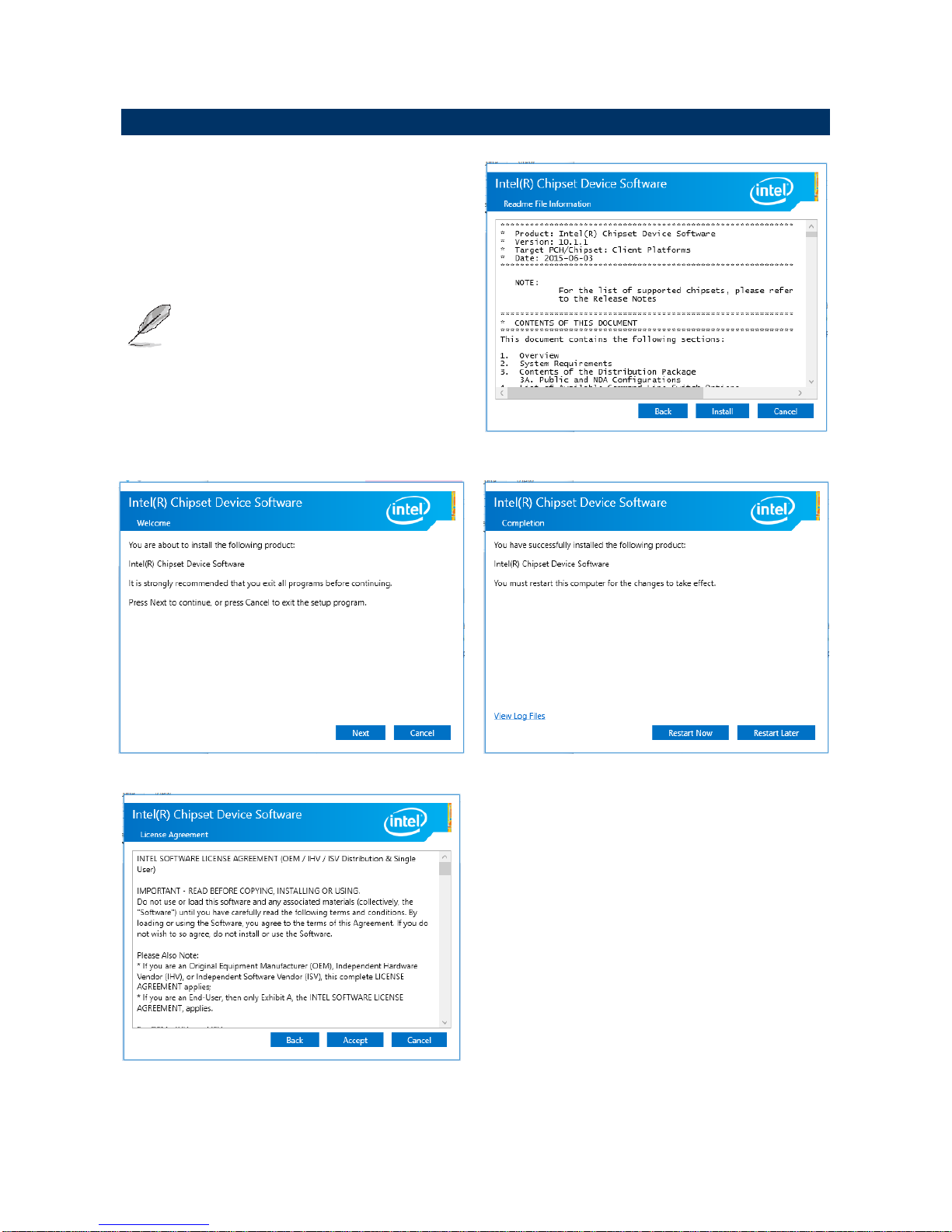

4.1 Install Chipset Driver ............................................................................................... 60

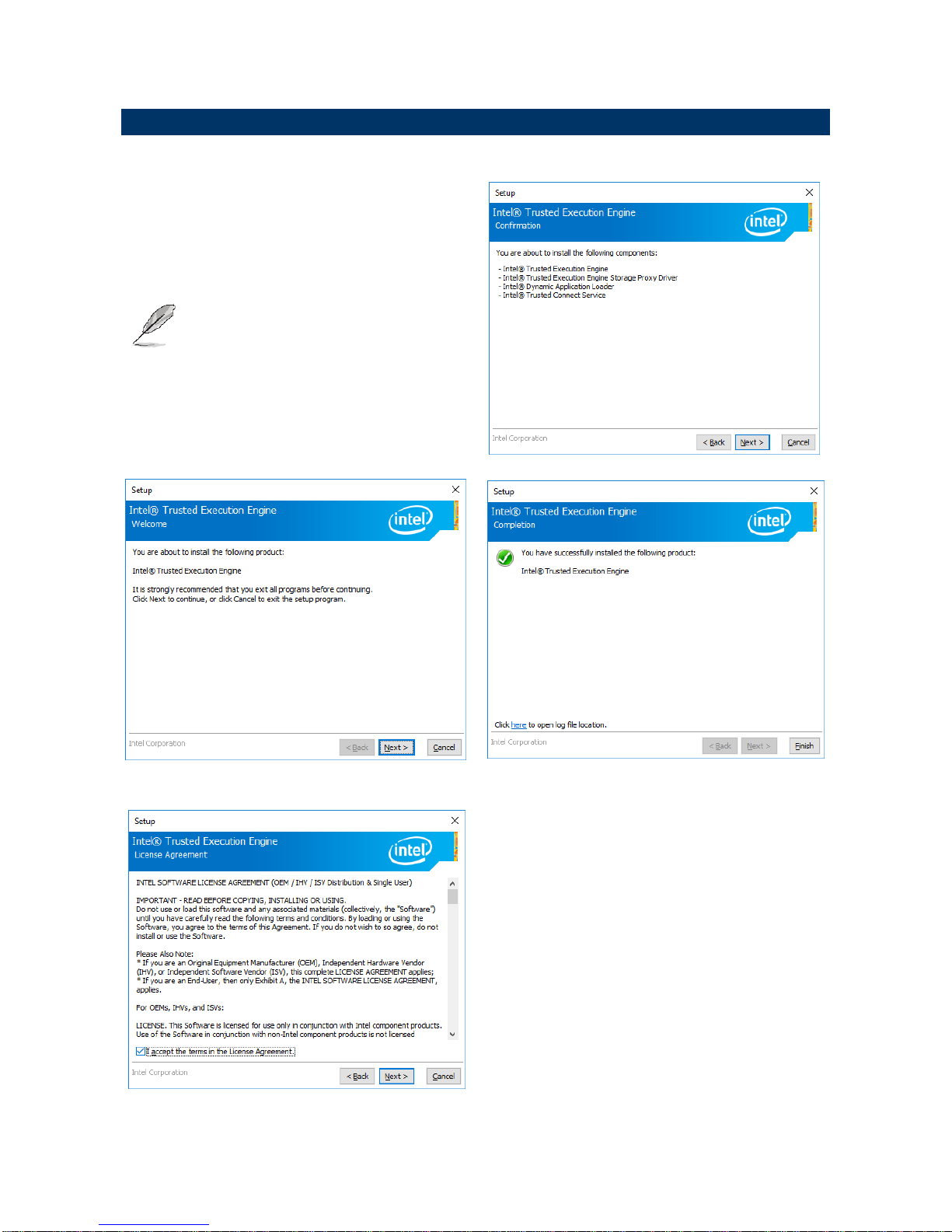

4.2 Install TXE Driver .................................................................................................... 61
4.3 Install VGA Driver .................................................................................................... 62

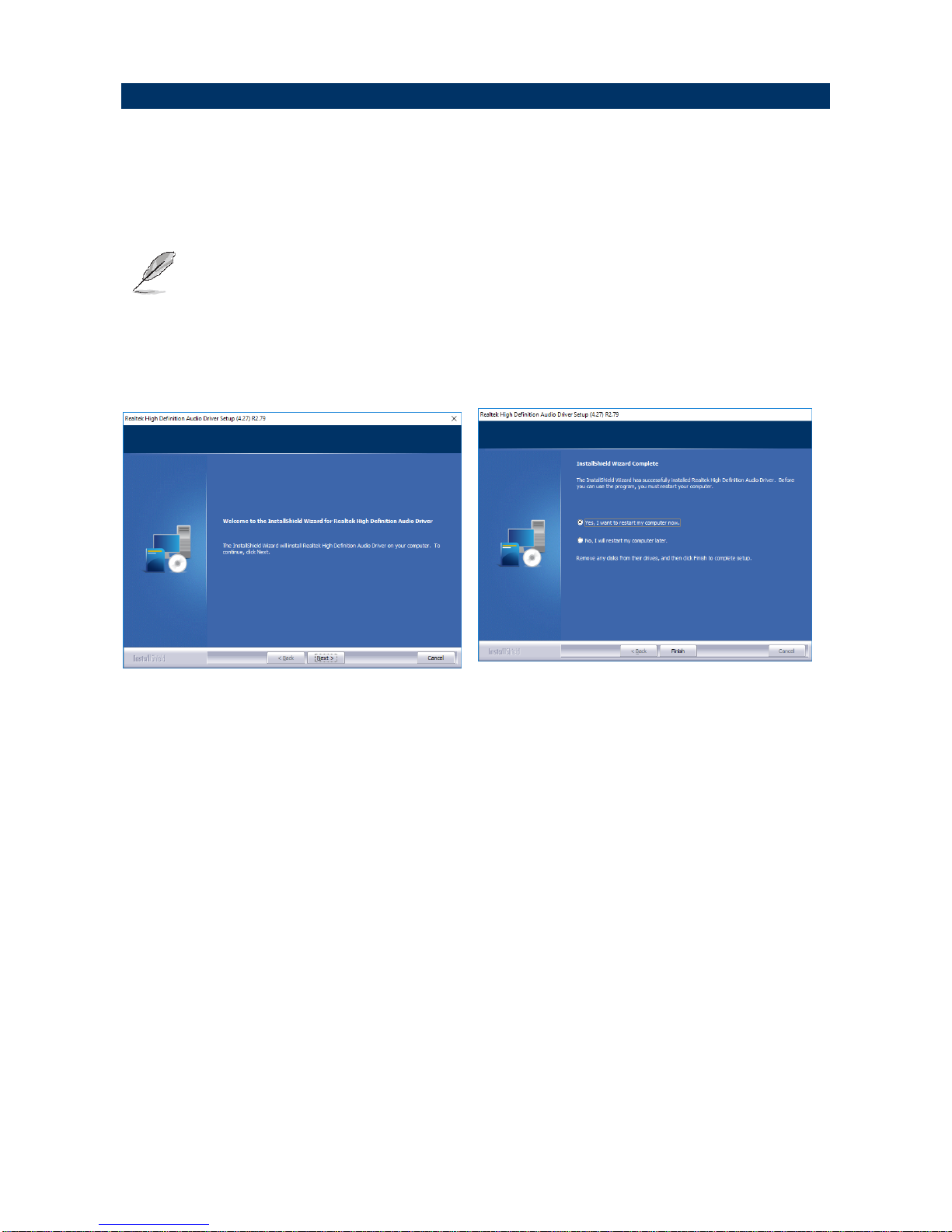

4.4 Install Audio Driver .................................................................................................. 64

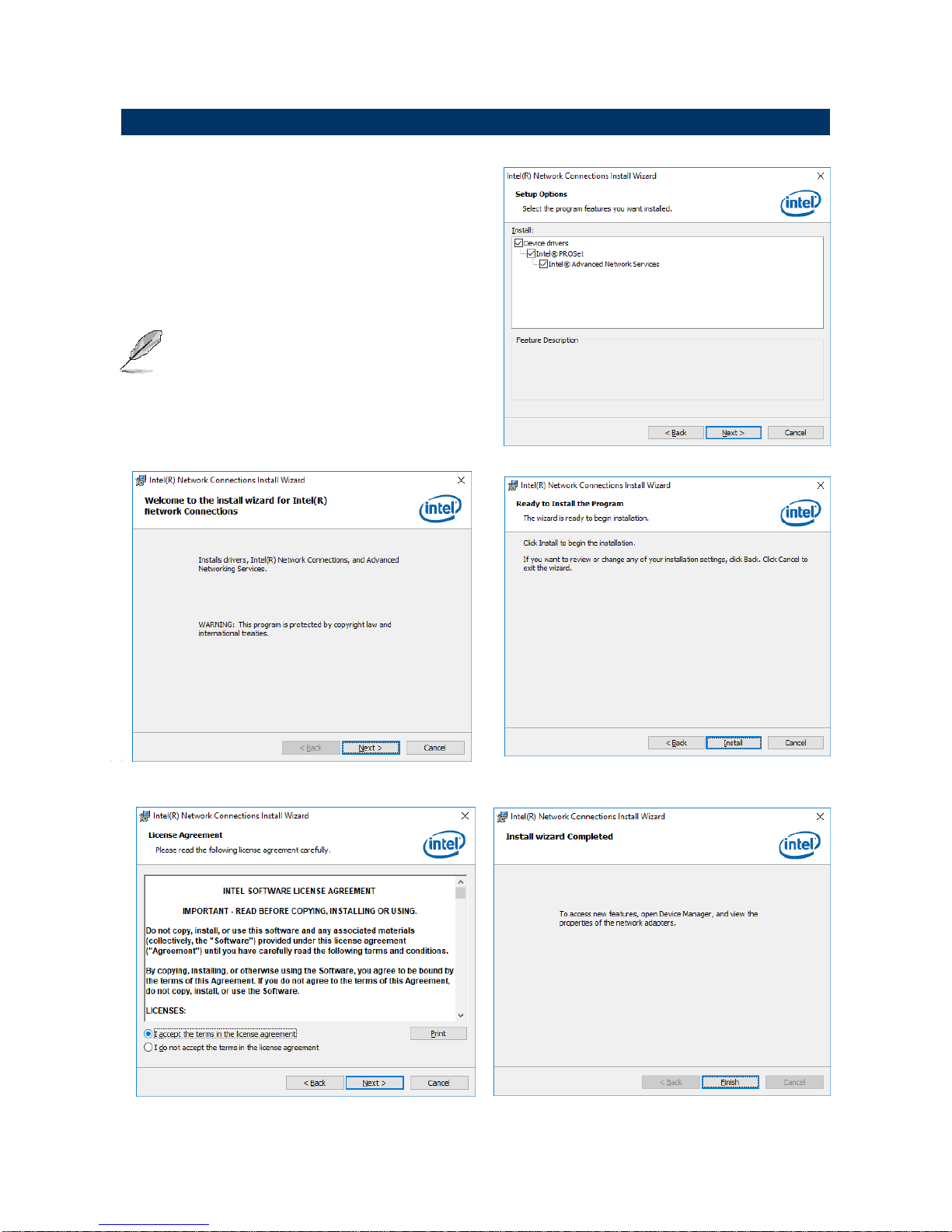

4.5 Install Ethernet Driver .............................................................................................. 65

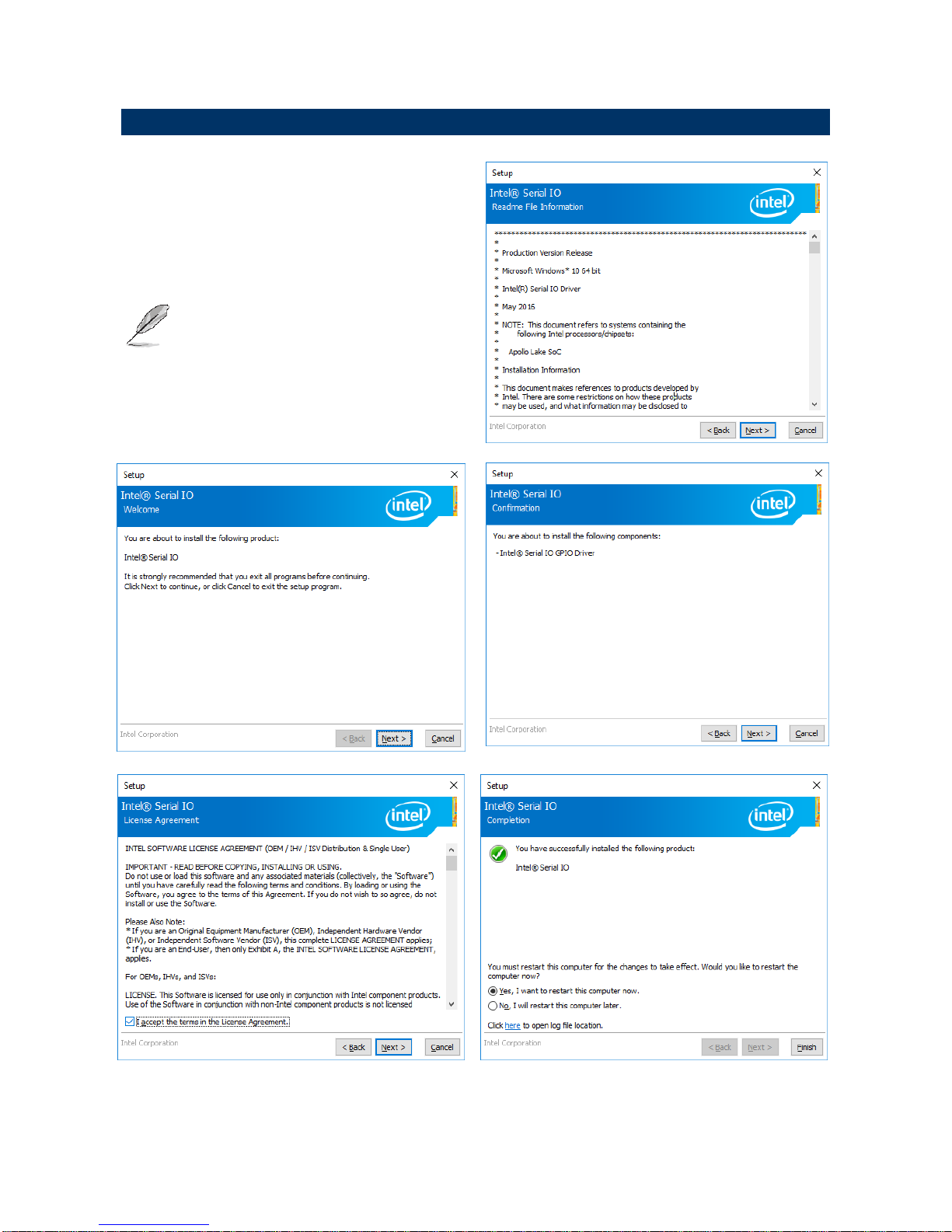

4.6 Install Serial IO Driver ............................................................................................. 66

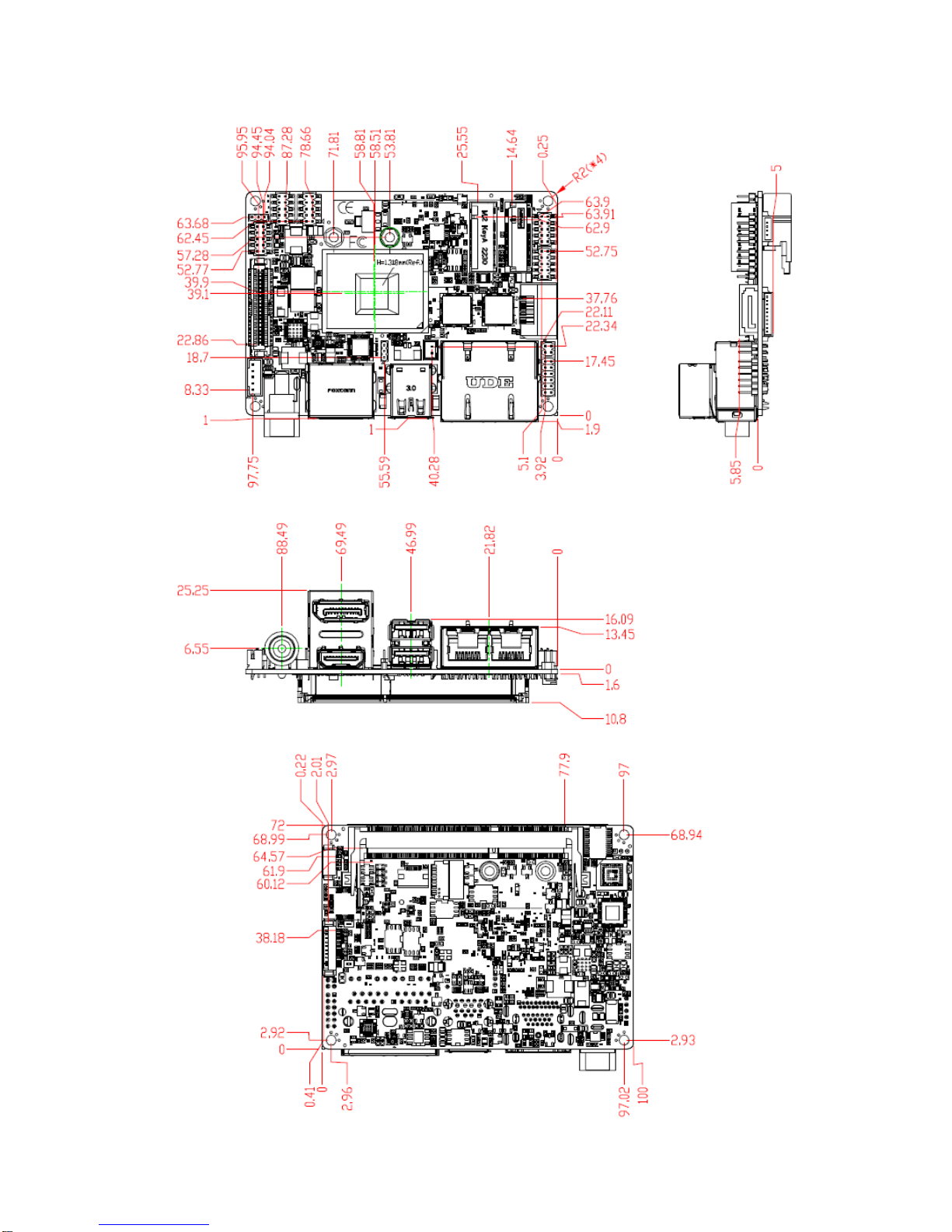

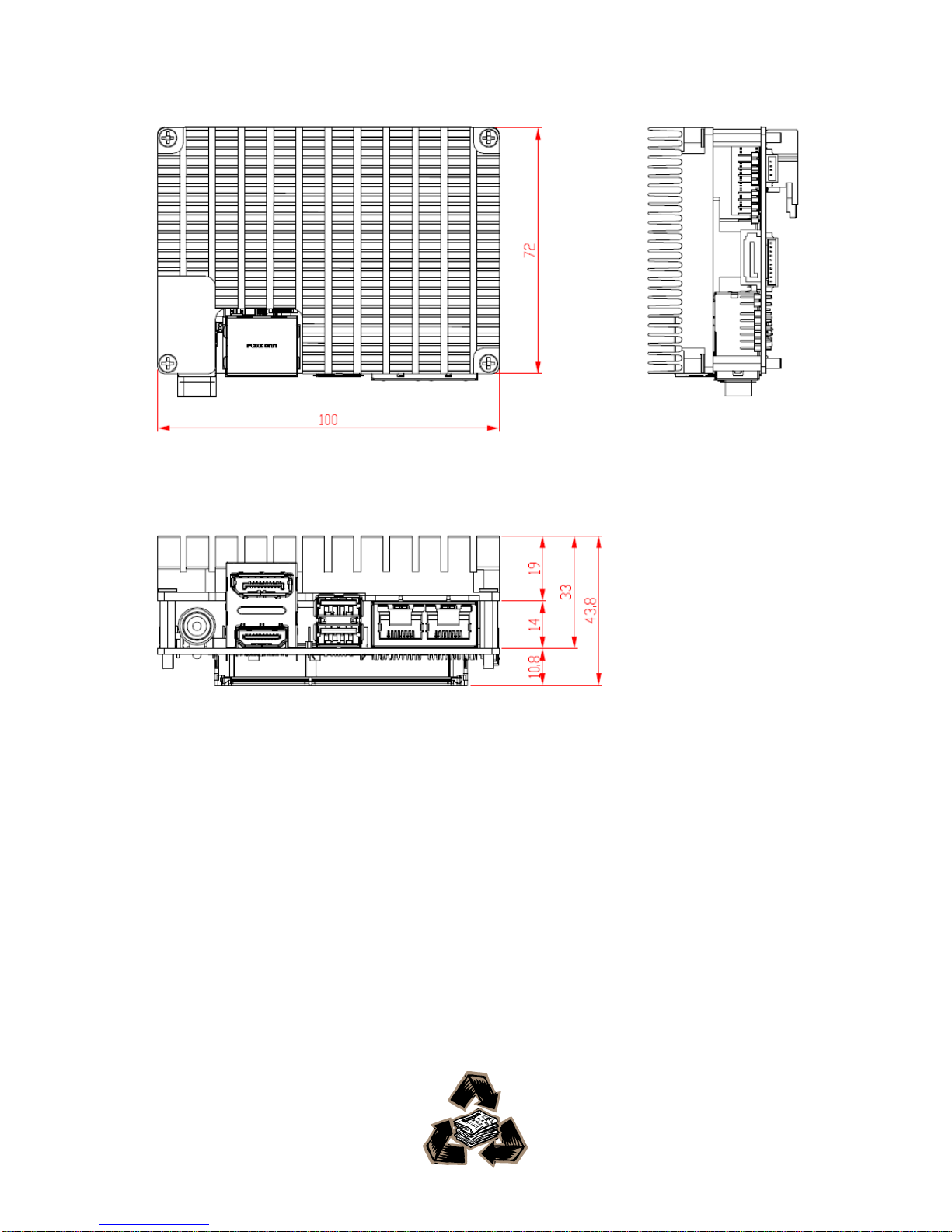

5. Mechanical Drawing .................................................................................................... 67
Page 8
EPX-APLP User’s Manual
8 EPX-APLP User’s Manual
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
1 x EPX-APLP motherboard
1 x SATA cables
1 x SATA power cable
1 x Copper stud for M.2
Optional: Thermal module heatsink solution:
— 1 x Heatsink
— 4 x Copper studs
— 4 x Screws
Page 9
User’s Manual
EPX-APLP User’s Manual
9
1.3 Document Amendment History
Revision
Date
By
Comment
1st
July 2017
Avalue
Initial Release
2nd
January 2018
Avalue
Update System Specifications
Page 10
EPX-APLP User’s Manual
10 EPX-APLP User’s Manual
1.4 Manual Objectives
This manual describes in details Avalue Technology EPX-APLP Single Board.
We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.
We strongly recommend that you study this manual carefully before attempting to set up
EPX-APLP or change the standard configurations. Whilst all the necessary information is
available in this manual we would recommend that unless you are confident, you contact
your supplier for guidance.
Please be aware that it is possible to create configurations within the CMOS RAM that
make booting impossible. If this should happen, clear the CMOS settings, (see the
description of the Jumper Settings for details).
If you have any suggestions or find any errors regarding this manual and want to inform us
of these, please contact our Customer Service department with the relevant details.
Page 11
User’s Manual
EPX-APLP User’s Manual
11
1.5 System Specifications
System
CPU
Apollo Lake** (Intel® Pentium® Processor)4C
Apollo Lake** (Intel® Celeron® Processor)2C
(Mobile and i series SKU)
BIOS
AMI uEFI BIOS, 128Mbit SPI Flash ROM
I/O Chip
EC IT8528VG
System Memory
One 204-pin DDR3L 1600 &1333 MHz SO-DIMM socket, supports up to 8GB
Max
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
EEPROM
AMI uEFI BIOS, 128Mbit SPI Flash ROM
H/W Status
Monitor
CPU temperature monitoring
Voltages monitoring
Expansion
1 x M.2 Type B 3042/2242/2260(with 1 x PCI-e x 1, USB 3.0, SATA Signal)
1 x M.2 Type A 2230 support WiFi module, 1 x PCI-e x 1, USB 2.0 Signal)
S/S4
Yes (S0/S3/S4/S5)
I/O
USB
2 x USB 3.0, 4 x USB 2.0
GPIO
8-bits GPIO
Display
Chipset
Intel® Pentium® / Celeron® SoC integrated Graphics
Resolution
1 x HDMI 1.4b: 3840 x 2160 @ 30 Hz, 2560 x 1600@ 30 Hz
1 x DP++: DisplayPort 1.2a : 4096x2160 @ 60Hz
2CH 18/24bits LVDS 1920 x 1080 (Chrontel. CH7511B eDP to LVDS Converter)
Multiple Display
Triple Display
HDMI
1 x DP++, 1 x HDMI
LCD
Interface
Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
Audio
AC97 Codec
Realtek ALC622 HD Audio Decoding Controller
Audio Amp
Realtek ALC105 Stereo Class-D 3W x 2
Ethernet
LAN Chip
2 x Intel® I211AT PCI-e Gigabit Ethernet
Ethernet Interface
Gigabit Ethernet
Internal I/O
Connectors
Buzzer
Onboard by LED (Boot LED)
CMOS Battery
1 x horizontal type battery connector (Battery cable 170mm length)
Page 12
EPX-APLP User’s Manual
12 EPX-APLP User’s Manual
Power On
1 x 2 x 5 pin, pitch 2.00mm connector for front panel
Audio
1 x 1 x 10 pin, pitch 1.25mm connector for front Audio & 1 x 1 x 4 pin pitch
1.25mm connector For 3W Speaker
Internal I/O
Connector
Storage:
1 x M.2 Type B 3042/2242/2260 (with 1 x PCI-e x 1, USB 3.0, SATA Signal)
1 x M.2 Type A 2230 support WiFi module, 1 x PCI-e x 1, USB 2.0 Signal)
- 1 x SATA III
- 1 x 1 x 2 pin, pitch 2.00mm connector for SATA power connectors
1 x 2 x 5 pin, pitch 2.00mm connector for RS-232(Ring/5V/12V By Resistance)
2 x 2 x 5 pin, pitch 2.00mm connector for 4 USB 2.0
1 x 2 x 6 pin, pitch 2.00mm connector for GPIO: 8bits
1 x 1 x 10 pin, pitch 1.00mm connector for BIOS SPI/EC
1 x 2 x 2 pin, pitch 2.0mm connector for LPC Power(5V & 12V & Ring)
1 x horizontal type battery connector (Battery cable 170mm length)
1 x 2 x 5 pin, pitch 2.0mm connector for front panel
1 x 2 x 20 pin, pitch 1.25mm connector for LVDS (must be using DF13-2S-1.25C
connector)
1 x 1 x 5 pin, pitch 2.00mm Wafer connector for LCD inverter backlight
connector (5V/12V)
PWM/DC (By Resistance)
1 x 1 x 10 pin, pitch 1.25mm connector for front Audio & 1 x 1 x 4 pin pitch
1.25mm connector For 3W Speaker
1 x 3 pin, pitch 2.00mm connector for CMOS clear
1 x 1 x 3 pin, pitch 2.00mm connector for AT/ATX mode
1 x DC Jack lockable connector type
Fanless Operating
Rear I/O
Connectors
USB
2 x USB3.0
LAN
2 x Intel® I211AT PCI-e Gigabit Ethernet
Display
1 x DP++, 1 x HDMI
Rear Side External
I/O Connector
2 x RJ-45
2 x USB 3.0
1 x HDMI
1 x DP++
1 x DC Jack lockable connector type
Mechanical &
Environmental
Power Requirement
DC in +12V
ACPI
Single power ATX Support S0, S3, S4, S5
Page 13
User’s Manual
EPX-APLP User’s Manual
13
ACPI 3.0 Compliant
Power Type
AT/ATX mode Switchable Through Jumper
Operating Temp.
-5 ~ 60°C (23 ~ 140°F)
Storage Temp.
-40°C ~ 75°C
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Size (L x W)
3.937" x 2.834" (100mm x 72mm)
Weight
0.40 kg
OS support
Win10
(listed in accordance with Intel document)
Note: Specifications are subject to change without notice.
Page 14
EPX-APLP User’s Manual
14 EPX-APLP User’s Manual
1.6 Architecture Overview—Block Diagram
The following block diagram shows the architecture and main components of EPX-APLP.
Page 15
User’s Manual
EPX-APLP User’s Manual
15
2. Hardware
Configuration
Page 16
EPX-APLP User’s Manual
16 EPX-APLP User’s Manual
2.1 Product Overview
Page 17
User’s Manual
EPX-APLP User’s Manual
17
2.2 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board’s jumpers and connectors.
Jumpers
Label
Function
Note
CMOS1
Clear CMOS
3 x 1 header, pitch 2.00 mm
JSATX1
AT/ATX Input power select
3 x 1 header, pitch 2.00 mm
Connectors
Label
Function
Note
BT1
Battery connector
2 x 1 wafer, pitch 1.25 mm
FPT1
Miscellaneous setting connector
5 x 2 header, pitch 2.00 mm
DCIN1
DC Power-in connector
JBKL1
LCD inverter connector
5 x 1 wafer, pitch 2.00 mm
DP1
DP connector
Page 18
EPX-APLP User’s Manual
18 EPX-APLP User’s Manual
COM1
Serial port 1 connector
5 x 2 header, pitch 2.00 mm
LPCP1
LPC power select
2 x 2 header, pitch 2.00 mm
DIO1
General purpose I/O connector
6 x 2 header, pitch 2.00 mm
JLPC1
Low pin count interface
5 x 2 header, pitch 2.00 mm
LVDS1
LVDS connector
20 x 2 wafer, pitch 1.25 mm
USB01
On-board connector for USB3.0 x 2
USB45
On-board header for USB2.0
5 x 2 header, pitch 2.00 mm
USB67
On-board header for USB2.0
5 x 2 header, pitch 2.00 mm
LAN1/2
RJ-45 Ethernet connector 1/2
M2KA1
M.2 Type A 2230 connector
M2KB1
M.2 Type B 3042/2242/2260
connector
SPWR1
SATA power header
2 x 1 wafer, pitch 2.00 mm
SATA1
Serial ATA connector 1
HDMI
HDMI connector
NGFF1
M.2 B key slot
SPK1
Speaker connector
1 x 4 wafer, pitch 1.25 mm
DIMM1
204-pin DDR3L DIMM socket
SPI1
SPI connector
10 x 1 wafer, pitch 1.00 mm
AUD1
Audio connector
10 x 1 wafer, pitch 1.25 mm
Page 19
User’s Manual
EPX-APLP User’s Manual
19
2.3 Setting Jumpers & Connectors
2.3.1 Clear CMOS (CMOS1)
* Default
Protect*
Clear CMOS
2.3.2 AT/ATX Input power select (JSATX1)
* Default
ATX*
AT
Page 20
EPX-APLP User’s Manual
20 EPX-APLP User’s Manual

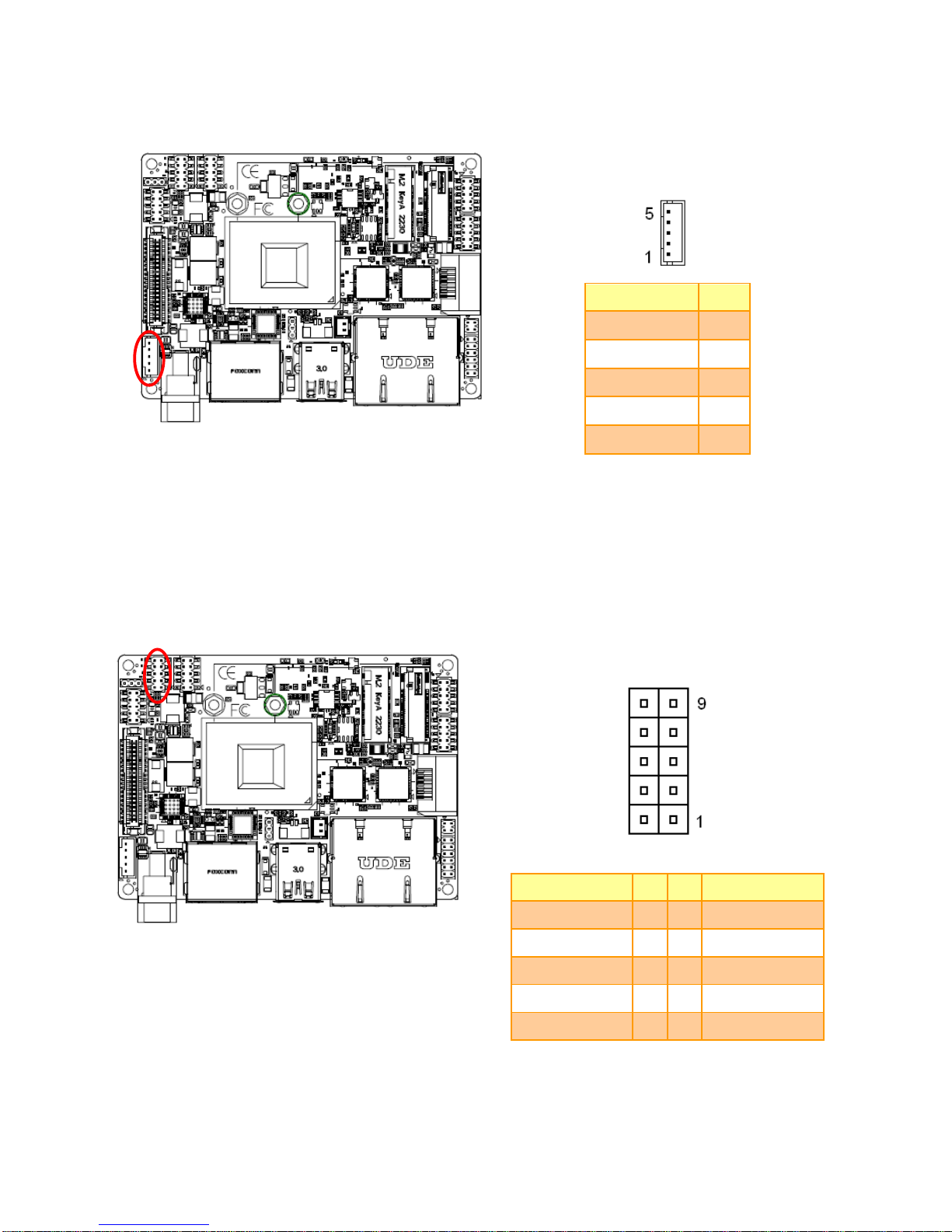

2.3.3 LCD Inverter connector (JBKL1)
Signal
PIN
+5V
5
LVDS_BKLADJ
4
LVDS_BKLTEN
3
GND
2
+12V
1

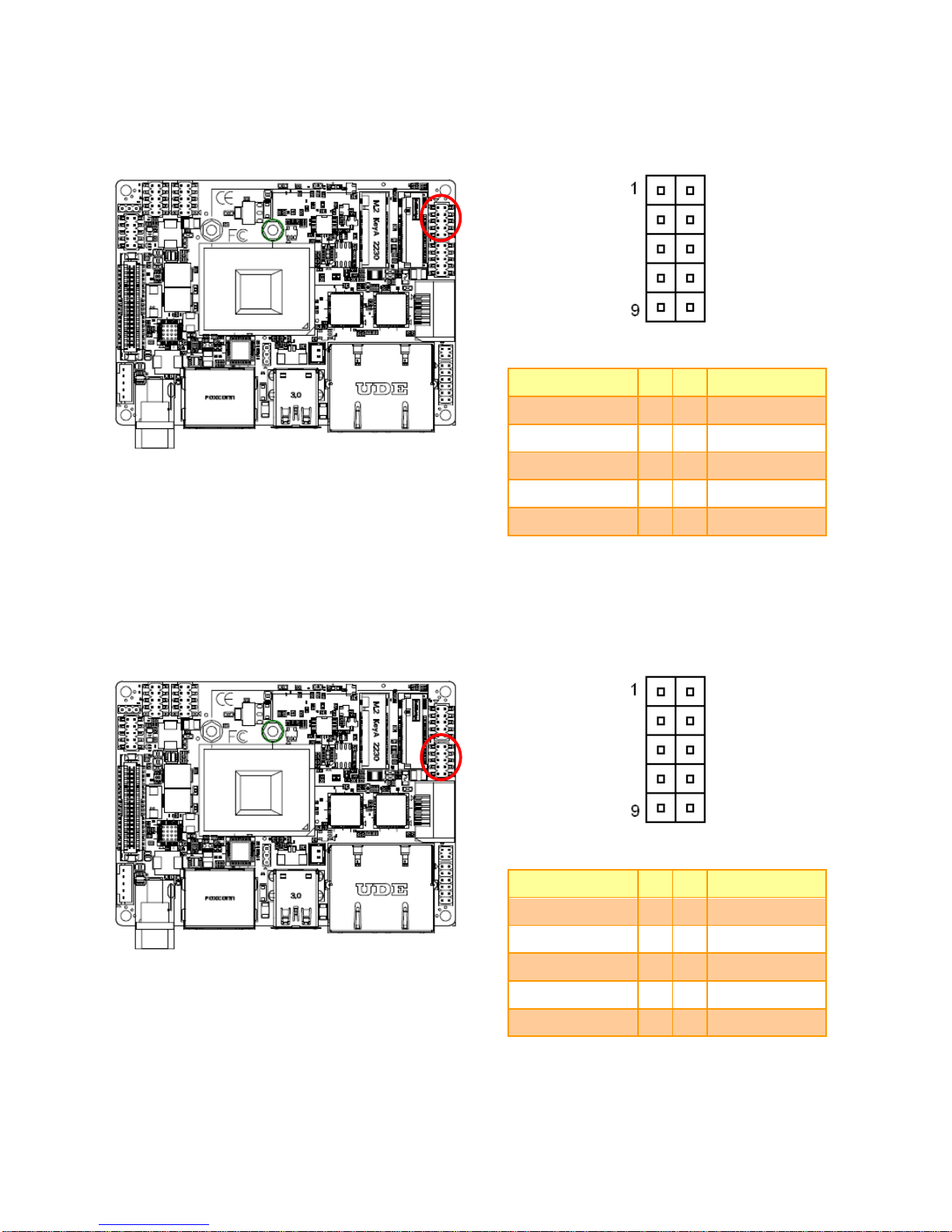

2.3.4 Serial port 1 connector (COM1)
Signal
PIN
PIN
Signal
NC
10 9 RI
CTS
8 7 RTS
DSR
6 5 GND
DTR
4 3 TXD
RXD
2 1 DCD
Page 21
User’s Manual
EPX-APLP User’s Manual
21

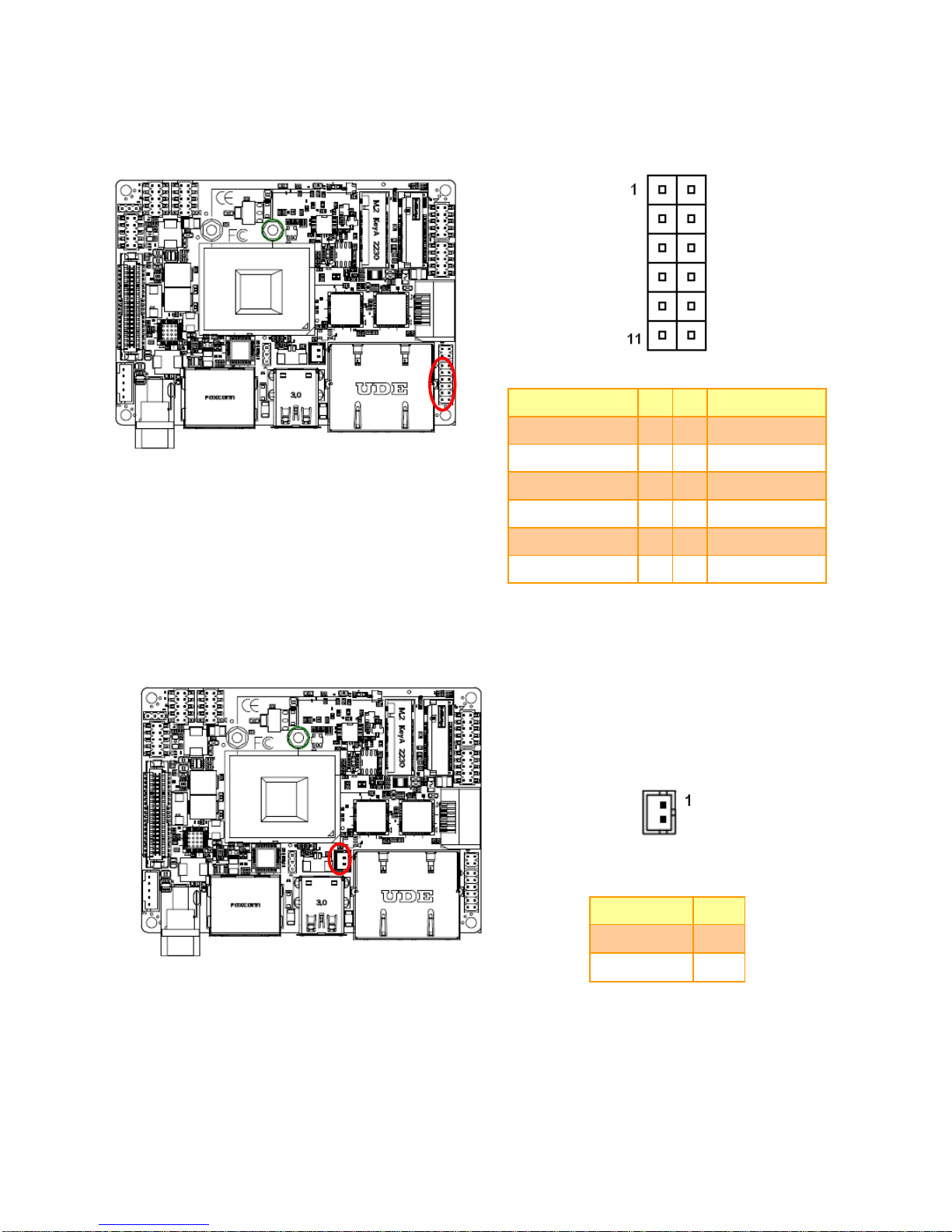

2.3.5 General purpose I/O connector (DIO1)
Signal
PIN
PIN
Signal
DI0
1 2 DO0
DI1
3 4 DO1
DI2
5 6 DO2
DI3
7 8 DO3
SMB_CLK
9
10
SMB_DATA
GND
11
12
+5V
2.3.6 SATA Power header (SPWR1)
Signal
PIN
GND
1
+5V
2
Page 22
EPX-APLP User’s Manual
22 EPX-APLP User’s Manual
2.3.7 LVDS connector (LVDS1)
Signal
PIN
PIN
Signal
+12V
39
40
+12V
GND
37
38
GND
LVDS_CLK2N
35
36
LVDS_CLK1N
LVDS_CLK2P
33
34
LVDS_CLK1P
GND
31
32
GND
LVDS_DATAN7
29
30
LVDS_DATAN6
LVDS_DATAP7
27
28
LVDS_DATAP6
GND
25
26
GND
LVDS_DATAN5
23
24
LVDS_DATAN4
LVDS_DATAP5
21
22
LVDS_DATAP4
GND
19
20
GND
LVDS_DATAN3
17
18
LVDS_DATAN2
LVDS_DATAP3
15
16
LVDS_DATAP2
GND
13
14
GND
LVDS_DATAN1
11
12
LVDS_DATAN0
LVDS_DATAP1
9
10
LVDS_DATAP0
GND
7 8 GND
NC
5 6 NC
+3.3V
3 4 +5V
+3.3V
1 2 +5V
Page 23
User’s Manual
EPX-APLP User’s Manual
23
2.3.8 On-board header for USB2.0 (USB45)
Signal
PIN
PIN
Signal
+5VSB
1 2 +5VSB
USB_DN4
3 4 USB_DN5
USB_DP4
5 6 USB_DP5
GND
7 8 GND
NC
9
10
NC
2.3.9 On-board header for USB2.0 (USB67)
Signal
PIN
PIN
Signal
+5VSB
1 2 +5VSB
USB_DN6
3 4 USB_DN7
USB_DP6
5 6 USB_DP7
GND
7 8 GND
NC
9
10
NC
Page 24
EPX-APLP User’s Manual
24 EPX-APLP User’s Manual

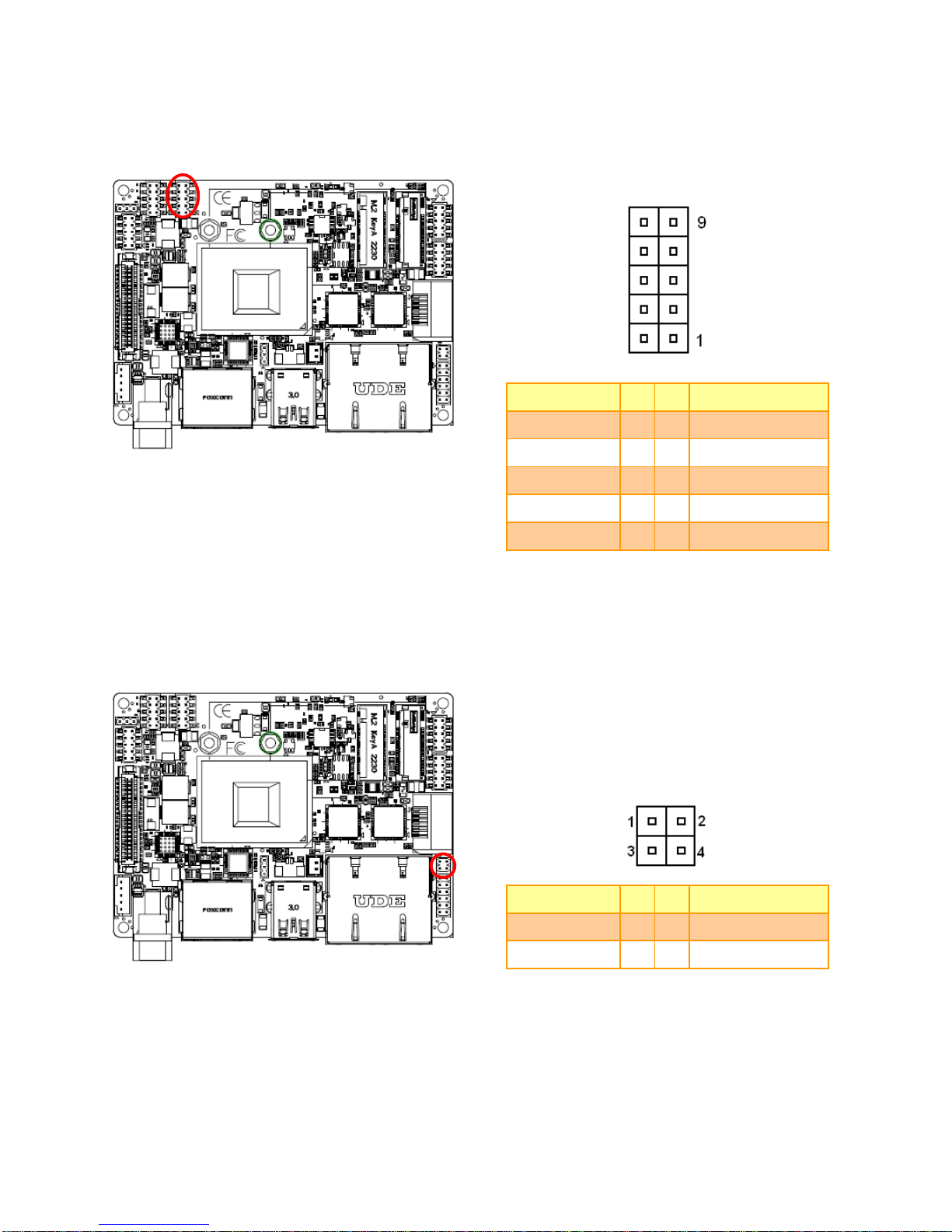

2.3.10 Low pin count interface (JLPC1)
Signal
PIN
PIN
Signal
GND
10 9 LPC_SERIRQ
LPC_CLK_DEB
8 7 LPC_AD3
LPC_FRAME#
6 5 LPC_AD2
PLT_RST#
4 3 LPC_AD1
+3.3V
2 1 LPC_AD0
2.3.11 LPC power select (LPCP1)
Signal
PIN
PIN
Signal
+5V
1 2 +12V
JNRIB#
3 4 GND
Page 25
User’s Manual
EPX-APLP User’s Manual
25

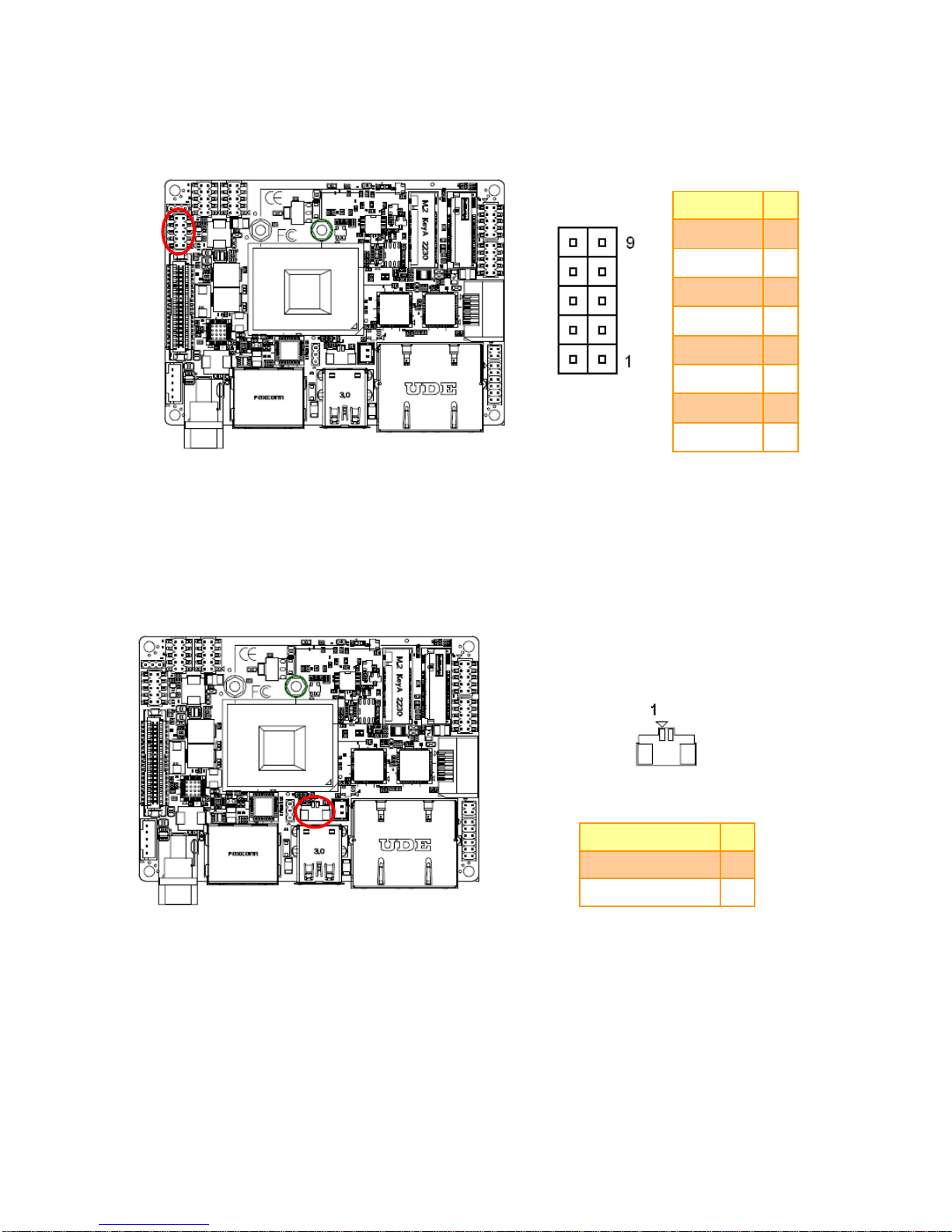

2.3.12 Miscellaneous setting connector (FPT1)
Signal
PIN
+HD-LED
1
+PWR-LED
2
-HD-LED
3
-PWR-LED
4
+Reset
5
+PWR_BNT
6
-Reset
7
-PWR_BNT
8
2.3.13 Battery connector (BT1)
Signal
PIN
+3.3VSB
1
GND
2
Page 26
EPX-APLP User’s Manual
26 EPX-APLP User’s Manual

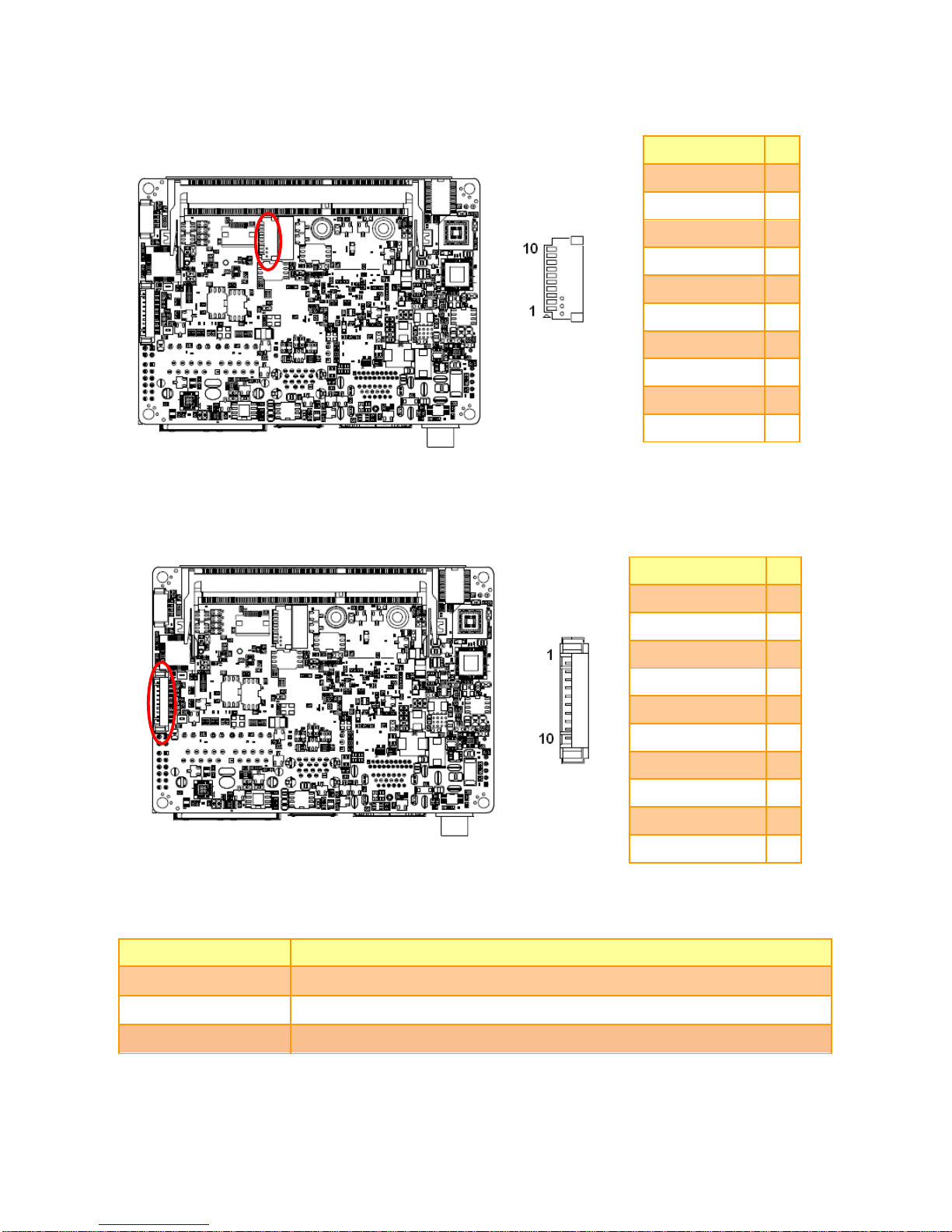

2.3.14 SPI header (SPI1)
Signal
PIN
+1.8VSB
10
GND
9
SPI_CS0#
8
SPI_CLK
7
SPI_MISO
6
SPI_MOSI
5
SPI_HOLD#
4
NC
3
EC_SMBCLK
2
EC_SMBDATA
1
2.3.15 Audio connector (FAUD1)
Signal
PIN
MIC2_L
1
GND
2
MIC2_R
3
AUD_FRONT_DET
4
LINE2_R
5
MIC2_JD
6
SENSE_B
7
NC
8
LINE2_L
9
LINE2_JD
10
2.3.15.1 Signal Description – Audio connector (FAUD1)
Signal
Signal Description
LINE2_JD
AUDIO IN (LINE_RIN/LIN)sense pin
AUD_FRONT_DET
AUDIO Out(ROUT/LOUT) sense pin
MIC2_JD
MIC IN (MIC_RIN/LIN) sense pin
Page 27
User’s Manual
EPX-APLP User’s Manual
27

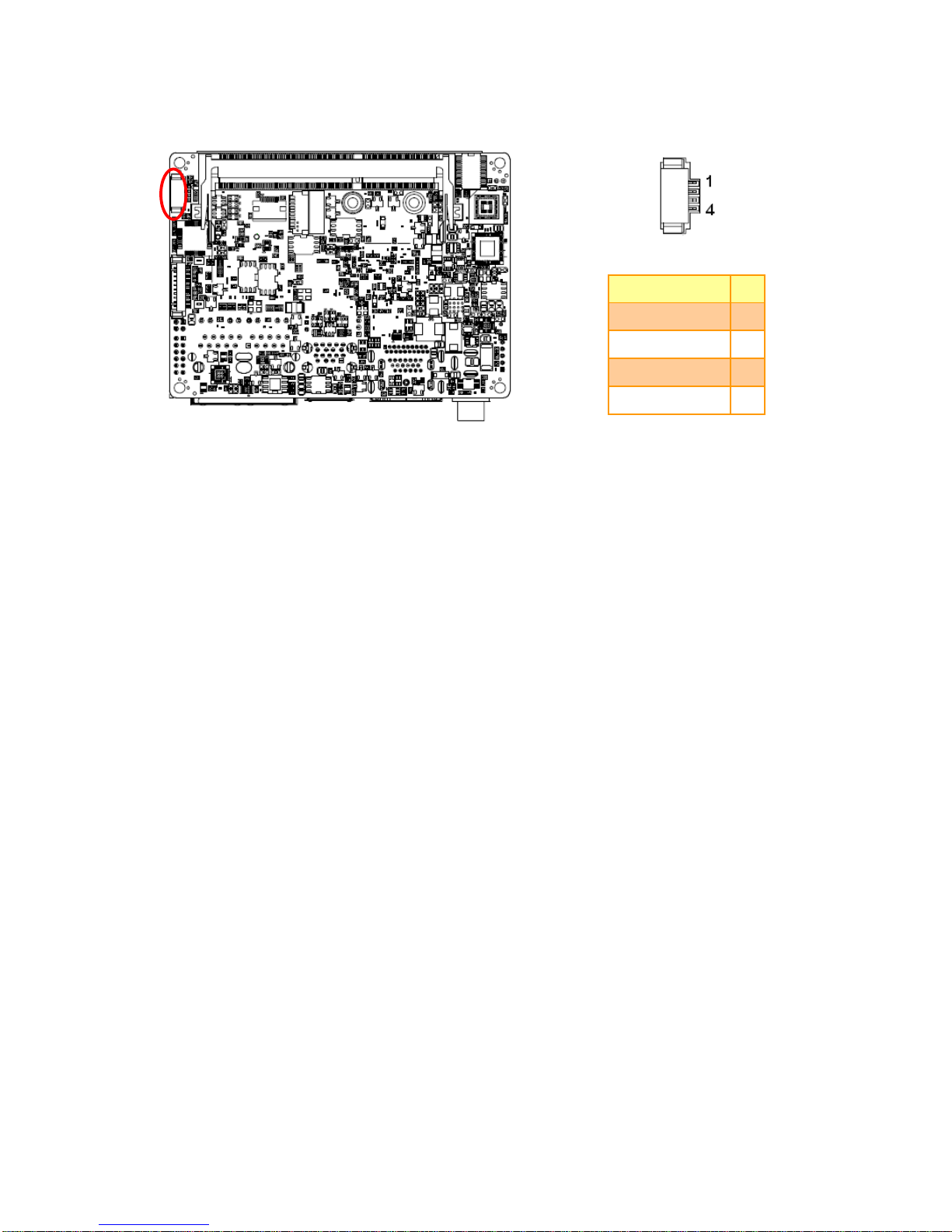

2.3.16 Speaker connector (SPK1)
Signal
PIN
LSPK+
1
LSPK-
2
RSPK+
3
RSPK-
4
Page 28
EPX-APLP User’s Manual
28 EPX-APLP User’s Manual
3.BIOS Setup
Page 29
User’s Manual
EPX-APLP User’s Manual
29
3.1 Introduction
The BIOS setup program allows users to modify the basic system configuration. In this
following chapter will describe how to access the BIOS setup program and the
configuration options that may be changed.
3.2 Starting Setup
AMI BIOS™ is immediately activated when you first power on the computer. The BIOS
reads the system information contained in the NVRAM and begins the process of checking
out the system and configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <DEL> or <ESC> immediately after switching the system on, or
By pressing the <DEL> or <ESC> key when the following message appears briefly at the
left-top of the screen during the POST (Power On Self Test).
Press <DEL> or <ESC> to enter SETUP
If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys.
Page 30
EPX-APLP User’s Manual
30 EPX-APLP User’s Manual
3.3 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.
Button
Description
↑↓→←
Move
Enter
Select
+/-
Value
ESC
Exit
F1 key
General Help
F2 key
Previous Values
F3 key
Optimized Defaults
F4 key
Save & Exit Setup
<K>
Scroll help area upwards
<M>
Scroll help area downwards
Navigating Through The Menu Bar
Use the left and right arrow keys to choose the menu you want to be in.
Note: Some of the navigation keys differ from one screen to another.
To Display a Sub Menu
Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A “” pointer marks all sub menus.
Page 31
User’s Manual
EPX-APLP User’s Manual
31
3.4 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or
<Enter> key.
3.5 In Case of Problems
If, after making and saving system changes with Setup, you discover that your computer no
longer is able to boot, the AMI BIOS supports an override to the NVRAM settings which
resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both BIOS Vendor and your systems manufacturer
to provide the absolute maximum performance and reliability. Even a seemingly small
change to the chipset setup has the potential for causing you to use the override.
Page 32
EPX-APLP User’s Manual
32 EPX-APLP User’s Manual
3.6 BIOS setup
Once you enter the Aptio Setup Utility, the Main Menu will appear on the screen. The Main
Menu allows you to select from several setup functions and exit choices. Use the arrow
keys to select among the items and press <Enter> to accept and enter the sub-menu.

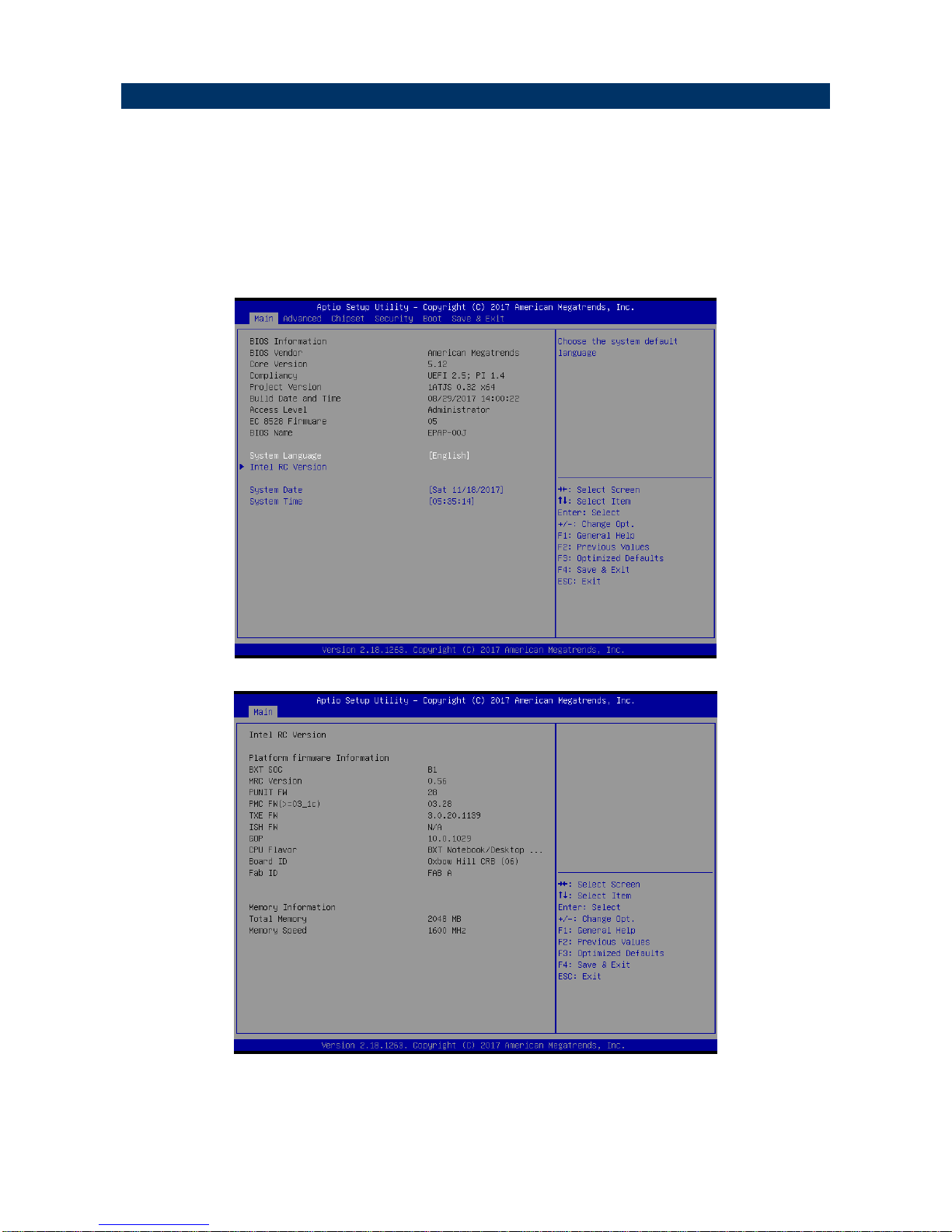

3.6.1 Main Menu
This section allows you to record some basic hardware configurations in your computer and
set the system clock.
Page 33
User’s Manual
EPX-APLP User’s Manual
33
3.6.1.1 System Language
This option allows choosing the system default language.
3.6.1.2 System Date
Use the system date option to set the system date. Manually enter the day, month and
year.
3.6.1.3 System Time
Use the system time option to set the system time. Manually enter the hours, minutes and
seconds.
Note: The BIOS setup screens shown in this chapter are for reference purposes
only, and may not exactly match what you see on your screen.
Visit the Avalue website (www.avalue.com.tw) to download the latest
product and BIOS information.
3.6.2 Advanced Menu
This section allows you to configure your CPU and other system devices for basic operation
through the following sub-menus.
Page 34
EPX-APLP User’s Manual
34 EPX-APLP User’s Manual
3.6.2.1 Trusted Computing
Item
Options
Description
Security Device Support
Disable,
Enable[Default]
Enables or Disables BIOS support for security
device. O.S. will not show Security Device. TCG
EFI protocol and INT1A interface will not be
available.
3.6.2.2 APCI Settings
Page 35
User’s Manual
EPX-APLP User’s Manual
35
Item
Options
Description
Enable Hibernation
Disabled
Enabled[Default]
Enables or Disables System ability to
Hibernate (OS/S4 Sleep State). This
option may be not effective with some
OS.
ACPI Sleep State
Suspend Disabled,
S3 (Suspend to RAM) [Default]
Select the highest ACPI sleep state the
system will enter when the SUSPEND
button is pressed.
ErP Function
Disabled[Default],
Enabled
ErP Function (Deep S5).
Pwr-On After PWR-Fail
Off[Default]
On
Last state
AC loss resume.
Watch Dog
Disabled[Default],
30 sec
40 sec
50 sec
1 min
2 min
10 min
30 min
Select WatchDog.
USB Standby Power Setting
Disabled
Enabled[Default]
Enabled/Disabled USB Standby Power
during S3/S4/S5.
Wake Up By Ring
Disabled
Enabled[Default]
Wake Up by Ring from S3/S4/S5.
3.6.2.3 IT8528 Super IO Configuration
You can use this item to set up or change the IT8528 Super IO configuration for serial ports.
Please refer to 3.6.2.3.1 for more information.
Page 36
EPX-APLP User’s Manual
36 EPX-APLP User’s Manual
Item
Description
Serial Port 1 Configuration
Set Parameters of Serial Port 1 (COMA).
3.6.2.3.1 Serial Port 1 Configuration
Item
Option
Description
Serial Port
Disabled
Enabled[Default]
Enable or Disable Serial Port (COM).
3.6.2.4 H/W Monitor
Page 37
User’s Manual
EPX-APLP User’s Manual
37
3.6.2.5 S5 RTC Wake Settings
Item
Options
Description
Wake system from S5
Disabled[Default],
Fixed Time
Dynamic Time
Enable or disable System wake on alarm event. Select
Fixed Time, system will wake on the hr::min::sec specified.
Select Dynamic Time, System will wake on the current time
+ Increase minute(s).
3.6.2.6 Serial Port Console Redirection
Item
Options
Description
Console Redirection
Disabled[Default],
Enabled
Console Redirection Enable or Disable.
Page 38
EPX-APLP User’s Manual
38 EPX-APLP User’s Manual
3.6.2.6.1 Legacy Console Redirection Settings
Item
Option
Description
Legacy Serial Redirection Port
COM0[Default]
Select a COM port to display redirection of
Legacy OS and Legacy OPROM Messages.
3.6.2.7 CPU Configuration
Use the CPU configuration menu to view detailed CPU specification and configure the
CPU.
Item
Options
Description
Active Processor Cores
Disabled[Default]
Number of cores to enable in each
Page 39
User’s Manual
EPX-APLP User’s Manual
39
Enabled
processor package.
Intel Virtualization Technology
Disabled
Enabled[Default]
When enabled, a VMM can utilize the
additional hardware capabilities provided
by Vanderpool Technology.
VT-d
Disabled[Default]
Enabled
Enable/Disable CPU VT-d.
Bi-directional PROCHOT
Disabled
Enabled[Default]
When a processor thermal sensor trips
(either core), the PROCHOT# will be
driven. If bi-direction is enabled, external
agents can drive PROCHOT# to throttle
the processor.
Thermal Monitor
Disabled
Enabled[Default]
Enable/Disable Thermal Monitor.
Monitor Mwait
Disabled
Enabled
Auto[Default]
Enable/Disable Monitor Mwait.
P-STATE Coordination
HW_ALL[Default]
SW_ALL
SW_ANY
Change P-STATE Coordination type.
DTS
Disabled[Default]
Enabled
Enable/Disable Digital Thermal Sensor.
3.6.2.7.1 Socket 0 CPU Information
Page 40
EPX-APLP User’s Manual
40 EPX-APLP User’s Manual
3.6.2.7.2 CPU Power Management Configuration
Item
Option
Description
EIST
Disabled
Enabled[Default]
Enable/Disable Intel SpeedStep.
Turbo Mode
Disabled
Enabled[Default]
Turbo Mode.
C-States
Disabled
Enabled[Default]
Enable/Disable C States.
Enhanced C-states
Disabled
Enabled[Default]
Enable/Disable C1E. When enabled, CPU will
switch to minimum speed when all cores enter
C-State.
Max Core C State
Fused value[Default]
Core C10
Core C9
Core C8
Core C7
Core C6
Core C1
Unlimited
This option controls the Max Core C State that
cores will support.
C-State Auto Demotion
Disabled
C1[Default]
Configure C-State Auto Demotion.
C-State Un-demotion
Disabled
C1[Default]
Configure C-State Un-demotion.
Page 41
User’s Manual
EPX-APLP User’s Manual
41

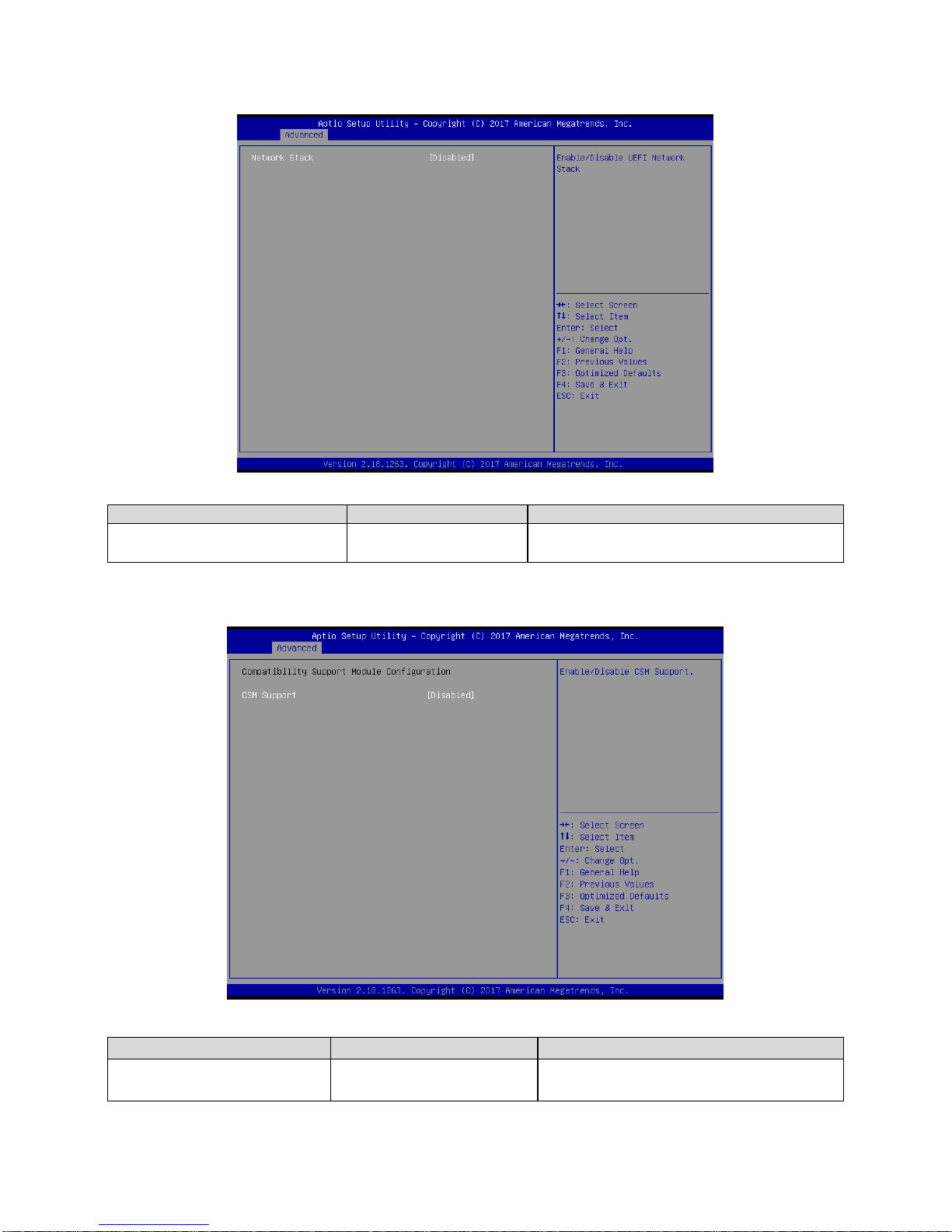

3.6.2.8 Network Stack Configuration
Item
Options
Description
Network Stack
Disabled[Default]
Enabled
Enable/Disable UEFI Network Stack.
3.6.2.9 CSM Configuration
Item
Options
Description
CSM Support
Disabled[Default]
Enabled
Enable/Disable CSM Support.
Page 42
EPX-APLP User’s Manual
42 EPX-APLP User’s Manual
3.6.2.10 NVMe Configuration
3.6.2.11 USB Configuration
The USB Configuration menu helps read USB information and configures USB settings.
Item
Options
Description
Legacy USB Support
Enabled[Default]
Disabled
Auto
Enables Legacy USB support. AUTO option
disables legacy support if no USB devices are
connected. DISABLE option will keep USB
devices available only for EFI applications.
XHCI Hand-off
Disabled
Enabled[Default]
This is a workaround for OSes without XHCI
hand-off support. The XHCI ownership change
should be claimed by XHCI driver.
Page 43
User’s Manual
EPX-APLP User’s Manual
43
USB Mass Storage Driver Support
Disabled
Enabled[Default]
Enable/Disable USB Mass Storage Driver
Support.
USB transfer time-out
1 sec
5 sec
10 sec
20 sec[Default]
The time-out value for Control, Bulk, and Interrupt
transfers.
Device reset time-out
10 sec
20 sec[Default]
30 sec
40 sec
USB mass storage device Start Unit command
time-out.
Device power-up delay
Auto[Default]
Manual
Maximum time the device will take before it
properly reports itself to the Host Controller. ‘Auto’
uses default value: for a Root port it is 100ms, for
a Hub port the delay is taken form Hub descriptor.
Mass Storage Devices
Auto[Default]
Floppy
Forced FDD
Hard Disk
CD-ROM
Mass storage device emulation type. ‘AUTO’
enumerates devices according to their media
format. Optical drives are emulated as ‘CDROM’,
drives with no media will be emulated according
to a drive type.

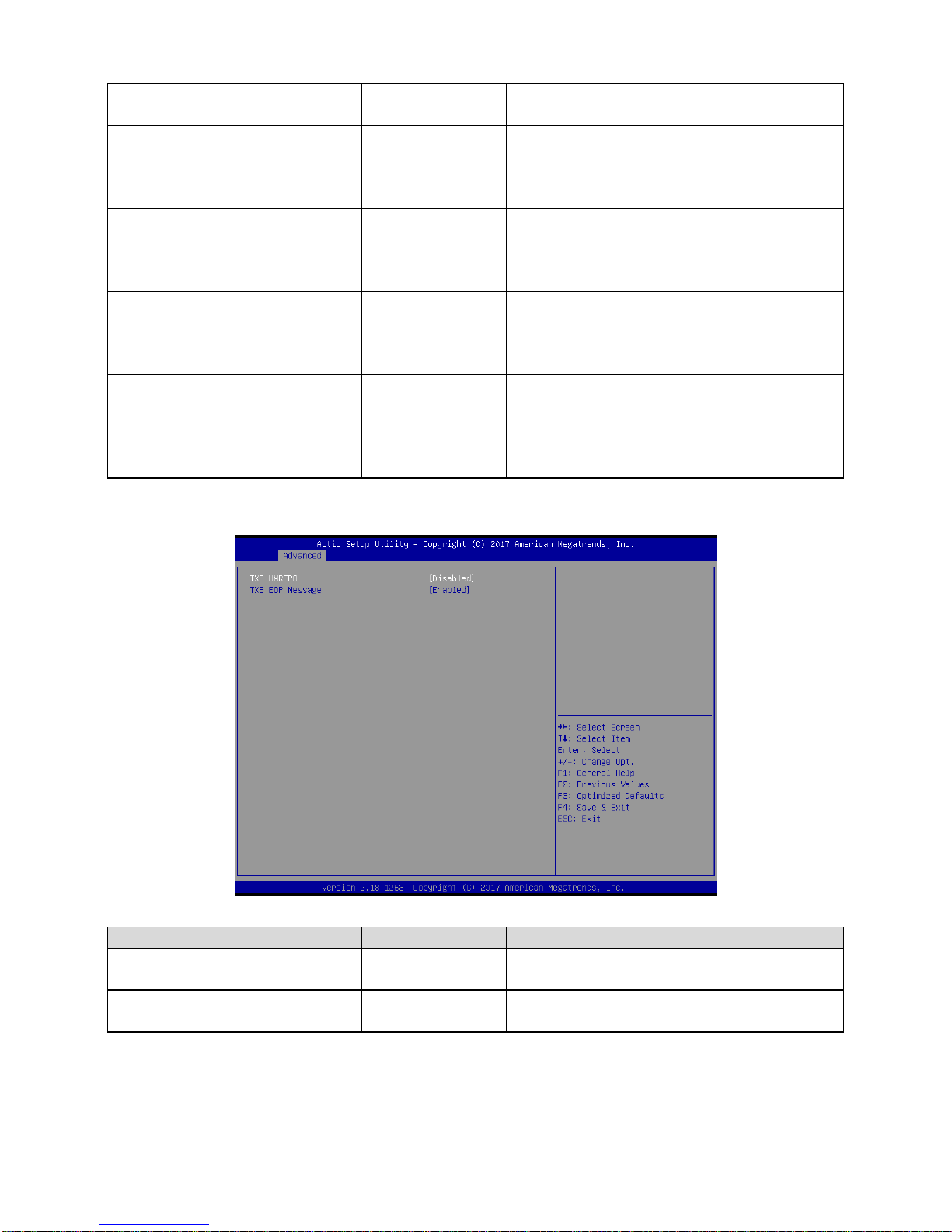

3.6.2.12 Security Configuration
Item
Options
Description
TXE HMRFPO
Enabled
Disabled[Default]
TXE HMRFPO.
TXE EOP Message
Enabled[Default]
Disabled
Send EOP Message Before Enter OS.
Page 44
EPX-APLP User’s Manual
44 EPX-APLP User’s Manual
3.6.3 Chipset
3.6.3.1 North Bridge
Item
Option
Description
Max TOLUD
2 GB[Default]
2.25 GB
2.5 GB
2.75 GB
Maximum Value of TOLUD.
Above 4GB MMIO BIOS assignment
Enabled,
Disabled[Default]
Enable/Disable above 4GB
MemoryMappedIO BIOS assignment.
This is disabled automatically when
Aperture Size is set to 2048MB.
Page 45
User’s Manual
EPX-APLP User’s Manual
45
3.6.3.2 South Bridge
Item
Option
Description
Serial IRQ Mode
Quiet
Continuous[Default]
Configure Serial IRQ Mode.
OS Selection
Windows[Default]
Android
Intel Linux
Select the target OS.
3.6.3.3 Uncore Configuration
Page 46
EPX-APLP User’s Manual
46 EPX-APLP User’s Manual
Item
Option
Description
GOP Driver
Enable[Default]
Disable
Enable GOP Driver will unload VBIOS ;
Dsiable it will load VBIOS.
Cd Clock Frequency
144 MHz
288 MHz
384 MHz
576 MHz
624 MHz[Default]
Select the highest Cd Clock frequency
supported by the platform.
Active LVDS (CH7511)
Disabled
Enabled[Default]
Active Internal
LVDS(eDP->Ch7511-to-LVDS).
CH7511 EDID Panel Option
1024x768 24/1[Default]
800x600 18/1
1024x768 18/1
1366x768 18/1
1024x600 18/1
1280x800 18/1
1920x1200 24/2
1920x1080 18/2
1280x1024 24/2
1440x900 18/2
1600x1200 24/2
1366x768 24/1
1920x1080 24/2
1680x1050 24/2
Port1-EDP to LVDS(Chrotel 7511) Panel
EDID Option.
Brightness Control Method
BIOS[Default]
OS Driver
LVDS Brightness Control Method. 1.BIOS
2.Brightness Button 3.Variable Resistor
4.OS Driver.
LVDS Back Light PWM
00%
25%
50%
75%
100%[Default]
Select LVDS back light PWM duty.
LVDS Back Light PWM
Frequency
200[Default]
300
400
500
700
1k
2k
3k
5k
10k
20k
Select LVDS back light PWM Frequency.
Page 47
User’s Manual
EPX-APLP User’s Manual
47
3.6.3.4 South Cluster Configuration
3.6.3.4.1 HD-Audio Configuration
Item
Option
Description
HD-Audio Support
Disable
Enable[Default]
Enable/Disable HD-Audio Support.
AMP Gain Setting
11db
14db
Select AMP Gain db.
Page 48
EPX-APLP User’s Manual
48 EPX-APLP User’s Manual
19db[Default]
25db
3.6.3.4.2 PCI Express Configuration
Item
Option
Description
Compliance Mode
Disabled[Default]
Enabled
Compliance Mode Enable/Disable.
3.6.3.4.2.1 PCI Express Root Port 3(i210/211)
Page 49
User’s Manual
EPX-APLP User’s Manual
49
Item
Option
Description
PCI Express Root Port 3(i210/211)
Disable
Enable[Default]
Control the PCI Express Root Port. AUTO:
To disable unused root port automatically for
the most optimum power savings. Enable:
Enable PCIe root port Disable: Disable PCIe
root port.
ASPM
Disable[Default]
L0s
L1
L0sL1
Auto
PCI Express Active State Power
Management settings.
L1 Substates
Disabled[Default]
L1.1
L1.2
L1.1 & L1.2
PCI Express L1 Substates settings.
PCIe Speed
Auto[Default]
Gen1
Gen2
Configure PCIe Speed.

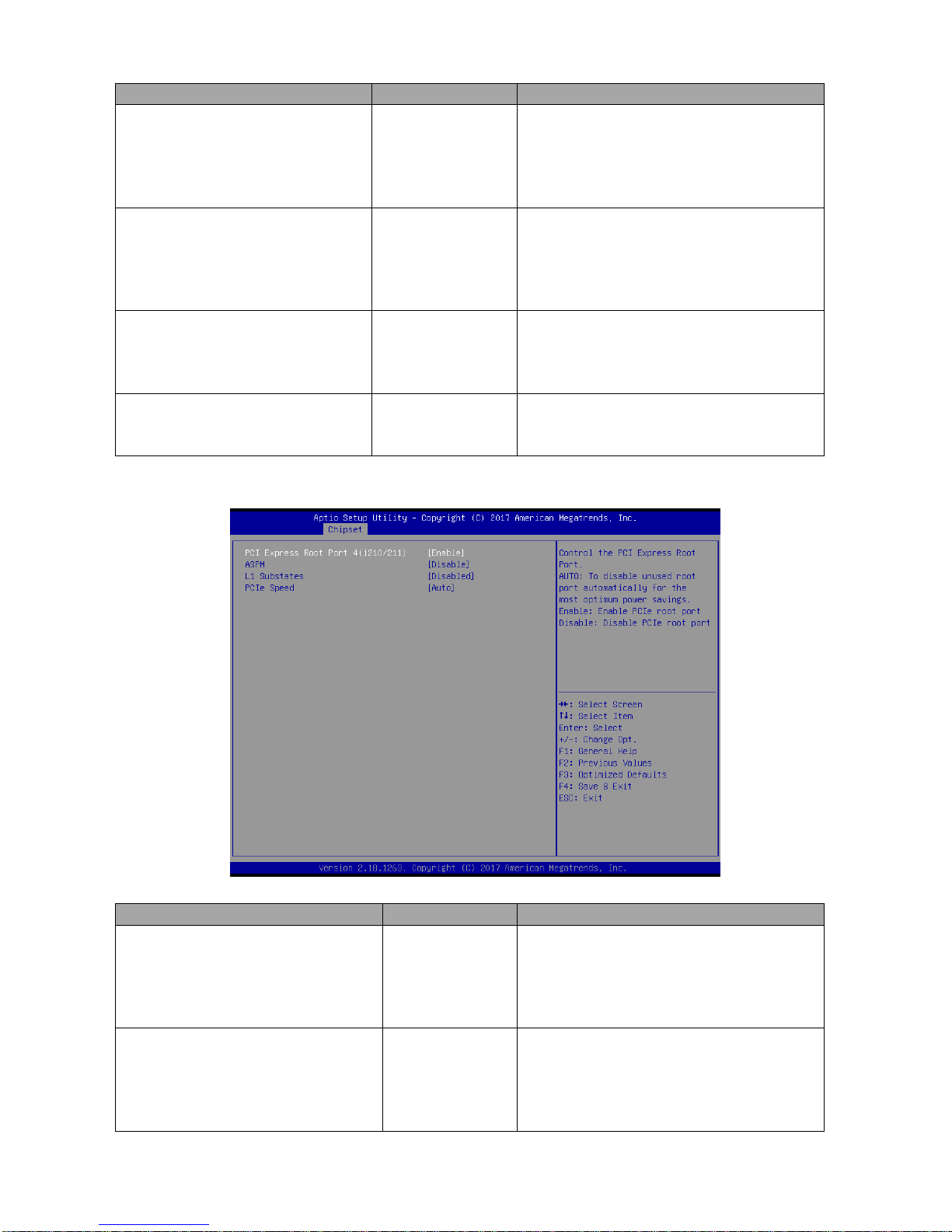

3.6.3.4.2.2 PCI Express Root Port 4(i210/211)
Item
Option
Description
PCI Express Root Port 4(i210/211)
Disable
Enable[Default]
Control the PCI Express Root Port. AUTO:
To disable unused root port automatically for
the most optimum power savings. Enable:
Enable PCIe root port Disable: Disable PCIe
root port.
ASPM
Disable[Default]
L0s
L1
L0sL1
Auto
PCI Express Active State Power
Management settings.
Page 50
EPX-APLP User’s Manual
50 EPX-APLP User’s Manual
L1 Substates
Disabled[Default]
L1.1
L1.2
L1.1 & L1.2
PCI Express L1 Substates settings.
PCIe Speed
Auto[Default]
Gen1
Gen2
Configure PCIe Speed.
3.6.3.4.2.3 PCI Express Root Port 5(M.2 Key-B)
Item
Option
Description
PCI Express Root Port 5(M.2 Key-B)
Disable
Enable[Default]
Control the PCI Express Root Port. AUTO:
To disable unused root port automatically for
the most optimum power savings. Enable:
Enable PCIe root port Disable: Disable PCIe
root port.
ASPM
Disable[Default]
L0s
L1
L0sL1
Auto
PCI Express Active State Power
Management settings.
L1 Substates
Disabled[Default]
L1.1
L1.2
L1.1 & L1.2
PCI Express L1 Substates settings.
PCIe Speed
Auto[Default]
Gen1
Gen2
Configure PCIe Speed.
Page 51
User’s Manual
EPX-APLP User’s Manual
51
3.6.3.4.2.4 PCI Express Root Port 6(M.2 Key-A)
Item
Option
Description
PCI Express Root Port 6(M.2 Key-A)
Disable
Enable[Default]
Control the PCI Express Root Port. AUTO:
To disable unused root port automatically for
the most optimum power savings. Enable:
Enable PCIe root port Disable: Disable PCIe
root port.
ASPM
Disable[Default]
L0s
L1
L0sL1
Auto
PCI Express Active State Power
Management settings.
L1 Substates
Disabled[Default]
L1.1
L1.2
L1.1 & L1.2
PCI Express L1 Substates settings.
PCIe Speed
Auto[Default]
Gen1
Gen2
Configure PCIe Speed.
Page 52
EPX-APLP User’s Manual
52 EPX-APLP User’s Manual
3.6.3.4.3 SATA Drivers
Item
Option
Description
Chipset SATA
Enable[Default]
Disable
Enables or Disables the Chipset SATA
Controller. The Chipset SATA controller
supports the 2 black internal SATA ports (up
to 3Gb/s supported per port).
Aggressive LPM Support
Disabled[Default]
Enabled
Enable PCH to aggressively enter link power
state.
Port 0/1
Disabled
Enabled[Default]
Enable or Disable SATA Port.
SATA Device Type
Hard Disk Drive[Default]
Solid State Drive
Identify the SATA port is connected to Solid
State Drive or Hard Disk Drive.
SATA Port 0/1 DevSlp
Disabled[Default]
Enabled
Enable/Disable SATA Port 0/1 DevSlp.
Board rework for LP needed before enable.
Page 53
User’s Manual
EPX-APLP User’s Manual
53
3.6.3.4.4 USB Configuration
Item
Option
Description
XHCI Pre-Boot Driver
Enable
Disable[Default]
Enable/Disable XHCI Pre-Boot Driver support.
xHCI Mode
Enable[Default]
Disable
Once disabled, XHCI controller would be function
disabled, none of the USB devices are detectable
and usable during boot and in OS. Do not disable it
unless for debug purpose.
Page 54
EPX-APLP User’s Manual
54 EPX-APLP User’s Manual
3.6.4 Security
Setup Administrator Password
Set setup Administrator Password
User Password
Set User Password
Page 55
User’s Manual
EPX-APLP User’s Manual
55
3.6.4.1 Secure Boot
Item
Option
Description
Attempt Secure Boot
Disabled
Enabled[Default]
Secure Boot activated when Platform Key(PK)
is enrolled, System mode is User/Deployed,
and CSM function is disabled.
Secure Boot Mode
Standard[Default]
Customized
Secure Boot Mode – Custom_Standard, Set
UEFI Secure Boot Mode to STANDARD mode
or CUSTOM mode, this change is effect after
save. And after reset, the mode will return to
STANDARD mode.
Page 56
EPX-APLP User’s Manual
56 EPX-APLP User’s Manual
3.6.5 Boot
Item
Option
Description
Setup Prompt Timeout
1~ 65535
Number of seconds to wait for setup activation
key. 65535(0xFFFF) means indefinite waiting.
Bootup NumLock State
On[Default]
Off
Select the Keyboard NumLock state
Quiet Boot
Disabled[Default]
Enabled
Enables or disables Quiet Boot option
Boot Option #1
Set the system boot order.
Page 57
User’s Manual
EPX-APLP User’s Manual
57
3.6.6 Save and exit
3.6.6.1 Save Changes and Reset
Reset the system after saving the changes.
3.6.6.2 Discard Changes and Reset
Any changes made to BIOS settings during this session of the BIOS setup program are
Page 58
EPX-APLP User’s Manual
58 EPX-APLP User’s Manual
discarded. The setup program then exits and reboots the controller.
3.6.6.3 Restore Defaults
This option restores all BIOS settings to the factory default. This option is useful if the
controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting.
3.6.6.4 Launch EFI Shell from filesystem device
Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem
devices.
Page 59
User’s Manual
EPX-APLP User’s Manual
59
4. Drivers Installation
Note: Installation procedures and screen shots in this section are
for your reference and may not be exactly the same as
shown on your screen.
Page 60
EPX-APLP User’s Manual
60 EPX-APLP User’s Manual
4.1 Install Chipset Driver
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system. If the warning message
appears while the installation
process, click Continue to go on.
Step 3. Click Install.
Step1. Click Next.
Step 4. Complete setup.
Step 2. Click Accept.
Page 61
User’s Manual
EPX-APLP User’s Manual
61
4.2 Install TXE Driver
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system. If the warning message
appears while the installation
process, click Continue to go on.
Step 3. Click Next to continue installation.
Step1. Click Next to start installation.
Step 4. Click Finish to complete setup.
Step 2. Click Next.
Page 62
EPX-APLP User’s Manual
62 EPX-APLP User’s Manual

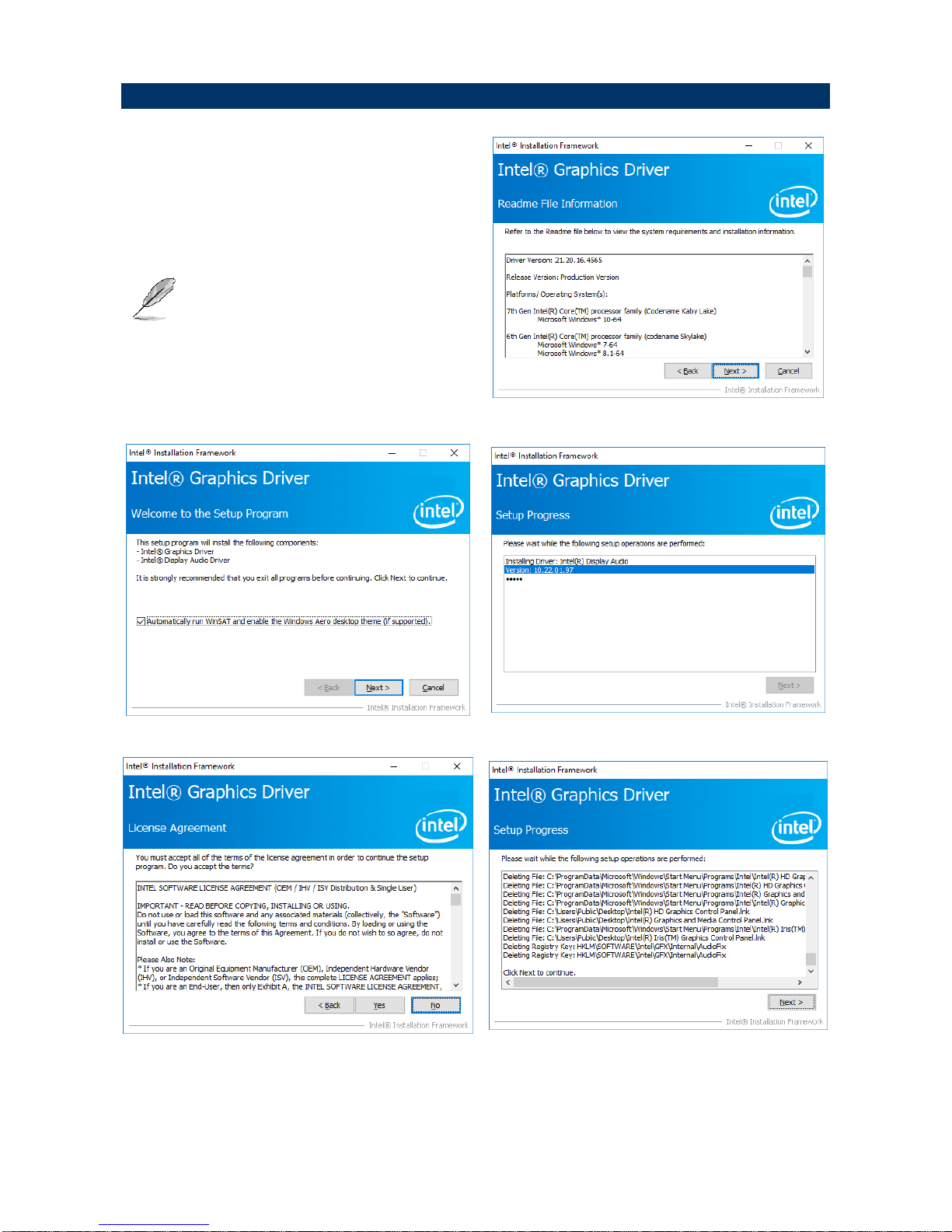

4.3 Install VGA Driver
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system.
Step 3. Click Next.
Step 1. Click Next.
Step 4. Click Next.
Step 2.
Click Yes to accept license agreement.
Step 5. Click Next.
Page 63
User’s Manual
EPX-APLP User’s Manual
63

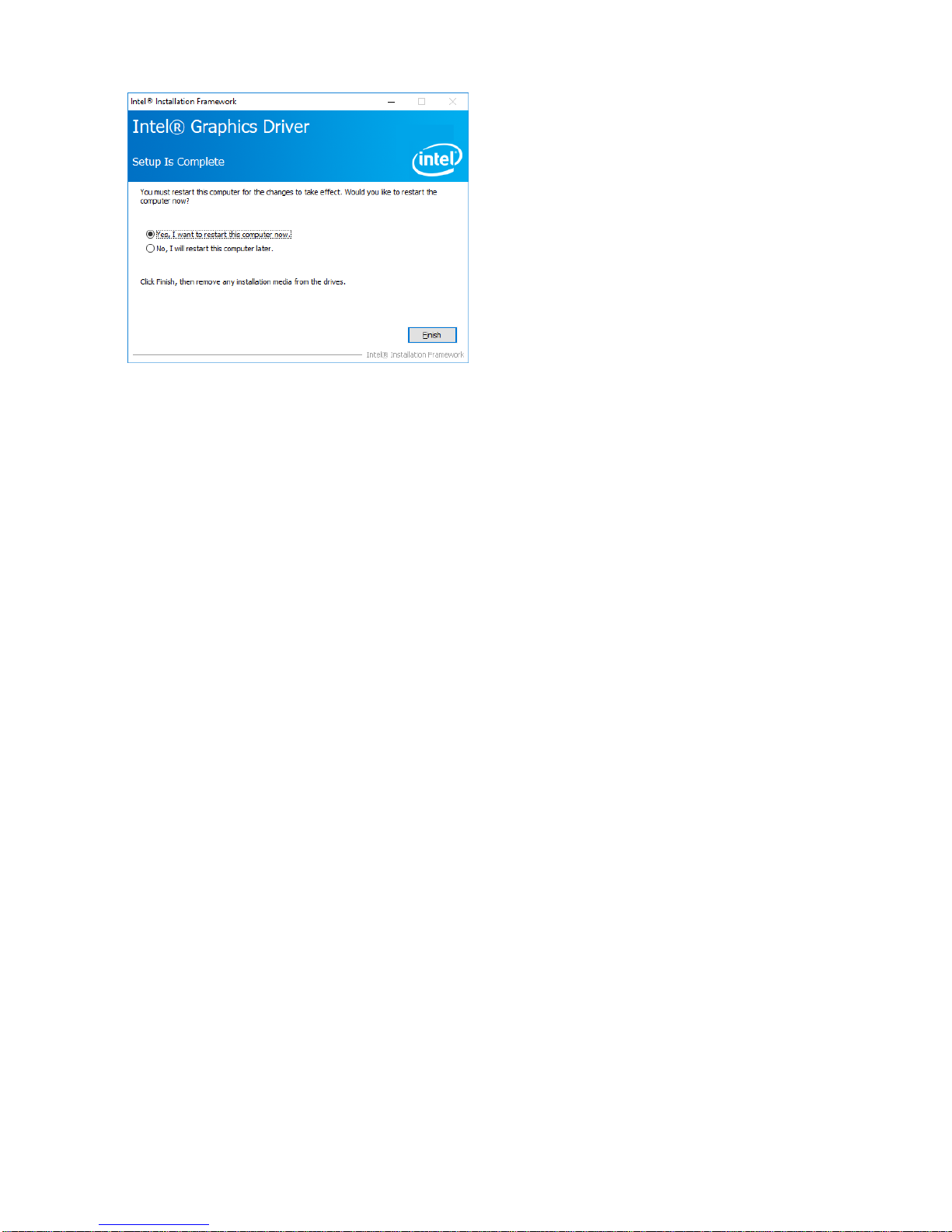

Step 6. Click Finish to complete setup.
Page 64
EPX-APLP User’s Manual
64 EPX-APLP User’s Manual
4.4 Install Audio Driver
Insert the Supporting CD-ROM to
CD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system.
Step 1. Click Next to continue setup.
Step 2. Click Finish to complete the setup.
Page 65
User’s Manual
EPX-APLP User’s Manual
65
4.5 Install Ethernet Driver
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the index
page of Avalue’s products automatically. If
not, locate Index.htm and choose the product
from the menu left, or link to
/Driver_Gigabit/Intel/I211AT/ECM-APL_LAN.
Note: The installation procedures and screen
shots in this section are based on
Windows 10 operation system.
Step 3. Click Next.
Step 1. Click Next
Step 4. Click Install.
Step 2. Click Next to proceed.
Step 5. Click Finish to complete the setup.
Page 66
EPX-APLP User’s Manual
66 EPX-APLP User’s Manual
4.6 Install Serial IO Driver
Insert the Supporting CD-ROM to CD-ROM
drive, and it should show the index page of
Avalue’s products automatically. If not,
locate Index.htm and choose the product
from the menu left.
Note: The installation procedures and
screen shots in this section are
based on Windows 10 operation
system.
Step 3. Click Next.
Step 1. Click Next to continue setup.
Step 4. Click Next.
Step 2. Click Next.
Step 5. Click Finish to complete the setup.
Page 67
User’s Manual
EPX-APLP User’s Manual
67
5. Mechanical Drawing
Page 68
EPX-APLP User’s Manual
68 EPX-APLP User’s Manual
Unit: mm
Page 69
User’s Manual
EPX-APLP User’s Manual
69
Unit: mm
