EPI-QM87R/ EPI-QM87
Intel® 4th Generation Core™ i7/i5/i3 Processor
EPIC Module with Intel® QM87 Chipset
User’s manual
1st Ed – 12 December 2014
Copyright Notice
Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2047382801R
EPI-QM87R/ EPI-QM87
FCC Statement
Notice
Copyright Notice
Trademark Acknowledgement
Disclaimer
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
This guide is designed for experienced users to setup the system within the shortest time.
For detailed information, please always refer to the electronic user's manual.
Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Brand and product names are trademarks or registered trademarks of their respective
owners.
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
2 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
Life Support Policy
A Message to the Customer
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN
LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL
OF Avalue Technology Inc.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into body, or (b) support or sustain life and whose failure to perform,
when properly used in accordance with instructions for use provided in the labeling, can
be reasonably expected to result in significant injury to the user.
2. A critical component is any component of a life support device or system whose failure
to perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.
Avalue Customer Services
Each and every Avalue’s product is built to the most exacting specifications to ensure
reliable performance in the harsh and demanding conditions typical of industrial
environments. Whether your new Avalue device is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and ease of operation
for which the name Avalue has come to be known.
Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To
ensure you get the full benefit of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products. So if you run into
technical difficulties, we are here to help. For the most frequently asked questions, you can
easily find answers in your product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone. So please consult the user’s manual
first.
To receive the latest version of the user’s manual; please visit our Web site at:
http://www.avalue.com.tw/
EPI-QM87R/ EPI-QM87 User’s Manual 3
EPI-QM87R/ EPI-QM87
Product Warranty
Avalue warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Avalue, or which have been subject to
misuse, abuse, accident or improper installation. Avalue assumes no liability under the
terms of this warranty as a consequence of such events. Because of Avalue’s high
quality-control standards and rigorous testing, most of our customers never need to use our
repair service. If any of Avalue’s products is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time, and freight. Please consult your dealer
for more details. If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU type and
speed, Avalue’s products model name, hardware & BIOS revision number, other
hardware and software used, etc.) Note anything abnormal and list any on-screen
messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any
helpful information available.
3. If your product is diagnosed as defective, obtain an RMA (return material authorization)
number from your dealer. This allows us to process your good return more quickly.
4. Carefully pack the defective product, a complete Repair and Replacement Order Card
and a photocopy proof of purchase date (such as your sales receipt) in a shippable
container. A product returned without proof of the purchase date is not eligible for
warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your
dealer.
4 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
Content
1. Getting Started ........................................................................................................... 8
1.1 Safety Precautions ................................................................................................ 8
1.2 Packing List ........................................................................................................... 8
1.3 Document Amendment History ................................................................ .............. 9
1.4 Manual Objectives ............................................................................................... 10
1.5 System Specifications ......................................................................................... 11
1.6 Architecture Overview – Block Diagram .............................................................. 13
2. Hardware Configuration .......................................................................................... 14
2.1 Product Overview ................................................................................................ 15
2.2 Installation Procedure .......................................................................................... 17
2.2.1 Main Memory ........................................................................................................................... 18
2.3 Jumper and Connector List.................................................................................. 20
2.4 Setting Jumpers & Connectors ............................................................................ 22
2.4.1 Clear CMOS (JBAT) ................................................................................................................ 22
2.4.2 Serial port 1/2 - Ring, +5V, +12V power selector (JRI1/2) ...................................................... 22
2.4.3 AT/ATX mode selector, Front panel & LED settings (JFP) ..................................................... 23
2.4.4 Touch panel connector (JTOUCH_SEL) ................................................................................. 23
2.4.5 LCD Backlight brightness adjustment (JVR) ........................................................................... 24
2.4.6 Battery connector (BAT) .......................................................................................................... 24
2.4.7 Audio connector (JAUDIO) ...................................................................................................... 25
2.4.7.1 Signal Description – Audio connector (JAUDIO) ............................................... 25
2.4.8 CPU fan connector (CPU_FAN) .............................................................................................. 26
2.4.9 System fan connector (SYS_FAN) .......................................................................................... 26
2.4.10 PS/2 keyboard & mouse connector (JKBMS) ......................................................................... 27
2.4.11 SATA power connector (SATA_PWR) .................................................................................... 27
2.4.12 Serial port 1/ 2 connector (JCOM1/ JCOM2) .......................................................................... 28
2.4.13 Serial port 3/ 4 connector (JCOM3/ JCOM4) .......................................................................... 28
2.4.14 Serial Port 1/2 RS-422-485 mode (J422_1 / J422_2) ............................................................. 29
2.4.15 LCD Inverter Connector (JBKL) .............................................................................................. 29
2.4.15.1 Signal Description – LCD Inverter Connector (JBKL) ....................................... 29
2.4.16 EC SMB Reserve connector (JECDEG) ................................................................................. 30
2.4.17 5VSB connector in ATX (PWR_SB) ........................................................................................ 30
2.4.18 IrDA connector (JIR) ................................................................................................................ 31
2.4.19 SPI connector (JSPI) ............................................................................................................... 31
2.4.20 LVDS connector (JLVDS) ........................................................................................................ 32
2.4.21 Touch panel connector (JTOUCH) .......................................................................................... 33
EPI-QM87R/ EPI-QM87 User’s Manual 5
EPI-QM87R/ EPI-QM87
2.4.22 General purpose I/O connector (JDIO) ................................................................................... 34
2.4.23 Power connector (PWR) .......................................................................................................... 34
2.4.24 USB 2.0 connector (JUSB1) .................................................................................................... 35
2.4.25 USB 2.0 connector (JUSB2) .................................................................................................... 35
3. BIOS Setup ................................................................................................................... 36
3.1 Introduction .......................................................................................................... 37
3.2 Starting Setup ...................................................................................................... 37
3.3 Using Setup ......................................................................................................... 38
3.4 Getting Help......................................................................................................... 39
3.5 In Case of Problems ............................................................................................ 39
3.6 BIOS setup .......................................................................................................... 40
3.6.1 Main Menu ............................................................................................................................... 40
3.6.1.1 System Language .............................................................................................. 40
3.6.1.2 System Date ...................................................................................................... 40
3.6.1.3 System Time ...................................................................................................... 40
3.6.2 Advanced Menu ....................................................................................................................... 41
3.6.2.1 APCI Settings .................................................................................................... 41
3.6.2.2 S5 RTC Wake Settings ...................................................................................... 42
3.6.2.3 Trusted Computing ............................................................................................ 43
3.6.2.4 CPU Configuration ............................................................................................. 43
3.6.2.5 SATA Configuration ........................................................................................... 45
3.6.2.5.1 Software Feature Mask Configuration ............................................................... 46
3.6.2.6 Intel(R) Rapid Start Technology Configuration .................................................. 46
3.6.2.7 PCH-FW Configuration ...................................................................................... 47
3.6.2.7.1 Firmware Update Configuration......................................................................... 47
3.6.2.8 AMT Configuration ............................................................................................. 48
3.6.2.9 USB Configuration ............................................................................................. 49
3.6.2.10 Hardware Monitor .............................................................................................. 50
3.6.2.11 Super IO Configuration ...................................................................................... 51
3.6.2.11.1 Serial Port 1 Configuration ................................................................................ 51
3.6.2.11.2 Serial Port 2 Configuration ................................................................................ 52
3.6.2.11.3 Serial Port 3 Configuration ................................................................................ 53
3.6.2.11.4 Serial Port 4 Configuration ................................................................................ 54
3.6.2.12 Network Stack.................................................................................................... 55
3.6.2.13 Intel RC Drivers Version Detail .......................................................................... 56
3.6.3 Chipset ................................................................................................................................... 56
3.6.3.1 PCH-IO Configuration ...................................................................................... 57
3.6.3.1.1 PCI Express Configuration .............................................................................. 58
3.6.3.1.1.1 PCI Express Root Port 1 .................................................................................. 58
3.6.3.1.2 USB Configuration ........................................................................................... 59
6 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
3.6.3.1.3 PCH Azalia Configuration ................................................................................ 60
3.6.3.2 System Agent (SA) Configuration .................................................................... 60

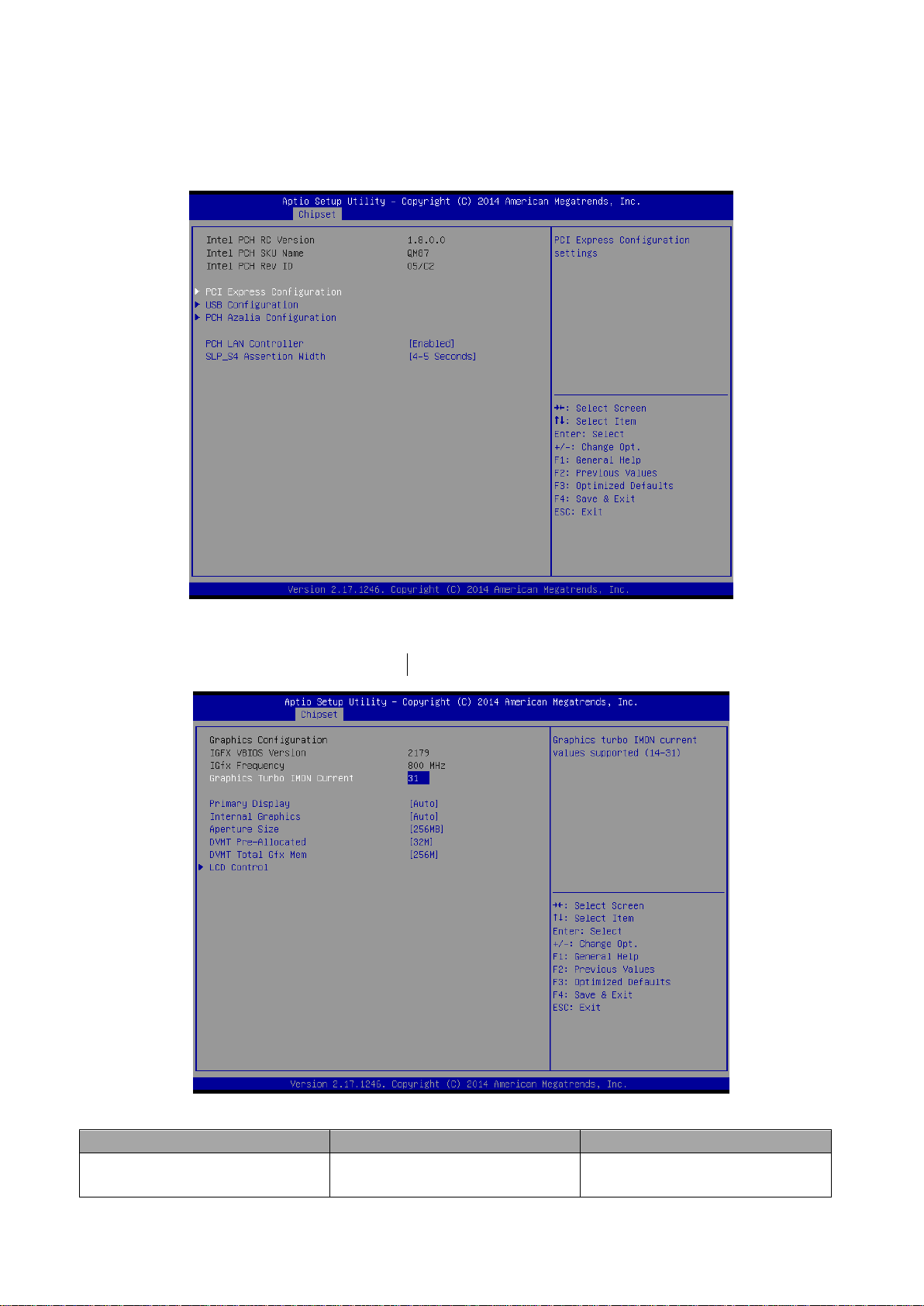

3.6.3.2.1 Graphics Configuration .................................................................................... 61
3.6.3.2.1.1 Graphics Configuration .................................................................................... 61
3.6.3.2.1.1.1 LCD Control ................................................................................................. 62
3.6.3.2.2 Memory Configuration ..................................................................................... 64
3.6.4 Boot ........................................................................................................................................ 64
3.6.4.1 CSM parameters .............................................................................................. 65
3.6.5 Security .................................................................................................................................. 66
3.6.6 Save and exit ......................................................................................................................... 67
3.6.6.1 Save Changes and Reset .................................................................................. 67
3.6.6.2 Discard Changes and Reset .............................................................................. 67
3.6.6.3 Restore Defaults ................................................................................................ 67
4. Drivers Installation ....................................................................................................... 68
4.1 Install Chipset Driver (For Intel QM87) ................................ ................................ 69
4.2 Install ME Driver (For Intel QM87) ....................................................................... 70
4.3 Install USB 3.0 Driver (For Intel QM87) ............................................................... 71
4.4 Install Display Driver (For Intel QM87) ................................................................. 72
4.5 Install Audio Driver (For Realtek ALC892) ........................................................... 73
4.6 Install Ethernet Driver (For Intel I210AT and I217LM) ......................................... 74

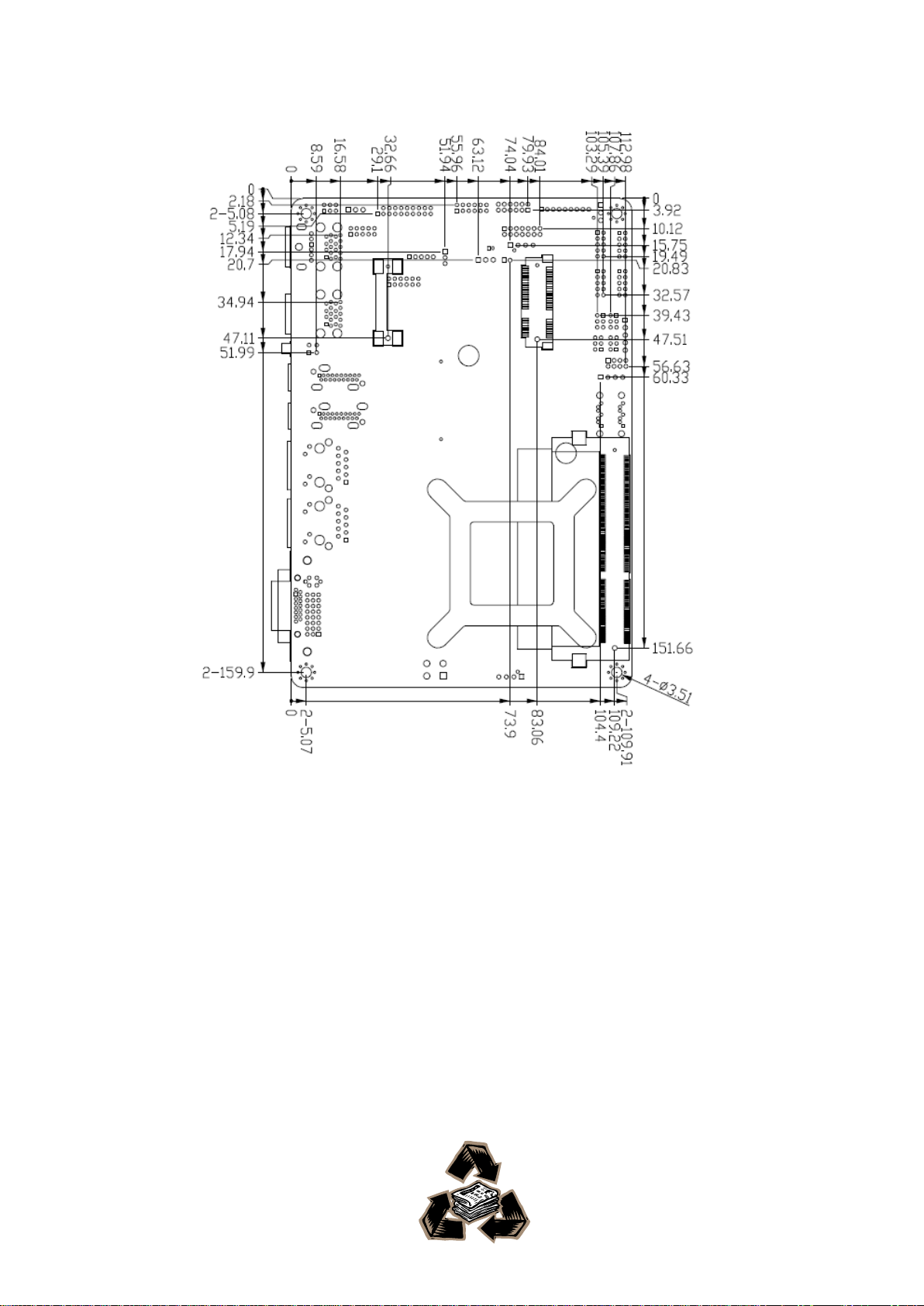

5. Mechanical Drawing .................................................................................................... 75
EPI-QM87R/ EPI-QM87 User’s Manual 7
EPI-QM87R/ EPI-QM87
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
Before you begin installing your single board, please make sure that the
following materials have been shipped:
1 x EPI-QM87R/ EPI-QM87 EPIC Module
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
1 x Cable set contains the followings:
— 1 x Flat cable 9P(M)-PHD 10P/2.0mm
— 1 x Serial ATA cable (7-pin, standard)
— 1 x Serial ATA power cable
8 EPI-QM87R/ EPI-QM87 User’s Manual
Revision
Date
Comment
1st
December 2014
Initial Release
1.3 Document Amendment History
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 9
EPI-QM87R/ EPI-QM87
1.4 Manual Objectives
This manual describes in detail the Avalue Technology EPI-QM87R/ EPI-QM87 Single
Board.
We have tried to include as much information as possible but we have not duplicated
information that is provided in the standard IBM Technical References, unless it proved to
be necessary to aid in the understanding of this board.
We strongly recommend that you study this manual carefully before attempting to interface
with EPI-QM87R/ EPI-QM87 series or change the standard configurations. Whilst all the
necessary information is available in this manual we would recommend that unless you are
confident, you contact your supplier for guidance.
Please be aware that it is possible to create configurations within the NVRAM that make
booting impossible. If this should happen, clear the NVRAM settings, (see the description of
the Jumper Settings for details).
If you have any suggestions or find any errors concerning this manual and want to inform
us of these, please contact our Customer Service department with the relevant details.
10 EPI-QM87R/ EPI-QM87 User’s Manual
System
CPU
Intel® 4th Generation Core™ BGA processors
BIOS
AMI uEFI BIOS, 128 Mbit SPI Flash ROM
System Chipset
Intel QM87 PCH
I/O Chip
EC(IT8518E)
System Memory
1 x 204-pin 1.35V DDR3L 1600/1333MHzSO-DIMM up to 8GB
SSD
1 x mSATA (from Mini PCIe slot)
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.
1sec. or 1min. step
H/W Status
Monitor
CPU & system temperature monitoring
Voltages monitoring
Expansion
1 x mini-PCIe (mSATA supported)
I/O
MIO
2 x SATA III, 2 x RS232, 2 x RS232/422/485, LPC
IrDA
FINTEK 81216 (IR Supported )
USB
2 x USB3.0 , 2 x USB 2.0(Wafer),4 x USB 3.0 (Edge connectors)
DIO
4-bit GPI, 4-bit GPO
Display
Chipset
Intel QM87
Resolution
Triple independent display
Dual HDMI+LVDS/ HDMI+LVDS+DVI or Dual HDMI+CRT/ HDMI+LVDS+CRT
LVDS
Dual channel 18/24-bit LVDS
DVI
One DVI port co-lay with VGA
Ethernet
Chipset
1 x Intel I210AT GbE controller
1 x Intel I217LMGbE PHY
Ethernet Interface
10/100/1000 Base-Tx compatible
Audio
Chipset
Realtek ALC892 HD codec support 5.1 channel
Audio Interface
Mic-In, Line-In and Line-Out
Built-in Touch
screen (optional)
Chipset
PenMount 6000
Touch screen
interface
With 9-pin 2.0mm Box Header (can be selected to support 4/5/8 wire touch screen)
1.5 System Specifications
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 11
EPI-QM87R/ EPI-QM87
Mechanical &
Environmental
Power Requirement
+12V~19V
Power Type
AT / ATX
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 3.0 Compliant
Operating Temp.
0°C ~60°C
Storage Temp.
-40°C ~75°C
Operating Humidity
0%~90% relative humidity, non-condensing
Size (L x W)
4.5" x 6.5" (115mm x 165mm)
Weight
0.41 lbs (0.18 Kg)
12 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
1.6 Architecture Overview – Block Diagram
The following block diagram shows the architecture and main components of EPI-QM87R/
EPI-QM87.
EPI-QM87R/ EPI-QM87 User’s Manual 13
EPI-QM87R/ EPI-QM87
2. Hardware
Configuration
14 EPI-QM87R/ EPI-QM87 User’s Manual
2.1 Product Overview
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 15
EPI-QM87R/ EPI-QM87
16 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
2.2 Installation Procedure
This chapter explains you the instructions of how to setup your system.
1. Turn off the power supply.
2. Insert the SODIMM module (be careful with the orientation).
3. Insert all external cables for hard disk, keyboard, mouse, USB etc. except for flat panel. A
CRT monitor must be connected in order to change NVRAM settings to support flat panel.
4. Connect power supply to the board via the ATXPWR.
5. Turn on the power.
6. Enter the BIOS setup by pressing the delete key during boot up. Use the "Save & Exit \
Restore Defaults" feature.
7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before
connecting the display cable and turning on the power.
Note: Make sure the heat sink and the CPU top surface are in total contact to
avoid CPU overheating problem that would cause the system to hang or
unstable
EPI-QM87R/ EPI-QM87 User’s Manual 17
EPI-QM87R/ EPI-QM87
SODIMM
2.2.1 Main Memory
EPI-QM87R/ EPI-QM87 provides one 204-pin DDR3L SODIMM socket, supports up to
8GB 1.35V DDR3L 1333/1600 SDRAM.
(Rear side)
Make sure to unplug the power supply before adding or removing SODIMMs
or other system components. Failure to do so may cause severe damage to
both the board and the components.
Locate the SODIMM socket on the board.
Hold two edges of the SODIMM module carefully. Keep away of touching its
connectors.
Align the notch key on the module with the rib on the slot.
Firmly press the modules into the socket automatically snaps into the mounting notch.
18 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
Do not force the SODIMM module in with extra force as the SODIMM module only fit
in one direction.
To remove the SODIMM modules, push the two ejector tabs on the slot outward
simultaneously, and then pull out the SODIMM module.
Note:
(1) Please do not change any DDR3L SDRAM parameter in BIOS setup to increase
your system’s performance without acquiring technical information in advance.
(2) Static electricity can damage the electronic components of the computer or
optional boards. Before starting these procedures, ensure that you are
discharged of static electricity by touching a grounded metal object briefly.
EPI-QM87R/ EPI-QM87 User’s Manual 19
EPI-QM87R/ EPI-QM87
Jumpers
Label
Function
Note
JBAT
Clear CMOS
3 x 1 header, pitch 2.54mm
JFP
AT/ATX mode selector, Front panel &
LED settings
6 x 2 header, pitch 2.00mm
JRI1/2
Serial port 1 - Ring, +5V, +12V power
selector
3 x 2 header, pitch 2.00mm
JTOUCH_SEL
Touch panel connector
3 x 1 header, pitch 2.54mm
JVR
LCD Backlight brightness adjustment
3 x 1 header, pitch 2.00mm
2.3 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board's jumpers and connectors.
20 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
Connectors
Label
Function
Note
BAT
Battery connector
2 x 1 wafer, pitch 1.25mm
CN2
DVI connector
CN4
204-pin DDR3 SODIMM

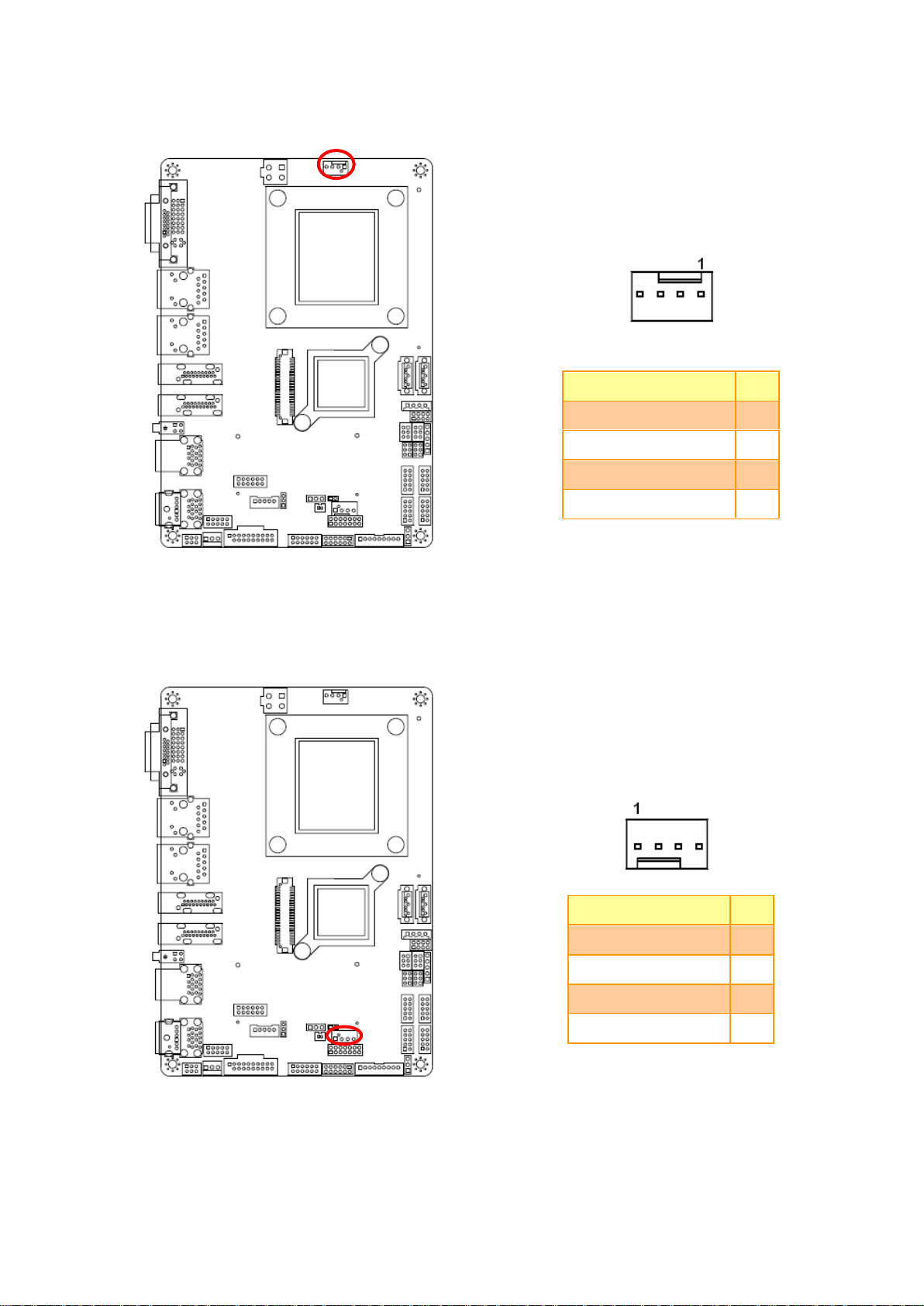

CPU_FAN
CPU Fan connector
4 x 1 wafer, pitch 2.54mm
HDMI1/2
HDMI connector
SATA_PWR
SATA power connector
4 x 1 wafer, pitch 2.50mm
J422_1
Serial Port 1 connector
3 x 2 wafer, pitch 2.00mm
J422_2
Serial Port 2 connector
3 x 2 wafer, pitch 2.00mm
JAUDIO
Audio Connector
6 x 2 wafer, pitch 2.00mm
JBKL
LCD Inverter connector
5 x 1 wafer, pitch 2.00mm
JCOM1~4
Serial port 1~4 connector
5 x 2 wafer, pitch 2.00mm
JDIO
General purpose I/O connector
6 x 2 wafer, pitch 2.00mm
JIR
IrDA connector
5 x 1 header, pitch 2.54mm
JKBMS
PS/2 keyboard & mouse connector
3 x 2 wafer, pitch 2.00mm
JLPC
(Reversed for BIOS programming)
7 x 2 header, pitch 2.00mm
JLVDS
LVDS connector
DIN 40-pin wafer, pitch 1.25mm
JSPI
SPI connector
4 x 2 header, pitch 2.00mm
JTOUCH
Touch panel connector
9 x 1 wafer, pitch 2.00mm
JUSB1
USB 2.0 connector
5 x 2 wafer, pitch 2.00mm
JUSB2
USB 2.0 connector
10 x 2 wafer, pitch 2.00mm
LAN1
RJ-45 Ethernet connector 1
LAN2
RJ-45 Ethernet connector 2
LED3
Power & HDD indicator
MPCIE1/2
Mini PCIEXPRESS connector
PWR_SB
5VSB connector in ATX
3 x 1 wafer, pitch 2.54mm
PWR
Power connector
2 x 2 wafer, pitch 4.2mm
SATA1
Serial ATA connector 1
SATA2
Serial ATA connector 2
SYS_FAN
System Fan connector
4 x 1 wafer, pitch 2.54mm
USB1
USB 3.0 connector 0 & 1
USB2
USB 3.0 connector 2 & 3
JECDEG
EC SMB Reserve connector
2 x 1 header, pitch 2.00mm
EPI-QM87R/ EPI-QM87 User’s Manual 21
EPI-QM87R/ EPI-QM87
*Default
RTC Working*
RTC Reset
* Default
Ring*
+5V
+12V
JRI1
JRI2
2.4 Setting Jumpers & Connectors
2.4.1 Clear CMOS (JBAT)
2.4.2 Serial port 1/2 - Ring, +5V, +12V power selector (JRI1/2)
22 EPI-QM87R/ EPI-QM87 User’s Manual
*Default
AT*
ATX
Signal
PIN
PWBT
1, 2
RST#
3, 4
PWR-LED
5, 6
HDD-LED
7, 8
Short: AT MODE
Open: ATX MODE
9, 10
CASE_OPEN#
11, 12
* Default
5W*
4/ 8W
2.4.3 AT/ATX mode selector, Front panel & LED settings (JFP)
User’s Manual
2.4.4 Touch panel connector (JTOUCH_SEL)
EPI-QM87R/ EPI-QM87 User’s Manual 23
EPI-QM87R/ EPI-QM87
* Default
PWM mode*
DC Mode
Signal
PIN
+3.3V
1
GND
2
2.4.5 LCD Backlight brightness adjustment (JVR)
2.4.6 Battery connector (BAT)
24 EPI-QM87R/ EPI-QM87 User’s Manual
2.4.7 Audio connector (JAUDIO)
Signal
PIN
PIN
Signal
FRONT-L-OUT
1 2 FRONT-R-OUT
GND
3 4 GND
LINE1-L-IN
5 6 LINE1-R-IN
MIC1-L-IN
7 8 MIC1-R-IN
LINE1_JD
9
10
FRONT_JD
GND
11
12
MIC1_JD
Signal
Signal Description
LINE1_JD
Jack detection for line1
MIC1_JD
Jack detection for mic1
User’s Manual
2.4.7.1 Signal Description – Audio connector (JAUDIO)
EPI-QM87R/ EPI-QM87 User’s Manual 25
EPI-QM87R/ EPI-QM87
Signal
PIN
GND
1
+12V
2
EC_TACH0
3
FAN_PWM0
4
Signal
PIN
GND
1
+12V
2
EC_TACH1
3
FAN_PWM1
4

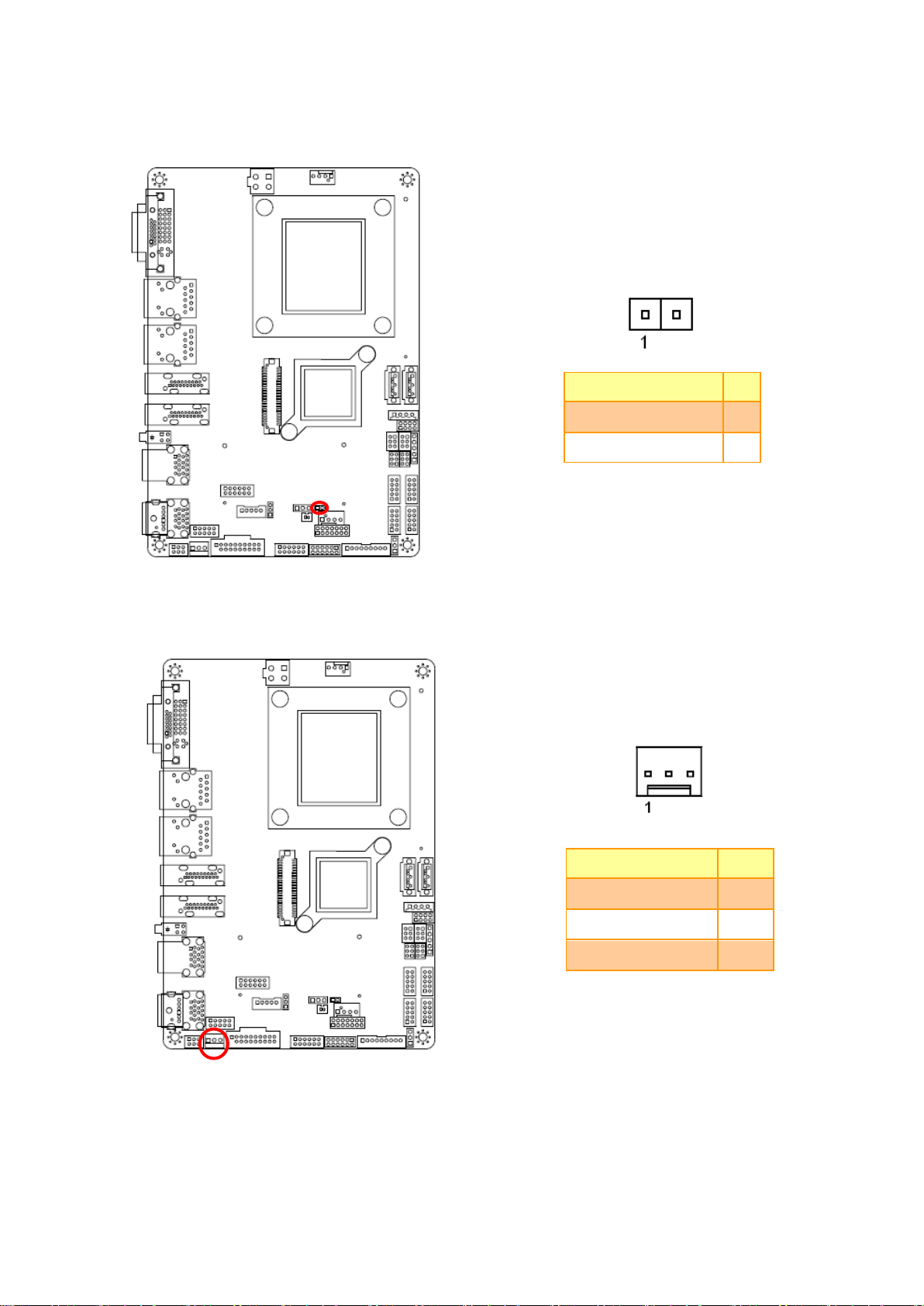

2.4.8 CPU fan connector (CPU_FAN)
2.4.9 System fan connector (SYS_FAN)
26 EPI-QM87R/ EPI-QM87 User’s Manual
Signal
PIN
PIN
Signal
KBCK
1 2 KBDT
KBVCC
3 4 GND
MSCK
5 6 MSDT
Signal
PIN
GND
1
GND
2
+5V
3
+5V
4

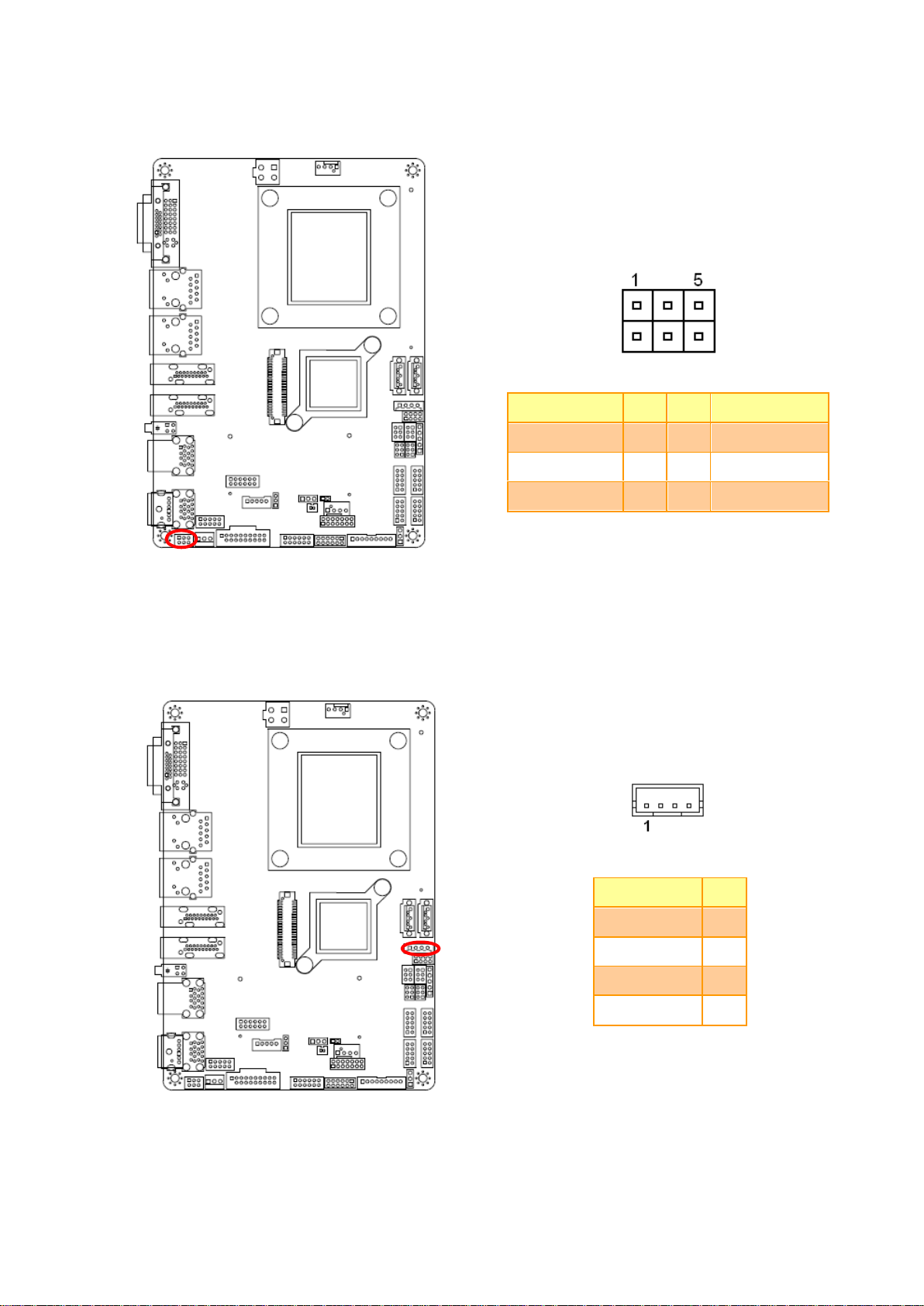

2.4.10 PS/2 keyboard & mouse connector (JKBMS)
User’s Manual
2.4.11 SATA power connector (SATA_PWR)
EPI-QM87R/ EPI-QM87 User’s Manual 27
EPI-QM87R/ EPI-QM87
JCOM1
Signal
PIN
IN
Signal
RI#_1
9
10
NC
RTS#1
7 8 CTS#_1
GND
5 6 DSR#_1
TXD_1
3 4 DTR#_1
DCD#_1
1 2 RXD_1
JCOM2
Signal
PIN
IN
Signal
RI#_2
9
10
NC
RTS#2
7 8 CTS#_2
GND
5 6 DSR#_2
TXD_2
3 4 DTR#_2
DCD#_2
1 2 RXD_2
JCOM3
Signal
PIN
IN
Signal
NRIC#
9
10
NC
NRTSC#
7 8 NCTSC#
GND
5 6 NDSRC#
NTXDC
3 4 NDTRC#
NDCDC#
1 2 NRXDC
JCOM4
Signal
PIN
IN
Signal
NRID#
9
10
NC
NRTSD#
7 8 NCTSD#
GND
5 6 NDSRD#
NTXDD
3 4 NDTRD#
NDCDD#
1 2 NRXDD
JCOM1
JCOM2
JCOM4
JCOM3
2.4.12 Serial port 1/ 2 connector (JCOM1/ JCOM2)
2.4.13 Serial port 3/ 4 connector (JCOM3/ JCOM4)
28 EPI-QM87R/ EPI-QM87 User’s Manual

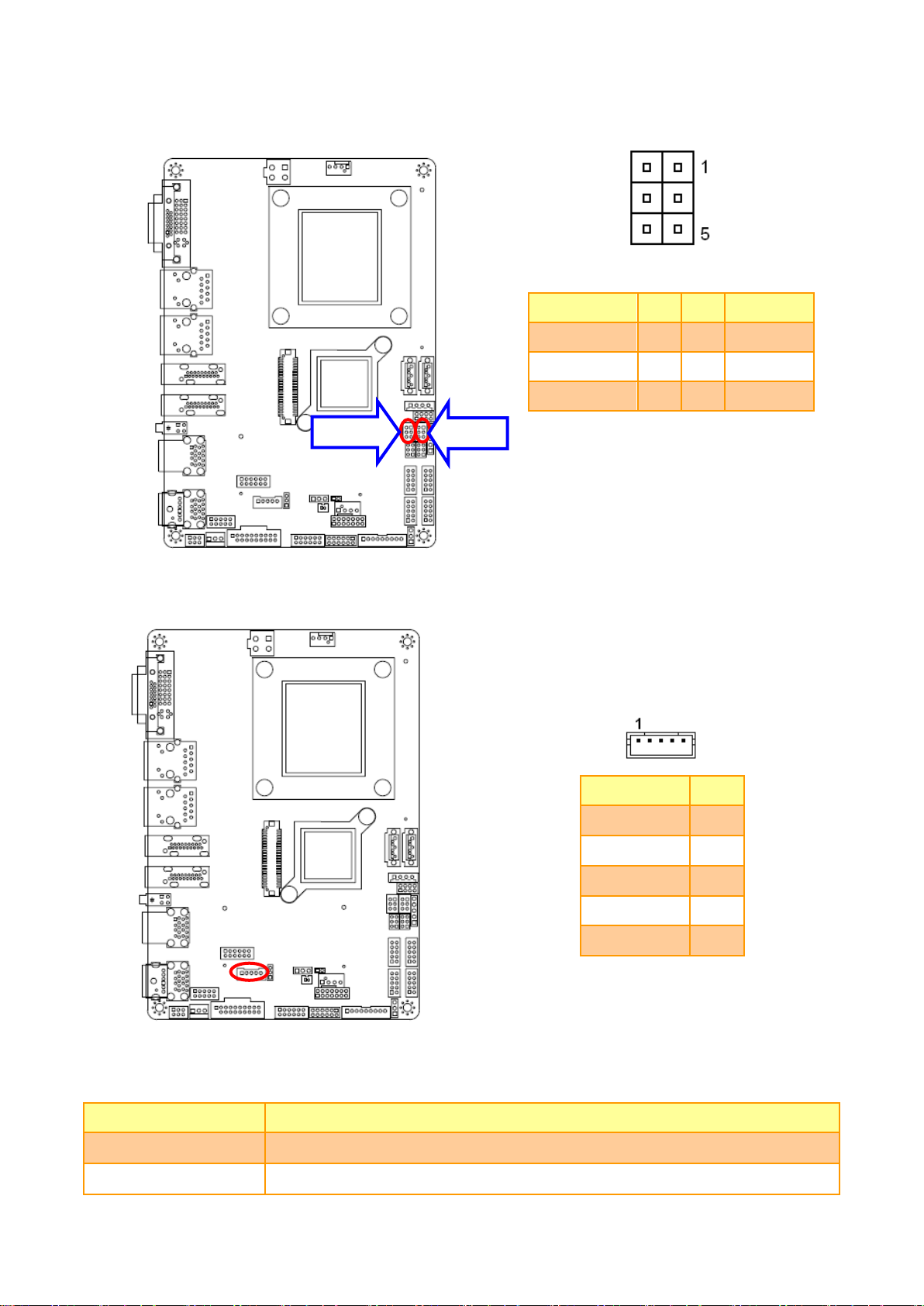

2.4.14 Serial Port 1/2 RS-422-485 mode (J422_1 / J422_2)
Signal
PIN
PIN
Signal
485_422TX1-
2 1 422RX1-
485_422TX1+
4 3 422RX1+
+5V
6 5 GND
Note:
J422/485 is available after modify the mode of
COM1/2 in BIOS setting
Signal
PIN
+12V
1
GND
2
BKLEN
3
VBRIGHT
4
+5V
5
Signal
Signal Description
VBRIGHT
Vadj = 0.75V ~ 4.25V (Recommended: 4.7KΩ, >1/16W)
BKLEN
LCD backlight ON/OFF control signal
J422_2
J422_1
User’s Manual
2.4.15 LCD Inverter Connector (JBKL)
2.4.15.1 Signal Description – LCD Inverter Connector (JBKL)
EPI-QM87R/ EPI-QM87 User’s Manual 29
EPI-QM87R/ EPI-QM87
Signal
PIN
EC_SMCLK_DEBUG
1
EC_SMDAT_DEBUG
2
Signal
PIN
PSON_ATX#
1
GND
2
+ATX5VSB
3

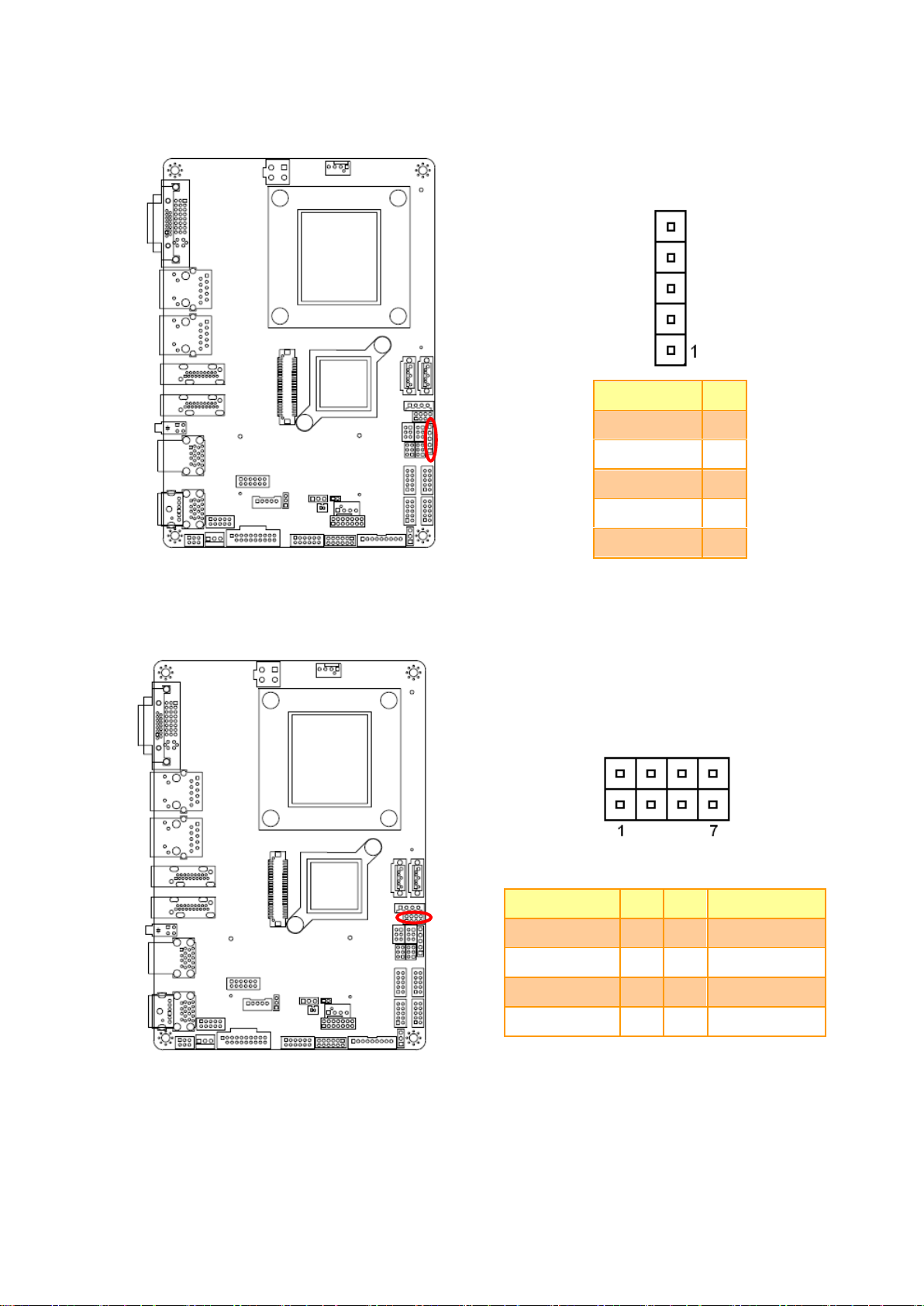

2.4.16 EC SMB Reserve connector (JECDEG)
2.4.17 5VSB connector in ATX (PWR_SB)
30 EPI-QM87R/ EPI-QM87 User’s Manual
Signal
PIN
IR_TX
5
GND
4
IR_RX
3
NC 2 +5V
1
Signal
PIN
PIN
Signal
+3.3V
1 2 GND
SPI_CS0#
3 4 SPI_CLK
SPI_SO
5 6 SPI-SI
HOLD#
7 8 SPI_WP#
2.4.18 IrDA connector (JIR)
User’s Manual
2.4.19 SPI connector (JSPI)
EPI-QM87R/ EPI-QM87 User’s Manual 31
EPI-QM87R/ EPI-QM87
Signal
PIN
PIN
Signal
+12V
39
40
+12V
GND
37
38
GND
LVDS_CLK2_N
35
36
LVDS_CLK1_N
LVDS_CLK2_P
33
34
LVDS_CLK1_P
GND
31
32
GND
LVDS_DATA7_N
29
30
LVDS_DATA6_N
LVDS_DATA7_P
27
28
LVDS_DATA6_P
GND
25
26
GND
LVDS_DATA5_N
23
24
LVDS_DATA4_N
LVDS_DATA5_P
21
22
LVDS_DATA4_P
GND
19
20
GND
LVDS_DATA3_N
17
18
LVDS_DATA2_N
LVDS_DATA3_P
15
16
LVDS_DATA2_P
GND
13
14
GND
LVDS_DATA1_N
11
12
LVDS_DATA0_N
LVDS_DATA1_P
9
10
LVDS_DATA0_P
GND
7 8 GND
NC
5 6 NC
+3.3V
3 4 +5V
+3.3V
1 2 +5V
2.4.20 LVDS connector (JLVDS)
32 EPI-QM87R/ EPI-QM87 User’s Manual
Signal
PIN
X+ 1 X- 2 Y+
3
SENSE
4
X+ 5 X- 6 Y+ 7 Y-
8
TOUCH_GND
9
PIN
4-WIRE
5-WIRE
8-WIRE
1
N/A
N/A
Right Sense
2
N/A
N/A
Left Sense
3
N/A
N/A
Bottom Sense
4
N/A
Sense
Top Sense
5
Right
LR
Right Excite
6
Left
LL
Left Excite
7
Bottom
UR
Bottom Excite
8
Top
UL
Top Excite
9
GND
GND
GND
2.4.21 Touch panel connector (JTOUCH)
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 33
EPI-QM87R/ EPI-QM87
Signal
PIN
PIN
Signal
DIO_GP10
1 2 DIO_GP20
DIO_GP11
3 4 DIO_GP21
DIO_GP12
5 6 DIO_GP22
DIO_GP13
7 8 DIO_GP23
SMB_DATA_9555
9
10
SMB_CLK_9555
+5V
11
12
GND
Signal
PIN
PIN
Signal
+DC_IN
3 1 GND
+DC_IN
4 2 GND
2.4.22 General purpose I/O connector (JDIO)
2.4.23 Power connector (PWR)
34 EPI-QM87R/ EPI-QM87 User’s Manual
Signal
PIN
PIN
Signal
USBVCC6
1 2 USBVCC6
USB_PN_Z_12
3 4 USB_PN_Z_13
USB_PP_Z_12
5 6 USB_PP_Z_13
GND
7 8 GND
GND
9
10
GND
Note: Wrong USB cable configuration with
USB devices might damage USB devices.
Signal
PIN
PIN
Signal
USBVCC4
1
USB3_RXN5_L
2
19
USBVCC5
USB3_RXP5_L
3
18
USB3_RXN6_L
GND
4
17
USB3_RXP6_L
USB3_TXN5_L
5
16
GND
USB3_TXP5_L
6
15
USB3_TXN6_L
GND
7
14
USB3_TXP6_L
USB_PN_Z_8
8
13
GND
USB_PP_Z_8
9
12
USB_PN_Z_10
NC
10
11
USB_PP_Z_10
2.4.24 USB 2.0 connector (JUSB1)
User’s Manual
2.4.25 USB 2.0 connector (JUSB2)
EPI-QM87R/ EPI-QM87 User’s Manual 35
EPI-QM87R/ EPI-QM87
3. BIOS Setup
36 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
3.1 Introduction
The BIOS setup program allows users to modify the basic system configuration. In this
following chapter will describe how to access the BIOS setup program and the
configuration options that may be changed.
3.2 Starting Setup
The AMI BIOS™ is immediately activated when you first power on the computer. The BIOS
reads the system information contained in the NVRAM and begins the process of checking
out the system and configuring it. When it finishes, the BIOS will seek an operating system
on one of the disks and then launch and turn control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
By pressing <Del> or <F2> immediately after switching the system on, or
By pressing the <Del> or <F2> key when the following message appears briefly at the
bottom of the screen during the POST (Power On Self Test).
Press <DEL> or <F2> to enter SETUP
If the message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the "RESET" button on the
system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete>
keys. Remove all storage can also enter the BIOS Setup Utility.
EPI-QM87R/ EPI-QM87 User’s Manual 37
EPI-QM87R/ EPI-QM87
Button
Description
↑
Move to previous item
↓
Move to next item
←
Move to the item in the left hand
→
Move to the item in the right hand
Esc key
Main Menu -- Quit and not save changes into NVRAM
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and
return to Main Menu
PGUP/HOME key
Go to Top of Screen
PGDN/END key
Go to Bottom of Screen
+ key
Increase the numeric value or make changes
- key
Decrease the numeric value or make changes
F1 key
General help, only for Status Page Setup Menu and Option Page Setup Menu
F2 key
Previous Values.
F3 key
Optimized defaults
F4 key
Save & Exit Setup
3.3 Using Setup
In general, you use the arrow keys to highlight items, press <Enter> to select, use the
PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to
quit. The following table provides more detail about how to navigate in the Setup program
using the keyboard.
Navigating Through The Menu Bar
Use the left and right arrow keys to choose the menu you want to be in.
Note: Some of the navigation keys differ from one screen to another.
To Display a Sub Menu
Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>. A “” pointer marks all sub menus.
38 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
3.4 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc> or
<Enter> key.
3.5 In Case of Problems
If, after making and saving system changes with Setup, you discover that your computer no
longer is able to boot, the AMI BIOS supports an override to the NVRAM settings which
resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this end, we
strongly recommend that you avoid making any changes to the chipset defaults. These
defaults have been carefully chosen by both BIOS Vendor and your systems manufacturer
to provide the absolute maximum performance and reliability. Even a seemingly small
change to the chipset setup has the potential for causing you to use the override.
EPI-QM87R/ EPI-QM87 User’s Manual 39
EPI-QM87R/ EPI-QM87
3.6 BIOS setup
Once you enter the Setup Utility, the Main Menu will appear on the screen. The Main Menu
allows you to select from several setup functions and exit choices. Use the arrow keys to
select among the items and press <Enter> to accept and enter the sub-menu.
3.6.1 Main Menu
This section allows you to record some basic hardware configurations in your computer and
set the system clock.
3.6.1.1 System Language
This option allows choosing the system default language.
3.6.1.2 System Date
Use the system time option to set the system time. Manually enter the hours, minutes and
seconds.
3.6.1.3 System Time
Use the system Date option to set the system date. Manually enter the day, month and
year.
Note: The BIOS setup screens shown in this chapter are for reference purposes
only, and may not exactly match what you see on your screen.
Visit the Avalue website (www.avalue.com.tw) to download the latest
product and BIOS information.
40 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
3.6.2 Advanced Menu
This section allows you to configure your CPU and other system devices for basic operation
through the following sub-menus.
3.6.2.1 APCI Settings
EPI-QM87R/ EPI-QM87 User’s Manual 41

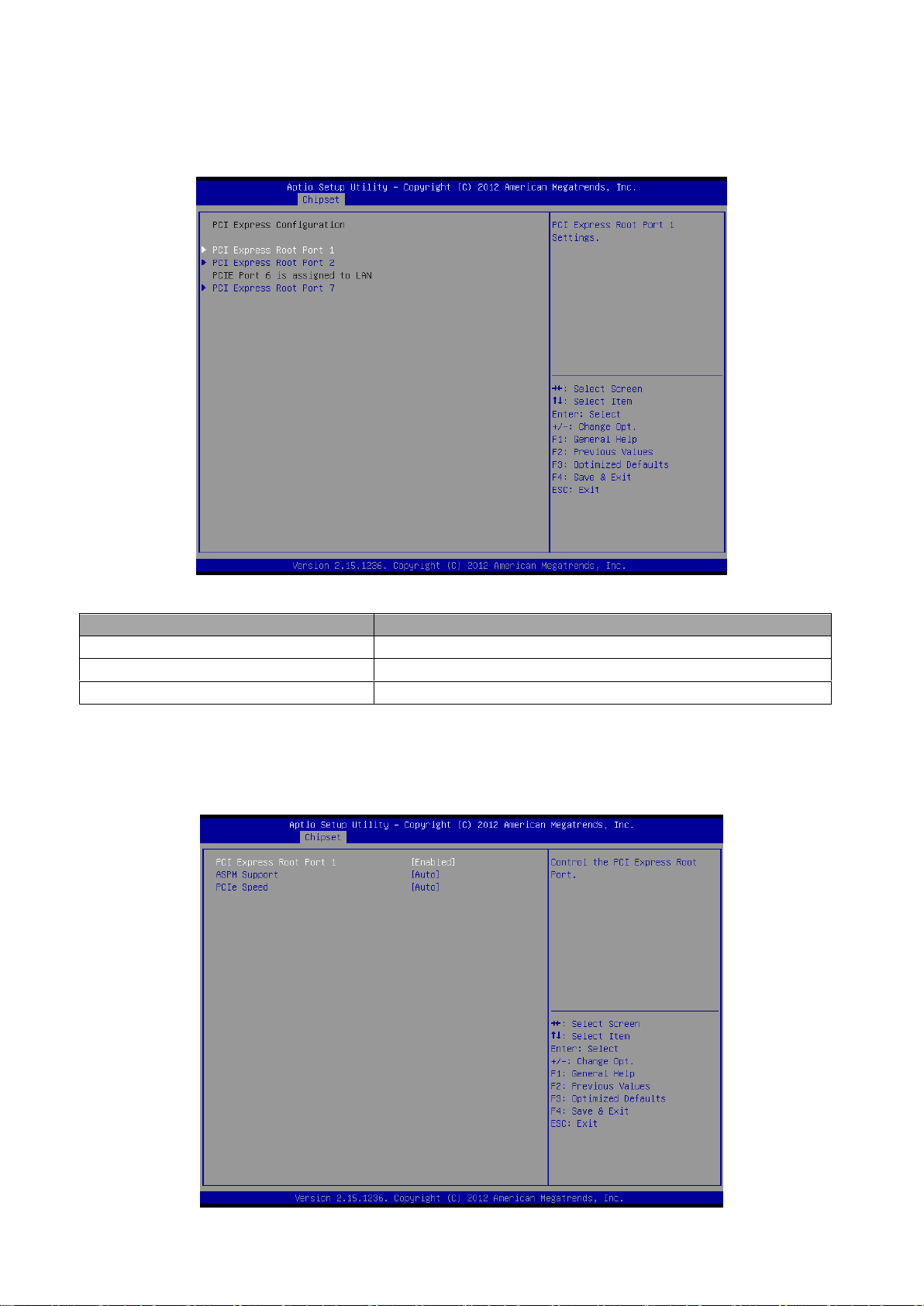

EPI-QM87R/ EPI-QM87
Item
Options
Description
APCI Sleep State
Suspend Disabled
S3 only(Suspend to
RAM)[Default]
Select ACPI sleep state the system
will enter when the SUSPEND button
is pressed.
S3 Video Repost
Disabled[Default]
Enabled
Enable or Disable S3 Video Repost.
ErP Function
Disabled[Default]
Enabled
Enable or Disable ErP.
Wakeup by Ring
Disabled[Default]
Enabled
Wakeup by Ring from S1~S5.
Watch Dog
Disabled[Default]
30 sec
40 sec
50 sec
1 min
2 min
10 min
30 min
Select WatchDog.
PWRON After PWR-Fail
Off[Default]
On
Former-Sts
Select PWRON After PWR-Fail.
Item
Options
Description
Wake system with Fixed Time
Disabled[Default],
Enabled
Enable or disable System wake on alarm
event. When enabled, System will wake on the
hr::min::sec specified.
3.6.2.2 S5 RTC Wake Settings
42 EPI-QM87R/ EPI-QM87 User’s Manual

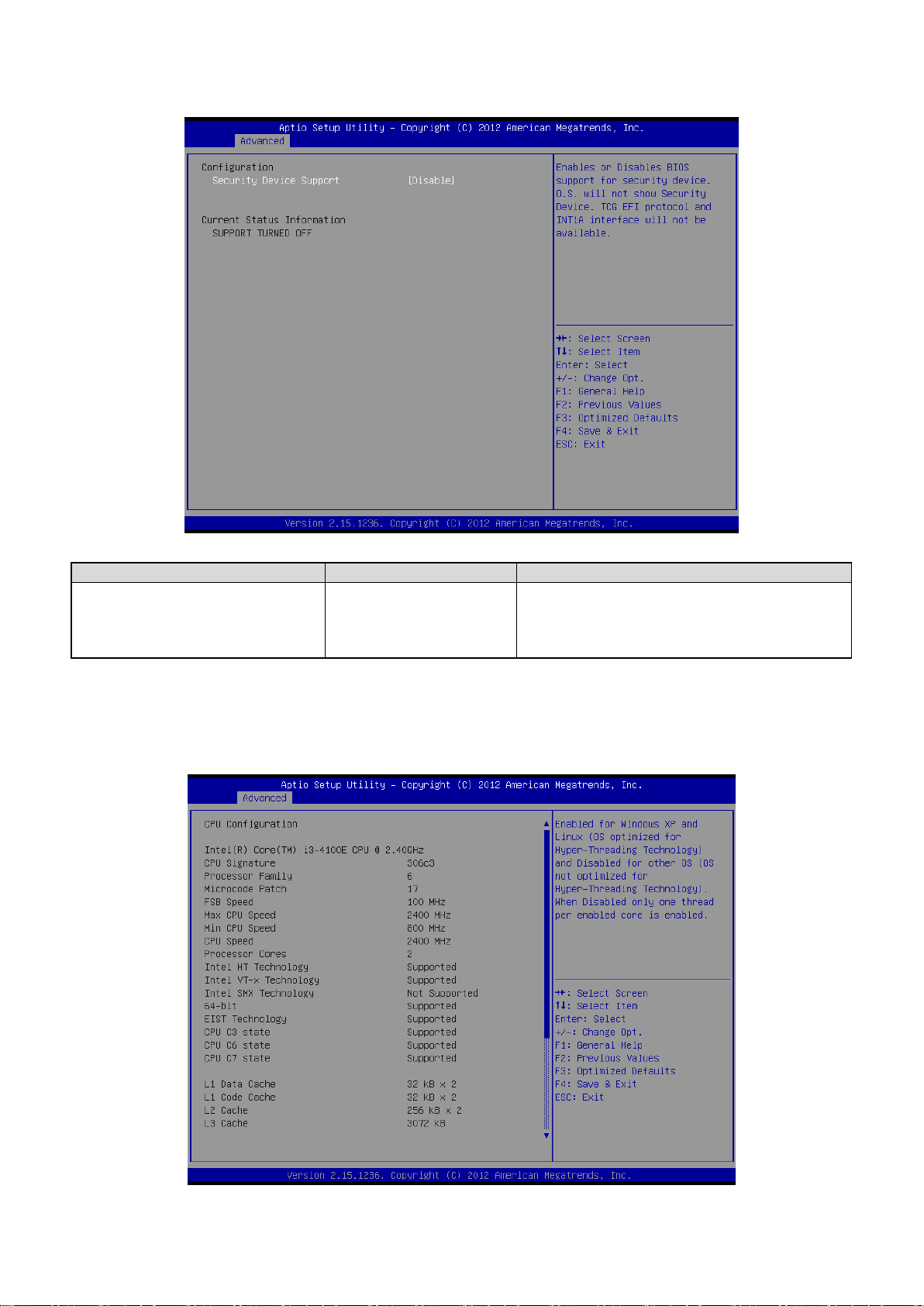

3.6.2.3 Trusted Computing
Item
Options
Description
Security Device Support
Disabled[Default],
Enabled
Enables or Disables BIOS support for security
device. O.S will not show Security Device.
TCG EFI protocol and INT1A interface will not
be available.
User’s Manual
3.6.2.4 CPU Configuration
Use the CPU configuration menu to view detailed CPU specification and configure the
CPU.
EPI-QM87R/ EPI-QM87 User’s Manual 43
EPI-QM87R/ EPI-QM87
Item
Options
Description
Hyper-threading
Disabled
Enabled[Default]
Enabled for Windows XP and Linux (OS
optimized for Hyper-Threading Technology)
and Disabled for other OS (OS not optimized
for Hyper-Threading Technology). When
Disabled only one thread per enabled core is
enabled.
Active Processor Cores
All[Default]
1/2/3
Number of cores to enable in each processor
package
Intel Virtualization Technology
Disabled
Enabled[Default]
When enabled, a VMM can utilize the
additional hardware capabilities provided by
Vanderpool Technology.
EIST
Disabled
Enabled[Default]
Enable/Disable Intel SpeedStep.
CPU C states
Disabled
Enabled[Default]
Enable or disable CPU C states.
Enhanced C1 state
Disabled
Enabled[Default]
Enhanced C1 state.
CPU C3/6 Report
Disabled
Enabled[Default]
Enable/Disable CPU C3/6 report to OS.
C6 Latency
Short[Default]
Long
Configure Short/Long latency for C6.
CPU C7 Report
Disabled
CPU C7
CPU C7s[Default]
Enable/Disable CPU C7 report to OS.
C7 Latency
Short
Long[Default]
Configure Short/Long latency for C7.
Package C State limit
C0/C1
C2
C3
Package C State limit.
44 EPI-QM87R/ EPI-QM87 User’s Manual
C6
C7
C7s
AUTO[Default]
Item
Options
Description
SATA Controller(s)
Enabled[Default]
Disabled
Enable or disable SATA Device.
SATA Mode Selection
IDE
AHCI[Default]
RAID
Determines how SATA controller(s)
operate.
SATA Controller Speed
Default[Default]
Gen1
Gen2
Gen3
Indicates the maximum speed the SATA
controller can support.
Port 0/1/4
Enabled[Default]
Disabled
Enable or Disable SATA Port.
Hut Plug
Enabled
Disabled[Default]
Designates this port as Hot Pluggable.
SATA Device Type (Port0/Port1)
Hard Disk Drive[Default]
Solid State Device
Identify the SATA port is connected to
Solid State Drive or Hard Disk Drive.
3.6.2.5 SATA Configuration
It allows you to select the operation mode for SATA controller.
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 45
EPI-QM87R/ EPI-QM87
Item
Option
Description
RAID0
Enabled[Default]
Disabled
Enable or disable RAID0
feature.
RAID1
Enabled[Default]
Disabled
Enable or disable RAID1
feature.
RAID10
Enabled[Default]
Disabled
Enable or disable RAID10
feature.
3.6.2.5.1 Software Feature Mask Configuration
3.6.2.6 Intel(R) Rapid Start Technology Configuration
46 EPI-QM87R/ EPI-QM87 User’s Manual
Item
Option
Description
Intel® Rapid Start Technology
Enabled
Disabled[Default]
Enable or disable Intel® Rapid
Start Technology.
Item
Options
Description
MDES BIOS Status Code
Disabled[Default]
Enabled
Enable/Disable MDES BIOS Status Code.
Firmware Update Configuration
Configure Management Engine Technology Parameters.
3.6.2.7 PCH-FW Configuration
User’s Manual
3.6.2.7.1 Firmware Update Configuration
EPI-QM87R/ EPI-QM87 User’s Manual 47
EPI-QM87R/ EPI-QM87
Item
Options
Description
Me FW Image Re-Flash
Disabled[Default]
Enabled
Enable/Disable Me FW Image Re-Flash
function.
Item
Options
Description
Intel AMT
Enabled[Default]
Disabled
Enable/Disable Intel ® Active Management
Technology BIOS Extension. Note: iAMT H/W
is always enabled. This option just controls the
BIOS extension execution. If enabled, this
requires additional firmware in the SPI device
Un-Configure ME
Disabled[Default]
Enabled
OEMFLag Bit 15: Un-Configure ME without
password
Disable ME
Disabled[Default]
Enabled
Set ME to Soft Temporary Disabled.
3.6.2.8 AMT Configuration
Intel AMT allows hardware-based remote management, security, power-management, and
remote-configuration features.
48 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
Item
Options
Description
Legacy USB Support
Enabled[Default]
Disabled
Auto
Enables Legacy USB support. AUTO option
disables legacy support if no USB devices are
connected. DISABLE option will keep USB
devices available only for EFI applications.
USB3.0 Support
Enabled[Default]
Disabled
Enable/Disable USB3.0 (XHCI) Controller
support.
XHCI Hand-off
Enabled[Default]
Disabled
This is a workaround for OSew without XHCI
hand-off support. The XHCI ownership change
should be claimed by XHCI driver.
EHCI Hand-off
Enabled
Disabled[Default]
This is a workaround for OSes without EHCI
hand-off support. The EHCI ownership change
should be claimed by EHCI driver.
USB Mass Storage Driver Support
Enabled[Default]
Disabled
Enable/Disable USB Mass Storage Driver
Support.
3.6.2.9 USB Configuration
The USB Configuration menu helps read USB information and configures USB settings.
EPI-QM87R/ EPI-QM87 User’s Manual 49
EPI-QM87R/ EPI-QM87
Item
Description
Smart Fan Function
Enable or Disable Smart Fan.
3.6.2.10 Hardware Monitor
Displays system health status
The following system temperature, fan speed and voltage are monitored.
Temperature:
System Temperature
CPU Thermistor Temperature
Fan Speed:
System Fan Speed
CPU Fan speed
Voltage:
VCORE
+12V
+5V
+5VSB
AVCC
3VCC
VSB3
VBAT
50 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
3.6.2.11 Super IO Configuration
You can use this item to set up or change the Super IO configuration. Please refer to
3.6.2.11.1~4 for more information.
3.6.2.11.1 Serial Port 1 Configuration
EPI-QM87R/ EPI-QM87 User’s Manual 51
EPI-QM87R/ EPI-QM87
Item
Option
Description
Serial Port
Enabled[Default],
Disabled
Enable or Disable Serial Port
(COM)
Change Settings
Auto[Default]
IO=3F8h; IRQ=4,
IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12
IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12
IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12
Select an optimal setting for
Super IO device.
Device Mode
Normal[Default]
High Speed
Change the Serial Port mode.
Select <High Speed> or
<Normal mode> mode.
UART 232 422 485
UART 232[Default],
UART 422,
UART485
Change the Serial Port as
RS232/422/485.
Item
Option
Description
Serial Port
Enabled[Default]
Disabled
Enable or Disable Serial Port
(COM)
Change Settings
Auto[Default]
IO=2F8h; IRQ=3
IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12
IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12
IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12
Select an optimal setting for
super IO device.
Device Mode
Normal[Default]
High Speed
Change the Serial Port
mode. Select <High Speed>
or <Normal mode> mode.
3.6.2.11.2 Serial Port 2 Configuration
52 EPI-QM87R/ EPI-QM87 User’s Manual
UART 232 422 485
UART 232[Default],
UART 422,
UART485
Change the Serial Port as
RS232/422/485.
Item
Option
Description
Serial Port
Enabled[Default]
Disabled
Enable or Disable Serial Port
(COM)
Change Settings
Auto[Default]
IO=3E8h; IRQ=10
IO=3E8h; IRQ=3,4,5,6,7,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,10,11,12
IO=2F0h; IRQ=3,4,5,6,7,10,11,12
IO=2E0h; IRQ=3,4,5,6,7,10,11,12
Select an optimal setting for
super IO device.
Device Mode
Serial Port Function Mode[Default]
IR Mode,Pusle 1.6us, Full Duplex
IR Mode,Pusle 1.6us, Half Duplex
IR Mode,Pusle 3/16Bit Timer, Full Duplex
IR Mode,Pusle 3/16Bit Timer, Half Duplex
Change the Serial Port
mode.
3.6.2.11.3 Serial Port 3 Configuration
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 53
EPI-QM87R/ EPI-QM87
Item
Option
Description
Serial Port
Enabled[Default],
Disabled
Enable or Disable Serial Port
(COM)
Change Settings
Auto[Default]
IO=2E8h; IRQ=10
IO=3E8h; IRQ=3,4,5,6,7,10,11,12
IO=2E8h; IRQ=3,4,5,6,7,10,11,12
IO=2F0h; IRQ=3,4,5,6,7,10,11,12
IO=2E0h; IRQ=3,4,5,6,7,10,11,12
Select an optimal setting for
super IO device.
3.6.2.11.4 Serial Port 4 Configuration
54 EPI-QM87R/ EPI-QM87 User’s Manual
3.6.2.12 Network Stack
Item
Option
Description
Network stack
Enabled
Disabled[Default]
Enable/Disable UEFI network stack.
Ipv4/6 PXE Support
Enabled
Disabled[Default]
Enable Ipv4/6 PXE Boot Support. If
disabled IPV4/6 PXE boot option will not
be created.
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 55
EPI-QM87R/ EPI-QM87
PXE boot wait time
0[Default]
5
Wait time to press ESC key to abort the
PXE boot.
Media detect time
0[Default]
50
Enable/Disable UEFI network stack.
3.6.2.13 Intel RC Drivers Version Detail
3.6.3 Chipset
56 EPI-QM87R/ EPI-QM87 User’s Manual
3.6.3.1 PCH-IO Configuration
Item
Option
Description
PCI Express Configuration
PCI Express Configuration settings.
USB Configuration
USB Configuration settings.
PCH Azalia Configuration
PCH Azalia Configuration settings.
PCH LAN Controller
Disabled
Enabled[Default]
Enable or disable onboard NIC.
SLP_S4 Assertion Width
Disabled
1-2 Seconds
2-3 Seconds
3-4 Seconds
4-5 Seconds[Default]
Select a minimum assertion width
of the SLP_S4# signal.
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 57
EPI-QM87R/ EPI-QM87
Item
Description
PCI Express Root Port 1
PCI Express Root Port 1 Settings.
PCI Express Root Port 6
PCI Express Root Port 6 Settings.
PCI Express Root Port 7
PCI Express Root Port 7 Settings.
3.6.3.1.1 PCI Express Configuration
3.6.3.1.1.1 PCI Express Root Port 1
58 EPI-QM87R/ EPI-QM87 User’s Manual
Item
Option
Description
PCI Express Root Port 1/2/7
Disabled
Enabled[Default]
Control the PCI Express Root
Port.
ASPM Support
Disabled
L0s
L1
L0sL1
Auto[Default]
Set the ASPM Level: Force
L0s-Force all links to L0s State:
AUTO-BIOS auto configure:
DISABLE-Disables ASPM.
PCIe Speed
Auto[Default]
Gen1
Gen2
Select PCI Express port speed.
3.6.3.1.2 USB Configuration
Item
Option
Description
xHCI Mode
Smart Auto[Default]
Disabled
Mode of operation of xHCI
controller.
USB Ports Per-Port Disable Control
Disabled[Default]
Enabled
Control each of the USB ports
(0~13) disabling.
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 59
EPI-QM87R/ EPI-QM87
Item
Option
Description
Azalia
Disabled
Enabled
Auto[Default]
Control Detection of the Azalia device. Deisabled = Azalia will be
unconditionally disabled Enabled = Azalia will be unconditionally
Enabled Auto = Azalia will be enabled if present, disabled
otherwise.
3.6.3.1.3 PCH Azalia Configuration
3.6.3.2 System Agent (SA) Configuration
60 EPI-QM87R/ EPI-QM87 User’s Manual
Item
Option
Description
Graphics Turbo IMON Current
14 ~31[Default]
Graphics turbo IMON current
values (14 -31)
3.6.3.2.1 Graphics Configuration
User’s Manual
3.6.3.2.1.1 Graphics Configuration
EPI-QM87R/ EPI-QM87 User’s Manual 61
EPI-QM87R/ EPI-QM87
Primary Display
Auto[Default]
IGFX
PEG
PCIE
Select which of IGFX/PCIE
Graphics device should be
Primary Display.
Internal Graphics
Auto[Default]
Disabled
Enabled
Keep IGD enabled based on the
setup options.
Aperture Size
[128MB]
[256MB] [Default]
[512MB]
Select the Aperture Size
DVMT Pre-Allocated
[32M] [Default] [64M]
[96M] [128M] [160M] [192M]
[224M] [256M] [288M] [320M]
[352M] [384M] [416M] [448M]
[480M] [512M] [1024M]
Select DVMT 5.0 Pre-Allocated
(Fixed) Graphics Memory size
used by the Internal Graphics
Device.
DVMT Total Gfx Mem
[128M]
[256M] [Default]
[MAX]
Select DVMT5.0 Total Graphic
Memory size used by the Internal
Graphics Device.
Item
Option
Description
Primary IGFX Boot Display
VBIOS Default[Default]
CRT
HDMI-1
LVDS
DVI
HDMI-2
Select the Video Device which will be
activated during POST. This has no effect
if external graphics present. Secondary
boot display selection will appear based
on your selection. VGA modes will be
supported only on primary display.
Panel Scaling
Auto[Default]
Select the LCD panel scaling option used
3.6.3.2.1.1.1 LCD Control
62 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
Off
Force Scaling
by the Internal Graphics Device.
Active LFP
No LVDS
eDP Port-A[Default]
Select the Active LFP Configuration. No
LVDS:VBIOS does not enable LVDS.
Int-LVDS. Int-LVDS:BIOS enables LVDS
driver by Integrated encoder. SDVO
LVDS:VBIOS enables LVDS driver by
SDVO encoder. eDP Port-A:LFP Driven
by Int-DisplayPort encoder from Port-A.
eDP Port-D:LFP Driven by Int-DisplayPort
encoder from Port-D9through PCH).
CH7511 EDID Panel Option
1024x768 24/1
800x600 18/1
1024x768 18/1[Default]
1366x768 18/1
1024x600 18/1
1280x800 18/1
1920x1200 24/2
640x480 18/1
800x480 18/1
1920x1080 18/2
1280x1024 24/2
1440x900 18/2
1600x1200 24/2
1366x768 24/1
1920x1080 24/2
1680x1050 24/2
Port-EDP to LVDS(Chrotel7511) Panel
EDID Option.
Backlight brightness
0%
25%
50%[Default]
75%
100%
Select LVDS back light PWM duty.
LVDS Back Light PWM
Frequency
200 Hz[Default]
300 Hz
400 Hz
500 Hz
700 Hz
1 kHz
2 kHz
3 kHz
5 kHz
10 kHz
20 kHz
Select LVDS back light PWM Frequency.
EPI-QM87R/ EPI-QM87 User’s Manual 63
EPI-QM87R/ EPI-QM87
Item
Option
Description
Setup Prompt Timeout
1~ 65535
Number of seconds to wait for
setup activation key.
65535(0xFFFF) means indefinite
waiting.
Bootup NumLock State
On[Default]
Select the Keyboard NumLock
3.6.3.2.2 Memory Configuration
3.6.4 Boot
64 EPI-QM87R/ EPI-QM87 User’s Manual
Off
state
Quiet Boot
Disabled
Enabled[Default]
Enables or disables Quiet Boot
option
Fast Boot
Disabled[Default]
Enabled
Enables or disables boot with
initialization of a minimal set of
devices required to launch active
boot option. Has no effect for BBS
boot options.
Boot Option #1/2
Sets the system boot order
CSM parameters
OpROM execution, boot options filter,etc.
Item
Option
Description
Launch CSM
Disabled
Enabled[Default]
This option controls if CSM will be
launched.
Boot option filter
UEFI and Legacy[Default]
Legacy only
UEFI only
This option controls what devices
system can boot to.
Launch PXE OpROM policy
Do not launch[Default]
UEFI only
Legacy only
Controls the execution of UEFI
and Legacy PXE OpROM.
Launch Storage OpROM policy
Do not launch
UEFI only
Legacy only[Default]
Controls the execution of UEFI
and Legacy Storage OpROM.
Launch Video OpROM policy
Do not launch
UEFI only
Legacy only[Default]
Controls the execution of UEFI
and Legacy Video OpROM.
3.6.4.1 CSM parameters
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 65
EPI-QM87R/ EPI-QM87
Other PCI device ROM priority
UEFI OpROM[Default]
Legacy OpROM
For PCI devices other than
Network, Mass storage or Video
defines which OpROM to launch.
3.6.5 Security
Administrator Password
Set setup Administrator Password
User Password
Set User Password
66 EPI-QM87R/ EPI-QM87 User’s Manual
3.6.6 Save and exit
User’s Manual
3.6.6.1 Save Changes and Reset
Reset the system after saving the changes.
3.6.6.2 Discard Changes and Reset
Any changes made to BIOS settings during this session of the BIOS setup program are
discarded. The setup program then exits and reboots the controller.
3.6.6.3 Restore Defaults
This option restores all BIOS settings to the factory default. This option is useful if the
controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting.
EPI-QM87R/ EPI-QM87 User’s Manual 67
EPI-QM87R/ EPI-QM87
4. Drivers Installation
Note: Installation procedures and screen shots in this section are
for your reference and may not be exactly the same as
shown on your screen.
68 EPI-QM87R/ EPI-QM87 User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Driver_Chipset\Intel\EPI-QM87.
Note: The installation procedures and
screen shots in this section are
based on Windows XP operation
system. If the warning message
appears while the installation
process, click Continue to go on.
Step 3. Click Next.
Step1. Click Next.
Step 4. Click Next.
Step 2. Click Yes.
Step 5. Click Finish to complete setup.
4.1 Install Chipset Driver (For Intel QM87)
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 69
EPI-QM87R/ EPI-QM87
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Utility\EPI-QM87_ME.
Note: The installation procedures and
screen shots in this section are
based on Windows XP operation
system. If the warning message
appears while the installation
process, click Continue to go on.
Step 3. Click Next to proceed setup.
Step1. Click Next to start installation.
Step 4. Click Finish to complete setup.
Step 2. Click Yes to accept license
agreement.
4.2 Install ME Driver (For Intel QM87)
70 EPI-QM87R/ EPI-QM87 User’s Manual
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to \Utility\EPI-QM87_USB3.0.
Note: The installation procedures and
screen shots in this section are
based on Windows XP operation
system. If the warning message
appears while the installation
process, click Continue to go on.
Step 3. Click Next to continue installation.
Step1. Click Next to start installation.
.
Step 4. Click Next to continue installation.
Step 2. Click Yes.
Step 5. Click Finish to complete setup.
4.3 Install USB 3.0 Driver (For Intel QM87)
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 71
EPI-QM87R/ EPI-QM87
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to
\Driver_Video\Intel\EPI-QM87_Video.
Note: The installation procedures and
screen shots in this section are
based on Windows XP operation
system.
Step 3. Click Next.
Step 1. Click Next to continue installation.
Step 4. Click Next.
Step 2.
Click Yes to accept license agreement.
Step 5. Click Finish to complete setup.
4.4 Install Display Driver (For Intel QM87)
72 EPI-QM87R/ EPI-QM87 User’s Manual
Insert the Supporting CD-ROM to CD-ROM drive,
and it should show the index page of Avalue’s
products automatically. If not, locate Index.htm and
choose the product from the menu left, or link to
\Driver_Audio\Realtek\ALC892\EPI-QM87_Audio.
Note: The installation procedures and screen shots
in this section are based on Windows 2000
operation system.
Step 1. Click Next to continue setup.
Step 2. Click Finish to complete the setup.
4.5 Install Audio Driver (For Realtek ALC892)
User’s Manual
EPI-QM87R/ EPI-QM87 User’s Manual 73
EPI-QM87R/ EPI-QM87
Insert the Supporting DVD-ROM to
DVD-ROM drive, and it should show the
index page of Avalue’s products
automatically. If not, locate Index.htm and
choose the product from the menu left, or
link to
\Driver_Gigabit\Intel\I217LM\EPI-QM87_LAN
Note: The installation procedures and
screen shots in this section are
based on Windows XP operation
system.
Step 3. Click Install to proceed.
Step 1. Click Next.
Step 4. Click Finish to complete the
setup.
Step 2. Click Next to accept license
agreement.
4.6 Install Ethernet Driver (For Intel I210AT and I217LM)
74 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
5. Mechanical Drawing
EPI-QM87R/ EPI-QM87 User’s Manual 75
EPI-QM87R/ EPI-QM87
Unit: mm
76 EPI-QM87R/ EPI-QM87 User’s Manual
User’s Manual
Unit: mm
EPI-QM87R/ EPI-QM87 User’s Manual 77
