Avalue EPC-A50M-56N User Manual
EPC Series
VIA Eden V4/ Intel® Core™ Duo/ Intel® Atom™ /
AMD Geode™ LX 800 / AMD eOntario T40E/T56N
Quick Reference Guide
10th Ed – 9 August 2013
Copyright Notice
Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E20173711A9R
EPC-Series
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
One of the following:
- 1 x EPC-3711 VIA Eden Tiny Box PC (with ECM-3711-E10 inside) or
- 1 x EPC-CX700M VIA Eden Tiny Box PC (with ECM-CX700 inside)or
- 1 x EPC-945 Intel® Tiny Box PC (with ECM-945GME inside ) or
- 1x EPC-AT270 Inte®l Tiny Box PC (with ECM-945GSE inside) or
- 1 x EPC-LX800W AMD Geode™ LX 800 Tiny Box PC(with ECM-LX800W) or
- 1 x EPC-A50M AMD eOntario T40E/ or T56N Tiny Box PC with A50M Chipset(with
ECM-A50M)
1 x Quick Reference Guide
1 x DVD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet driver and utilities
— VGA drivers and utilities
— Audio drivers and utilities
Other major components include the followings:
— 1 x PS/2 keyboard and mouse Y cable (6-pin, Mini-DIN)
— 1 x SATA cable
— 1 x AC to DC adapter
— 1 x Protective Cover
2 EPC Series Quick Reference Guide
3
Model
EPC-3711
EPC-CX700
CPU
Onboard VIA Eden V4 1 GHz
Onboard VIA Eden V4 500 MHz
BIOS
Award 512 KB Flash BIOS
System Chipset
VIA CN700/VT8251
VIA CX700M
I/O Chipset
VIA VT1211
System Memory
One 200-pin SODIMM supports up to 1 GB DDR2 400/533 SDRAM
SSD
One CompactFlash Type I/II socket with ejector
Watchdog Timer
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
H/W Status Monitor
Monitoring system and CPU temperature, voltage,
Auto throttling control when CPU overheats
Display
VIA ProSavage CN700 integrated
2D/3D graphics engine
VIA CX700M with integrated 2D
and 3D Graphics engine
Audio
VIA VT1616 supports 5.1 CH
Audio
Realtek ALC883 supports 5.1 CH
Audio and 7.1 CH with SPDIF
Ethernet
Dual Realtek RTL8111B
1000Base-T Fast Ethernet
controllers
Dual Realtek RTL8101L
System Indicators
2 LED indicators show the power and HDD
COM Port
1 x RS-232, 1 x RS232/422/485, Setting by BIOS
Ethernet Port
2 x RJ-45
VGA / LCD Port
1 x DB-15
Audio Port
Mic-in, Line-in, Line-out
USB Port
3 x USB 2.0
3 x USB 2.0
Mouse & KB
1 x PS/2 mini DIN
Power Input
100 ~ 240 Vac / 50 ~ 60 Hz
Power Output
+5 Vdc / 8 A (40W)
Operating
Temperature
0~40°C (32~104°F)
Storage
Temperature
-20 to +75°C (-4~167°F)
Relative Humidity
5 to 90% @ 40°C (104°F), relative humidity, non-condensing

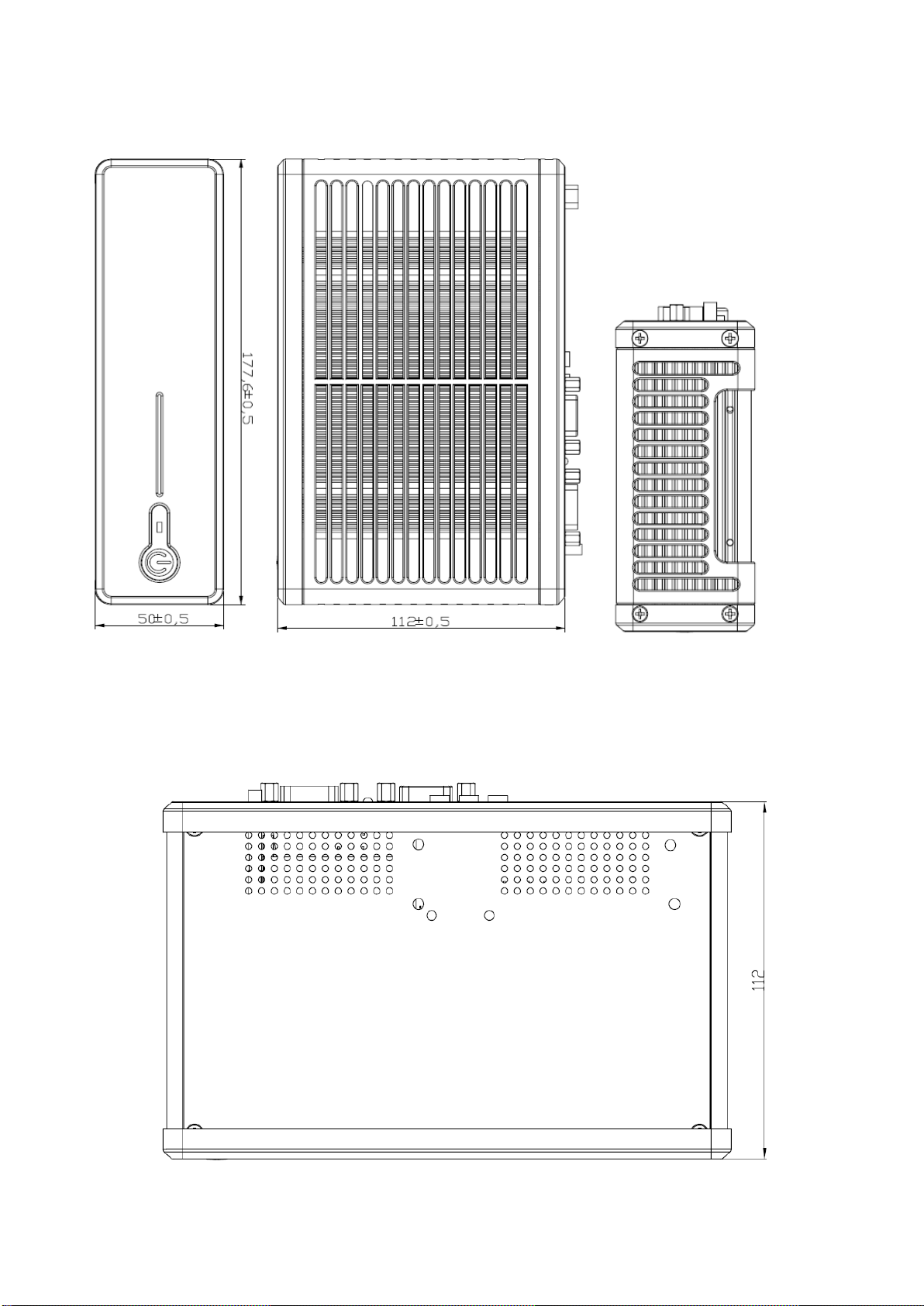

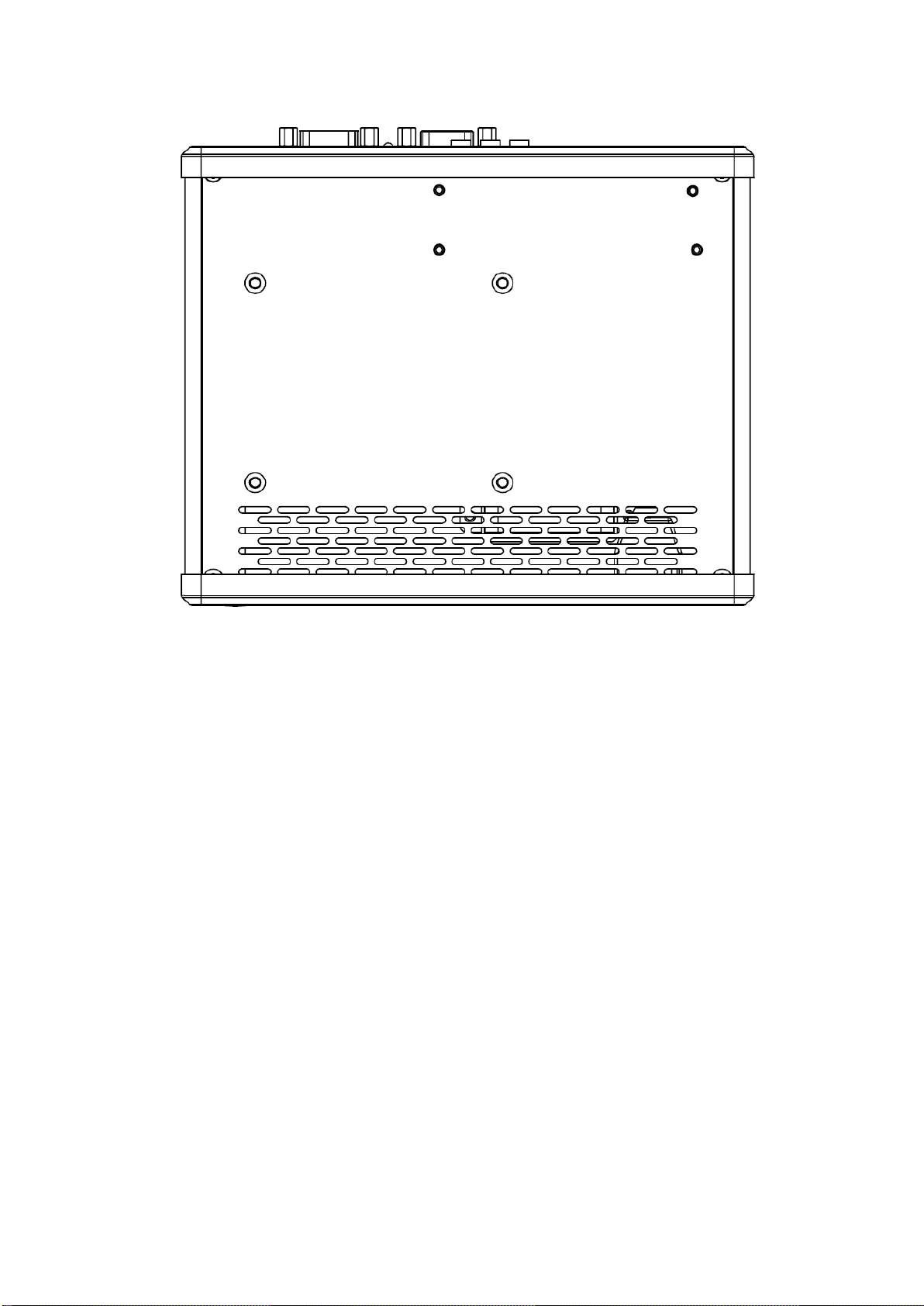

Dimension (W x D x
H)
7.0" x 4.4" x 2.0" (178 x 112 x 50 mm)
Weight
2.65 lbs (1.2 Kgs)
1.3 System Specifications
Quick Reference Guide
EPC Series Quick Reference Guide
EPC-Series
Model
EPC-945
EPC-AT270
CPU
Supports 65nm Intel® µFC-PGA
478/µFC-BGA 479 Core™
Duo/Core™ Duo/Celeron® M CPU
Onboard Intel® Atom™ N270
1.6GHz CPU
BIOS
Award 4 MBit Flash BIOS
Award 8 MBit Flash BIOS
System Chipset
Intel® 945GME / ICH7-M
Intel® 945GSE/ICH7-M
I/O Chipset
Winbond W83627HF-AW
ITE 8712F
System Memory
One 200-pin SODIMM supports up
to 2 GB DDR2 400/533/667
SDRAM
One 200-pin SODIMM supports up
to 2 GB DDR2 400/533 SDRAM
SSD
One CompactFlash Type I/II socket
Watchdog Timer
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
Display
Intel® 945GME Integrated GMA
950 graphic
Intel® 945GSE Integrated
Audio
Realtek ALC883 supports 7.1-CH
Audio
Realtek ALC655 supports
5.1-CH Audio
Ethernet
Dual Realtek RTL8111C PCI-E
Gigabit Ethernet, supports wake
on LAN (RTL8111B for Rev. A1)
Dual Marvell 88E8053 Gigabit
Ethternet, supports Wake on LAN
System Indicators
2 LED indicators show the power and HDD
Drive Bay
Mounting kit for one 2.5” HDD(hidden)
Expansion
Interface
-------
1 x Mini PCIe
Serial Port
1 x RS-232
1x RS-232, 1xRS232/422/485
Ethernet Port
2 x RJ-45
WiFi
Optional (USB Module)
DVI
------
1 x DVI (Optional)
VGA / LCD Port
1 x DB-15
Audio Port
Mic-in, Line-in, Line-out
USB Port
3 x USB 2.0
5 x USB 2.0
Mouse & KB
1 x PS/2 mini DIN
1 x PS/2 mini DIN (Optional)
Power Input
100 ~ 240 Vac / 50 ~ 60 Hz
Power Output
+12 V
Operating
Temperature
0~40°C (32~104°F)
Storage
Temperature
-20 to +75°C (-4~167°F)
Relative Humidity
5 to 90% @ 40°C (104°F), relative humidity, non-condensing
Dimension (W x D x
H)
7.0" x 5.6" x 2.0" (178 x 142 x 50
mm)
7.0" x 4.4" x 2.0" (178 x 112 x 50
mm)
Weight
2.7 lbs (1.2 Kgs)
Mounting
VESA Compliance
4 EPC Series Quick Reference Guide
Quick Reference Guide
5
Model
EPC-LX800W
CPU
Onboard AMD Geode™ LX 800 @ 500MHz CPU
BIOS
Award 4 MBit Flash BIOS
System Chipset
AMD Geode™ LX 800/ CS5536
I/O Chipset
NuvoTon W83627DHG
System Memory
One 200-pin SODIMM supports up to 1 GB DDR 333/400 SDRAM
SSD
One CompactFlash Type I/II socket
Watchdog Timer
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
Display
AMD Geode LX800 with Integrated Graphics Engine
Audio
Realtek ALC203 supports 2-CH Audio
Ethernet
Dual Realtek RTL8101L 10/100 Rthernet
System Indicators
2 LED indicators show the power and HDD
Drive Bay
Mounting kit for one 2.5” HDD(hidden)
Expansion Interface
N/A
Serial Port
2x RS-232
Ethernet Port
2 x RJ-45
WiFi
Optional (USB Module)
VGA
1 x DB-15
Audio Port
Line-out
USB Port
3 x USB 2.0
Mouse & KB
1 x PS/2 mini DIN
Power Input
100 ~ 240 Vac / 50 ~ 60 Hz
Power Output
+5V
Operating Temperature
-40 ~ 75°C (-40~167°F)
Storage Temperature
-20 to +75°C (-4~167°F)
Relative Humidity
5 to 90% @ 40°C (104°F), relative humidity, non-condensing
Dimension (W x D x H)
7.0" x 4.4" x 2.0" (178 x 112 x 50 mm)
Weight
2.7 lbs (1.2 Kgs)
Mounting
VESA Compliance
