Avalue ENX-PNV User Manual

ENX-PNV

Intel® Atom™ N450 /D510 Nano-ITX Motherboard

User’s Manual

2nd Ed. 03 November 2011

Part NO: E2047NPNV00R

ENX-PNV

Contents

1.1 Before you Proceed ................................................................................................ 11

1.2 Motherboard Overview ............................................................................................ 12

1.2.1 Placement Direction ....................................................................................................................... 12

1.2.2 Screw Holes ................................................................................................................................... 12

1.3 Motherboard Layout ................................................................................................ 13

1.3.1 Layout Content List ........................................................................................................................ 14

1.4 System Memory ...................................................................................................... 15

1.4.1 DIMM Sockets Location ................................................................................................................. 15

1.4.2 Memory Configurations .................................................................................................................. 15

1.4.3 Installing a DDR2 DIMM ................................................................................................................. 16

1.4.4 Removing a DDR2 DIMM ............................................................................................................... 17

1.5 Expansion slots ....................................................................................................... 18

1.5.1 MiniPCE Express Location ............................................................................................................. 18

1.5.2 Installing an Expansion Card ......................................................................................................... 18

1.5.3 Configuring an Expansion Card ..................................................................................................... 18

1.5.4 MiniPCI express slot ....................................................................................................................... 19

1.6 Jumpers .................................................................................................................. 19

1.6.1 Clear CMOS (CLRTC) .................................................................................................................... 19

1.6.2 COM1, COM2 RI/+5V/+12V Select (JCOMPWR1, JCOMPWR2) ................................................. 20

1.7 Connectors .............................................................................................................. 21

1.7.1 Rear Panel Connectors .................................................................................................................. 21

This 15-pin port is for a VGA monitor or other VGA-compatible devices. .............................................. 21

LAN (RJ-45) connector ........................................................................................................................... 21

This port connects a headphone or a speaker. In 4-channel, 6-channel, and 8-channel configuration, the

function of this port becomes Front Speaker Out. .................................................................................. 21

This power jack is connecting for 12V AC/DC pin 2.5mm power adapter . 12V 40W above is

recommended . ....................................................................................................................................... 21

1.7.2 CPU Fan Connector (FAN1) .......................................................................................................... 22

1.7.3 LVDS Connector (JLVDS) .............................................................................................................. 22

1.7.4 LCD Inverter Connector (JBKL) ..................................................................................................... 23

1.7.5 System Panel Connector (F_PANEL) ............................................................................................ 24

1.7.6 Serial Port Connector (COM1 & COM2 ) ....................................................................................... 25

1.7.7 Digital I/O Connector (JDIO) .......................................................................................................... 25

1.7.8 SATA Data Connector (SATA1&2) ................................................................................................ 26

1.7.9 SATA Power Connector (SATAPWR1) .......................................................................................... 26

1.7.10 Mic-In & Line-In Connector (JAUDIO1) ..................................................................................... 27

1.7.11 USB 3&4 Connector (USB2) ...................................................................................................... 27

2

User’s Manual

3

2.1 BIOS Setup Program .............................................................................................. 29

2.1.1 Legend Box .................................................................................................................................... 30

2.1.2 List Box ........................................................................................................................................... 30

2.1.3 Sub-menu ....................................................................................................................................... 30

2.2 BIOS Menu Screen ................................................................................................. 31

2.2.1 Main ................................................................................................................................................ 32

2.2.1.1 System Time .......................................................................................................................... 32

2.2.1.2 System Date .......................................................................................................................... 32

2.2.1.3 Primary IDE Master ............................................................................................................... 33

2.2.1.4 IDE Configuration .................................................................................................................. 35

2.2.1.5 AHCI Setting .......................................................................................................................... 36

2.2.1.6 System Information ................................................................................................................ 37

2.2.2 Advanced ....................................................................................................................................... 38

2.2.2.1 CPU Configuration ................................................................................................................. 39

2.2.2.2 Chipset ................................................................................................................................... 40

2.2.2.3 Onboard Device Configuration .............................................................................................. 42

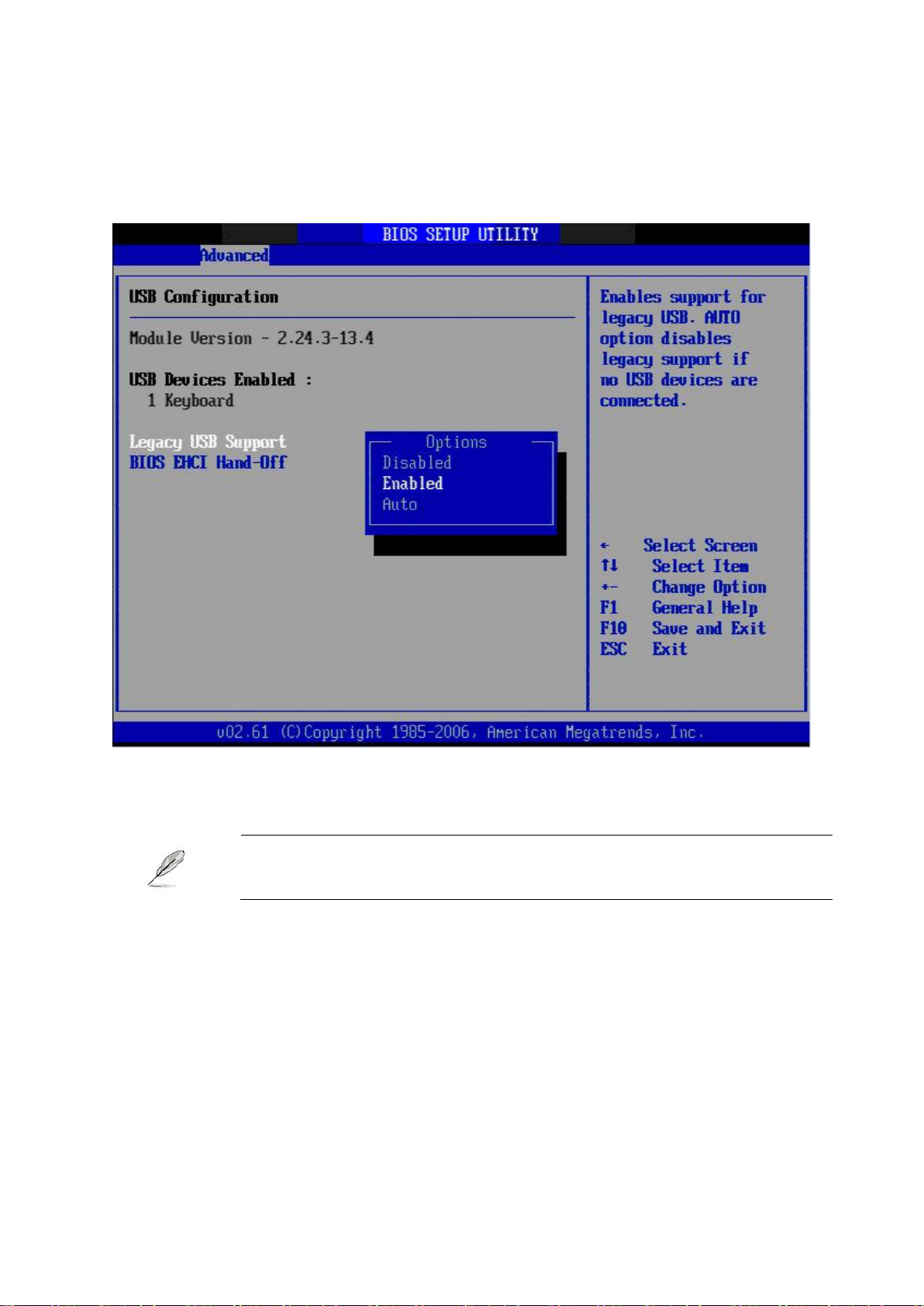

2.2.2.4 USB Configuration ................................................................................................................. 43

2.2.2.5 Trusted Computing (Optional) ............................................................................................... 44

2.2.2.6 PCI PnP ................................................................................................................................. 45

2.2.3 Power ............................................................................................................................................. 48

2.2.3.1 Suspend Mode....................................................................................................................... 48

2.2.3.2 Repost Video on S3 Resume ................................................................................................ 48

2.2.3.3 ACPI Version Features .......................................................................................................... 48

2.2.3.4 ACPI APIC support ................................................................................................................ 49

2.2.3.5 Power Management .............................................................................................................. 49

2.2.3.6 Hardware Health Configuration ............................................................................................. 51

2.2.4 Boot ................................................................................................................................................ 53

2.2.4.1 Security Settings .................................................................................................................... 54

2.2.4.2 Boot Setting Configuration ..................................................................................................... 55

2.2.5 Exit .................................................................................................................................................. 56

2.2.5.1 Save Changes and Exit ......................................................................................................... 57

2.2.5.2 Discard Changes and Exit ..................................................................................................... 57

2.2.5.3 Discard Changes ................................................................................................................... 58

2.2.5.4 Load Setup Defaults .............................................................................................................. 58

ENX-PNV

ENX-PNV

The symbol of the crossed out wheeled bin indicates that the product
(electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic
products.

Safety Information

Electrical safety

 To prevent electrical shock hazard, disconnect the power cable from the electrical

outlet before relocating the system.

 When adding or removing devices to or from the system, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.

 Before connecting or removing signal cables from the motherboard, ensure that all

power cables are unplugged.

 Seek professional assistance before using an adapter or extension cord. These

devices could interrupt the grounding circuit.

 Make sure that your power supply is set to the correct voltage in your area. If you are

not sure about the voltage of the electrical outlet you are using, contact your local
power company.

 If the power supply is broken, do not try to fix it by yourself. Contact a qualified service

technician or your retailer.

Operation safety

 Before installing the motherboard and adding devices on it, carefully read all the

manuals that came with the package.

 Before using the product, make sure all cables are correctly connected and the power

cables are not damaged. If you detect any damage, contact your dealer immediately.

 To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

 Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may become wet.

 Place the product on a stable surface.
 If you encounter technical problems with the product, contact a qualified service

technician or your retailer.

4

User’s Manual

5

DANGER/WARNING: Information to prevent injury to yourself when
trying to complete a task.

CAUTION: Information to prevent damage to the components when
trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Safety Declaration

This device complies with the requirements in Part 15 of the FCC rules. Operation is
subject to the following two conditions:

 This device may not cause harmful interference.
 This device must accept any interference received, including interference that may

cause undesired operation.

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s

manual, please contact your place of purchase or local distributor. Alternatively, please try
the following help resources for further guidance. Visit the Avalue website:

http://www.avalue.com.tw

Conventions Used in This Guide

To make sure that you perform certain tasks properly, take note of the following symbols
used throughout this manual.

ENX-PNV

ENX-PNV

If any of the above items is damaged or missing, please contact your
retailer.

Packing List

Before you begin installing your single board, please make sure that the following materials
have been shipped:

 1 x ENX-PNV Nano-ITX Motherboard
 1 x CD-ROM contains the followings:

 User’s Manual in PDF file
 Drivers

 1 x Cable Kit

 2 x COM Cable w/o Bracket (9P/2.00mm)
 1 x SATA CABLE 7P 2IN1 L:500mm
 1 x SATA power cable (ATX 2x2P)
 1 x MD6M to MD6F*2 Cable

6

7

Revision

Revision History

Date

V 1.0

First version for PCB 1.1

March, 2010

2nd Ed.

First version for PCB 1.1

November, 2011

Revision History

User’s Manual

ENX-PNV

ENX-PNV

Specifications

System

CPU

Onboard Intel® Atom™ N450 SC/D510 DC 1.6GHz Processor

FSB

DMI (2.5Gbps) x 4 Lanes

BIOS

AMI/Legacy 16 Mb SPI BIOS

System Chipset

Intel® ICH8M

I/O Chipset

Winbond W83627DHG-A

Memory

One 200-pin SODIMM socket supports up to 2GB
DDR2 800MHz(D510)/ 667MHz(N450) SDRAM

Watchdog Timer

Reset: 1 to 255 sec/min per step

H/W Status Monitor

Monitoring CPU temperature, voltage, and cooling fan status. Auto throttling
control when CPU overheats

Expansion Slots

1 x Mini PCIe , 1 x CF

DIO

8-bit General Purpose I/O for 4 DI and 4 DO

S3 / S4

S1, S3, S4, S5

Wake up on LAN or Ring

LAN (PXE), RING (COM1/2)

SmartFan Control

Supports 3 modes (Silent/Optimal/Performance)

TPM

Infineon TPM1.2 SLB9635 (optional)

Display

Chipset

Integrated Intel® Gen3.5+GFX Render Core
200MHz (N450)/400MHz (D510)

Display Memory

Shared Memory Max 224MB

Max. Resolution

LVDS : Max 1280 x 800 or 1366 x 768
VGA : Max 2048 x 1536 @ 60Hz

Dual Display

LVDS+VGA

VGA

On board

LVDS

18-bit Single Channel LVDS

LVDS Backlight Power

5V and 12V

Audio

Audio Codec

Realtek ALC888, 5.1 + 2 CH HD Audio

Audio Interface

Line out (jack) , Mic. In & Line in (pin header)

Ethernet

LAN1

Realtek RTL 8111C Gigabit LAN

Specifications Summary

* Specifications are subject to change without notice.

8

9

Block Diagram

User’s Manual

ENX-PNV

ENX-PNV

1

Product

introduction

1

Product

introduction

This chapter describes the main board
features and the new technologies
it supports.

10

User’s Manual

11

1.1 Before you Proceed

 Unplug the power cord from the wall socket before touching any

component.

 Use a grounded wrist strap or touch a safely grounded object or a

metal object, such as the power supply case, before handling
components to avoid damaging them due to static electricity

 Hold components by the edges to avoid touching the ICs on

them.

 Whenever you uninstall any component, place it on a grounded

antistatic pad or in the bag that came with the component.

 Before you install or remove any component, ensure that the ATX

power supply is switched off or the power cord is detached from
the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

Production Introduction

Take note of the following precautions before you install motherboard components or
change any motherboard settings.

ENX-PNV

ENX-PNV

1.2 Motherboard Overview

Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and
damage motherboard components.

Do not over tighten the screws! Doing so can damage the
motherboard.

Place this side towards the rear of the
chassis.

Before you install the motherboard, study the configuration of your chassis to ensure that
the motherboard fits into it. Refer to the chassis documentation before installing the
motherboard.

1.2.1 Placement Direction

When installing the motherboard, make sure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.

1.2.2 Screw Holes

Place four (4) screws into the holes indicated by circles to secure the motherboard to the
chassis.

12

User’s Manual

13

1.3 Motherboard Layout

ENX-PNV

ENX-PNV

Slots

Label

Function

Note

Page

SO_DIMM

200-pin DDR2 SODIMM slot

(Rear side)

15

MINIPCIE1

Mini PCI-e Slot

18

CF

Compact Flash Card

(Rear side)

N/A

Jumpers

Label

Function

Note

Page

CLRTC

Clear CMOS

3 x 1 header, pitch 2.54mm

19

JCOMPWR1

COM1 RI/+5V/+12V Select

3 x 2 header, pitch 2.00mm

20

JCOMPWR2

COM1 RI/+5V/+12V Select

3 x 2 header, pitch 2.00mm

20

Rear Panel Connector

Label

Function

Note

Page

KBMS1

PS/2 keyboard and mouse

6-pin Mini-Din

21

VGA1

VGA Connector

D-sub 15-pin, female

21

USB1

USB 1&2 Connector

21

LAN1

RJ-45 Ethernet Connector

21

Audio2

Audio Line-out Port

21

DCIN1

12V DC-In Power Jack

Pin ψ2.5mm

21

Internal Connector

Label

Function

Note

Page

FAN1

CPU Fan Connector

3 x 1 wafer, pitch 2.54mm

22

JLVDS

LVDS Connector

Hirose DF13S-40DP-1.25V

22

JBKL

LCD Inverter Connector

5 x 1 header, pitch 2.00mm

23

FPANEL1

System Panel Connector (USB 5&6)

8 x 2 header, pitch 2.00mm

24

COM1 & 2

Serial Port Connector * 2

5 x 2 header, pitch 2.00mm

25

JDIO

Digital I/O Connector

5 x 2 header, pitch 2.00mm

25

SATA1 & 2

SATA Data Connector * 2

7P Male connector

26

SATAPWR1

SATA Power Connector

2 x 2 female box header

26

JAUDIO1

Mic-In & Line-In Connector

5 x 2 header, pitch 2.00mm

27

USB2

USB 3&4 Connector

5 x 2 header, pitch 2.00mm

27

1.3.1 Layout Content List

14

User’s Manual

15

1.4 System Memory

 Installing DDR2 DIMM other than the recommended

configurations may cause memory sizing error or system boot
failure. Use any of the recommended configurations.

 Due to chipset graphic resource allocation, the system may

detect less than 2 GB system memory when you installed one 2
GB DDR2 memory modules.

 This motherboard does not support memory modules FSB less

than 667MHz.Make sure that the memory frequency matches the
CPU FSB (Front Side Bus). Refer to the Memory frequency/CPU
FSB synchronization table.

1.4.1 DIMM Sockets Location

The motherboard comes with two 200-pin Double Data Rate 2 (DDR2) SODIMM sockets.

A DDR2 module has the same physical dimensions as a DDR DIMM but has a 200-pin
footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched differently to
prevent installation on a DDR DIMM socket. The following figure illustrates the location of
the sockets:

1.4.2 Memory Configurations

You can install 256MB, 512MB, 1GB and 2GB DDR2 SDRAM DIMMs into the SODIMM
sockets using the memory configurations in this section.

ENX-PNV

ENX-PNV

Make sure to unplug the power supply before adding or removing
DIMMs or other system components. Failure to do so may cause
severe damage to both the motherboard and the components.

 A DDR2 DIMM is keyed with a notch so that it fits in only one

direction. DO NOT force a DIMM into a socket to avoid damaging
the DIMM.

 The DDR2 DIMM sockets do not support DDR/DDR3 DIMMs.

DO NOT install DDR/DDR3 DIMMs to the DDR2 DIMM socket.

1.4.3 Installing a DDR2 DIMM

1. Locate the DIMM socket on the board.

2. Hold two edges of the DIMM module carefully, and keep away of touching its
connectors.

3. Align the notch key on the module with the rib on the slot.

4. Firmly press the modules into the socket which will automatically snap into the mounting
notch. Do not force the DIMM module in with extra force as the DIMM module only fits in
one direction.

16

User’s Manual

17

Support the DIMM lightly with your fingers when pressing the ejector
tabs. The DIMM might get damaged when it flips out with extra force.

1.4.4 Removing a DDR2 DIMM

1. Press the two ejector tabs on the slot outward simultaneously, and then pull out the

DIMM module.

ENX-PNV

ENX-PNV

1.5 Expansion slots

Make sure to unplug the power cord before adding or removing
expansion cards. Failure to do so may cause you physical injury and
damage motherboard components.

1.5.1 MiniPCE Express Location

In the future, you may need to install expansion cards. The following sub-sections describe
the slots and the expansion cards that they support.

1.5.2 Installing an Expansion Card

1. Before installing the expansion card, read the documentation that came with it and
make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later
use.

4. Align the card connector with the slot and press firmly until the card is completely seated
on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.5.3 Configuring an Expansion Card

After installing the expansion card, configure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for
information on BIOS setup.

2. Assign an IRQ to the card if needed. Refer to the tables on the next page.

3. Install the software drivers for the expansion card.

18

User’s Manual

19

Due to different pin definitions between mini Card Rev. 1.0 to 1.1/1.2 ,
some Rev.1.0 mini Cards may not work normally on this MiniPCI express
slot .

1.6 Jumpers

Except when clearing the CMOS, never remove the cap on the
CLRTC jumper default position. Removing the cap will cause system
boot failure!

1.5.4 MiniPCI express slot

The miniPCI express slot supports Mini cards for WiFi , Bluetooth, SSD, COM, USB
modules, and other cards that comply with the mini Card Rev. 1.2 specifications . The figure
below shows the type of full size SSD card that can be installed on a miniPCI express slot.

1.6.1 Clear CMOS (CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear
the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC
RAM data. The onboard button cell battery powers the RAM data in CMOS, which include
system setup information such as system passwords. To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Remove the onboard battery.

3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for
about 5~10 seconds, then move the cap back to pins 1-2.

4. Re-install the battery.

5. Plug the power cord and turn ON the computer.

6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter
data.

ENX-PNV

ENX-PNV

Normal (Default)

1

Clear CMOS

1

RI (Default)

55

6

+5V

55

6

+12V

55

6

1.6.2 COM1, COM2 RI/+5V/+12V Select (JCOMPWR1, JCOMPWR2)

20

21

1.7 Connectors

No

Label

Function

Description

1

KBMS1

PS/2 keyboard and
mouse connector

The standard PS/2 mouse DIN connector is
for a PS/2 mouse.

2

VGA11

VGA Connector

This 15-pin port is for a VGA monitor or
other VGA-compatible devices.

3

USB1

USB 1&2 connector

These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB

1.1/2.0 devices.

4

LAN1

LAN (RJ-45) connector

This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below for
the LAN port LED indications. The optional
10/100 Mbps LAN controller allows 10/100
Mbps connection to a Local Area Network
(LAN) through a network hub.

SPEED LED

ACT / LINK LED

Status

Description

Status

Description

OFF

10Mbps connection

OFF

No link

Orange

100Mbps connection

Green

Link

Green

1Gbps connection

Blinking

Data activity

5

Audio2

Audio Line-out Port

This port connects a headphone or a
speaker. In 4-channel, 6-channel, and
8-channel configuration, the function of this
port becomes Front Speaker Out.

6

DCIN1

12V DC-In Power Jack

This power jack is connecting for 12V
AC/DC pin 2.5mm power adapter . 12V
40W above is recommended .

1 2 3 4 5 6

1.7.1 Rear Panel Connectors

User’s Manual

ENX-PNV

ENX-PNV

 Do not forget to connect the fan cable to the fan connector.

Insufficient air flow inside the system may damage the
motherboard components.

 This is not a jumper! DO NOT place a jumper cap on the fan

connector.

1.7.2 CPU Fan Connector (FAN1)

This connector supports 12V smart fan for onboard heat-sink.

1.7.3 LVDS Connector (JLVDS)

This motherboard supports 18-bit single channel LVDS panel.

22

23

 Signal Description

Signal

Signal Description

VR

For inverter with adjustable Backlight
function, it is possible to control the LCD
brightness through the VR signal.

Vadj=0.75V ~ 4.25V
(Recommended: 4.7KΩ, > 1/16W)

ENBKL

LCD backlight ON/OFF control signal

1.7.4 LCD Inverter Connector (JBKL)

This function will support the control of internal LVDS brightness.

User’s Manual

ENX-PNV

ENX-PNV

1.7.5 System Panel Connector (F_PANEL)

This connector supports several chassis-mounted functions, and provides additional USB 5
& 6 ports.

 System Power LED (2-pin PWRLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.

 ATX Power Button/Soft-off Button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the
system on or puts the system in sleep or soft-off mode depending on the BIOS settings.
Pressing the power switch for more than four seconds while the system is ON turns the
system OFF.

 Hard Disk Drive Activity LED (2-pin HDLED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or flashes when data is read from or written to
the HDD.

 Reset Button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for a system reboot
without turning off the system power.

24

User’s Manual

25

COM 1&2

1.7.6 Serial Port Connector (COM1 & COM2 )

These 2 connectors are for serial (COM) port. Connect the serial port module cable to this
connector, and then install the module to a slot opening at the back of the system chassis.

1.7.7 Digital I/O Connector (JDIO)

This connector supports 8-bit General purpose I/O function.

ENX-PNV

ENX-PNV

SATA 1&2

 This 2x2P connector is for SATA power supply, plugging-in an

ATX 2x2P power cable from PSU will damage this motherboard .

1.7.8 SATA Data Connector (SATA1&2)

These connectors are for the SATA signal cables to link SATA hard disk drives.

1.7.9 SATA Power Connector (SATAPWR1)

This connector is for the provided SATA power cable. This power supply cable is designed
to fit this connector in only one orientation. Find the proper orientation and push down firmly
until the connector completely fits.

26

27

Never connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!

The USB module is purchased separately.

1.7.10 Mic-In & Line-In Connector (JAUDIO1)

This connector is for the microphone-in and line-in function.

User’s Manual

1.7.11 USB 3&4 Connector (USB2)

This connector is for USB 2.0 ports. Connect the USB/GAME module cable to any of these
connectors, and then install the module to a slot opening at the back of the system chassis.
This USB connector complies with USB 2.0 specification that supports up to 480 Mbps
connection speed.

ENX-PNV

ENX-PNV

2

BIOS setup

2

BIOS setup

This chapter tells how to change
the system settings through the BIOS
setup menus. Detailed descriptions
of the BIOS parameters are also provided.

28

User’s Manual

29

2.1 BIOS Setup Program

 The default BIOS settings for this motherboard apply for most

conditions to ensure optimum performance. If the system
becomes unstable after changing any BIOS settings, load the
default settings to ensure system compatibility and stability.
Select the Load Optimized Defaults from the BIOS menu
screen.

 The BIOS setup screens shown in this section are for reference

purposes only, and may not exactly match what you see on your
screen.

 Visit the system builder’s website to download the latest BIOS file

for this motherboard

BIOS Setup

This motherboard supports a programmable firmware chip that you can update using the
provided utility. Use the BIOS Setup program when you are installing a motherboard,

reconfiguring your system, or prompted to “Run Setup.” This section explains how to

configure your system using this utility.

Even if you are not prompted to use the Setup program, you can change the configuration
of your computer in the future. For example, you can enable the security password feature
or change the power management settings. This requires you to reconfigure your system
using the BIOS Setup program so that the computer can recognize these changes and
record them in the CMOS RAM of the firmware hub.

The firmware hub on the motherboard stores the Setup utility. When you start up the
computer, the system provides you with the opportunity to run this program. Press <Del>
during the Power-On-Self-Test (POST) to enter the Setup utility; otherwise, POST
continues with its test routines.

If you wish to enter Setup after POST, restart the system by pressing <Ctrl+Alt+Delete>, or
by pressing the reset button on the system chassis. You can also restart by turning the
system off and then back on. Do this last option only if the first two failed.

The Setup program is designed to make it as easy to use as possible. Being a menu-driven
program, it lets you scroll through the various sub-menus and make your selections from
the available options using the navigation keys.

ENX-PNV

ENX-PNV

Key(s)

Function Description

←

Select Screen

↑↓

Select Item

+ -

Change Option / Field

Enter

Go to Sub Screen

PGDN

Next Page

PGUP

Previous Page

HOME

Go to Top of Screen

END

Go to Bottom of Screen

F2/F3

Change Colors

F7

Discard Changes

F8

N/A

F9

Load Optimal Defaults

F10

Save and Exit

ESC

Exit

2.1.1 Legend Box

The keys in the legend bar allow you to navigate through the various setup menus

2.1.2 List Box

This box appears only in the opening screen. The box displays an initial list of configurable
items in the menu you selected.

2.1.3 Sub-menu

Note that a right pointer symbol appears to the left of certain fields. This pointer
indicates that you can display a sub-menu from this field. A sub-menu contains additional

options for a field parameter. To display a sub-menu, move the highlight to the field and
press <Enter>. The sub-menu appears. Use the legend keys to enter values and move
from field to field within a sub-menu as you would within a menu. Use the <Esc> key to
return to the main menu.

Take some time to familiarize yourself with the legend keys and their corresponding
functions. Practice navigating through the various menus and submenus. If you
accidentally make unwanted changes to any of the fields, press <F9> to load the optimal
default values. While moving around through the Setup program, note that explanations
appear in the Item Specific Help window located to the right of each menu. This window
displays the help text for the currently highlighted field.

30

User’s Manual

31

2.2 BIOS Menu Screen

When you enter the BIOS, the following screen appears. The BIOS menu screen displays
the items that allow you to make changes to the system configuration. To access the menu
items, press the up/down/right/left arrow key on the keyboard until the desired item is
highlighted, then press [Enter] to open the specific menu.

ENX-PNV

ENX-PNV

2.2.1 Main

Use this menu for basic system configurations, such as time, date etc.

2.2.1.1 System Time

The time format is <Hour> <Minute> <Second>.

2.2.1.2 System Date

The date format is <Day>, <Month> <Date> <Year>.

32

User’s Manual

33

2.2.1.3 Primary IDE Master

While entering Setup, the BIOS automatically detects the presence of SATA devices. There
is a separate sub-menu for each IDE device. Select a device item then press <Enter> to
display the SATA device information.

The BIOS automatically detects the values opposite the dimmed items (Device, Vendor,
Size, LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART monitoring).
These values are not user-configurable. These items show Not Detected if no SATA device
is installed in the system.

 Type [Auto]
Select the type of SATA drive. Setting to Auto allows automatic selection of the appropriate
SATA device type. Select CD/DVD if you are specifically configuring a CD-ROM/DVD-ROM
drive. Select ARMD (ATAPI Removable Media Device) if your device is either a ZIP,
LS-120, or MO drive.
Configuration options: [Not Installed] [Auto] [CD/DVD] [ARMD]

ENX-PNV

ENX-PNV

 LBA/Large Mode [Auto]
Enables or disables the LBA mode. Setting to Auto enables the LBA mode if the device
supports this mode, and if the device was not previously formatted with LBA mode disabled.
Configuration options: [Disabled] [Auto]

 Block (Multi-Sector Transfer) [Auto]
Enables or disables data multi-sectors transfers. When set to Auto, the data transfer from
and to the device occurs multiple sectors at a time if the device supports multi-sector
transfer feature. When set to [Disabled], the data transfer from and to the device occurs
one sector at a time.
Configuration options: [Disabled] [Auto]

 PIO Mode [Auto]
Select the PIO mode. Configuration options: [Auto] [0] [1] [2] [3] [4]

 DMA Mode [Auto]
Select the DMA mode. Configuration options: [Auto] [SWDMA0] [SWDMA1] [SWDMA2]
[MWDMA0] [MWDMA1] [MWDMA2] [UDMA0] [UDMA1] [UDMA2] [UDMA3] [UDMA4]
[UDMA5] [UDMA6]. Only [Auto] is showed if no SATA device is installed in the system.

 S.M.A.R.T. [Auto]
Set the Smart Monitoring, Analysis, and Reporting Technology.
Configuration options: [Auto] [Disabled] [Enabled]

 32Bit Data Transfer [Enabled]
Enables or disables 32-bit data transfer.
Configuration options: [Disabled] [Enabled]

34

35

2.2.1.4 IDE Configuration

User’s Manual

 ATA/IDE Configuration [Enhanced]
Allows you to set SATA Configuration function.
Configuration options: [Compatible] [Enhanced]

 Configure SATA as [IDE]
Allows you to set SATA as function[IDE] or [AHCI]

ENX-PNV

ENX-PNV

2.2.1.5 AHCI Setting

 AHCI Port0 & Port1
SATA AHCI functions for setting are [Auto] [Not Detected] further function settings after
SATA devices detected are:
AHCI Port0 [Disabled] [Enabled]
AHCI Port1 [Disabled] [Enabled]

36

User’s Manual

37

2.2.1.6 System Information

This menu gives you an overview of the general system specifications. The BIOS
automatically detects the items in this menu.

 AMI BIOS
Display the auto-detected BIOS information.

 Processor
Display the auto-detected CPU specification.

 System Memory
Display the auto-detected system memory.

ENX-PNV

ENX-PNV

Take caution when changing the settings of the Advanced menu
items. Incorrect field values can cause the system to malfunction.

2.2.2 Advanced

The Advanced menu items allow you to change the settings for the CPU and other system
devices.

38

User’s Manual

39

It is recommended that you leave it at the default setting of Disabled.
Only enable it if you intend to use Hyper-Threading Technology with
an operating system that supports it.

2.2.2.1 CPU Configuration

The items in this menu allow you to change the CPU-related features. Select an item then
press <Enter> to display the configuration options.

 Max CPUID Value Limit [Disabled]
Setting this item to [Enabled] allows legacy operating systems to boot even without support
for CPUs with extended CPUID functions. Configuration options are: [Disabled] [Enabled].

 Execute Disable Bit [Enabled]
Allows you to enable or disable the No-Execution Page Protection Technology. Setting this
item to [Disabled] forces the XD feature flag to always return to zero (0).
Configuration options: [Disabled] [Enabled].

 Hyper-Threading Technology [Enabled]
Allows you to enable or disable Intel Hyper-threading technology (HTT) to improve parallel
intstruction execution. HTT requires only that the operating system supports multiple
processors.

ENX-PNV

ENX-PNV

It is recommended that you leave it at the default setting of Auto. Only
Atom D510 CPU supports 800MHz DDR2 SO-DIMM

2.2.2.2 Chipset

The items in this menu allow you to change the Chipset-related features. Select North
Bridge Configuration and press <Enter> for further configuration options.

 DRAM Frequency [Auto]
Allows you to set DRAM frequency , Configuration options: [Auto] [667MHz] [800MHz]

 Configure DRAM Timing by SPD [Enable]
Allows you to set DRAM timing , Configuration options: [Enable] [Disable]

40

41

 Video Function Configuration

User’s Manual

- DVMT Mode Select

Dynamic Video Memory Technology (DVMT), for use as video memory to ensure the most
efficient use of available resources for maximum 2D/3D graphics performance
Configuration options: [Fixed Mode] [DVMT Mode].

- DVMT/FIXED Memory, Configuration options: [128MB] [258MB] [Maximum DTMT].

- Boot Display Device Configuration options: [VBIOS-Default] [CRT] [LVDS] [CRT+LVDS].

- Flat Panel Type , Set for panel resolution , Configuration options:

Type 1 640x480
Type 2 800x600
Type 3 1024x768
Type 4 1280x768
Type 5 1280x800
Type 6 1280x600

- Spread Spectrum Clock ,

Set for panel resolution , Configuration options: [Disable] [Enabled]

ENX-PNV

ENX-PNV

2.2.2.3 Onboard Device Configuration

 SMBUS Controller The options: [Enabled], [Disabled]

 HDA Controller The options: [Enabled], [Disabled]

 Onboard Rtl8111 LAN The options: [Enabled], [Disabled]

 Onboard LAN Boot The options: [Enabled], [Disabled]

 Mini PciE Port The options: [Enabled], [Disabled]

 Serial Port1 Address [3F8/IRQ4]

Allow you to select the Serial Port1 base address.
Configuration options: [Disabled] [3F8/IRQ4] [3E8/IRQ4] [2E8/IRQ3].

 Serial Port2 Address [2F8/IRQ3]
Allow you to select the Serial Port1 base address.
Configuration options: [Disabled] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3].

42

User’s Manual

43

The Module Version and USB Devices Enabled items show the
auto-detected values. If no USB device is detected, the item shows
None.

2.2.2.4 USB Configuration

The items in this menu allow you to change the USB-related features. Select an item then
press <Enter> to display the configuration options.

 USB Devices Enabled

 Legacy USB Support [Enabled]

Allows you to enable or disable support for USB devices on legacy operating systems (OS).
Setting to Auto allows the system to detect the presence of USB devices at startup. If
detected, the USB controller legacy mode is enabled. If no USB device is detected, the
legacy USB support is disabled. Configuration options: [Disabled] [Enabled] [Auto]

 BIOS EHCI Hand-Off [Enabled]
Allows you to enable support for operating systems without an EHCI hands off feature.
Configuration options: [Disabled] [Enabled].

ENX-PNV

ENX-PNV

The following items show when you set TCG/TPM SUPPORT option
to [YES].

2.2.2.5 Trusted Computing (Optional)

The items in this menu allow you to set the TPM (Trusted Platform Module) features. Select
an item then press <Enter> to display the configuration options.

 TCG/TPM SUPPORT [YES]
Allows you to enable or disable TCG/TPM 1.2 support in BIOS.
Configuration options: [No] [Yes].

44

User’s Manual

45

Take caution when changing the settings of the PCI PnP menu items.
Incorrect field values can cause the system to malfunction.

2.2.2.6 PCI PnP

The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices.
The menu includes setting IRQ and DMA channel resources for either PCI/PnP or legacy
ISA devices, and setting the memory size block for legacy ISA devices.

 Clear NVRAM [No]
This item is to clear NVRAM during system boot. Configuration options: [No] [Yes].

 Plug and Play O/S [No]
When set to [No], BIOS configures all the devices in the system. When set to [Yes] and if
you install a Plug and Play operating system, the operating system configures the Plug and
Play devices not required for boot. Configuration options: [No] [Yes]

 PCI Latency Timer [64]
Allow the PCI Latency Timer to be adjusted. This option sets the latency of all PCI devices
on the PCI bus. Configuration options: [32] [64] [96] [128] [160] [192] [224] [248]

ENX-PNV

ENX-PNV

Option

Description

Disabled

This is the default setting and should not be changed unless the VGA card
manufacturer requires Palette Snooping to be Enabled.

Enabled

This setting informs the PCI devices that an ISA based Graphics device is
installed in the system. It does this so the ISA based Graphics card will function
correctly. This does not necessarily indicate a physical ISA adapter card. The
graphics chipset can be mounted on a PCI card. Always check with your adapter
card’s manual first, before modifying the default settings in the BIOS.

Interrupt

Option

Description

IRQ3
IRQ4
IRQ5
IRQ7
IRQ9
IRQ10
IRQ11
IRQ14
IRQ15

Available

This setting allows the specified IRQ to be used by a PCI/PnP
device. This is the default setting.

Reserved

This setting allows the specified IRQ to be used by a legacy ISA
device.

 Allocate IRQ to PCI VGA [Yes]
Set this value to allow or restrict the system from giving the VGA adapter card an interrupt
address. Configuration options: [No] [Yes]

 Palette Snooping [Disabled]
Set this value to allow or restrict the system from giving the VGA adapter card an interrupt
address. Configuration options: [Disabled] [Enabled]

 PCI IDE BusMaster [Disabled]
Set this value to allow or prevent the use of PCI IDE bus-mastering. Configuration options:
[Disabled] [Enabled]

 IRQ [Available]
Set this value to allow the IRQ settings to be modified.

46

47

DMA Channel

Option

Description

DMA Channel 0
DMA Channel 1
DMA Channel 3
DMA Channel 5
DMA Channel 6
DMA Channel 7

Available

This setting allows the specified DMA to be used by PCI/PnP
device. This is the default setting.

Reserved

This setting allows the specified DMA to be used by a legacy
ISA device.

 DMA [Available]
Set this value to allow the DMA setting to be modified.

 Reserved Memory Size [Disabled]
Configuration options: [Disabled] [16K] [32K] [64K]

User’s Manual

ENX-PNV

ENX-PNV

2.2.3 Power

The Power menu items allows you to change the settings for the Advanced Power
Management (APM). Select an item then press <Enter> to display the configuration
options.

2.2.3.1 Suspend Mode

Allows you to select the Advanced Configuration and Power Interface (ACPI) state to be
used for system suspend.
Configuration options: [S1 (POS)] [S3 (STR)] [Auto].

2.2.3.2 Repost Video on S3 Resume

Determine whether to invoke VGA BIOS post on S3/STR Resume.
Configuration options: [Yes] [No]

2.2.3.3 ACPI Version Features

Allows you to add more tables for advanced Advanced Configuration and Power Interface
(ACPI) 2.0 specifications.
Configuration options: [ACPI V1.0], [ACPI V2.0], [ACPI V3.0].

48

User’s Manual

49

2.2.3.4 ACPI APIC support

Allows you to enable or disable the Advanced Configuration and Power Interface (ACPI)
support in the Application-Specific Integrated Circuit (ASIC). When set to Enabled, the
ACPI APIC table pointer is included in the RSDT pointer list.
Configuration options: [Disabled] [Enabled].

2.2.3.5 Power Management

You can use this screen to select options for the APM settings. Use the up and down
<Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of
the selected option. The settings are described on the following pages. The screen is
shown below.

 Power Button Mode [On/Off]
The option: [On/Off] [Suspend].

 Resume On Ring
The option: [Disabled] [Enabled].

ENX-PNV

ENX-PNV

 Resume On RTC Alarm
When [Enabled], you can set the date and time at which the RTC (real-time clock) alarm
awakens the system from suspend mode.

 PS/2 Keyboard WakeUP
The option: [Disabled] [Enabled].

 PS/2 Mouse WakeUP
The option: [Disabled] [Enabled].

 Restore on AC Power Loss [Off]
When set to [Off], the system goes into off state after an AC power loss. When set to [On],
the system goes on after an AC power loss.
Configuration options: [Off] [On] [Previous State].

 Watchdog Timer (SECOND)
Allows you to set time-out of the Watchdog counter.

50

51

2.2.3.6 Hardware Health Configuration

You can use this screen for the Hardware Health status. See below.

User’s Manual

 CPU Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU temperature.

 CHASIS Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the Chassis
temperature.

 CPU Fan Speed [xxxxRPM]
The onboard hardware monitor automatically detects and displays the CPU fan speed in
rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows
N/A.

 +12VIN / +5VIN / Vcore / VCC / VBAT [xxxx Voltage]
The onboard hardware monitor automatically detects the voltage output through the
onboard voltage regulators.

ENX-PNV

ENX-PNV

 CPU FAN Profile Mode

Allows you to select the CPU FAN profile mode. The options:
[Disabled]
[Optimal Mode]：Keeps a balance between CPU temperature and fan speed.
[Silent Mode] ：Keeps the system at a lower acoustic than Optimized mode with lower fan
speed.
[Performance Mode]：Keeps the CPU at a lower temperature than Optimized mode with

faster fan speed.

52

User’s Manual

53

2.2.4 Boot

The Boot menu items allow you to change the system boot options. Select an item then
press <Enter> to display the sub-menu.

ENX-PNV

ENX-PNV

If you forget your BIOS password, you can clear it by erasing the
CMOS Real Time Clock (RTC) RAM.

2.2.4.1 Security Settings

The Security menu items allow you to change the system security settings. Select an item
then press <Enter> to display the configuration options.

 Supervisor/User Password
The Supervisor/User Password item on top of the screen shows the default Not Installed.
After you set a password, this item shows Installed.

 Change Supervisor/User Password
(1) Select the Change Supervisor/User Password item and press <Enter>
(2) From the password box, type a password composed of at least six letters and/or

number, the press <Enter>.

(3) Confirm the password when prompted.
The message “Password Installed” appears after you successfully set your password.
To clear the supervisor/user password, select the change Supervisor/User Password then
press <Enter>. The message “Password Uninstalled” appears.
After you have set a supervisor password, the other items appear to allow you to change
other security settings.

54

55

2.2.4.2 Boot Setting Configuration

User’s Manual

 Quick Boot [Enabled]
Enabling this item allows the BIOS to skip some Power On Self Tests (POST) while booting
to decrease the time needed to boot the system. When set to [Disabled], BIOS performs all
the POST items.
Configuration options: [Disabled] [Enabled]

 Quiet Boot
Allows you to display Normal POST message or OEM logo.
The options: [Disabled], [Enabled]

 AddOn ROM Display Mode [Force BIOS]
Set the display mode for ROM option.
Configuration options: [Force BIOS] [Keep Current]

 Bootup Num-Lock [On]
Allows you to select the power-on state for the NumLock.
Configuration options: [Off] [On]

ENX-PNV

ENX-PNV

Press <ESC> does not immediately exit this menu. Select on of the
options from this menu or <F10> from the legend bar to exit.

 Wait for ‘F1’ If Error [Enabled]
When set to Enabled, the system waits for the F1 key to be pressed when error occurs.
Configuration options: [Disabled] [Enabled].

2.2.5 Exit

The Exit menu items allow you to load the optimal or failsafe default values for the BIOS
items, and save or discard your changes to the BIOS items.

56

User’s Manual

57

2.2.5.1 Save Changes and Exit

Once you are finished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved to the CMOS RAM. An onboard backup battery
sustains the CMOS RAM so it stays on even when the PC is turned off. When you select
this option, a confirmation window appears. Select [OK] to save change and exit.

2.2.5.2 Discard Changes and Exit

Select this option only if you do not want to save the changes that you made to the setup
program. If you made changes to fields other than System Date, System time, and
Password, the BIOS asks for a confirmation before exiting.

ENX-PNV

ENX-PNV

2.2.5.3 Discard Changes

This option allows you to discard the selections you made and restore the previously saved
values. After selecting this option, a confirmation appears. Select [OK] to discard any
changes and load the previously saved values.

2.2.5.4 Load Setup Defaults

This option allows you to load the setup default values for each of the parameters on the
Setup menus. When you select this option or if you press <F5>, a confirmation window
appears. Select [OK] to load optimal default values. Select [Save Change and Exit] or
make other changes before saving the values to the non-volatile RAM.

58
